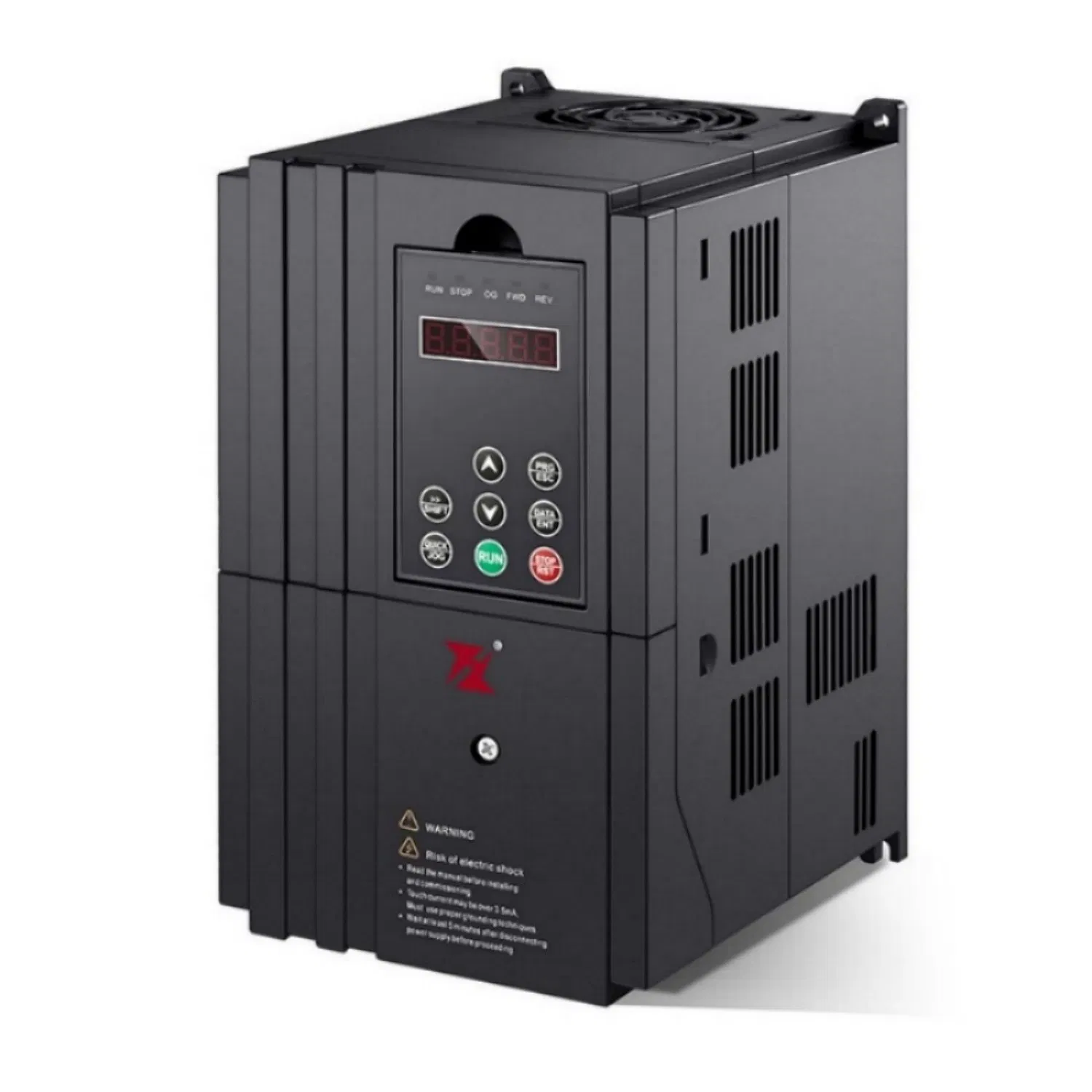

Three Phase 380V MPPT Solar Water Pumping Inverter VFD Solar Pump Controllers for Pump System
Three Phase 380V MPPT Solar Water Pumping Inverter VFD Solar Pump Controllers for Pump System
Three Phase 380V MPPT Solar Water Pumping Inverter VFD Solar Pump Controllers for Pump System
Three Phase 380V MPPT Solar Water Pumping Inverter VFD Solar Pump Controllers for Pump System
Three Phase 380V MPPT Solar Water Pumping Inverter VFD Solar Pump Controllers for Pump System
1 / 5
Three Phase 380V MPPT Solar Water Pumping Inverter VFD Solar Pump Controllers for Pump System
Three Phase 380V MPPT Solar Water Pumping Inverter VFD Solar Pump Controllers for Pump System
Three Phase 380V MPPT Solar Water Pumping Inverter VFD Solar Pump Controllers for Pump System
Three Phase 380V MPPT Solar Water Pumping Inverter VFD Solar Pump Controllers for Pump System
Three Phase 380V MPPT Solar Water Pumping Inverter VFD Solar Pump Controllers for Pump System

Three Phase 380V MPPT Solar Water Pumping Inverter VFD Solar Pump Controllers for Pump System

Customization: Available
Application: High-performance Transducer, Three Phase Transducer
Output Type: Single
Send Inquiry

Product Description

Basic Information
Model NO.
ND330-PV-055G/075P-4
Work Principle
Vector Control Transducer
Switch Mode
PWM Control
Circuit Type
Voltage Type
Power Supply
Low Voltage Variable-Frequency Drive
Nature of DC
Voltage Variable-Frequency Drive
Function
Simple Type, Elevator Special
IGBT
Yes
Voltage
220V-380V
Capacity
200,000/Year
Product Description

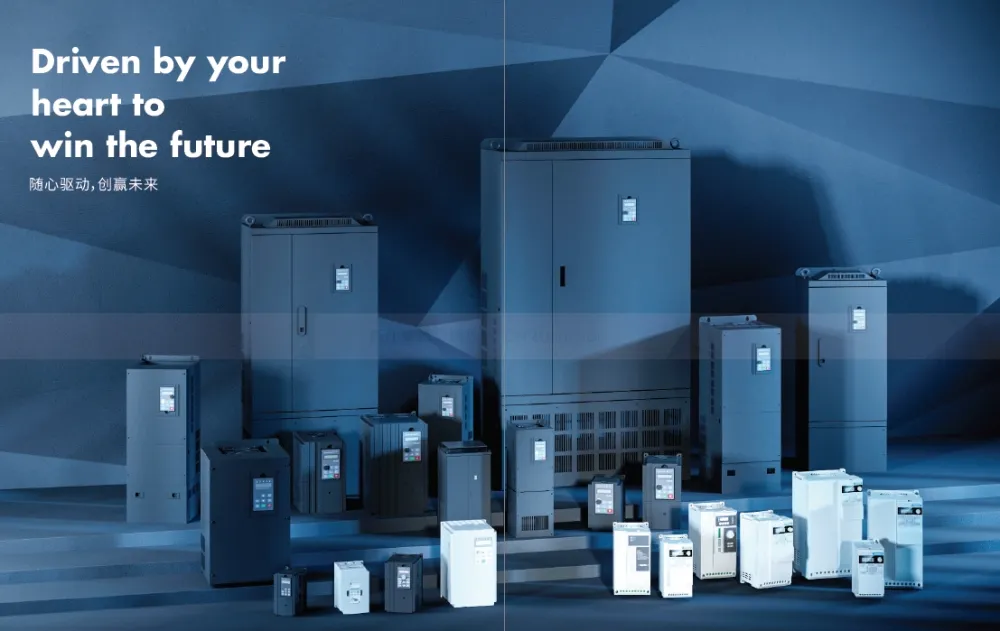

Solar Water Pumping Inverter
The BD330-Pv series products do not require battery modules, and the power supply is directly sourced from the photovoltaic array to realize PID control and MPPT functions. Based on the original protection functions, the product adds functions such as light-weak sleep, light-intensity wake-up, water shortage alarm, and full water shutdown to ensure the normal operation of the water pump.

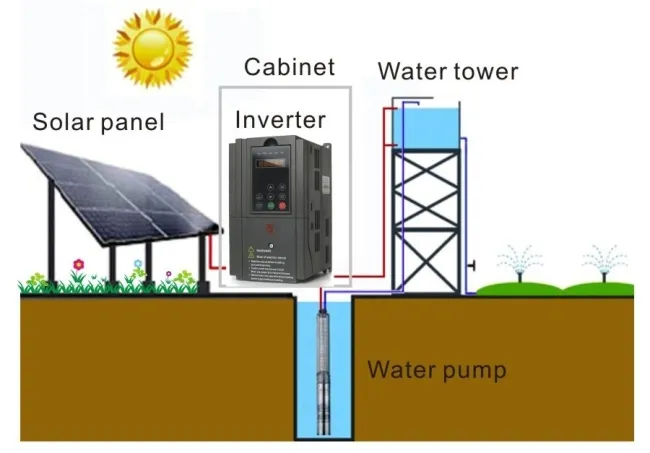

System Diagram
Inverter Features

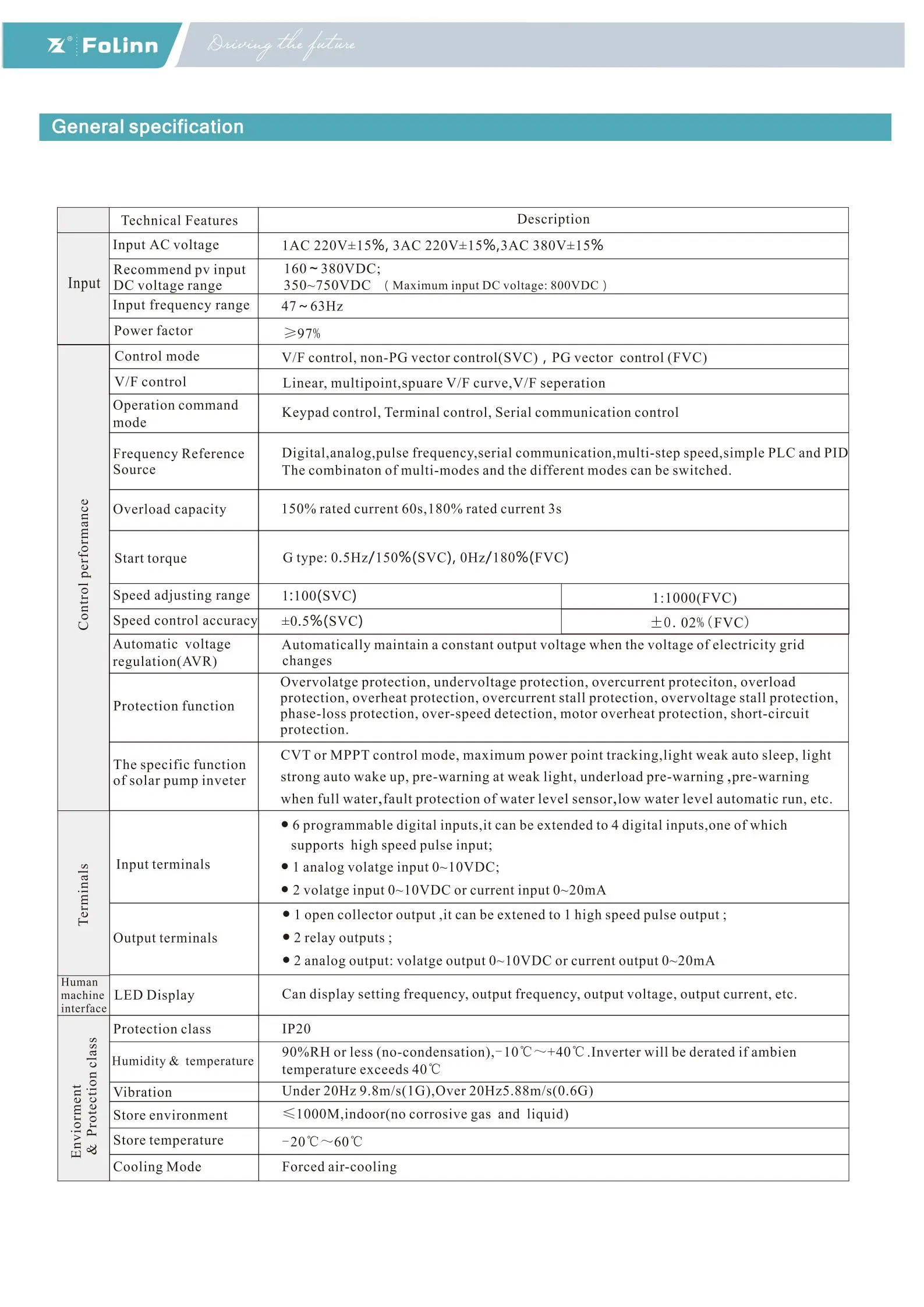

Technical Parameters
Feature Category Technical Features Description
Input Specifications Input AC Voltage 1AC 220V±15%, 3AC 220V±15%, 3AC 380V±15%
PV Input DC Range 160~380VDC; 350~750VDC (Max 800VDC)
Input Frequency 47~63Hz
Control Performance Control Mode V/F control, non-PG vector control (SVC), PG vector control (FVC)
Overload Capacity 150% rated current 60s, 180% rated current 3s
Starting Torque 0.5Hz/150% (SVC), 0Hz/180% (FVC)
Protection Overvoltage, Undervoltage, Overcurrent, Overheat, Phase-loss, Short-circuit
Solar Functions Specific Controls MPPT, Weak light sleep/wake up, Underload pre-warning, Full water shutdown

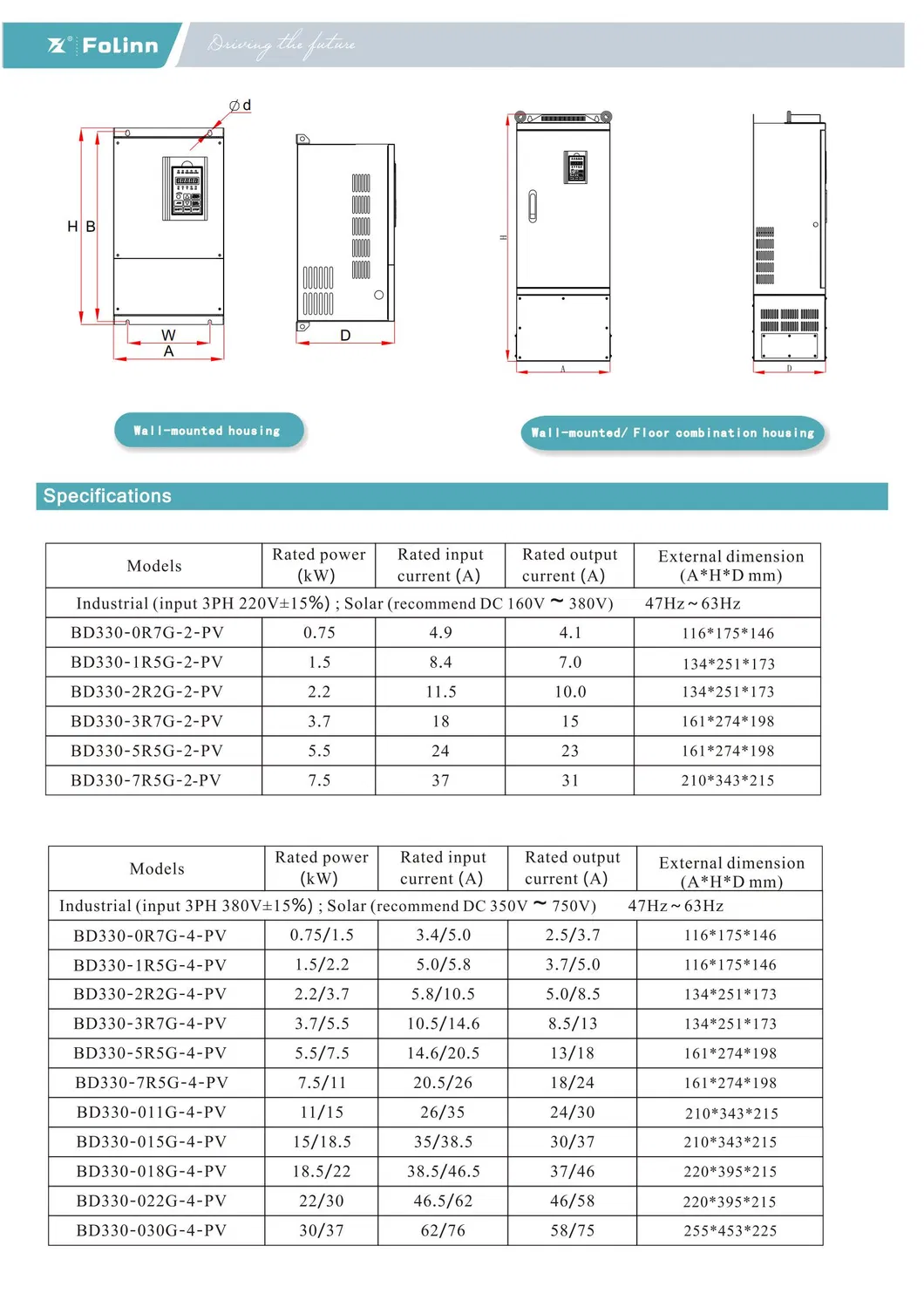

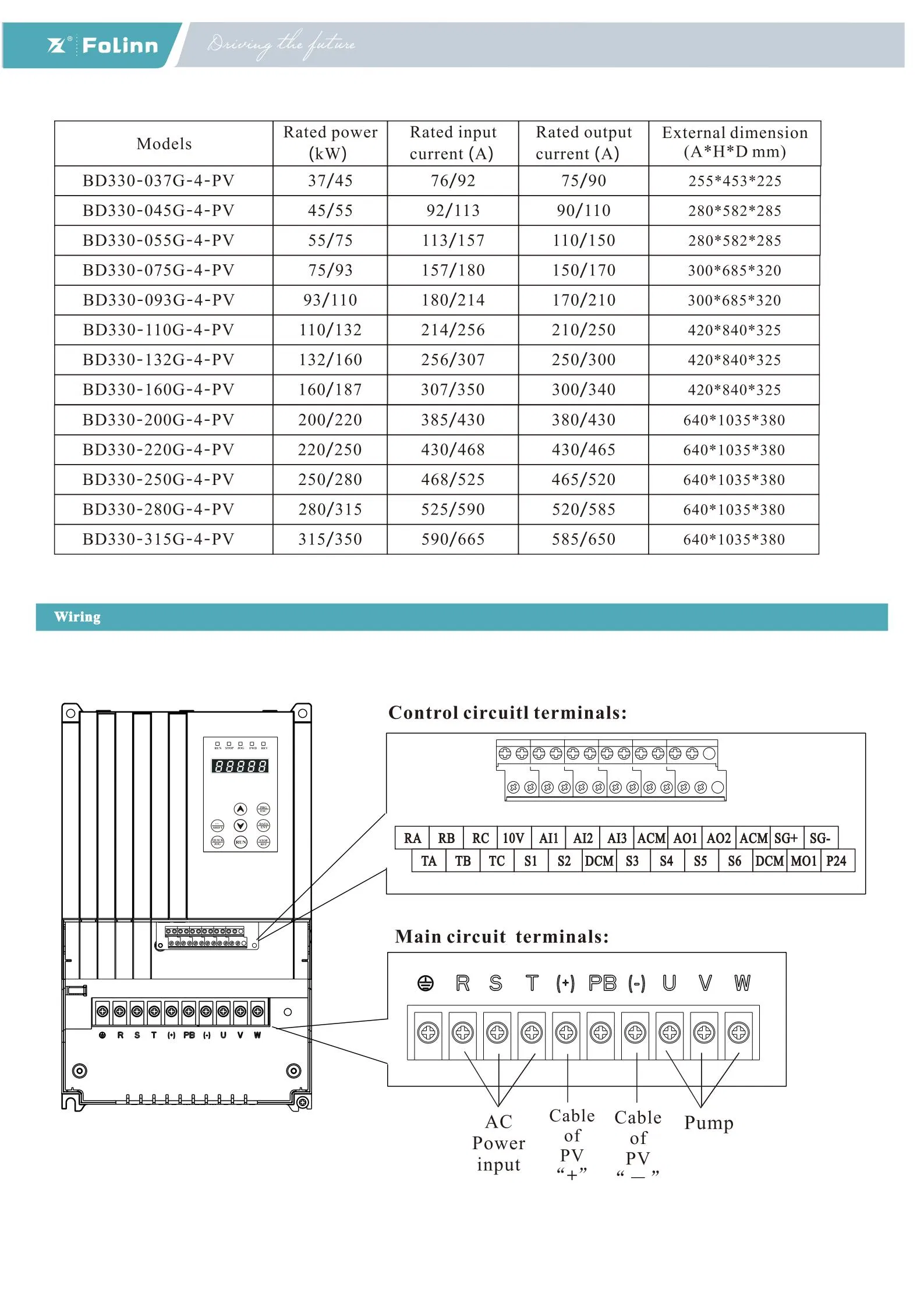

Technical Specs 1

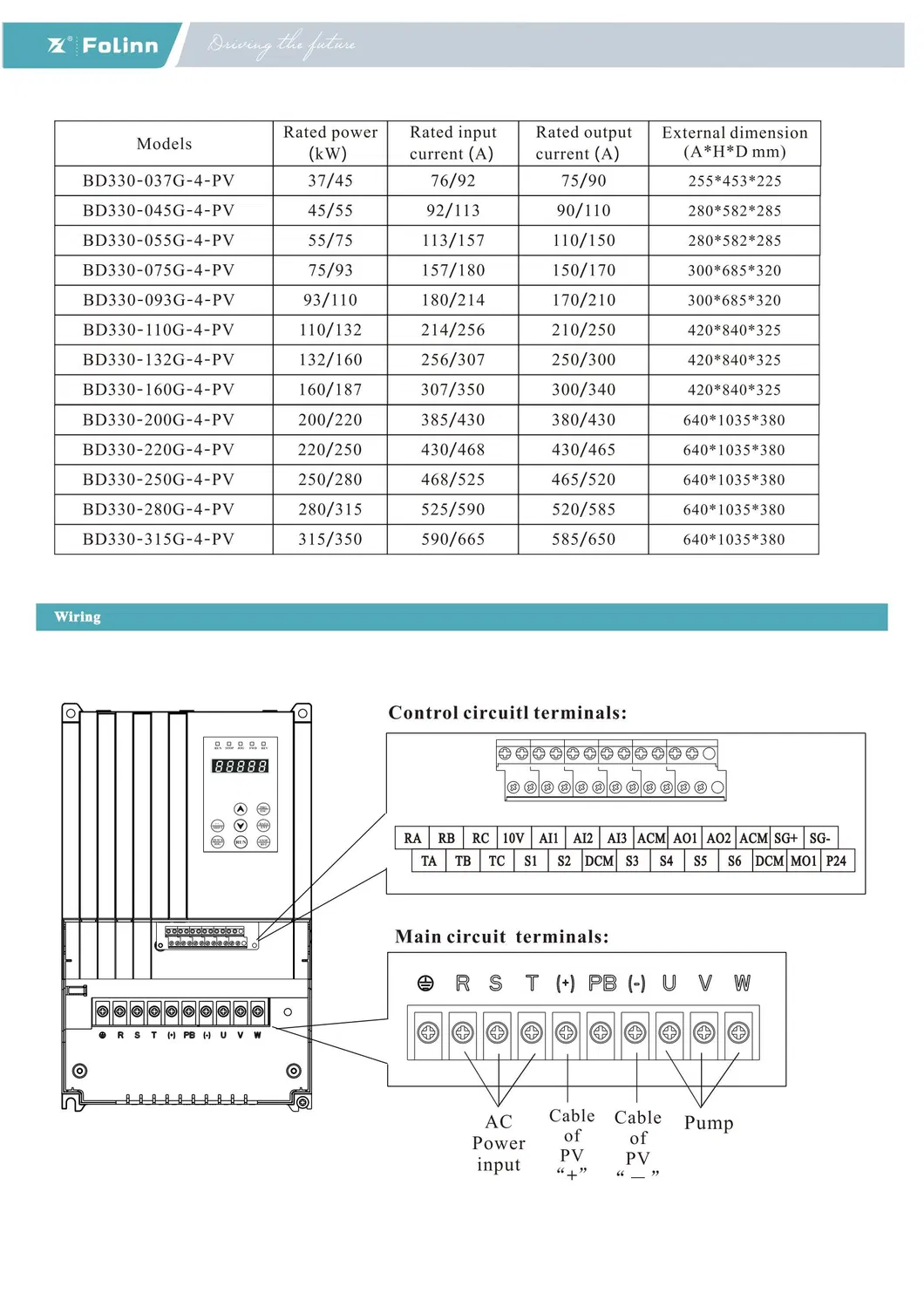

Technical Specs 2
Development History

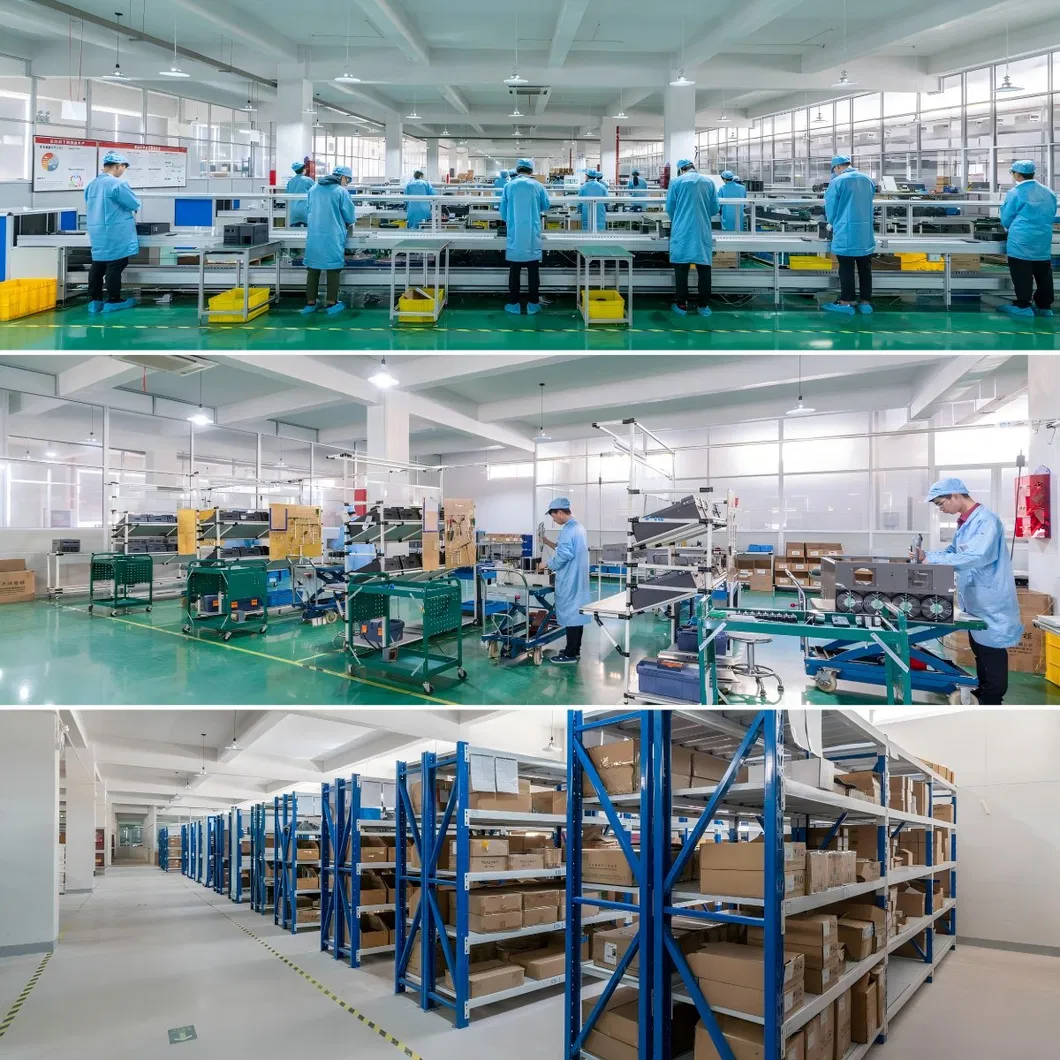

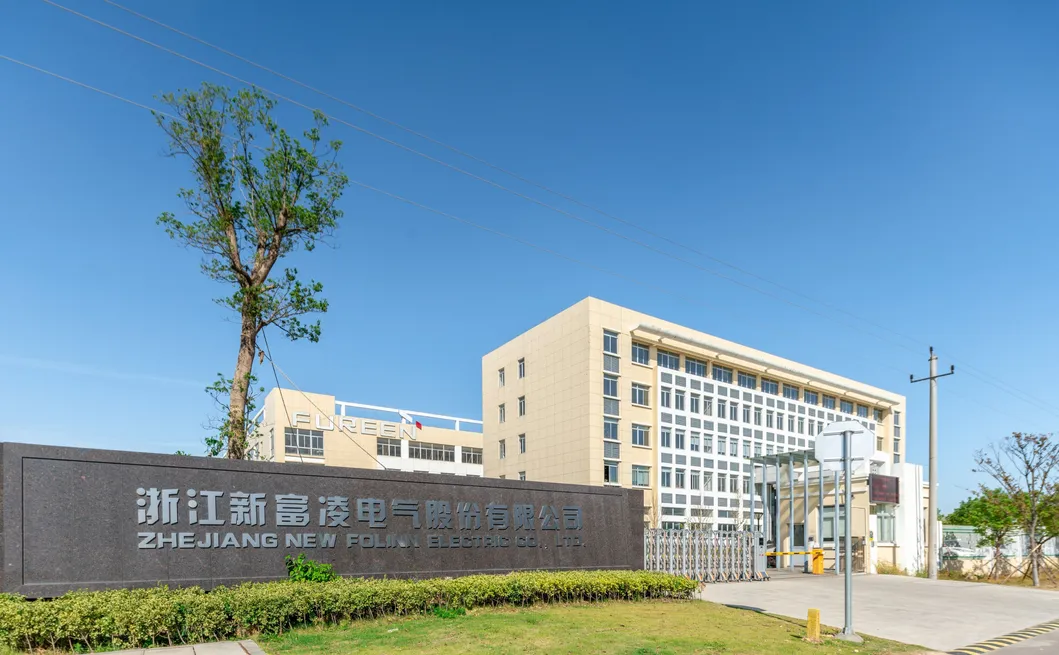

Manufacturing Facility
Founded in 1994, the enterprise is a Hi-Tech Enterprise focusing on R&D, manufacturing, sales and service for motor auto controlling products. Specialized in manufacturing HV(LV) & Low Voltage (LV) inverter, servo drive products, and new energy products.
  • 1994: Initial steps in the motor control industry.
  • 2001: ISO9001 and CE approvals obtained.
  • 2004: Recognized as a Hi-Tech Enterprise.
  • 2007: Elected as council member of CEEIA Inverter Department; honored as Top 10 Brand.
  • 2011: Technology Innovation Special Item approved.
  • 2014: Company expanded and rebranded for global presence.
Certificates
Why Choose Us
Advantages
  • Advanced SVC algorithm for better low-speed stability and stronger low-frequency load capacity.
  • "Excavator" feature automatically limits torque to prevent frequent over-current trips.
  • Dual motor parameter sets allow switching control between two different motors.
  • Built-in braking units (0.75~22KW) for rapid stopping requirements.
  • Supports multiple encoder types including differential, UVW, and resolver.
  • Flexible 16-segment speed automatic cycle switching through built-in PLC.
Frequently Asked Questions
Does this solar inverter require batteries?
No, the BD330-Pv series is designed to work directly with photovoltaic arrays, sourcing power from solar panels to drive the pump without needing battery storage.
What is MPPT and why is it important?
MPPT (Maximum Power Point Tracking) ensures the inverter extracts the maximum possible power from the solar panels under varying sunlight conditions, optimizing water pump efficiency.
How does the auto sleep and wake-up function work?
The inverter automatically enters sleep mode when sunlight is too weak to drive the pump and wakes up when light intensity becomes sufficient, ensuring autonomous operation.
Can it protect the pump from dry running?
Yes, it includes a water shortage alarm and underload pre-warning functions to protect the pump from damage when water levels are too low.
What motor types are compatible with this inverter?
It supports a variety of motor control modes, including V/F control and vector control for asynchronous motors, and is compatible with different PG cards for closed-loop control.
Is it possible to use AC grid power as a backup?
The system supports AC input (220V/380V), allowing for flexible power sourcing from either the solar array or the utility grid when necessary.
