Solar Water Pump Controller for Agriculture

Customization:	Available
Application:	Home
Solarpanel:	Solar Water Pump Submersible

i

Basic Specifications

Model NO.	JC4
Controller	MPPT Controller
Max. Head	88 meters
Main Material	Stainless Steel 304
Warranty	3 Years
Voltage	36V, 48V, 72V
MOQ	1 Set
Work Time (H)	24 Hours
Max. Flow Rate	14.0 M3/Hour
Transport Package	Packed in Carton and Wooden Case
Production Capacity	10000 Units Per Month

✓

Warranty Policy

Solar water pump: 3 years

MPPT controller: 3 years

Solar panels: 25 years

If the controller or motor is damaged within 3 years, we will provide a new replacement. If the impeller is damaged within 3 years, spare impellers will be sent for replacement.

⚙

Product Introduction

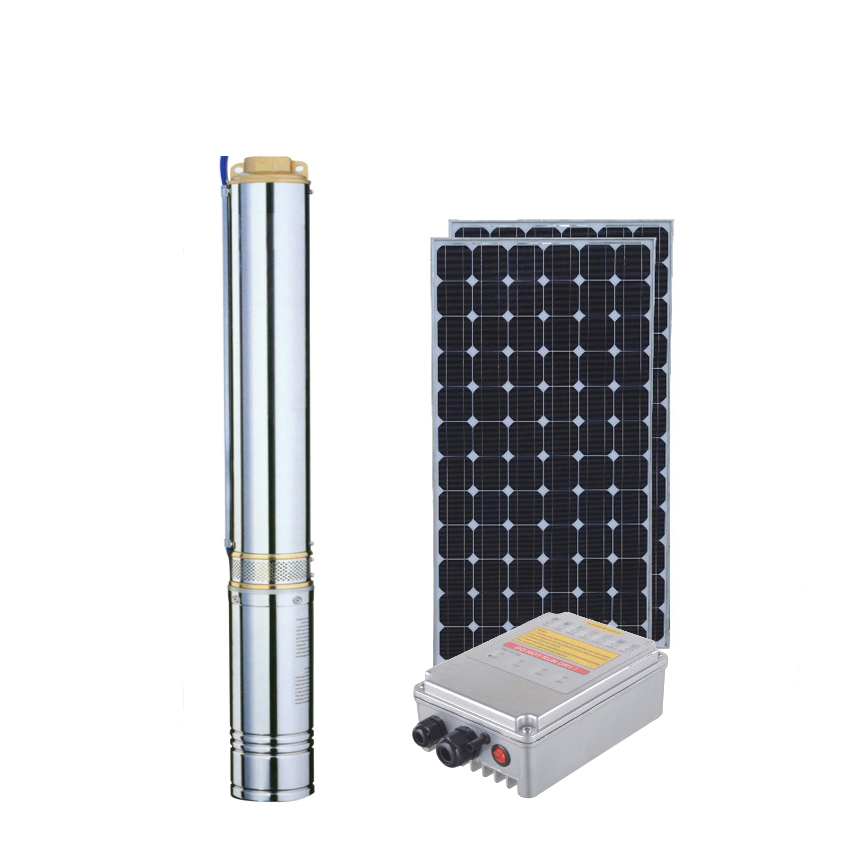

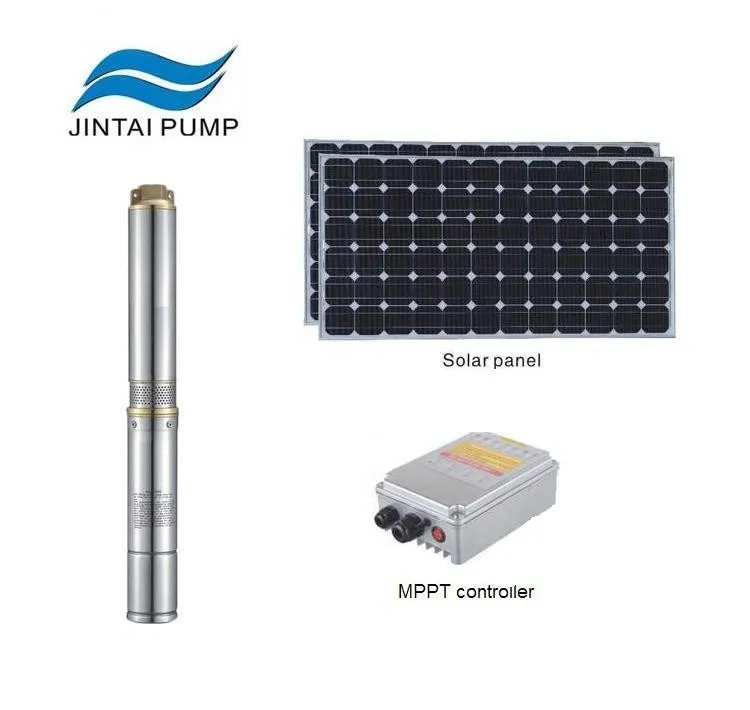

This solar submersible pump system is designed to be immersed into water, connecting the motor directly with the pump. It consists of a submersible pump, motor, MPPT controller, water pipe, cable, and solar panels.

Solar panels convert solar energy into electrical energy, connecting to a dedicated low-voltage solar pump. The system is convenient, practical, and simple. The solar pump runs automatically in the sun and can run continuously via battery or grid electric when there is little sunshine.

★

Product Description

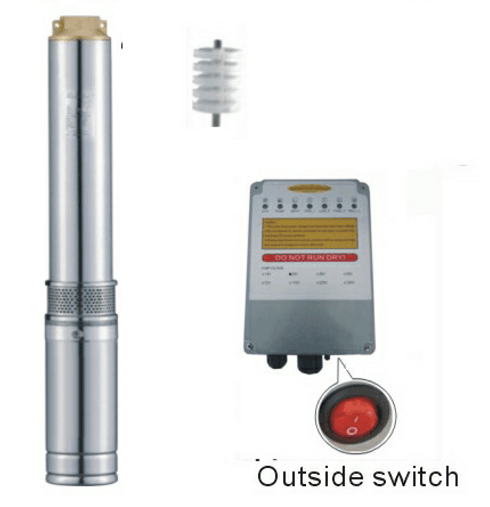

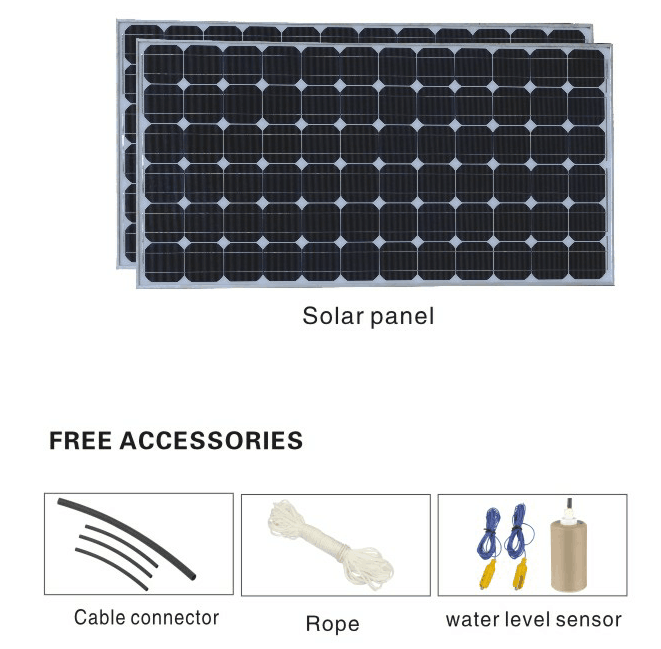

Included in the Finished Package:

Solar pump with 3m cable (longer available)
MPPT Controller
Water level sensor or float switch (10m cable)
Cable for solar panel (6m)
Cable connector
Solar panels (optional)
Rope to hang the pump
Installation Manual

⚡

Advanced Technology & Materials

Innovation

Efficiency is improved by 25% compared to traditional AC machines using permanent magnetism, direct current, brushless, and non-sensor motors.

Double plastic package for rotor and stator; motor insulation ≥300MΩ for enhanced security.

Quality Materials

Outlet: Brass
Pump Body: Stainless Steel
Motor Casing: Stainless Steel
Motor Stator: 100% Copper Wiring
Impeller: Plastic PPO
Bearing: NSK

⚒

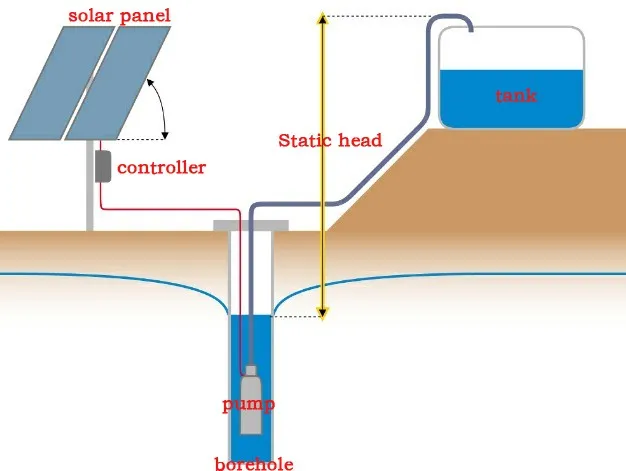

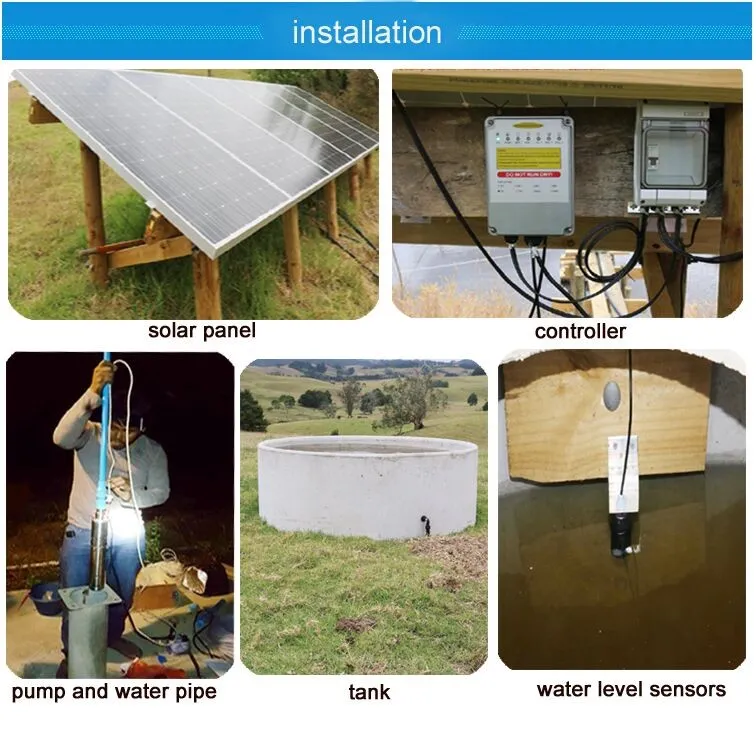

Installation Overview

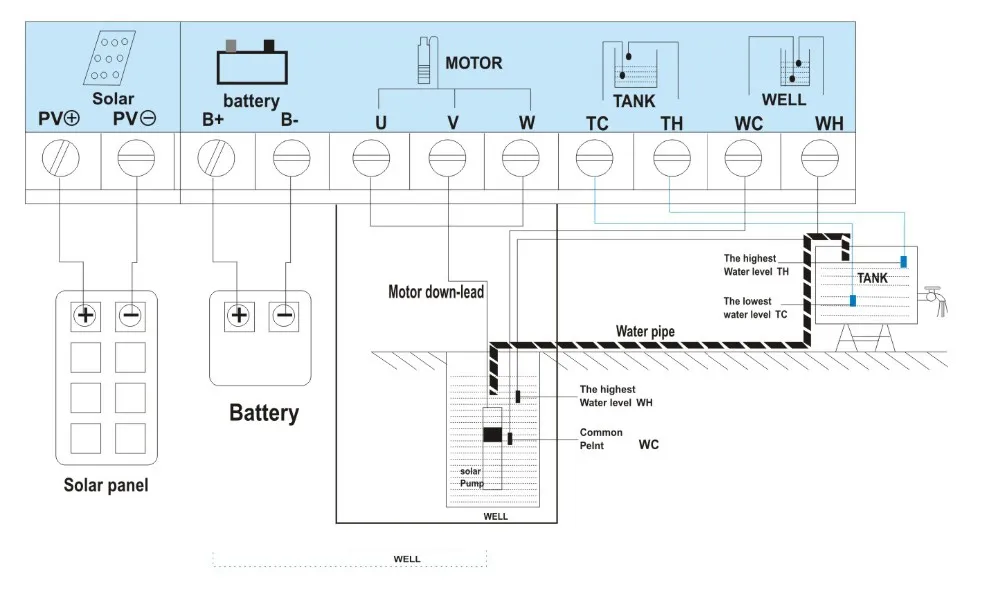

System Configuration with Battery Backup:

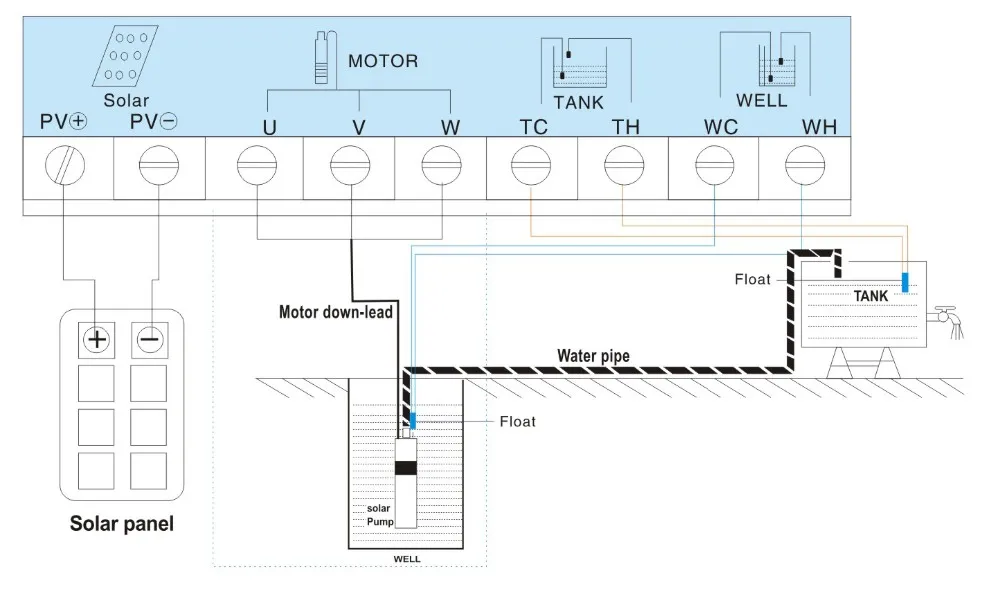

System Configuration without Battery Backup:

📊

Solar Panel & Battery Selection

1. Solar Panel Power = Pump Power X 1.3
2. Solar Panel Voltage = Pump Voltage

3. Battery Use Hours = Capacity ÷ (Power ÷ Voltage) X 0.6
Example: 200W pump, 100AH 12V Battery
100 ÷ (200/12) x 0.6 = 3.6 Hours

📦

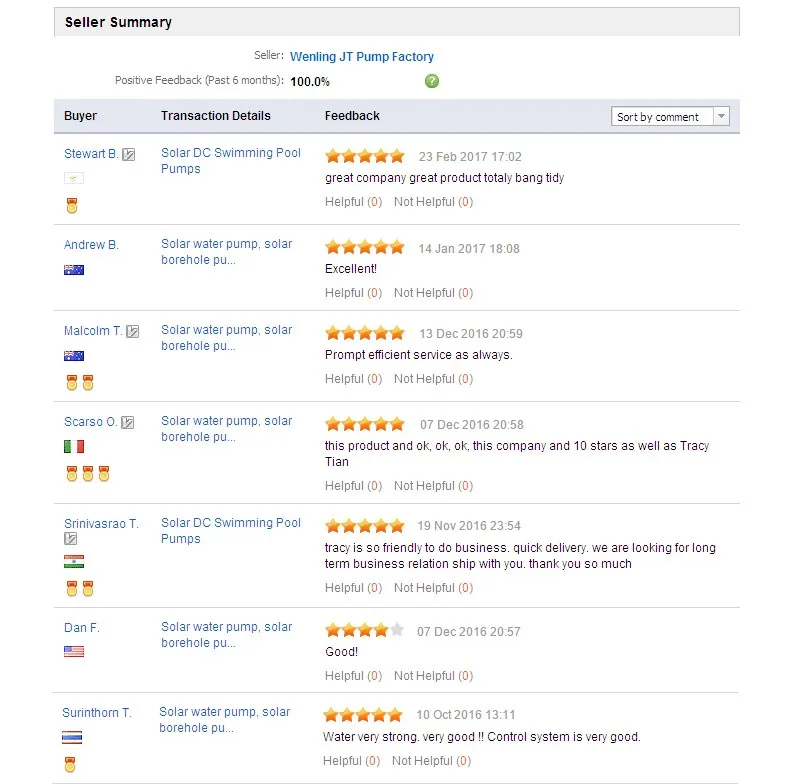

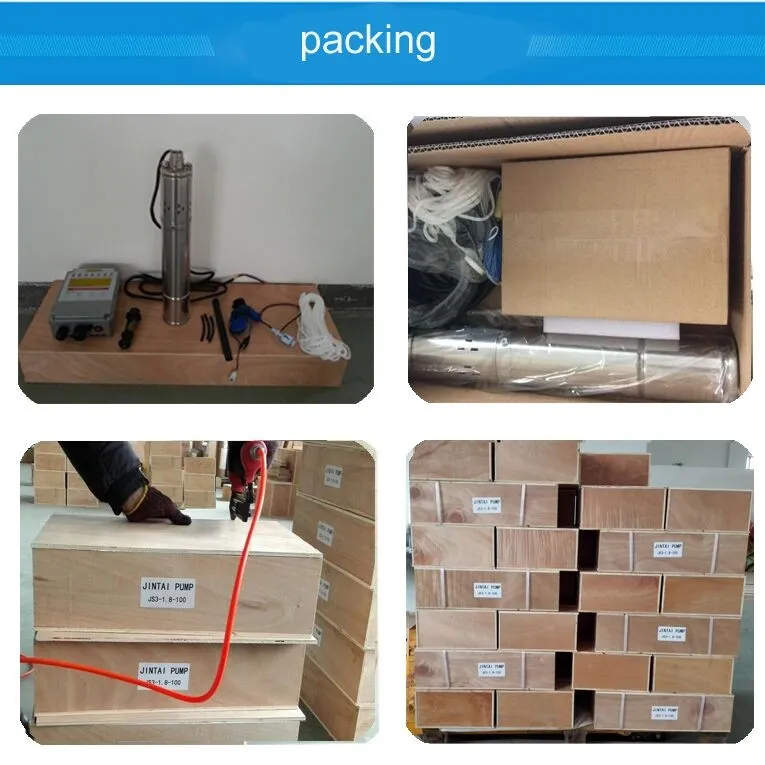

Packing & Feedback

?

Frequently Asked Questions

1. What is the warranty period for this solar water pump?

The solar water pump and MPPT controller both come with a 3-year warranty. The solar panels have a 25-year performance warranty.

2. What happens if a component fails within the warranty period?

If the motor or controller is damaged within 3 years, we provide a new replacement. If the impeller is damaged, we will send spare impellers.

3. Can the pump work during cloudy days or at night?

The pump runs automatically in the sun. For continuous operation during low sunshine or at night, the system can be powered by batteries or grid electricity.

4. How do I determine the number of solar panels needed?

The power of the solar panel should be approximately 1.3 times the power of the pump, and the voltage of the panels must match the pump's voltage requirement.

5. What are the main material advantages of the JC4 model?

It features a 304 stainless steel pump body and motor casing, a brass outlet, 100% copper wiring in the stator, and high-quality NSK bearings for durability.

6. What information is needed to choose the right pump model?

You should provide the type of fluid (clean/dirty water), required daily water supply (m3), static head (vertical height), and the required cable and pipeline lengths.
