FLare Solar
1 / 5

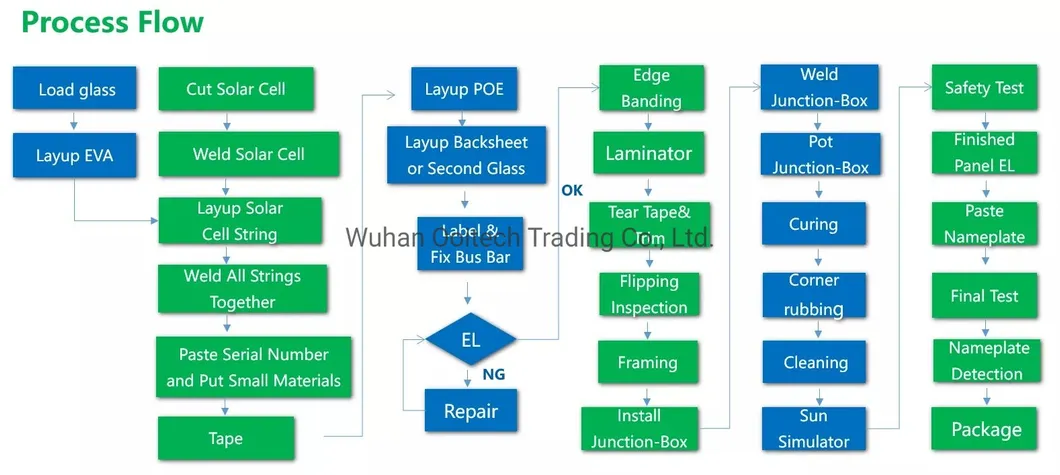

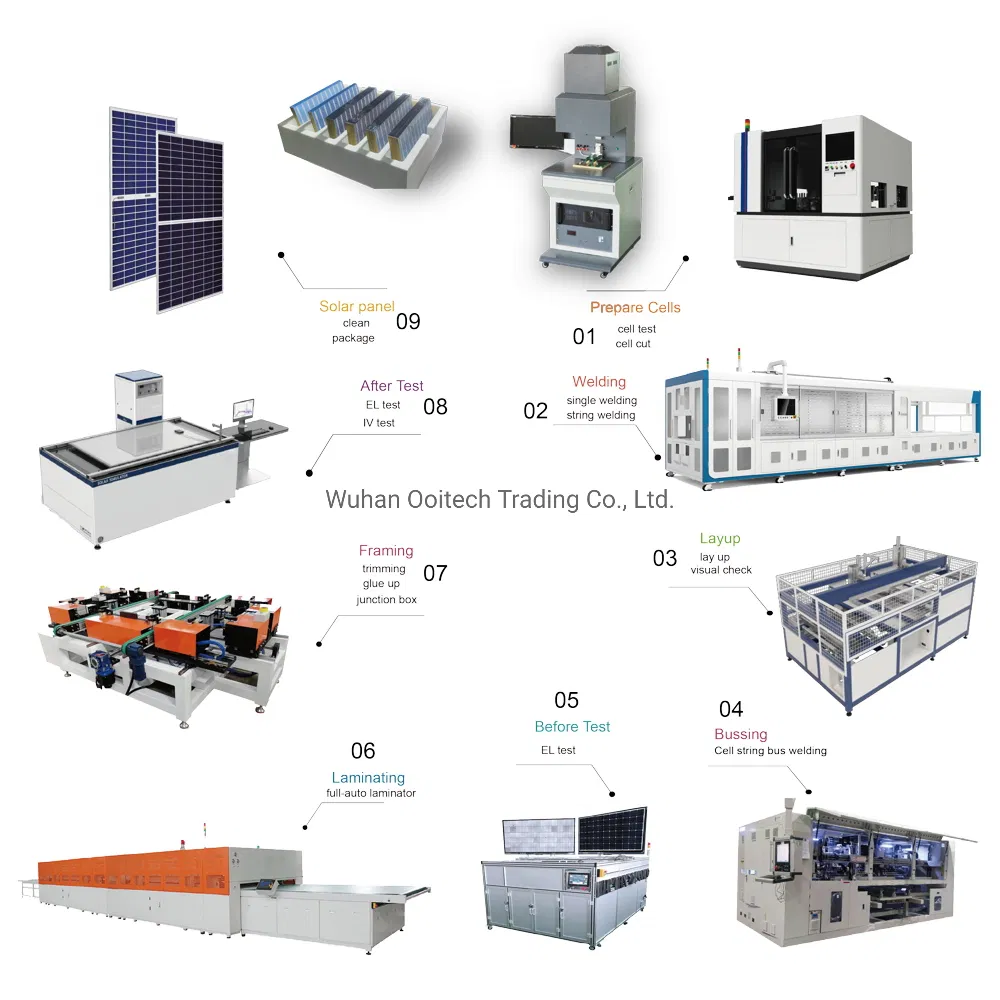

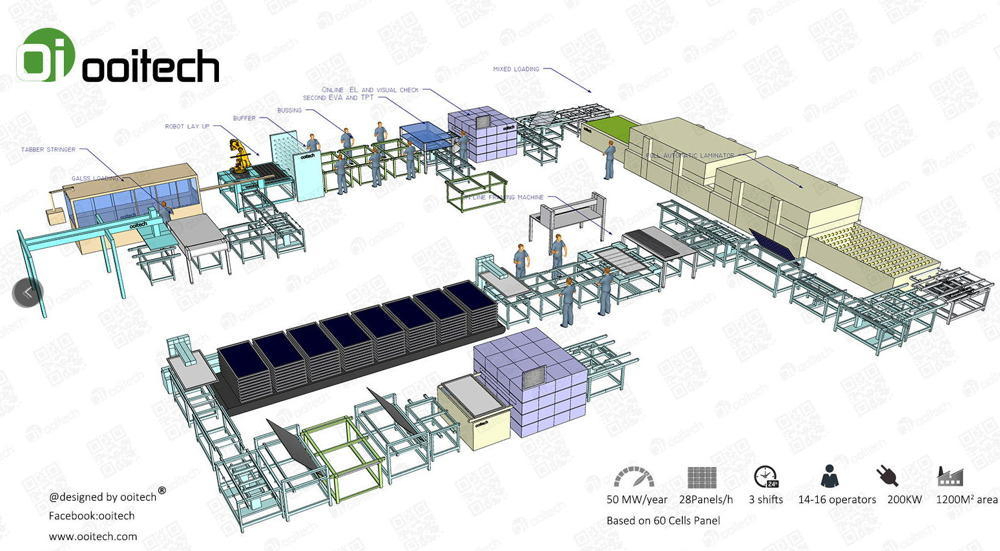

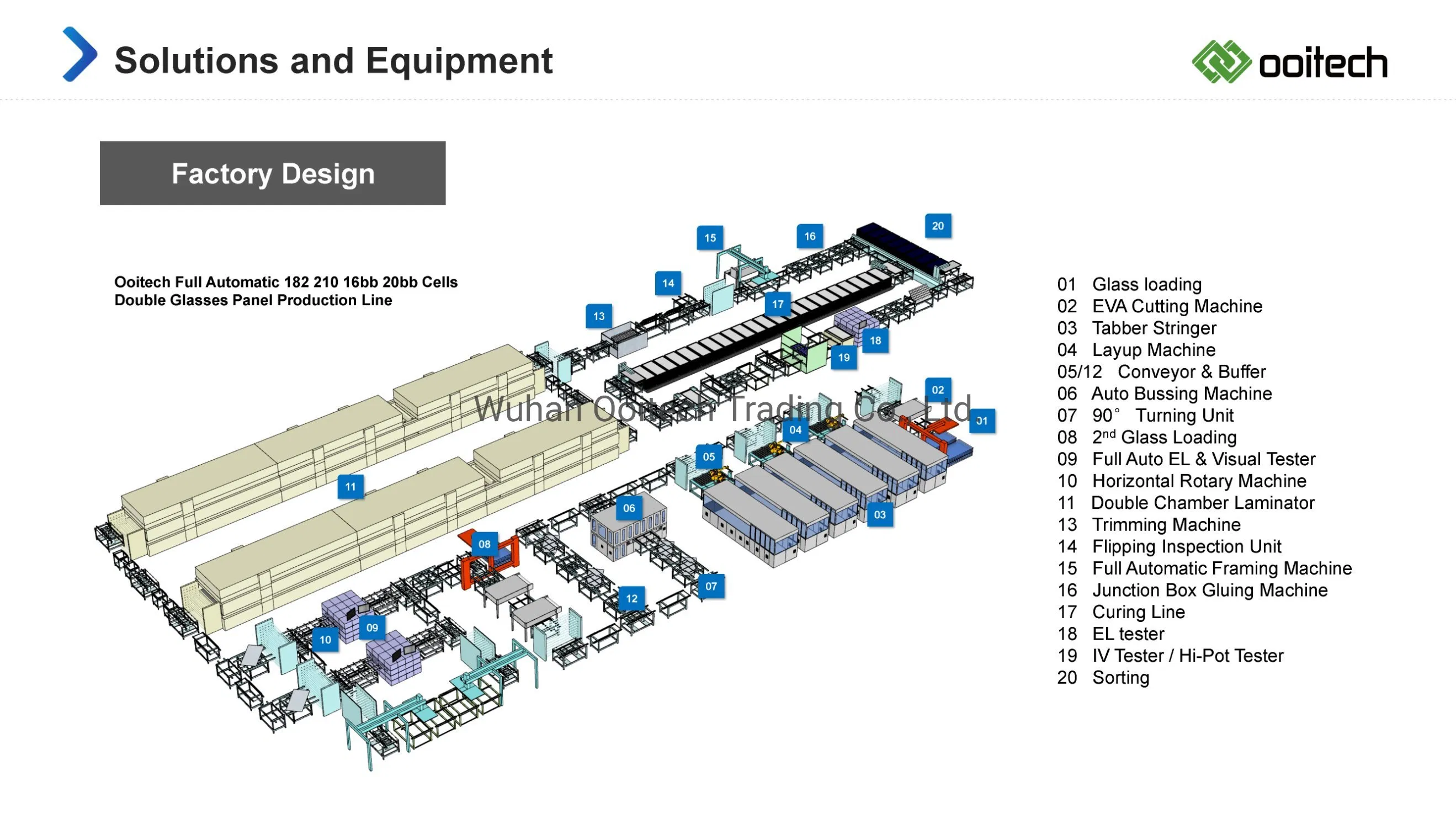

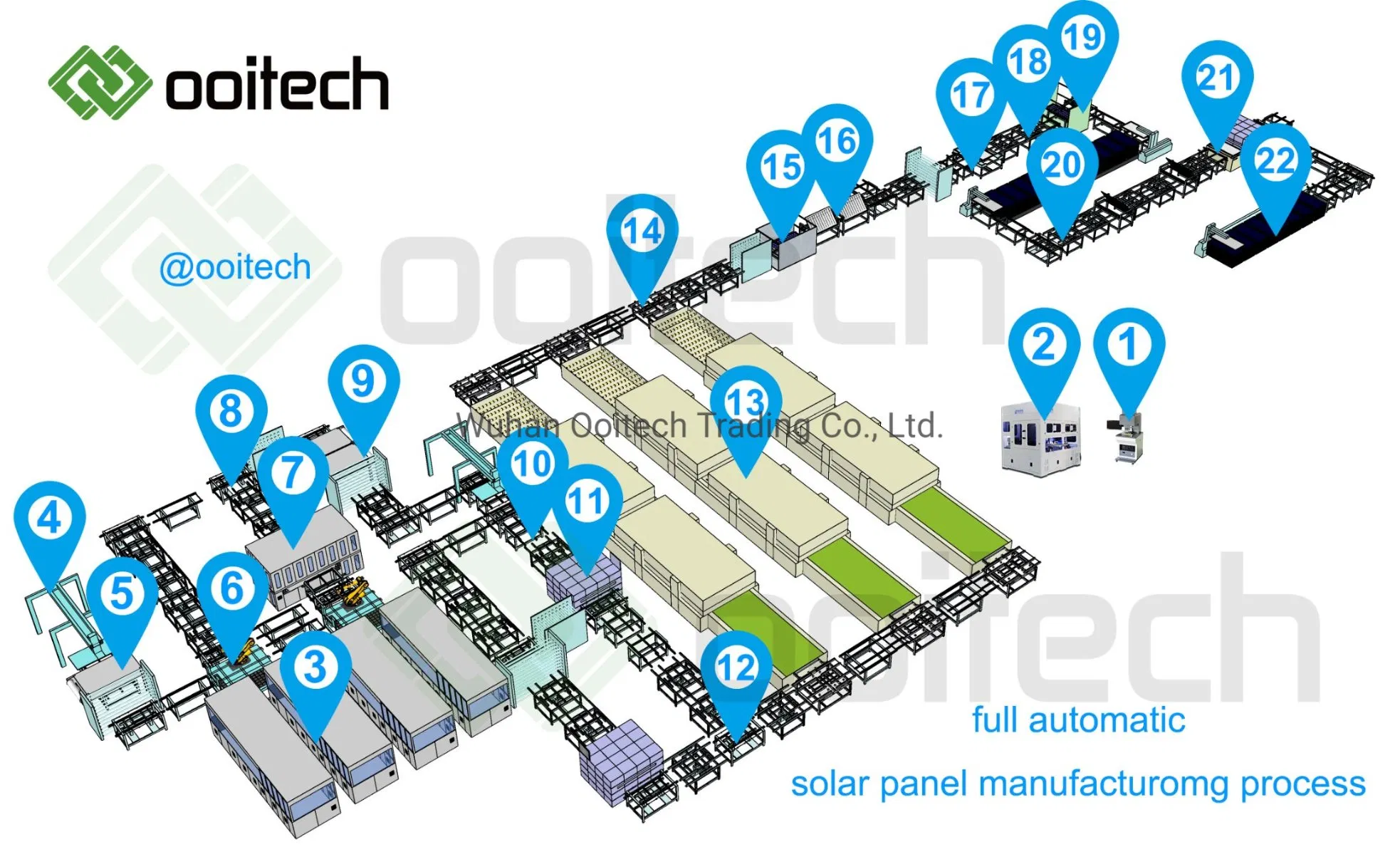

| Step | Device Name | Working Content |
|---|---|---|
| 1 | Solar Cell Tester | Test solar cell efficiency for consistency. |
| 2 | Laser Scribing Machine | Thermal laser separation for 3W-140W panels. |
| 3 | Auto Tabber Stringer | Automatic welding of cells into strings. |
| 4 | Automatic Layup | Laying strings from stringer onto glass. |
| 5 | Cutting Station | EVA/TPT precision cutting. |
| 8 | EL Defect Tester | Micro-crack and breakage detection. |
| 9 | Panel Laminator | High-pressure material fusion. |
| 14 | Solar Simulator | IV characteristic performance recording. |
Advanced thermal laser separation technology used to cut solar cells without causing material damage. Highly precise and capable of handling silicon, glass, and metal.

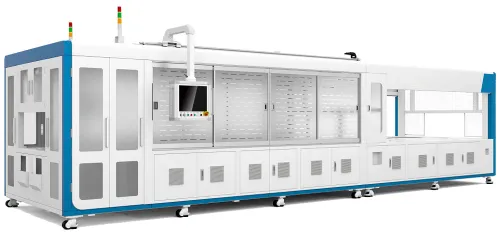

Solders thin metal ribbons to cells to form strings. Essential for ensuring electrical continuity and panel quality.
| Cycle Time | Single string ≤ 5s |
| Arrangement Accuracy | ±0.3mm |
| Applicable Module | 2450*1400mm |
| Compatibility | 60/72 cells, Double glass, Half-cell modules |
| Noise Level | ≤ 60dB |
| HMI | Chinese/English Mode |

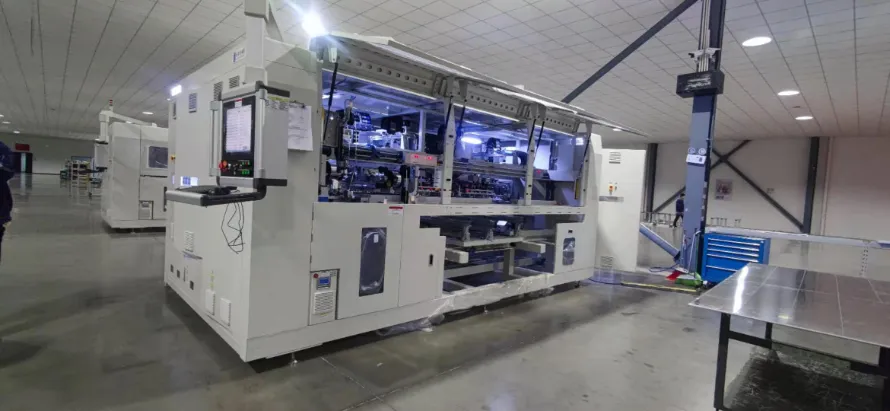

Features roll feeding bus bar and U/L lead bending. Capable of interconnected soldering at a defined height for wire edition modules.

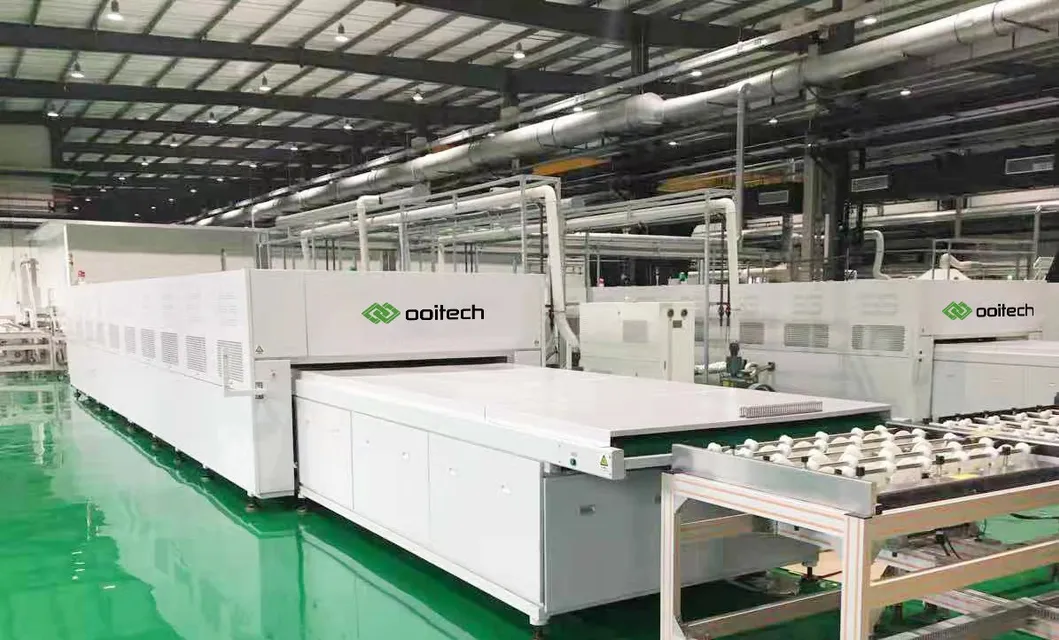

Uses controlled heat and pressure to fuse glass, EVA film, and solar cells. Precision engineering reduces error risk and ensures module durability.
| Performance | Description |
|---|---|
| Testing Cycle | ≤24s |
| Testing Range | Conventional, double-glazed, film-mounted, and halved modules |
| Testing Method | Upward perpendicular projection with four cameras |
| Software Functions | Barcode recognition, MES interfacing, auxiliary diagnosis |

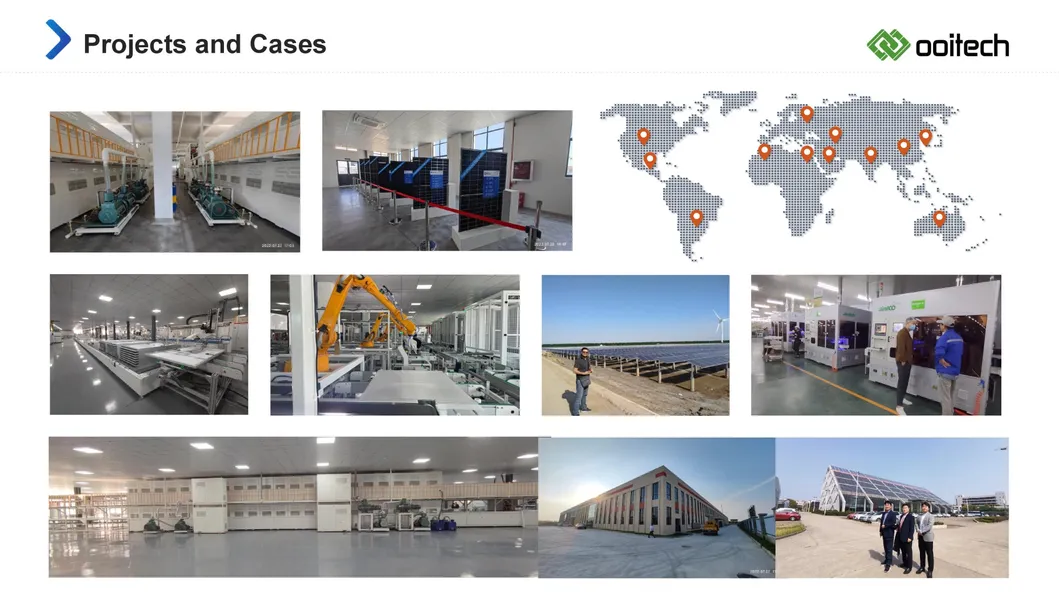

| Region | Project Category |
|---|---|
| India (Pune, Surat, Hyderabad) | Solar Manufacturing Solutions |
| Egypt (Cairo, Suez) | Power Production Lines |
| USA & Mexico | Green Energy Equipment |
| Germany & Russia | Solar Cell Processing |
| Saudi Arabia & Syria | Middle East PV Projects |
