Solar Module Manufacturing Line PV Line Soldering Solar Cells
1 / 1
Solar Module Manufacturing Line PV Line Soldering Solar Cells

Solar Module Manufacturing Line PV Line Soldering Solar Cells

Customization: Available
After-sales Service: Life Time
Warranty: 1 Year
Send Inquiry

Product Description

ℹ

Basic Info

Technical Class:Continuous Wave Laser
Control:Automatic
Power Density:Heat Conduct Welding
Laser Classification:Optical Fiber Laser
Type:Laser Mold Welding Machine
Application:Industrial
Integrated Design:All Part Inside
Vacuum Pump:High Efficiency Vacuum
Smoke-Free Work:Environmental Protection
Certification:CE, ISO
Material:Amorphous Silicon
Speed:3000PCS/Hour
Transport Package:Frame Container
Specification:6000*1450*2100mm
Origin:China
HS Code:848640
Production Capacity:100set/Year
⚙

Product Description

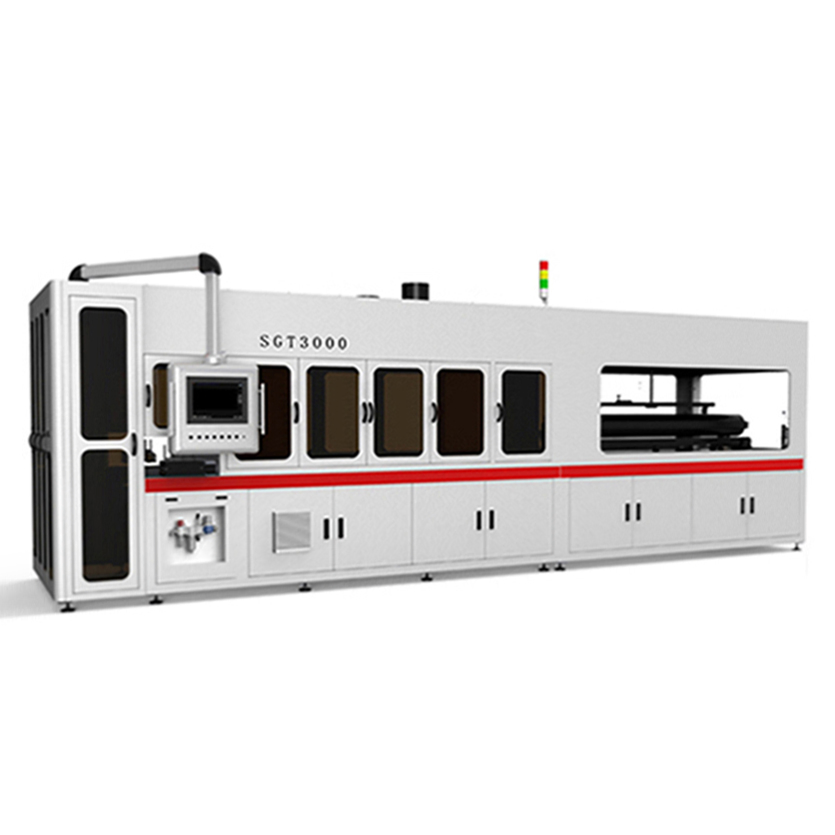

Solar module manufacturing line PV line soldering solar cells

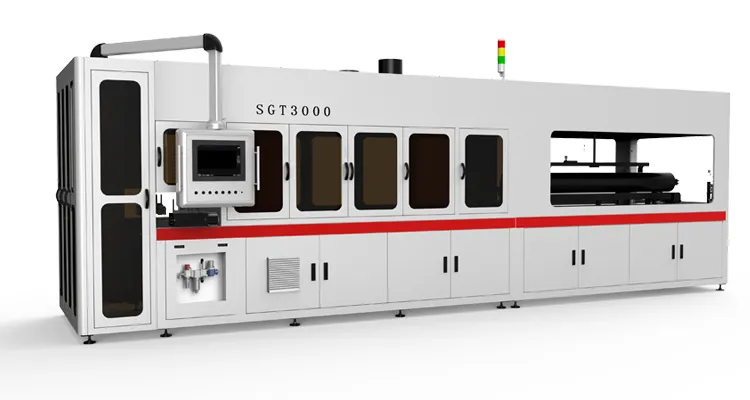

Solar Module Manufacturing Line
📊

Parameters

Welding speed 3000 pcs/h Ribbon specifications Thickness: 0.15-0.3mm
Width: 0.7-2mm
Welding way Infrared welding Breakage ≤0.1%
Cells grid line 2-6BB Power AC380V(3phases, 5lines)/50~60Hz/35KW
Weld band width 1.2mm, 1.6mm, 1.8mm, 2.0mm (optional) Cells per battery 1-12 pcs
Misalignment ≤±0.1mm Battery gauge 156*156mm, 156*78mm
Size 6000*1450*2100mm Net weight 3500 Kg
⭐

Characteristics

CCD visual defect detection and positioning, immersion soldering flux method, and unique flexible pressure holding welding band mechanism.
Infrared heating and section welding with closed-loop temperature control for gentle thermal climbing, reducing battery chip fragments.
Battery string detection system to monitor main gate misalignment and busbar positions (optional).
High-speed four-axis manipulator batteries for efficient classification, handling, and positioning.
🏭

Production Line Showcase

We supply customized complete production lines. Our engineers adjust layout and performance based on specific customer requirements.

PV Line Soldering
Solar Cells Manufacturing

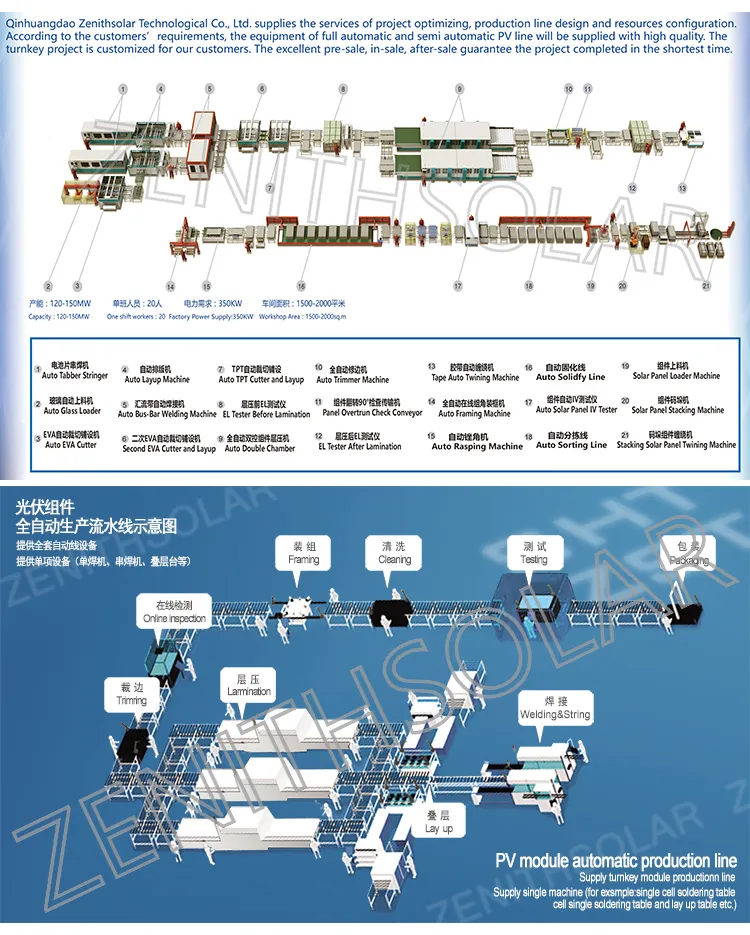

Complete Line Detail
Production Process
System Component
❓

Frequently Asked Questions

1. What is the maximum welding speed of the machine?
The machine features a high-speed welding capacity of up to 3000 pieces per hour, ensuring industrial-grade production efficiency.
2. How does the system prevent battery cell breakage?
By utilizing infrared section welding and closed-loop temperature control, the thermal shock is minimized, maintaining a breakage rate of ≤0.1%.
3. Is the production line compatible with different cell sizes?
Yes, it supports standard battery gauges such as 156*156mm and 156*78mm, and handles 2-6BB grid lines.
4. What kind of defect detection is included?
The system is equipped with CCD visual defect detection and positioning, with an optional battery string detection system for misalignment.
5. Can the equipment layout be customized?
Absolutely. The layout and performance of the complete production line can be customized by engineers to meet specific factory requirements.
6. Is this equipment environmentally friendly?
Yes, it is designed for smoke-free operation and features high-efficiency vacuum components for environmental protection.
