Square Prismatic Solar Light Cell Battery Pack Module Research Production Assembly Line Machine Equipment
Square Prismatic Solar Light Cell Battery Pack Module Research Production Assembly Line Machine Equipment
Square Prismatic Solar Light Cell Battery Pack Module Research Production Assembly Line Machine Equipment
Square Prismatic Solar Light Cell Battery Pack Module Research Production Assembly Line Machine Equipment
Square Prismatic Solar Light Cell Battery Pack Module Research Production Assembly Line Machine Equipment
1 / 5
Square Prismatic Solar Light Cell Battery Pack Module Research Production Assembly Line Machine Equipment
Square Prismatic Solar Light Cell Battery Pack Module Research Production Assembly Line Machine Equipment
Square Prismatic Solar Light Cell Battery Pack Module Research Production Assembly Line Machine Equipment
Square Prismatic Solar Light Cell Battery Pack Module Research Production Assembly Line Machine Equipment
Square Prismatic Solar Light Cell Battery Pack Module Research Production Assembly Line Machine Equipment

Square Prismatic Solar Light Cell Battery Pack Module Research Production Assembly Line Machine Equipment

Customization: Available
Production Scores: Multiple Varieties
Production Continuity: Continuous
Send Inquiry

Product Description

Basic Information

Condition
New
Automation
Automatic
After-sales Service
Engineers Available Overseas
Colour
Custom
Compatible
for Battery Cell Not for Pack
Process Design
280ah
Transport Package
Container
Specification
Custom Size
Origin
China
Production Capacity
200/Month

Product Parameters

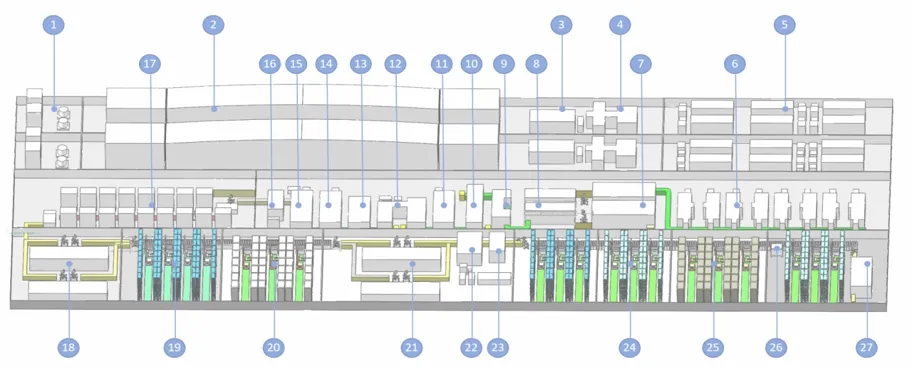

Battery Production Assembly Line
1. Mixing machine8. Hot pressing15. Cap welding22. Sealing nail welding
2. Coating machine9. X-ray test16. 1st Leakage inspection23. Final leaking inspection
3. Calendering10. Pairing17. Vacuum Baking24. RT standby
4. Preslitting11. US welding18. 1st EL.injection25. Capacity test
5. Tab Forming12. Connector19. High temp standing26. OCV and IR test
6. Winding13. Mylar Wrapping20. Fortation27. Wrapping
7. Tunnel Furnace14. Housing Insertion21. 2nd EL.Injection

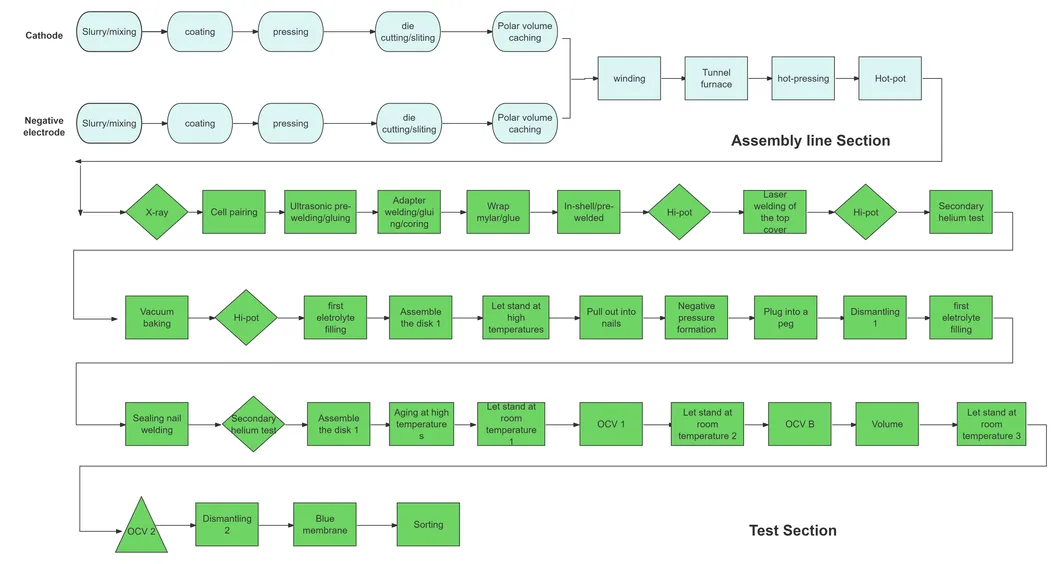

Process Flow

Equipment Specifications

1. Mixing slurry preparationSize: 4270*3520*6480; Load: 2T/m2
2. Coating machineSize: 96000*6000*8000; Load: 2T/m2
3. Rolling machineSize: 12000*5000*3200; Load: 7T/m2
4. Laser die cuttingSize: 8000*2700*2800; Load: 1T/m2
5. WindingSize: 7800*2730*2800; Load: 1T/m2
6. Tunnel OvenSize: 5700*3500*3200; Load: 2T/m2
7. Hot-pressing machineSize: 7500*3000*3200; Load: 2T/m2
8. X-ray test machineSize: 2200*1400*2000; Load: 0.5T/m2
10. Ultrasonic weldingSize: 6280*3500*2800; Load: 1T/m2
14. Laser Welding For CapSize: 5250*2100*2800; Load: 1.5T/m2
23. Capacity GradingSize: 2200*1800*2300; Load: 2T/m²
25. Cell test sortingSize: 9000*4000*2600; Load: 2T/m²

Production Strength

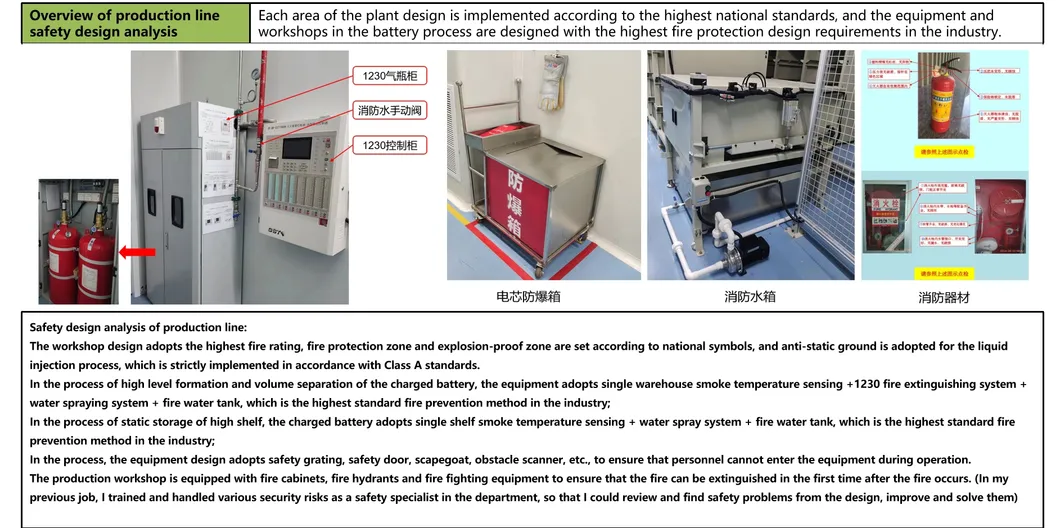

Production Facility 1
Production Facility 2

Company Profile

Company Introduction

Founded in 2016, we are a full-stack solution provider focusing on new energy battery smart factories. Our expertise covers new energy vehicle power batteries, portable energy storage, home energy storage, industrial/commercial energy storage, and two-wheeled vehicle batteries. With years of experience in production, information technology, and intelligent equipment, we help enterprises build intelligent manufacturing solutions for the lithium battery industry.

Workshop 1
Workshop 2
Workshop 3
Equipment Display 1
Equipment Display 2

After Sales Service

After Sales Global Support
Frequently Asked Questions
What types of battery cells is this production line compatible with?
This assembly line is specifically designed for square prismatic battery cells, typically used in solar light and energy storage applications. It is not intended for battery pack assembly.
Is the equipment fully automated?
Yes, the entire production line is automatic, featuring advanced robotics and PLC control systems to ensure high precision and efficiency.
What is the monthly production capacity of the line?
The standard production capacity is 200 units per month, though this can vary based on specific process requirements and customization.
Do you provide overseas installation and maintenance?
Yes, we have engineers available to provide machinery service overseas, including installation, commissioning, and technical training.
Can the machine specifications be customized for different cell sizes?
Absolutely. We offer custom sizes and configurations to match your specific cell dimensions and chemistry requirements (e.g., 280Ah designs).
What key testing processes are included in the line?
The line integrates multiple critical testing phases, including X-ray testing, leakage inspections, OCV (Open Circuit Voltage) and IR (Internal Resistance) testing, and capacity grading.
