| Basic Info | |
|---|---|
| Model NO. | Solar Panel Production Line |
| Solar Ribbon Type | Flat Welding Ribbon |
| Professional Services | Provide Local Installation and After-Sales Service |
| Transportation Mode | Sea Transport |
| Warranty | 12 Months |
| Transport Package | Wooden Box |
| Specification | 100MW module production line |
| Origin | Jiangsu, China |

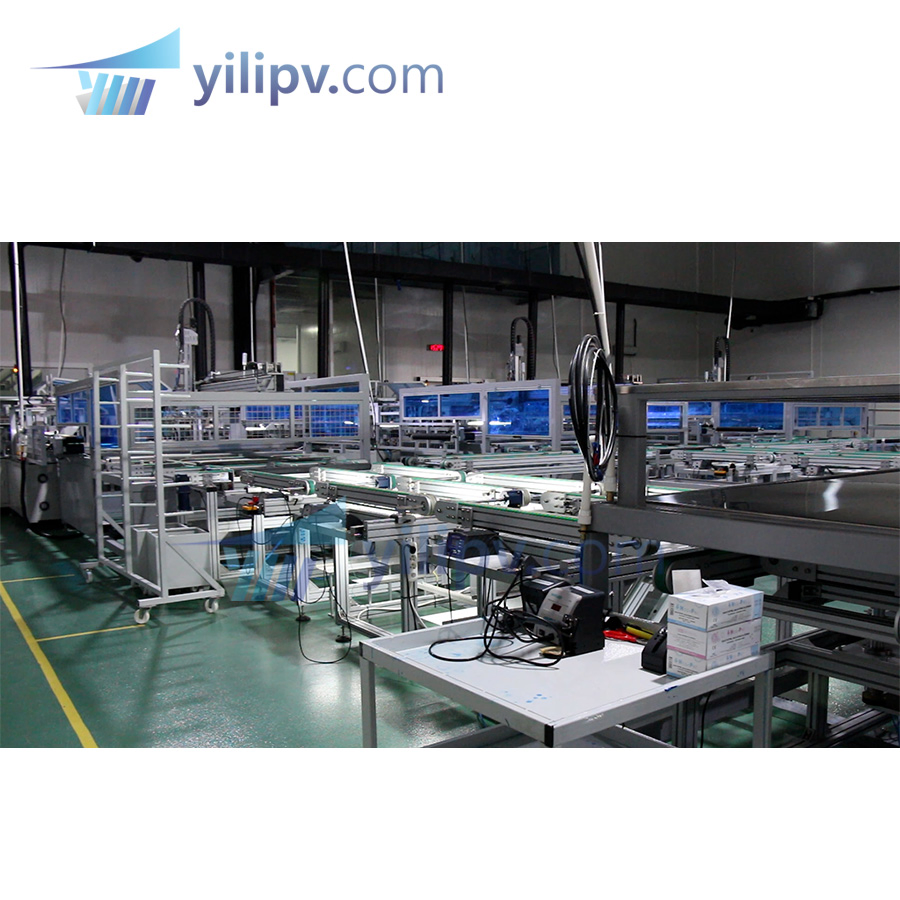

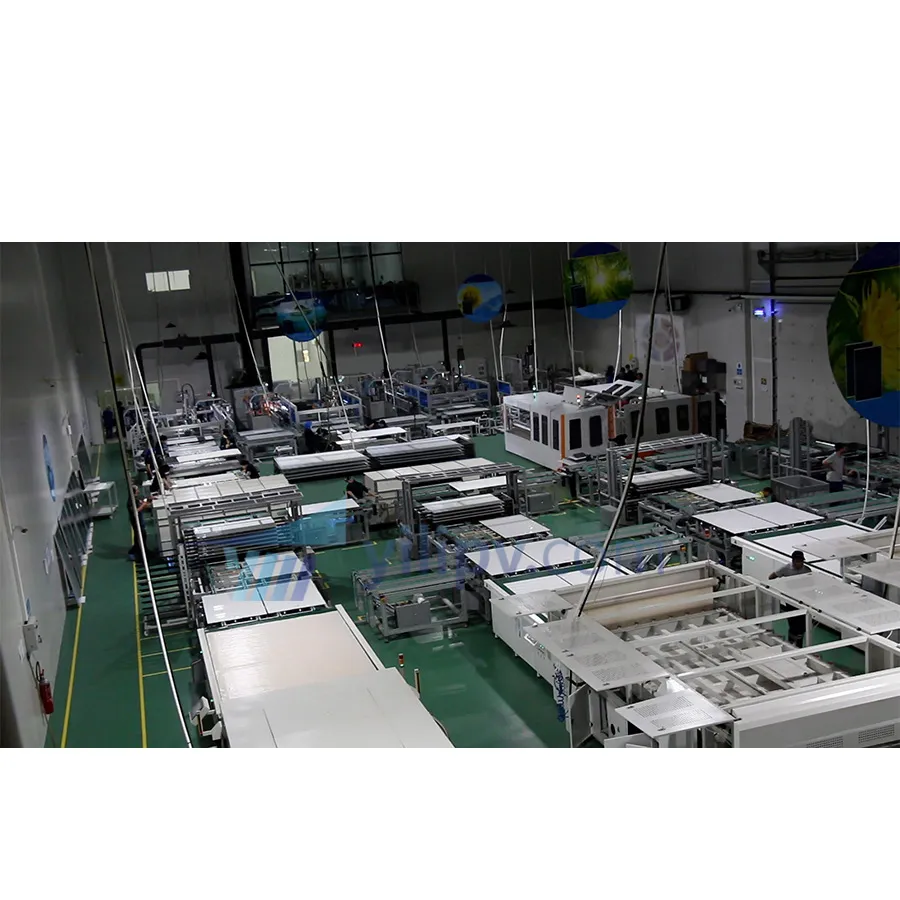

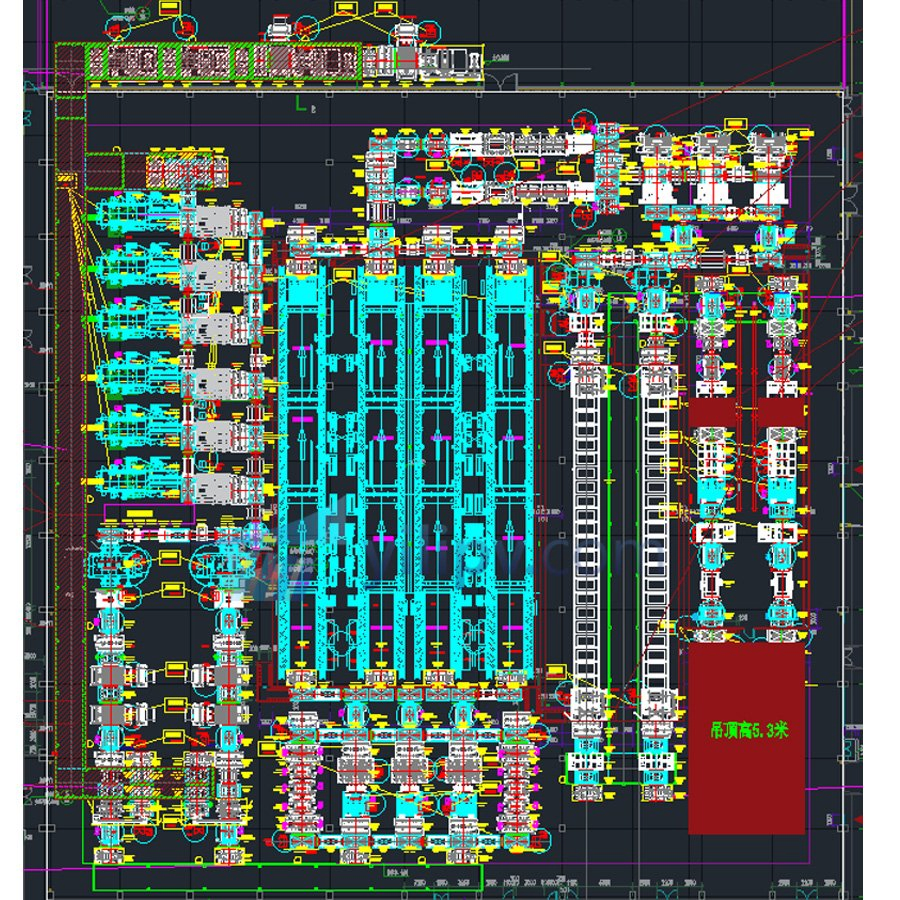

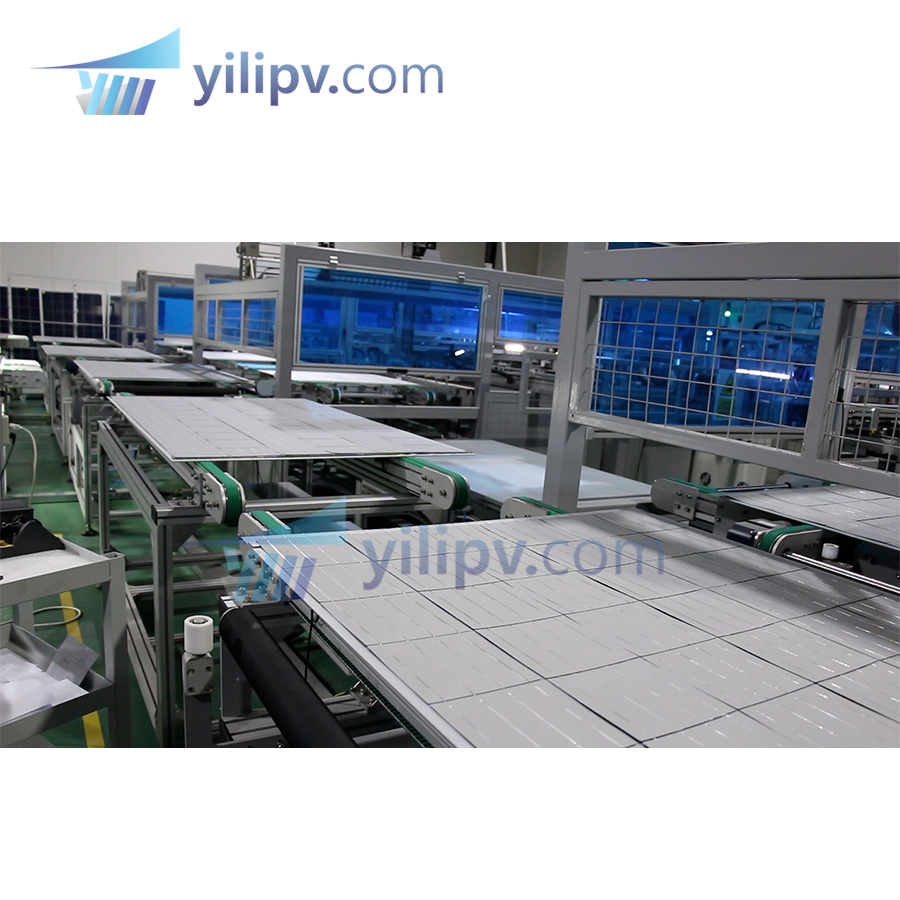

Solar Panel Production line overview:

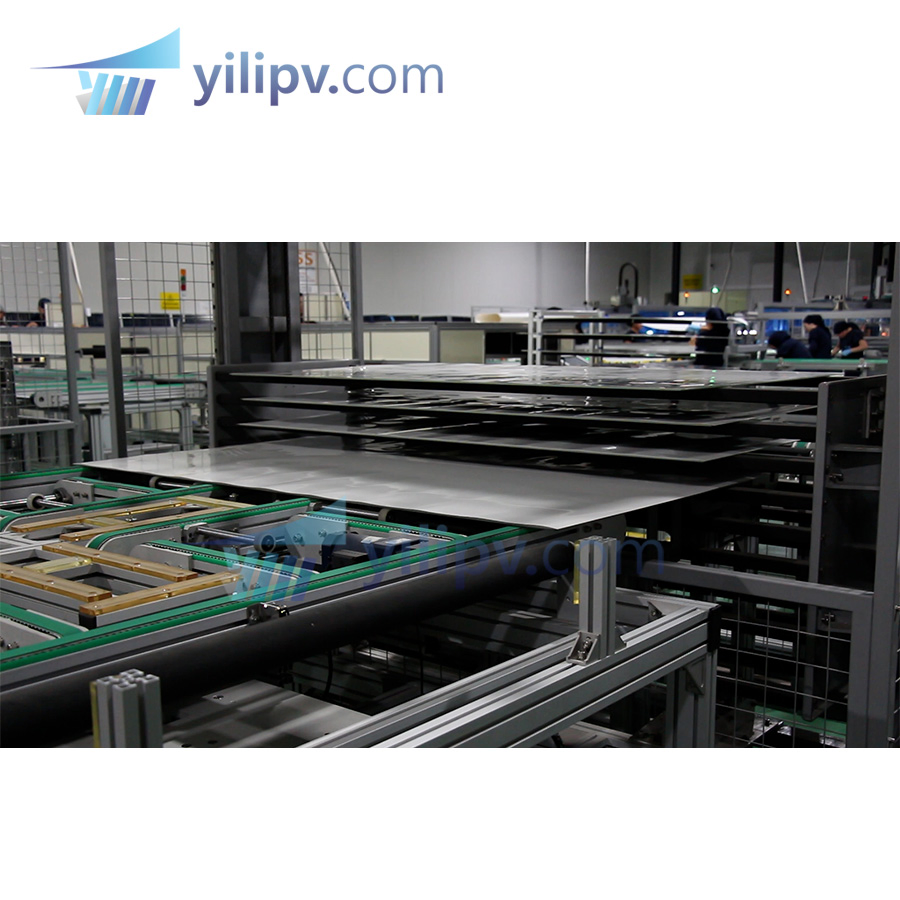

Before the lamination: glass loading area, EVA loading area, typesetting, bus soldering area, EVA and backplane loading area, pre-layer EL/VI inspection and repair area, stack (production line component caching process), conveyor system.
After lamination: trimming and gluing and framing area, junction box welding and gluing area, curing line, cleaning and testing area, binning area, conveyor system.
| Item | Parameters |
|---|---|
| Model | 100MW module production line |
| Beat | ≤45 seconds/block |
| Type of panel produced | conventional full-cells/half-cells solar panel |
| Solar cell size | 166-210mm |
| Solar panel size | L(1956~2300mm) x W(990~1200mm) x T(25~45mm) |
| Solar ribbon type | flat welding ribbon |
| Warranty | 12 Months |

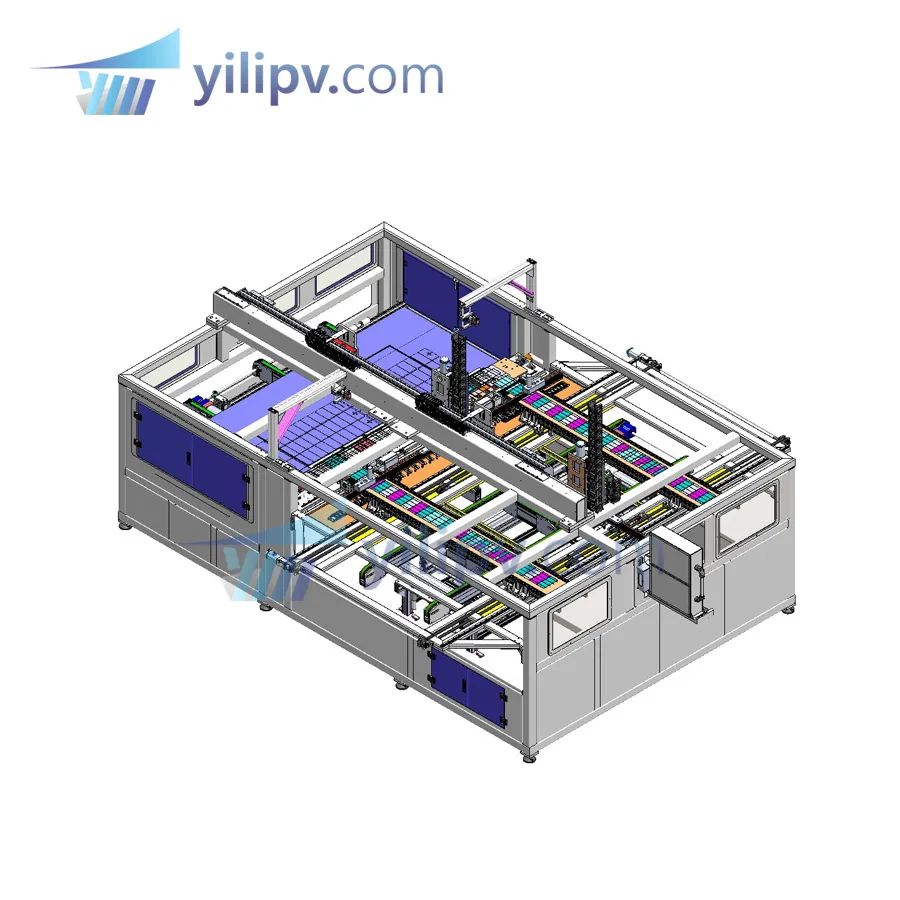

Function: automatically grab the battery string and place it on the glass that has been properly positioned (includes glass automatic alignment positioning function).

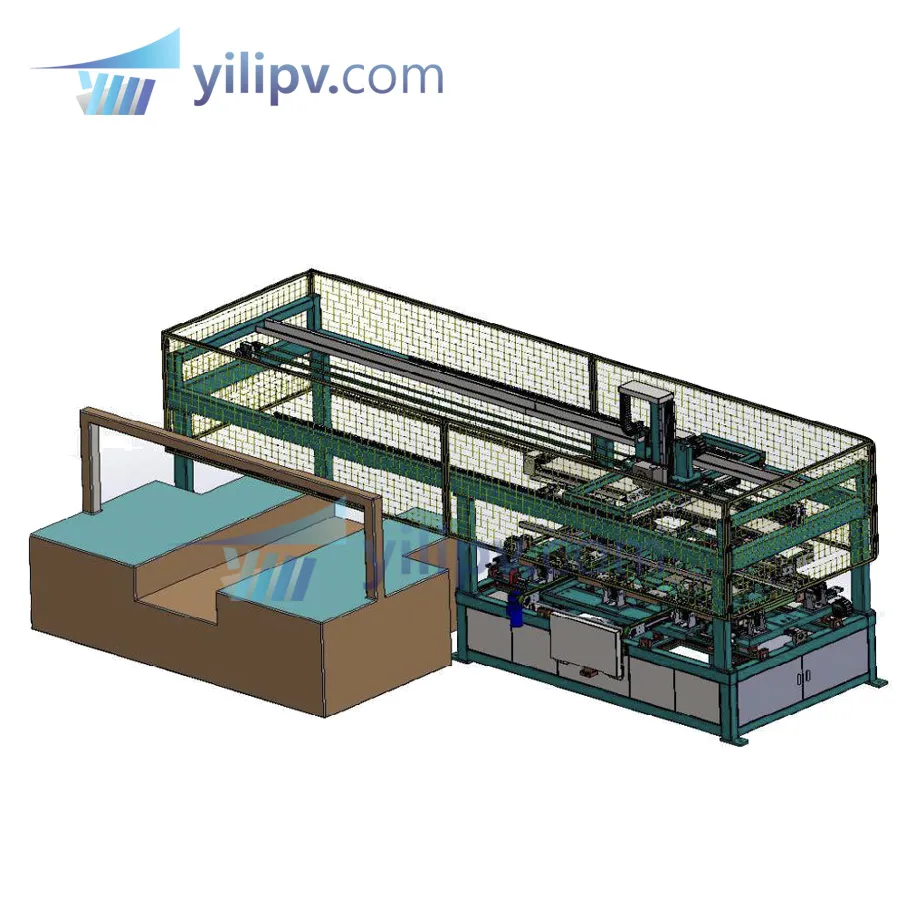

Function: Composed of border gluing machine, border automatic frame manipulator and automatic frame loading machine. Used to install the aluminum frame and automatically overflow glue.

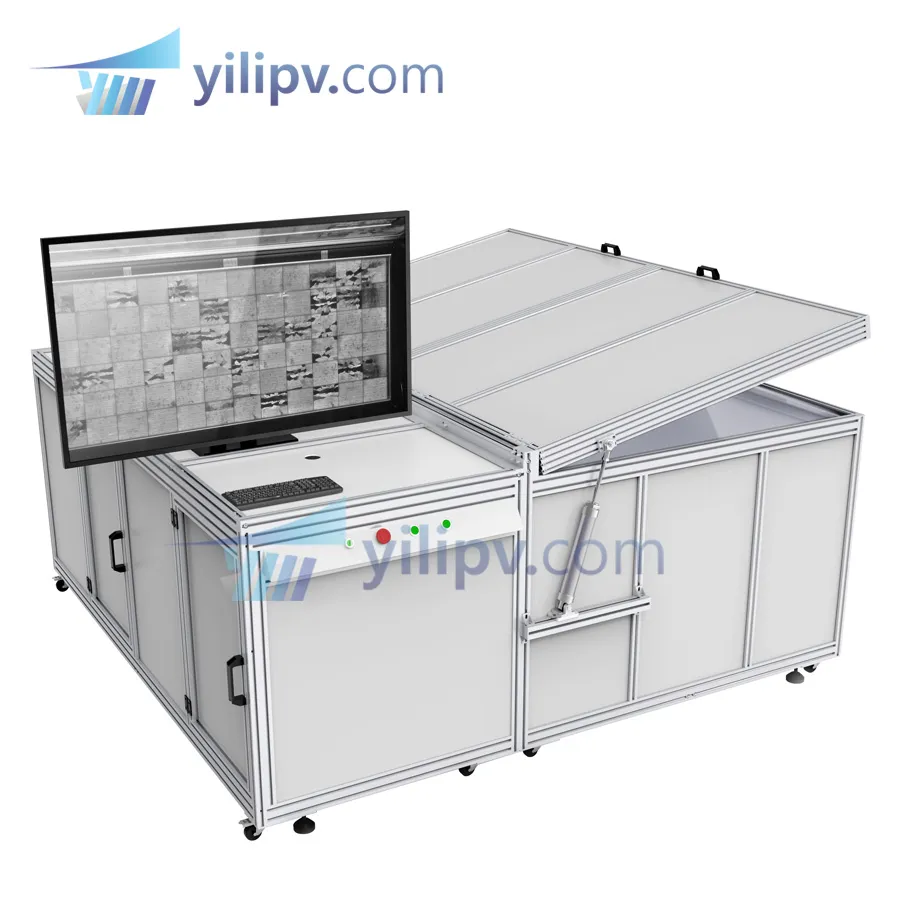

Function: Used to detect internal defects, hidden cracks, fragments, cold solder joints, broken grids, and abnormal phenomena of single-chip cells with different conversion efficiencies.

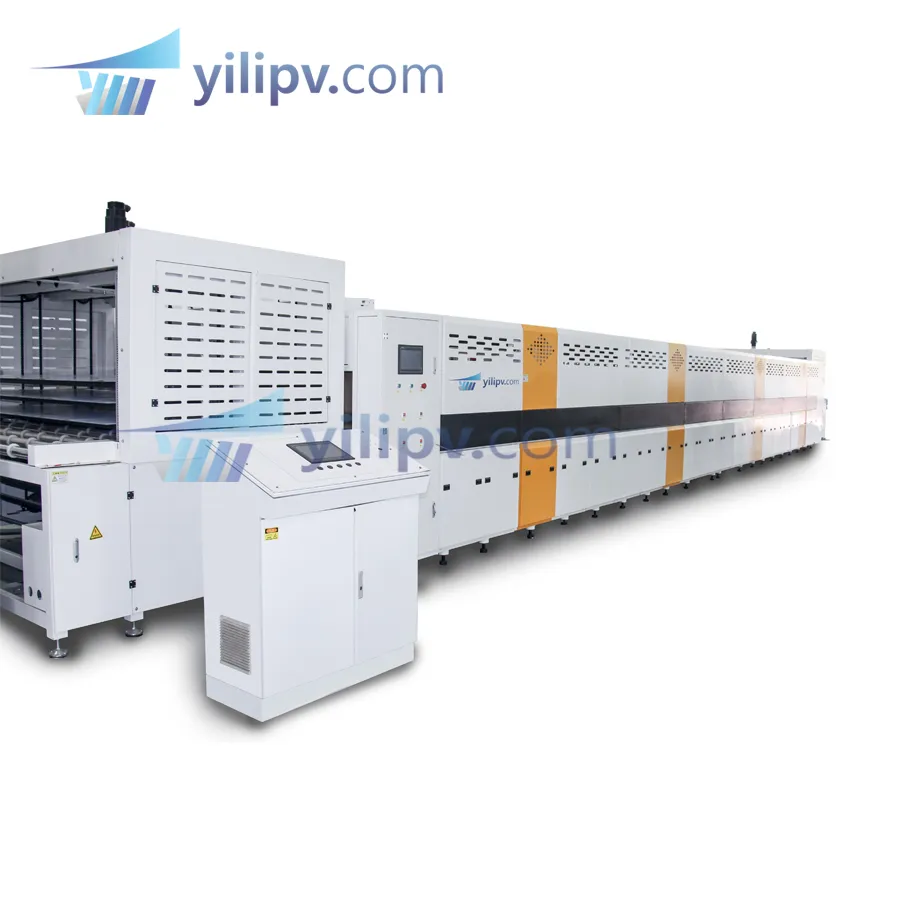

Function: Suitable for solar cell module workshop, automatic feed to hot pressing section to complete heating/vacuuming/pressurizing/charging lamination process.

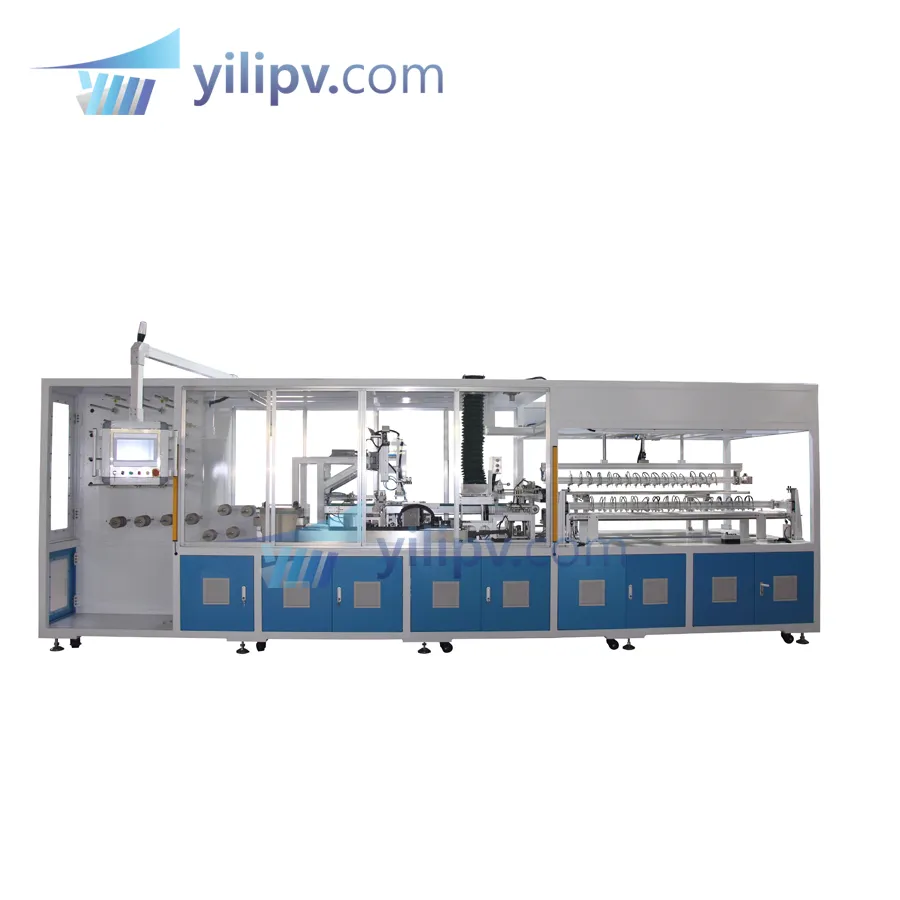

Function: Fully automatic welding machine for welding photovoltaic solar cells and photovoltaic ribbons in series.
Professional wooden box packaging ensures the safety of high-precision equipment during sea transportation and long-distance transit.
Equipped with independent finishing and roughing workshops to ensure part precision. Our comprehensive solution covers R&D, manufacturing, installation, and dedicated after-sales support.
Customized designs are available to accommodate various production techniques including Conventional, Double Glass, Half-Cut, MBB, Shingled, Heterojunction, and Topcon.
