Jintai 1 HP to 25 HP Solar Water Pump Controller for Agriculture

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Basic Information

Model NO.JS

ConditionNew

CertificationISO

ApplicationHome / Agriculture

SpecificationNormal

Transport PackageCarton and Wooden Case

Warranty Service

▶Solar Water Pump: 3 Years

▶MPPT Controller: 3 Years

▶Solar Panels: 25 Years

* Note: If the controller, motor, or impeller is damaged within 3 years, new replacement parts will be provided.

Product Introduction

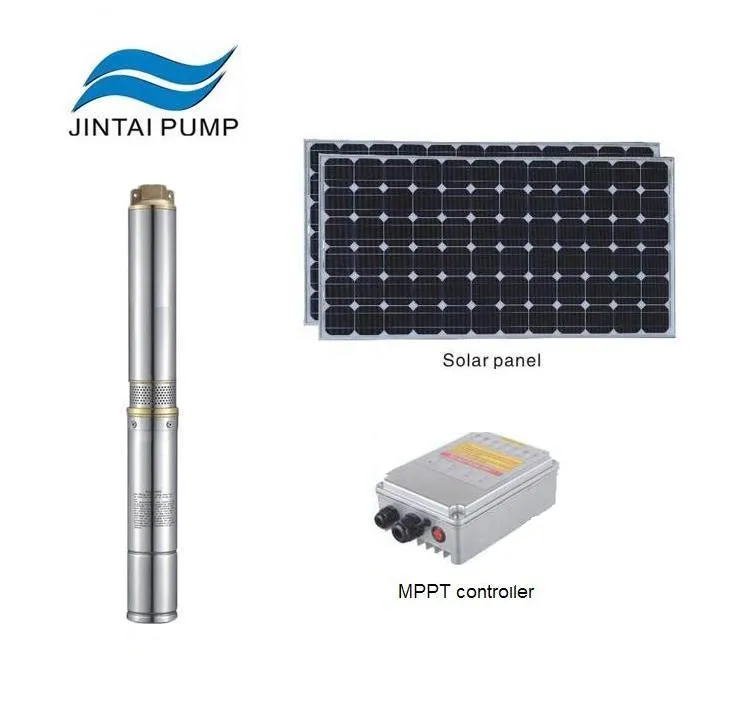

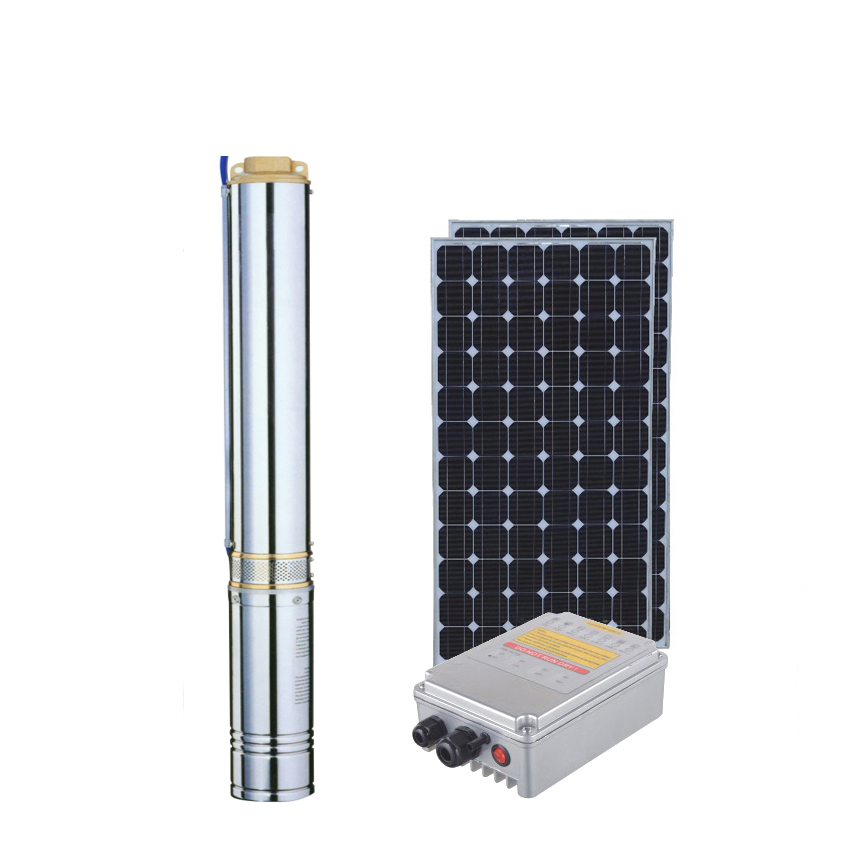

The solar submersible pump is designed to be immersed directly into water, connecting the motor with the pump efficiently. The system consists of the submersible pump, motor, MPPT controller, water pipe, cable, and solar panels.

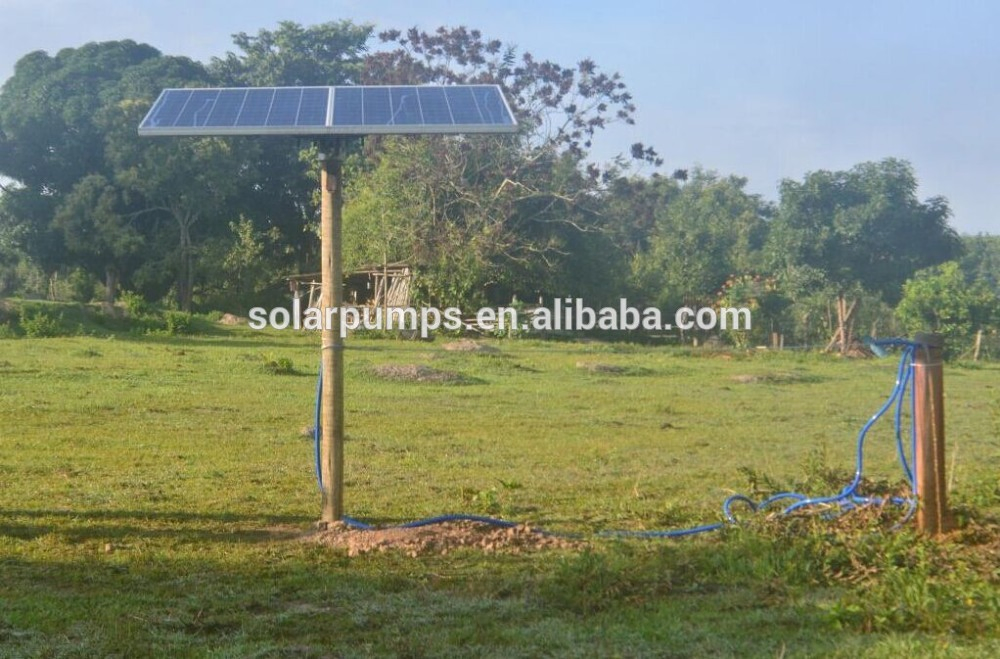

Solar panels convert solar energy into electrical power to run the low-voltage solar pump. It operates automatically under sunlight and can run continuously using battery backup or grid electricity when sunshine is limited.

Product Features

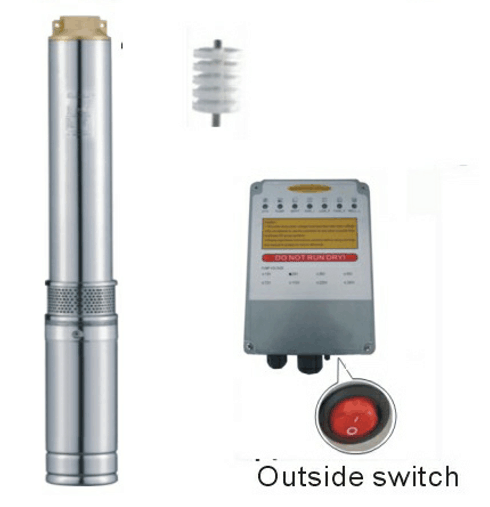

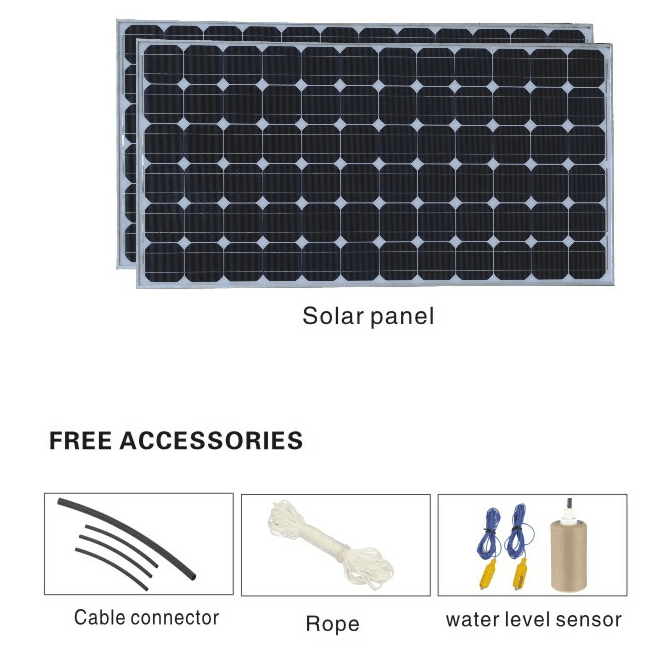

What's Included in the Package:

✓ Solar pump with 3m cable (custom lengths available)
✓ MPPT Controller
✓ Water level sensor / float switch with 10m cable
✓ Solar panel cable (6m)
✓ Cable connectors and hanging rope
✓ Comprehensive Installation Manual

Advanced Technology

1. Efficiency Innovation: Permanent magnetism brushless DC motor improves efficiency by 25% compared to traditional AC machines.

2. Safety Innovation: Double plastic package for rotor/stator; motor insulation ≥300MΩ for enhanced security.

3. Structure Innovation: Oil-filled motor for convenient installation and environmental protection.

Quality Materials

Outlet: Brass
Pump Body: Stainless Steel
Motor Stator: 100% Copper Wiring
Impeller: Plastic PPO
Bearing: NSK

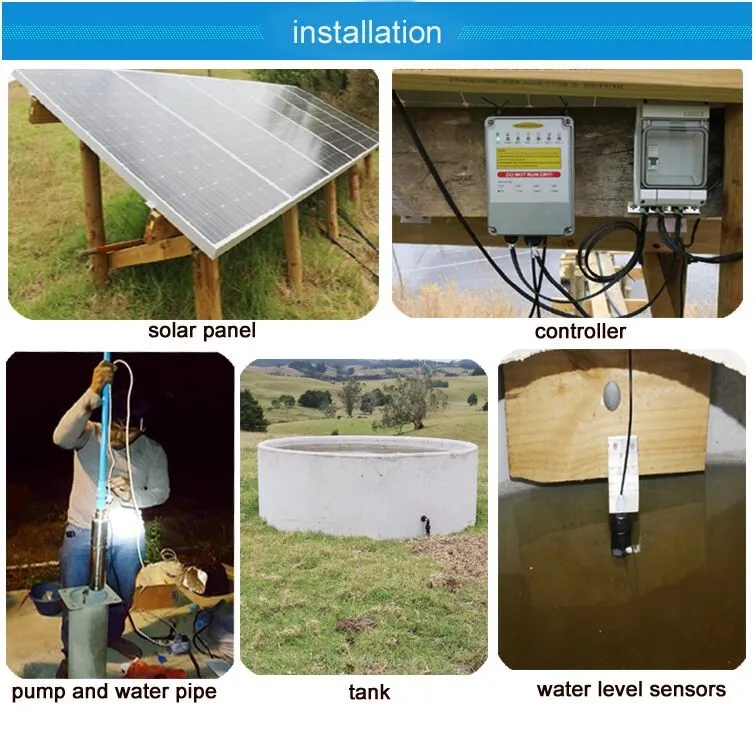

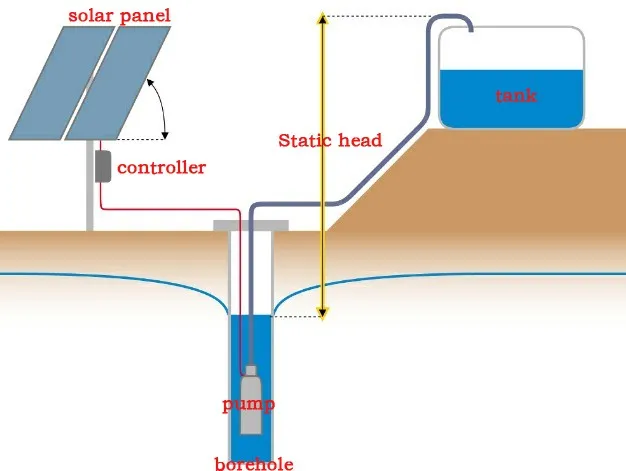

Installation & System Configuration

Controller Options

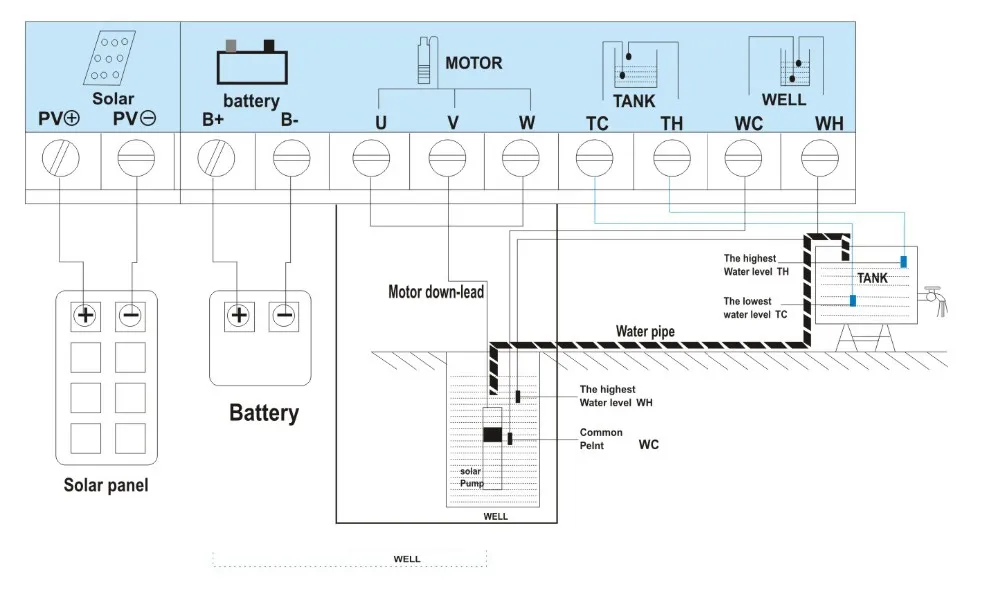

With Battery Backup Function:

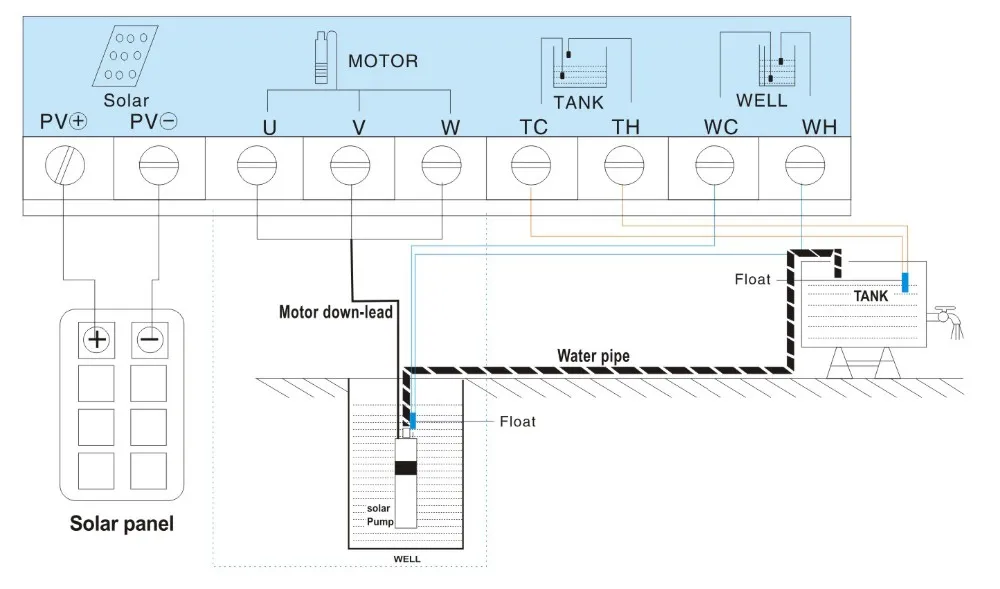

Without Battery Backup Function:

Solar Panel & Battery Formulas

1. Solar Panel Power: Panel Power = Pump Power × 1.3

2. Battery Use Time: Use Hours = Capacity ÷ (Power ÷ Voltage) × 0.6

3. Battery Capacity Calculation: Capacity = Use Hours ÷ 0.6 × (Power ÷ Voltage)

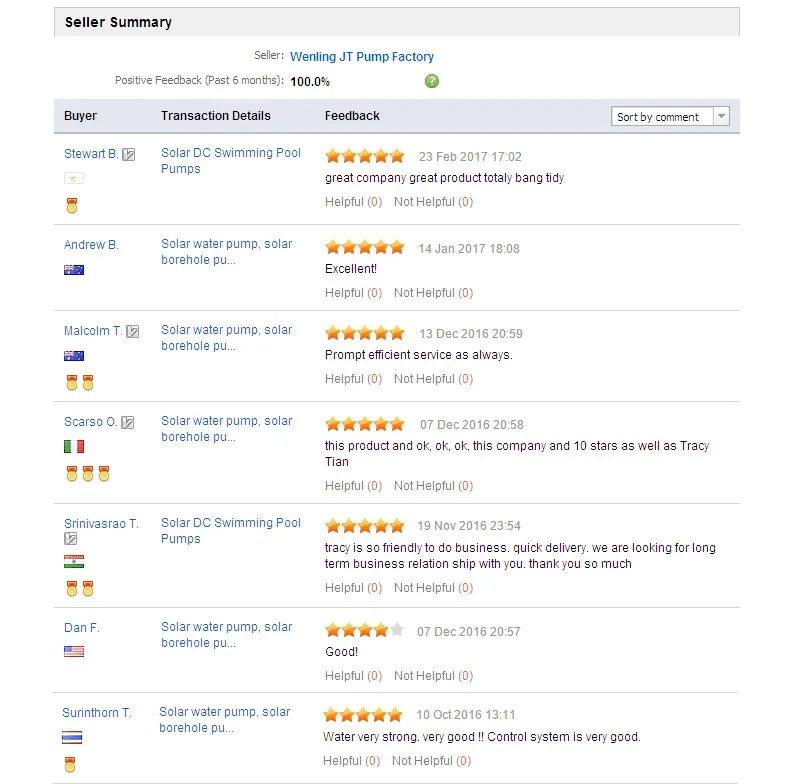

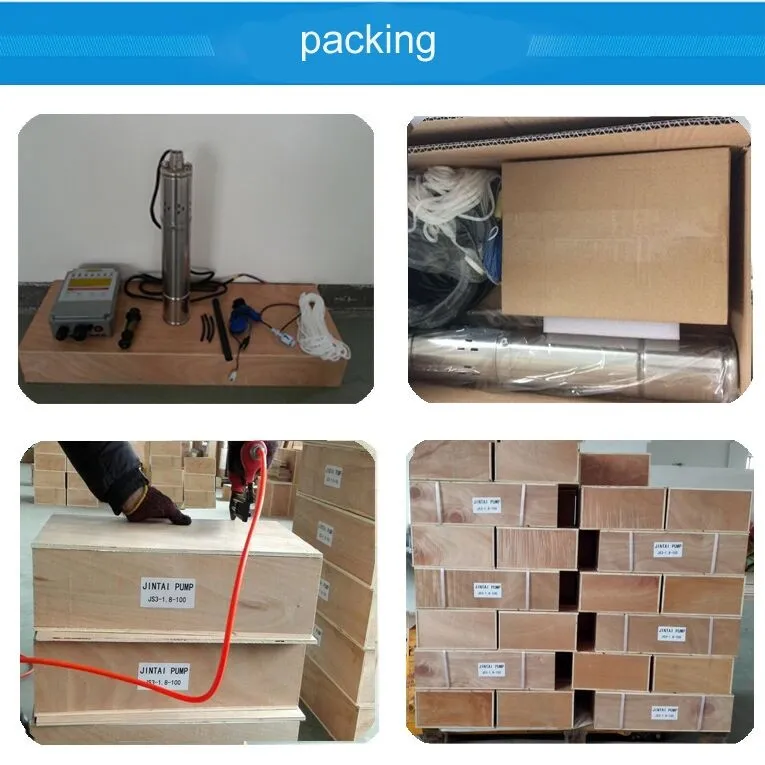

Global Feedback & Packing

Frequently Asked Questions

1. How long is the warranty for the solar pump system?

We offer a 3-year warranty for the solar water pump and MPPT controller, and 25 years for the solar panels. Replacement parts are provided if components are damaged within the warranty period.

2. What information is needed to select the right pump?

To provide the best solution, we need to know: the type of fluid (clean/dirty water), daily water supply requirement (m3), static head (vertical height), and the total pipeline length.

3. Can the pump work at night?

The solar pump runs automatically during sunny hours. For night operation, you can choose a controller with battery backup function or connect it to the grid.

4. What is the delivery time for orders?

Samples are typically sent within 3-5 days. For batch orders, shipping usually occurs within 5-15 days after order confirmation.

5. Are your pumps certified?

Yes, our water pumps are manufactured under ISO standards and have obtained the CE certificate.

6. How do I calculate the required solar panel power?

A general rule is that the power of the solar panel should be approximately 1.3 times the power of the pump, ensuring the voltages are matched.
