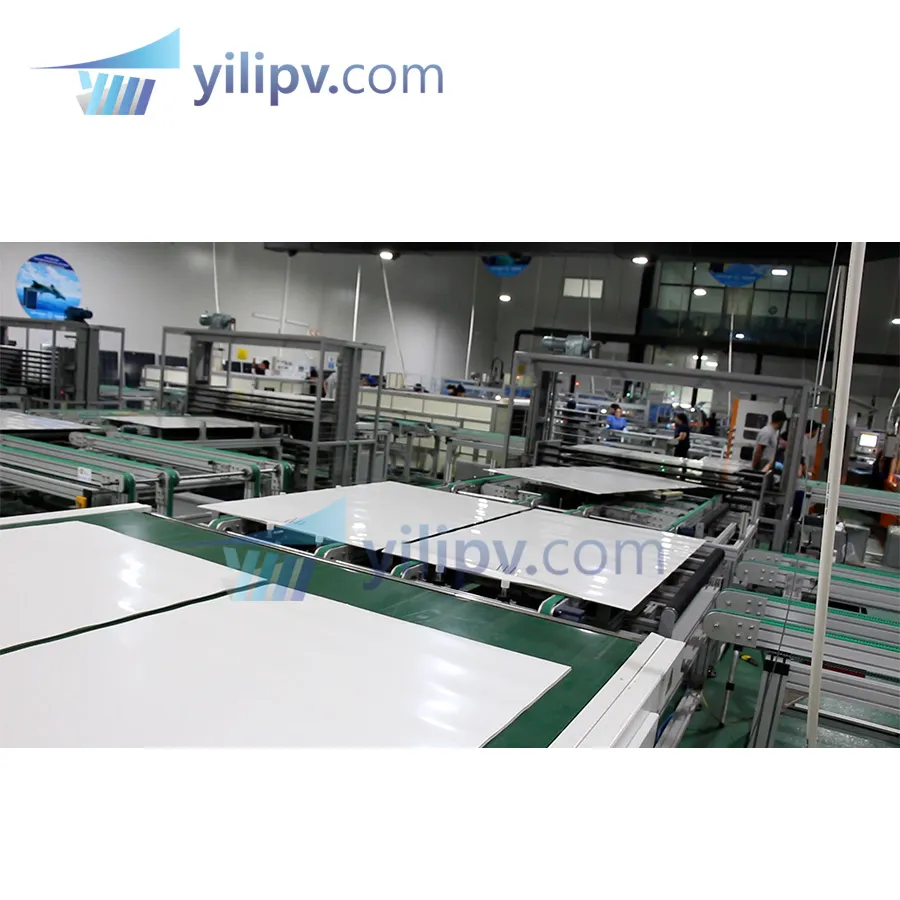

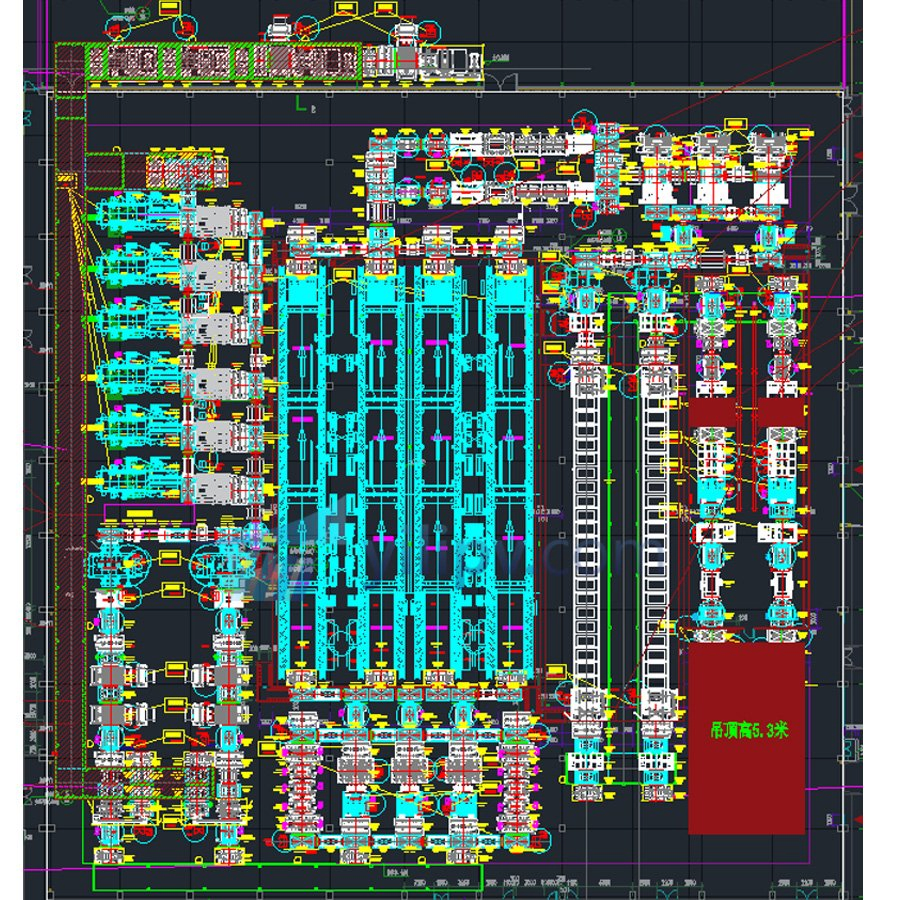

Solar Panel Production Line Overview:
Before lamination: glass loading area, EVA loading area, typesetting, bus soldering area, EVA and backplane loading area, pre-layer EL/VI inspection and repair area, stack (production line component caching process), and conveyor system.
After lamination: trimming and gluing and framing area, junction box welding and gluing area, curing line, cleaning and testing area, binning area, and conveyor system.
| Item | Parameters |
|---|---|
| Model | 100MW Solar Module Production Line |
| Beat | ≤45 seconds/block |
| Panel Type | Conventional full-cells / half-cells solar panel |
| Solar Cell Size | 166-210mm |
| Solar Panel Size | L(1956~2300mm) x W(990~1200mm) x T(25~45mm) |
| Solar Ribbon Type | Flat welding ribbon |
| Warranty | 12 Months |

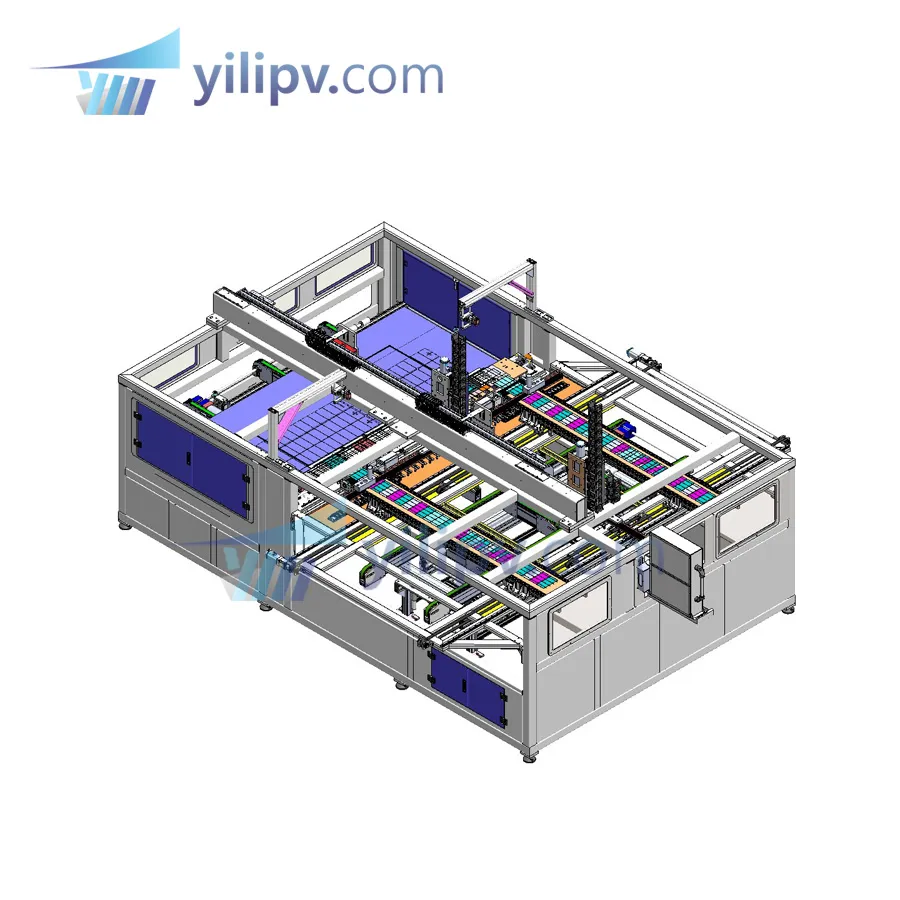

Function: Automatically grabs the battery string and places it on the properly positioned glass. The device includes an automatic glass alignment and positioning function.

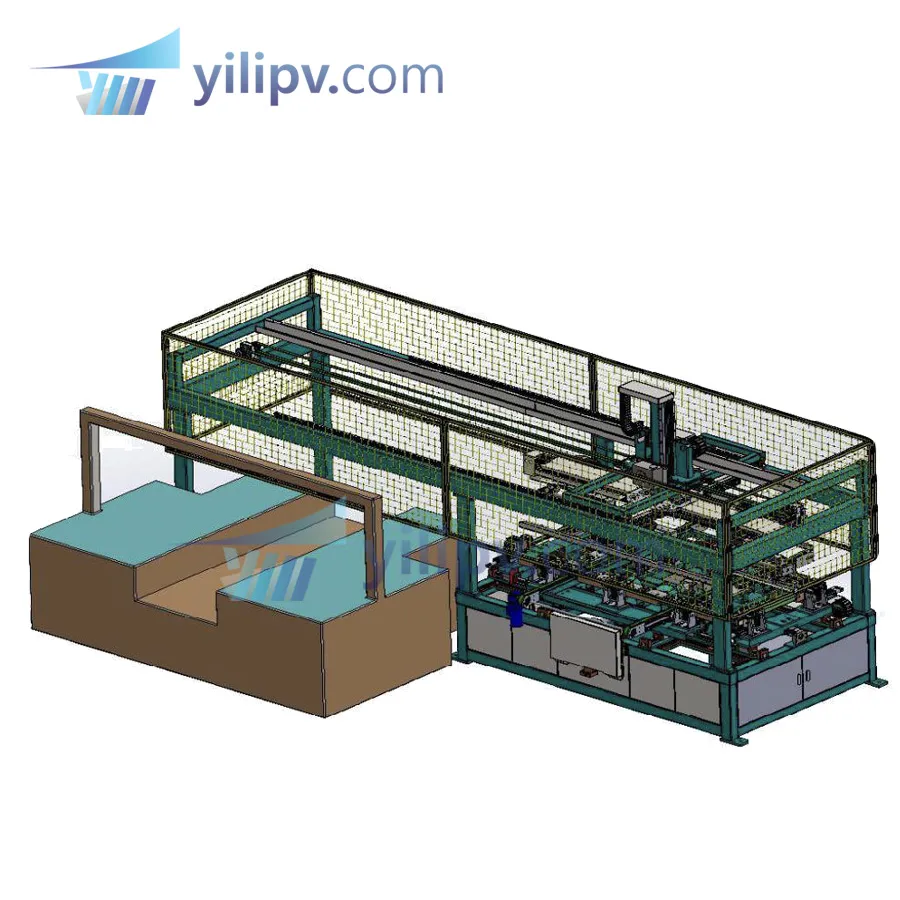

Function: Composed of a border gluing machine, automatic frame manipulator, and automatic frame loading machine. Used for installing aluminum frames and automatic glue overflow control.

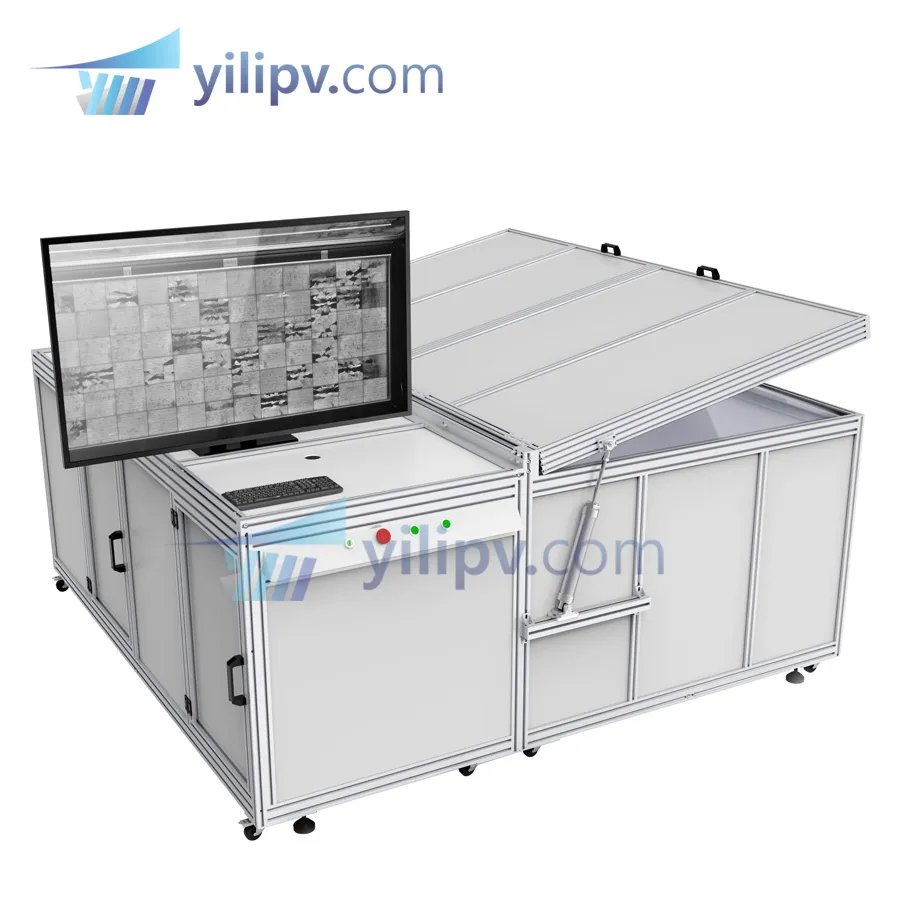

Function: Detects internal defects, hidden cracks, fragments, cold solder joints, broken grids, and abnormal cell phenomena with high precision.

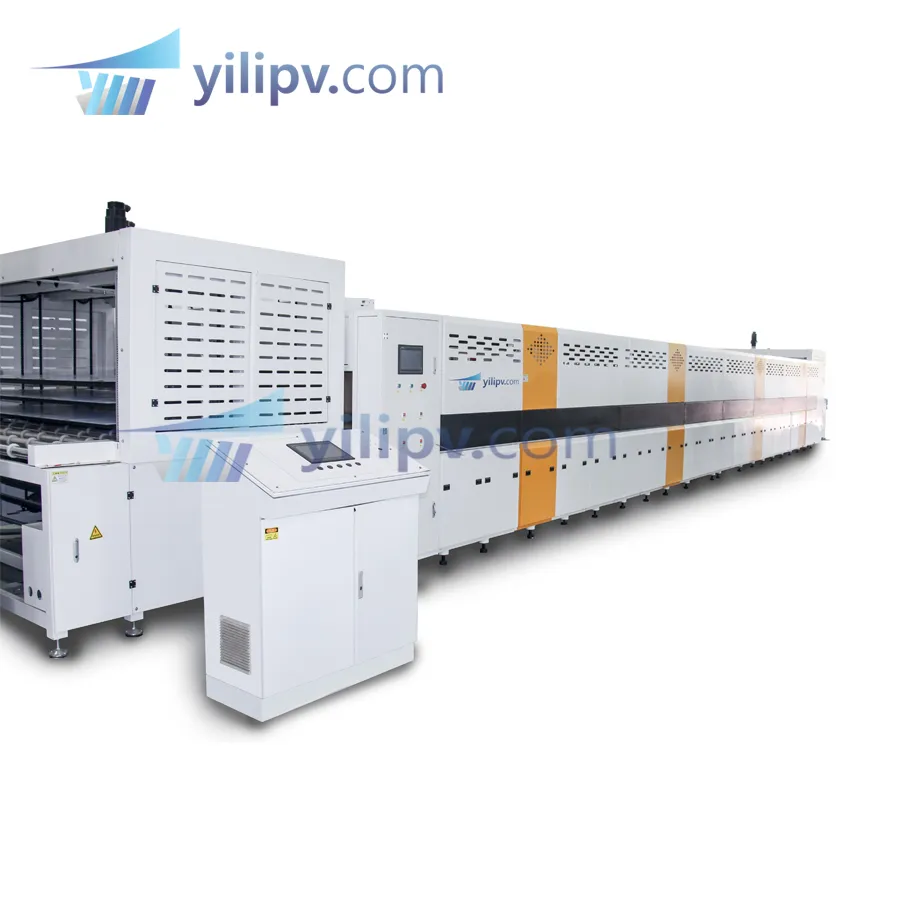

Function: Suitable for solar module workshops; features automatic feeding and programmed hot pressing to complete heating, vacuuming, and pressurizing. Supports continuous production of single crystal and polycrystal cells.

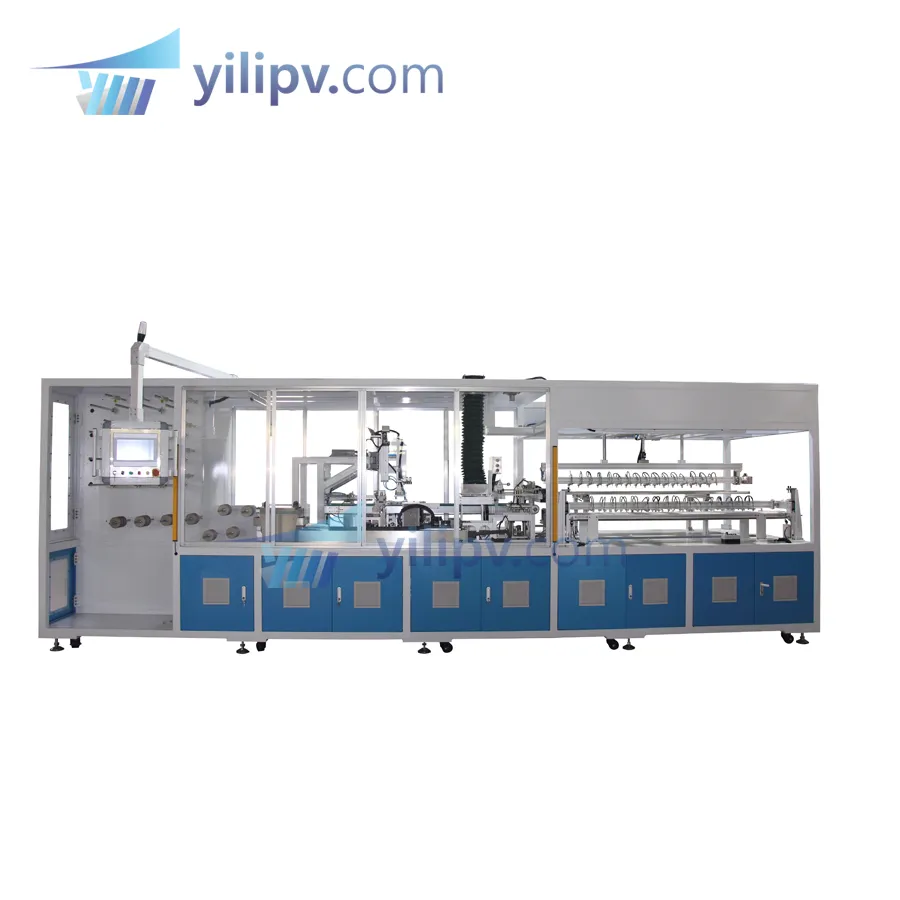

Function: Fully automatic machine for welding photovoltaic solar cells and ribbons in series with high efficiency.
Our company adheres to the principle of quality first. We serve our customers with excellent products and a thoughtful service system before, during, and after-sales. We maintain independent finishing and roughing workshops to ensure the precision and quality of parts processing.

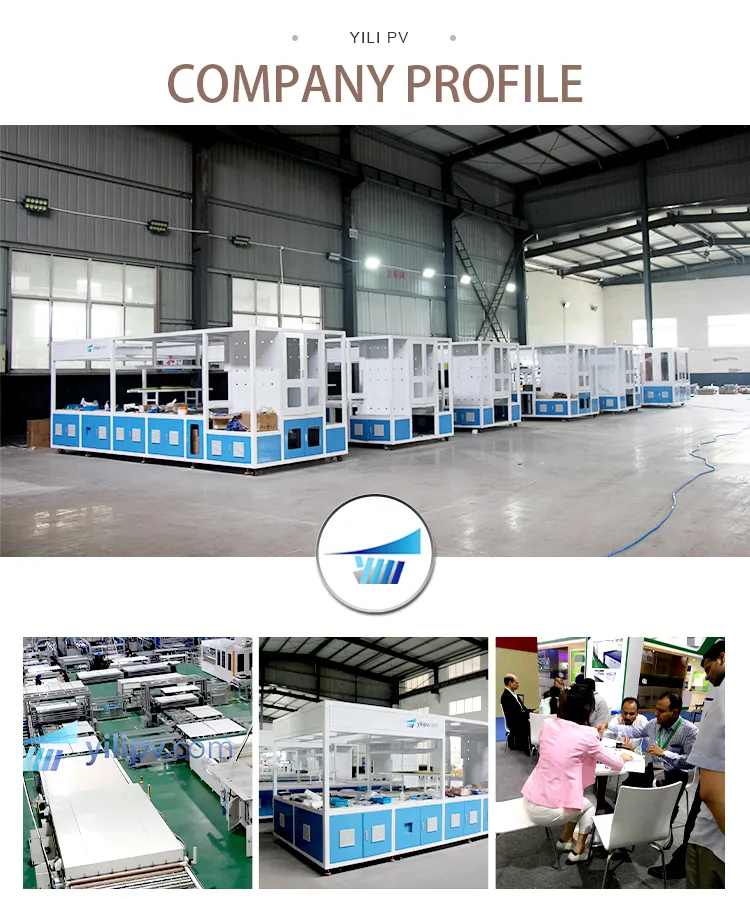

Established as a pioneer manufacturer of photovoltaic module production equipment, we offer integrated R&D, manufacturing, and installation services. Our products are exported to over twenty countries and regions, including the United States, Mexico, Korea, Turkey, and Jordan.
We provide turnkey solutions for solar module manufacturers, including automatic production lines, multi-layer laminating machines, robot typesetting machines, and more. Our designs are compatible with Conventional, Double Glass, Half-Cut, MBB, Shingled, and Topcon production processes.
