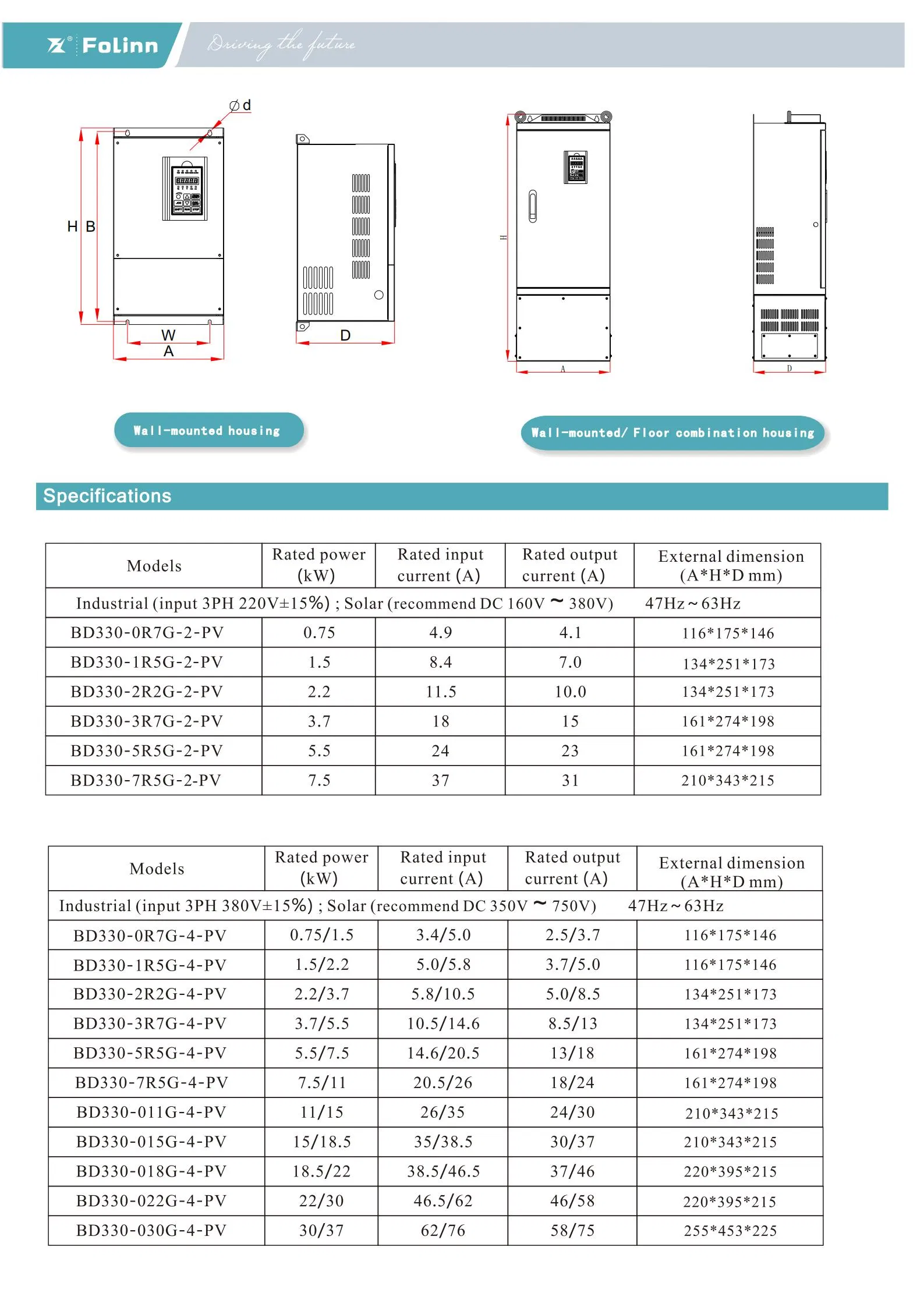

| Model NO. | ND330-PV-2R2G/3R7P-4 |
| Principle of Work | Vector Control Transducer |
| Switch Mode | High Carrier Frequency PWM Control |
| Main Circuit Type | Voltage |
| Voltage of Power Supply | Low Voltage Variable-Frequency Drive |
| Nature of DC Power | Voltage Variable-Frequency Drive |

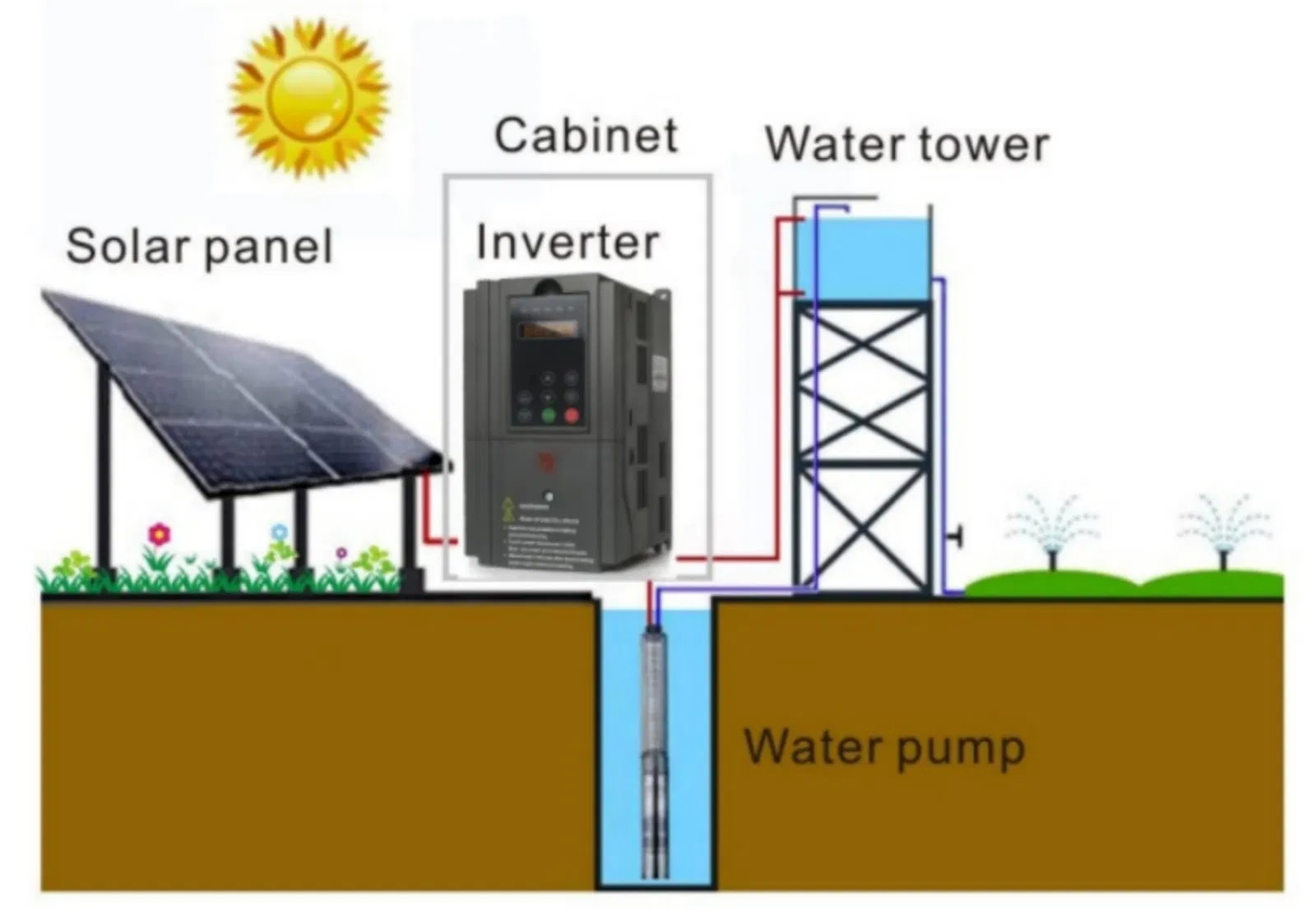

| Function | Solar Water Pump Inverter, MPPT Support |
| Components | FUJI IGBT |
| Voltage Range | 220V-380V |

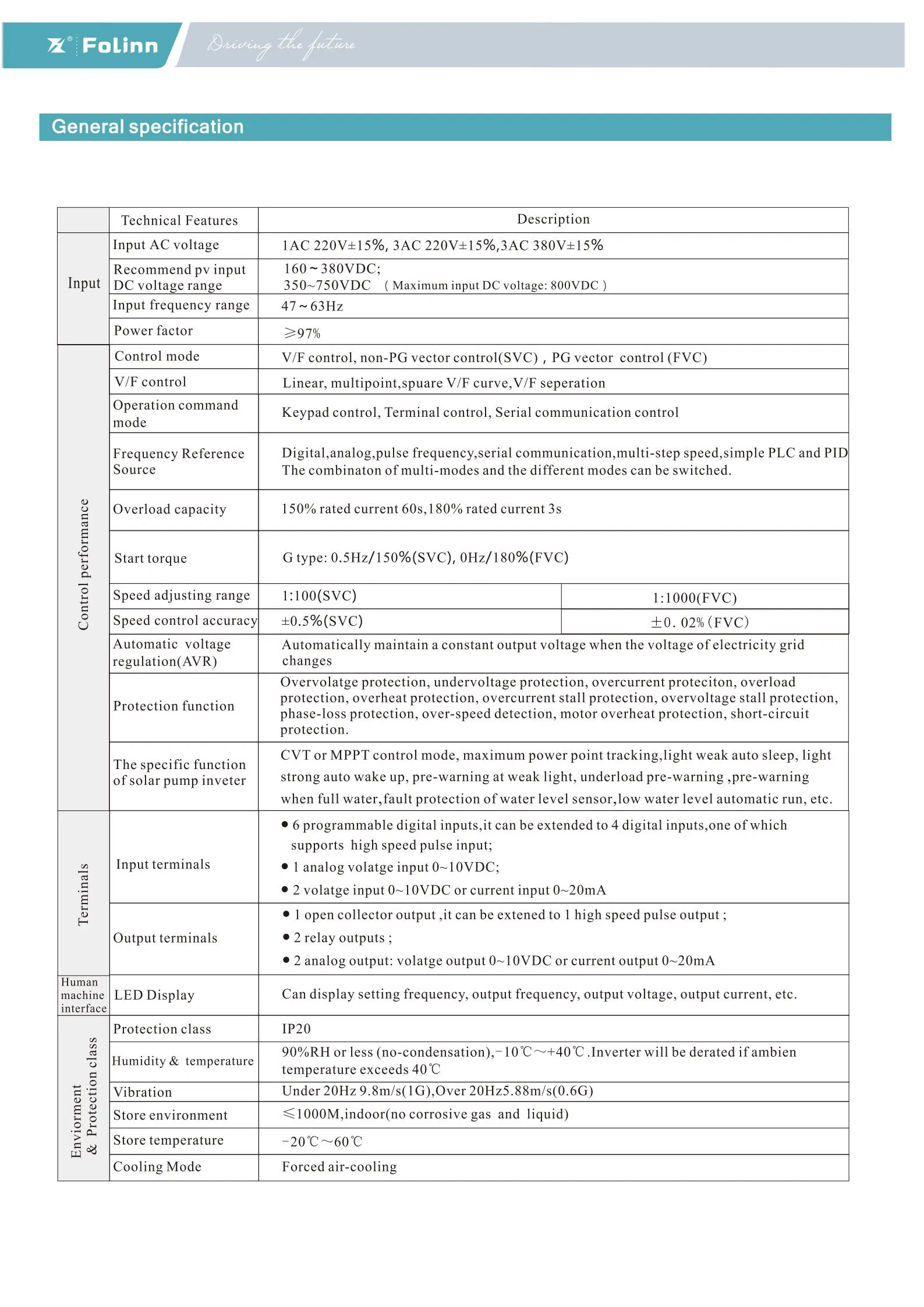

| Technical Features | Description | |
|---|---|---|
| Input | AC Voltage | 1AC 220V±15%, 3AC 220V±15%, 3AC 380V±15% |
| DC Voltage Range | 160~380VDC; 350~750VDC (Max 800VDC) | |
| Frequency Range | 47~63Hz | |
| Control | Mode | V/F Control, SVC, FVC |
| Start Torque | 150% at 0.5Hz (SVC) | |
| Overload Capacity | 150% rated current for 60s | |
| Protection | Overvoltage, Undervoltage, Overcurrent, Overheat, Phase-loss, Short-circuit, Water Level Sensor Fault. | |
| Solar Function | CVT/MPPT, Light weak auto sleep/wake up, Full water pre-warning. | |

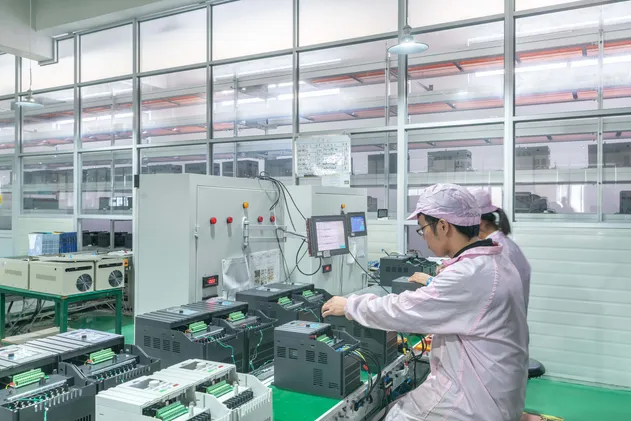

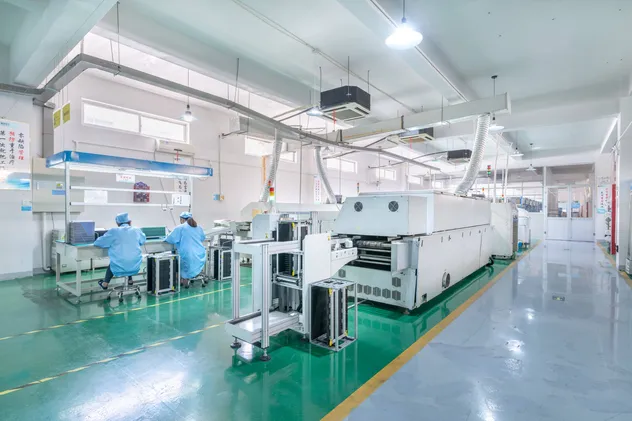

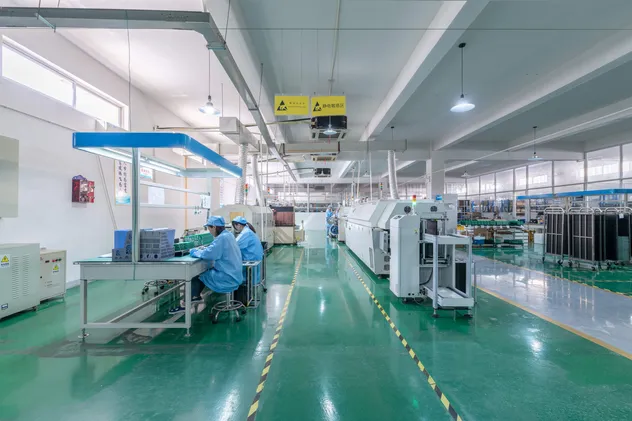

We focus on high-performance inverter manufacturing with a commitment to research and development. Our facilities utilize state-of-the-art technology to produce low-voltage frequency converters and solar solutions exported globally to Europe, America, Southeast Asia, and the Middle East.
With numerous patented technologies and software copyrights, our products provide power, new energy, and machinery manufacturing industries with high-quality electrical solutions and personalized support.
