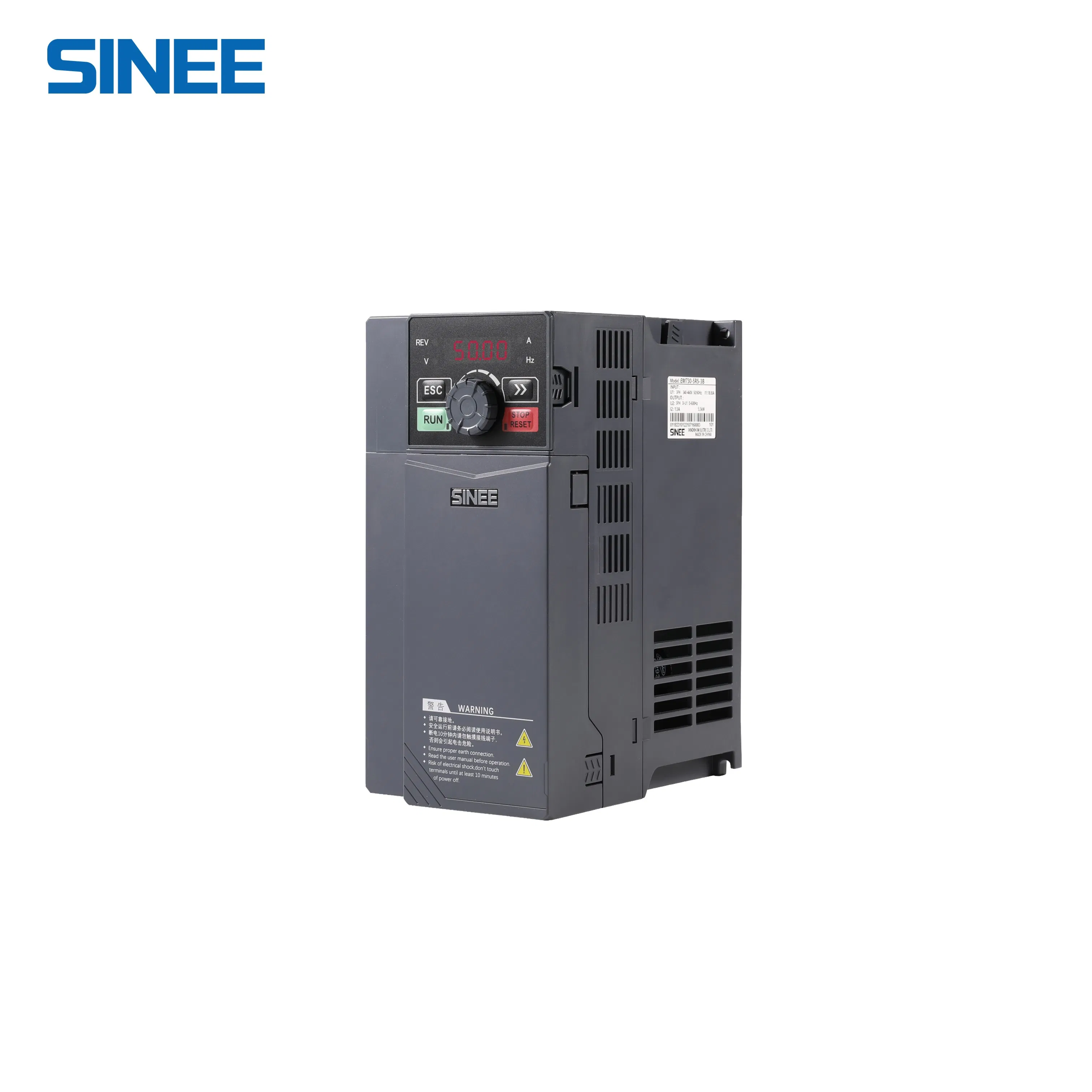

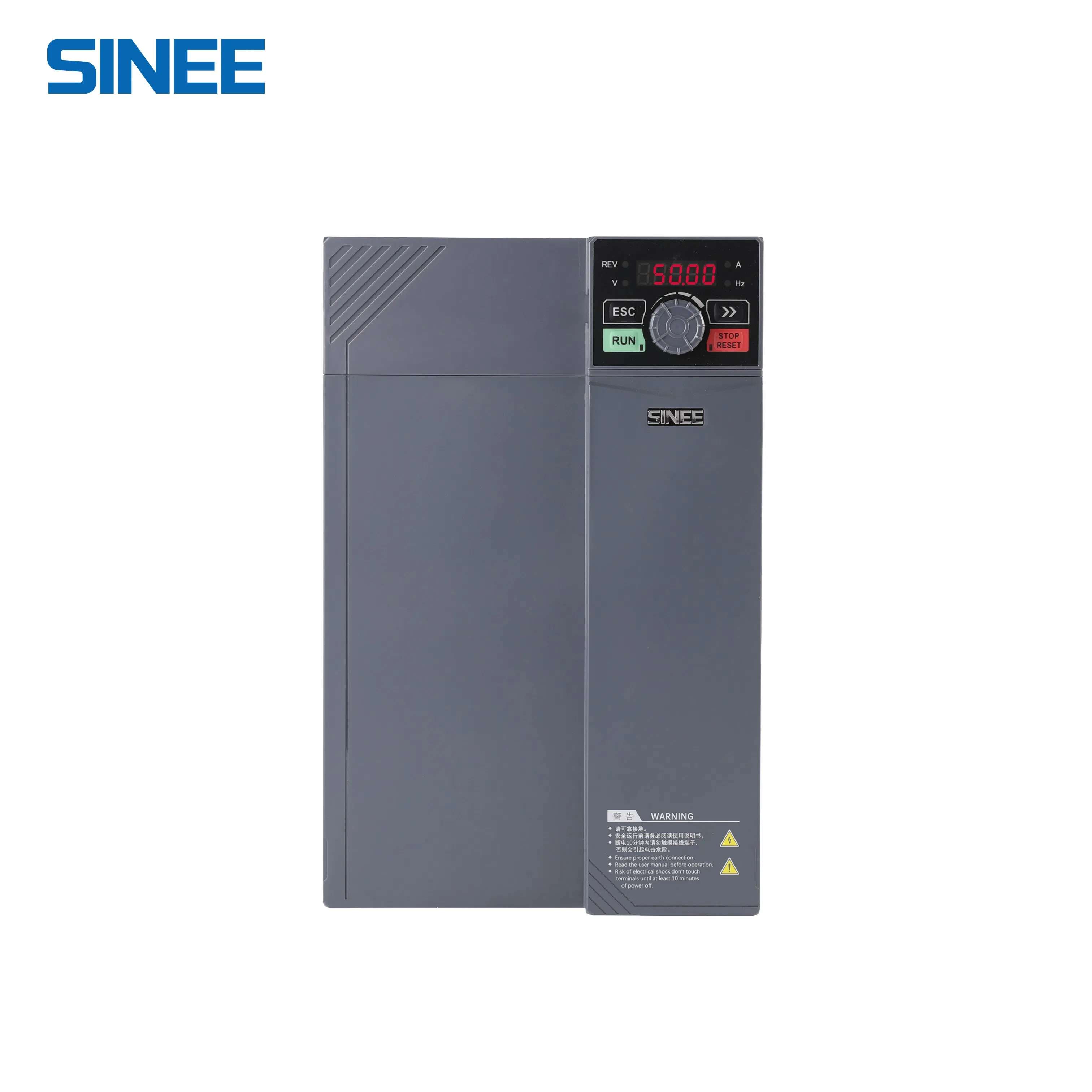

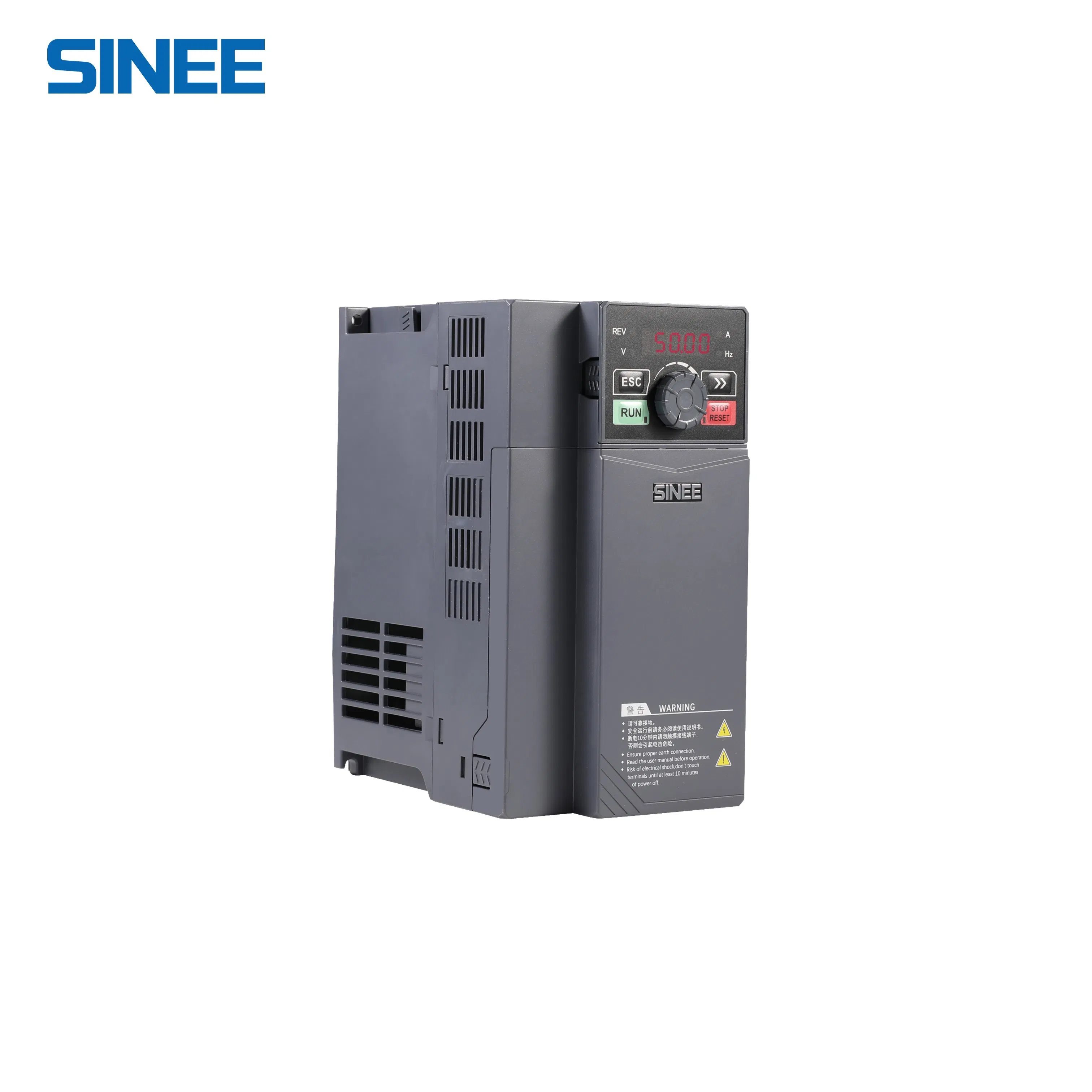

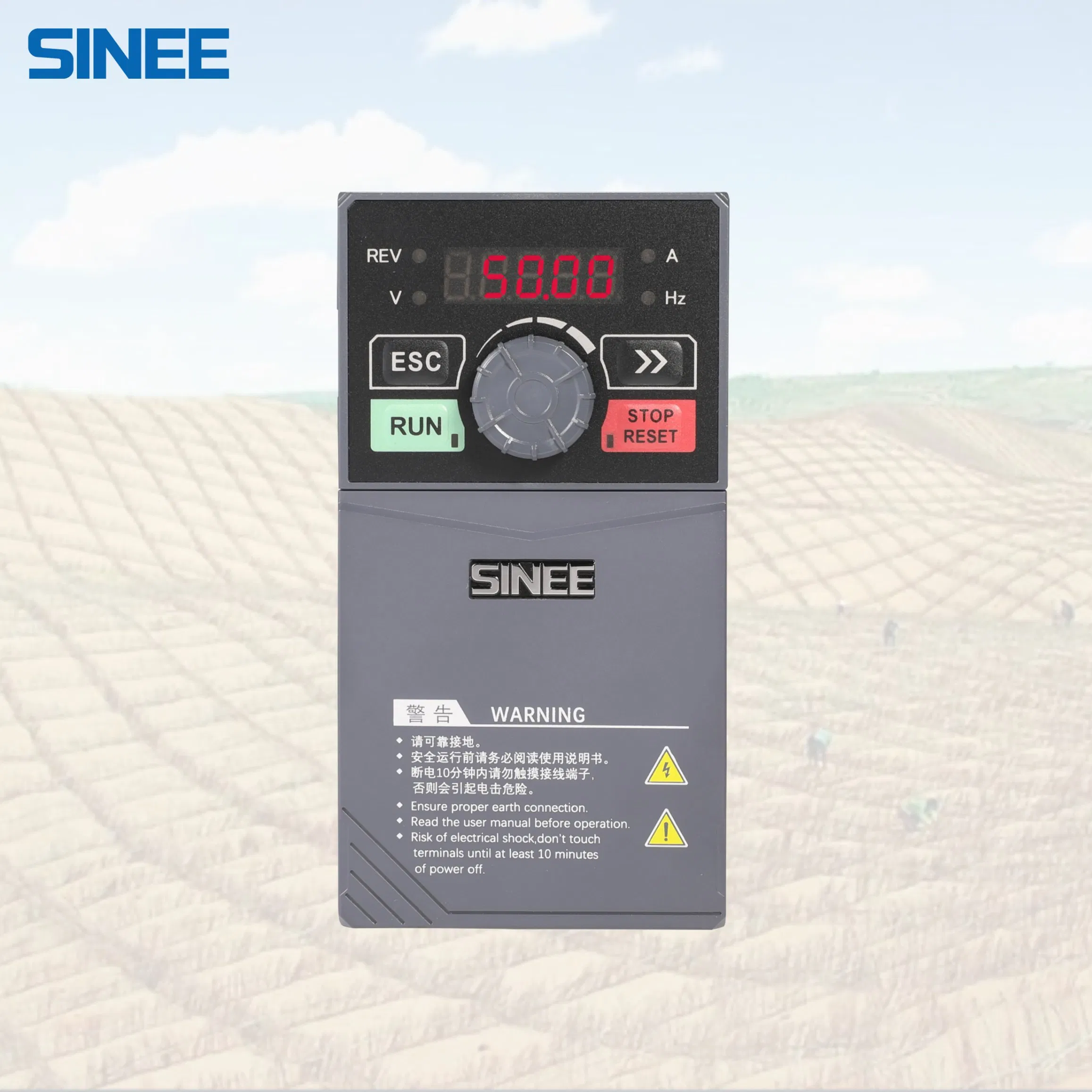

Deep Water Pump Irrigation Frequency Inverter Solar Power Inverter Motor Speed Controller VFD

1 / 5

Deep Water Pump Irrigation Frequency Inverter Solar Power Inverter Motor Speed Controller VFD

Customization:	Available
Application:	Solar Pump Inverter
Output Type:	Triple

Send Inquiry

Product Description

Basic Information

Model NO.

EM730-PV

Principle of Work

Vector Control Transducer

Switch Mode

PWM Control

Main Circuit Type

Voltage

Voltage of Power Supply

Medium Voltage Variable-Frequency Drive

Link of Transformation

AC-AC Variable-Frequency Drive

Nature of DC Power

Current Variable-Frequency Drive

Function

Solar Pump Inverter

Output Frequency(Hz)

0-400

MPPT

99%

Installation Method

Wall-Mounted, Cabinet Installation

Cooling Method

Fan Cooling

Protection Level

IP20

Package Size

21.10cm * 13.60cm * 21.20cm

Package Gross Weight

1.280kg

Product Description

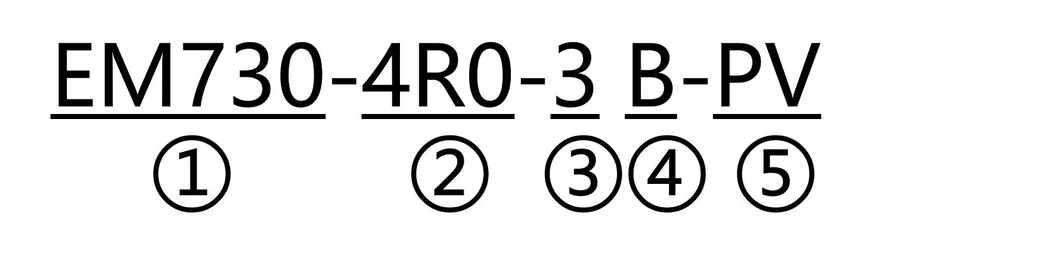

Field	Logo	Logo Description	Details
Product Serial Number	1	Product family abbreviation	EM730:Electric Machinery 730
Adapted motor power	2	Power range	4R0-4.0KW
Voltage level	3	Voltage level	2:Single/three-phase 220V; 3: Three-phase 380V
Optional accessories	4	Braking unit	B: Built-in braking unit
Professional code	5	Industry code	PV: photovoltaic water pump

Deep Water Pump Irrigation Frequency Inverter Solar Power Inverter Motor Speed Controller VFD

Comprehensive voltage/power range Supports single-phase/three-phase 200v~240v, three-phase 340v~460v water pump; power from 0.4kw~110kw

Multiple protection measures Water source water shortage protection, water pump dry-run/underload protection, reservoir full protection, light-weak sleep and wake-up, low voltage input protection, stalled overload protection.

Advanced MPPT algorithm Solar tracking efficiency up to 99%.

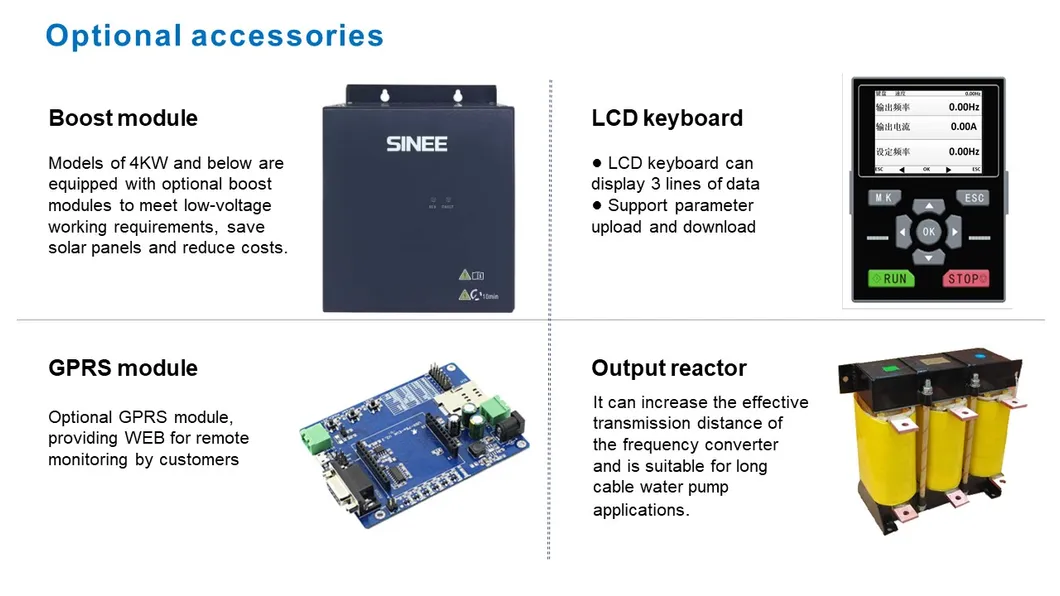

Support GPRS module Supports optional GPRS module for remote monitoring via computer or mobile APP.

Boost module Models of 4KW and below can be equipped with boost modules to meet low-voltage working requirements and reduce panel costs.

Automatic switching Automatic switching between photovoltaic and grid inputs for 24-hour operation.

Product Parameters

Project	-2B	-2BS	-3B
AC input voltage (V)	200V-240V	200V-240V	340V-460V
Max DC input (V)	400	400	800/900
Starting voltage (V)	200	200	300
Recommended MPP (V)	330	330	550
Output frequency(Hz)	0~400
MPPT Efficiency	99%
Protection Level	IP20

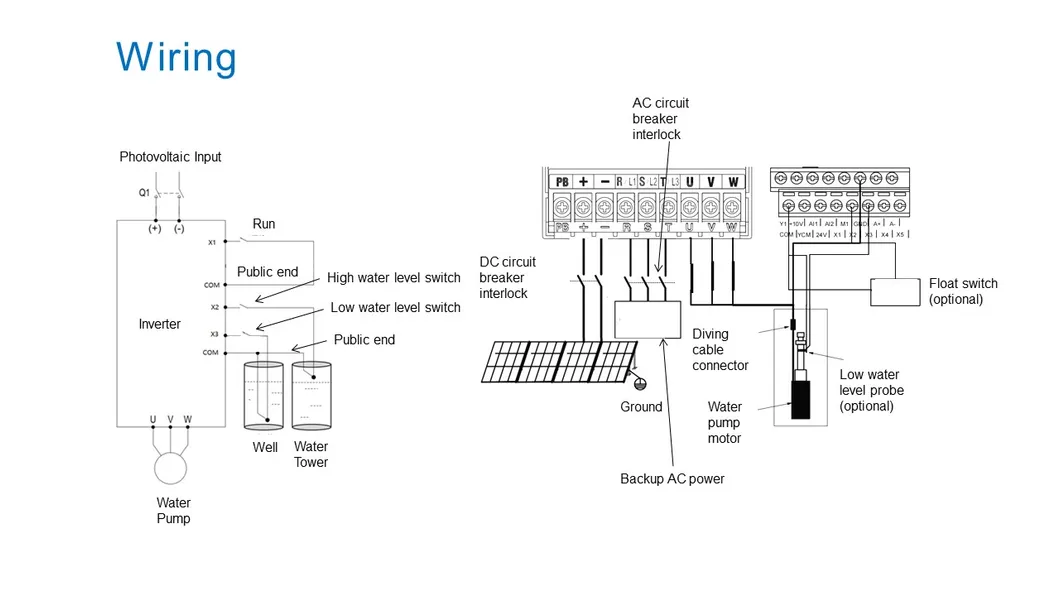

Installation Instructions

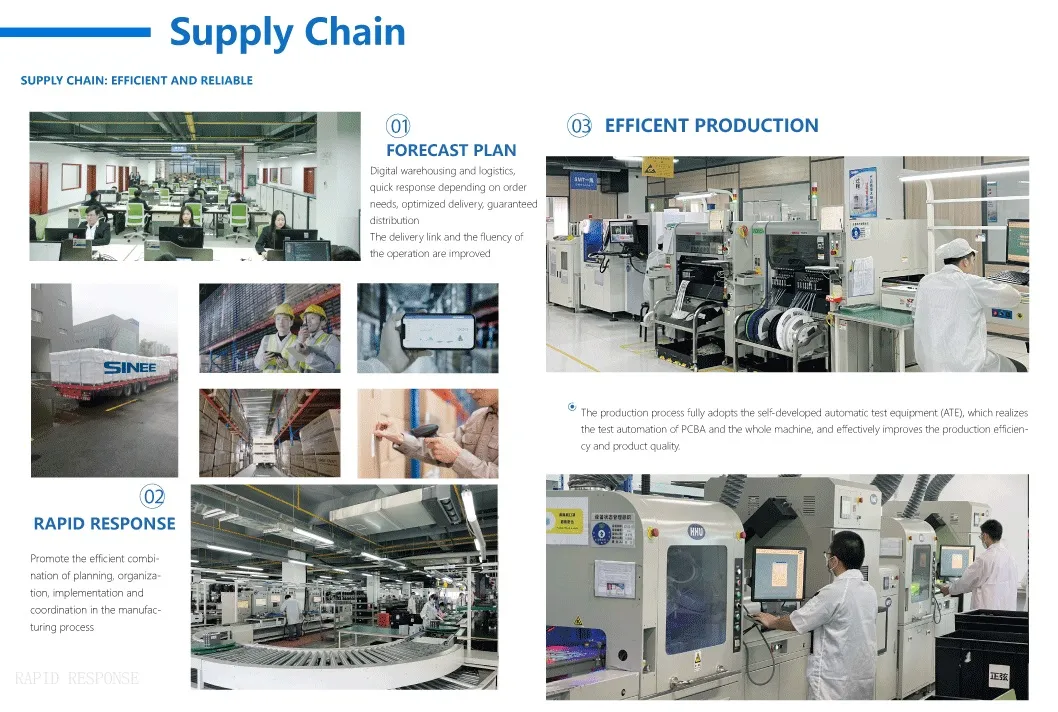

Manufacturing and Quality Control

Frequently Asked Questions

What is the efficiency of the MPPT algorithm?

The solar tracking efficiency of our advanced MPPT algorithm reaches up to 99%, ensuring maximum power extraction from solar panels.

Can the inverter operate 24 hours a day?

Yes. The entire series supports automatic switching between photovoltaic (PV) and grid inputs, allowing for 24-hour maintenance-free operation.

What types of protection are included?

The inverter includes water source shortage protection, pump dry-run protection, reservoir full protection, low voltage input protection, and stalled overload protection.

Does it support remote monitoring?

Yes, there is an optional GPRS module that enables remote monitoring via a computer or mobile application.

What is the operating temperature range?

The standard operating range is -10ºC to +50ºC. It can operate up to 60ºC with appropriate derating.

Is it possible to use it at high altitudes?

Yes, it can be used up to 3,000 meters. However, derating is required for altitudes exceeding 1,000 meters (1% for every 100 meters).
