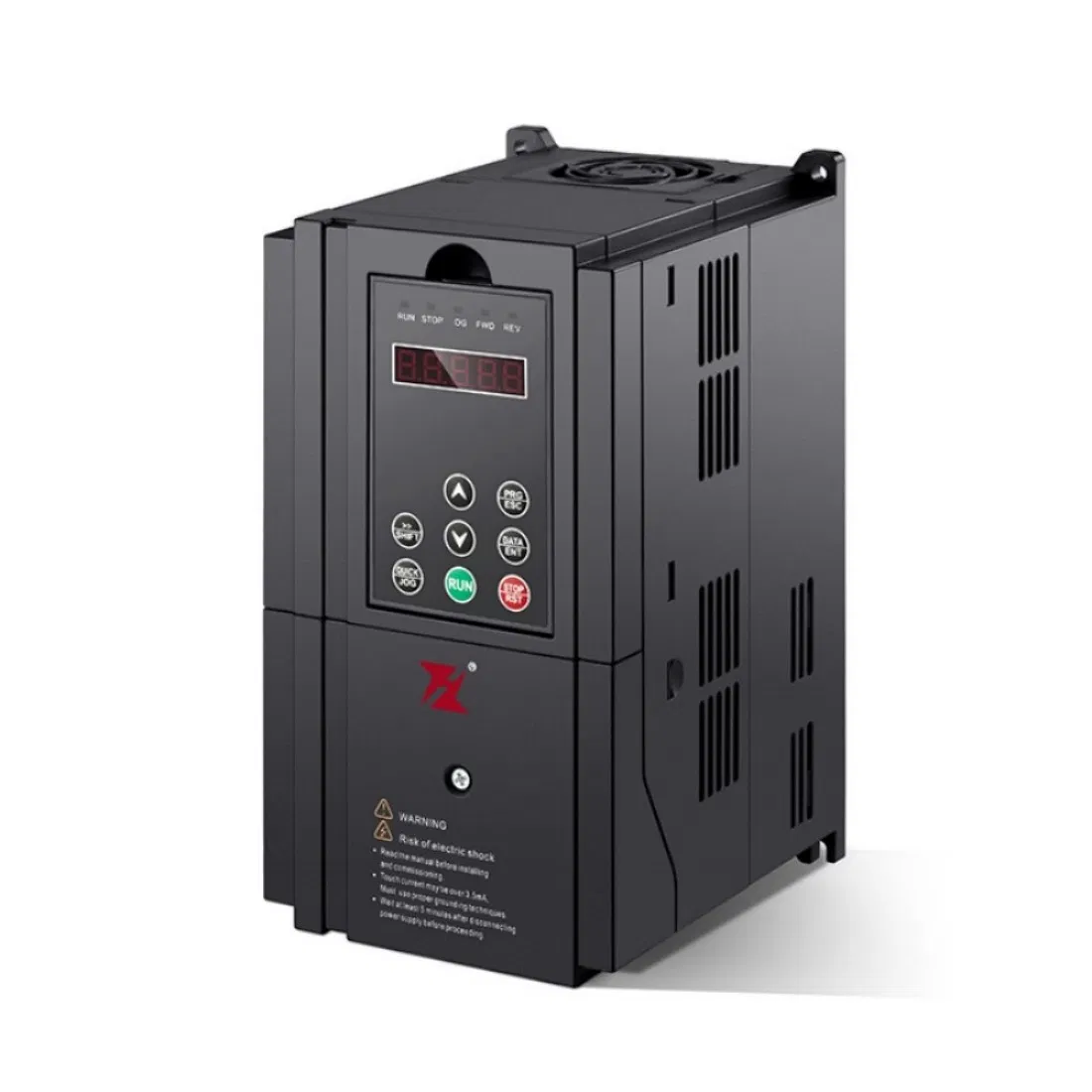

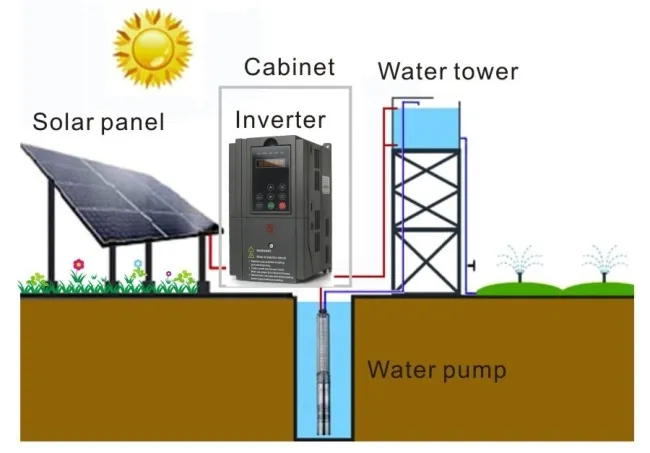

The BD330-Pv series products do not require battery modules. The power supply is directly sourced from the photovoltaic array to realize PID control and MPPT functions. Based on original protection functions, the product adds specialized features such as light-weak sleep, light-intensity wake-up, water shortage alarm, and full water shutdown to ensure optimal water pump operation.

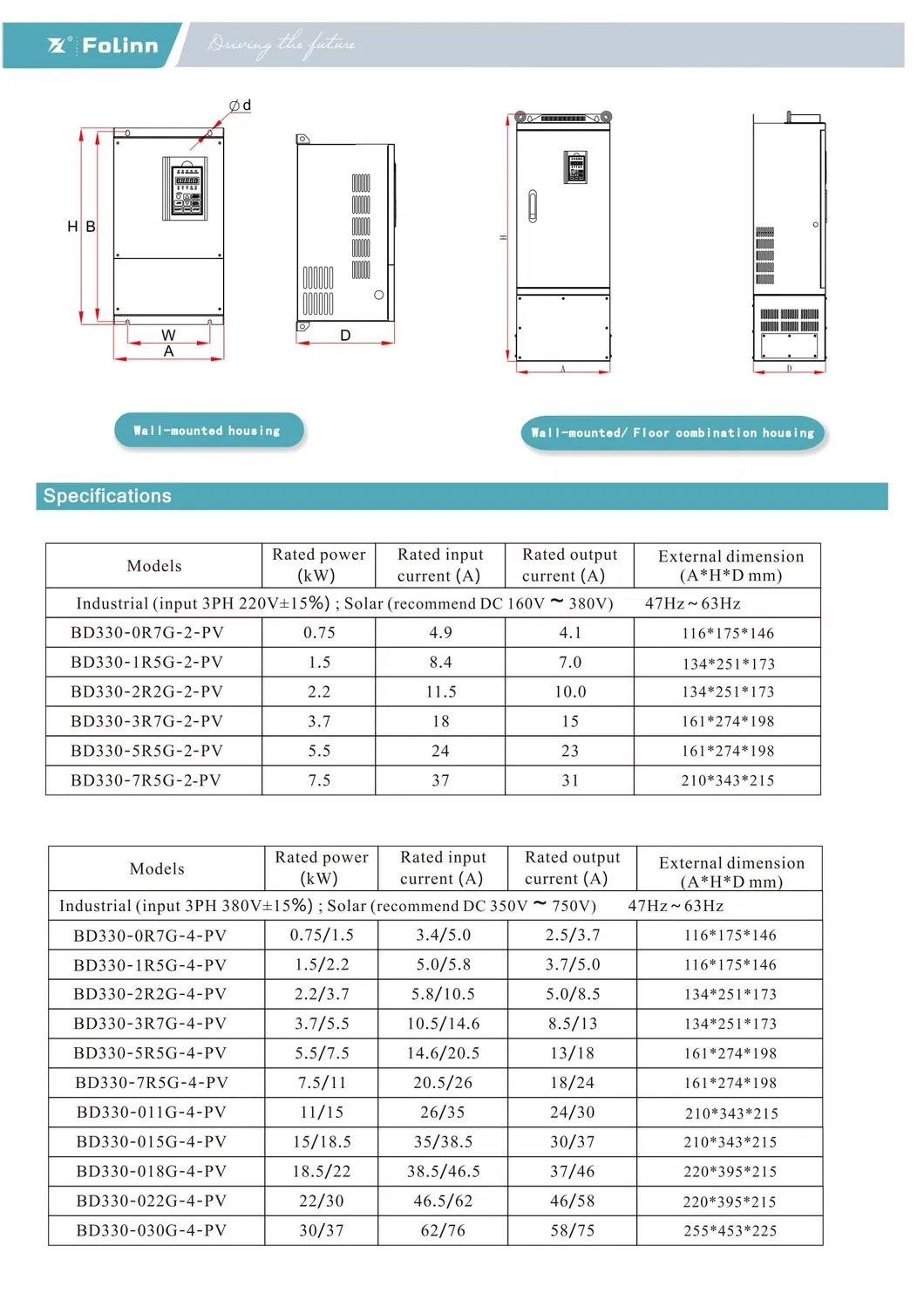

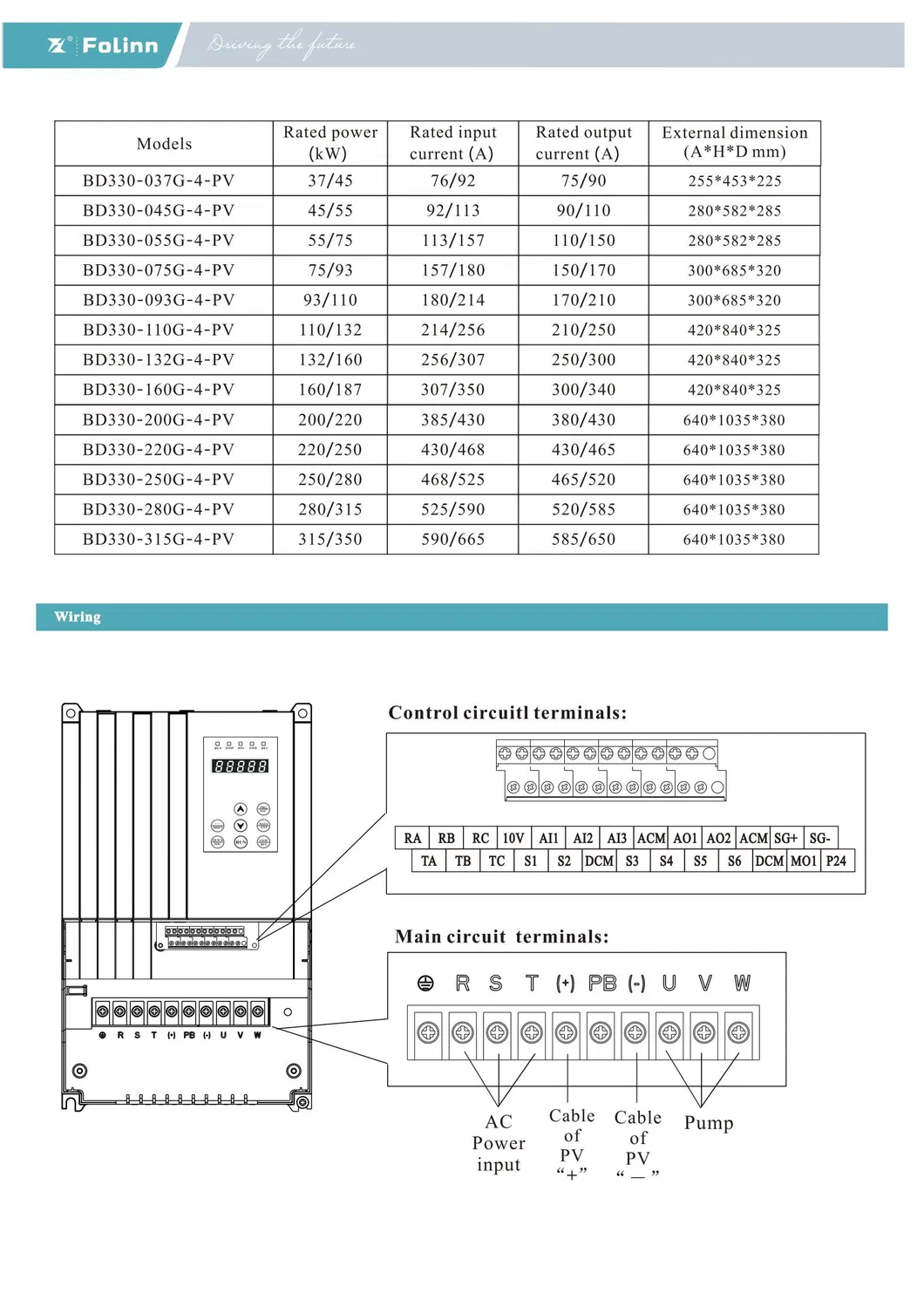

| Technical Features | Description |
|---|---|
| Input AC Voltage | 1AC 220V±15%, 3AC 220V±15%, 3AC 380V±15% |
| Recommend PV Input DC Range | 160~380VDC; 350~750VDC (Max 800VDC) |
| Control Mode | V/F control, SVC (non-PG vector control), FVC (PG vector control) |
| Overload Capacity | 150% rated current 60s, 180% rated current 3s |
| Start Torque | G type: 0.5Hz/150% (SVC), 0Hz/180% (FVC) |
| Solar Pump Specifics | CVT or MPPT control, weak light auto sleep/wake up, underload pre-warning, water level sensor protection |
| Protection Functions | Overvoltage, undervoltage, overcurrent, overload, overheat, phase-loss, short-circuit |

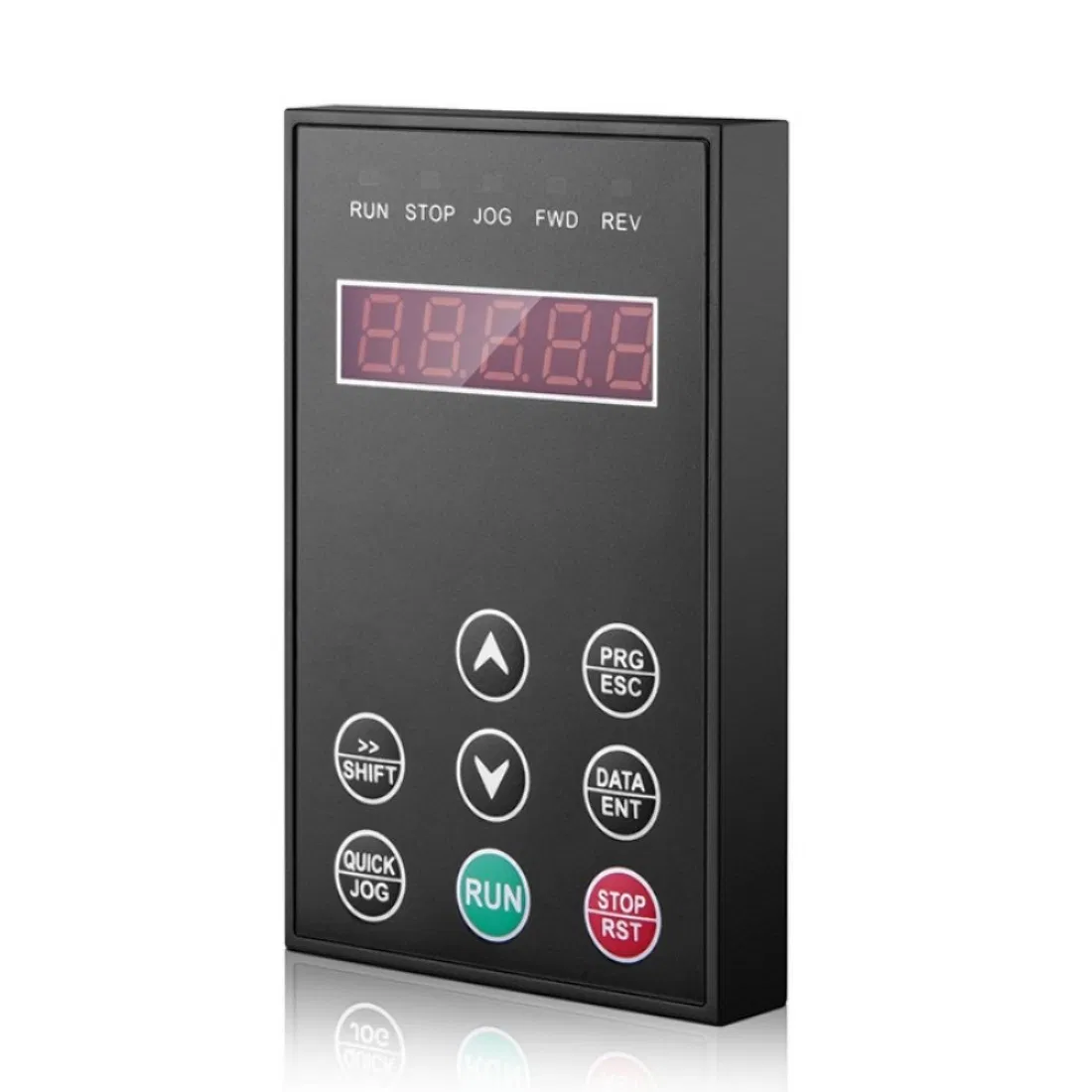

| Display | LED Display: frequency, voltage, current, etc. |

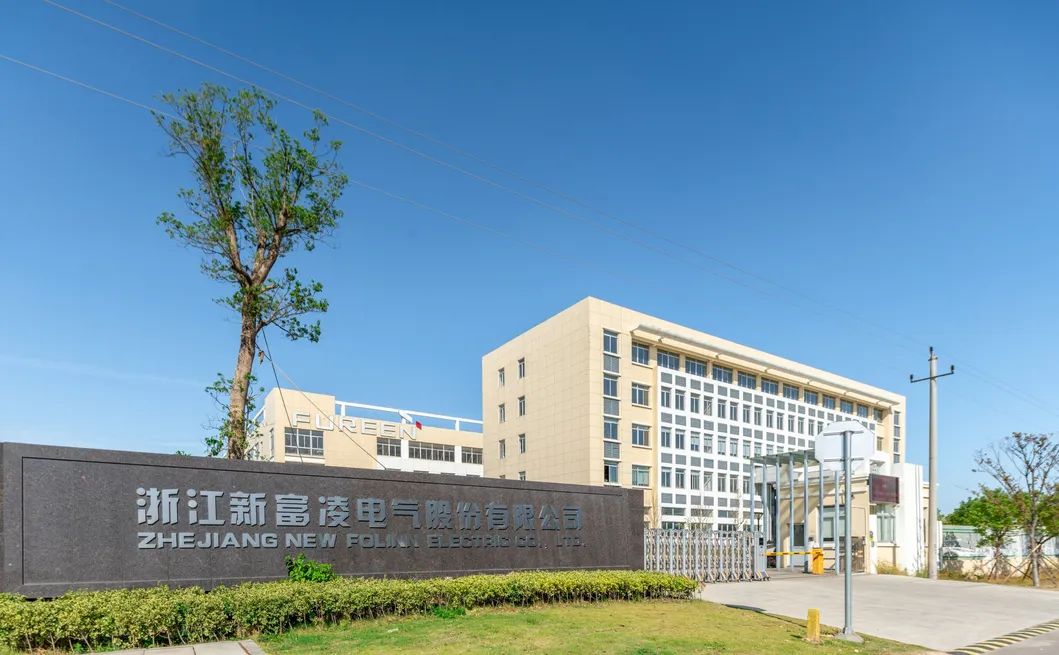

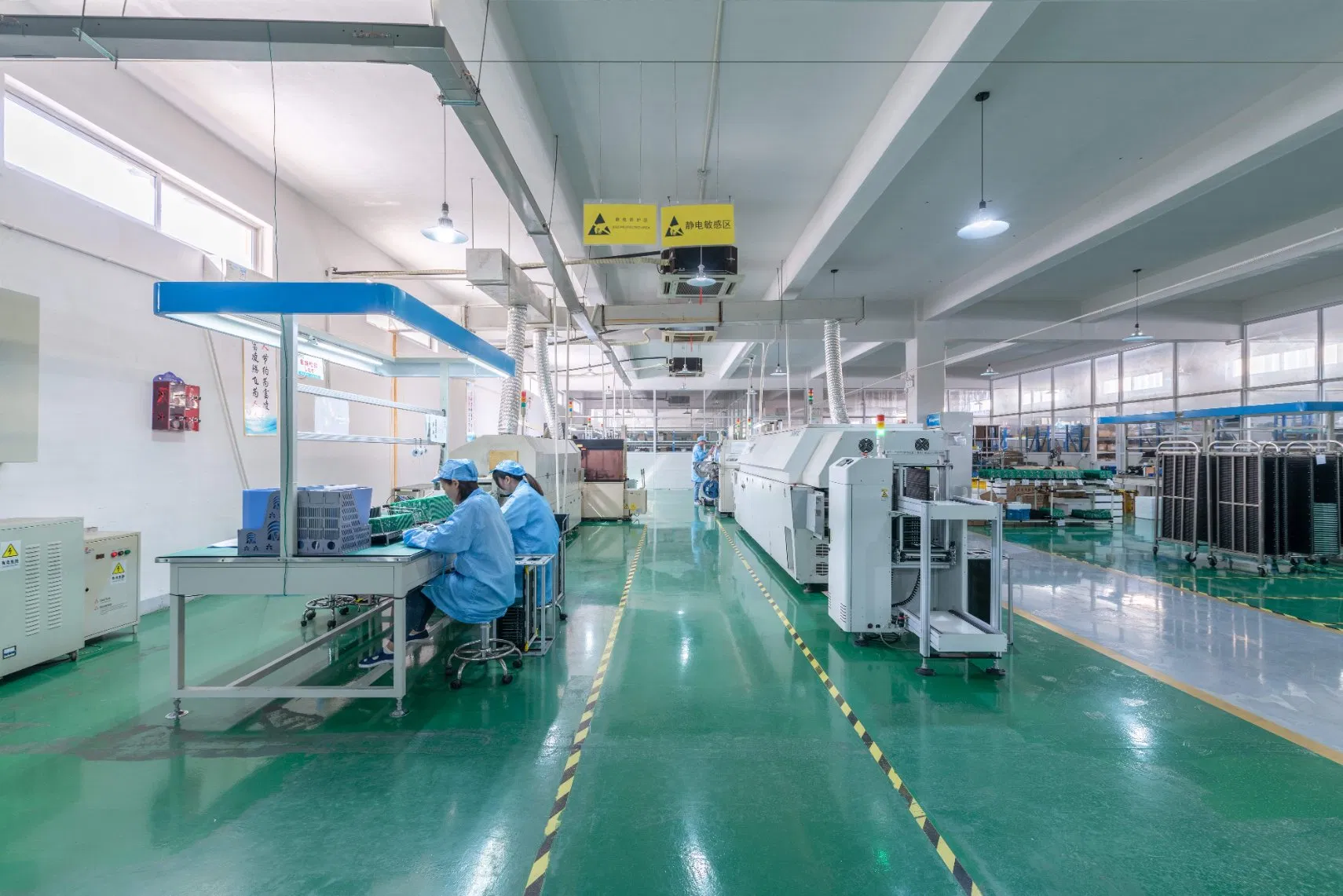

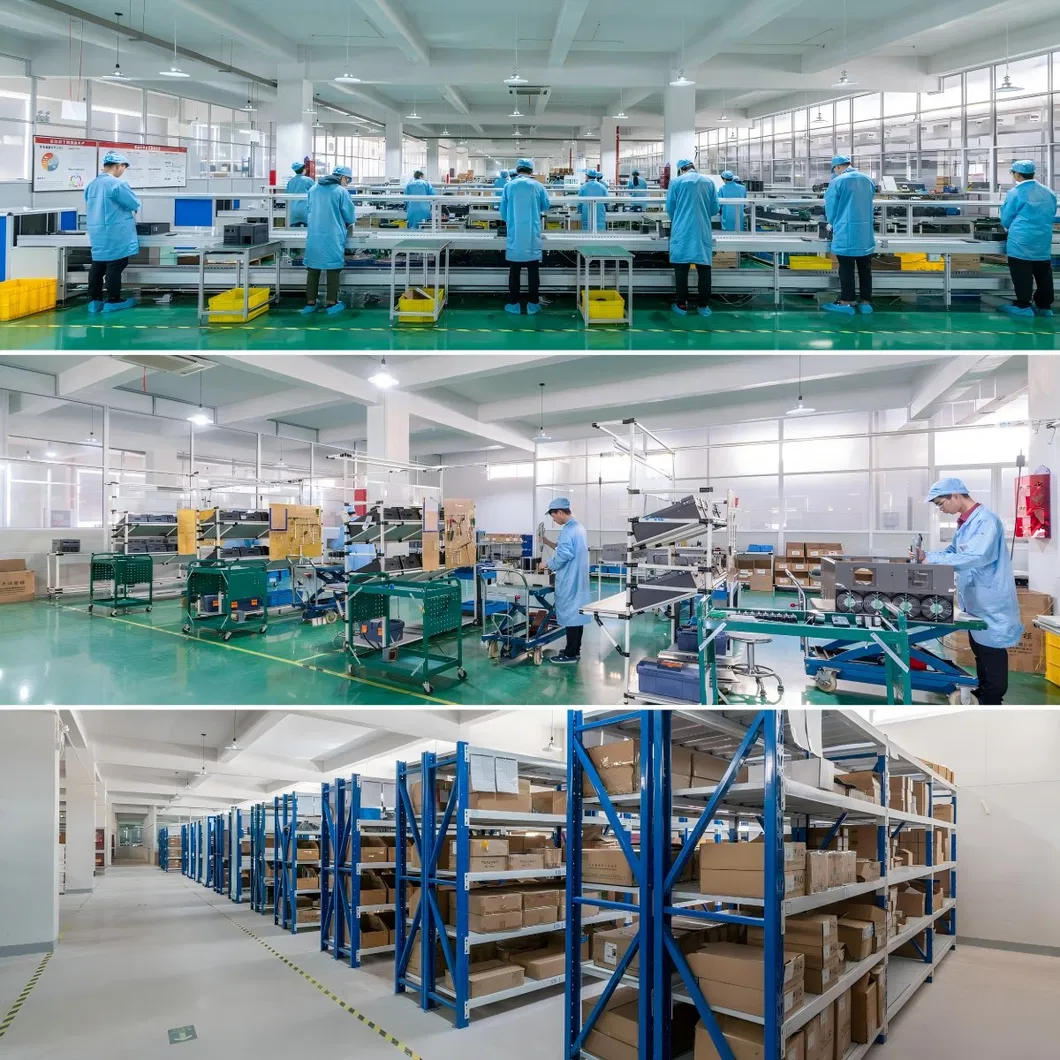

Specializing in HV and Low Voltage inverter technology, our focus remains on R&D and manufacturing of motor auto-controlling products. We maintain high standards through rigorous quality management and continuous innovation in the new energy sector.
