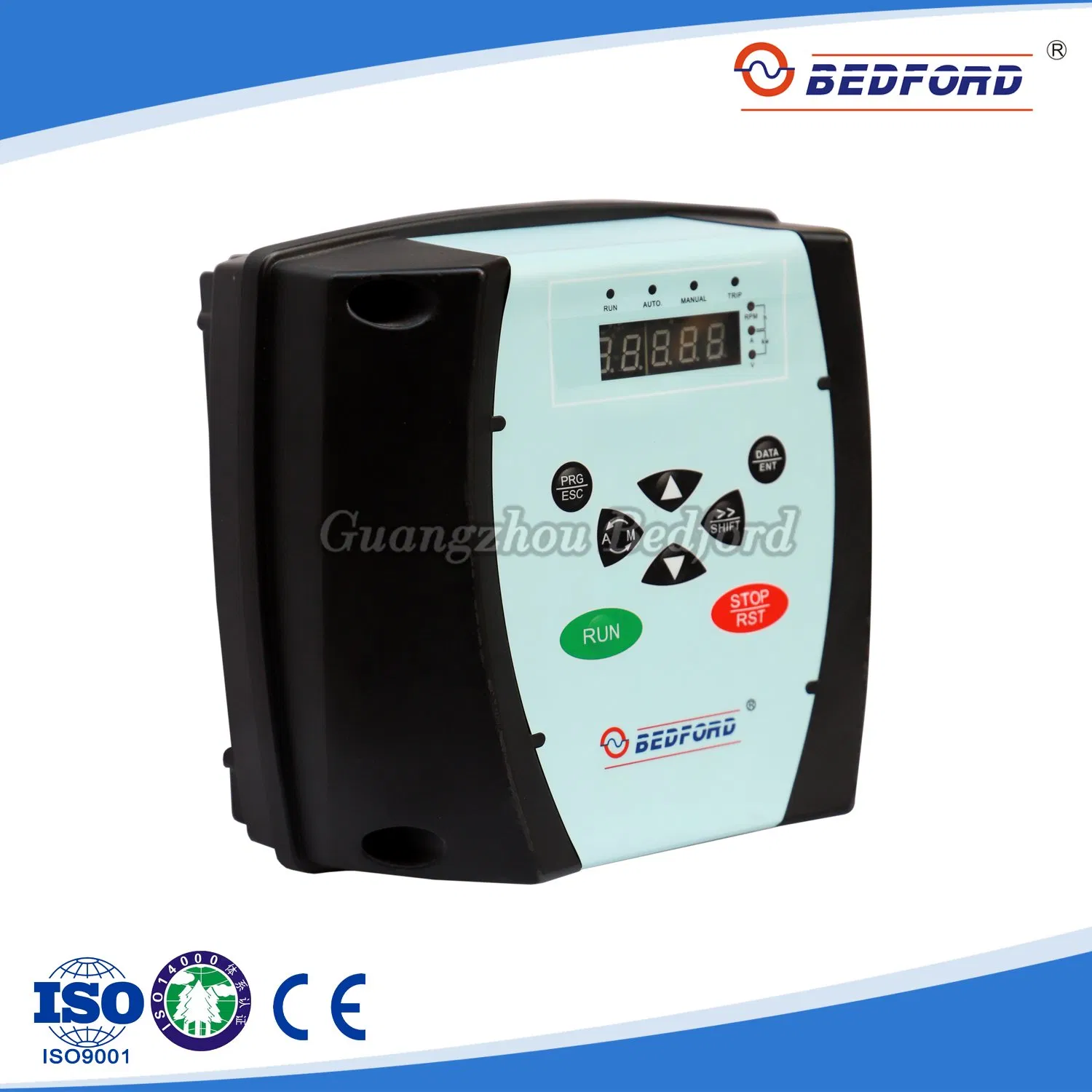

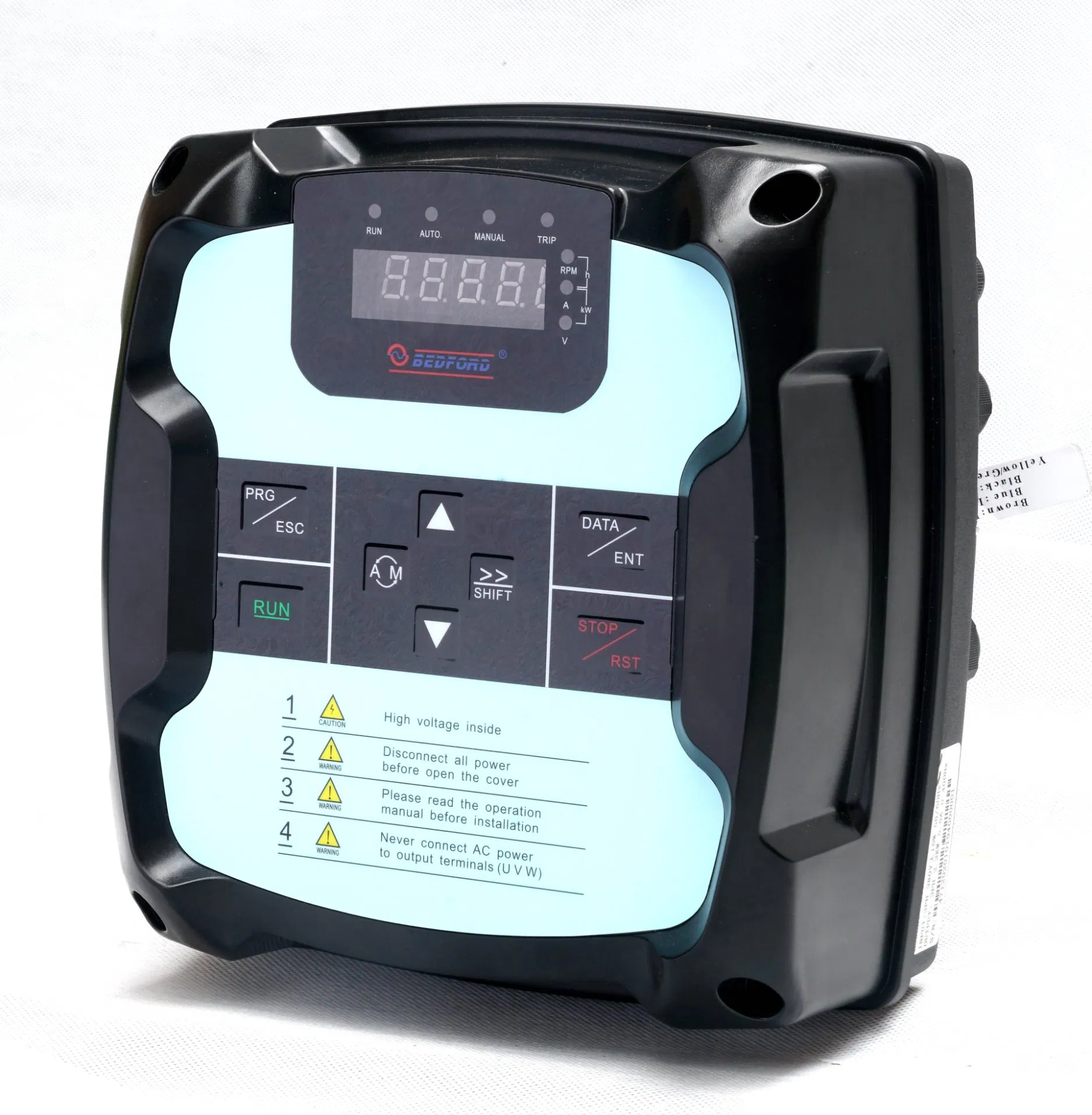

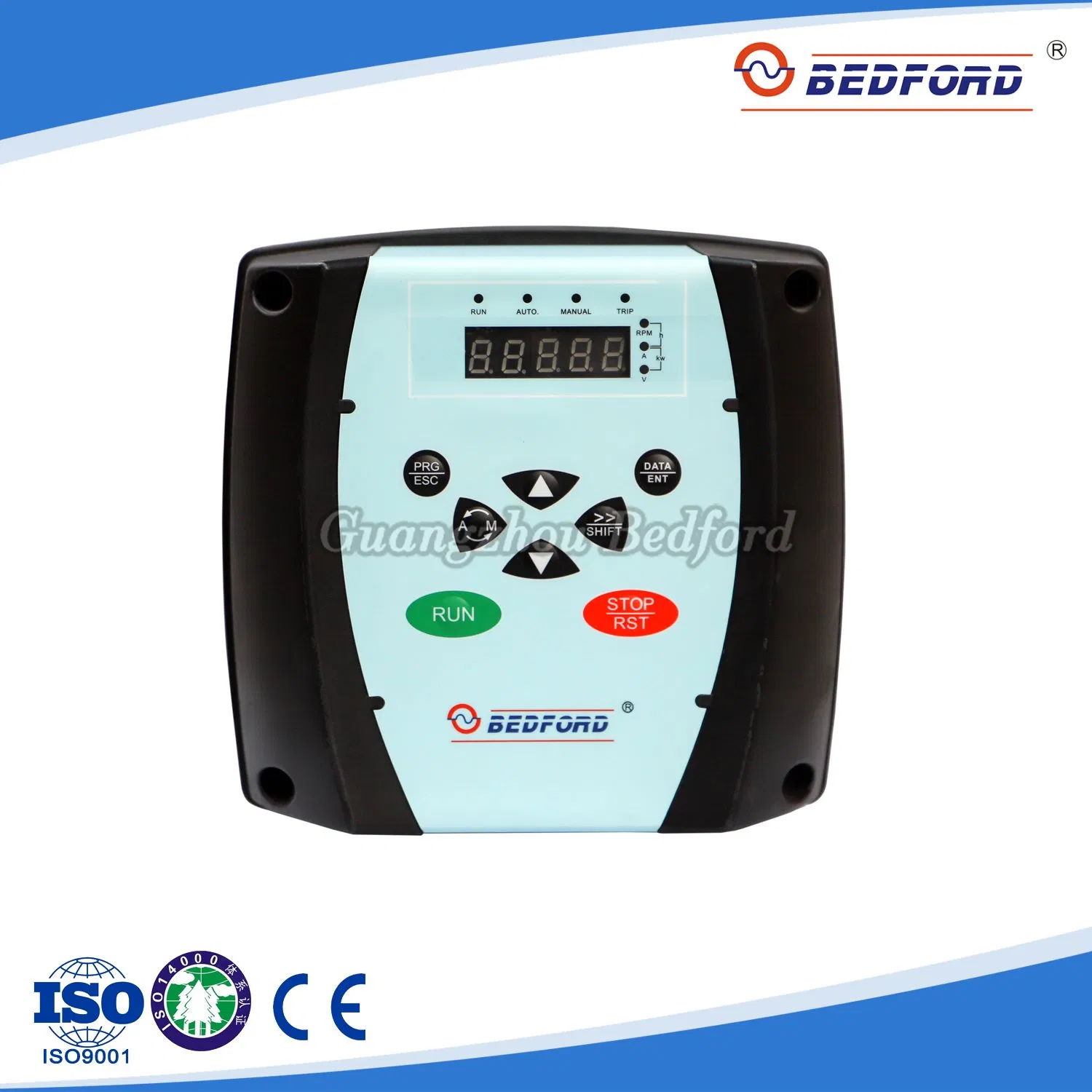

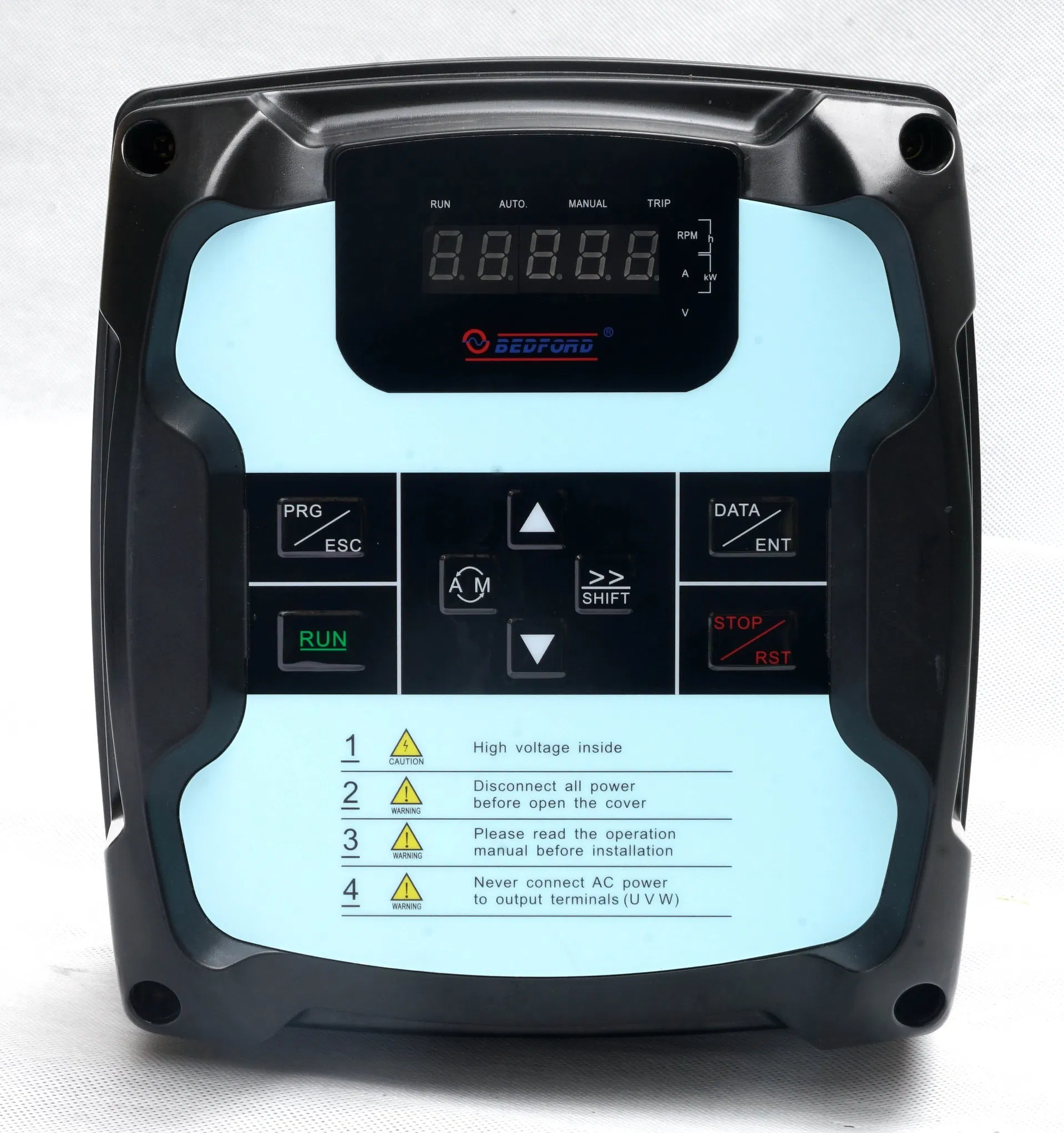

Bedford Multi-Speed Solar Swimming Pool Pump Controller for Recirculation Water

Customization:	Available
Application:	Pump Controller
Output Type:	Single or Triple

Send Inquiry

Product Description

Technical Specifications

Model NO.	B607B2
Principle of Work	PLC Control
Switch Mode	PWM Control
Main Circuit Type	Voltage
Voltage of Power Supply	220VAC/305VDC, 380VAC/540VDC
Link of Transformation	DC-AC Variable-Frequency Drive
Nature of DC Power	Voltage Variable-Frequency Drive
Function	Pump Control
Output Power	0.75kw-7.5kw
Output Phase	Single/Triple Phase
Output Voltage	220V/380V
Protection Rate	IP54
Characteristics	8-Steps Multi-Speed
Certification	CE/ISO9100/ISO14001
Frequency	50/60Hz
Specification	192200151mm
Production Capacity	5000 Pieces / Month

Packaging & Delivery

Package Size	50.00cm * 30.00cm * 40.00cm
Package Gross Weight	4.000kg
Transport Package	Cartons, Wooden Cases or as Per Customer's Requirement

Product Description

Product Introduction

This intelligent controller is specifically designed for swimming pools, featuring automatic/manual modes and multi-speed settings for multiple time sections. This series is ideal for full-automatic water supply and recirculation systems in swimming pool environments.

Main Features

MPPT Technology: Adopting advanced Maximum Power Point Tracking to maximize efficiency of solar cell arrays.
Energy Efficiency: High efficiency motor design with low power consumption for remarkable energy saving.
Reliability: Built-in automatic overheat protection.
Comfort: Small vibration and low noise operation.
Automation: Runs automatically based on real-time sections once parameters are set.
Manual Control: User-friendly switching of speed gears in manual mode.
Multi-Speed: Support for up to 8-steps multi-speed operation.

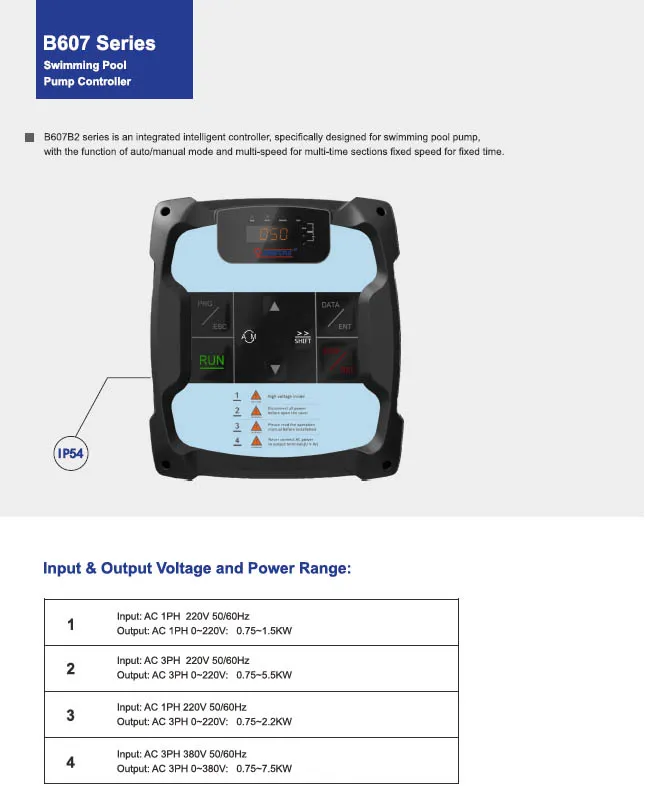

Input & Output Power Range

Option 1: Input Single Phase 220V or 305VDC | Output Single Phase 0-220V (0.75-1.5kw)

Option 2: Input Three Phase 220V or 305VDC | Output Three Phase 0-220V (0.75-5.5kw)

Option 3: Input Single Phase 220V or 305VDC | Output Three Phase 0-220V (0.75-2.2kw)

Option 4: Input Three Phase 380V or 540VDC | Output Three Phase 0-380V (0.75-7.5kw)

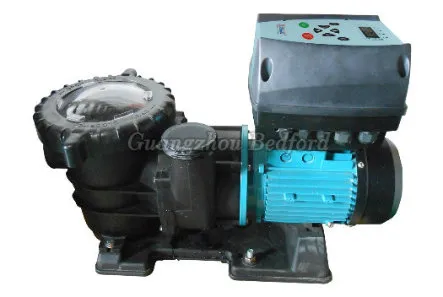

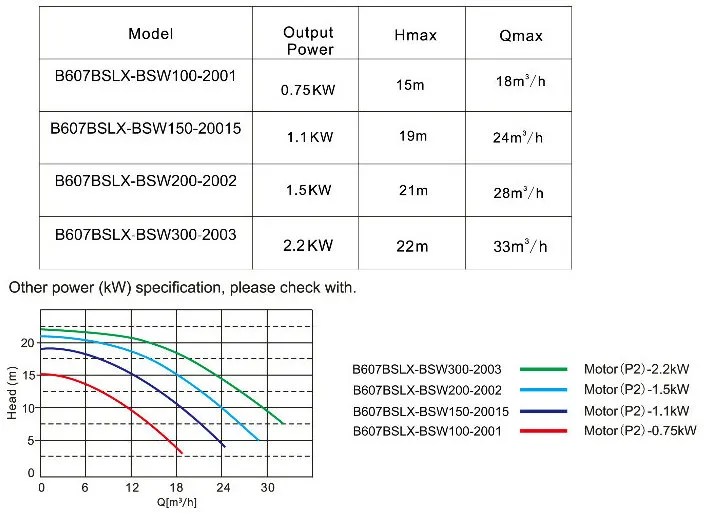

Technical Data & Applications

Frequently Asked Questions

1. What is the benefit of the 8-steps multi-speed function?

The 8-steps multi-speed function allows the controller to adjust pump speed automatically during different time intervals, optimizing water circulation while reducing energy costs during off-peak hours.

2. Does this controller support both AC and DC input?

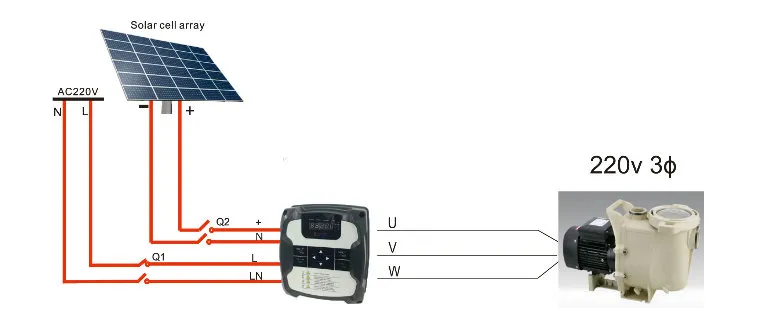

Yes, it is designed for hybrid use. It supports 220VAC/380VAC power supplies as well as 305VDC/540VDC solar inputs, ensuring continuous operation.

3. Can I use this for a three-phase pump with a single-phase supply?

Yes, the controller includes options that take single-phase 220V input and provide three-phase 220V output, specifically for pumps ranging from 0.75kw to 2.2kw.

4. What does the IP54 rating signify?

IP54 rating means the device is protected against dust ingress and water splashes from any direction, making it highly durable for pool-side installations.

5. How does MPPT improve solar efficiency?

MPPT (Maximum Power Point Tracking) technology monitors the voltage and current output of your solar panels in real-time to ensure the pump receives the maximum available power even in low-light conditions.

6. Is manual operation still possible if the automatic settings are not required?

Absolutely. The controller features a manual mode that allows users to easily switch between speed gears and control the system independently of the programmed timers.
