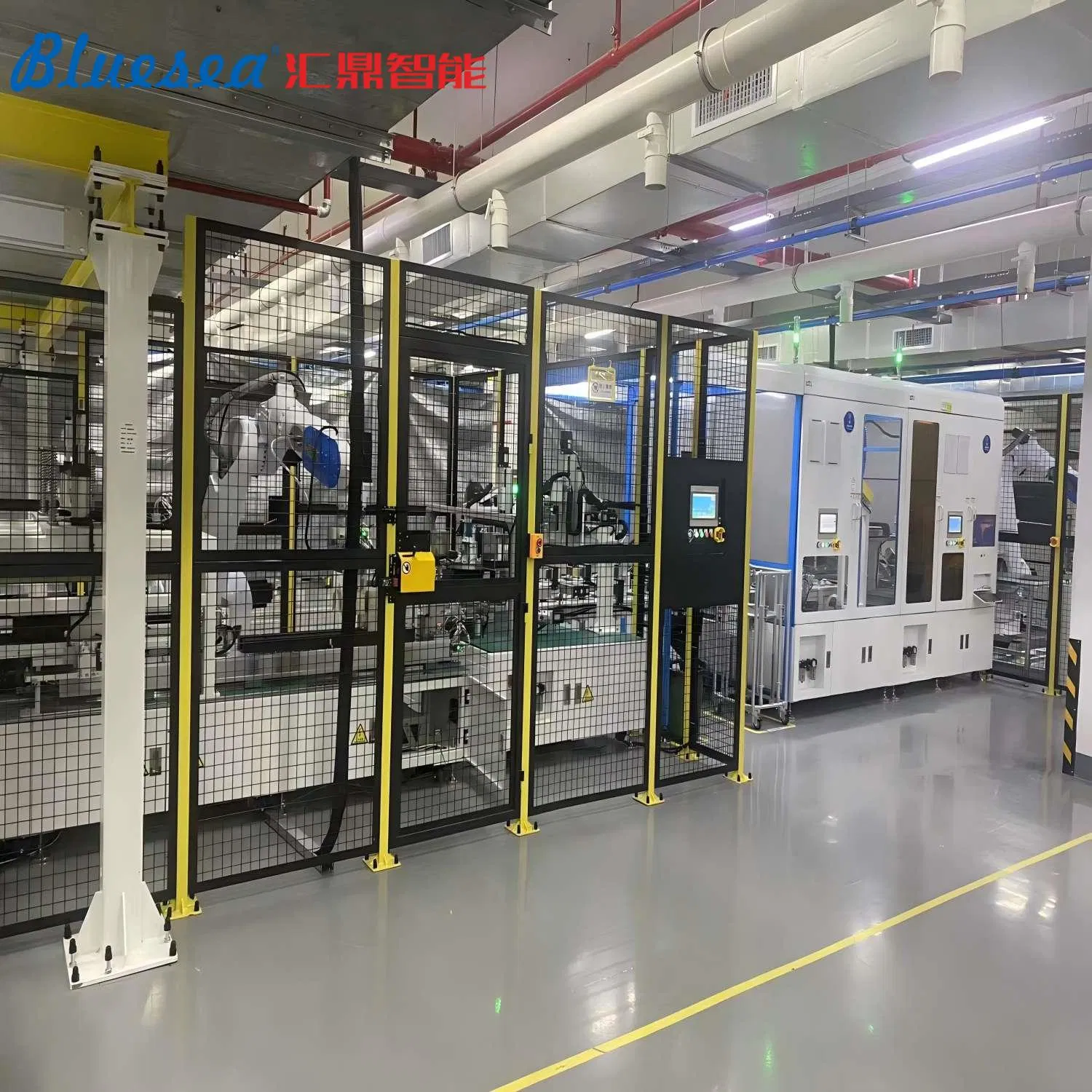

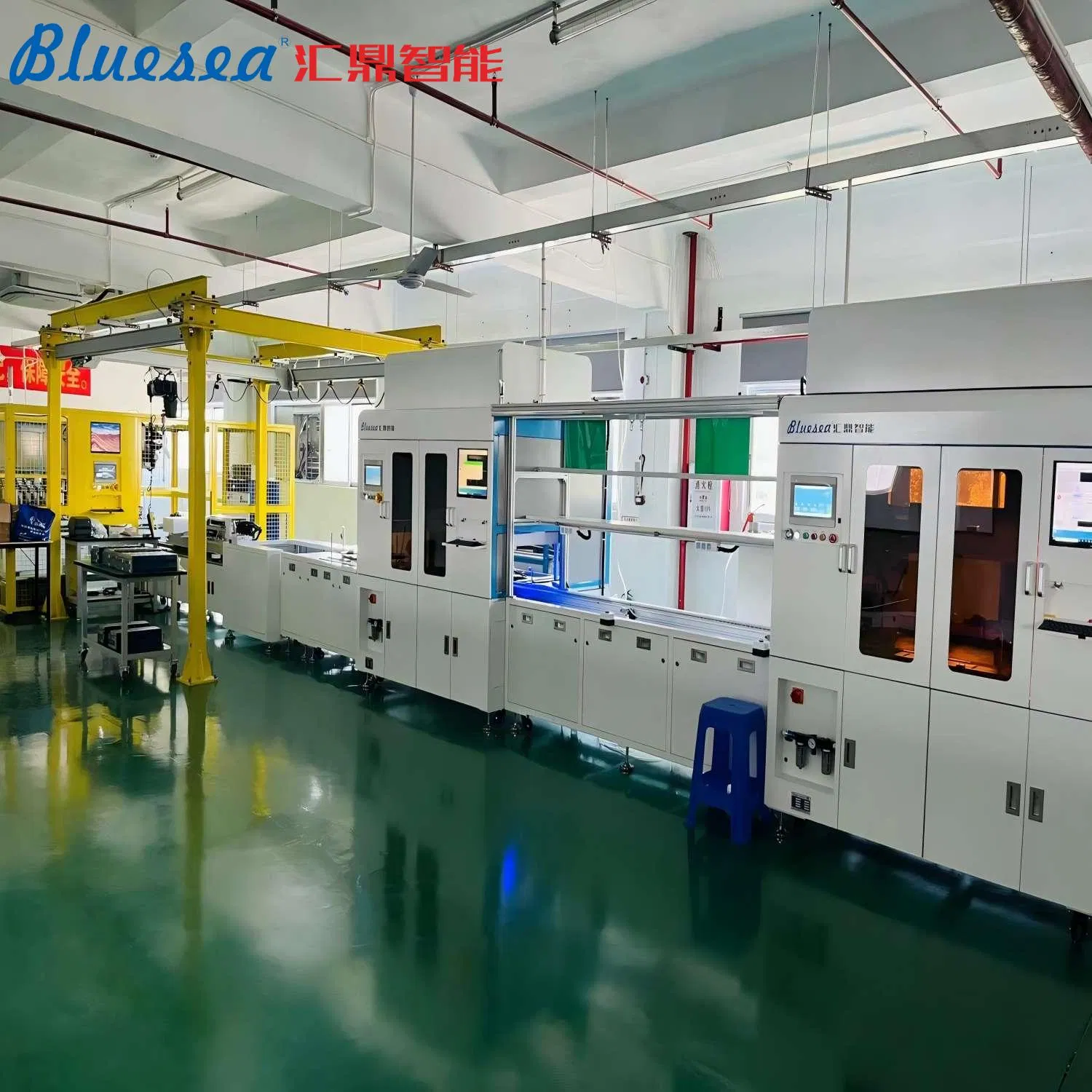

PV Solar Connector Assembly Automatic Prismatic EV Battery Pack Assembly Line Machine

1 / 5

PV Solar Connector Assembly Automatic Prismatic EV Battery Pack Assembly Line Machine

Customization:	Available
Production Scores:	Multiple Varieties
Production Continuity:	Continuous

Send Inquiry

Product Description

📊 Overview & Basic Info

Condition

New

Automation

Automatic

After-sales Service

Engineers Available Overseas

Colour

Custom

Compatible

for Battery Cell Not for Pack

Reference Process

280ah

Transport Package

Container

Specification

Custom Size

Production Capacity

200/Month

⚙️ Product Parameters

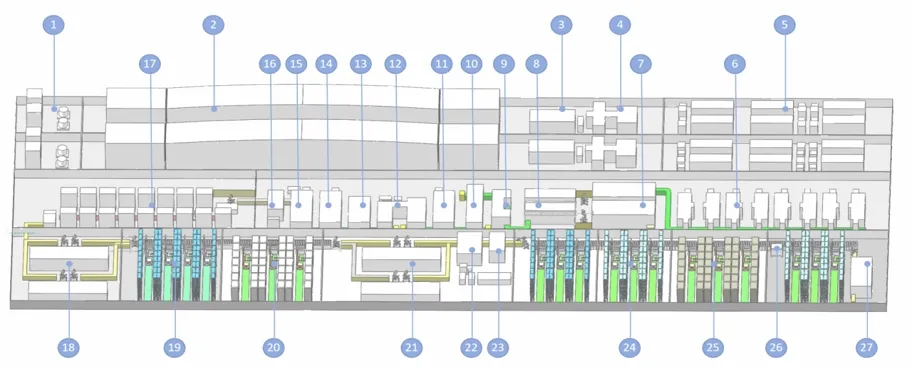

Whole Line Equipment List

1. Mixing machine	8. Hot pressing	15. Cap welding	22. Sealing nail welding
2. Coating machine	9. X-ray test	16. 1st Leakage inspection	23. Final leaking inspection
3. Calendering	10. Pairing	17. Vacuum Baking	24. RT standby
4. Preslitting	11. US welding	18. 1st EL.injection	25. Capacity test
5. Tab Forming	12. Connector	19. High temperature standing	26. OCV and IR test
6. Winding	13. Mylar Wrapping	20. Fortation	27. Wrapping
7. Tunnel Furnace	14. Insertion into Housing	21. 2nd EL.Injection

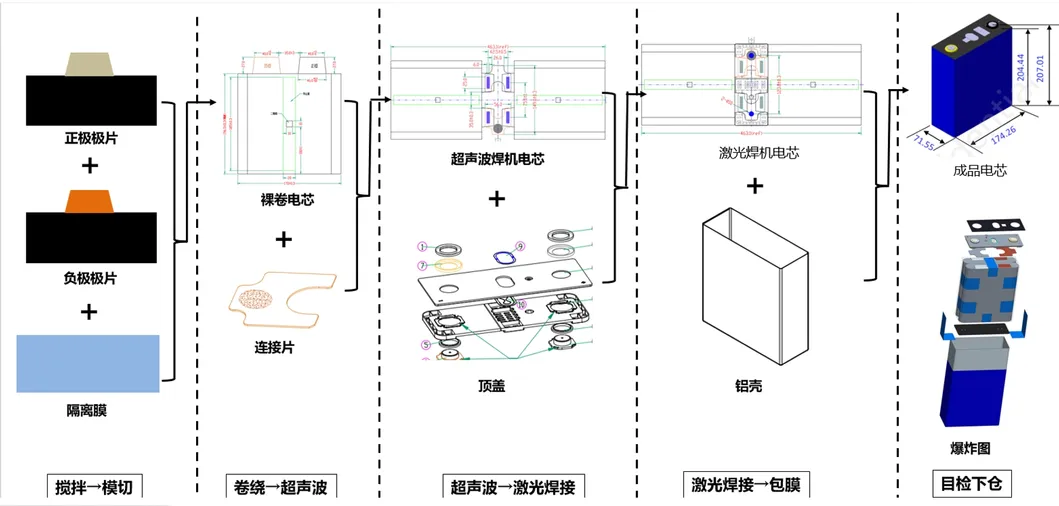

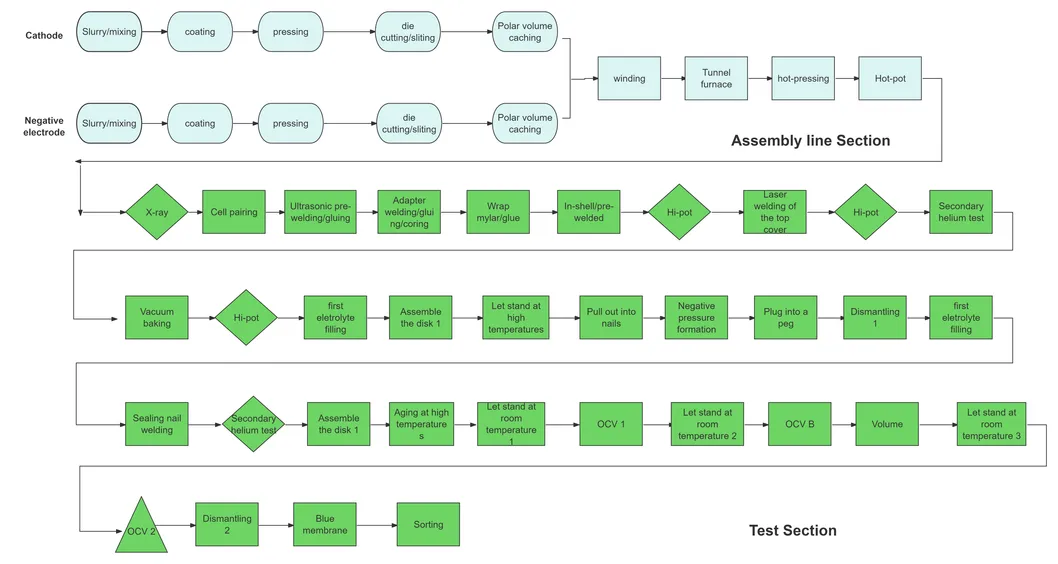

Whole Line Process Flow

📝 Equipment Specifications

1. Mixing slurry preparationSize: 4270*3520*6480; Load: 2T/m2

2. Coating machineSize: 96000*6000*8000; Load: 2T/m2

3. Rolling machineSize: 12000*5000*3200; Load: 7T/m2 (Mechanism)

4. Laser die cutting/rollingSize: 8000*2700*2800; Load: 1T/m2

5. WindingSize: 7800*2730*2800; Load: 1T/m2

6. Tunnel OvenSize: 5700*3500*3200; Load: 2T/m2

7. Hot-pressing machineSize: 7500*3000*3200; Load: 2T/m2

8. X-ray test machineSize: 2200*1400*2000; Load: 0.5T/m2

9. Pairing machineSize: 6000*3200*2800; Load: 1T/m2

10. Ultrasonic welding machineSize: 6280*3500*2800; Load: 1T/m2

11. Welding Machine For ConnectorSize: 6640*5170*2800; Load: 1T/m2

12. Jelly Roll Pack CoatingSize: 4900*2950*2800; Load: 1T/m2

13. Automatic Inserting & Pre-weldingSize: 7050*32500*2800; Load: 1T/m2

14. Laser Welding for CapSize: 5250*2100*2800; Load: 1.5T/m2

15. First Helium Test machineSize: 2510*2250*2800; Load: 1T/m2

16. Vacuum DryingSize: 3200*1930*3600; Load: 2T/m2

17. First electrolyte fillingSize: 7700*2200*2800; Load: 2T/m2

18. Negative pressure formationSize: 3180*1370*2080; Load: 2T/m2

19. Welding for sealing nailsSize: 3100*2900*2800; Load: 1T/m2

20. Second Helium Test machineSize: 5000*4700*2800; Load: 2T/m2

21. DCR / OCV / Capacity GradingLoad bearing: 2T/m²

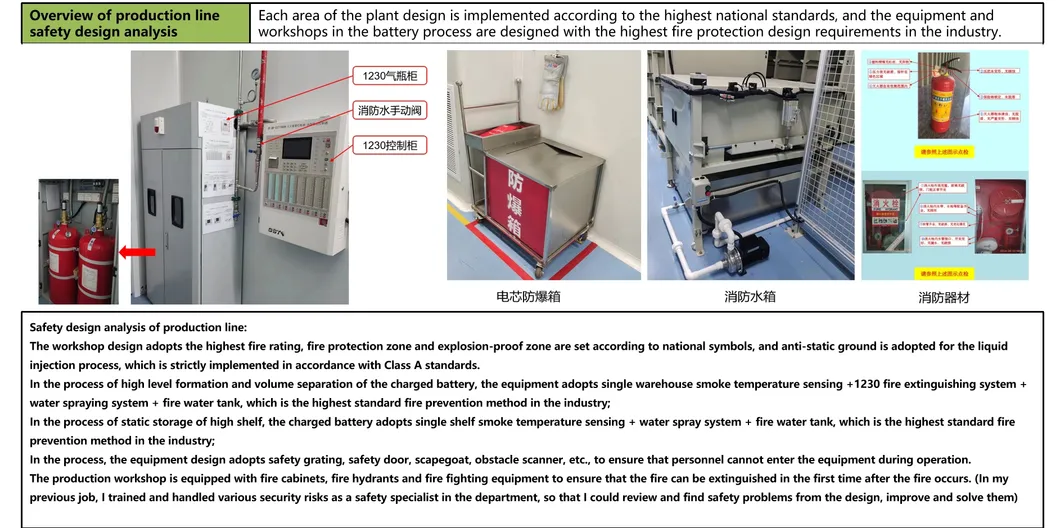

🏭 Production Strength

🏢 Profile & Capabilities

Founded in 2016, we are a full-stack solution provider focusing on new energy battery smart factories. Our expertise involves new energy vehicle power batteries, portable energy storage, home and industrial energy storage, two-wheeled vehicle batteries, and power tool batteries.

With years of experience in production processes, information technology, and intelligent equipment service in the lithium battery industry, we help enterprises build intelligent manufacturing solutions for modern battery factories.

🛠️ After Sales Service

Frequently Asked Questions

What types of batteries is this assembly line compatible with?

This line is specifically designed for Prismatic EV battery cells, supporting various applications including energy storage and power batteries.

Is the machinery fully automated?

Yes, the system is designed for high-level automatic operation, from mixing and coating to final capacity testing and wrapping.

Can the equipment be customized for specific cell dimensions?

Absolutely. We provide custom-sized solutions based on your specific battery design and production process requirements.

What kind of overseas support do you offer?

We provide engineers who are available to service machinery overseas for installation, commissioning, and technical training.

What is the monthly production capacity?

The standard production capacity is approximately 200 units per month, though this can vary based on specific custom configurations.

What are the facility floor load requirements?

Most equipment requires a load-bearing capacity of 1T/m² to 2T/m², with the rolling mechanism requiring up to 7T/m².
