3 Years Warranty, Solar Bore Pump Controller, Solar Water Pump Controller
3 Years Warranty, Solar Bore Pump Controller, Solar Water Pump Controller
3 Years Warranty, Solar Bore Pump Controller, Solar Water Pump Controller
3 Years Warranty, Solar Bore Pump Controller, Solar Water Pump Controller
3 Years Warranty, Solar Bore Pump Controller, Solar Water Pump Controller
1 / 5
3 Years Warranty, Solar Bore Pump Controller, Solar Water Pump Controller
3 Years Warranty, Solar Bore Pump Controller, Solar Water Pump Controller
3 Years Warranty, Solar Bore Pump Controller, Solar Water Pump Controller
3 Years Warranty, Solar Bore Pump Controller, Solar Water Pump Controller
3 Years Warranty, Solar Bore Pump Controller, Solar Water Pump Controller

3 Years Warranty, Solar Bore Pump Controller, Solar Water Pump Controller

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Model NO.
JS3, JS4, JC3, JC4, JCS4, JCS6, JQB, JETS
Condition
New
Certification
CE, ISO9001
Application
Home, Agriculture
Type
Screw & Centrifugal Pump
Voltage
24V, 36V, 48V, 72V, 216V, 288VDC
Material
Stainless Steel 304 or 316
Motor
DC Brushless Motor
Work Time
24 Hours
Production
10000 Pieces Per Month
Solar Water Pump System
🛡️
Warranty Protection:
• Solar water pump & MPPT controller: 3 Years
• Solar panels: 25 Years
Note: New controllers, motors, or impellers provided for damage within the 3-year period.

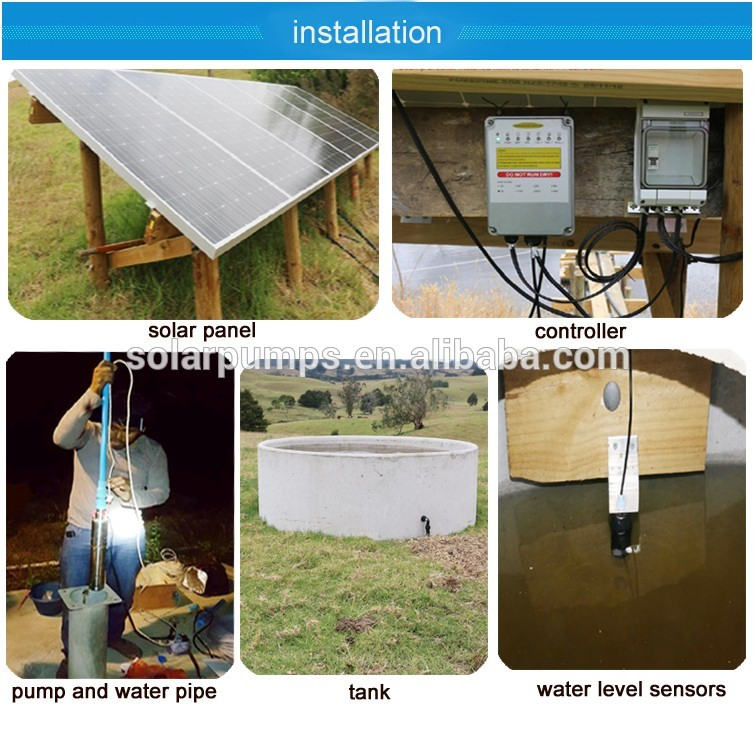

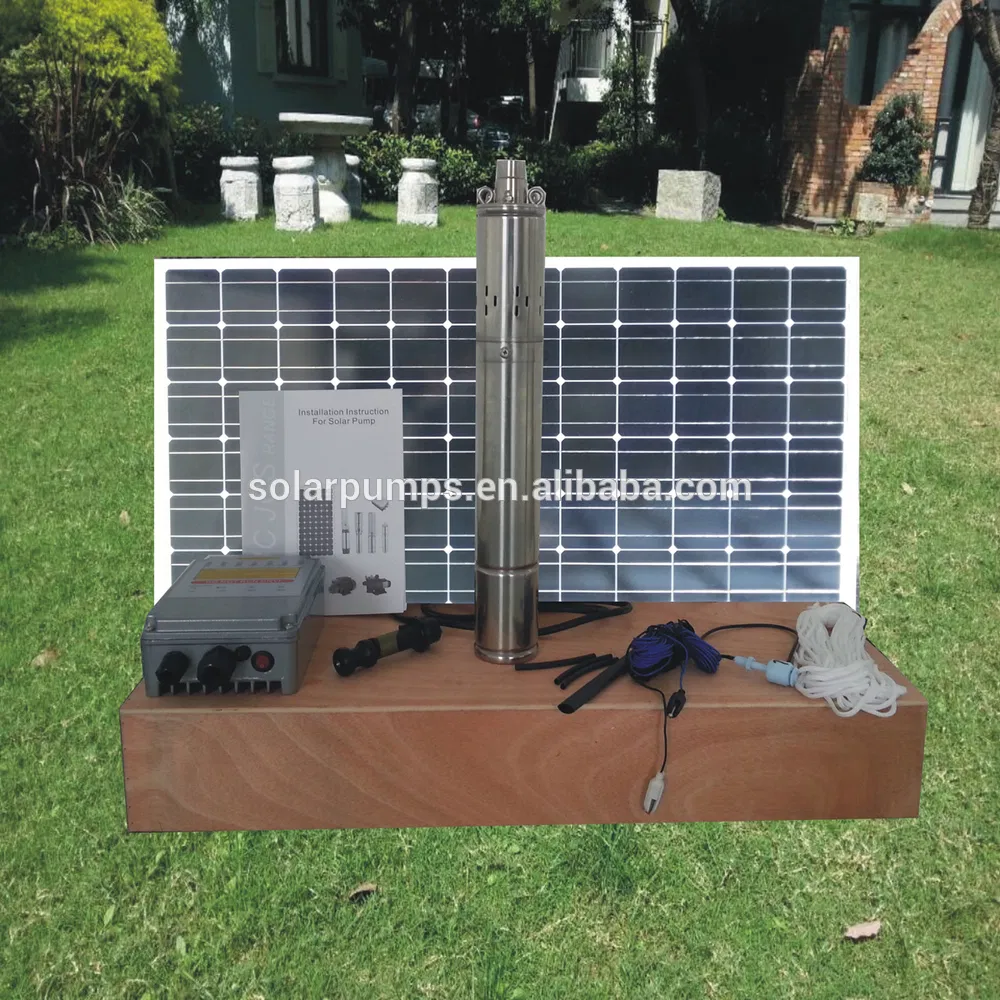

Complete System Components
  • ⚙️ 1. Solar pump with 3m cable (custom lengths available)
  • 🎮 2. MPPT Controller
  • 📏 3. Water level sensor or float switch (10m cable included)
  • 🔌 4. Cable for solar panel (6m included)
  • 🔗 5. Cable connector
  • ☀️ 6. Solar panels (Optional)
  • 🪢 7. Rope for pump suspension
  • 📖 8. Detailed Installation Manual
Main Applications
🌾 Agriculture Irrigation
🚰 Drinking & Living Water
🏞️ Remote Area Farming
⛲ Fountains & Decoration
🏊 Pool Circulation & Filtering
Material & Advanced Technology

Premium Materials

Outlet/Body: Stainless Steel or Brass

Screw/Impeller: Stainless Steel / PPO Plastic

Bearing: High-precision NSK

Technical Innovation

Efficiency: 25% improvement via permanent magnetism brushless DC non-sensor motor.

Insulation: Double plastic package for rotor/stator; insulation ≥300MΩ.

Installation: Oil filling structure for environmental protection.

Performance Data
Please select the appropriate pump based on your daily water requirements and borehole depth.
TYPE VOLTAGE (V) POWER (W) MAX FLOW (m³/h) MAX HEAD (m) OUTLET (in) DIAMETER (mm)
JS3-0.9-32241000.9323/4"76
JS3-1.3-50241201.3503/4"76
JS3-1.8-100242701.81003/4"76
JC3-2.5-39364002.5391"76
JS4-3.6-80487503.6801"100
JC4-6.8-607210006.8601.25"100
JCS4-25-96288400025962"100
JCS6-50-45288V400050454"150
JQB-2.2-35362102.2351"*1"Surface
JETS-4.2-60727504.2601"*1"Surface
Selection Formula Guide
Solar Panel Selection:
Power of Panel = Pump Power X 1.3
Battery Duration Formula:
Use Hours = Battery Capacity ÷ (Machine Power ÷ Battery Voltage) X 0.6
Example:

For a 200W pump and 100AH 12V battery: 100 ÷ (200/12) x 0.6 = 3.6 Hours.

Frequently Asked Questions
1. What is the warranty period for this solar water pump? The solar water pump and MPPT controller come with a 3-year warranty, while the solar panels feature a 25-year performance warranty.
2. Is the motor brushless? Yes, the system uses an advanced DC brushless, permanent magnetism motor, which is 25% more efficient than traditional AC motors.
3. Can I use the pump for my swimming pool? Absolutely. These pumps are ideal for swimming pool circulation and filtration, as well as agricultural irrigation and drinking water supply.
4. What materials are used to prevent rust? The pump body, motor body, screw, and outlet are constructed from high-grade Stainless Steel 304 or 316 to ensure durability and corrosion resistance.
5. Does the pump support 24-hour operation? Yes, the pump is designed for heavy-duty 24-hour operation, provided there is a continuous power source (solar panels or batteries).
6. How do I calculate the required solar panel power? The general rule is to multiply the pump's power by 1.3. For example, a 100W pump should be paired with approximately 130W of solar panels.
