Solar Water Pump: 3 years
MPPT Controller: 3 years
Solar Panels: 25 years
If the controller or motor is damaged within 3 years, we provide a new replacement. If the impeller is damaged within 3 years, spare impellers will be sent for replacement.

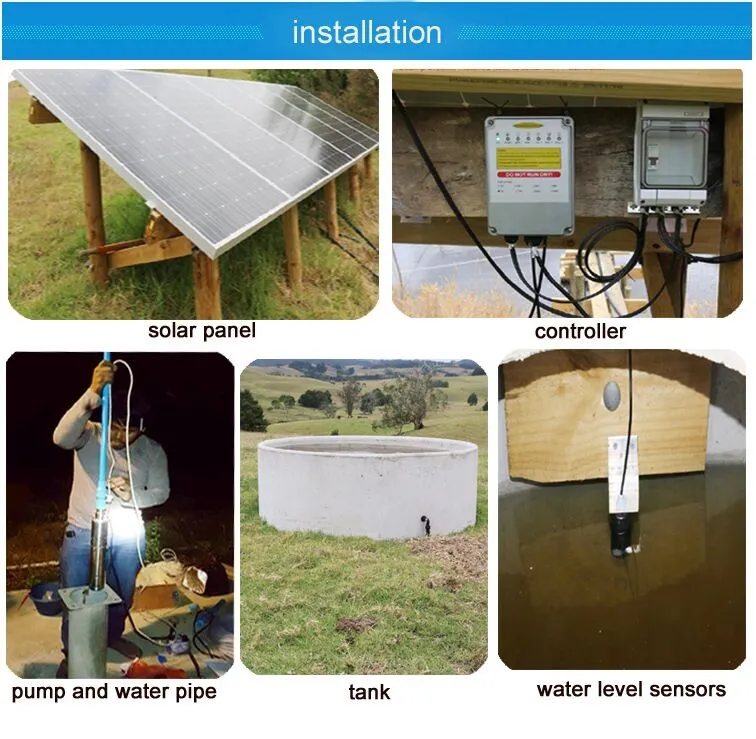

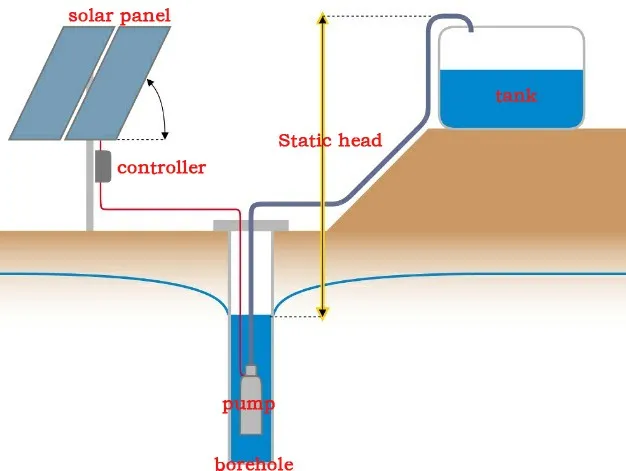

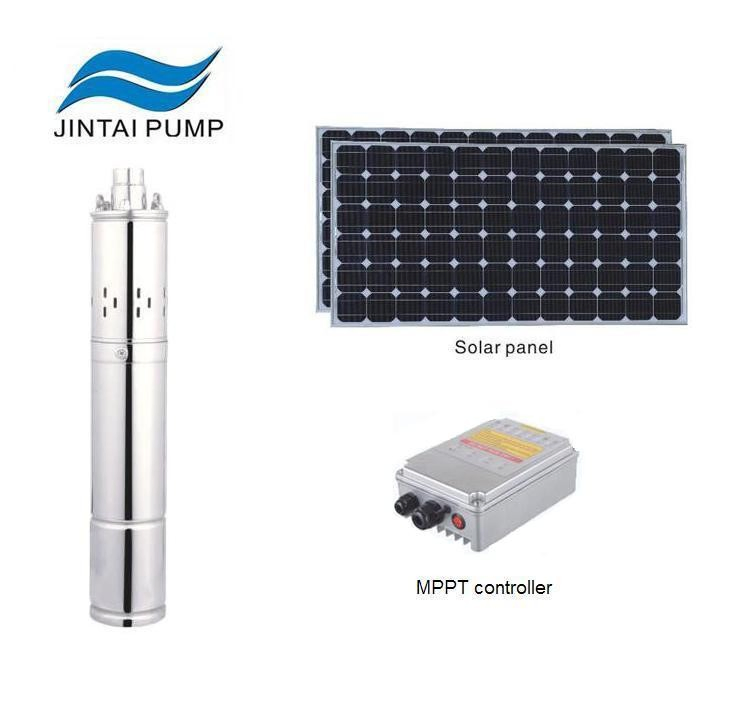

The solar submersible pump is designed to be immersed into water, connecting the motor with the pump directly. It consists of a submersible pump, motor, MPPT controller, water pipe, cable, and solar panels.
Solar panels convert solar energy into electrical energy, connecting to a dedicated low-voltage solar pump. The pump runs automatically in the sun and can run continuously via battery or grid electricity when there is limited sunshine.
Efficiency is improved by 25% using permanent magnetism, DC brushless, and non-sensor motors compared to traditional machines.
Double plastic package for rotor and stator with motor insulation ≥300MΩ for significantly improved security.
Outlet, body, and casing made of stainless steel. Stator features 100% copper wiring and NSK bearings.

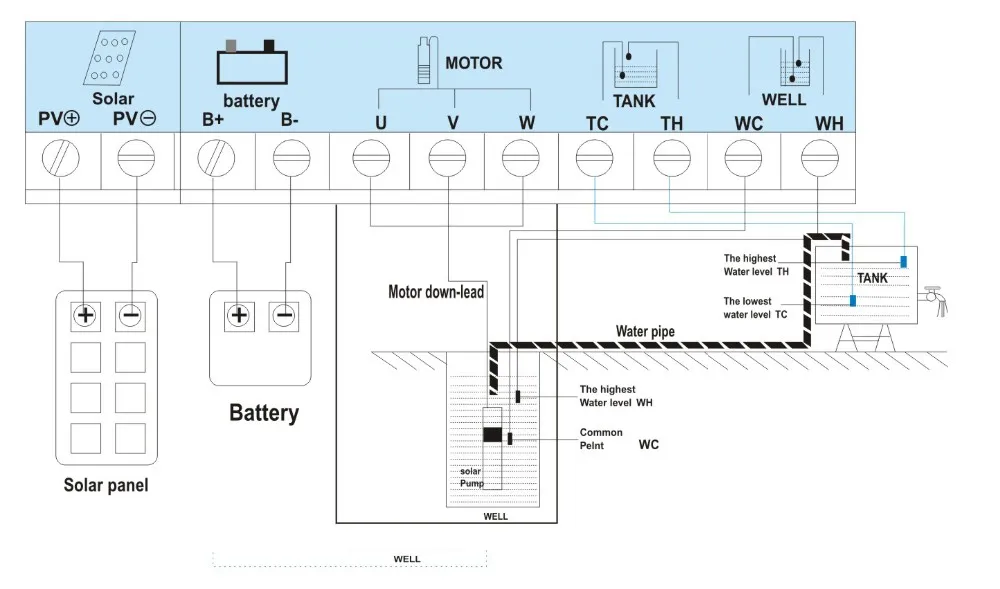

Controller with Battery Backup Function:

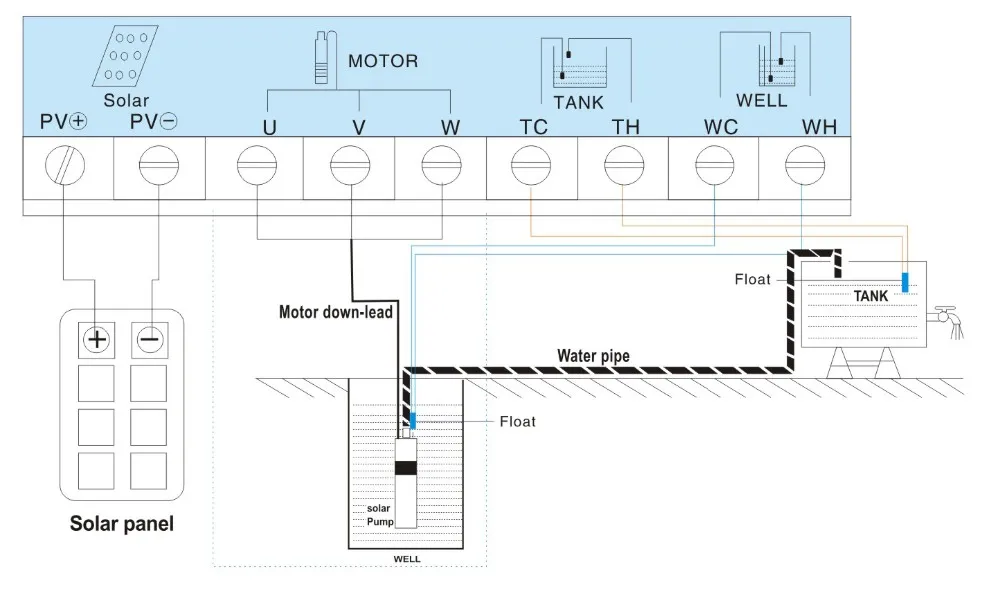

Controller without Battery Backup Function:
1. Solar Panel Power: Power of pump X 1.3. The voltage of the panel should match the pump voltage.
2. Battery Usage Hours: Capacity ÷ (Machine Power ÷ Battery Voltage) X 0.6.
3. Required Capacity: Usage Hours ÷ 0.6 X (Machine Power ÷ Battery Voltage).
