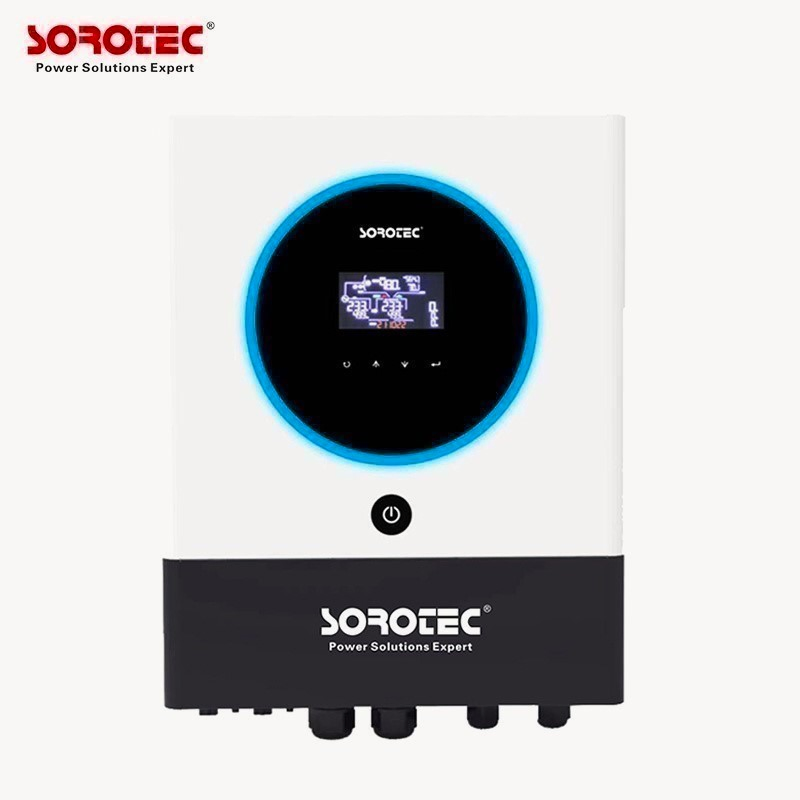

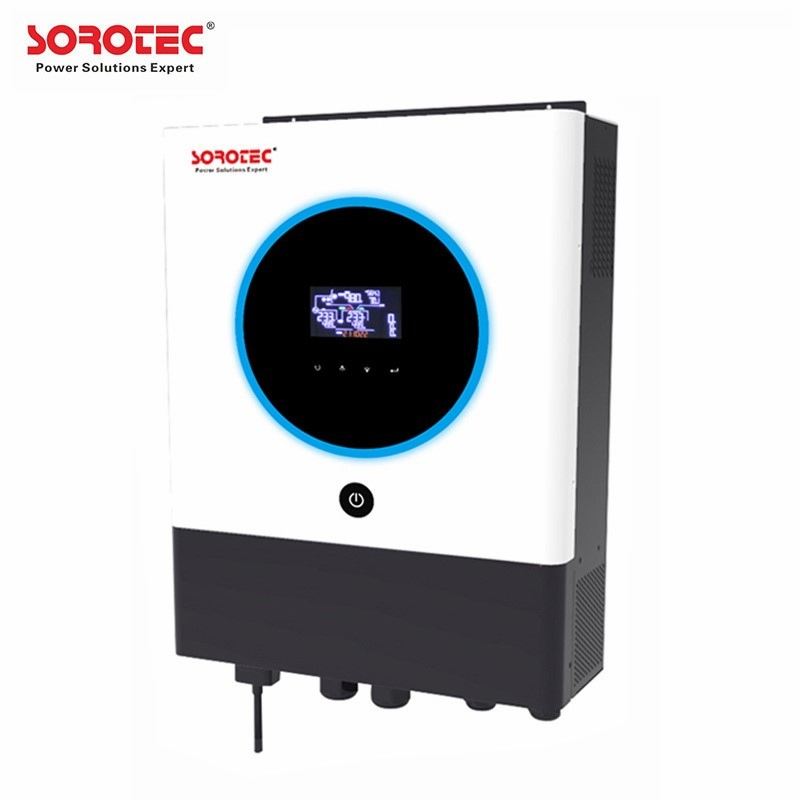

Sorotec Smart Hybrid High-Efficiency Energy-Saving Inverter: Solar Integration Pioneer

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Info
Model NO.
REVO VM IV
Nature of Source
Passive inverter
Phase
Single
Output Power
>1000W
Certification
CE
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Half-Bridge Type
Nature of Wave
Sine Wave Inverter
Product Name
Solar Inverter
Output Frequency
50Hz/ 60Hz
Power
8kw
Application
Energy Storage
Voltage
230 VAC
Efficiency
93%
HS Code
8504403090
Product Description

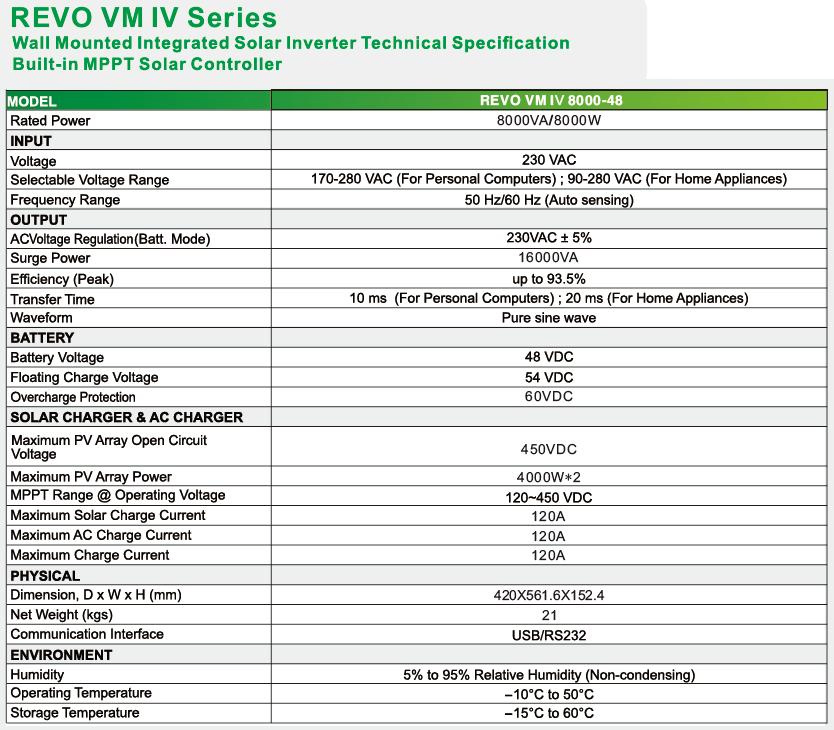

REVO VM IV 8kw Hybrid On/Off Grid Solar Inverter

Equipped with built-in Two 4000w MPPT Solar Charge Controllers for maximum efficiency and energy harvesting.

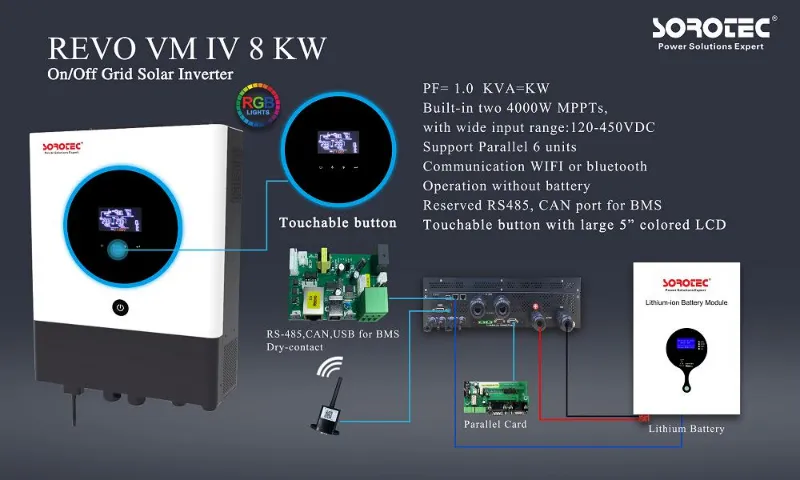

Hybrid Solar Inverter Overview
PF=1.0 KVA=KW
Customizable Status LED Ring With RGB Lights
Built-in two 4000W MPPTs, with wide input range: 120-450VDC
Support Parallel up to 6 units
Communication via WIFI or Bluetooth
Operation capable without battery
Reserved RS485 and CAN port for BMS
Touchable button with large 5″ colored LCD display
Product NameHybrid Solar Inverter
ModelREVO VM IV Series
Output Power8KW
FeatureCustomizable Status LED Ring With RGB Lights
Frequency Range50 Hz/60 Hz

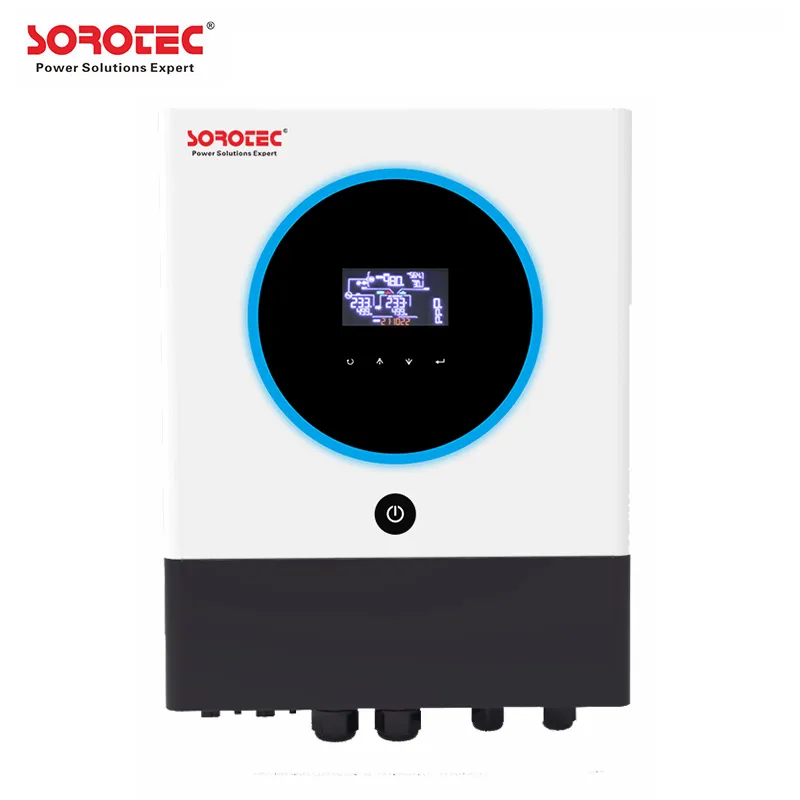

Inverter Detail 1

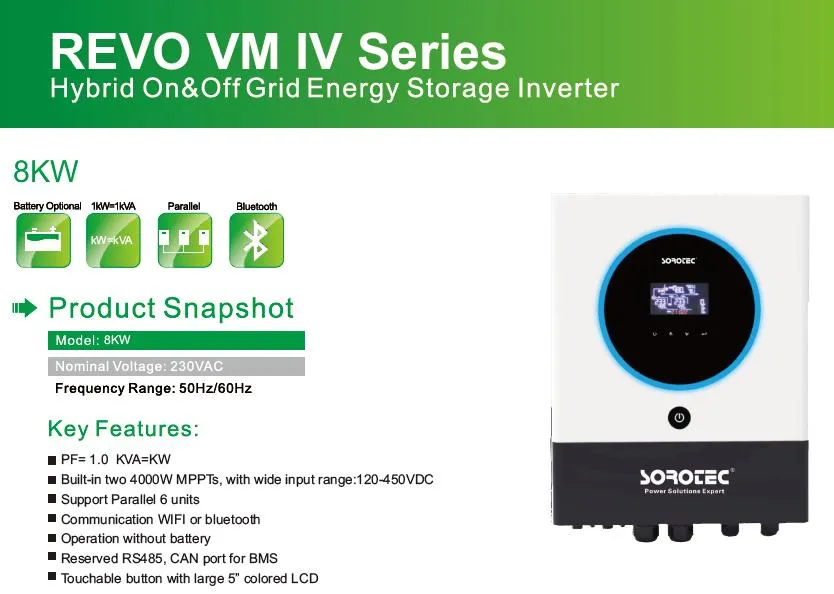

Inverter Detail 2

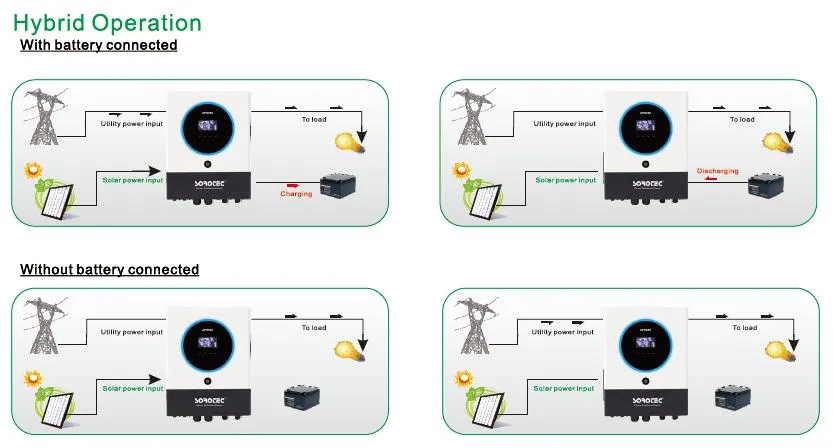

Inverter Detail 3

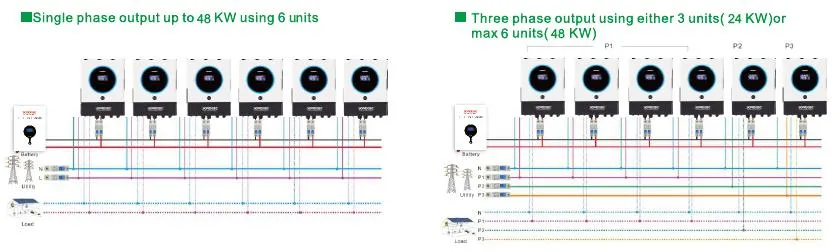

Inverter Detail 4

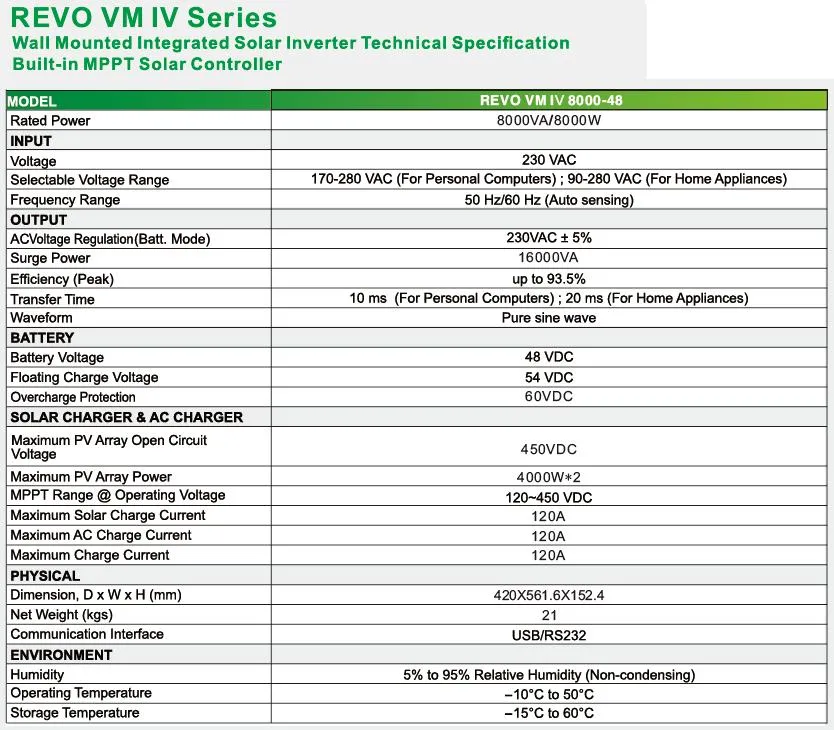

Inverter Detail 5
Packaging & Shipping
Package Size
80.00cm * 50.00cm * 52.00cm
Gross Weight
10.000kg
Packaging
Company Profile & Quality

Our company is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We operate large production sites with dedicated SMT departments, establishing a leading presence in the industry.

We implement strict scientific management through a full-fledged quality management system. Investing 10% of annual revenue into research and development, we utilize international advanced equipment for developing, testing, and production.

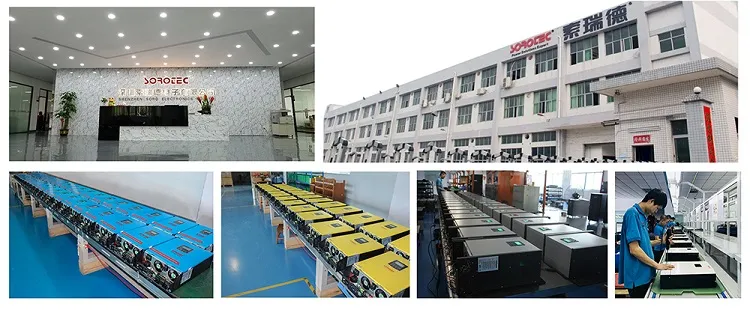

Production Facility

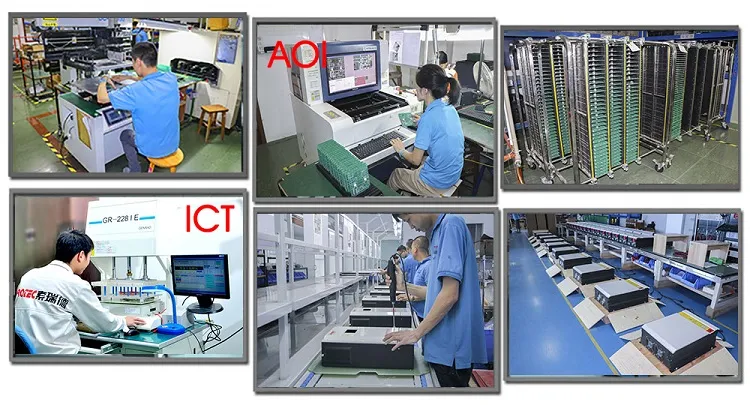

Testing Area
Quality Control

QC Control: We hold ISO9001 international quality system certification. Our quality system spans from material sourcing to final testing. Products meet international safety standards including CE (LVD/EMC), CUL, and FCC.

Global Partnership: We maintain co-operative partners worldwide across USA, Europe, South America, South Africa, Middle East, India, and more. We offer standard and customized solutions to meet specific user needs.

Certificates
Frequently Asked Questions
How do I choose the right inverter for my loads?
For resistive loads like bulbs, a modified wave inverter is sufficient. For inductive or capacitive loads (fans, air conditioners, fridges, computers), we recommend a pure sine wave power inverter to ensure longevity and performance.
How do I determine the correct size of the inverter?
Size is based on load power. For resistive loads, match the power. For capacitive loads, choose 2-5 times the power. For inductive loads, choose 4-7 times the rated power of the appliance.
What are the requirements for battery connection cables?
Shorter cables are better. Standard cables should be under 0.5M. Long distances cause voltage drops, which may trigger low voltage alarms on the inverter.
How do I calculate the working hours of my battery setup?
Use the formula: Work Hours = (Battery Capacity * Battery Voltage * 0.8) / Load Power. Note that older batteries may have some loss, so this serves as a reference value.
Can the inverter operate without a battery?
Yes, the REVO VM IV series supports operation without a battery connected, allowing for flexible solar energy utilization directly to the loads.
Does this system support parallel operation for higher loads?
Yes, this model supports parallel connection for up to 6 units, allowing you to scale up your power system as your energy needs grow.
