Advanced Inverter Solar for Energy Storage Integration with 48V Battery Support and BMS
Advanced Inverter Solar for Energy Storage Integration with 48V Battery Support and BMS
Advanced Inverter Solar for Energy Storage Integration with 48V Battery Support and BMS
Advanced Inverter Solar for Energy Storage Integration with 48V Battery Support and BMS
Advanced Inverter Solar for Energy Storage Integration with 48V Battery Support and BMS
1 / 5
Advanced Inverter Solar for Energy Storage Integration with 48V Battery Support and BMS
Advanced Inverter Solar for Energy Storage Integration with 48V Battery Support and BMS
Advanced Inverter Solar for Energy Storage Integration with 48V Battery Support and BMS
Advanced Inverter Solar for Energy Storage Integration with 48V Battery Support and BMS
Advanced Inverter Solar for Energy Storage Integration with 48V Battery Support and BMS

Advanced Inverter Solar for Energy Storage Integration with 48V Battery Support and BMS

Customization: Available
Warranty: 5 Years
Nature of Source Flow: Active Inverter
Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.THREEPHASE CESS-HY-T-50K
PhaseThree
Output Power>1000W
CertificationSAA, CE, ROHS, ISO9001, CCC
TypeDC/AC Inverters
Power SourceSolar Power
Circuit TopologiesFull-Bridge Type
Wave StringSine Wave Inverter
Frequency50Hz / 60Hz
Rated Voltage3L/N/PE; 220/380V; 230/400V; 240/415V
Dimensions800 × 620 × 300 mm
Weight76.0 Kg
📝

Product Description

Advanced Inverter Solar
🖼️

Products Display

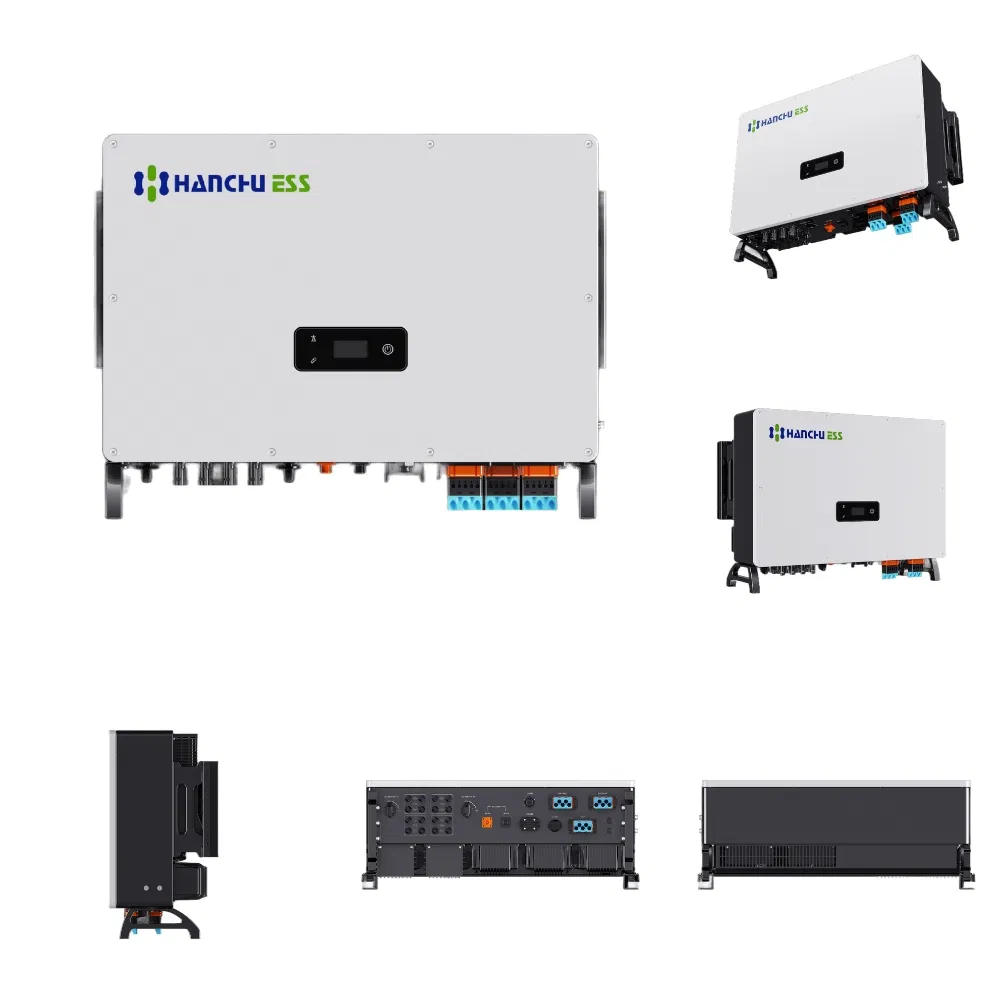

Inverter Display 1 Inverter Display 2 Inverter Display 3
📊

Technical Specification

ModelCESS-HY-T-50K
Product NameThree Phase Hybrid Inverter
Rated Power50.0 kW
Rated Voltage3L/N/PE; 220/380V; 230/400V; 240/415V
Rated Frequency50Hz / 60Hz
Max. PV Input Power75.0 kW
MPPT Voltage Range200-850V
Number of MPPTs4
Max. PV Input Voltage1000V
Max. PV Input Current30A × 4
Battery TypeLithium Battery (with BMS)
Battery Voltage Range135-750V
Max. Charge/Discharge Current100A / 100A
Max. Efficiency98.8%
Protection DegreeIP65
Operating Temperature-30~60°C
Communication InterfaceCAN, RS485, WiFi/LAN (Optional)
Warranty5 years
📜

Certifications

Certifications
📦

Packaging & Shipping

Packaging
❓

Frequently Asked Questions

Do these energy systems comply with international electrical and safety standards?
Yes. All systems meet relevant IEC/CE/UN38.3 safety and EMC standards. Components undergo extensive testing for electrical protection, fire safety, and environmental durability.
Can you provide customized configurations?
Yes. Custom options include battery capacity, nominal voltage (LV 51.2V or HV 135-750V), and communication protocols (CAN, RS485, Wi-Fi, Ethernet). Both modular and rack-mounted systems are available.
What is the lead time for delivery?
Standard products can be shipped within 7-10 working days. For customized models or large quantities, lead time is typically 20-30 days.
Do you support third-party inspections?
Yes. We welcome third-party inspections from SGS, TUV, or client-assigned agents. Full test reports and compliance certificates are provided before shipment.
Are systems compatible with other inverter brands?
Yes. The energy storage systems support open protocols (CAN/RS485) and can be integrated with a wide range of inverter brands. Configuration tools are provided for seamless setup.
What is the warranty period for the hybrid inverter?
The standard warranty for our hybrid inverter systems is 5 years, ensuring long-term reliability and support for your solar energy investment.
