Revolutionizing Solar Manufacturing - Automated Solutions for 1gw Solar Panel Production Lines

Customization:	Available
Transmission Speed:	5-25m/Minute
Transmission Unit Spacing:	50 to 100mm

Send Inquiry

Product Description

ℹ️ Basic Information

Model NO.

BIPV Solar Panel Auto Production Line

Panel Size

L 1200 X W 800

Warranty

12 Months

Transportation

Sea Transport

Package

Wooden Box

Origin

China

📋 Product Description

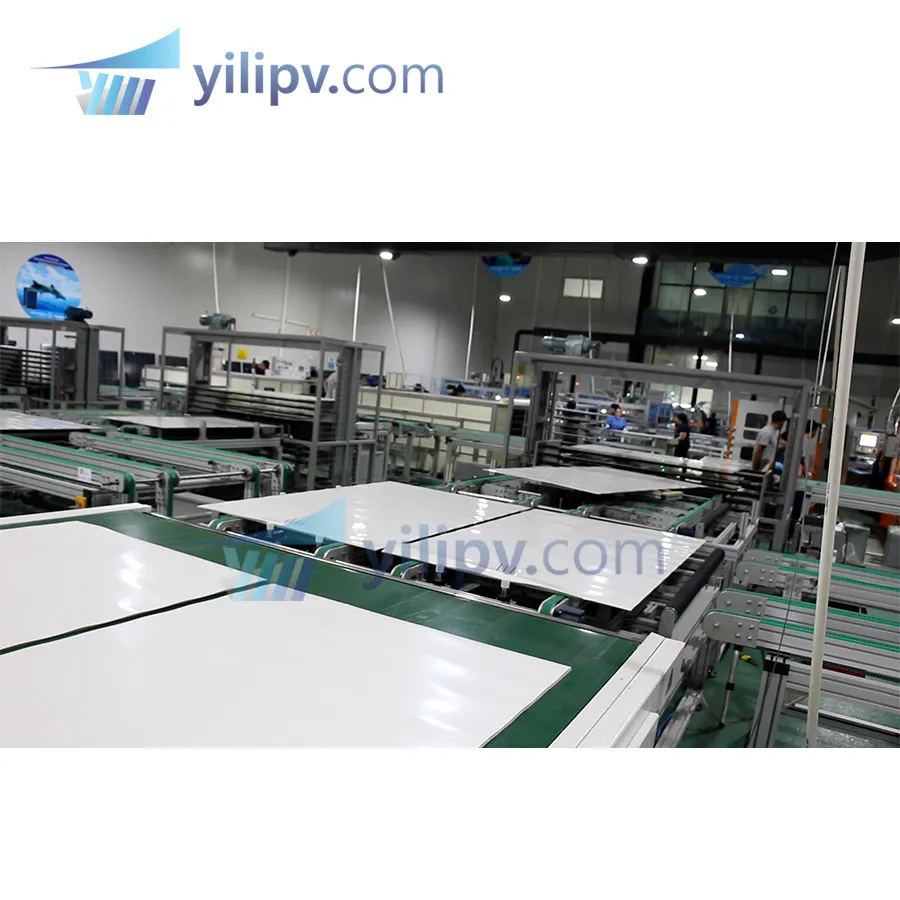

BIPV Solar Panel Production Line Overview:
This automated line facilitates the complete manufacturing process including PV glass loading, EVA loading, solar cells stringer, layup, manual flow soldering, backplane loading, EL inspection, and lamination.

Solar module type: BIPV module
Solar cell size: 156-210mm
Solar panel size: L 1200 x W 800
PV solar ribbon type: Flat/Round ribbon

📊 Product Parameters

Item	Parameters
Model	BIPV Solar panel production line
Panel size	L 1200 x W 800
Cell Size	156-210mm
Transmission speed	5-25m/minute
Transmission height	950mm ±50mm
Equipment utilization rate	99%
Noise	≤75 dbA
Warranty	12 Months

⚙️ Key Equipment & Functions

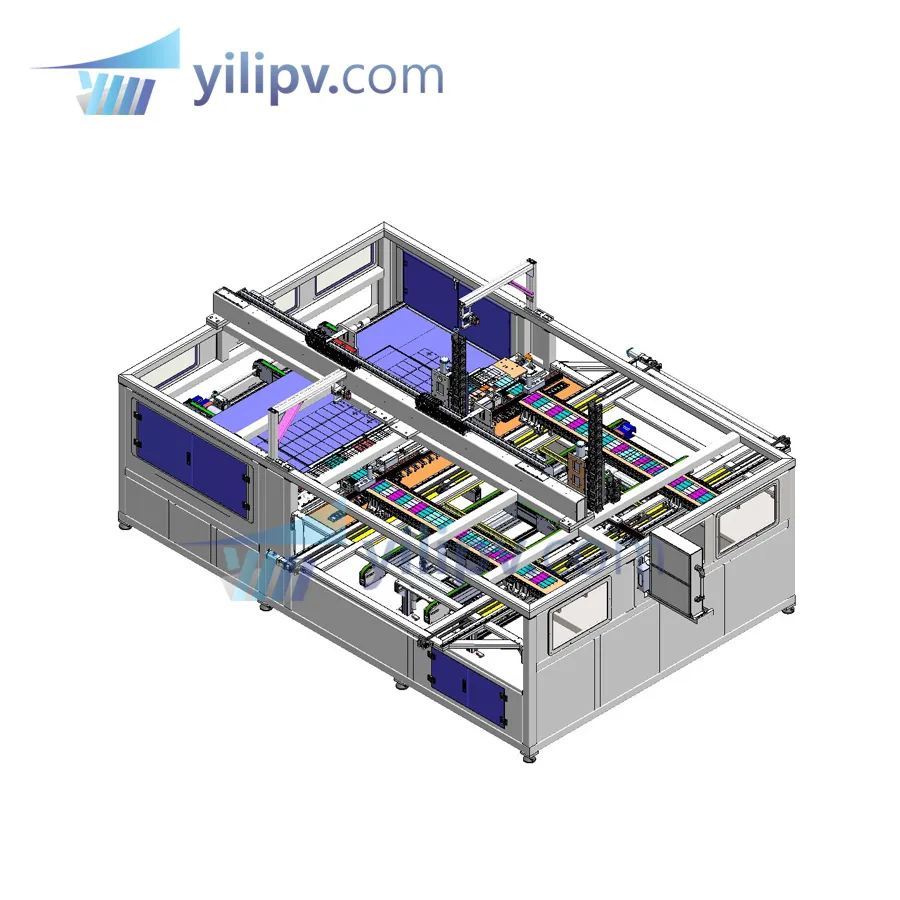

1. Automatic Layup Machine: Automatically grabs the battery string and places it on the pre-positioned glass with high precision.

2. Trinity Solar Framing Machine: Integrated system for border gluing, automatic frame handling, and loading.

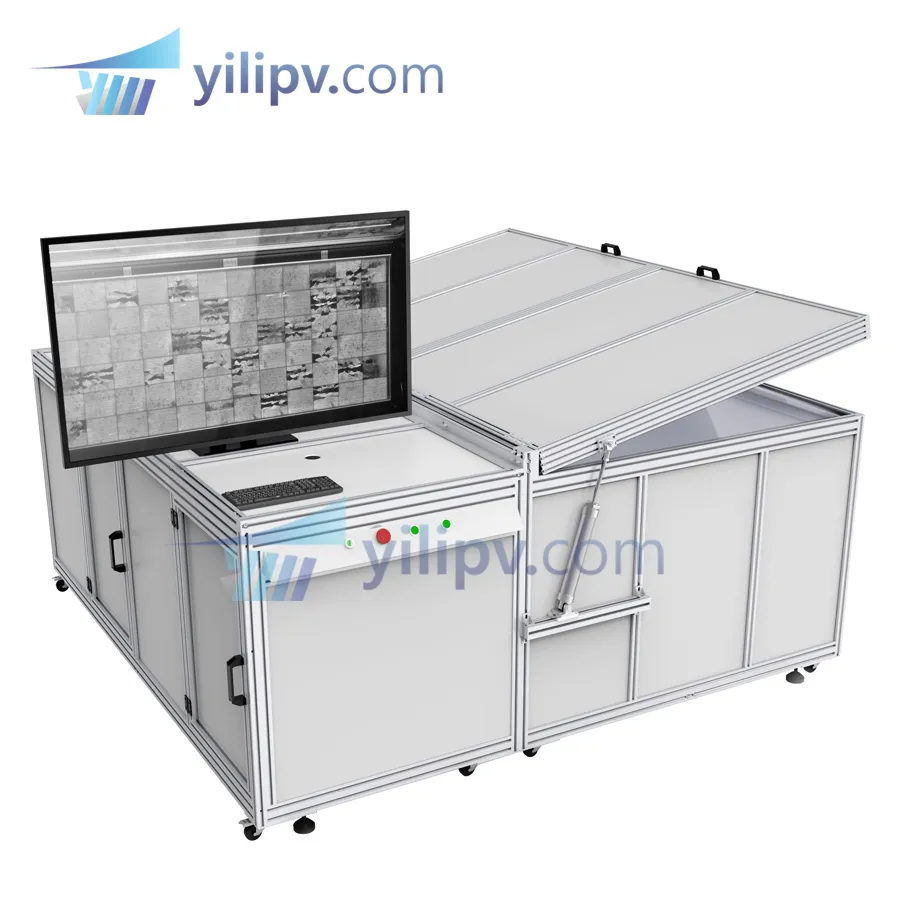

3. EL Tester: Detects internal defects, cracks, cold solder joints, and abnormal cell phenomena.

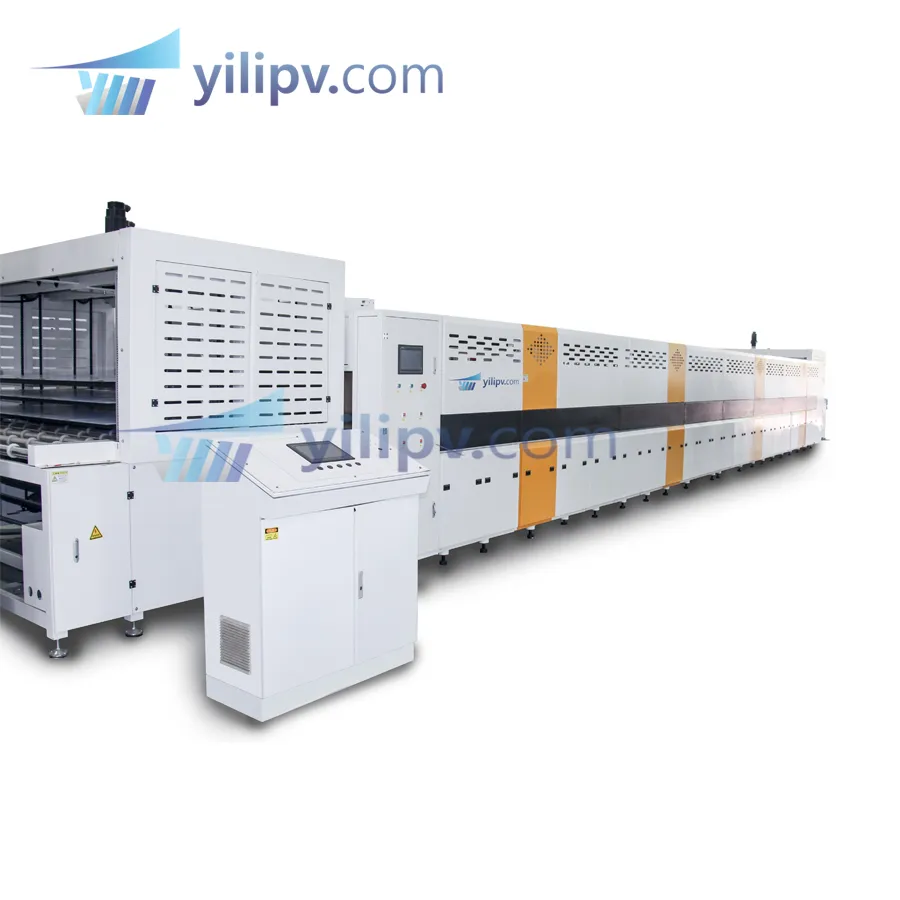

4. Double Chamber Laminator: Manages heating, vacuuming, and pressurizing for various cell types including mono, poly, and amorphous.

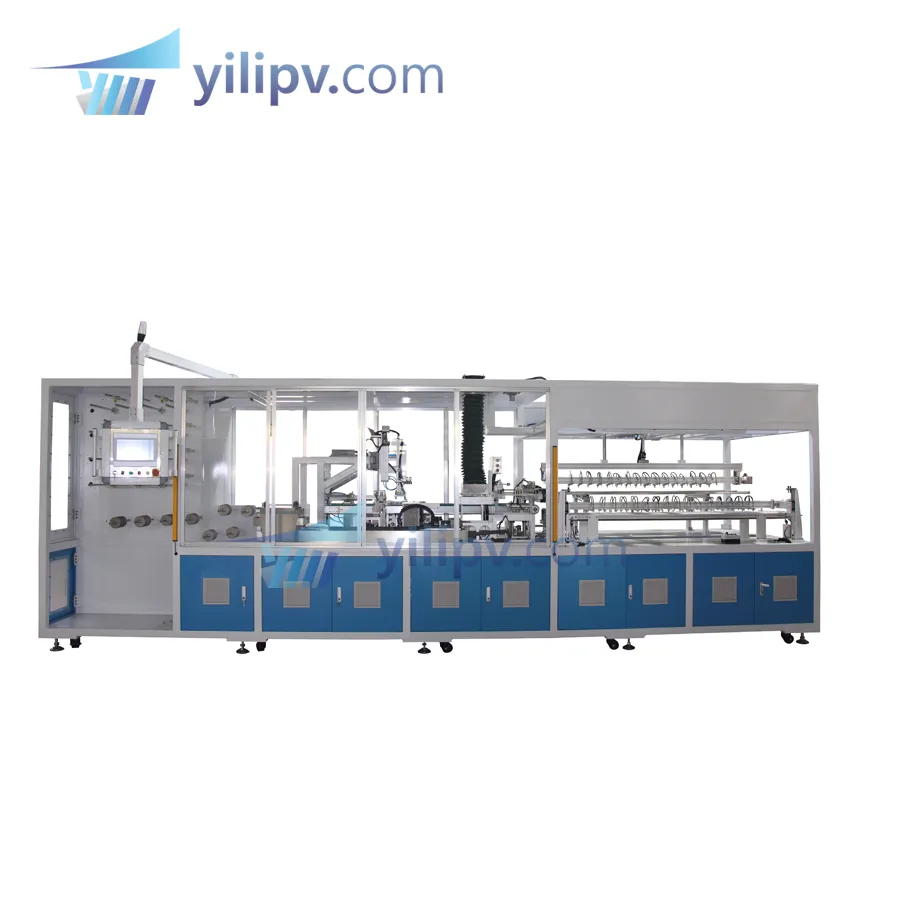

5. Solar Tabber Stringer Machine: Fully automatic welding for photovoltaic cells and ribbons in series.

📦 Packaging & Quality

🏢 Operational Excellence

We provide turnkey solutions for fully packaged production lines. Our technical expertise covers various production processes including Conventional, Double Glass, Half-Cut, MBB, Shingled, Heterojunction, and TOPCon.

With an independent finishing and roughing workshop, we ensure the precision and quality of parts processing. Our dedicated team manages integrated R&D, manufacturing, installation, and global after-sales support.

❓ Frequently Asked Questions

Q1: What types of solar modules can this production line produce?

A: The line is versatile and supports BIPV, Conventional, Half-cut, MBB, Shingled, Double-glass, and Flexible solar modules.

Q2: What cell sizes are compatible with the equipment?

A: It supports solar cell sizes ranging from 156mm to 210mm.

Q3: What is the warranty period for the production line?

A: We provide a standard 12-month warranty for the equipment.

Q4: How efficient is the equipment utilization?

A: The equipment features a high utilization rate of approximately 99%.

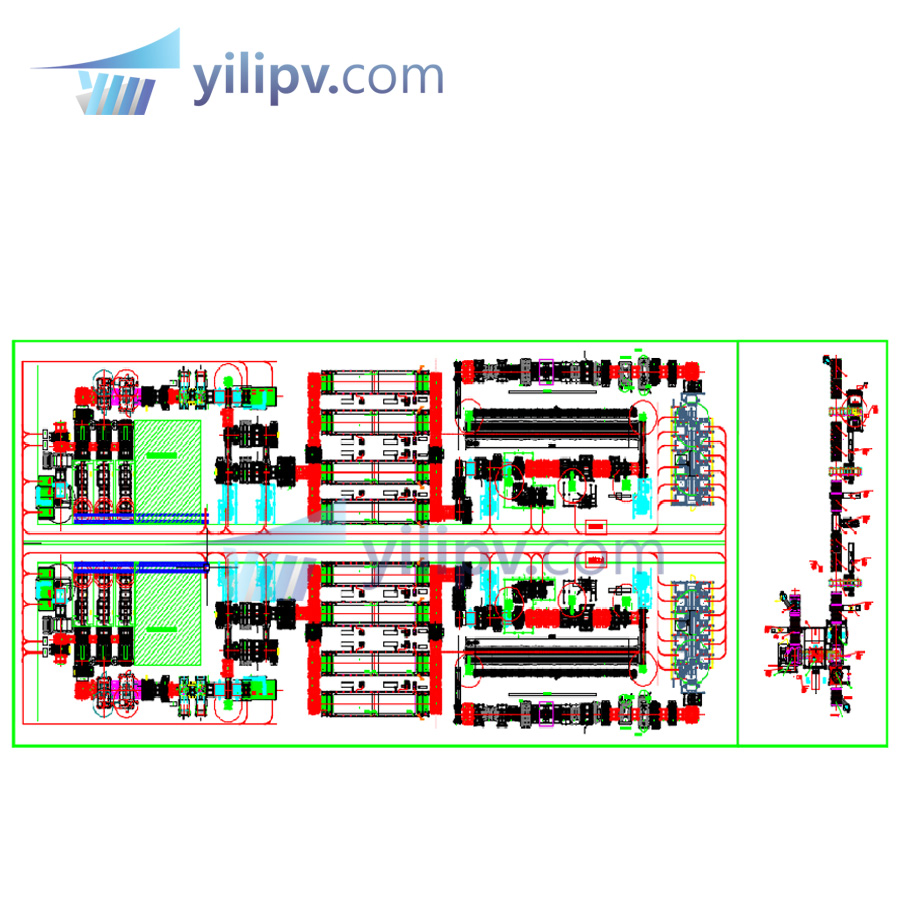

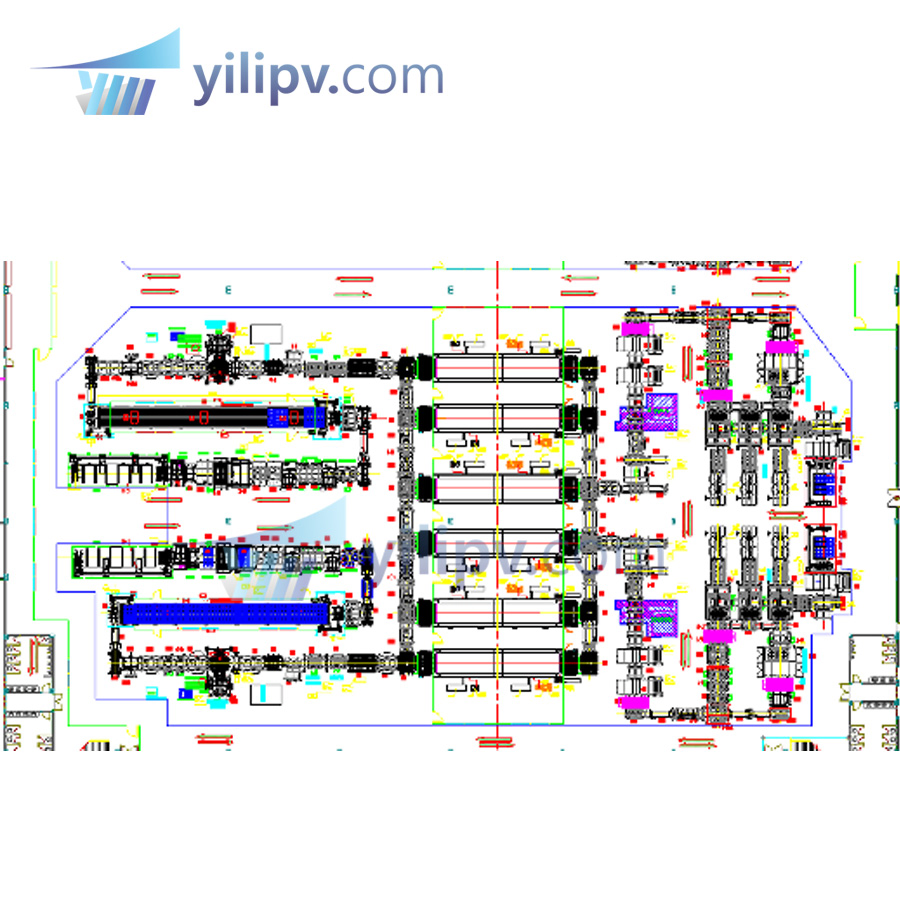

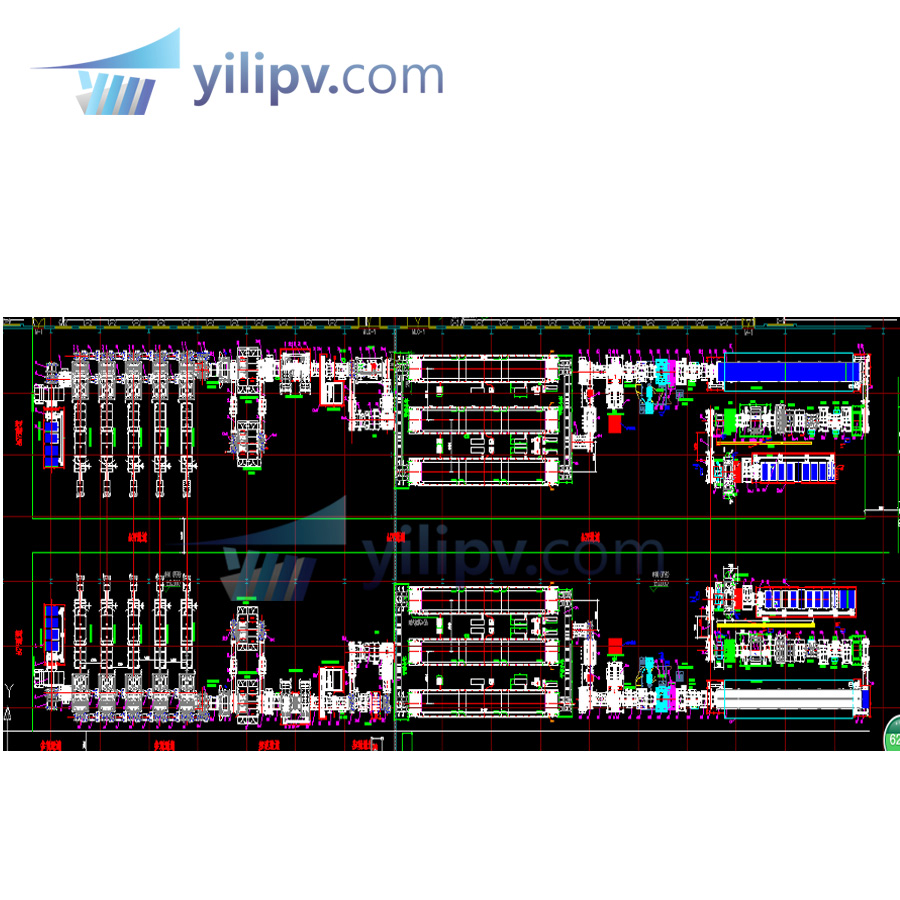

Q5: Can the layout be customized for different workshop sizes?

A: Yes, we provide customized designs to accommodate specific customer needs and workshop requirements.

Q6: What are the workshop height requirements?
