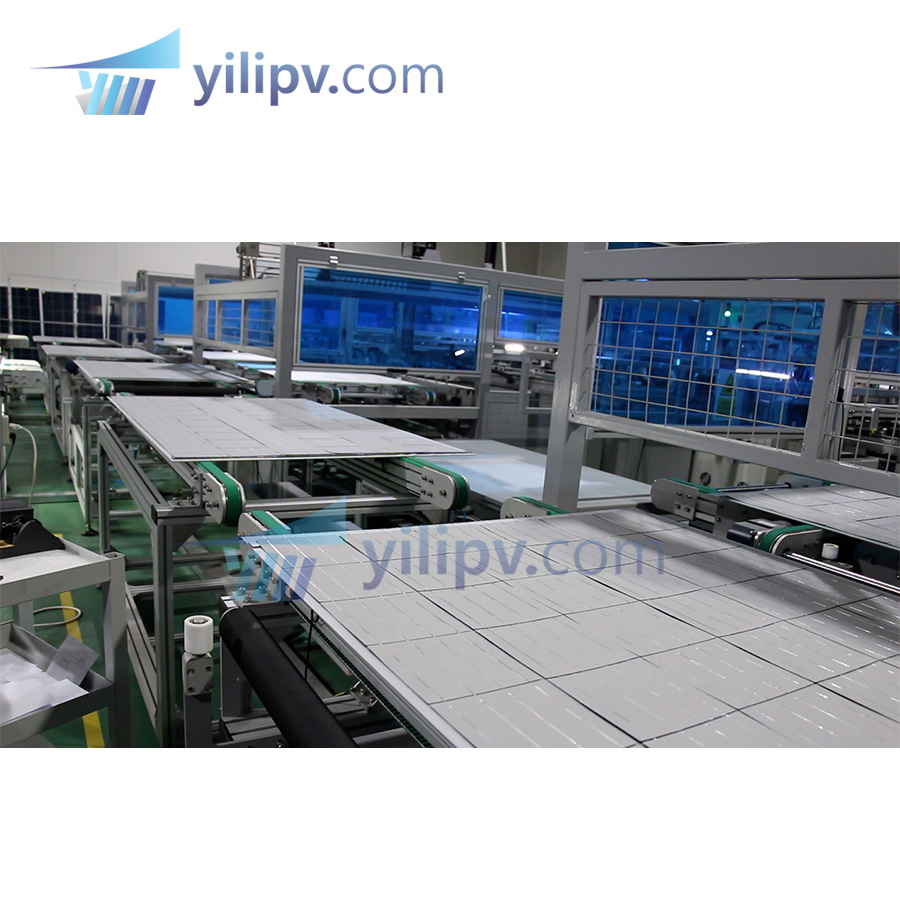

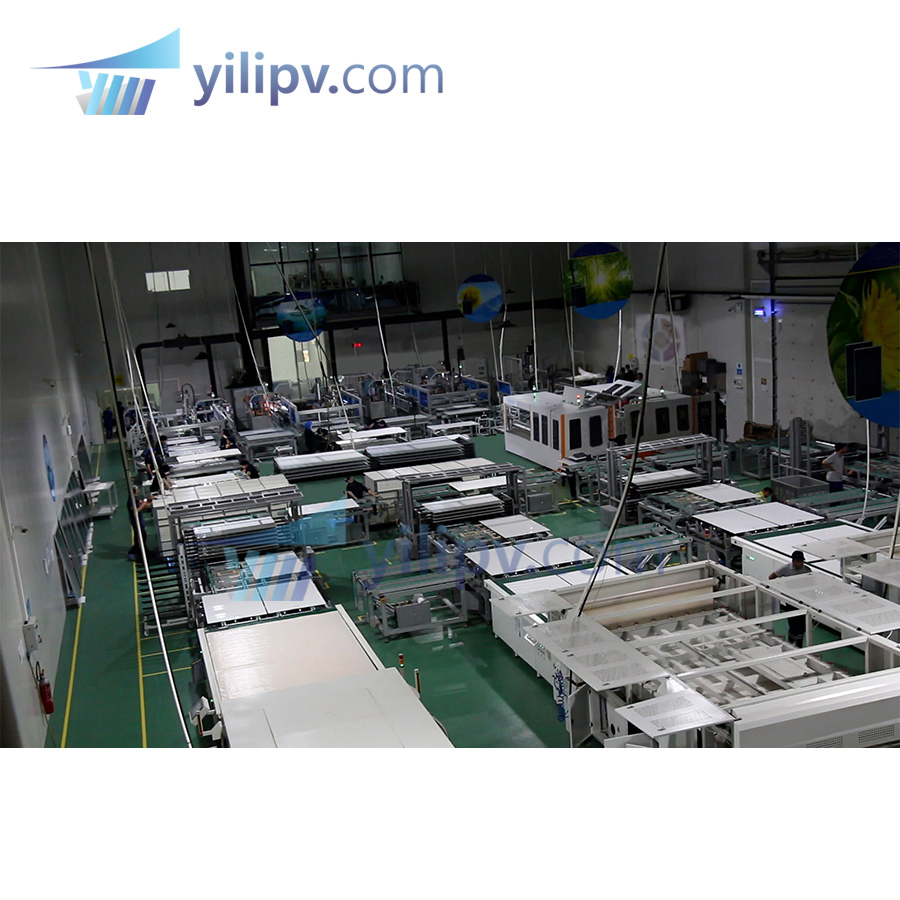

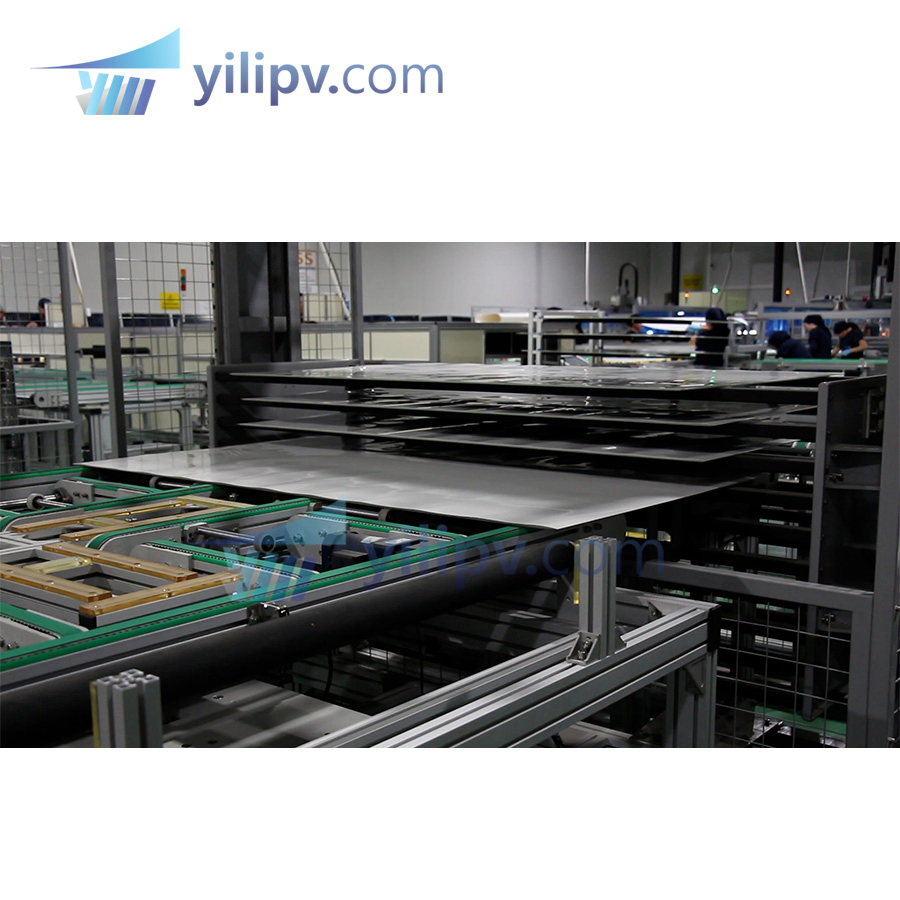

Before Lamination: Glass loading area, EVA loading area, typesetting, bus soldering area, EVA and backplane loading area, pre-layer EL/VI inspection and repair area, stack (production line component caching process), conveyor system.

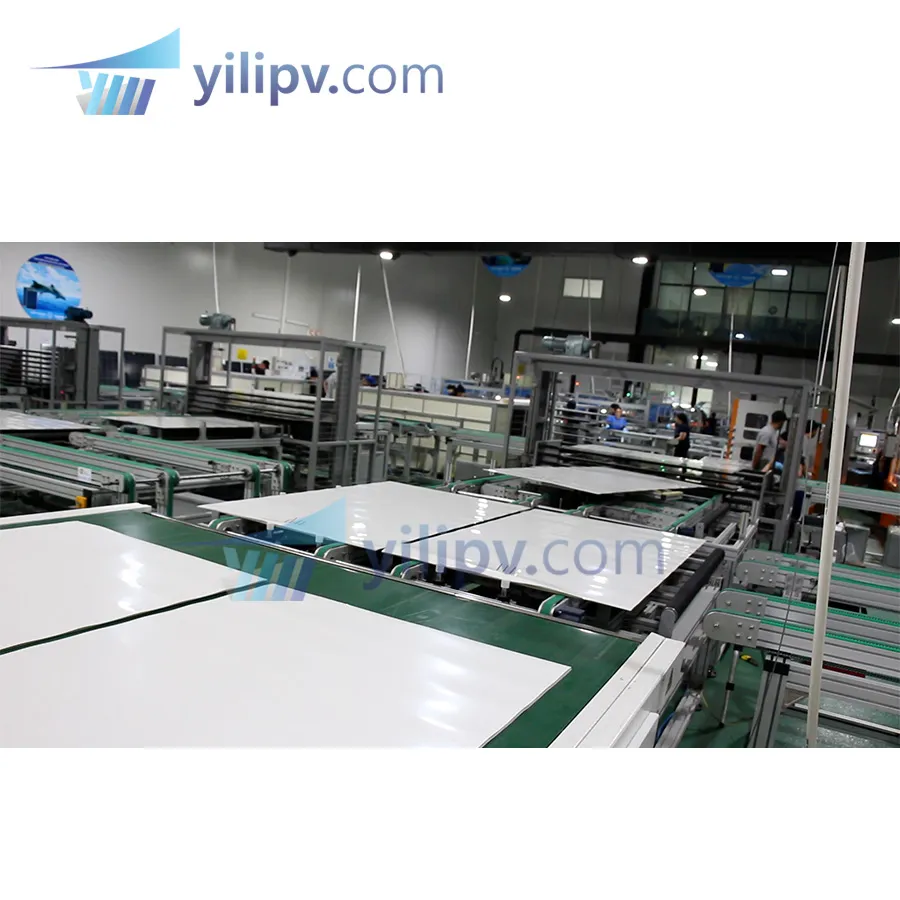

After Lamination: Trimming and gluing and framing area, junction box welding and gluing area, curing line, cleaning and testing area, binning area, conveyor system.
| Item | Parameters |
|---|---|
| Model | 100MW Solar Module production line |
| Beat | ≤45 seconds/block |
| Type of panel produced | Conventional full-cells/half-cells solar panel |
| Solar cell size | 166-210mm |
| Solar panel size | L(1956~2300mm) x W(990~1200mm) x T(25~45mm) |
| Solar ribbon type | Flat welding ribbon |
| Warranty | 12 Months |

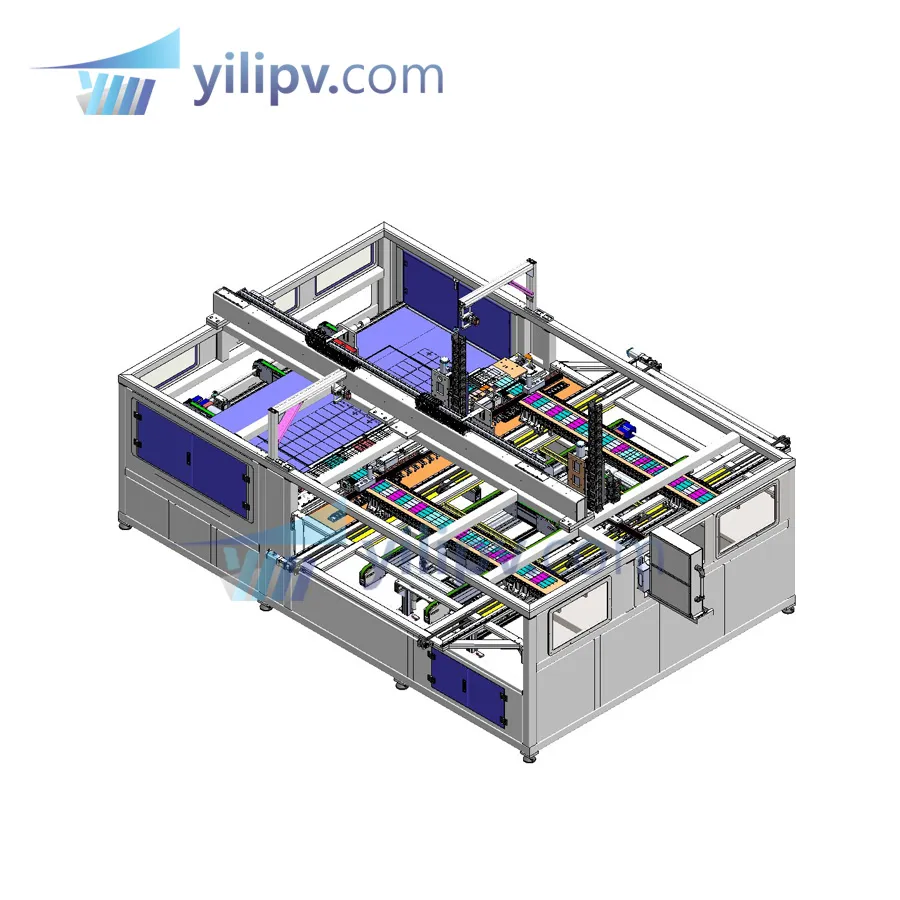

1. Automatic Layup Machine: Automatically grabs the battery string and places it on the properly positioned glass.

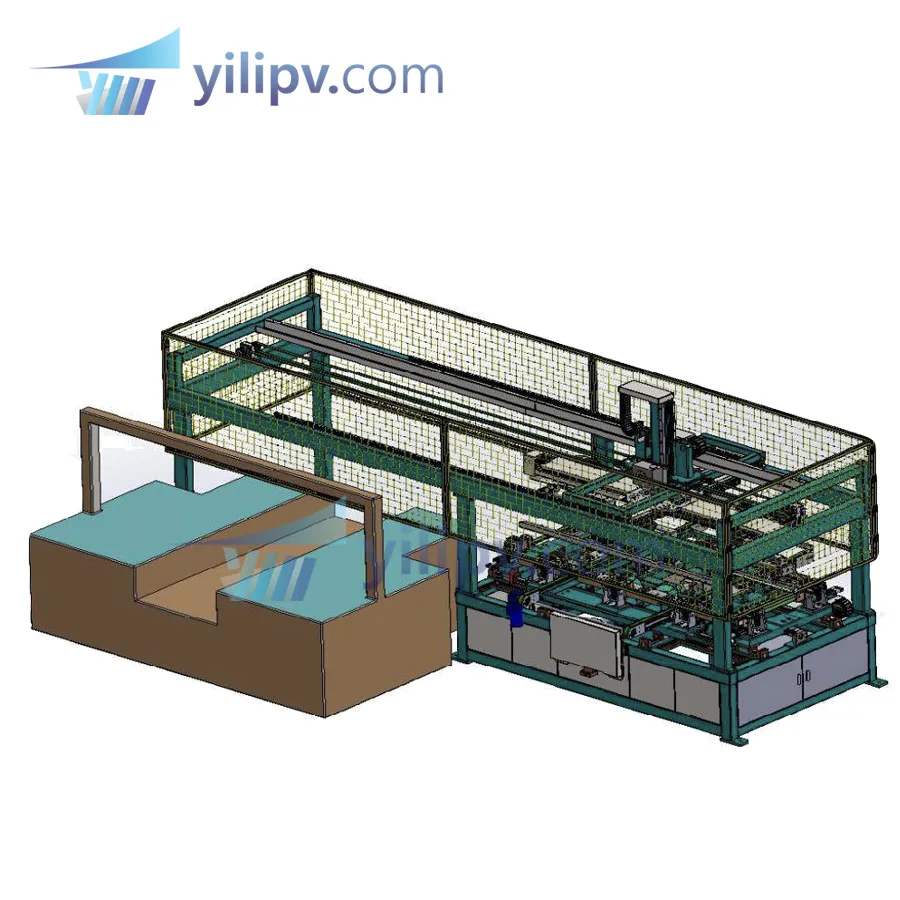

2. Trinity Solar Framing Machine: Composed of border gluing, automatic frame manipulator, and loading machine.

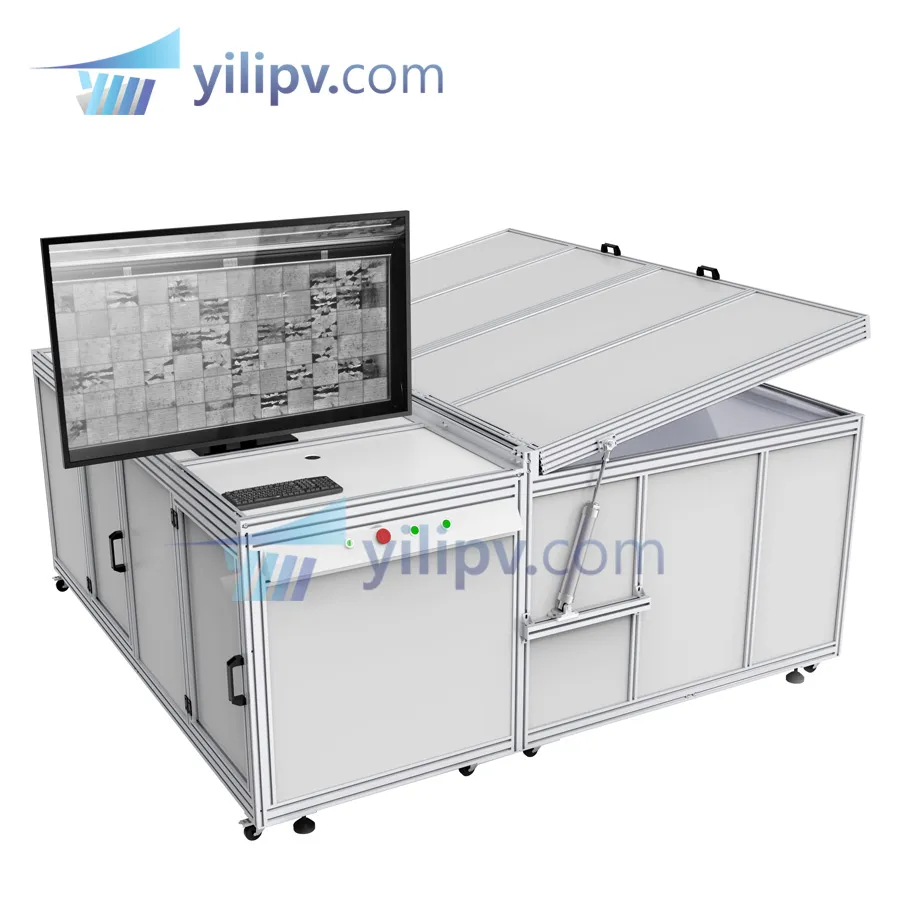

3. EL Tester: Detects internal defects, hidden cracks, fragments, and cold solder joints.

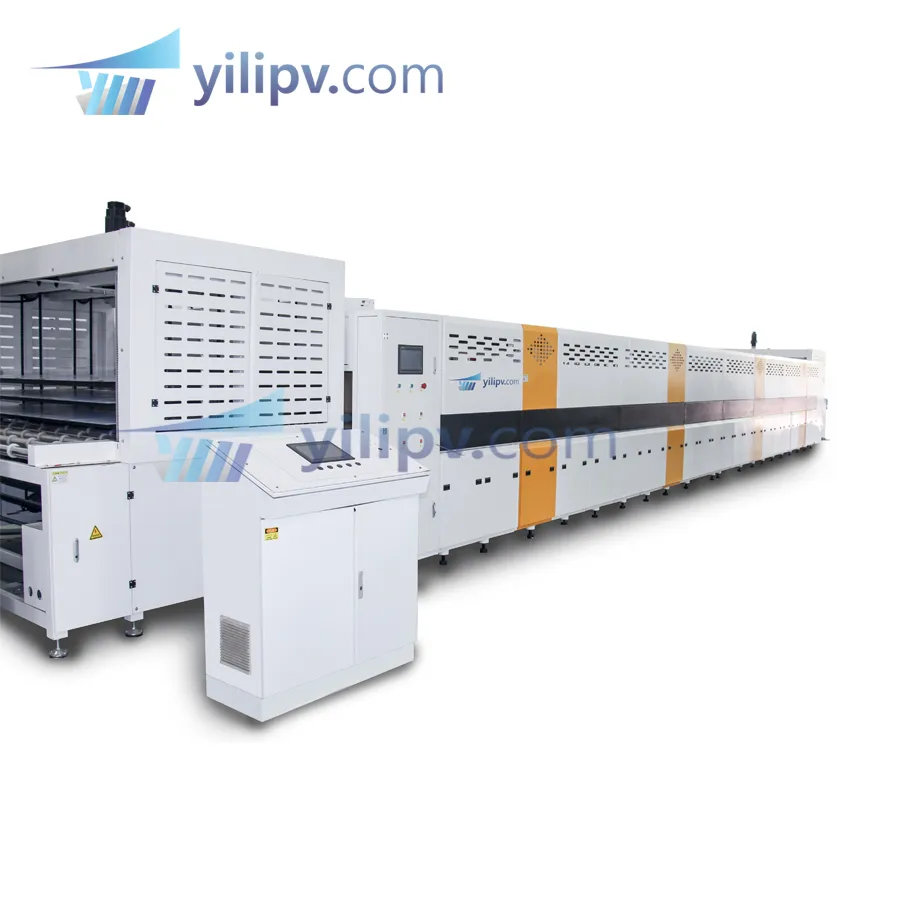

4. Double Chamber Laminator: Completes heating, vacuuming, and pressurizing lamination processes.

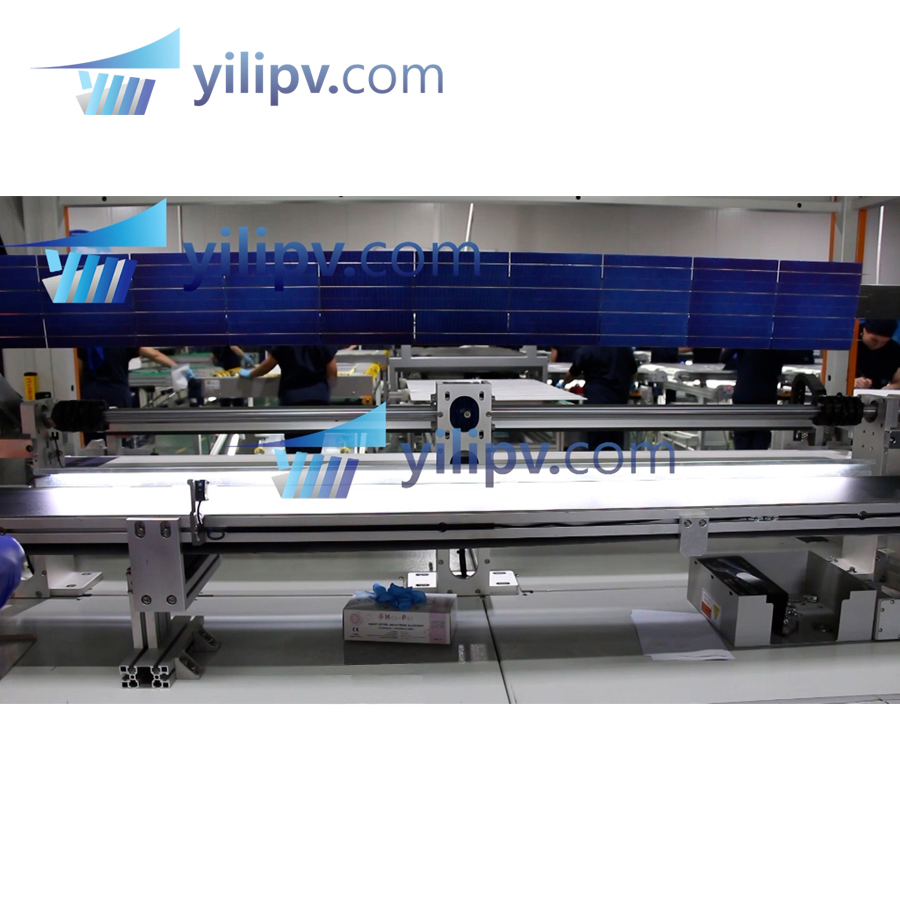

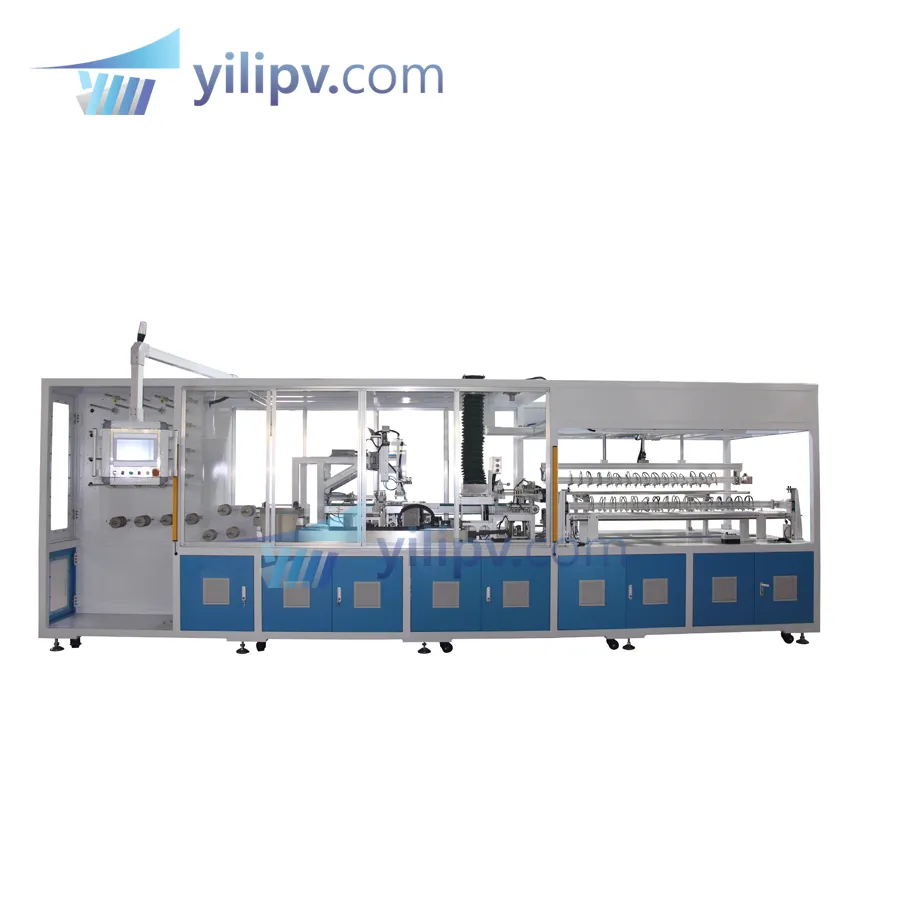

5. Solar Tabber Stringer: Fully automatic welding machine for series connection of cells and ribbons.
Adhering to the principle of quality first and customer first, we take quality and reputation as the life of our enterprise. We serve our customers with excellent products and a thoughtful service system before, during, and after-sales. With independent finishing and roughing workshops, we ensure the precision and quality of parts processing.

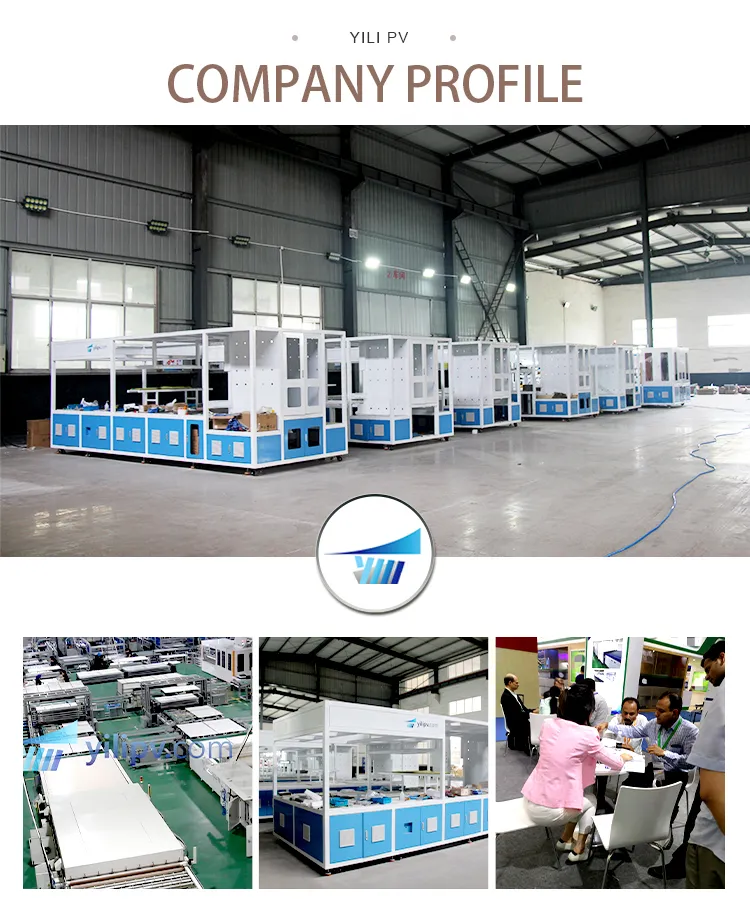

Established in 2008, the company is a pioneer manufacturer of photovoltaic module production equipment. We are a comprehensive high-tech enterprise with integrated R&D, manufacturing, installation, and after-sales service. Our team includes over 23 R&D specialists and more than 35 on-site installers to ensure production progress and service excellence.
We provide turnkey solutions for fully packaged production lines, including multi-layer laminating machines, robot typesetting machines, and frame integrated machines. Our designs are compatible with Conventional, Double Glass, Half-Cut, MBB, Shingled, Heterojunction, Topcon, and other production processes.
