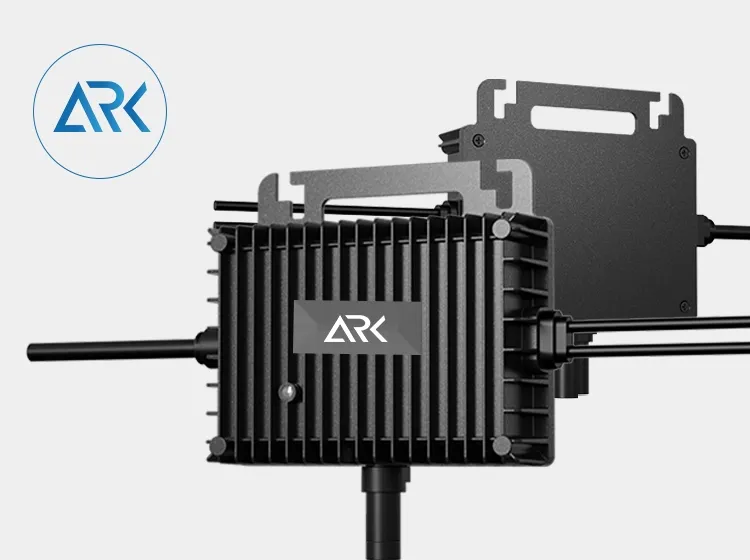

Microinverters have extremely low power consumption at night (<50mW), ensuring virtually no energy loss during non-generation hours.

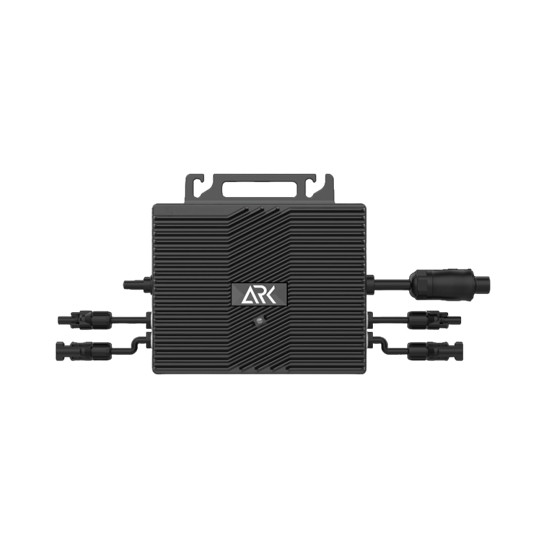

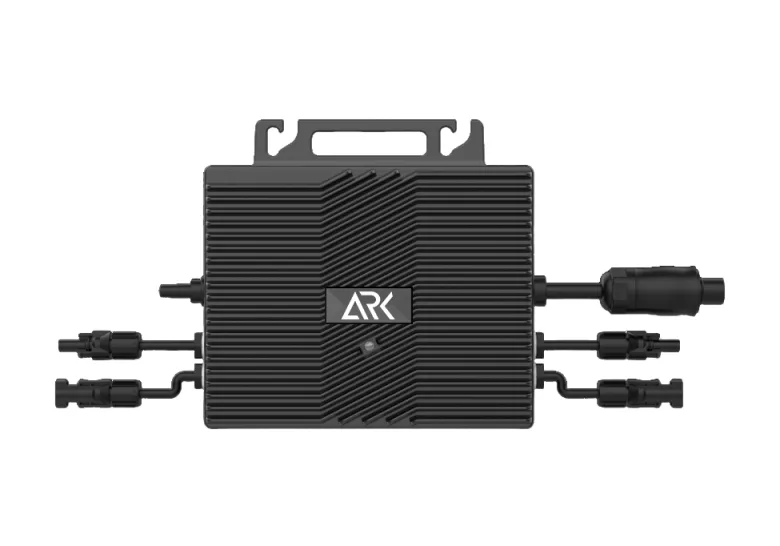

Measuring only 233*232*42 (mm) and weighing 2kg, the compact design allows for easy installation and minimal roof load-bearing impact.
Compatible with various types and brands of PV modules, achieving a CEC efficiency of 95.5% for superior energy conversion.
Maximize solar panel potential with industry-leading peak efficiency.
Shade management ensures optimal performance even if individual panels are shaded or mismatched.
Operates from -40°C to 70°C, maintaining 50% output even at peak heat conditions.
Rated for lasting performance in any climate, ensuring reliability in harsh environmental conditions.
Built with world-class components for long-term peace of mind and safe low DC voltage operation.
In-house design of overall PCBA schemes, Energy Management Systems (EMS), and intelligent IoT monitoring platforms.

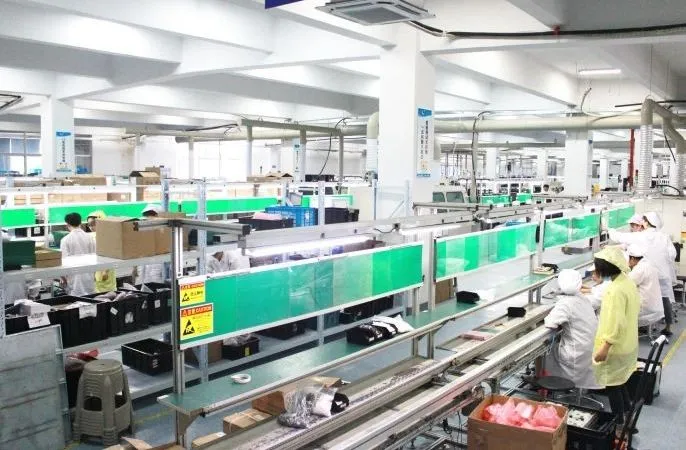

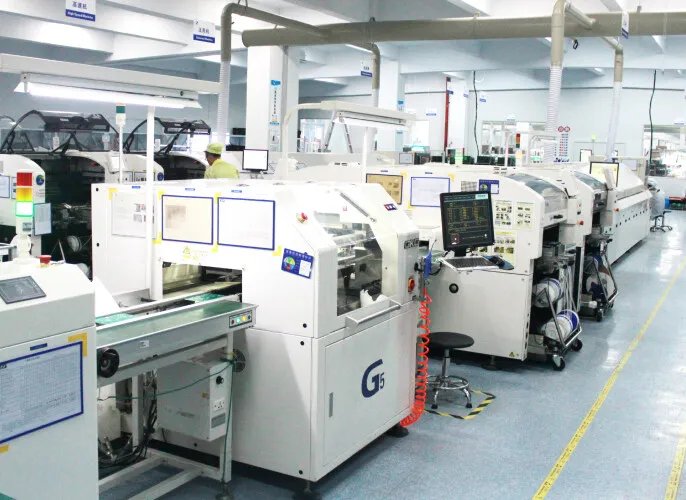

Self-production of key microinverter components and monitoring devices ensuring strict quality control.
| Parameter | 400W Series | 800W Series | 2000W Series |
|---|---|---|---|
| Input Data (DC) | |||
| Recommended Module Power | 300~550W / MPPT | 300~550W / MPPT | 300~550W / MPPT |
| Start-up Voltage | 18V | 18V | 18V |
| MPPT Voltage Range | 17.5~55V | 17.5~55V | 17.5~55V |
| Max. Input Voltage | 60V | 60V | 60V |
| Max. Input Current | 13.3A | 13.3A | 13.3A |
| Output Data (AC) | |||
| Max. Continous Power | 400VA | 800VA | 2000VA |
| Nominal Output Voltage | 220/230/240V, L/N/PE | ||
| Nominal Frequency | 50/60Hz | ||
| CEC Efficiency | 95.50% | 95.50% | 95.50% |
| Mechanical Specs | |||
| Dimensions (W*H*D mm) | 227*183*42 | 233*232*42 | 380*233*42 |
| Weight | 1.8kg | 2kg | 3.75kg |
