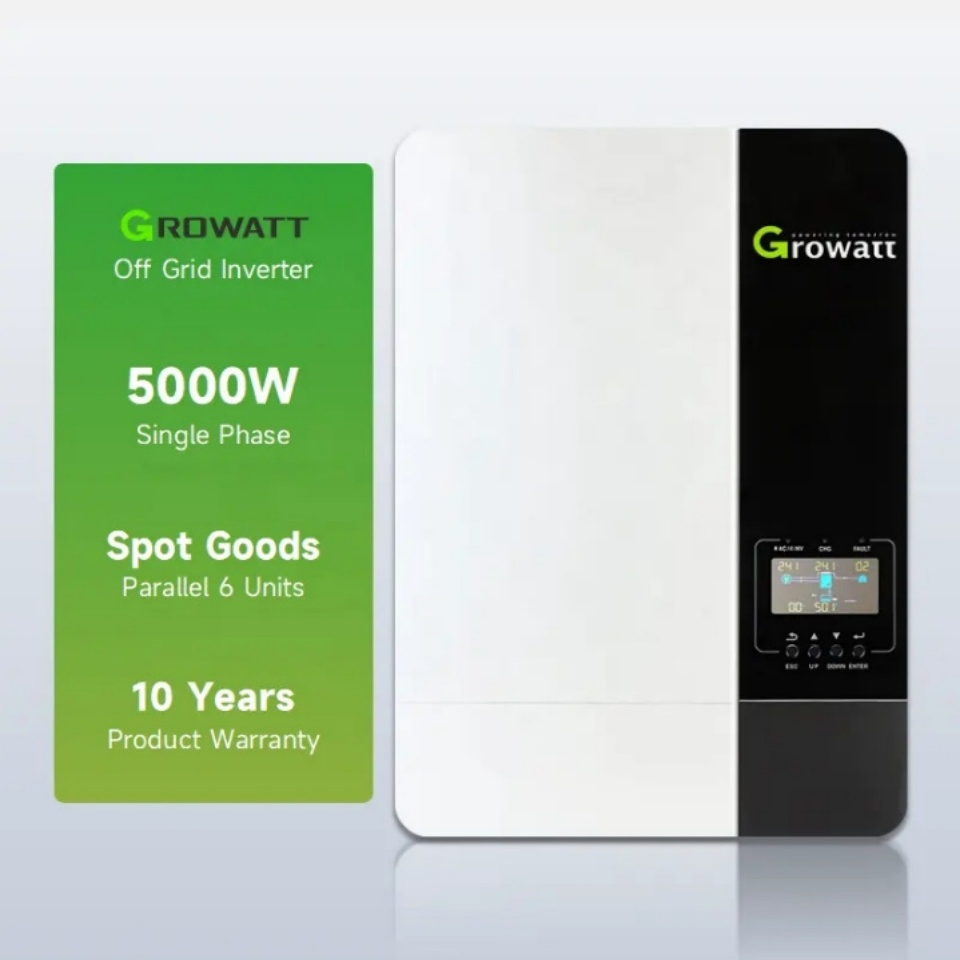

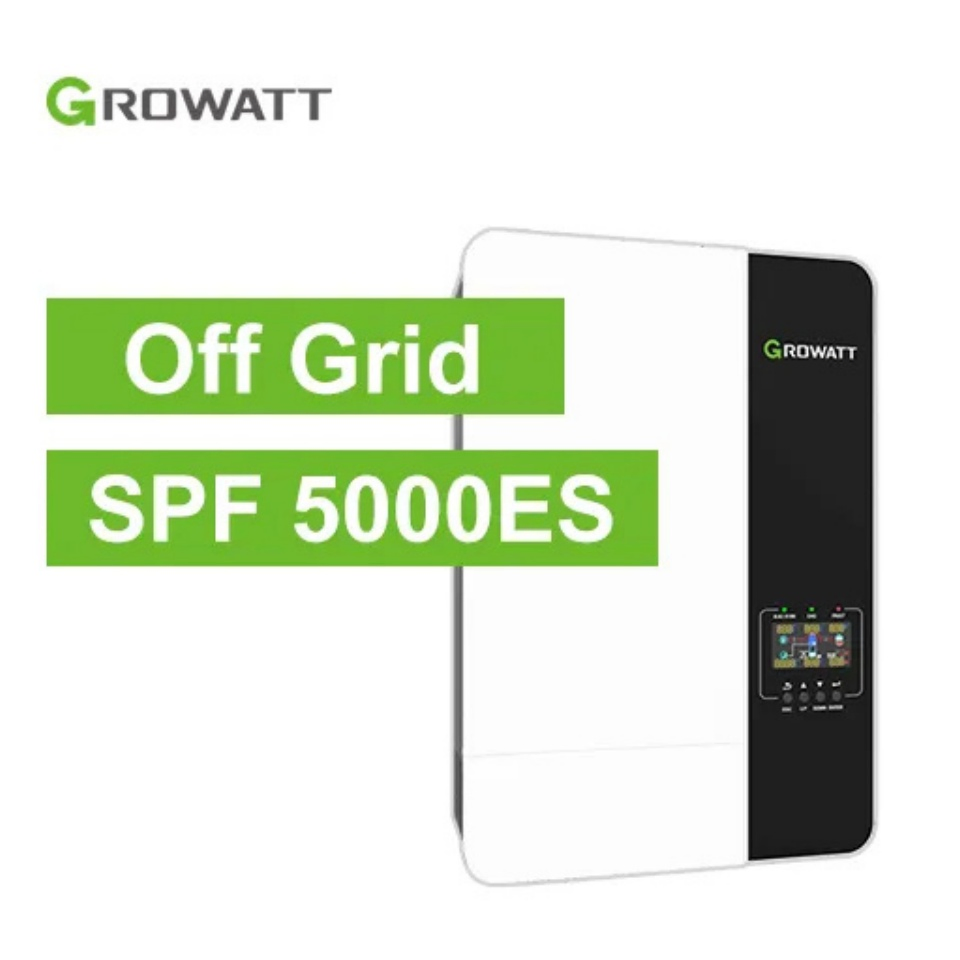

| Model NO. | SPF 5000ES | Nature of Source Flow | Active Inverter |
|---|---|---|---|
| Phase | Single | Output Power | >1000W |
| Certification | CE | Type | DC/AC Inverters |
| Power Source | Solar Power, Wind Power | Nature of Wave String | Sine Wave Inverter |
| Parallel Capability | Yes, 6 Units Maximum | Efficiency (Peak) | 93% |
| Waveform | Pure Sine Wave | Battery Type | Lead Acid/ Lithium |
| Datasheet | ||
|---|---|---|

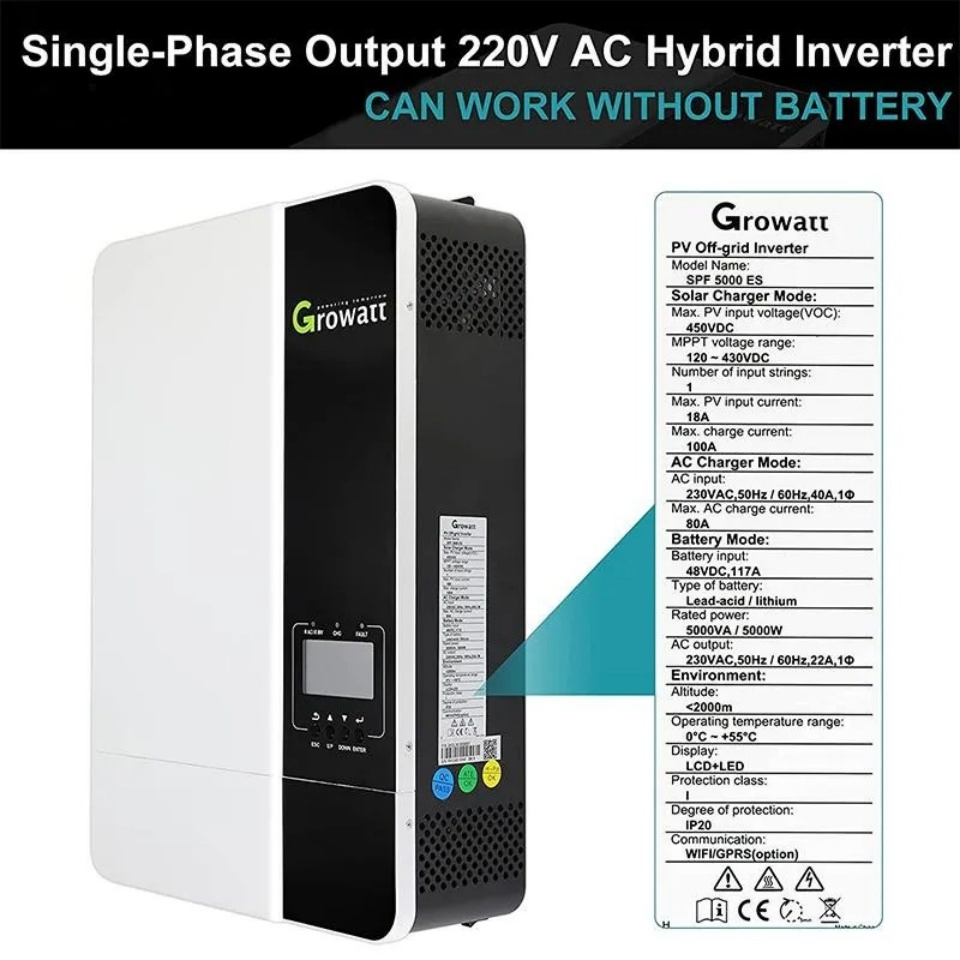

| Model Name | SPF 3500ES | SPF 5000ES |
| INVERTER OUTPUT | ||
| Rated Power | 3500VA/ 3500W | 5000VA/ 5000W |
| Surge Power | 7000VA | 10000VA |
| AC Voltage Regulation | 230VAC ± 5% @ 50/60Hz | |
| Efficiency (Peak) | 93% | |
| SOLAR CHARGER | ||
| Max. PV Array Power | 4500W | 6000W |
| MPPT Range | 120VDC ~ 430VDC | |
| Max. PV Open Circuit Voltage | 450VDC | |
| Max. Solar Charge Current | 80A | 100A |
Parallel Operation in Three Phase: The system supports multiple units in parallel to handle larger loads and three-phase power requirements. Up to 6 units can be connected for a maximum capacity of 30kW.
• Open station supports one-click installation and registration
• Problem support one-click dispatch and navigation
• Safe operation, traceable logs, etc
• Support full lifecycle data storage to ensure data security and reliability.

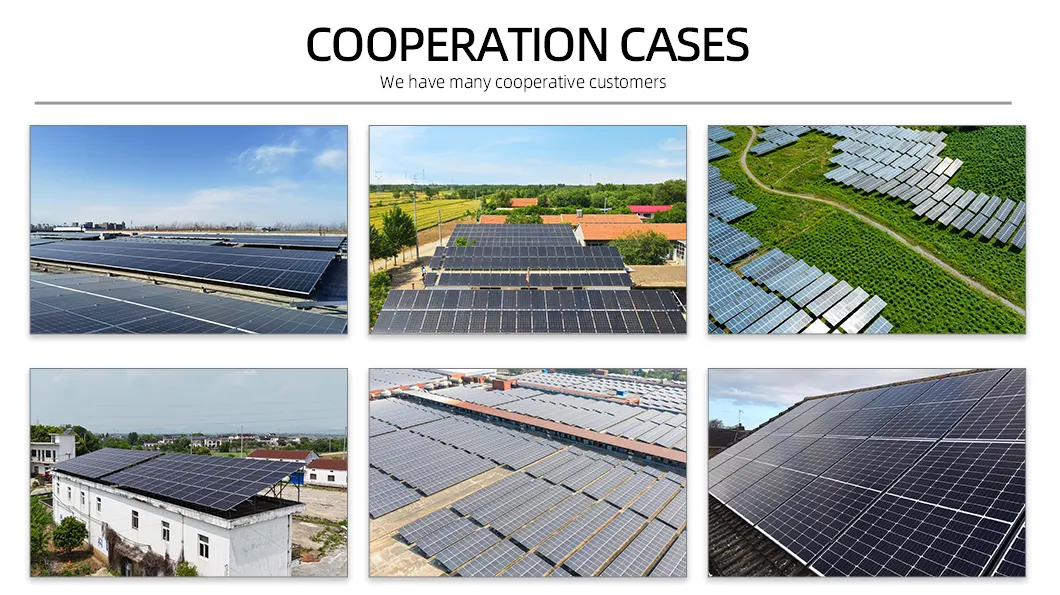

As a one-stop environmental solution provider, we are committed to providing customers with leading ecological and environmental technology services. Our business covers residential, commercial, landfill + photovoltaic composite projects, wind power, charging piles, energy storage and other diversified fields.

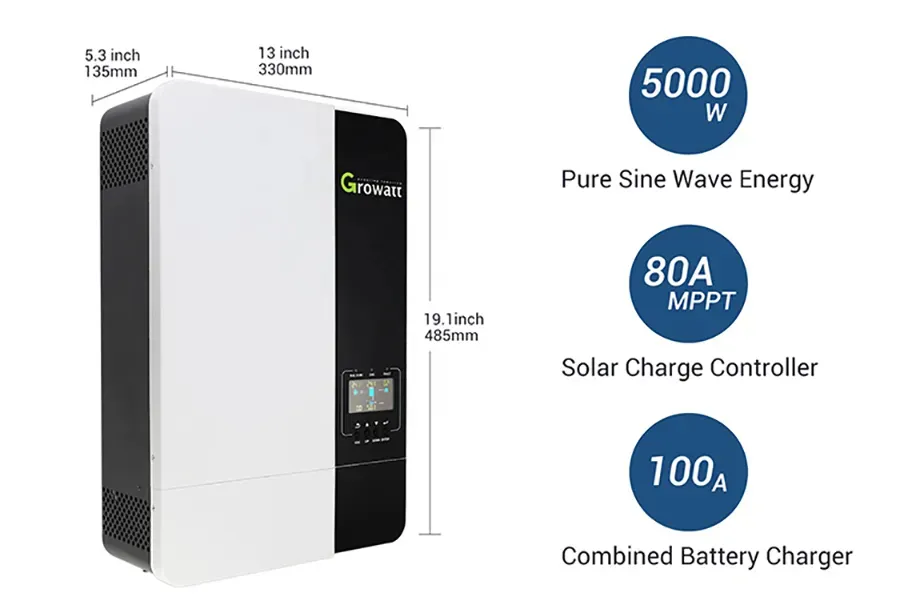

| Package Size | 33.00cm * 48.50cm * 13.50cm |
|---|---|
| Package Gross Weight | 16.000kg |
