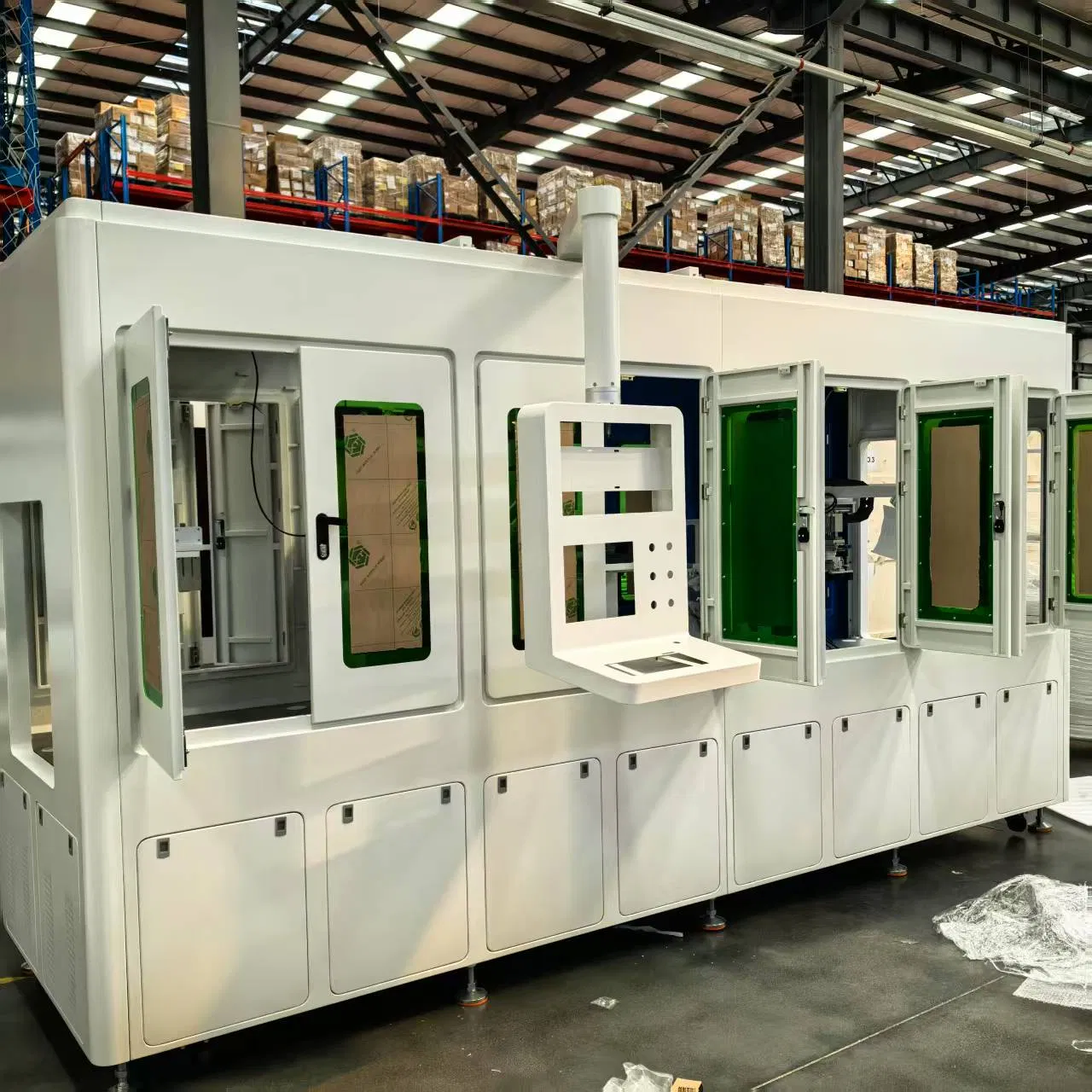

High-Speed Reliable Automated Assembly Line for Energy Storage Pack (100% Inline Inspection)

Customization:	Available
Production Scores:	Multiple Varieties
Production Continuity:	Continuous

Basic Specifications

Condition

New

Automation

Automatic

OEM

Yes

Quality

100% Inspection

Welding Precision

±0.1mm

Automation Degree

≥ 95%

Warranty

2 Years

Certification

FDA ISO CE

Origin

China

Production Capacity

1.5gwh/Per Year

Product Overview

The Energy Storage Prismatic Battery Module PACK Line is an efficient, intelligent, and customized automated production line, specifically designed for the energy storage field. It is suitable for application scenarios such as large-scale energy storage systems, home energy storage, and industrial energy storage. This production line integrates advanced laser welding technology, automated assembly systems, and intelligent detection equipment, providing battery modules with high consistency and high reliability.

Technical Features

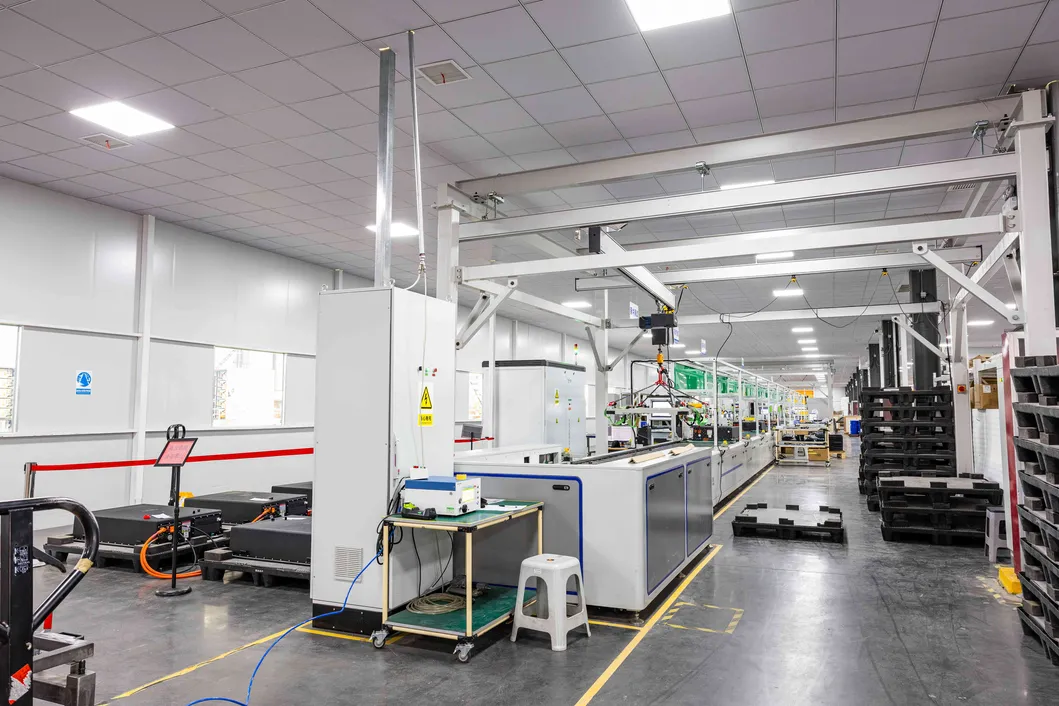

High-precision Laser Welding

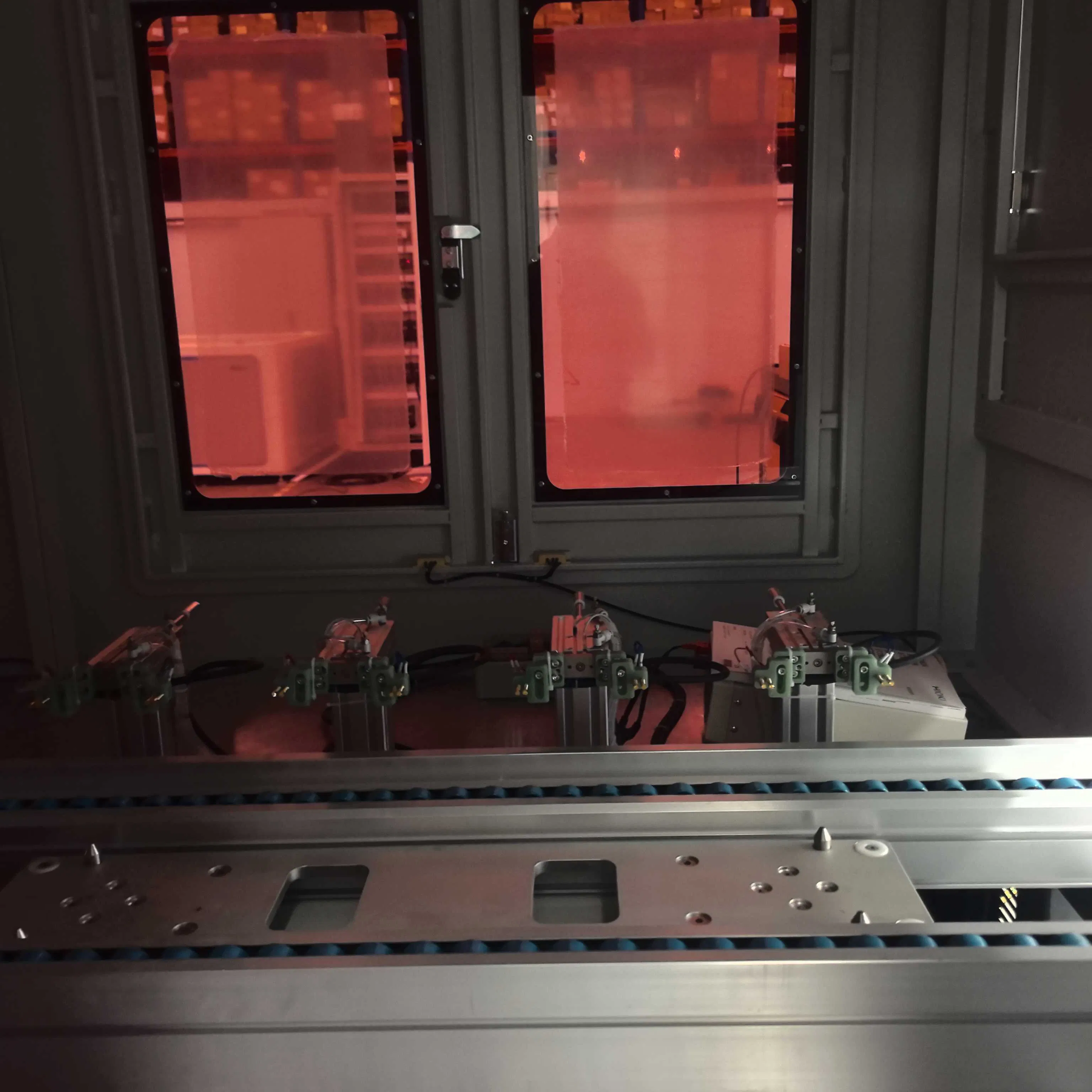

Advanced laser welding technology ensures high-precision connection between cell tabs and connectors. High strength and low resistance significantly improve electrical performance and safety. The contact-free process avoids pollution, ideal for high-standard energy storage production.

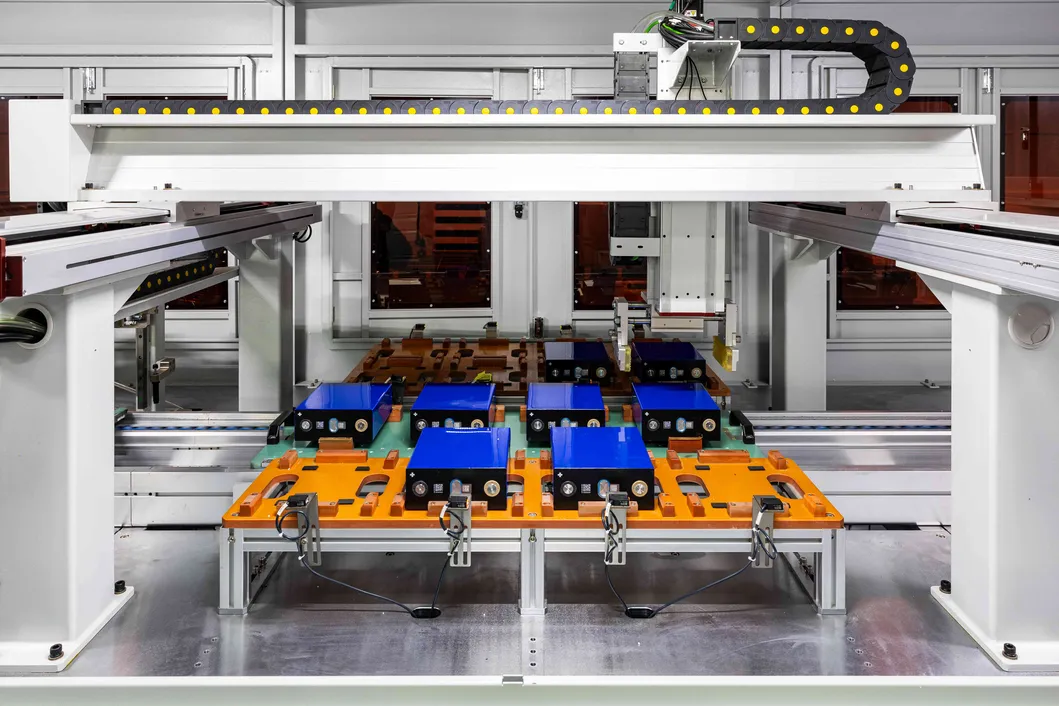

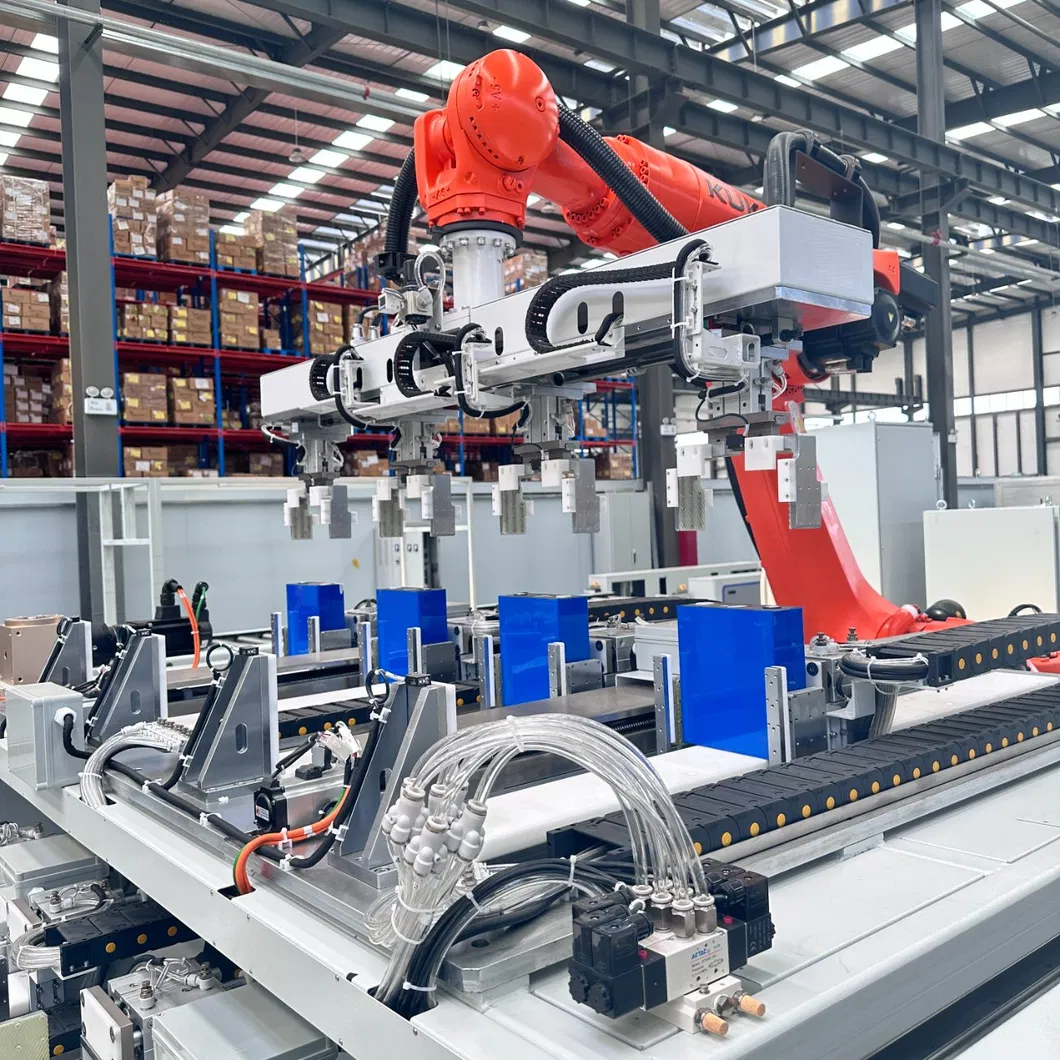

Fully Automated Production

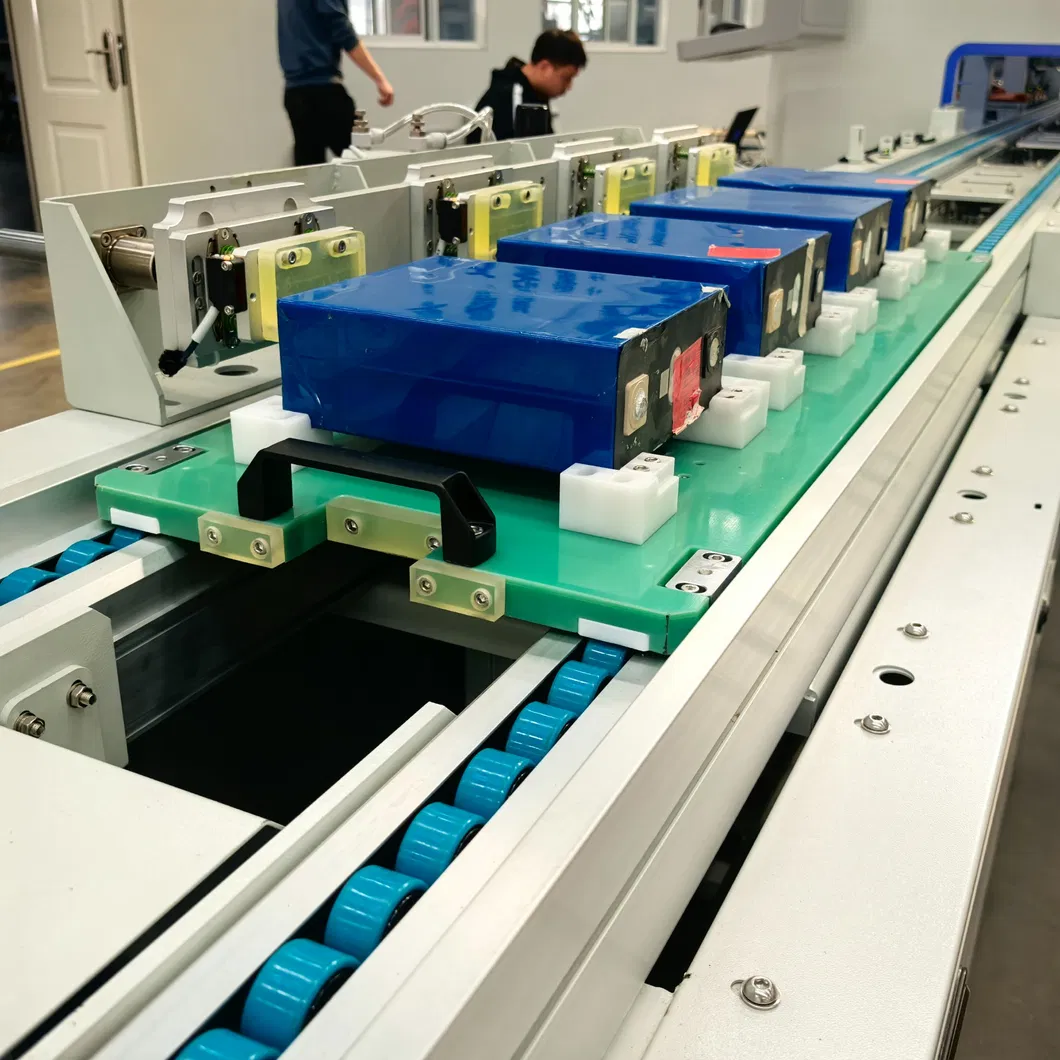

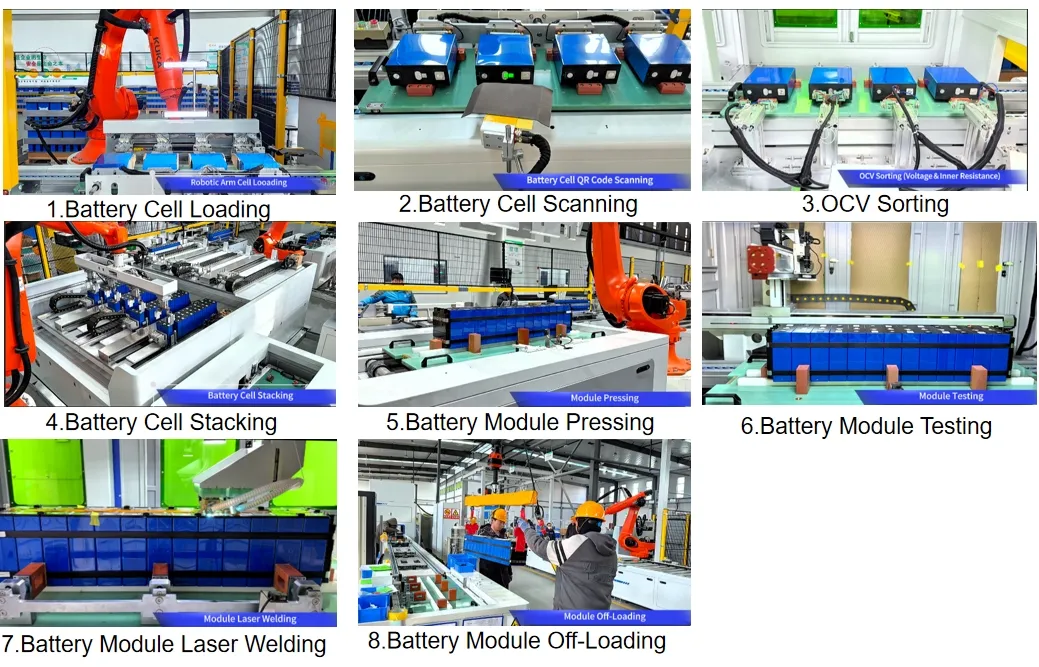

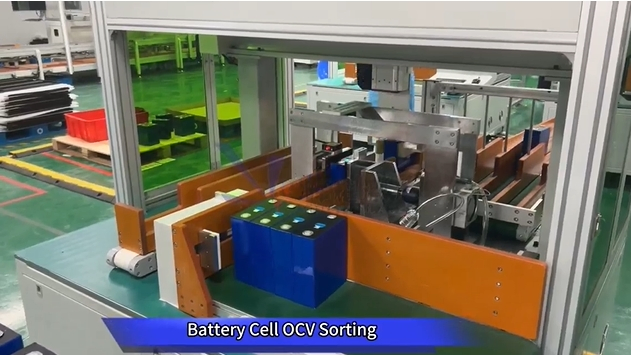

The line covers cell feeding, sorting, stacking, welding, encapsulation, detection, and unloading. High automation reduces manual intervention, improving efficiency and supporting stable 7x24 hour continuous operation.

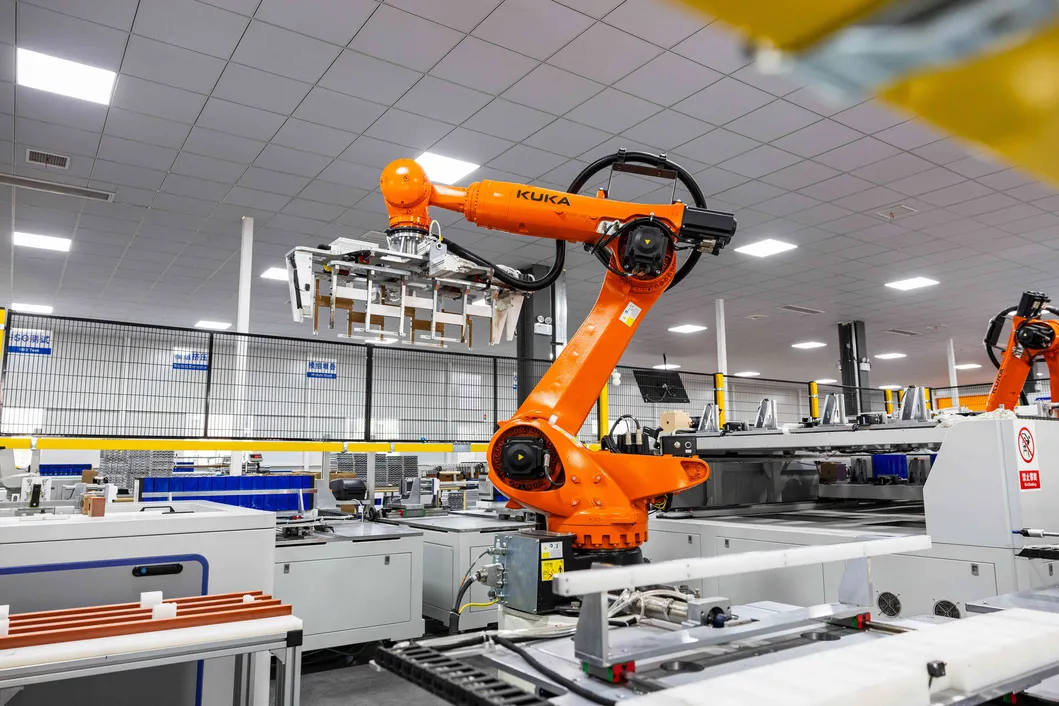

Intelligent Detection

Equipped with voltage detectors, internal resistance testers, and insulation withstand voltage testers. The intelligent monitoring system collects production data in real-time for full quality traceability and process optimization.

Main Parameters

Production Cycle	≥ 12 PPM (Adjustable)
Welding Precision	±0.1mm
Detection Items	Voltage, Internal Resistance, Insulation, Withstand Voltage
Applicable Cell Types	Prismatic Cells (LFP, NCM, etc.)
Compatibility	Supports various module sizes and structural designs
Degree of Automation	≥ 95%

Application & Support

Customized Design: Personalized solutions based on specific production needs.
Technical Training: Comprehensive operation and maintenance training for staff.
After-sales Service: 24-hour quick-response support to ensure stable line operation.

Certifications & Global Partners

Operating under ISO9001, ISO14001, and ISO45001 standards, our production models ensure standardized quality management. We maintain deep cooperation with leading domestic and international enterprises in the lithium battery and energy sectors.

Frequently Asked Questions

Q1: What is the production cycle of this automated line? A: The PACK line adopts a highly automated design with a production cycle that can reach ≤ 2 minutes per module, supporting 24/7 continuous operation for large-scale production.

Q2: Does it support different battery specifications? A: Yes, the modular design allows for flexible adjustments to accommodate prismatic battery modules of various specifications and models.

Q3: How is welding precision and consistency maintained? A: We use high-precision laser welding technology (±0.1mm) combined with an intelligent real-time monitoring system to ensure uniform quality across all modules.

Q4: What is the level of automation? A: The degree of automation exceeds 95%, covering the entire process from feeding and sorting to welding, testing, and final unloading.

Q5: How is module quality verified? A: The line includes integrated testing for voltage, internal resistance, and insulation withstand voltage to ensure every module meets safety and performance standards.

Q6: Is technical support available for troubleshooting? A: We provide a 24-hour quick-response after-sales service team along with detailed technical training and operation manuals for all clients.
