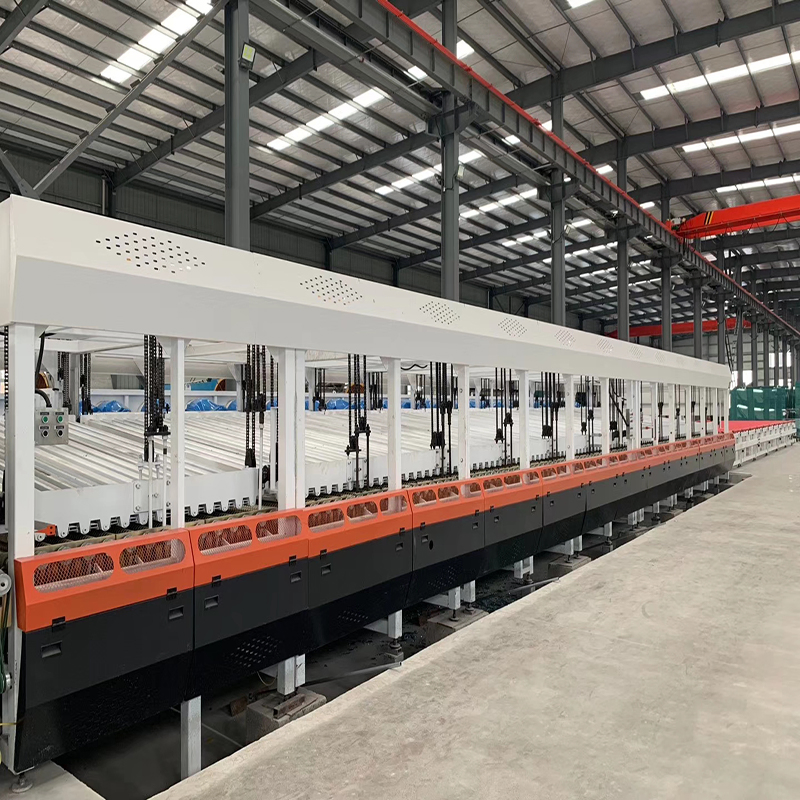

Glass Tempering Furnace/ Pg550L/Glass Lid Cover Production Line

1 / 5

Glass Tempering Furnace/ Pg550L/Glass Lid Cover Production Line

Customization:	Available
Certification:	CE, ISO
Convection:	Turbo Blower

Send Inquiry

Product Description

Basic Specifications

Ceramic Roller

Vesuvius

Inverter

Germany

Heating Wires

Ni-Cr Type

Transformer

500kVA

Productivity

18-20batch/Hour

Installation

Free Installation Commissioning and Training

Glass Thickness

4-19mm

Type

Glass Tempering Furnace

Structure

Horizontal

Washing Machine

Horizontal Type

Edging Machine

Double Edging Machine

Grinding Heads

Condition

New

Specification

2440*3660mm

Origin

China

Product Description

✔ Glass Can Be Tempered:

● 1. Float Clear Glass

● 2. Low-E Glass

● 3. Screen Printing Glass

● 4. Tinted Glass

● 5. Patented Glass

✔ Application Areas:

➤ 1. Building Glass

➤ 2. Furniture Glass

➤ 3. Insulation Glass

➤ 4. Laminated Glass

Technical Parameters

Model	Max Glass Size (mm)	Mini Glass Size (mm)	Thickness (mm)	Productivity (m²/h)	Power (KVA)
HNT-A0510Q	500x1000	50x80	2.5-12	9.2	100
HNT-A1020Q	1000x2000	50x150	3-12	36.8	120
HNT-A1225Q	1250x2500	100x250	4-19	50	150
HNT-A1630Q	1600x3000	100x250	4-19	76.8	250
HNT-A2030Q	2000x3000	100x250	4-19	96	350
HNT-A2436Q	2440x3660	100x300	4-19	142	500
HNT-A2442Q	2440x4200	100x300	4-19	164	630
HNT-A2450Q	2440x5000	200x300	4-19	195	800
HNT-A2460Q	2440x6000	200x350	4-19	234	900
HNT-A2850Q	2850x5000	200x300	4-19	224	900
HNT-A2860Q	2850x6000	200x350	4-19	268	1000
HNT-A3380Q	3300x8000	200x500	5-19	380	1500
HNT-A3680Q	3600x8000	200x500	6-19	320	1800

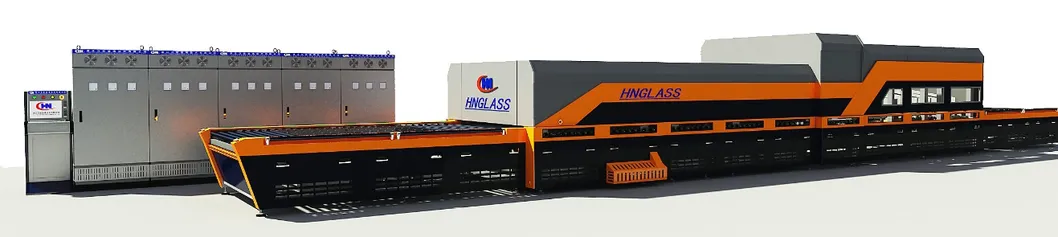

Scope of Supply

1. Loading table

2. Heating section

3. Flat tempering & cooling section

4. Bent tempering section

5. Unloading table

6. Blower system with Inverter

7. Electrical & control system (Siemens PLC, Computer, etc)

8. Technical documents

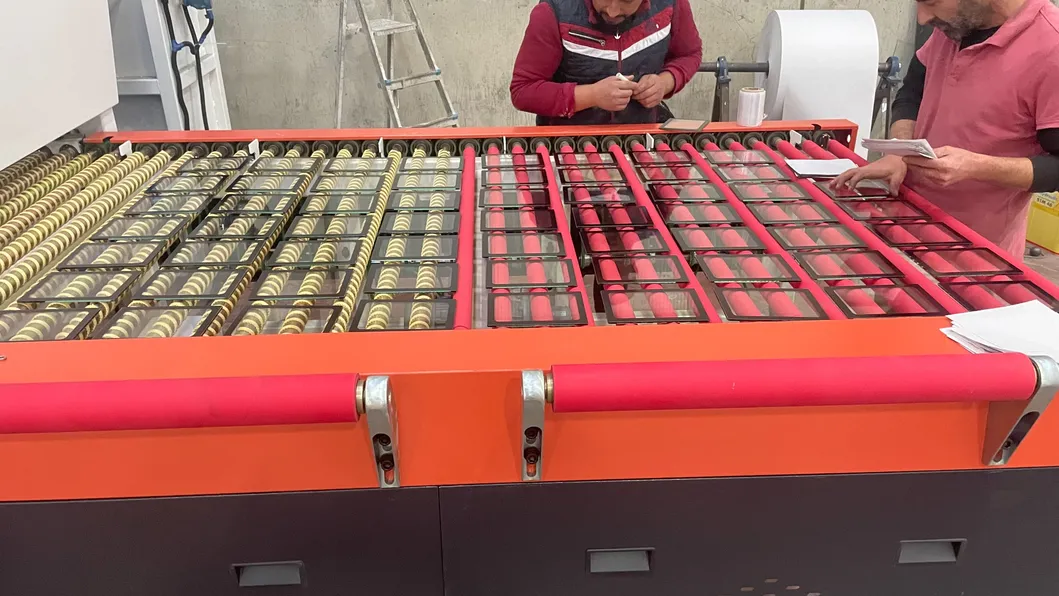

1. Loading Table Details

● Automatic sensing step: Instead of foot switch, providing convenient loading.

● PTFE universal wheel: High strength quality straight handle design.

● Automatic lift/lower: Function for unloading table to prevent glass from smashing.

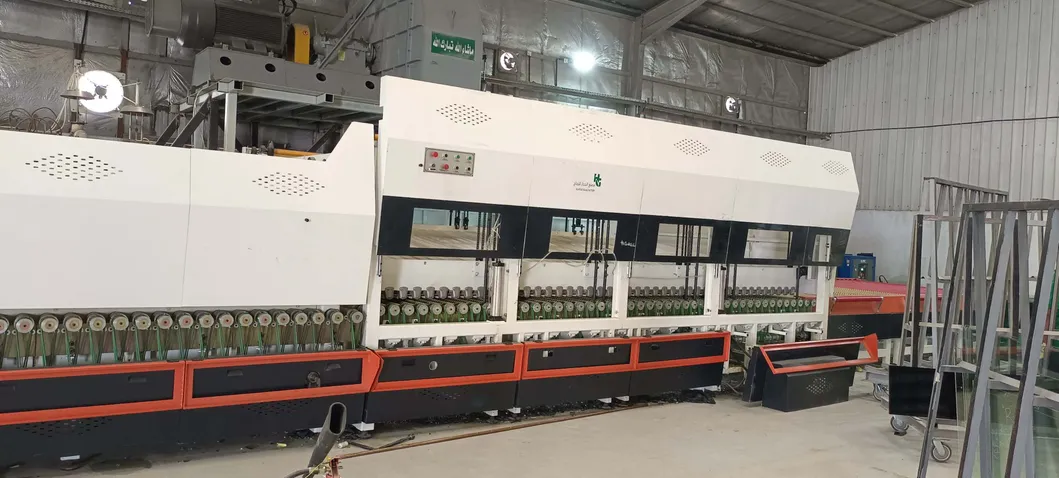

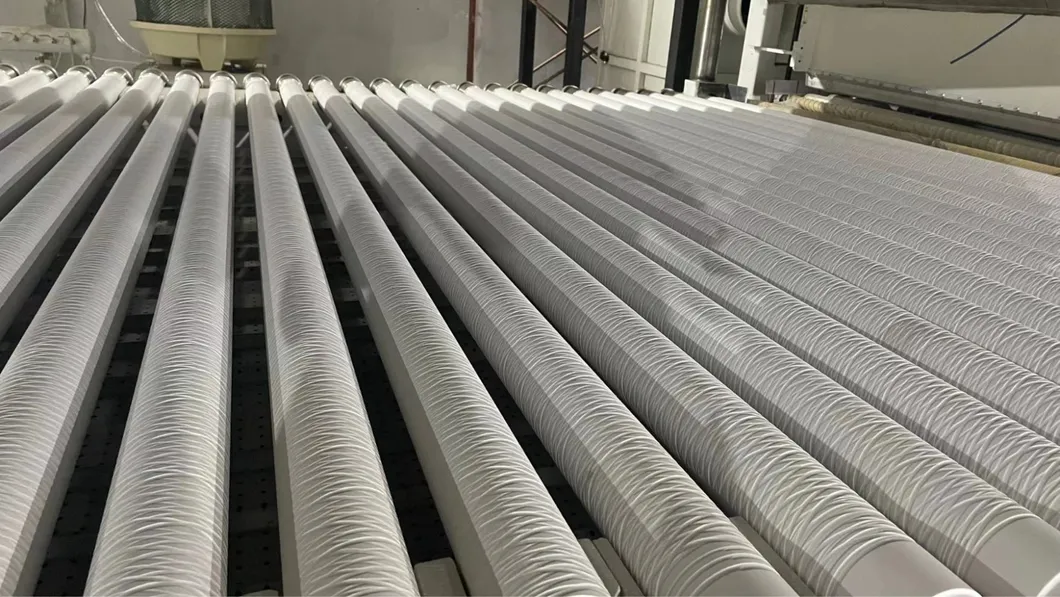

2. Heating Section

3. Turbo Blower Convection

1. Realize partial area convection for precise control.

2. Energy saving: Turbo blower can be stopped when processing common clear glass.

3. Compact installation size with excellent heat preservation.

4. Convenient maintenance with outside furnace installation.

5. Easy adjustment via high-quality Inverter.

6. Low installation power requirements.

Frequently Asked Questions

What types of glass can this furnace process?

The furnace is capable of tempering Float Clear Glass, Low-E Glass, Screen Printing Glass, Tinted Glass, and Patented Glass.

What is the thickness range for glass tempering?

Depending on the specific model, the furnace can handle glass thicknesses ranging from 2.5mm up to 19mm.

How does the Turbo Blower system save energy?

When processing common clear glass, the Turbo blower can be completely stopped, significantly reducing energy consumption.

What control system does the furnace use?

The system is equipped with a high-end electrical and control system featuring Siemens PLC and specialized computer interfaces.

Is technical training provided with the purchase?

Yes, we provide free installation, commissioning, and comprehensive technical training for your operators.

What are the main applications for the tempered glass produced?

The tempered glass is ideal for building construction, furniture manufacturing, insulation glass units, and laminated glass production.
