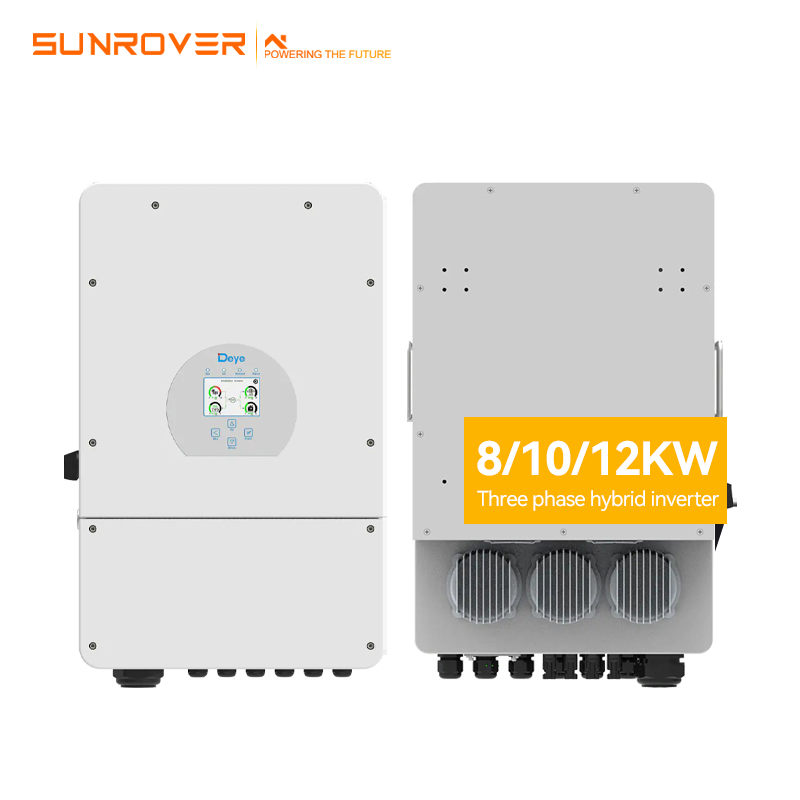

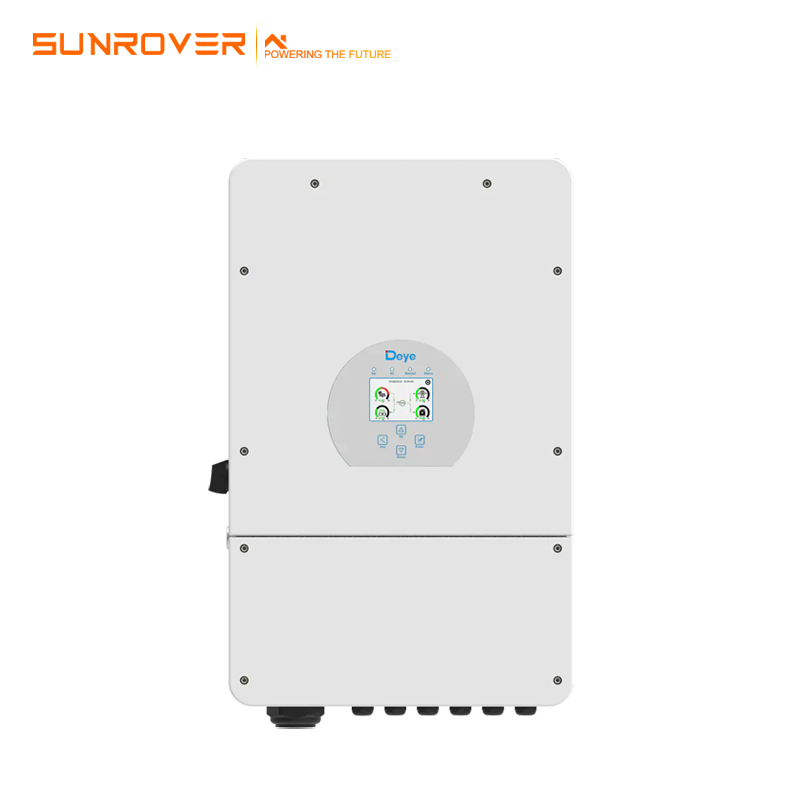

Cost Effective Deye 3 Phase 10kw 12kw Hybrid Solar Inverter Enhanced Efficiency Seamless Integration Inverter
Cost Effective Deye 3 Phase 10kw 12kw Hybrid Solar Inverter Enhanced Efficiency Seamless Integration Inverter
Cost Effective Deye 3 Phase 10kw 12kw Hybrid Solar Inverter Enhanced Efficiency Seamless Integration Inverter
Cost Effective Deye 3 Phase 10kw 12kw Hybrid Solar Inverter Enhanced Efficiency Seamless Integration Inverter
Cost Effective Deye 3 Phase 10kw 12kw Hybrid Solar Inverter Enhanced Efficiency Seamless Integration Inverter
1 / 5
Cost Effective Deye 3 Phase 10kw 12kw Hybrid Solar Inverter Enhanced Efficiency Seamless Integration Inverter
Cost Effective Deye 3 Phase 10kw 12kw Hybrid Solar Inverter Enhanced Efficiency Seamless Integration Inverter
Cost Effective Deye 3 Phase 10kw 12kw Hybrid Solar Inverter Enhanced Efficiency Seamless Integration Inverter
Cost Effective Deye 3 Phase 10kw 12kw Hybrid Solar Inverter Enhanced Efficiency Seamless Integration Inverter
Cost Effective Deye 3 Phase 10kw 12kw Hybrid Solar Inverter Enhanced Efficiency Seamless Integration Inverter

Cost Effective Deye 3 Phase 10kw 12kw Hybrid Solar Inverter Enhanced Efficiency Seamless Integration Inverter

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Product Specifications
Model NO.
SUN-10K-SG04LP3-EU
Nature of Flow
Active Inverter
Phase
Three Phase
Output Power
10kW
Certification
CE, ISO9001, CCC, TUV, VDE
Type
DC/AC Inverters
Power Source
Solar Power
Waveform
Pure Sine Wave
AC Voltage
230/400VAC
Protection
IP65
Dimensions
422W x 702H x 281D mm
Capacity
50,000 PCS/Month
Packaging & Delivery
Package Size
1000.00cm * 1000.00cm * 1000.00cm
Gross Weight
1000.000kg
Detailed Product Description

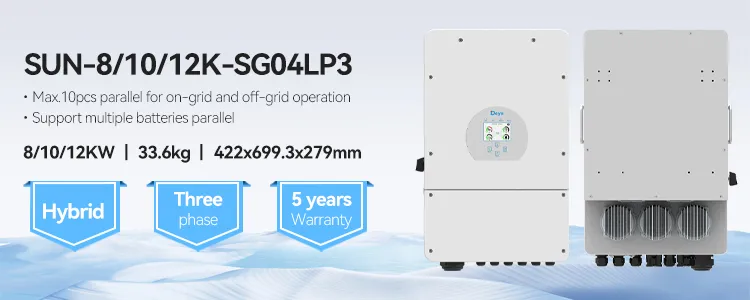

Hybrid Solar Inverter Overview
Model SUN-5K-SG04LP3-EU SUN-8K-SG04LP3-EU SUN-10K-SG04LP3-EU SUN-12K-SG04LP3-EU
Battery type Lead-acid or Lithium-ion
Battery Voltage (V) 40~60
Max. Charge Current (A) 120 190 210 240
Max. DC Input Power (W) 6500 10400 13000 15600
MPPT Voltage Range (V) 200-650
PV Input Current (A) 13+13 26+13
Rated AC Output (W) 5000 8000 10000 12000
Max. Efficiency 97.60%

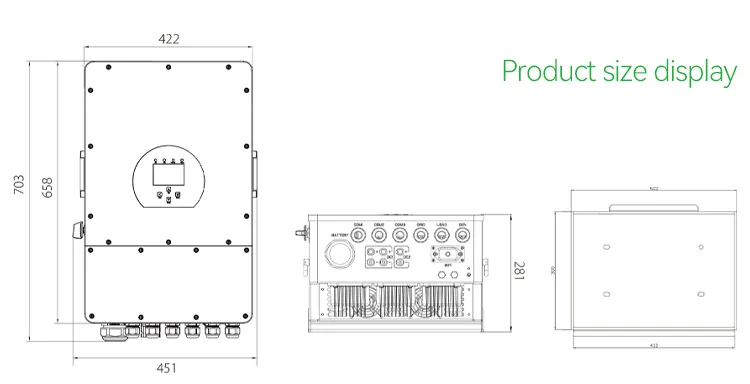

Inverter Feature 1

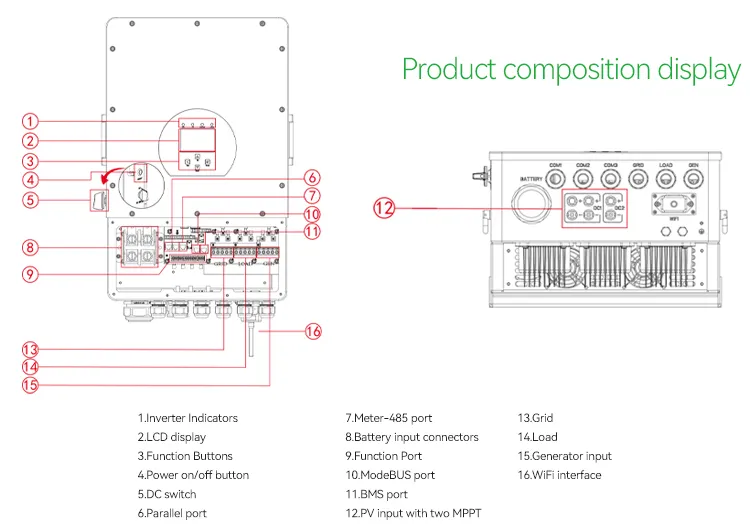

Inverter Feature 2

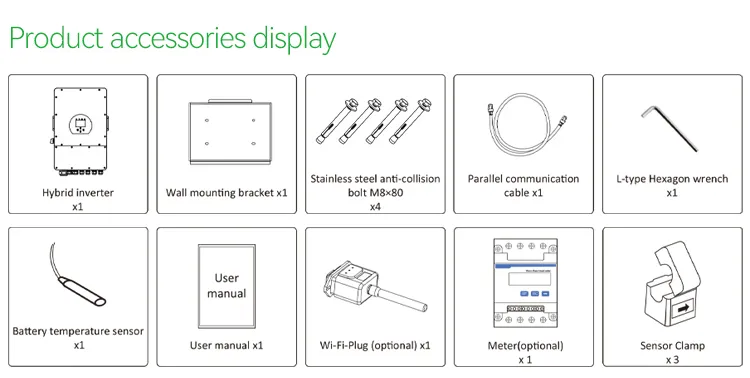

Inverter Feature 3

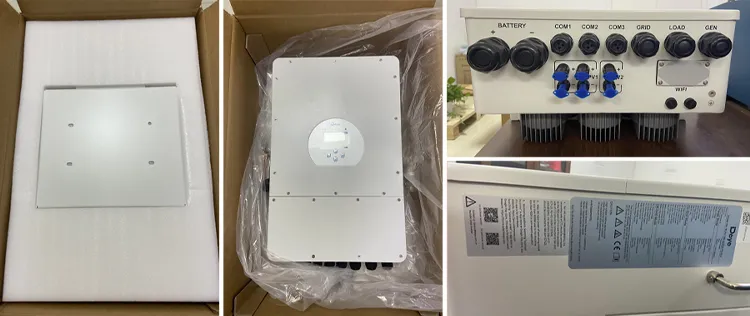

Inverter Feature 4
Inverter Feature 5

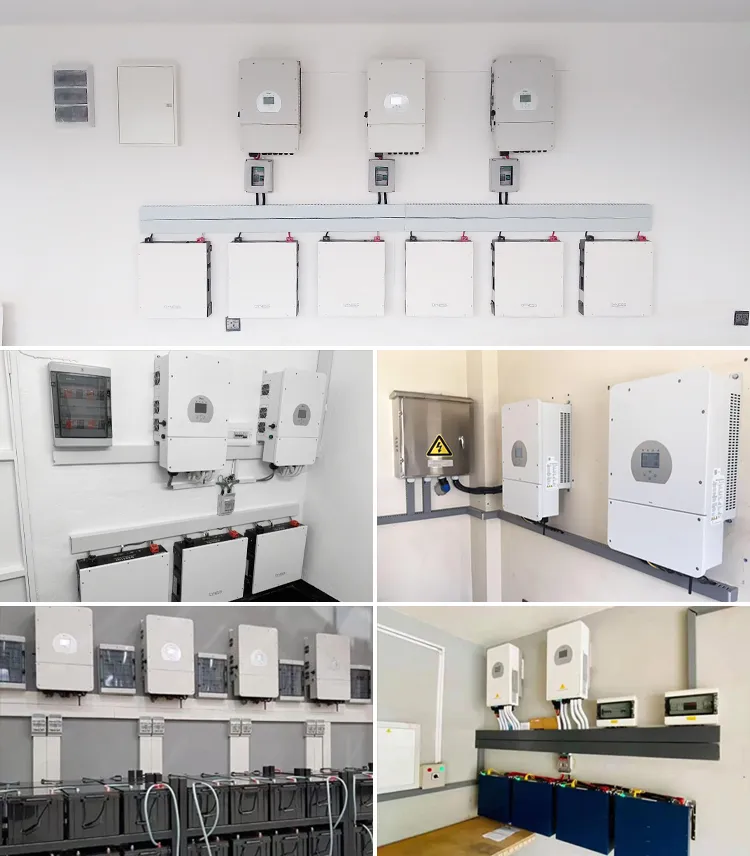

Inverter Feature 6
Inverter Feature 7
Frequently Asked Questions
1. What type of batteries can be used with this hybrid inverter?
This series of hybrid inverters is compatible with both Lead-acid and Lithium-ion batteries, with a battery voltage range of 40~60V.
2. Can this inverter be installed outdoors?
Yes, it features an IP65 protection degree, making it suitable for outdoor installation and resistant to dust and water.
3. What is the maximum efficiency of the SUN-10K series?
The system achieves a maximum efficiency of 97.60% and an MPPT efficiency of 99.90% for optimized energy harvest.
4. How many MPPT trackers are included?
The inverter is equipped with 2 MPP Trackers, allowing for flexible solar panel configurations and improved performance under varying light conditions.
5. Does it support three-phase grid systems?
Yes, this is a Three Phase hybrid inverter designed for 230/400Vac grid types and is compatible with most commercial and industrial standards.
6. What certifications does this product hold?
The product is fully certified with CE, ISO9001, CCC, TUV, and VDE, ensuring high quality and safety standards.
