Automated Solar Module Production Line Solutions for 500MW Turnkey Projects

Customization:	Available
Transmission Speed:	5-25m/Minute
Transmission Unit Spacing:	50 to 100mm

i

Basic Information

Model NO.

Solar Panel Production Line

Panel Size

L 1200 X W 800

Warranty

12 Months

Transport Package

Wooden Box

Specification

BIPV Solar panel production line

P

Product Description

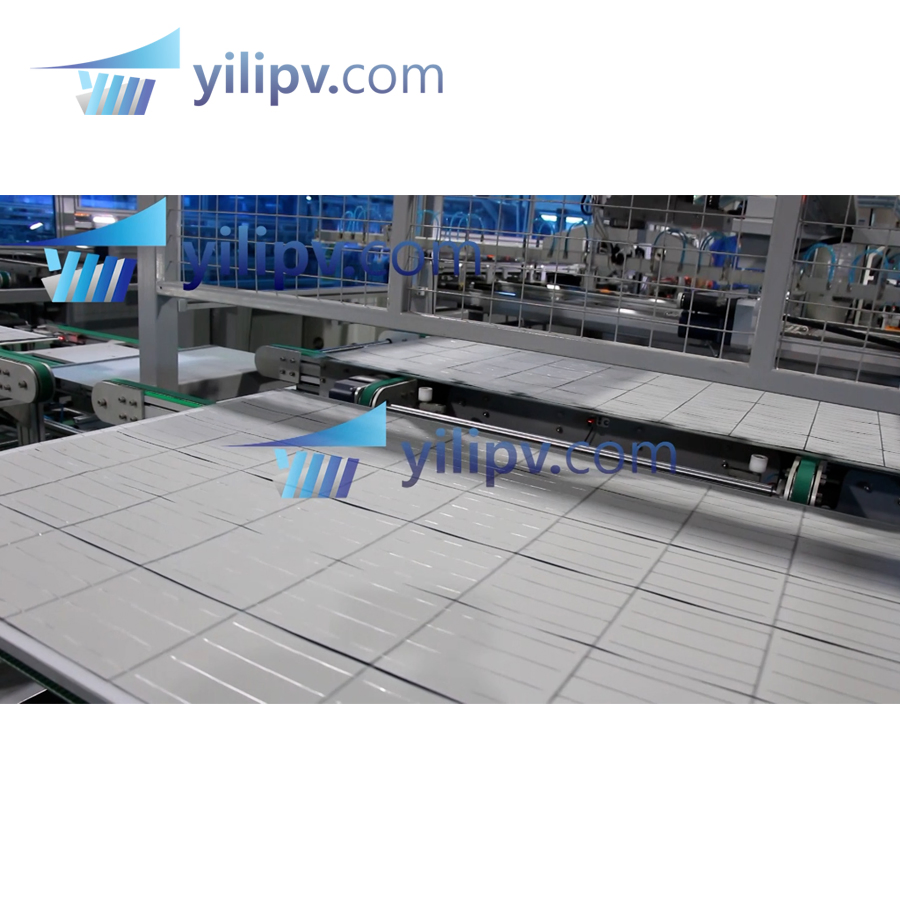

BIPV Line Overview:

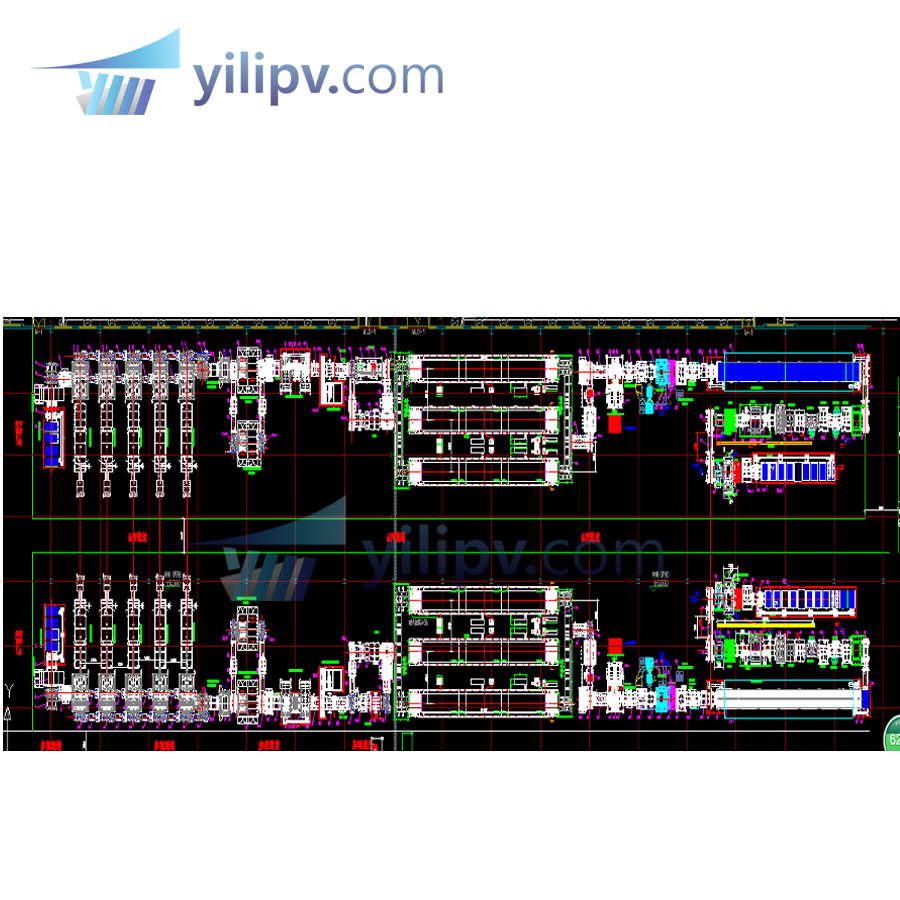

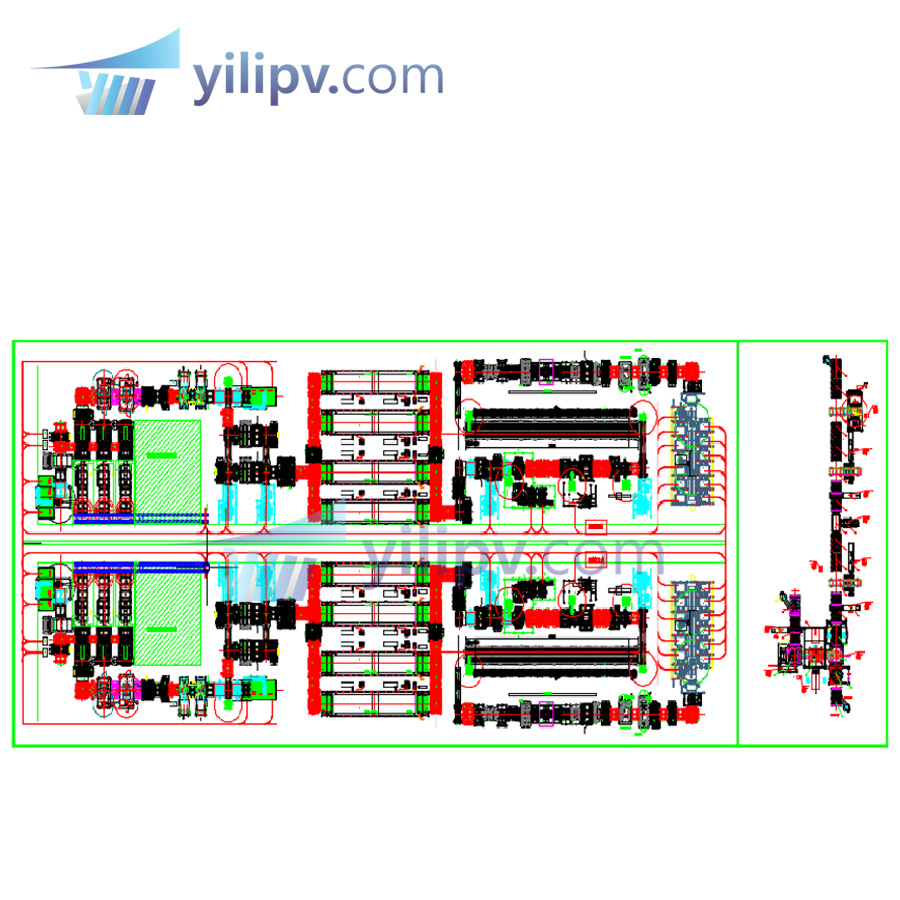

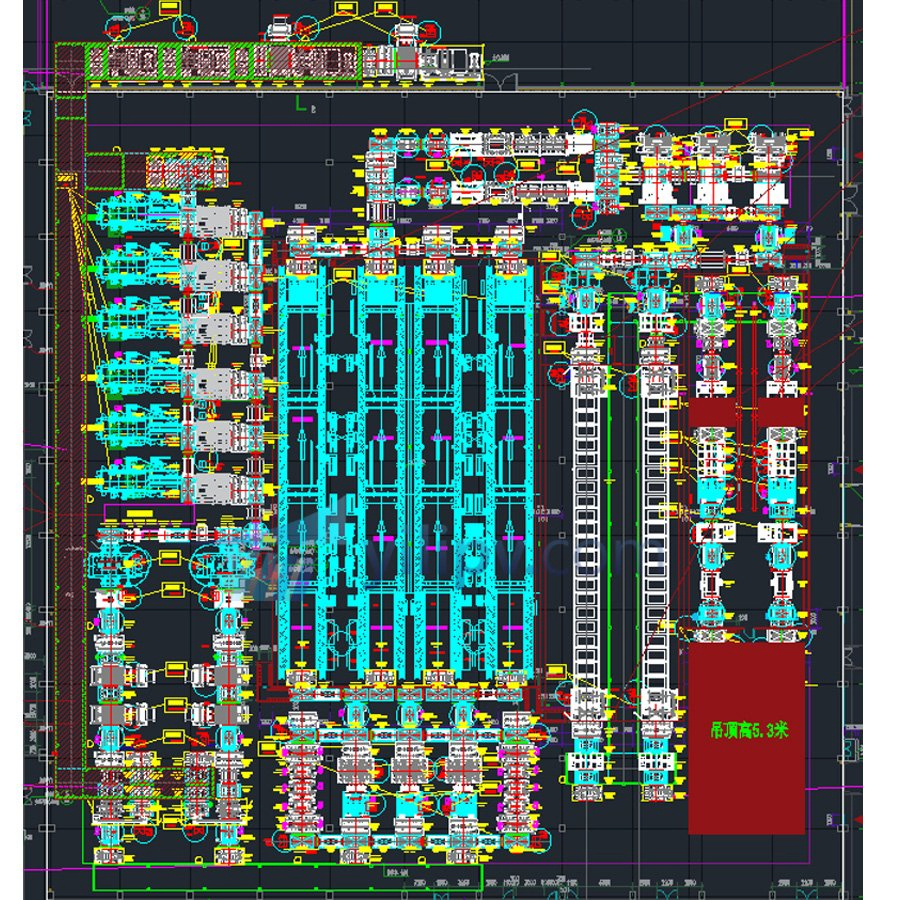

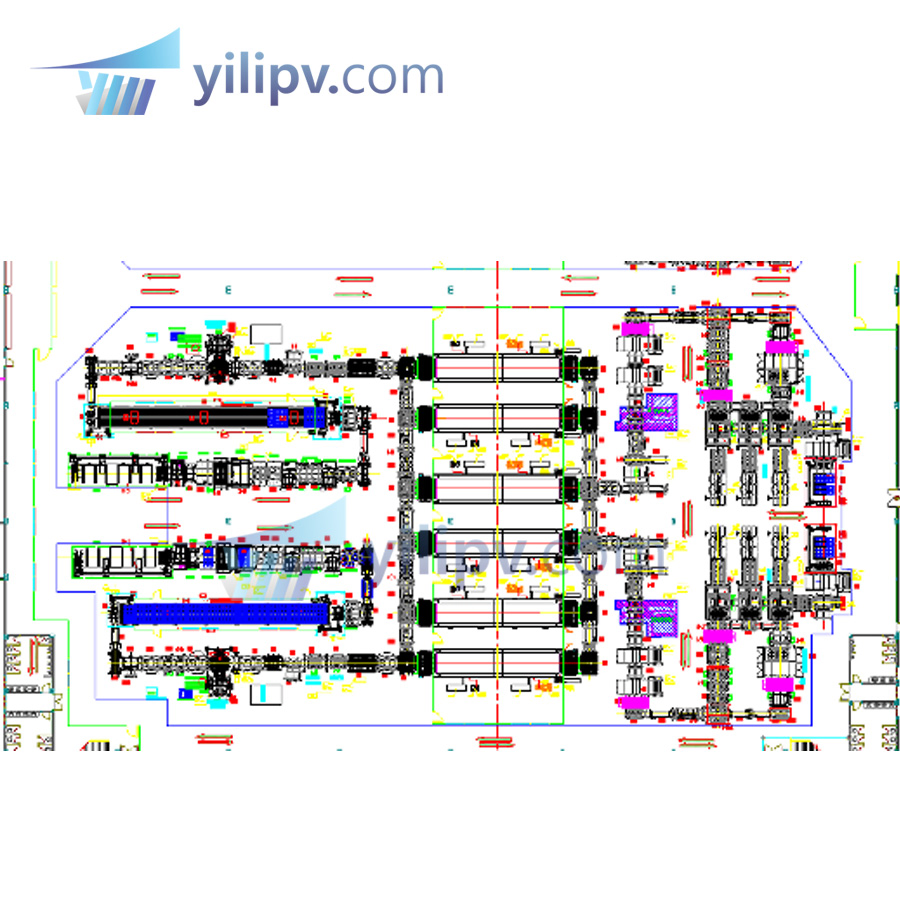

The BIPV Solar panel production line consists of the following integrated components:

PV glass loading area and EVA loading area
Solar cells stringer and Solar strings layup
Manual flow soldering area
EVA and backplane loading area
Pre-layer EL inspection and repair area
Advanced conveyor system and Lamination area
Trimming area and EL/IV test area

Key Specifications:

Solar module type: BIPV module
Solar cell size: 156-210mm
Solar panel size: L 1200 x W 800
PV solar ribbon type: Flat ribbon / Round ribbon

S

Technical Parameters

Item	Parameters
Model	BIPV Solar panel auto production line
Panel size	L 1200 x W 800
Cell Size	156-210mm
Ribbon Size	Diameter:Φ0.23-0.38mm, Thickness: 0.1 ~ 0.25mm Width: 3BB-16BB (0.35-1.3mm)
Transmission Speed	5-25m/minute
Transmission Height	950mm ±50mm
Noise Level	≤75 dbA
Equipment Utilization Rate	99%
Workshop Height Requirement	At least 2.7 meters

L

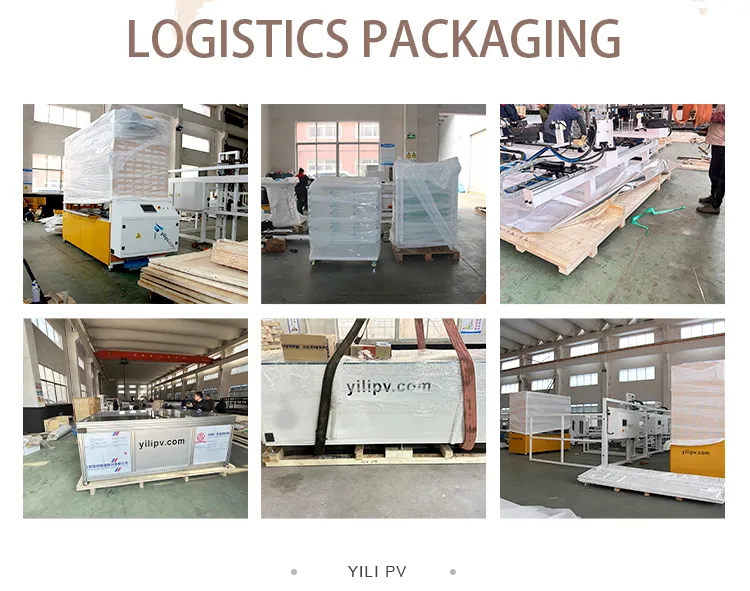

Packaging & Shipping

C

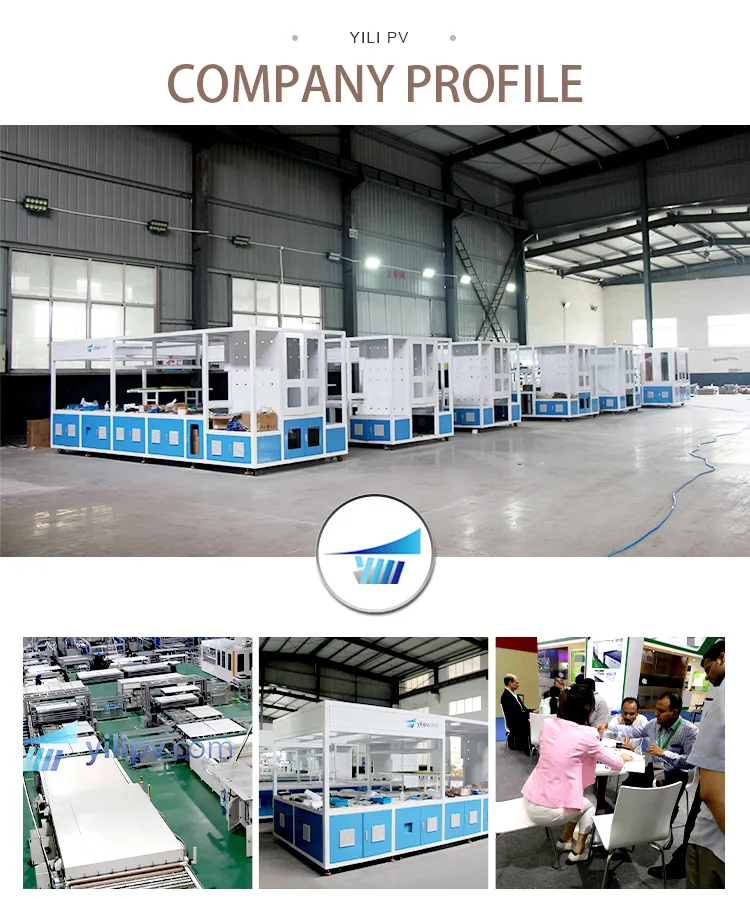

Company Profile

Established in 2008, our company is one of the pioneer manufacturers of photovoltaic module production equipment. We are a comprehensive high-tech enterprise with integrated R&D, manufacturing, installation, and after-sales service.

We provide turnkey solutions for fully packaged production lines. Our equipment is compatible with all central solar cell and panel production techniques, including Conventional, Double Glass, Half-Cut, MBB, Shingled, Heterojunction, and Topcon processes. Our products are exported to over twenty countries and regions worldwide, including the United States, Mexico, South Korea, Turkey, and India.

A

Our Advantages

?

Frequently Asked Questions

What types of solar modules can this production line produce?

The line is designed for BIPV modules but is also compatible with Conventional, Double Glass, Half-Cut, MBB, Shingled, Heterojunction, and Topcon production processes.

What is the compatible solar cell size range?

The equipment supports a wide range of solar cell sizes, specifically from 156mm up to 210mm.

What is the equipment utilization rate and warranty?

The production line features a high equipment utilization rate of 99% and comes with a standard 12-month warranty.

Does the system support different ribbon types?

Yes, it supports both flat and round ribbons, with compatibility for various busbar configurations from 3BB up to 16BB.

What are the workshop requirements for installation?

The workshop should have a minimum height of 2.7 meters and a floor flatness within ±10mm to ensure optimal machine performance.
