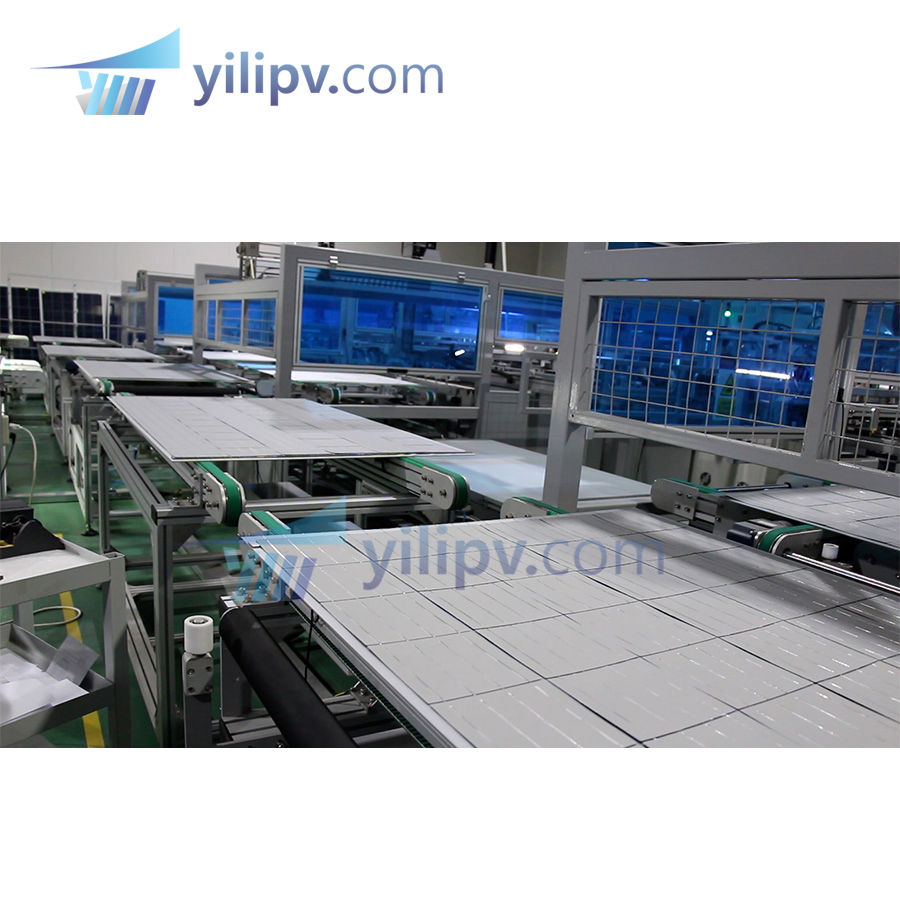

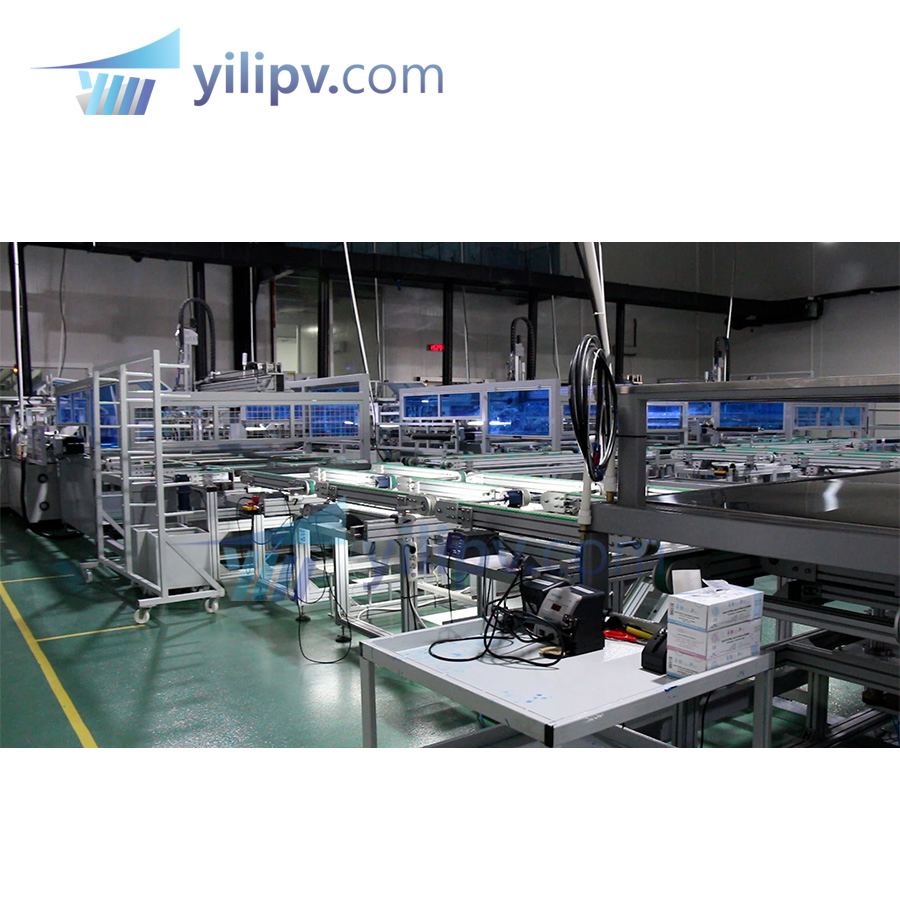

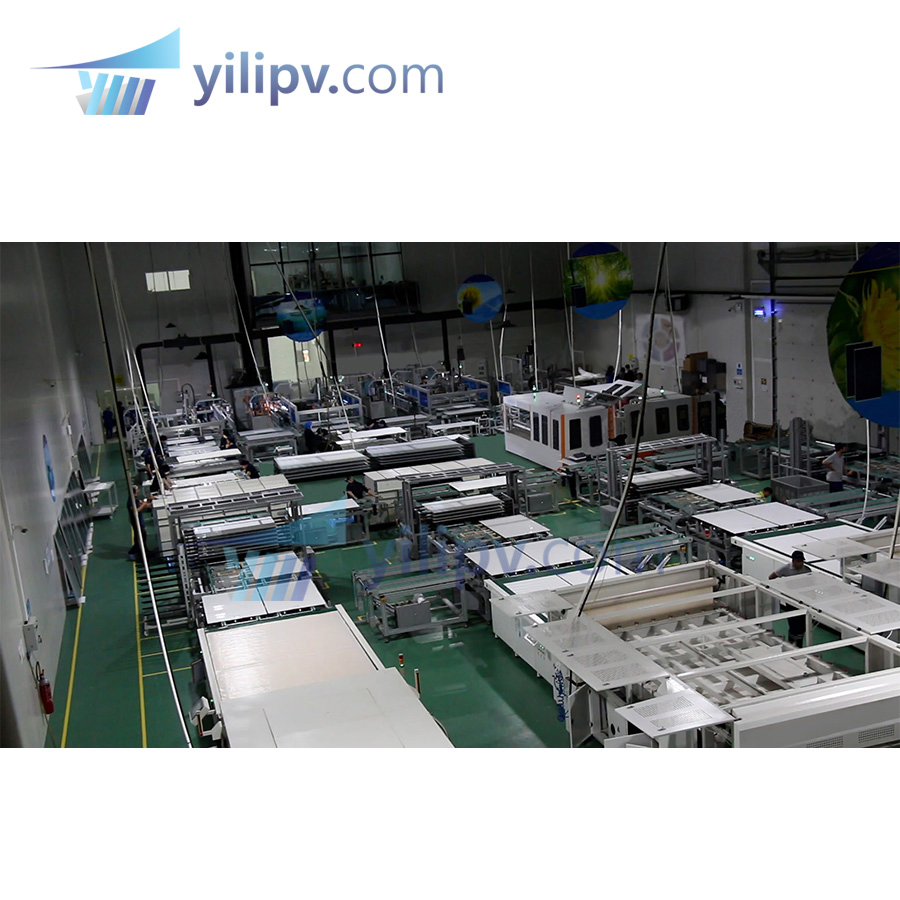

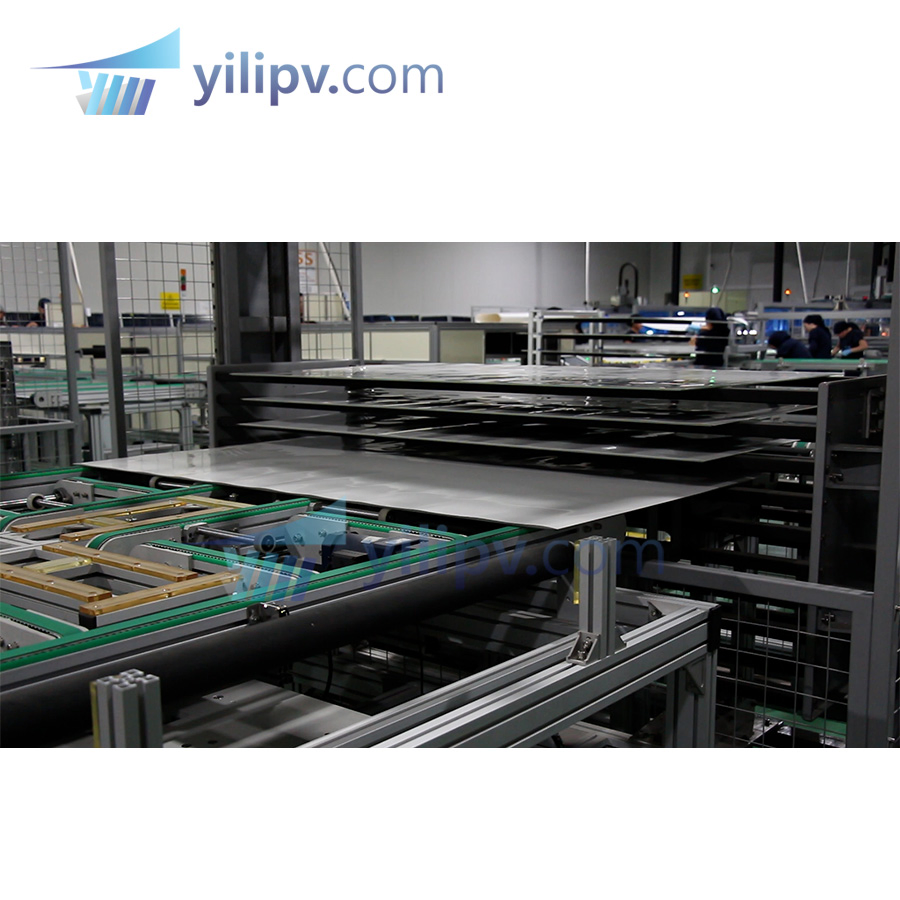

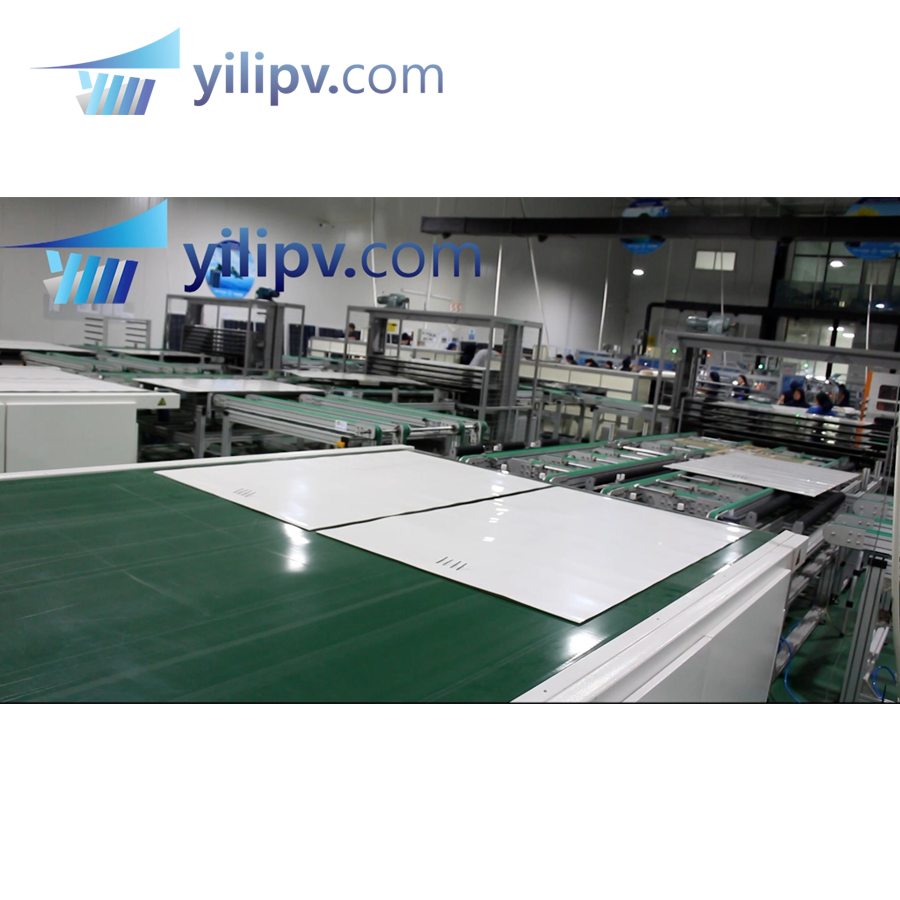

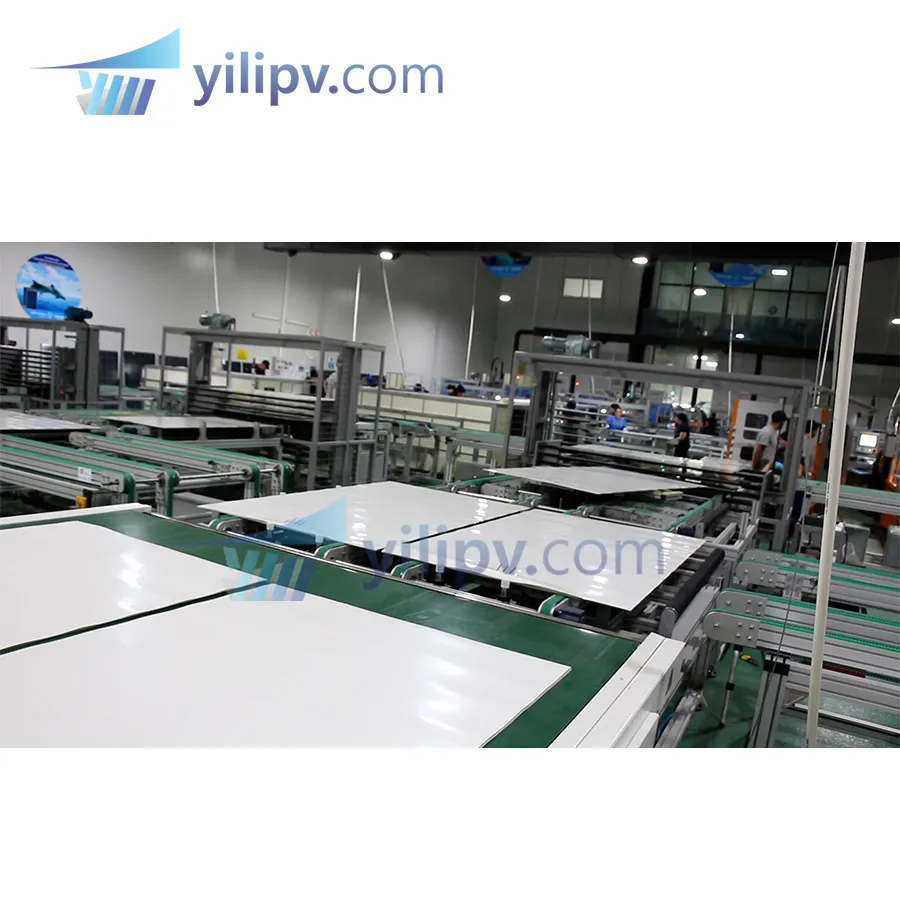

Before the lamination: Glass loading area, EVA loading area, typesetting, bus soldering area, EVA and backplane loading area, pre-layer EL/VI inspection and repair area, stack (production line component caching process), conveyor system.
After lamination: Trimming and gluing and framing area, junction box welding and gluing area, curing line, cleaning and testing area, binning area, conveyor system.
| Item | Parameters |
|---|---|
| Model | 100MW module production line |
| Beat | ≤45 seconds/block |
| Type of panel produced | Conventional full-cells/half-cells solar panel |
| Solar cell size | 166-210mm |
| Solar panel size | L(1956~2300mm) x W(990~1200mm) x T(25~45mm) |
| Solar ribbon type | Flat welding ribbon |
| Warranty | 12 Months |

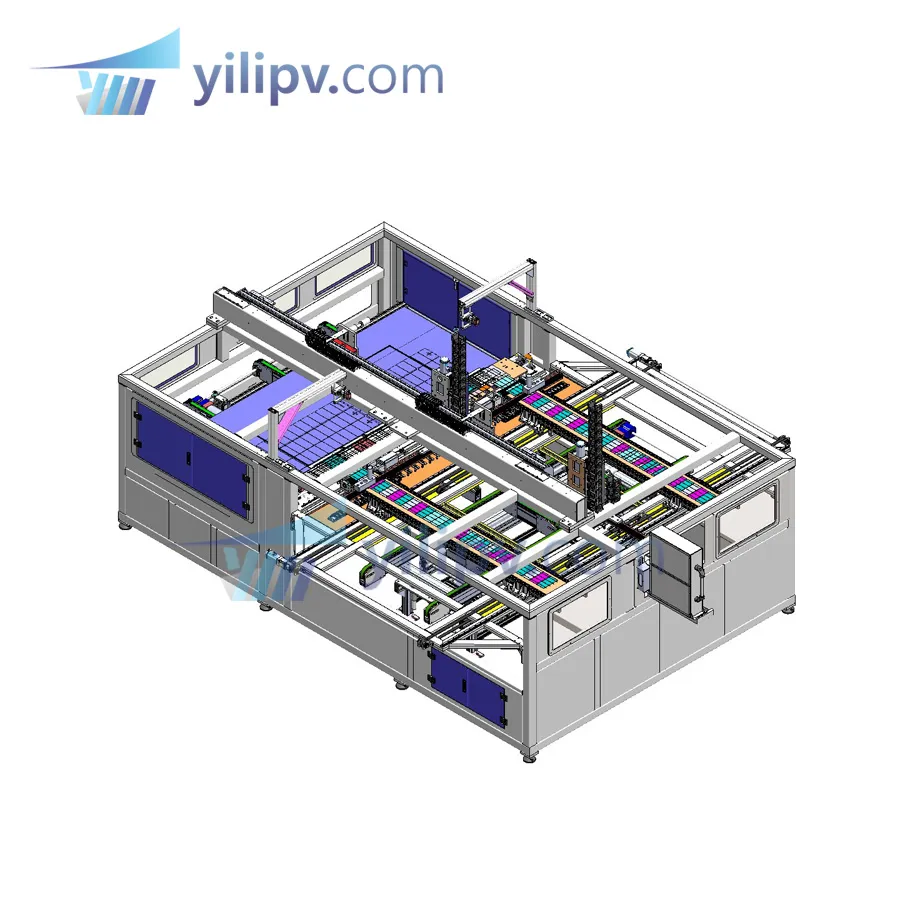

Function: Automatically grab the battery string and place it on the glass that has been properly positioned (includes glass automatic alignment positioning function).

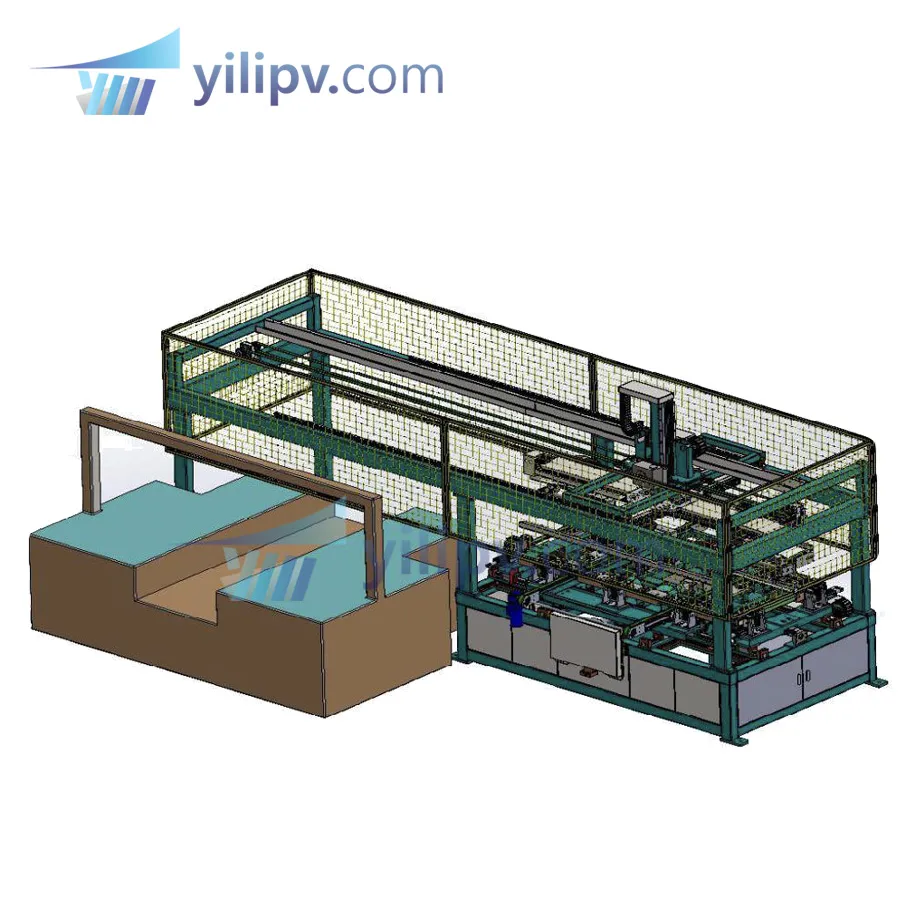

Function: Composed of border gluing machine, border automatic frame manipulator and automatic frame loading machine. Used to install aluminum frames and automatically overflow glue.

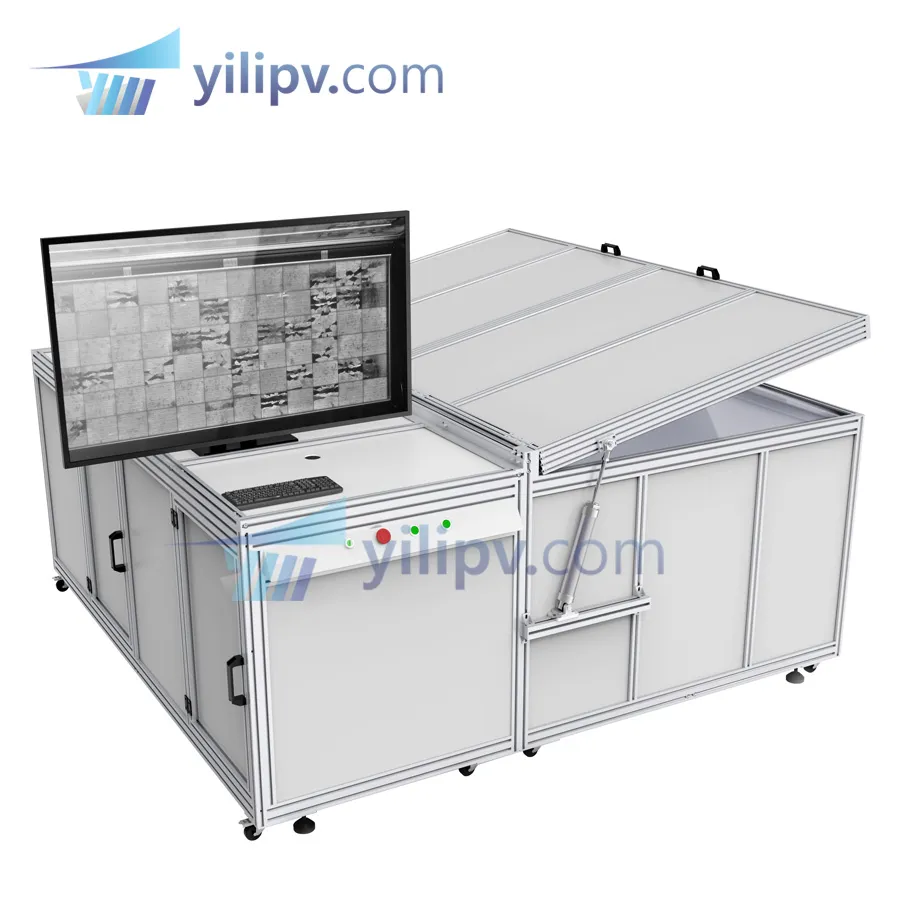

Function: Detects internal defects, hidden cracks, fragments, cold solder joints, broken grids, and abnormal phenomena in solar cell modules.

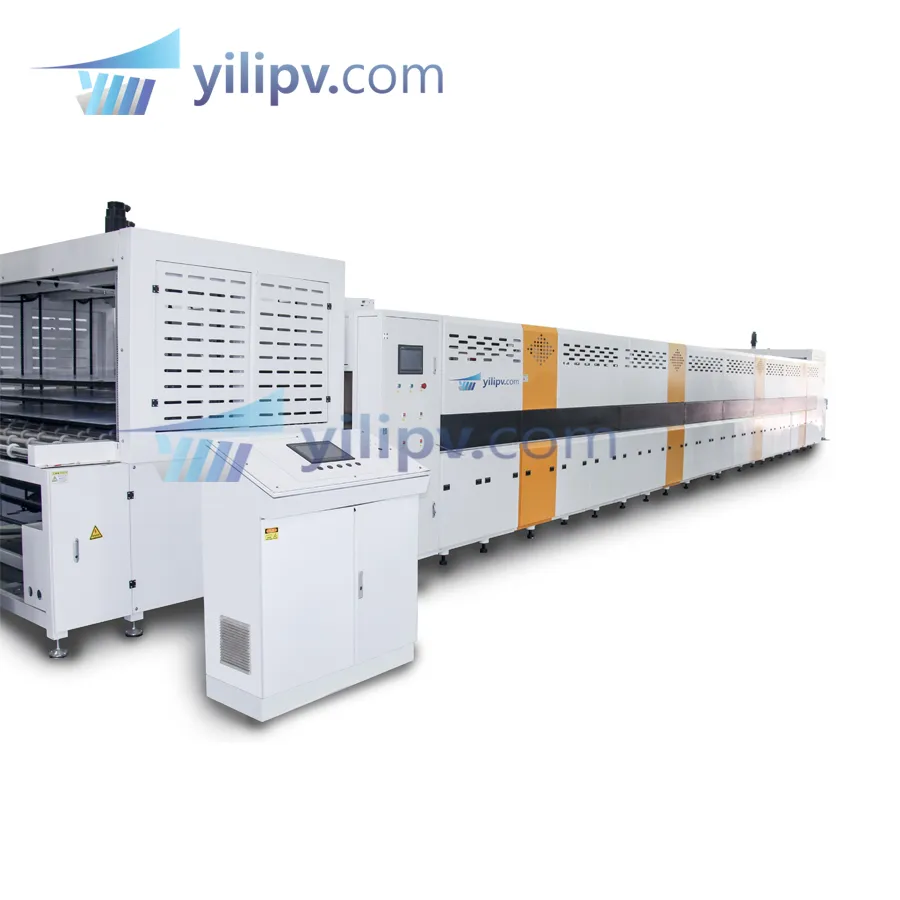

Function: Hot pressing section to complete heating, vacuuming, and pressurizing. Adapts to continuous production of single crystal, polycrystal, and amorphous cells.

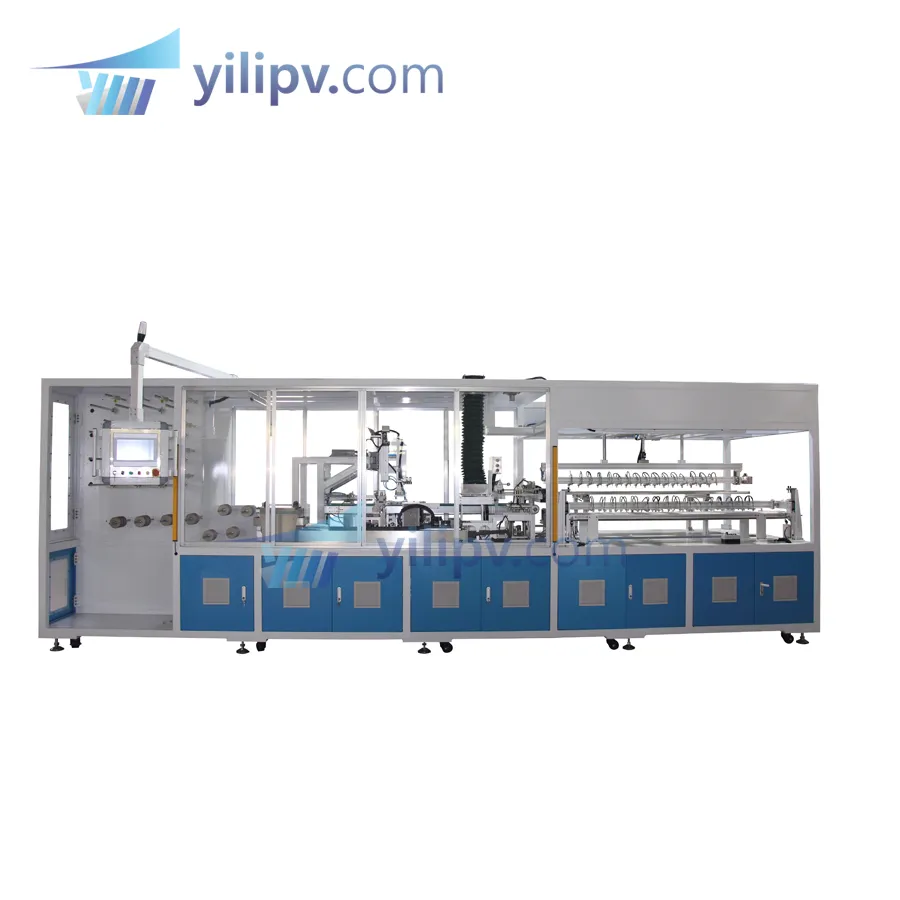

Function: Fully automatic welding machine for welding photovoltaic solar cells and photovoltaic ribbons in series.
