| Key Parameters | Description |
|---|---|
| Estimated Daily Output | 500-1000 modules (adjustable based on configuration) |
| Energy Consumption | 5000-8000 kWh (based on equipment runtime) |
| Included Equipment | Automatic assembly, laser welding, inspection, packaging, conveyor systems, QC integration |
| Payment Terms | 50% advance, 50% before shipment |
| Delivery Lead Time | 2-3 months |
| Specification | Technical Parameter | Remarks |
|---|---|---|
| Line Efficiency | ≥12PPM | Adjustable configuration |

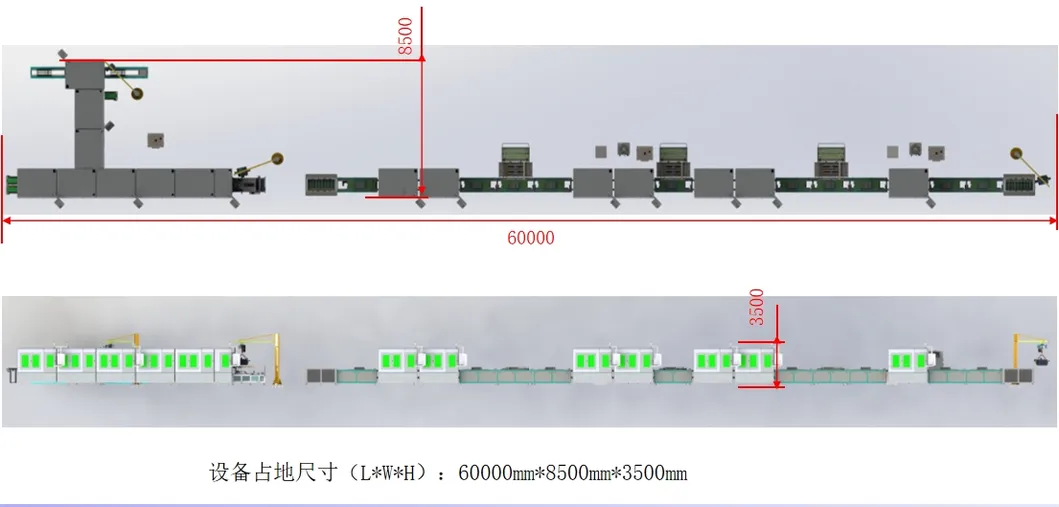

| Line Dimension | 60000mm*8500mm*3500mm | Adjustable layout |
| Final Yield Rate | ≥99.8% | - |
| Line Failure Rate | ≤2% | - |

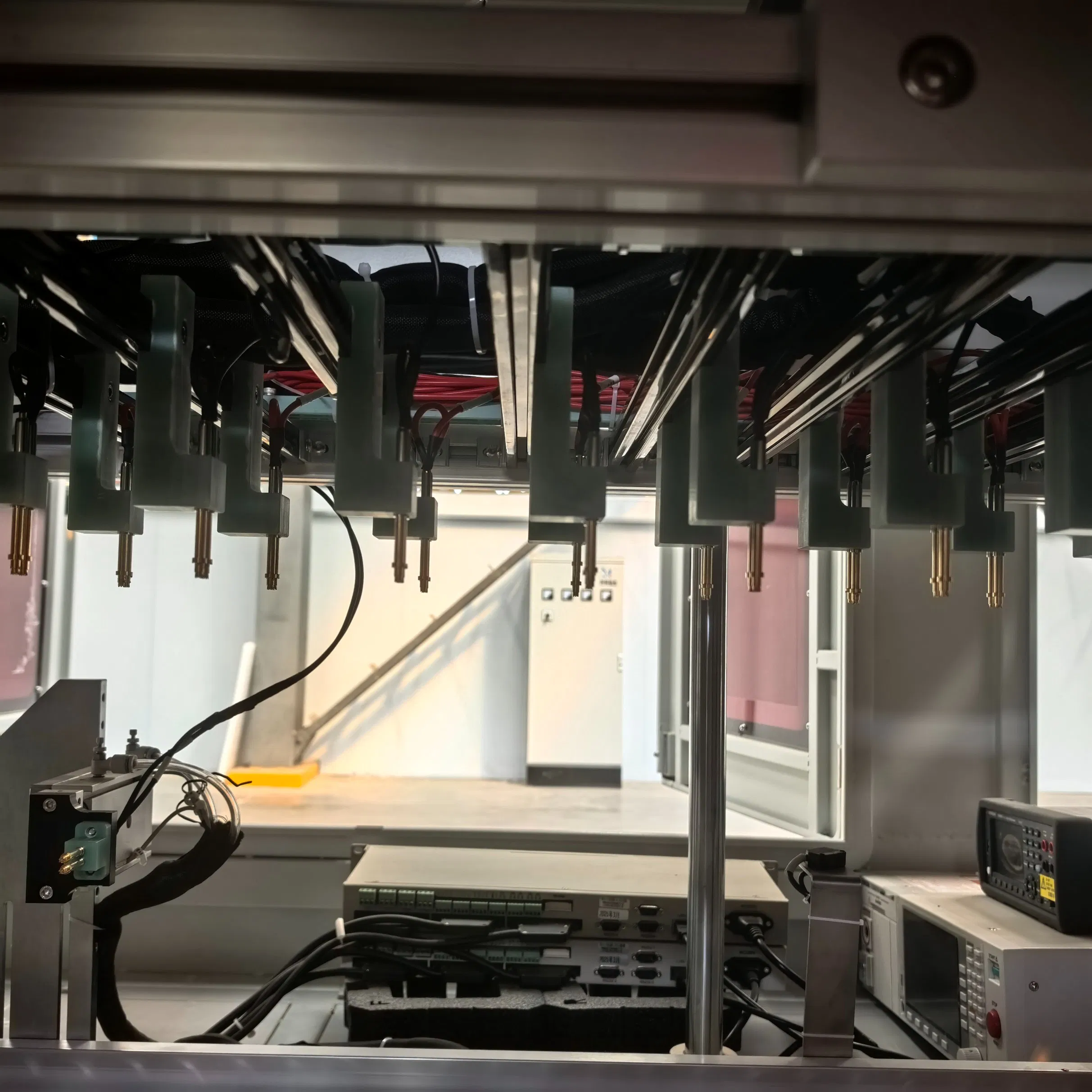

| Inspection Capability | Welding, voltage, internal resistance, temperature | High-precision |
| Operating Temp | 10-25ºC | Stable operation |
| Relative Humidity | 40-60% | Moisture protection |
| Power Supply | 380V±10%, 50Hz | Industrial standard |
| Warranty Period | 2 year | Lifetime support |

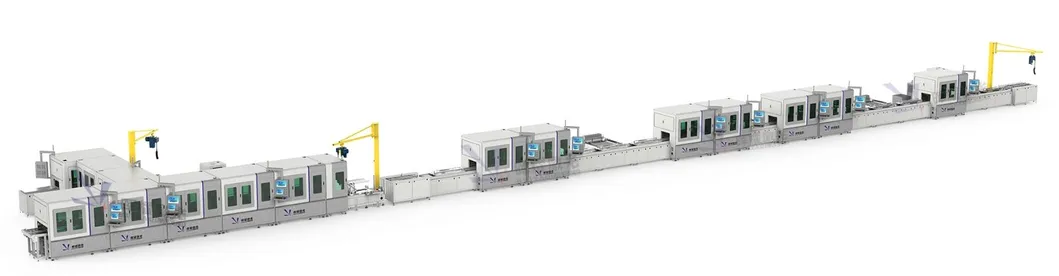

| No. | Process Step | No. | Process Step |
|---|---|---|---|
| 1 | Heat Conduction Plate Loading | 11 | Terminal Tab Flatting |
| 2 | Terminal Tab Cutting Inspection | 12 | NG Cell Re-work |
| 3 | Cell Loading | 13 | Insulation Testing |
| 4 | Cell Glue Applying | 14 | Laser Welding |
| 5 | Terminal Tab Bracket Assemblying | 15 | Post-Welding Testing |
| 6 | Cell Insulation Testing | 16 | Insulation & Voltage Detection |
| 7 | Unit Glue Applying | 17 | Sense Lead Insulation |
| 8 | Module Stacking | 18 | EOL Testing |
| 9 | Busbar Installation | 19 | Module Off-Loading |
| 10 | Terminal Tab Bending | - | - |

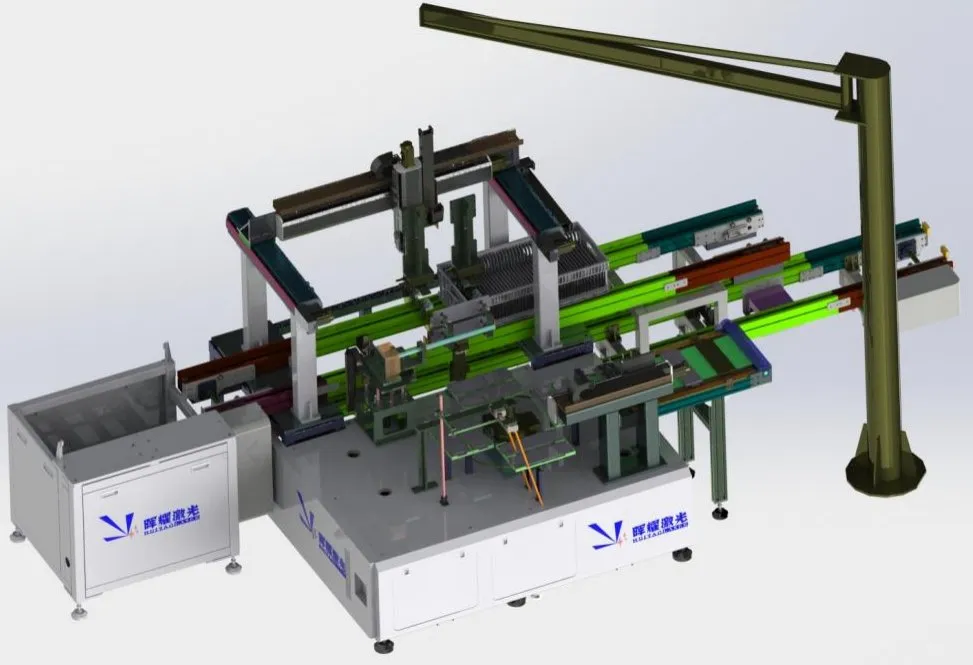

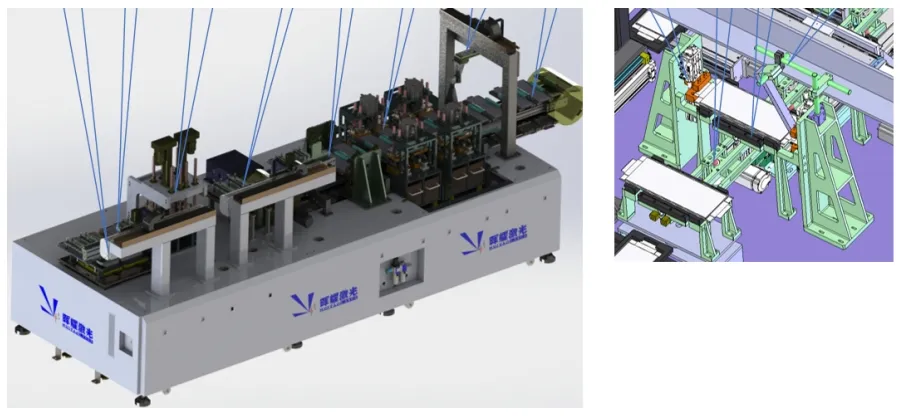

1. Cell Loading: Operator handles material via cantilever crane to the conveyor. The system grips and flips products for horizontal transport to the next process.

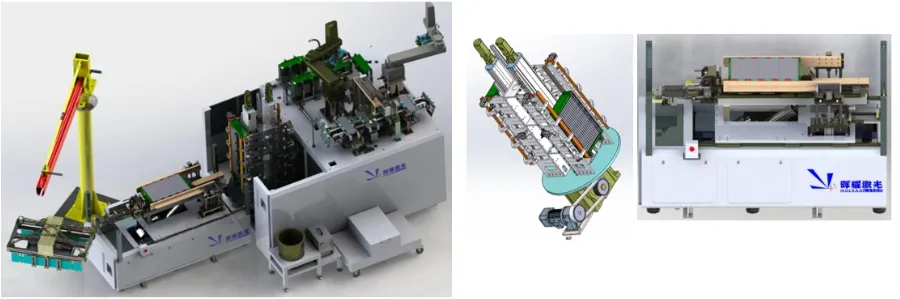

2. Module Stacking & Pressing: Robots transfer products for double-sided tape application, stacking, and extrusion assembly.

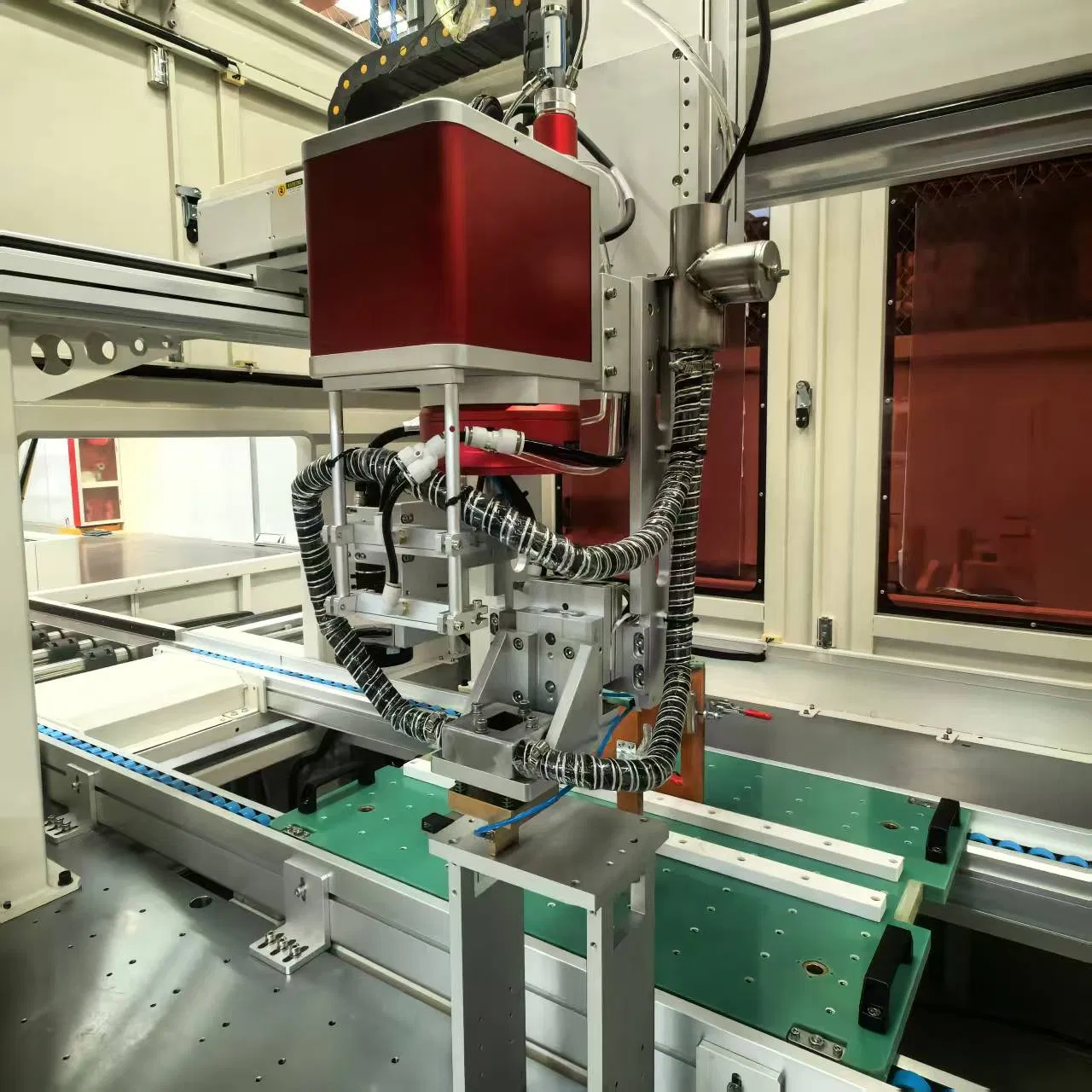

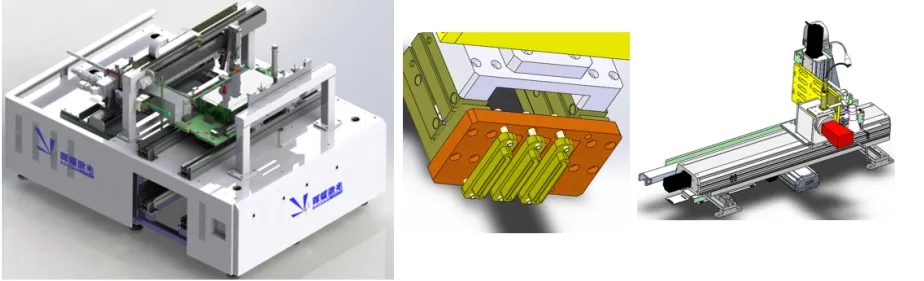

3. Terminal Tab Laser Welding: Automated pallet flow with camera-based addressing and high-precision laser ranging for three-lug welding.
An industry-leading manufacturer of new energy intelligent equipment, dedicated to providing innovative turnkey solutions for Battery Module PACK Production Lines and CCS Intelligent Manufacturing Production Lines. Since its establishment in 2019, the focus has remained on advancing laser technology and high-performance automated production lines.
