Automated Assembly Line for Electric Vehicles Lithium Batteries and Solar Panels Energy Storage System Battery Module

1 / 5

Automated Assembly Line for Electric Vehicles Lithium Batteries and Solar Panels Energy Storage System Battery Module

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Condition

New

Automation

Semi-Automatic

Application Field

New Energy Industry

Repeatability

0.01mm

Cooling Method

Water Cooling

Laser Wavelength

1080nm

Position Accuracy

±0.02mm

Weight

4000 Kg

Machinery Capacity

10ppm

Max Speed

500mm/S

Warranty

2 Years

Certification

CE, ISO

Production Capacity

100 Set/Month

Packaging & Delivery

Package Size

35m * 9m * 3m

Gross Weight

5000.00kg

Product Description

1. Automated Battery Cell Assembling Requirements

Equipment capacity: ≥10PPM
Final excellent rate: ≥99.8% (equipment related)
Equipment failure rate: ≤ 2%
Laser power stability: ≤±1%
Focal length adjustment: -5.0~+5.0mm, Accuracy ≤0.5mm

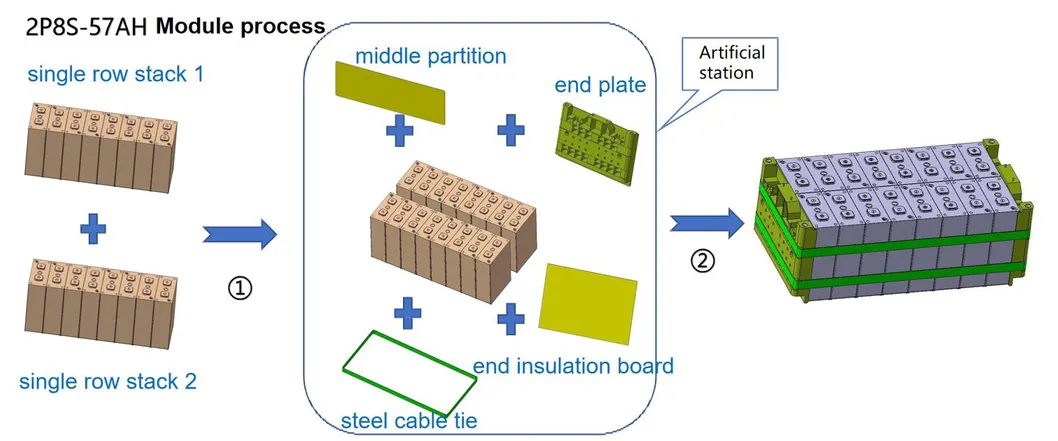

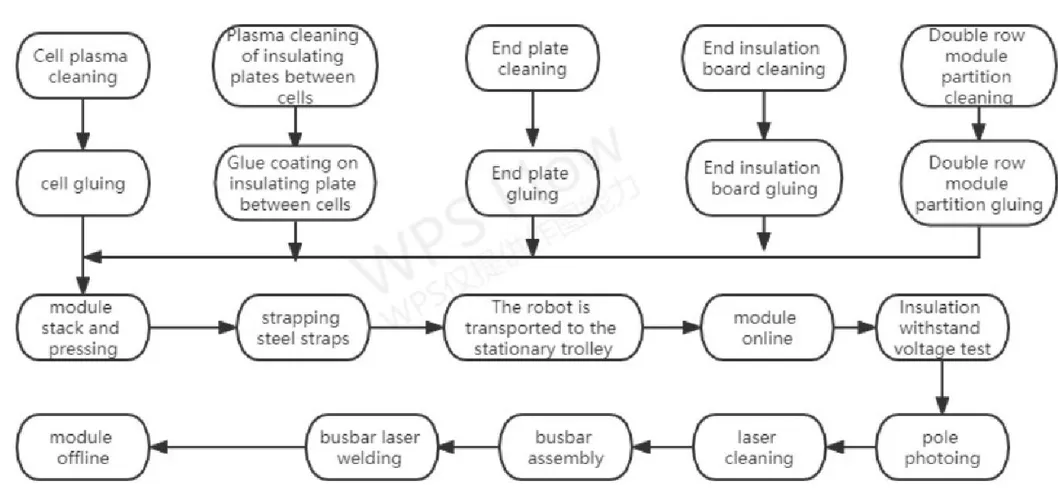

1.2 Process Flow Chart

Tentative process flow, subject to actual requirements

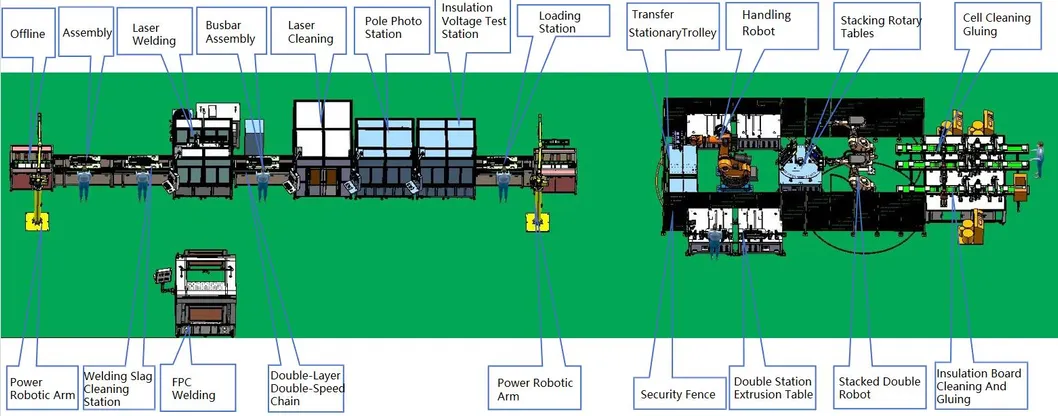

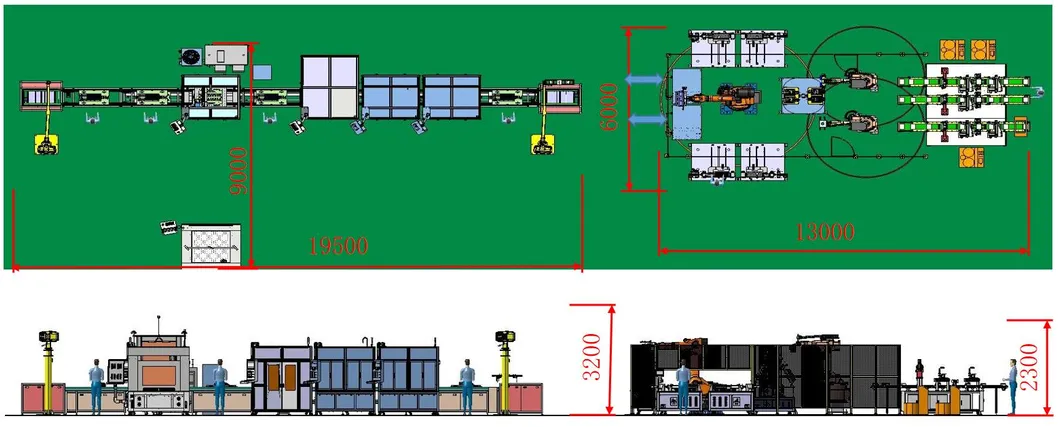

2. Program Layout & Renderings

Layout Dimensions:
Back layout (L*W*H): 19500mm * 9000mm * 3200mm
Front layout (L*W*H): 13000mm * 6000mm * 2300mm

3. Functional Module Details

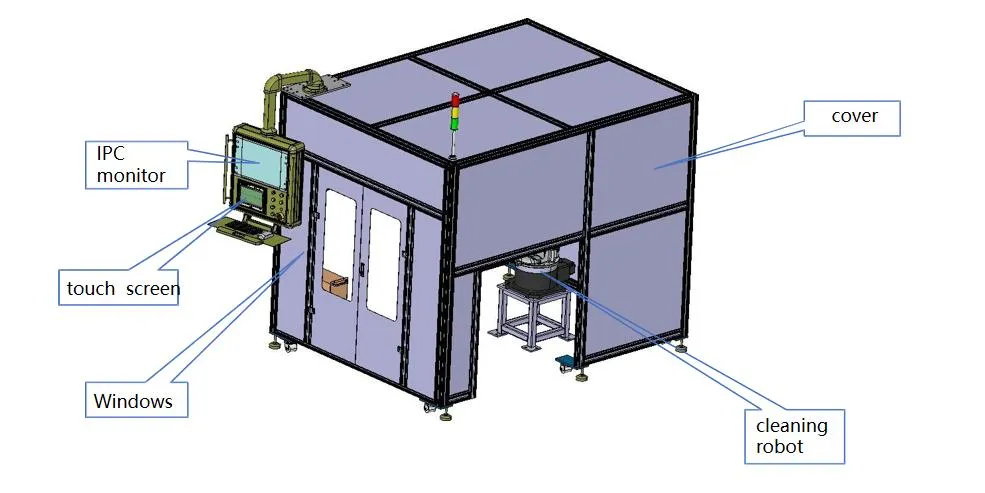

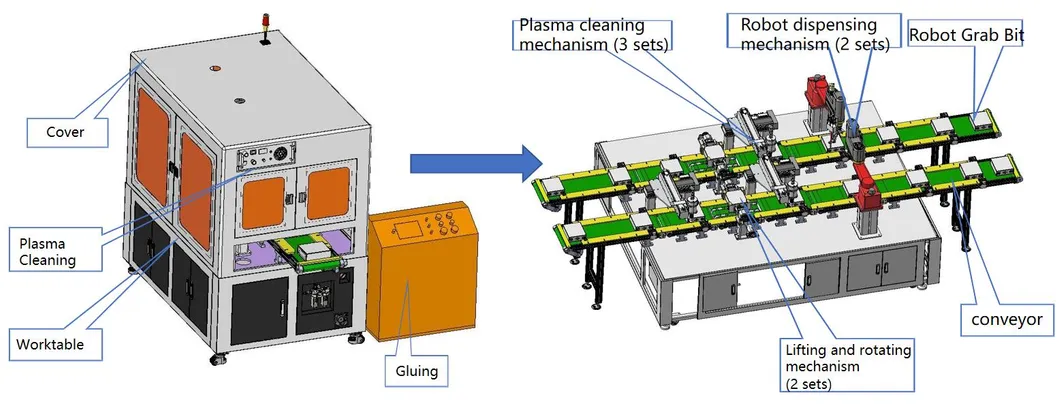

3.1 Cleaning & Gluing Station

Parameter	Value
Power supply	AC220V/50HZ
Air supply	0.5-0.7Mpa
Weight	About 650KG
Glue ratio	1:1
Robot system	4 axis Robot
Servo motor	Panasonic Servo System

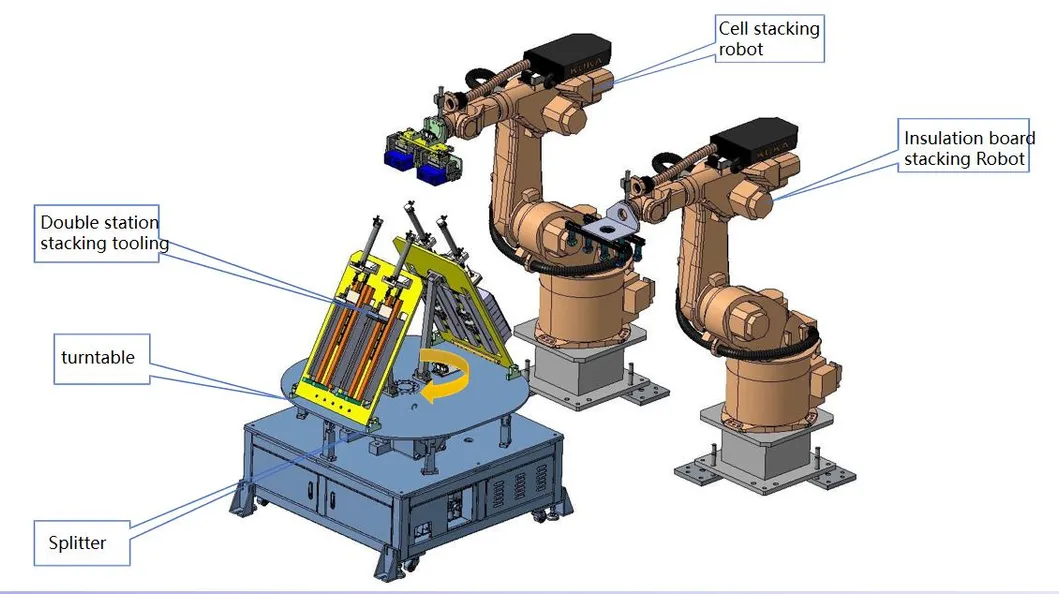

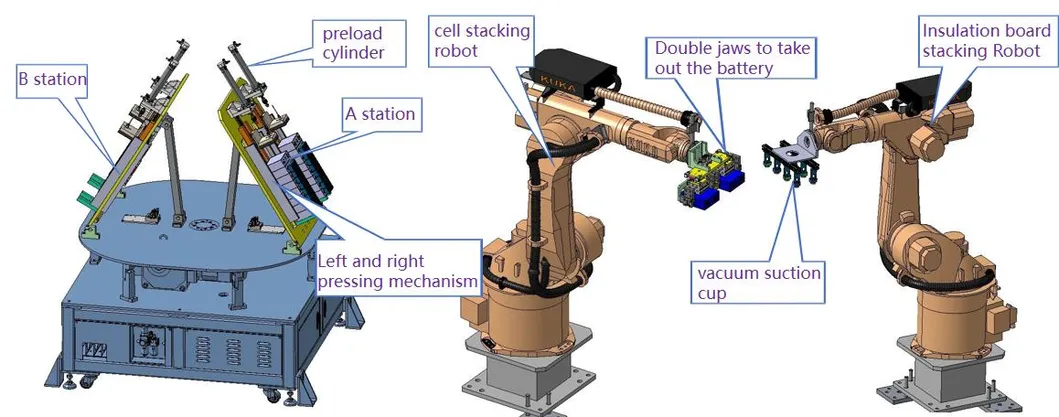

3.2 Stacking Rotary Tables

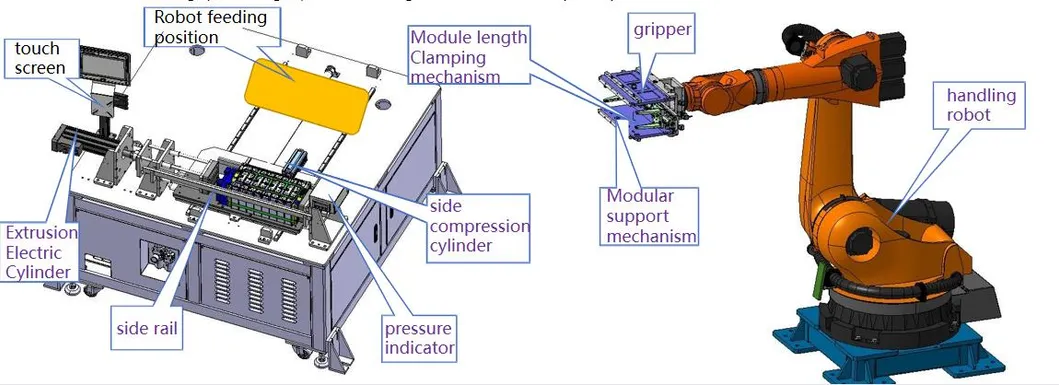

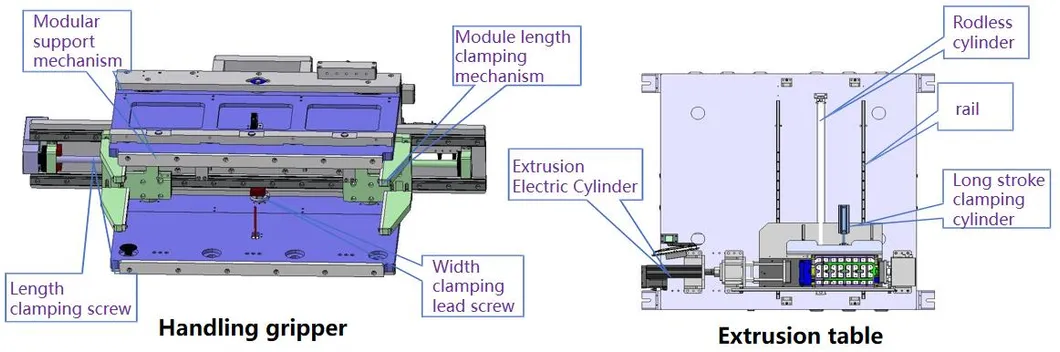

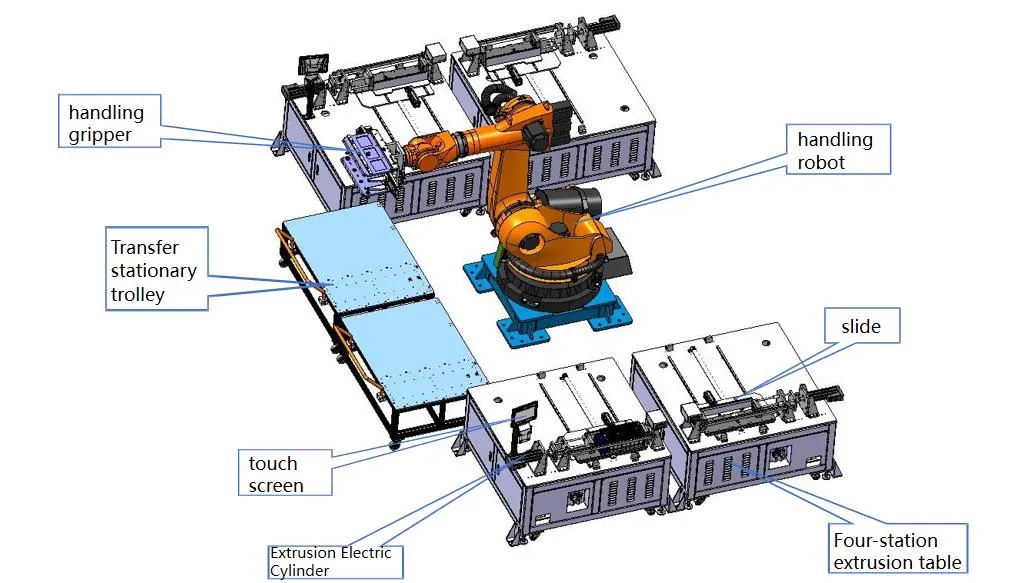

3.3 Extrusion Station

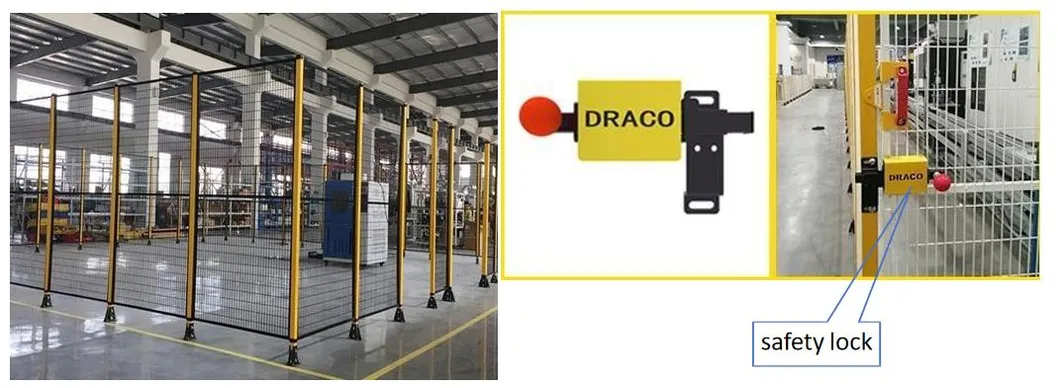

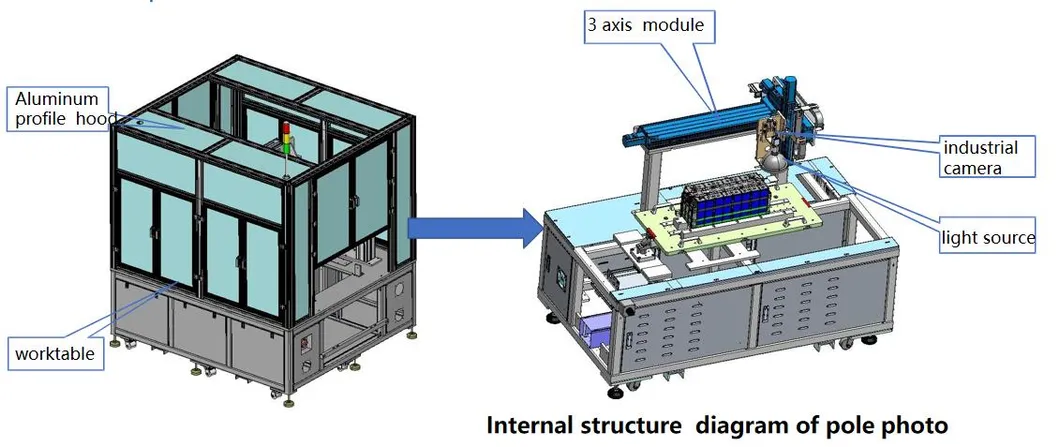

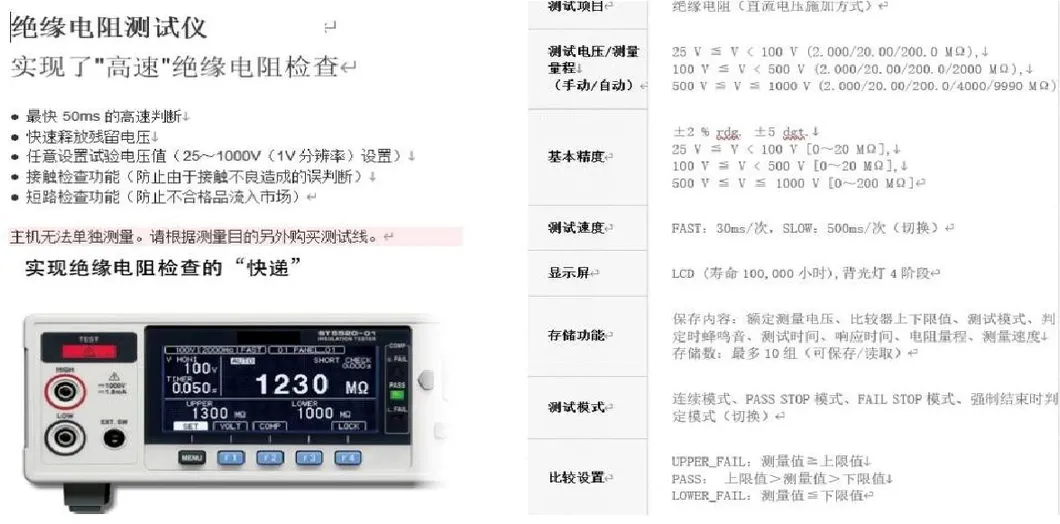

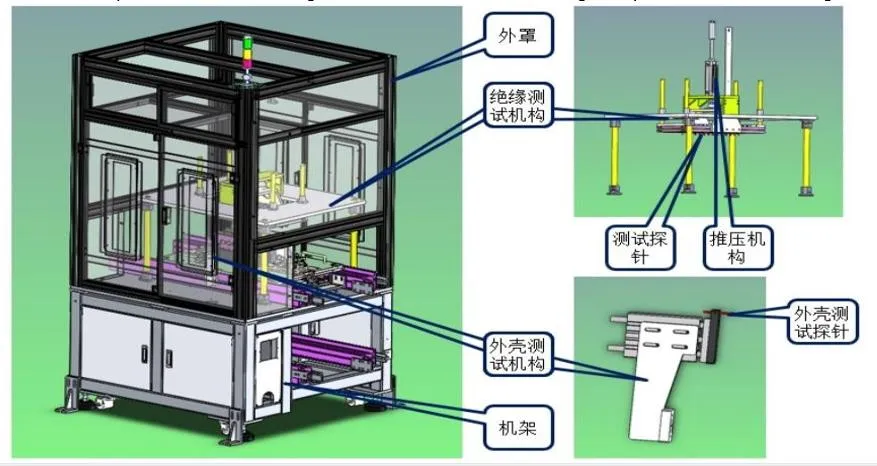

3.4 Safety & Inspection Modules

3.5 Testing & Welding Stations

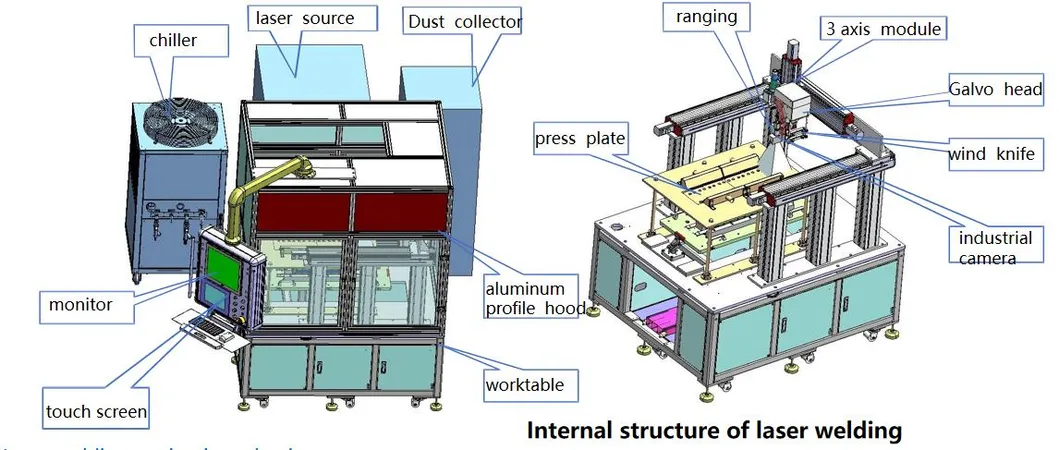

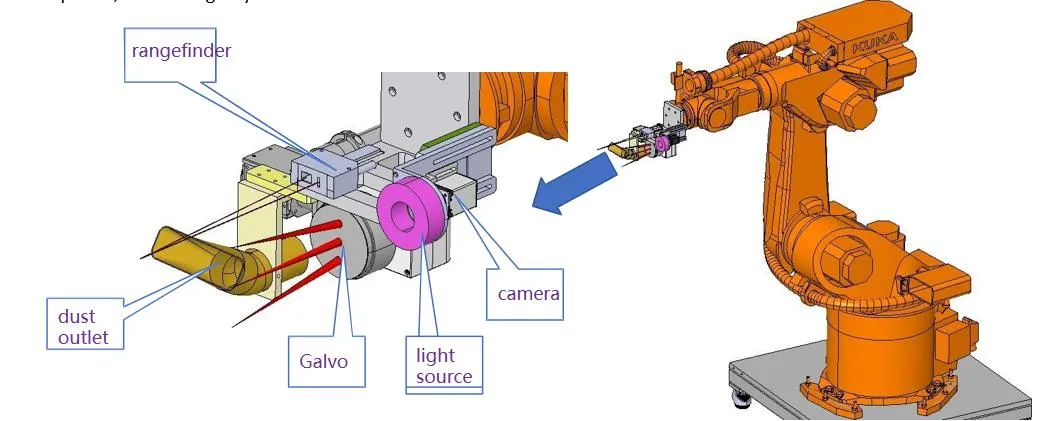

3.6 Laser Cleaning & Welding

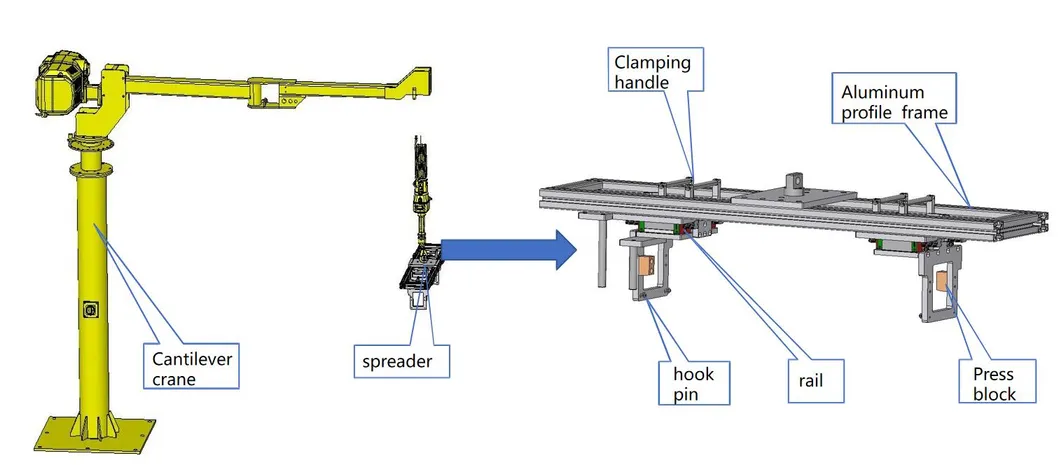

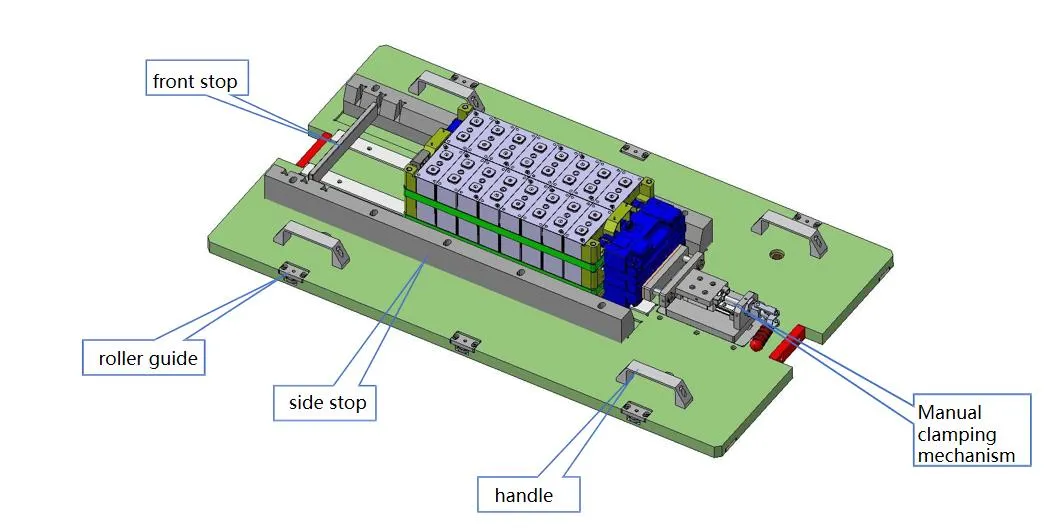

3.7 Material Handling & Trays

Industry Applications

This fully automatic assembly line is specialized for:

New energy lithium battery modules
Prismatic battery modules
Energy storage battery systems
Power battery pack welding and assembly

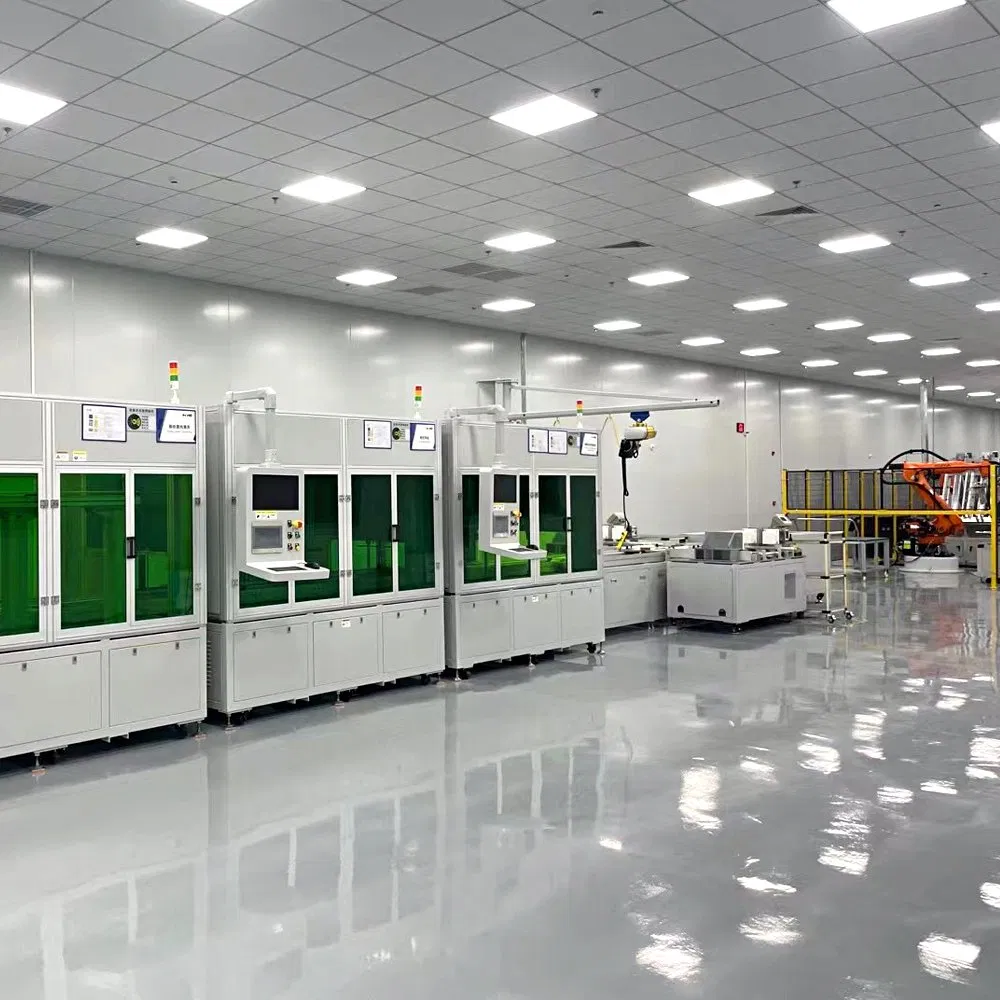

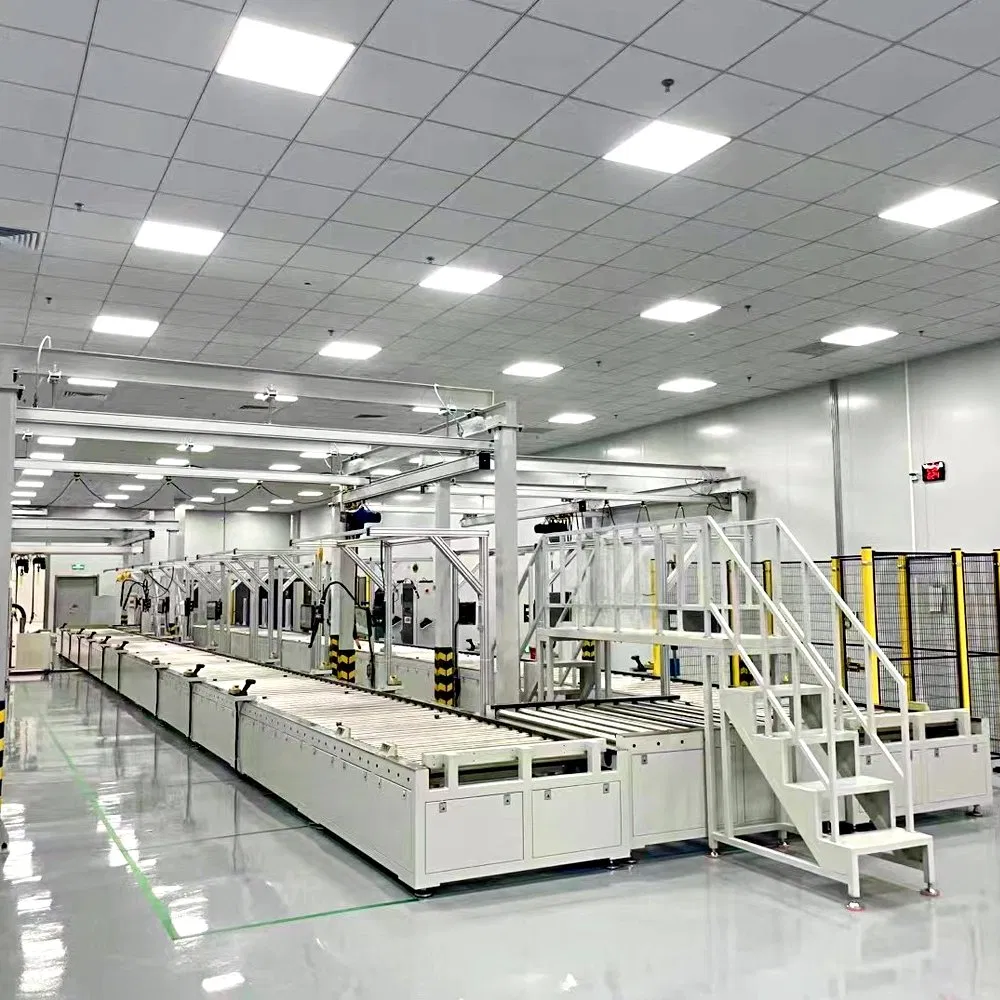

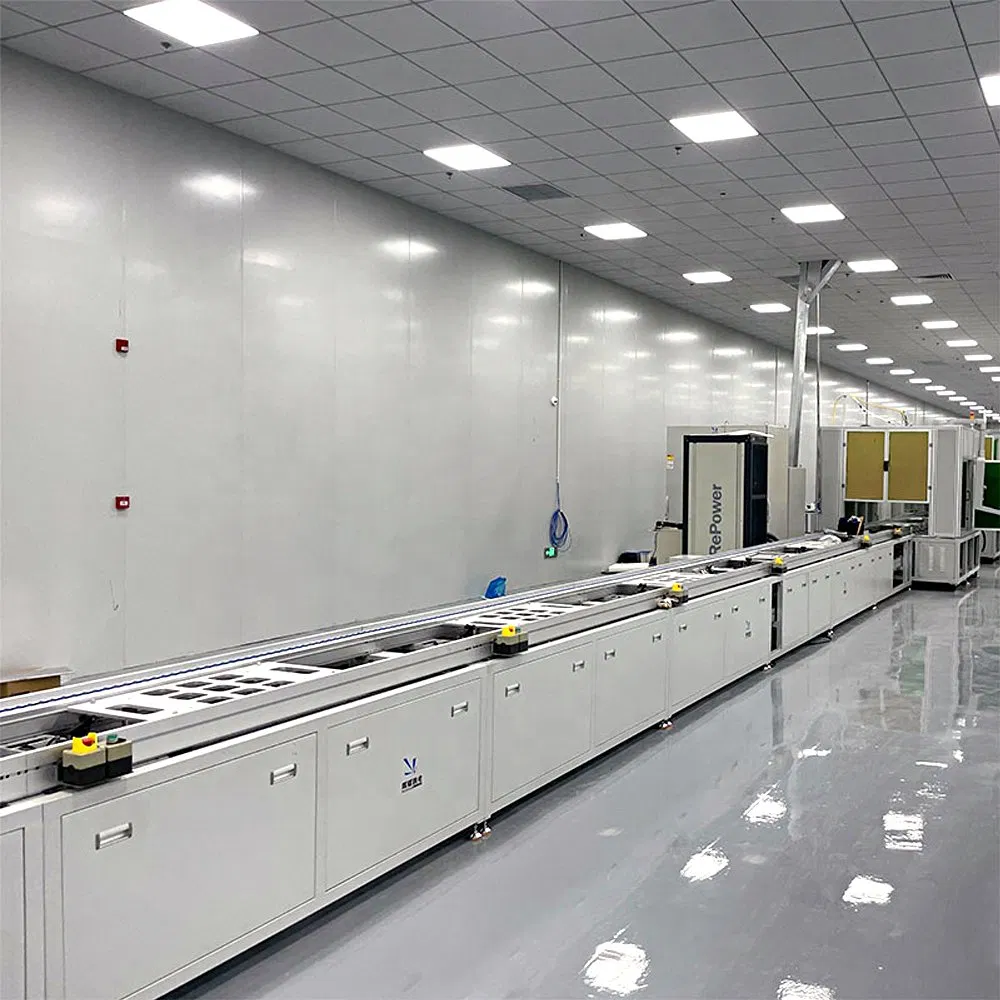

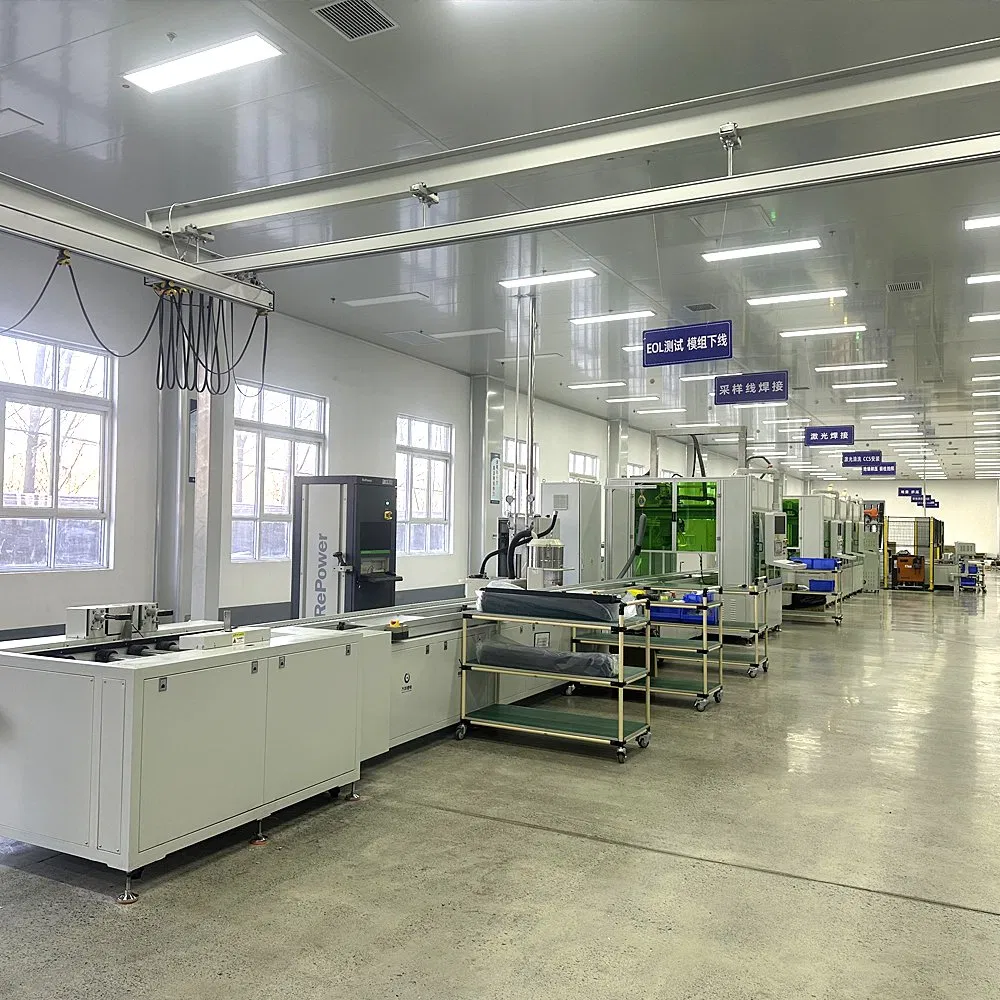

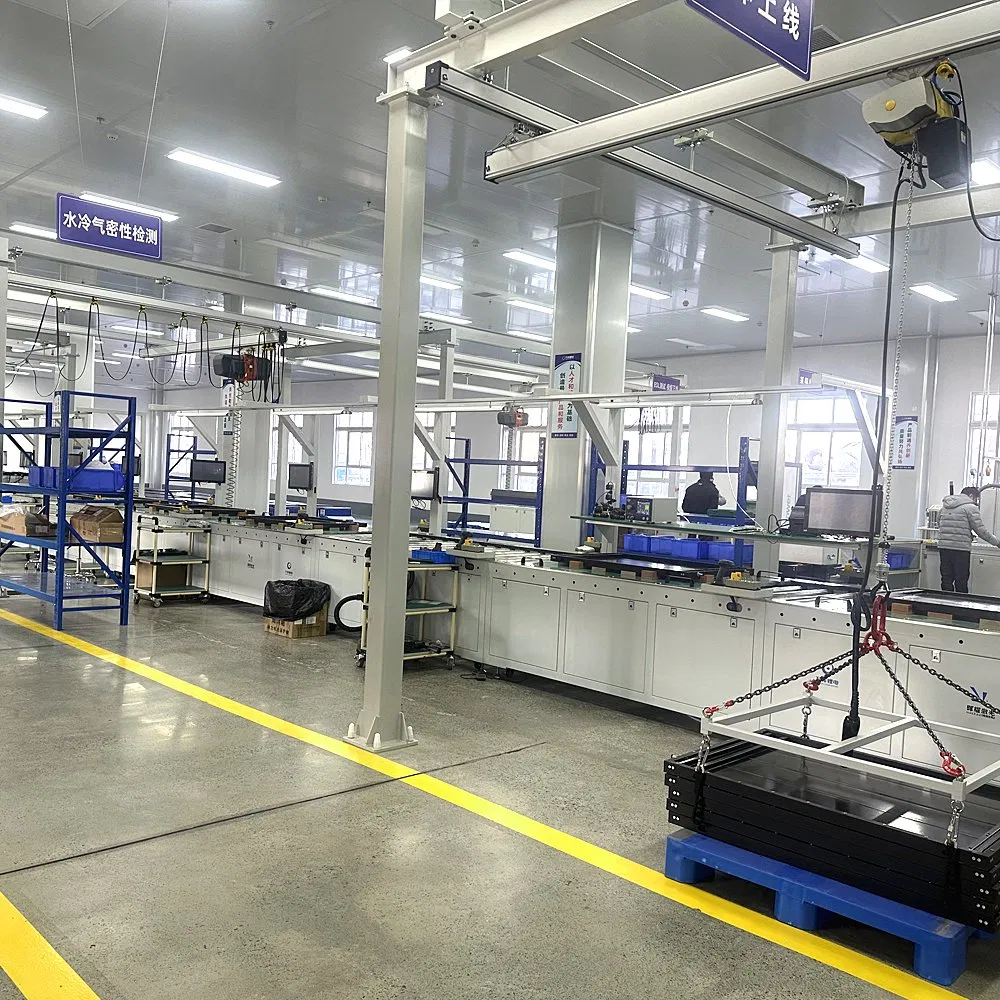

Manufacturing Environment

Frequently Asked Questions

Q1: What are the primary products available?

We provide various customized laser welding machines, laser marking machines, and fully automated battery assembly lines.

Q2: How is quality controlled during production?

We implement international advanced production technology and strict quality/cost control measures. All components are inspected according to international standards before production.

Q3: Can the equipment be tested with my specific product?

Yes, you can send product samples to us, and we will conduct testing on the machines to ensure the design meets your specific requirements.

Q4: What is the typical delivery time?

Standard laser machines and assembly lines are typically delivered within one month after the order is confirmed.

Q5: Is technical training provided for operators?

Yes, we offer comprehensive training. We provide on-site instruction during installation and free training at our facility to ensure your staff can operate the machinery efficiently.

Q6: What support is available if the machine malfunctions?

We offer 24-hour online engineer support. All machines come with a one-year warranty, and operation manuals/CDs are provided for easy troubleshooting.
