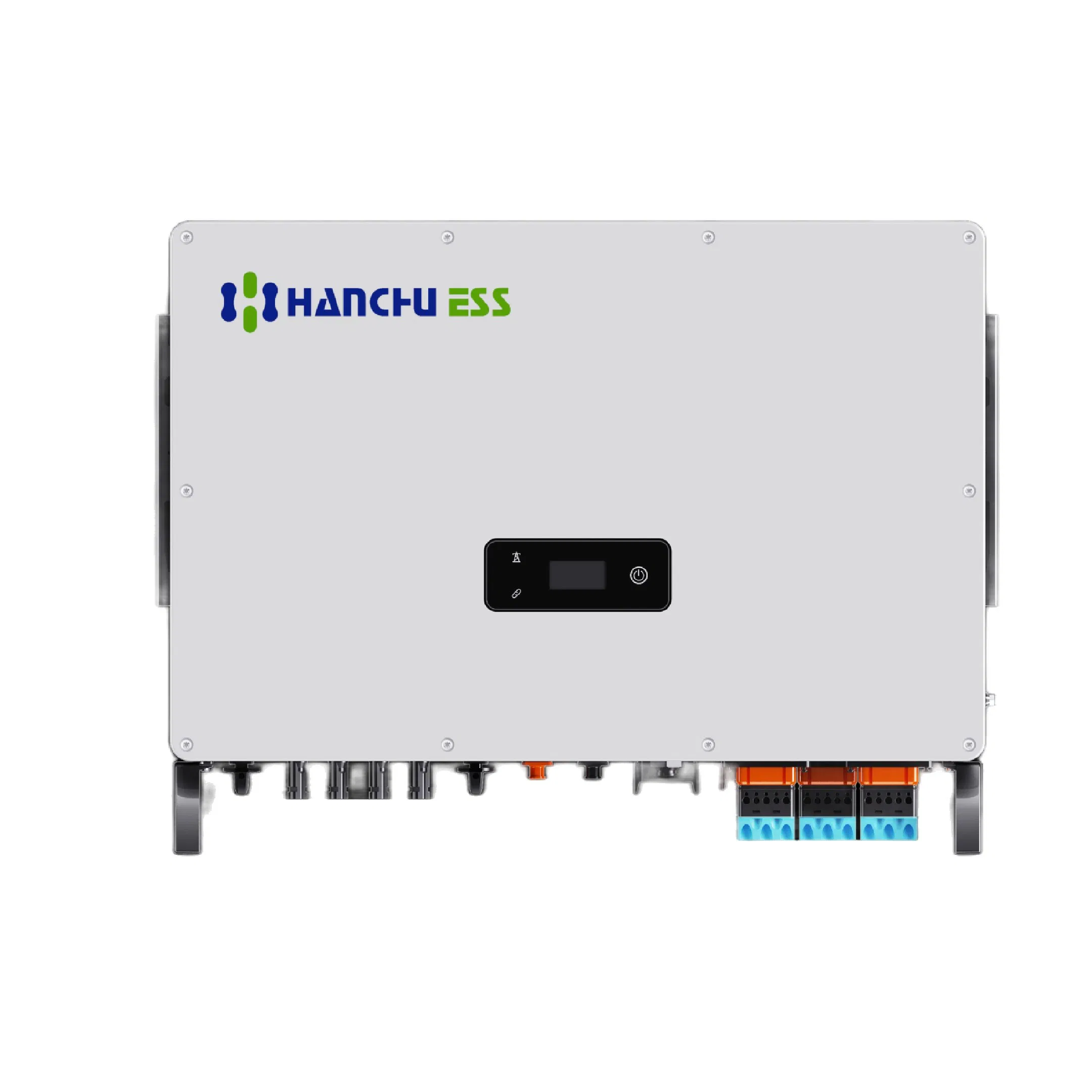

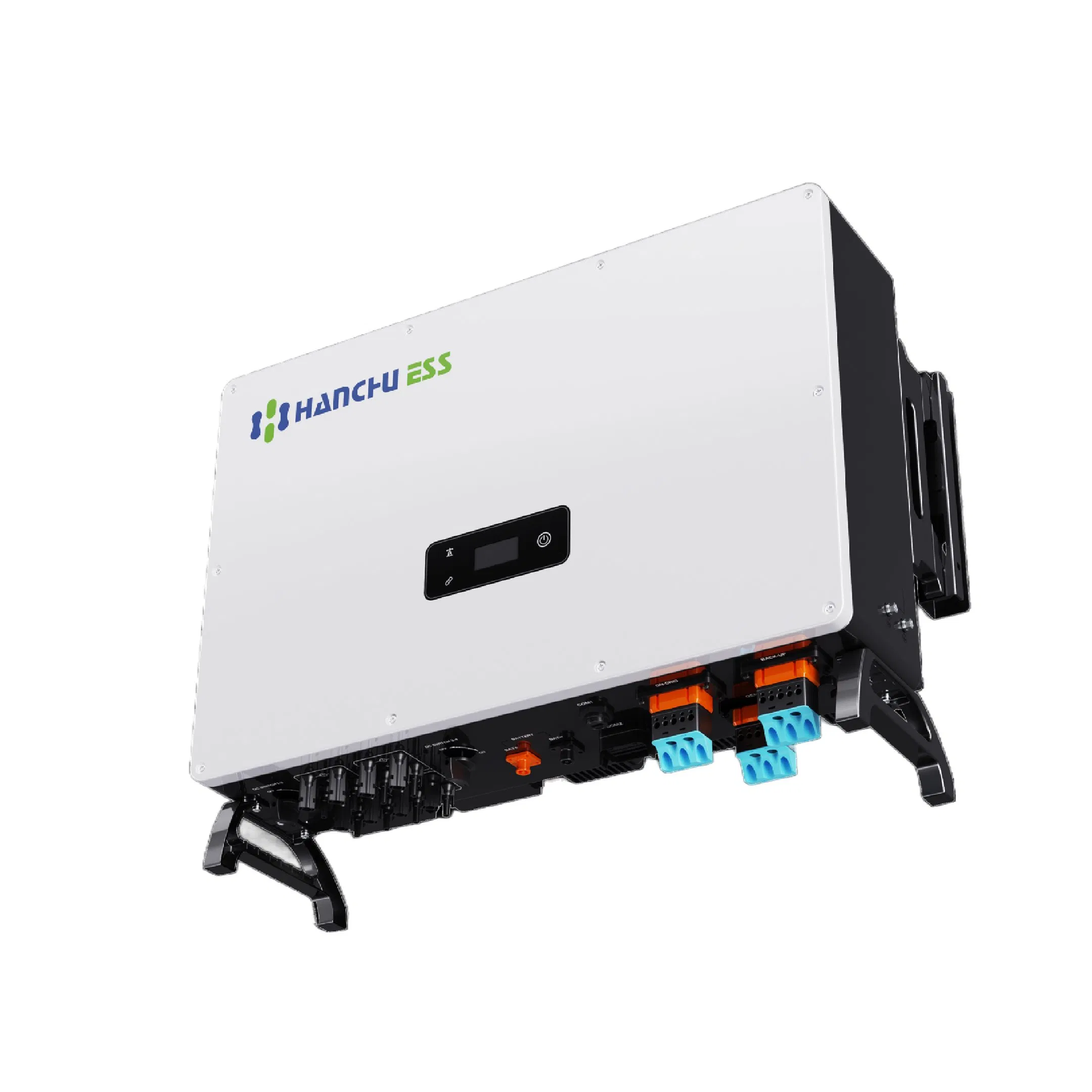

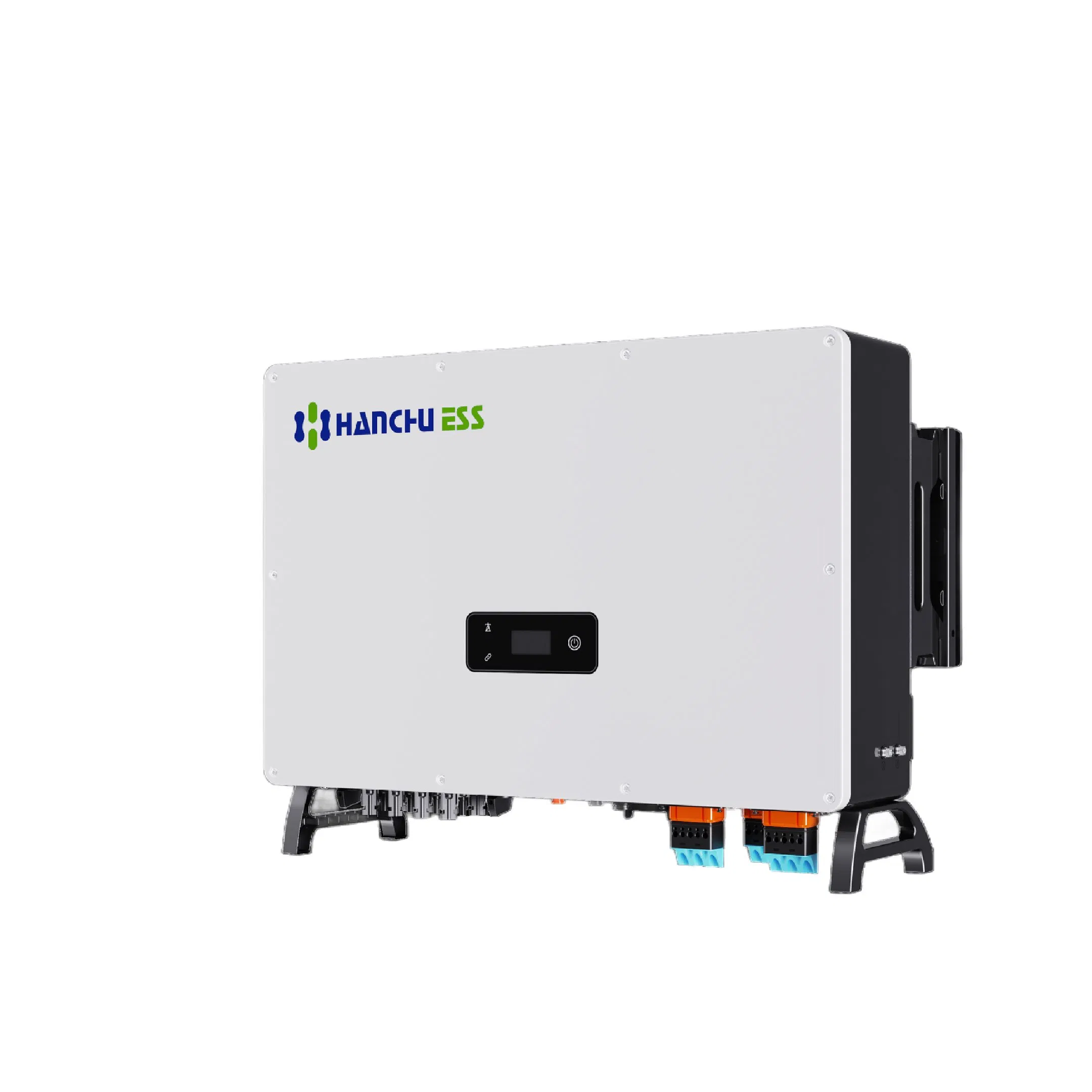

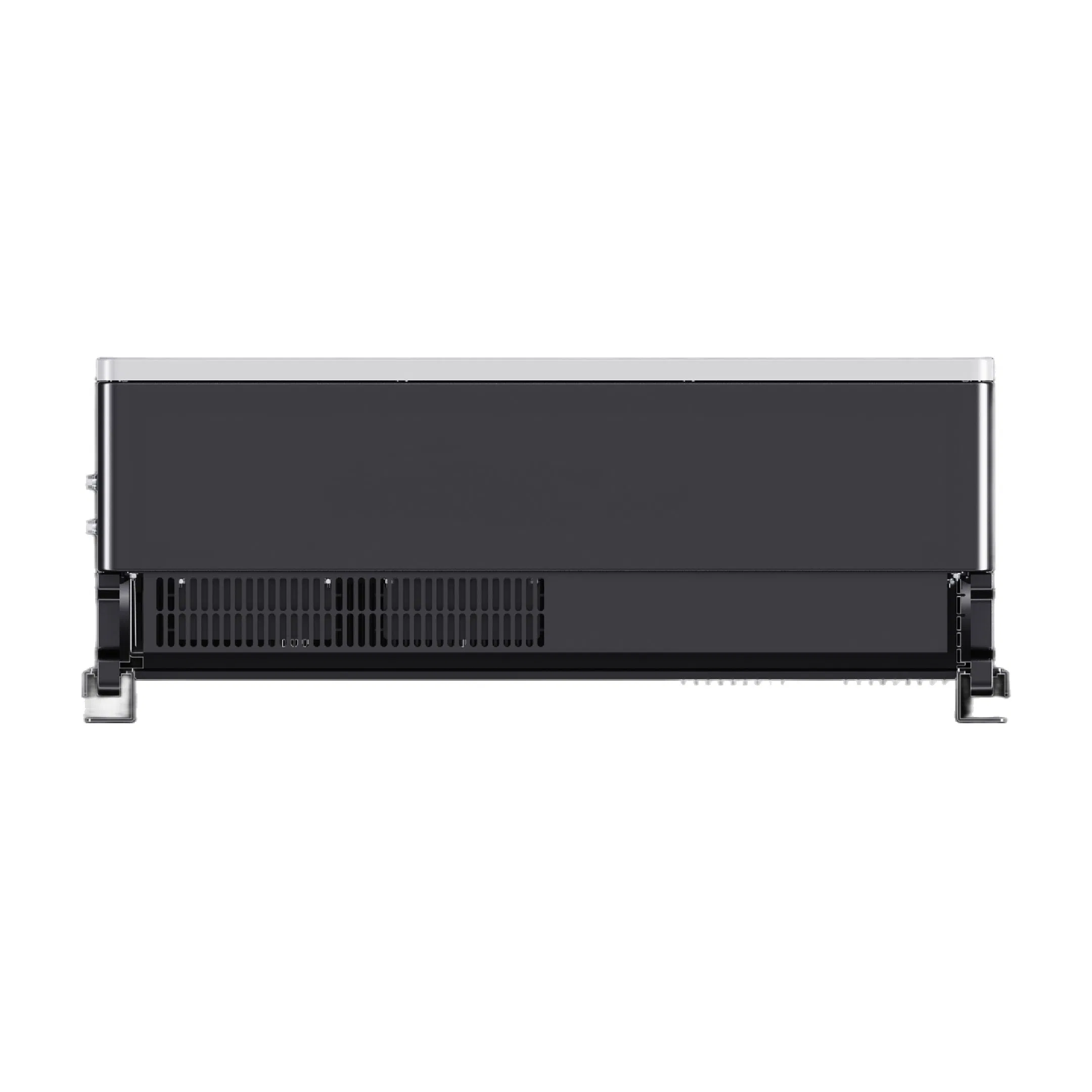

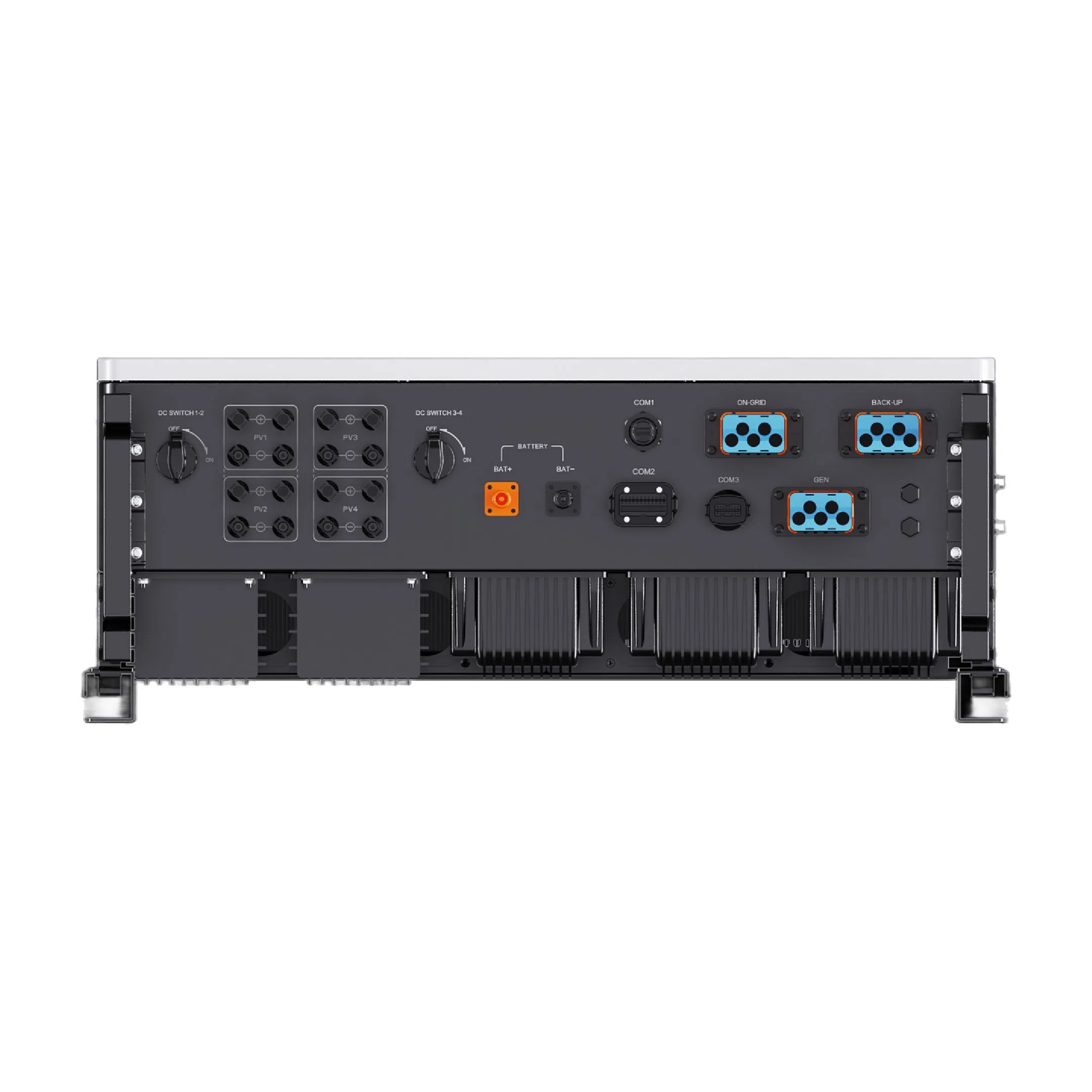

Advanced Grid Tie Inverter for Factory Solar Integration with Factory Solar Integration and CE/TUV Standard
Advanced Grid Tie Inverter for Factory Solar Integration with Factory Solar Integration and CE/TUV Standard
Advanced Grid Tie Inverter for Factory Solar Integration with Factory Solar Integration and CE/TUV Standard
Advanced Grid Tie Inverter for Factory Solar Integration with Factory Solar Integration and CE/TUV Standard
Advanced Grid Tie Inverter for Factory Solar Integration with Factory Solar Integration and CE/TUV Standard
1 / 5
Advanced Grid Tie Inverter for Factory Solar Integration with Factory Solar Integration and CE/TUV Standard
Advanced Grid Tie Inverter for Factory Solar Integration with Factory Solar Integration and CE/TUV Standard
Advanced Grid Tie Inverter for Factory Solar Integration with Factory Solar Integration and CE/TUV Standard
Advanced Grid Tie Inverter for Factory Solar Integration with Factory Solar Integration and CE/TUV Standard
Advanced Grid Tie Inverter for Factory Solar Integration with Factory Solar Integration and CE/TUV Standard

Advanced Grid Tie Inverter for Factory Solar Integration with Factory Solar Integration and CE/TUV Standard

Customization: Available
Warranty: 5 Years
Nature of Source Flow: Active Inverter
Send Inquiry

Product Description

Basic Information
Model NO.
THREEPHASE CESS-HY-T-50K
Phase
Three
Output Power
>1000W
Certification
SAA, CE, ROHS, ISO9001, CCC
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Wave String
Sine Wave Inverter
Frequency
50Hz / 60Hz
Rated Voltage
3L/N/PE; 220/380V; 230/400V; 240/415V
Dimensions
800 × 620 × 300 mm
Weight
76.0 Kg
Product Description
Advanced Grid Tie Inverter
Products Display
Display 1

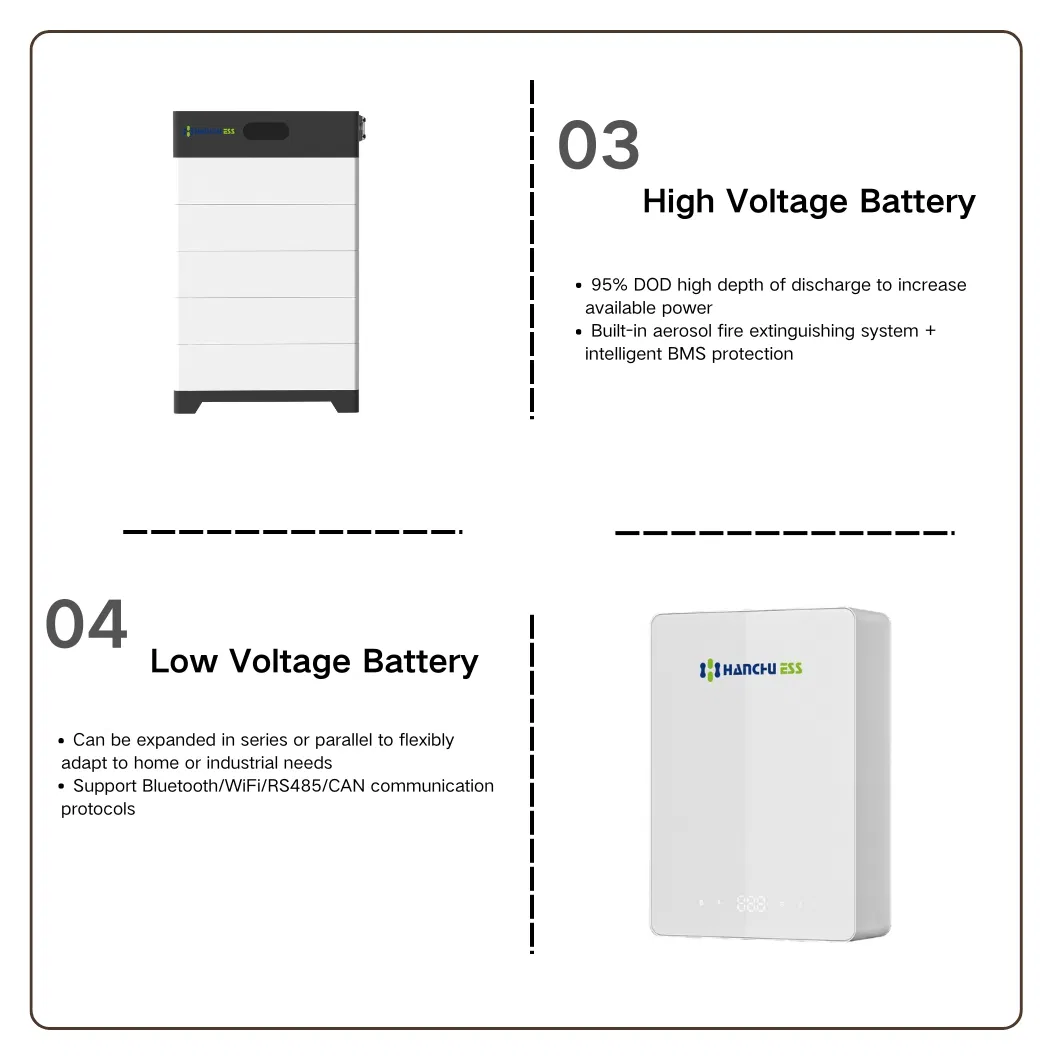

Display 2

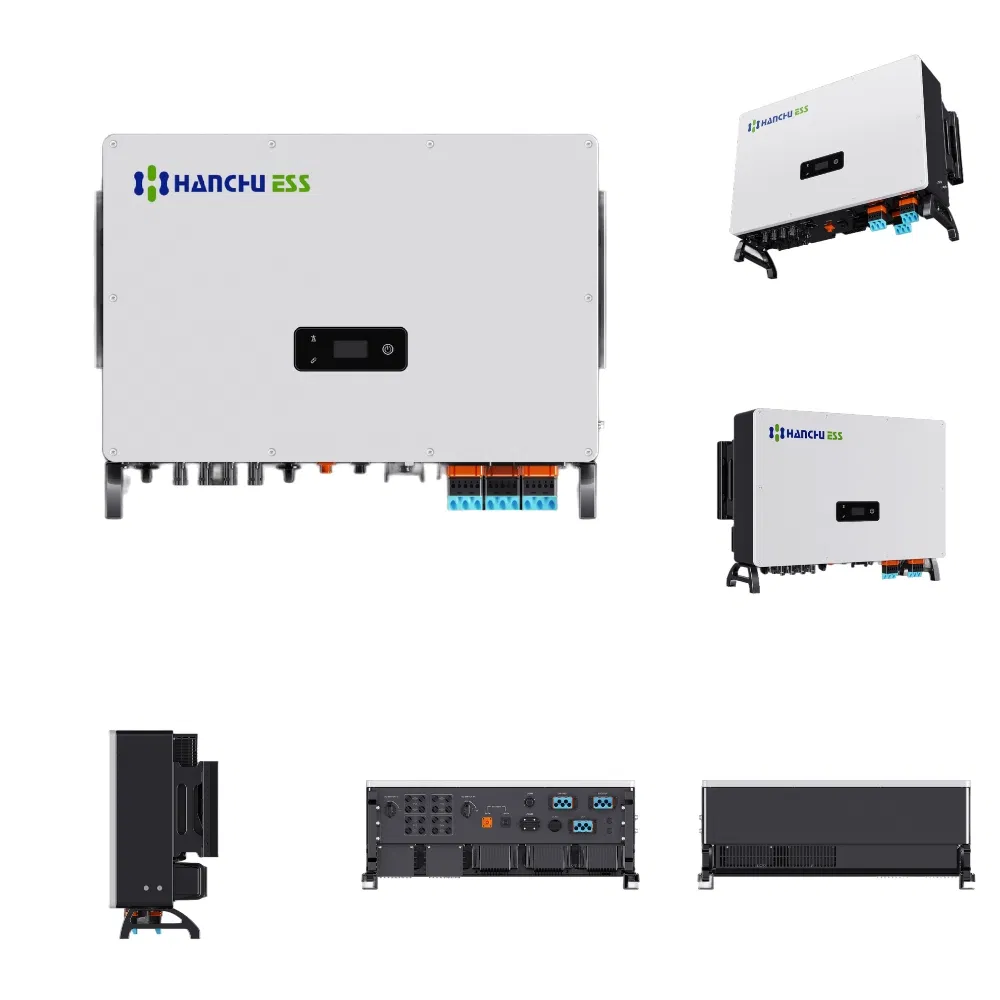

Display 3
Technical Specifications
ModelCESS-HY-T-50K
Product NameThree Phase Hybrid Inverter
Rated Power50.0 kW
Rated Voltage3L/N/PE; 220/380V; 230/400V; 240/415V
Rated Frequency50Hz / 60Hz
Max. PV Input Power75.0 kW
MPPT Voltage Range200-850V
Number of MPPTs4
Max. PV Input Voltage1000V
Max. PV Input Current30A × 4
Battery TypeLithium Battery (with BMS)
Battery Voltage Range135-750V
Max. Charge/Discharge Current100A / 100A
Max. Efficiency98.8%
Protection DegreeIP65
Cooling MethodSmart Fan
Operating Temperature-30~60°C
Communication InterfaceCAN, RS485, WiFi/LAN (Optional)
Warranty5 years
Production & Quality Control

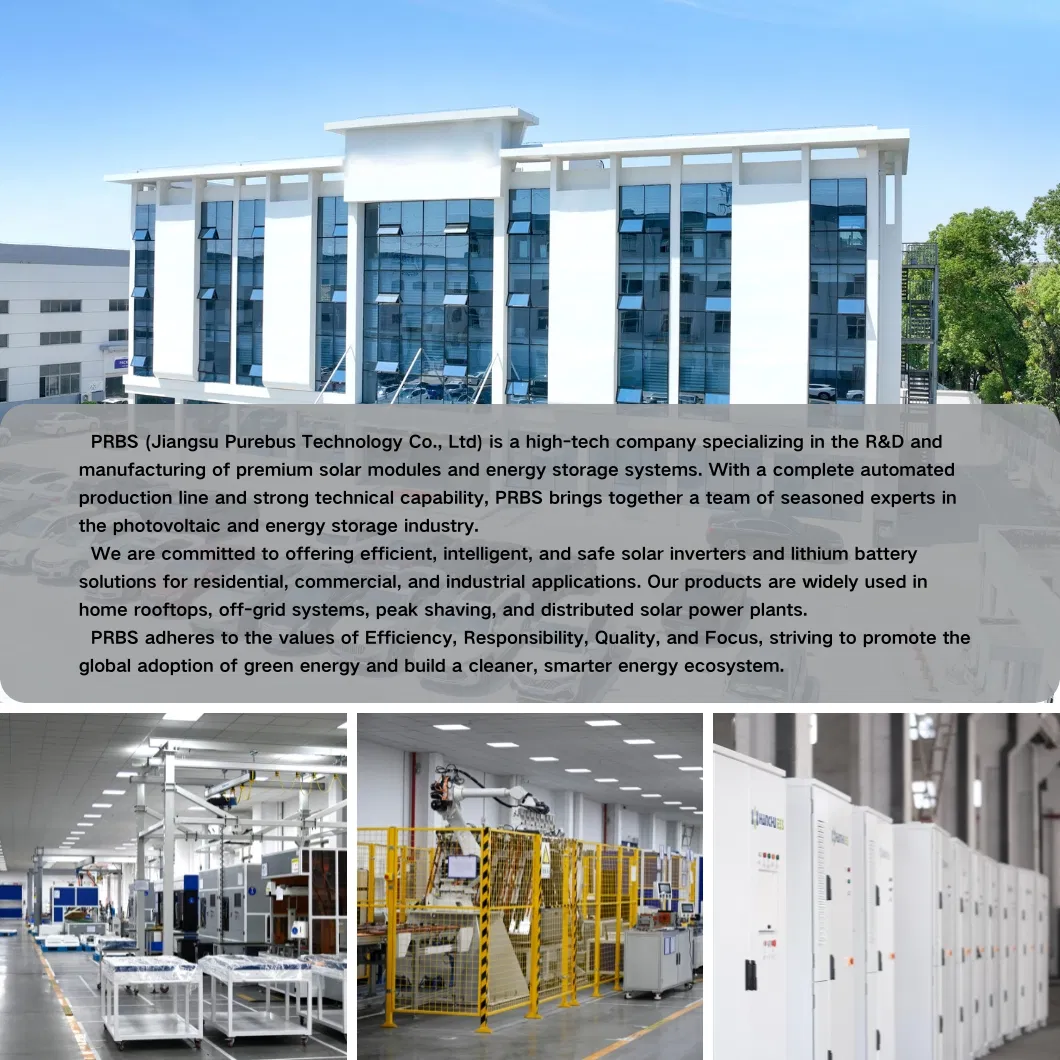

Production Facility
Certifications
Certificates
Packaging & Shipping
Packaging Details
Frequently Asked Questions
Do the energy systems comply with international electrical and safety standards?
Yes. All systems meet relevant IEC/CE/UN38.3 safety and EMC standards. Components undergo extensive testing for electrical protection, fire safety, and environmental durability (e.g., IP54/IP66 rated enclosures).
Can you provide customized configurations (e.g., capacity, voltage, communication)?
Yes. Custom options include battery capacity (up to 280Ah/module), nominal voltage (LV 51.2V or HV 135-750V), and communication protocols (CAN, RS485, Wi-Fi, Ethernet). Both modular and rack-mounted systems are available.
What is the lead time for delivery?
Standard products can be shipped within 7-10 working days. For customized models or large quantities, lead time is typically 20-30 days. Expedited orders and scheduled production are available upon request.
Do you support third-party inspections?
Yes. We welcome third-party inspections from SGS, TUV, or client-assigned agents. Full test reports and compliance certificates are provided before shipment.
Are systems compatible with other inverter brands?
Yes. Energy storage systems support open protocols (CAN/RS485) and can be integrated with a wide range of inverter brands. Configuration tools and wiring diagrams are provided for seamless setup.
What is the standard warranty period for these inverters?
The standard warranty for our three-phase hybrid inverters is 5 years, ensuring long-term reliability and support for your solar energy projects.
