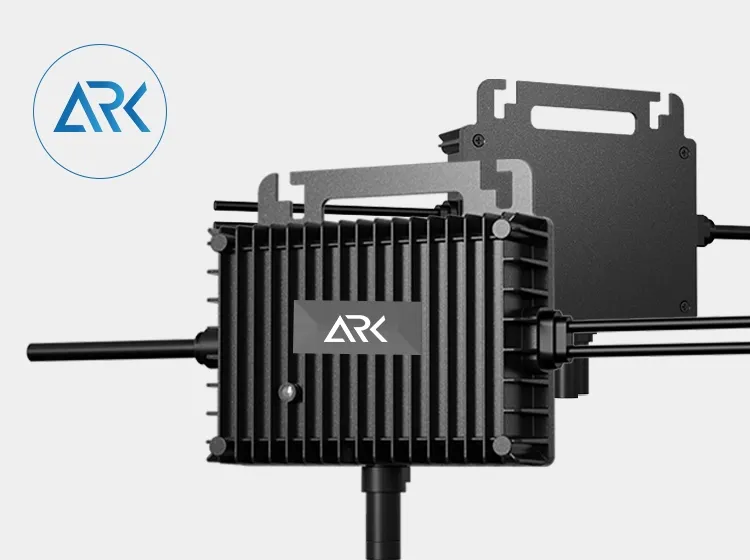

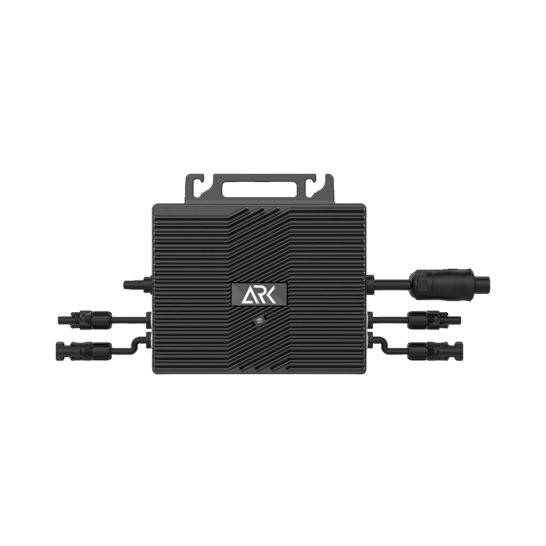

800W Micro Inverter for Solar Panels with Smart Home Integration

1 / 5

800W Micro Inverter for Solar Panels with Smart Home Integration

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview

Basic Info

Output Power501 - 1000W

TypeDC/AC Inverters

Power SourceSolar Power

Circuit TopologiesPush-pull Type

Nature of Wave StringSine Wave Inverter

Grid TypeGrid Inverter

Specification233*232*42

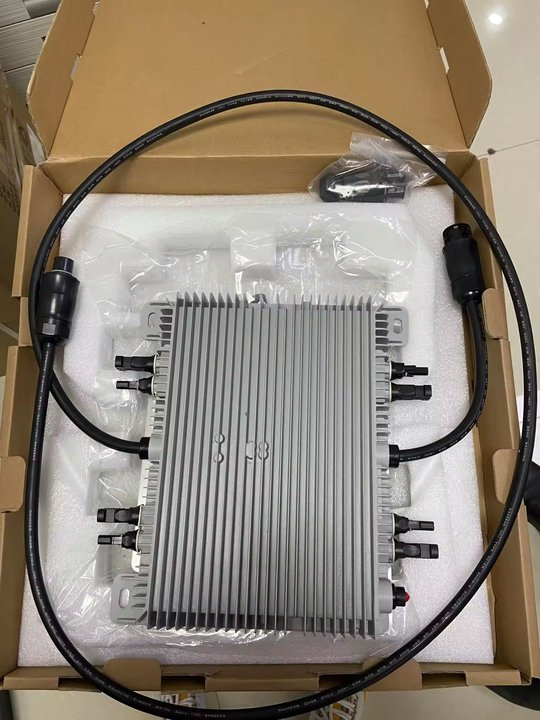

Packaging & Delivery

Package Size24.00cm * 24.00cm * 5.00cm

Package Gross Weight3.000kg

Transport PackageCarton

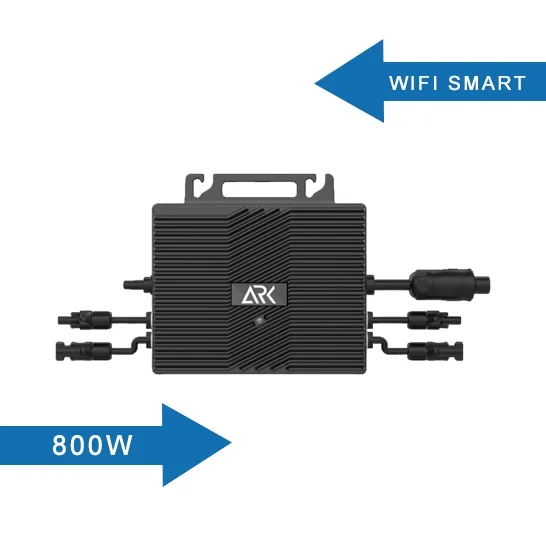

Product Description

Low night power consumption: Microinverters have very low power consumption at night (<50mW), consuming almost no power when not generating.

Small size: Physical size is 233*232*42 (mm) and weight is 2kg, providing ease of installation and meeting roof load requirements.

Compatibility: Wide power range compatible with different types and brands of photovoltaic modules. CEC efficiency is 95.5%.

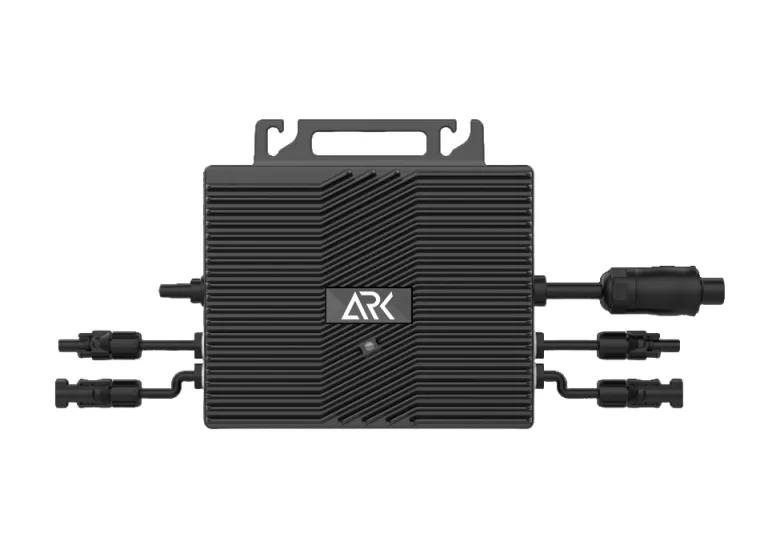

Boost Output by 96.7%: Industry-leading peak efficiency to get the most from your solar panels.

Shade Doesn't Stop Us: Individual MPPT for each panel ensures optimal performance even with shading.

Handle More Power: Higher 20A continuous input capacity maximizes system output.

Beat the Heat: Operates from -40°C to 70°C, with minimal derating (only 10% at 55°C).

Waterproof & Durable: IP67-rated for lasting performance in any climate and environmental condition.

World-Class Reliability: Trustworthy components with a 30-year design life and 10-year warranty.

Safety First: Low DC voltage minimizes risk, ensuring a safe installation process.

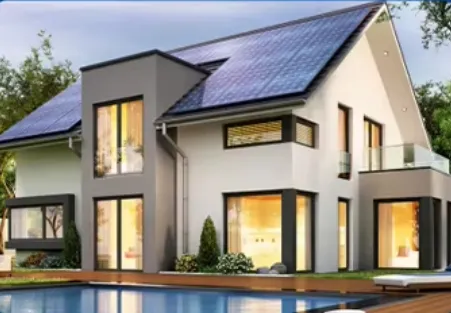

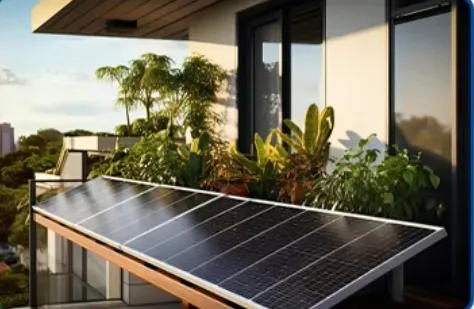

Applications

Why Choose Us

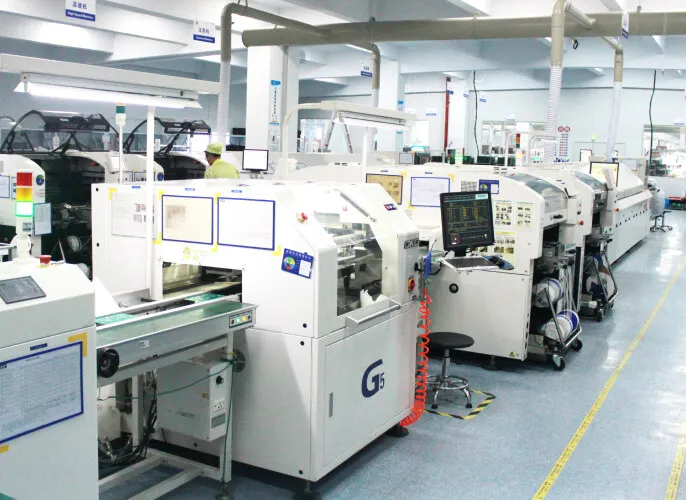

Independent Research & Development

Independently design overall schemes of PCBA, energy management system (EMS) and intelligent monitoring system.

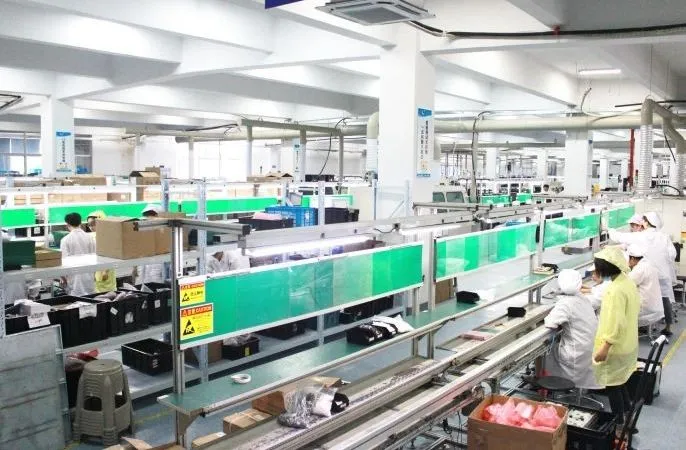

Independent Production

Self-produce key components of microinverters, such as PCBA and monitoring devices.

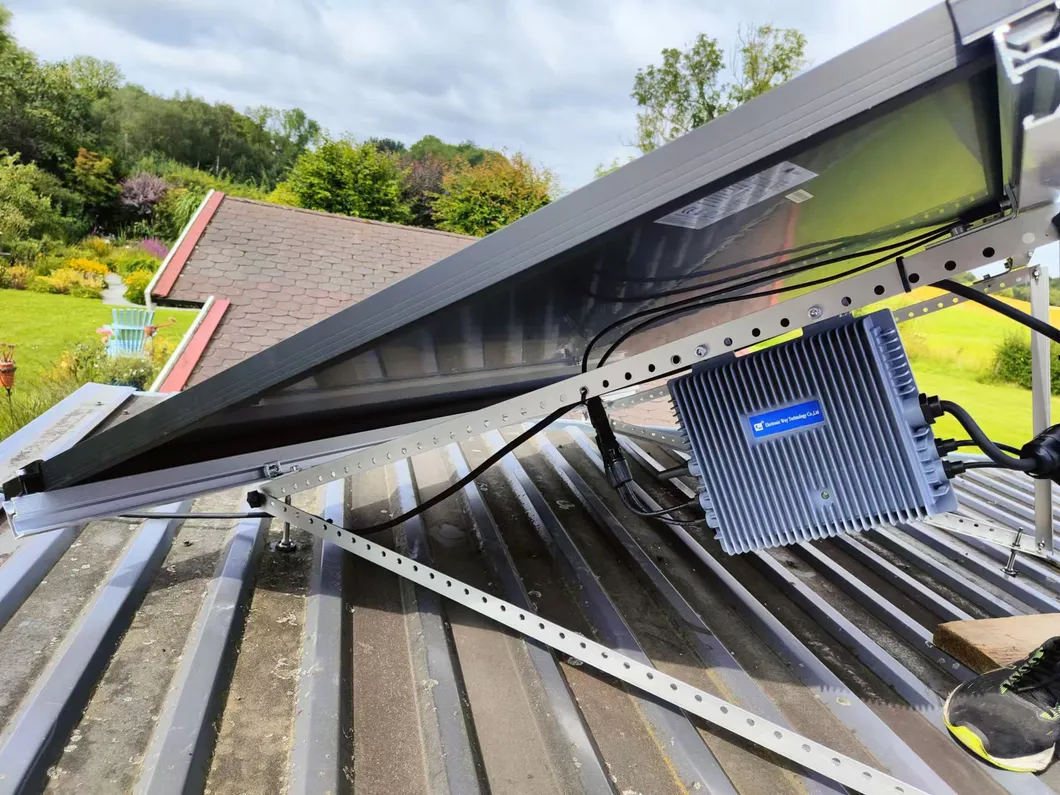

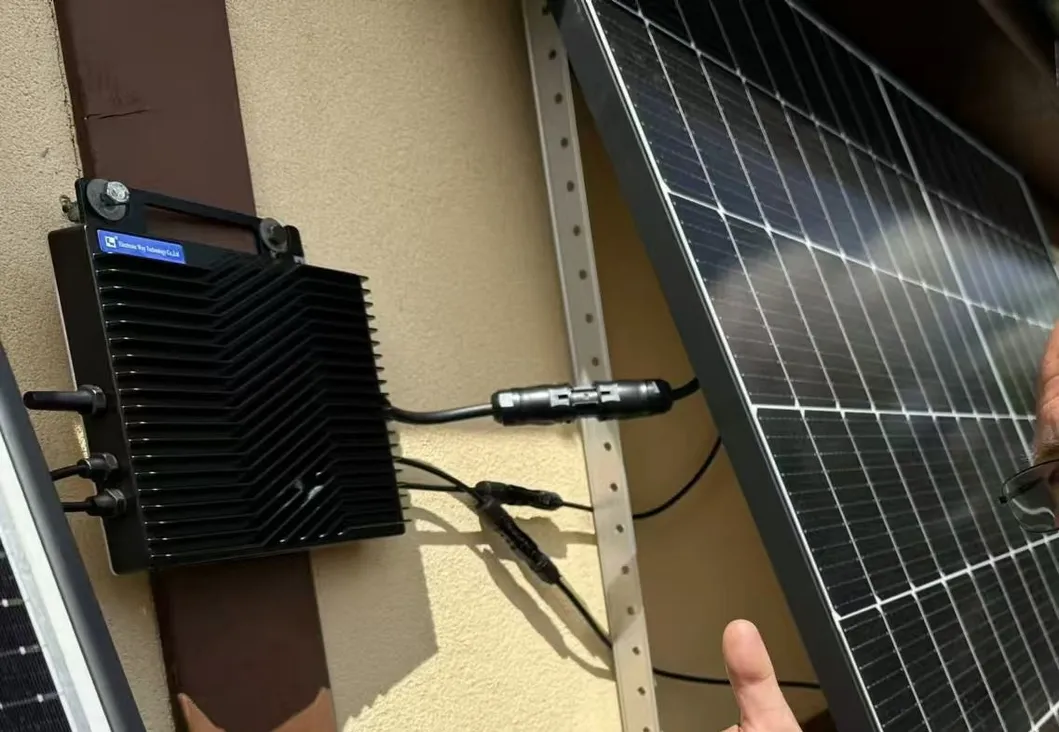

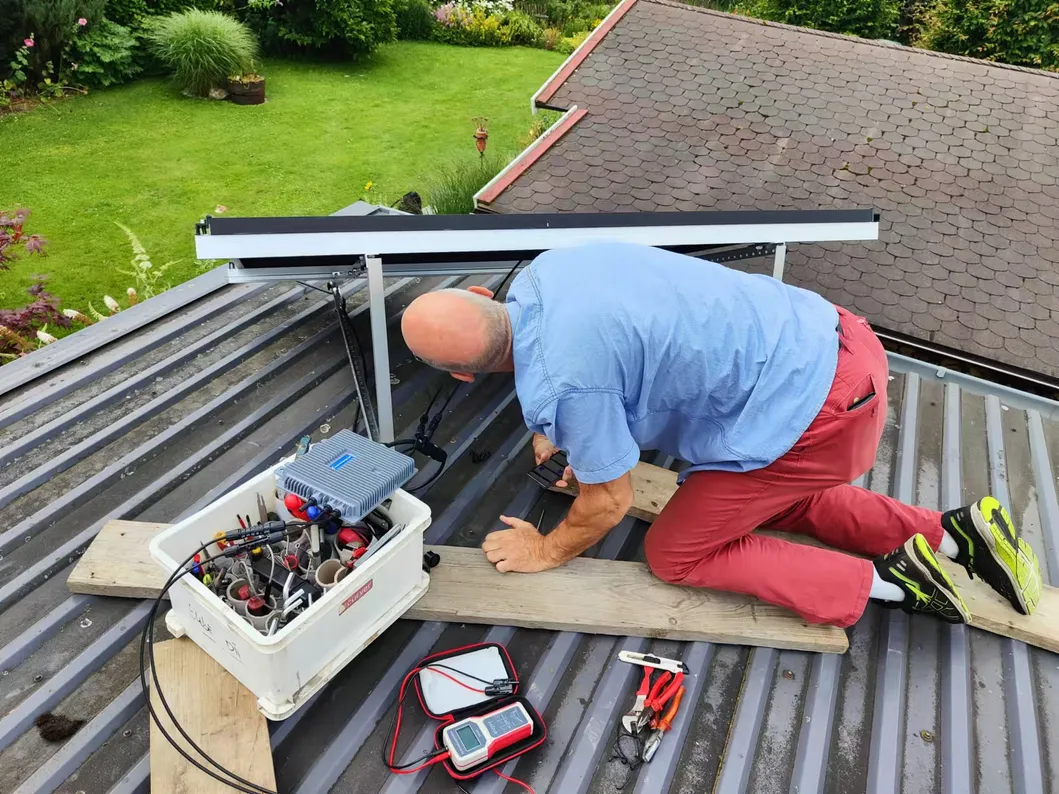

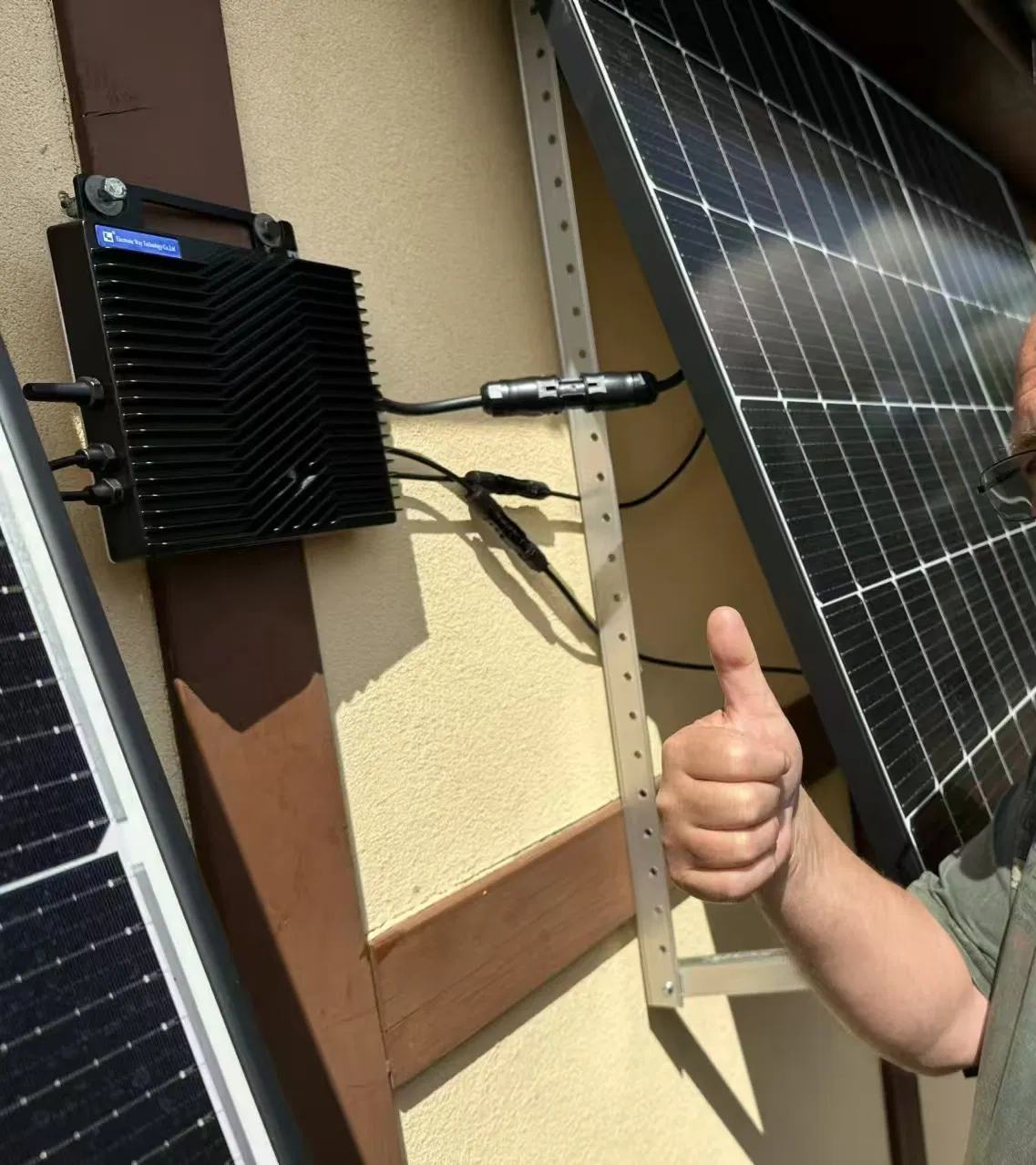

Cases

Product Parameters

Model Details	400W Series	800W Series	2000W Series
Input Data (DC)
Recommended Module Power [W]	300~550/MPPT	300~550/MPPT	300~550/MPPT
Start up Voltage [V]	18	18	18
MPPT Voltage Range [V]	17.5~55	17.5~55	17.5~55
Max. Input Voltage [V]	60	60	60
Max. Input Current [A]	13.3	13.3	13.3
Output Data (AC)
Max. Continuous Output Power [VA]	400	800	2000
Nominal Output Voltage [V]	220/230/240	220/230/240	220/230/240
Nominal Frequency [Hz]	50/60	50/60	50/60
CEC Weighted Efficiency	95.50%	95.50%	95.50%
Mechanical Data
Dimensions (WHD mm)	22718342	23323242	38023342
Weight [kg]	1.8	2	3.75

Frequently Asked Questions

What is the peak efficiency of these micro inverters?

The micro inverters feature an industry-leading peak efficiency of 96.7% and a CEC weighted efficiency of 95.50%, ensuring maximum energy conversion from your solar panels.

How does the micro inverter perform in shaded conditions?

Each micro inverter is equipped with individual MPPT (Maximum Power Point Tracking) for each panel. This ensures that shading or mismatched performance on one panel does not affect the output of the others.

Is the device suitable for extreme outdoor environments?

Yes, the units are IP67-rated waterproof and designed to operate in extreme temperatures ranging from -40°C to 70°C, making them highly durable for various climates.

What is the expected lifespan and warranty?

Our micro inverters are built with world-class components designed for a 30-year service life. We provide a 10-year warranty to guarantee long-term reliability and peace of mind.

Does the micro inverter consume power at night?

The micro inverters have an extremely low night-time power consumption of less than 50mW, meaning they consume almost no electricity when the solar panels are not generating power.

How many units can be connected in a single branch?

Depending on the model, you can connect up to 18 units for the 400W series, 9 units for the 800W series, or 3 units for the 2000W series per branch.
