Low night power consumption: Microinverters have very low power consumption at night (<50mW), consuming almost no power when not generating.

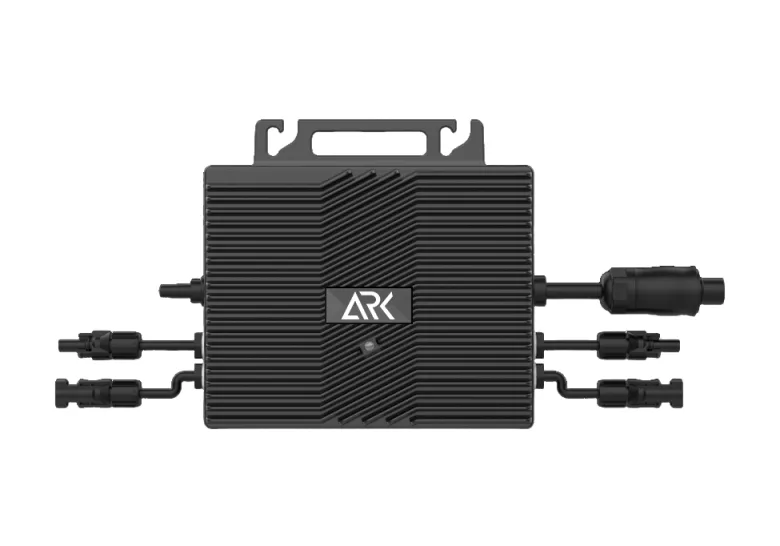

Small size: Physical size is 233*232*42 (mm) and weight is 2kg, providing ease of installation for roof requirements.
Compatibility: Wide power range compatible with different types and brands of photovoltaic modules. CEC efficiency is 95.5%.
Boost Output by 96.7%: Industry-leading peak efficiency to get the most from solar panels.

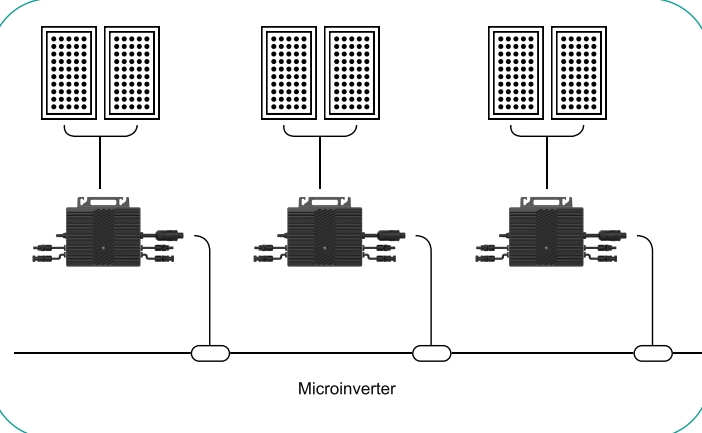

Shade Doesn't Stop Us: Individual MPPT for each panel ensures optimal performance even with shading.
Handle More Power: Higher 20A continuous input capacity maximizes system output.
Beat the Heat: Operates from -40°C to 70°C with minimal derating (10% at 55°C).

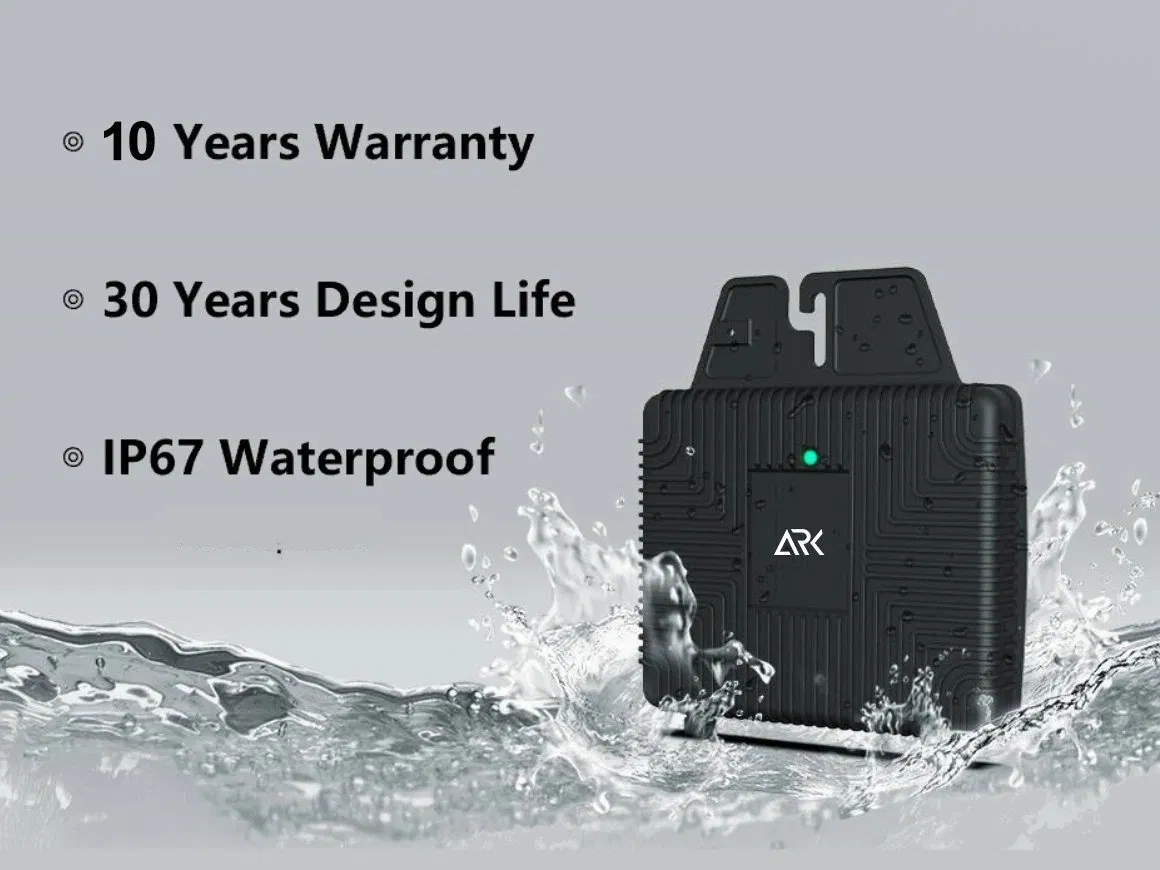

Waterproof & Durable: IP67-rated for lasting performance in any climate.
World-Class Reliability: 30-year design life and a 10-year warranty guarantee peace of mind.
Safety First: Low DC voltage minimizes risk, ensuring a safe installation.
Independent research and development: Independently design overall schemes of PCBA, energy management system(EMS) and intelligent monitoring system.

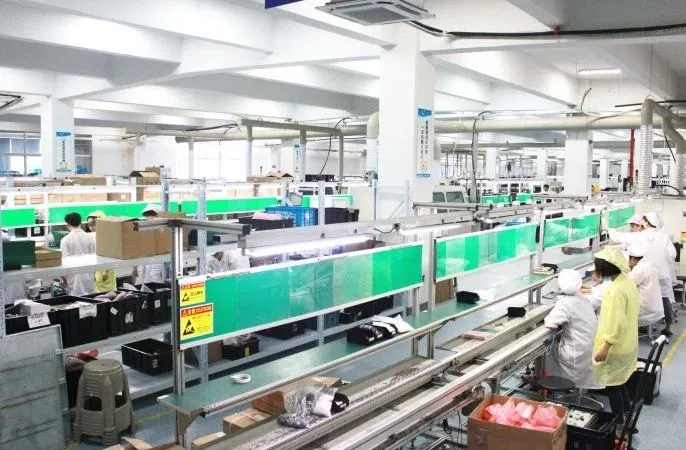

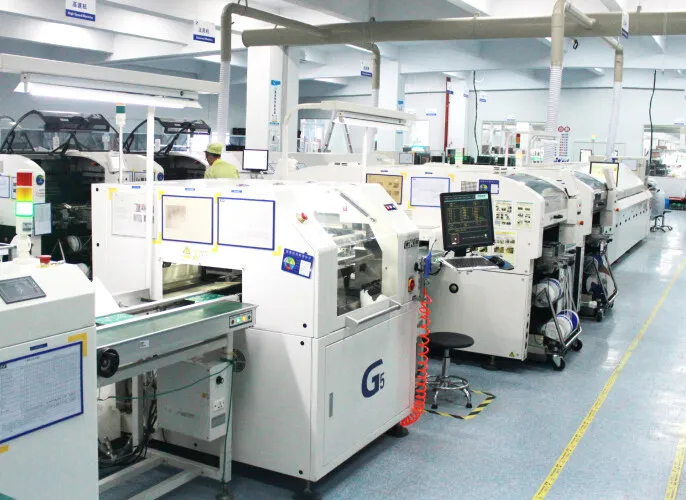

Independent production: Self-produce key components of microinverters, such as PCBA and monitoring devices.
| Model | 400W Series | 800W Series | 2000W Series |
|---|---|---|---|
| Input Data (DC) | |||
| Recommended Module Power [W] | 300~550/MPPT | 300~550/MPPT | 300~550/MPPT |
| Start up Voltage [V] | 18 | 18 | 18 |
| MPPT Voltage Range [V] | 17.5~55 | 17.5~55 | 17.5~55 |
| Max. Input Voltage [V] | 60 | 60 | 60 |
| Max. Input Current [A] | 13.3 | 13.3 | 13.3 |
| Output Data (AC) | |||
| Max. Continuous Power [VA] | 400 | 800 | 2000 |
| Nominal Output Voltage [V] | 220/230/240 | 220/230/240 | 220/230/240 |
| CEC Weighted Efficiency | 95.50% | 95.50% | 95.50% |
| Night Power Consumption [mW] | <50 | <50 | <50 |
| Mechanical Data | |||
| Dimensions (W*H*D mm) | 227*183*42 | 233*232*42 | 380*233*42 |
| Weight [kg] | 1.8 | 2 | 3.75 |
