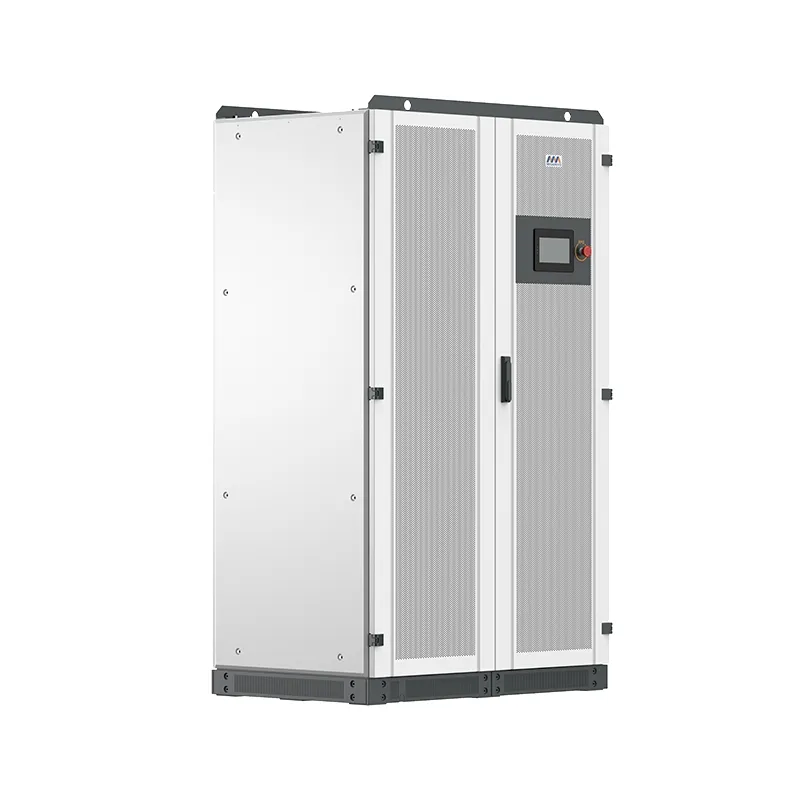

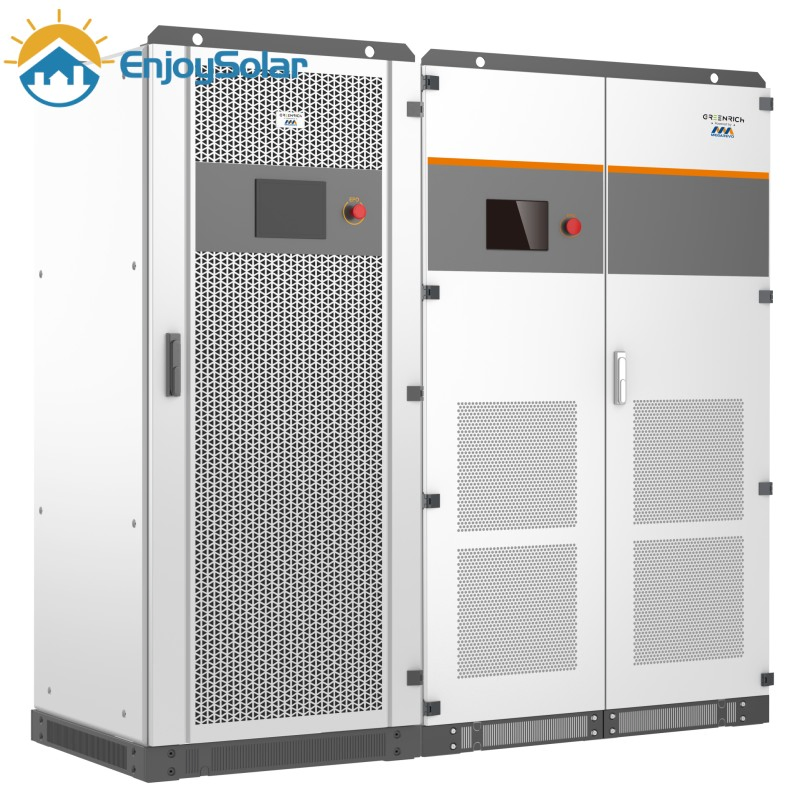

500kw Hybrid Inverter with DC Coupling PV Battery Grid Integration Redundant AC DC Supply 400V Solar Inverter

Basic Information

Model NO.

EPS0500

Type

DC/AC Inverters

Output Power

500kw

Phase

Three Phase

Certification

SAA, CE, ROHS, ISO9001, CCC

Power Source

Solar Power

Circuit Topologies

Full-Bridge Type

Nature of Wave

Sine Wave

Output Voltage

400V

IP Rating

IP20

Cooling

Intelligent Air Cooling

Battery Voltage

500~850V

Product Description

This series hybrid inverters adopt an integrated design, integrating PV controllers, energy storage converters, and on/off-grid automatic switching units. This greatly improves deployment efficiency and reduces installation costs. The PV capacity can be flexibly configured, improving microgrid system availability, suitable for remote areas and islands where power is relatively weak.

Product Highlights

🛡️

Safe and Reliable Passed comprehensive certifications including EN 62109-1/-2, EN 62477-1, IEC61727, IEC62116, and VDE 4105 test standards.

⚙️

Flexible Configuration Supports PV, diesel generator, battery, and load access simultaneously with strong adaptability and black start support.

📊

Convenient Operation Supports unattended operation with an HMI digital display panel for real-time health monitoring and cloud-based management.

Technical Parameters

Model	EPS0030	EPS0050	EPS0100	EPS0150	EPS0250	EPS0500
Rated Output Power (kW)	30	50	100	150	250	500
Rated Voltage (V)	400
Max. PV Input Voltage (V)	1,000
MPPT Voltage Range (V)	250~850
Battery Voltage Range (V)	250~850	320~850	420~850	420~850	420~850	500~850
Display	LCD touch screen

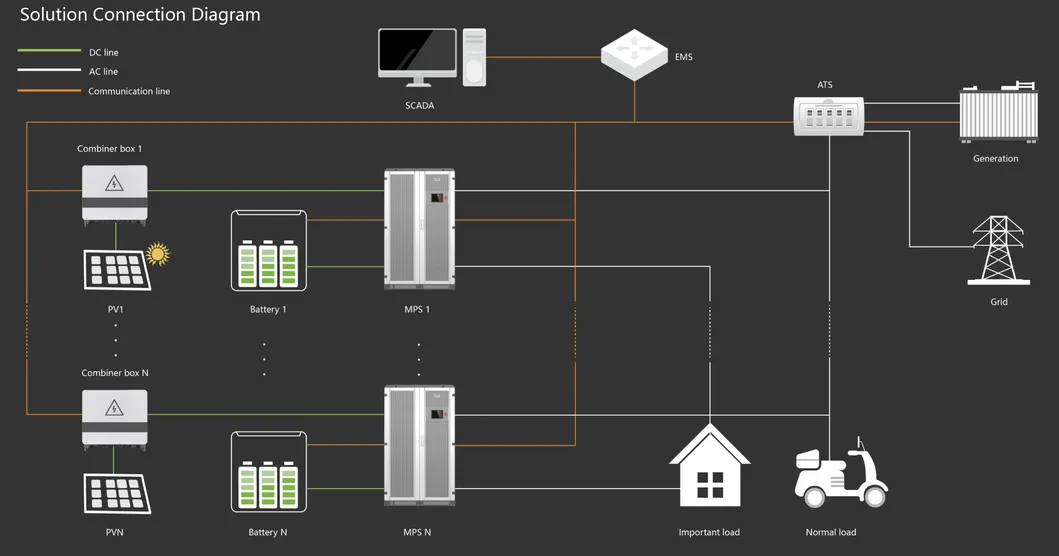

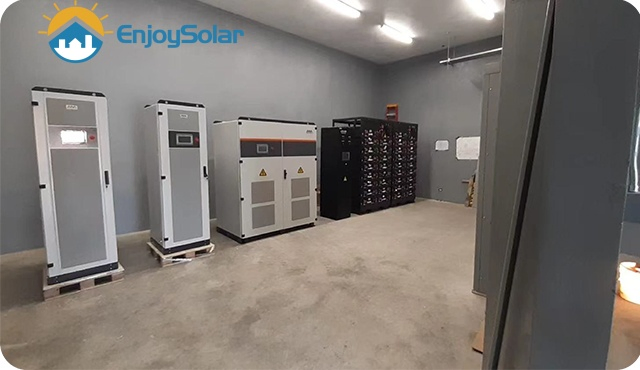

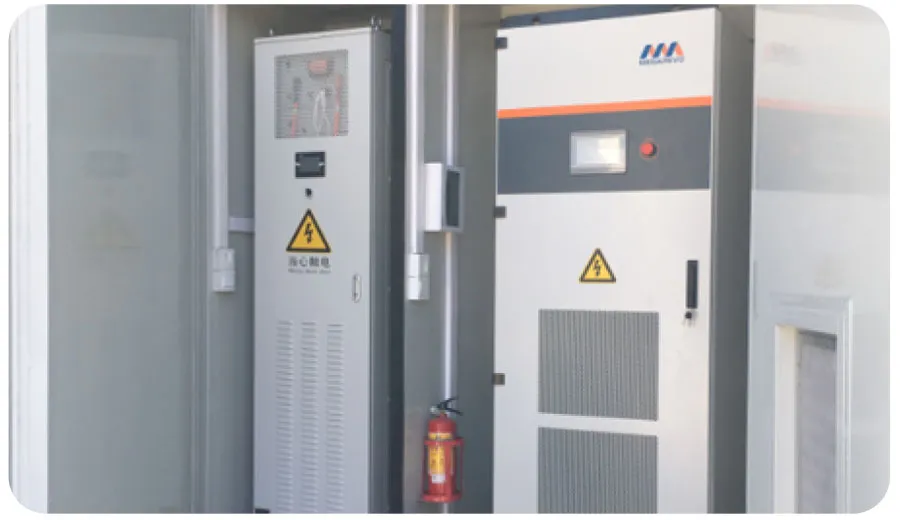

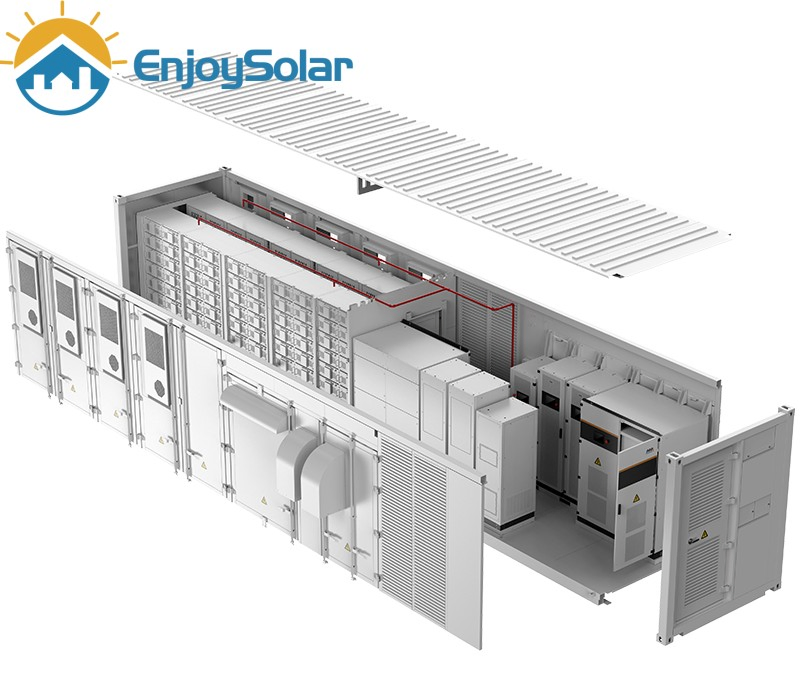

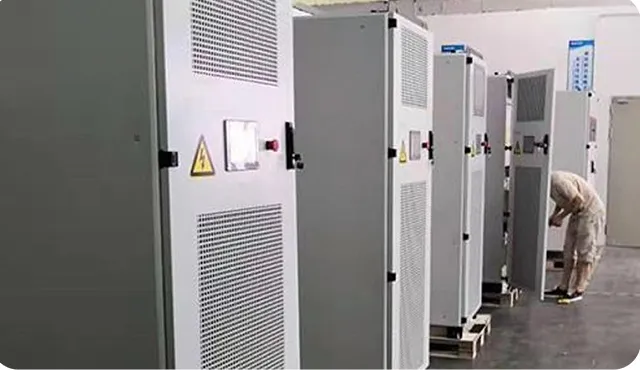

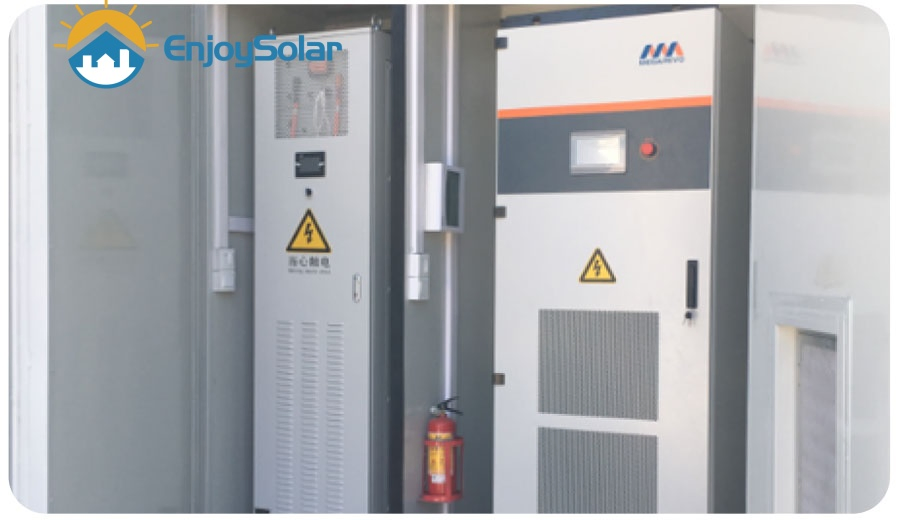

Microgrid Solution & Portfolio

Providing feasible solutions and turnkey services for diverse applications. Whether small-scale distributed or large-scale centralized, we have extensive experience in global implementations.

Frequently Asked Questions

Q: What is the typical lifespan of this photovoltaic system?

A: The lifespan of photovoltaic panels is generally 25-30 years, while the inverters typically last about 10-15 years, depending on usage and maintenance.

Q: What maintenance is required for the system?

A: Maintenance is relatively simple. It involves regular cleaning of the panels and periodic system health checks. Professional maintenance services are also available.

Q: Can this system be combined with battery storage?

A: Yes, these hybrid inverters are specifically designed to be combined with energy storage systems (like Lead-Acid or Lithium-Ion batteries) to stabilize power supply.

Q: Are these systems environmentally friendly?

A: Absolutely. They utilize clean, renewable solar energy, helping to reduce greenhouse gas emissions and dependency on fossil fuels.

Q: How can I monitor my system performance?

A: The system includes an online monitoring platform where you can view real-time data and historical generation records via GPRS, WiFi, or LAN.

Q: What types of buildings are suitable for installation?

A: They are suitable for residential, commercial, and industrial structures. The primary requirement is a location with sufficient sunlight exposure.
