Factory Direct 5 Years Warranty IP67 8m 60W Solar LED Street Lighting System
Factory Direct 5 Years Warranty IP67 8m 60W Solar LED Street Lighting System
Factory Direct 5 Years Warranty IP67 8m 60W Solar LED Street Lighting System
Factory Direct 5 Years Warranty IP67 8m 60W Solar LED Street Lighting System
Factory Direct 5 Years Warranty IP67 8m 60W Solar LED Street Lighting System
1 / 5
Factory Direct 5 Years Warranty IP67 8m 60W Solar LED Street Lighting System
Factory Direct 5 Years Warranty IP67 8m 60W Solar LED Street Lighting System
Factory Direct 5 Years Warranty IP67 8m 60W Solar LED Street Lighting System
Factory Direct 5 Years Warranty IP67 8m 60W Solar LED Street Lighting System
Factory Direct 5 Years Warranty IP67 8m 60W Solar LED Street Lighting System

Factory Direct 5 Years Warranty IP67 8m 60W Solar LED Street Lighting System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
bdssl-003
Lamp Material
Aluminum Alloy
Power
48W
Application
Square, Highway, Garden
IP Rating
IP65
Certification
CCC, CE, CQC, FCC, RoHS, SASO
Input Voltage
24v
LED Brand
Bridgelux
Solar Panel
30W - 400W Monocrystal / Polycrystal
Battery
38ah-250ah Gel Battery
Controller
10A / 15A / 20A
Pole Surface
Galvanized or Powder Coating
Package Size
1435.00cm * 534.00cm * 85.00cm
Gross Weight
28.000kg
Product Overview

This 8M 60W Solar Street Lighting System is designed to provide high-efficiency outdoor illumination. Equipped with an AD box, it is ideal for main roads, highways, and commercial pathways, offering reliable performance in various environmental conditions.

Solar LED Street Lighting System
Solar Light Component
Solar Street Light Details
Components Parameters Details
Solar Module Pmax / Vmp 30-400W / 35.0V
Light Fixture Material / IP Aluminum die casting & Toughened glass / IP65
LED Source Chip / Flux BRIDGELUX / Cree (USA Brand) / 5300 LM
Lighting Pole Height / Material 3m - 12m / Q235/345 Steel
Battery Capacity / Type 200AH (100AH*2pcs) / Gel/AGM Battery
Controller Protection IP67 Waterproof, Over-charge & Over-discharge protection
Key Features & Advantages
☀️ High Efficiency Solar Panels

A-Grade mono-crystalline (18%) or poly-crystalline (17%) panels with 5 years warranty.

💡 USA Brand LED

BRIDGELUX/CREE chips with aluminum section bar fixtures for 100,000 hours lifespan.

🏗️ Reinforced Pole

10% larger diameter and 0.25mm thicker walls compared to standard market poles.

🔋 Deep Cycle Gel Battery

Long service life (1600 cycles @ 30% DOD) with fully sealed weather-proof construction.

Solar Light Structure

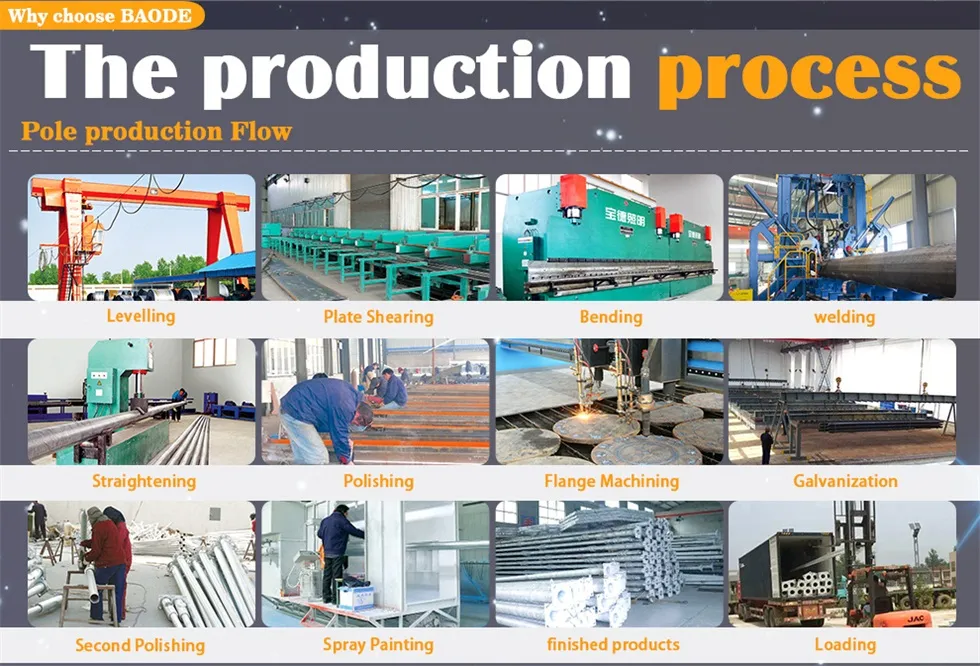

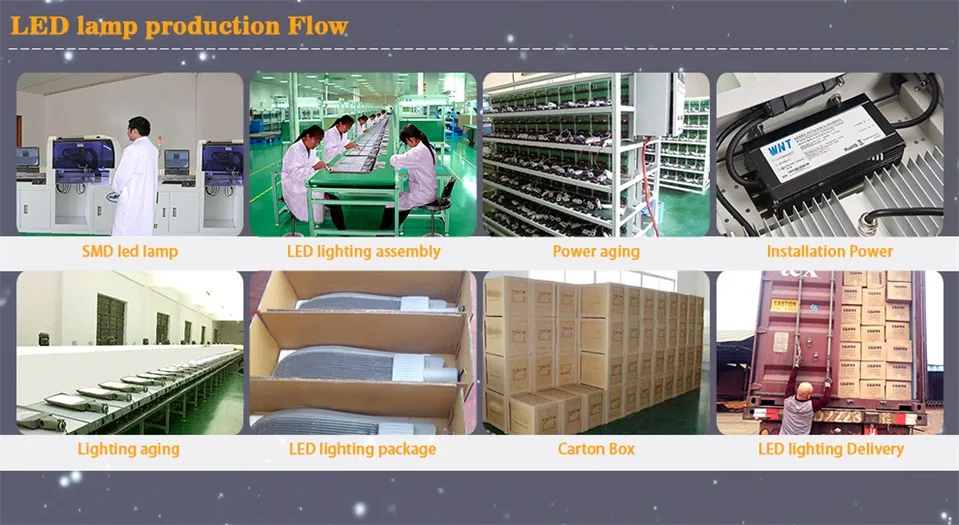

Manufacturing Process
Professional Manufacturing

Our vertically integrated production system ensures high quality and cost-effectiveness. We manufacture main components including LED sources, light fixtures, solar panels, and poles in-house.

  • 21 Years Manufacturing Experience (Since 1998)
  • Advanced R&D team with over 20 national patents
  • Complete testing facilities: Wind resistance, weather-ability, and lighting simulation

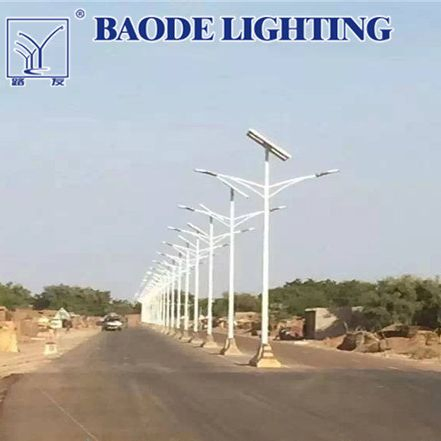

Project Case 1

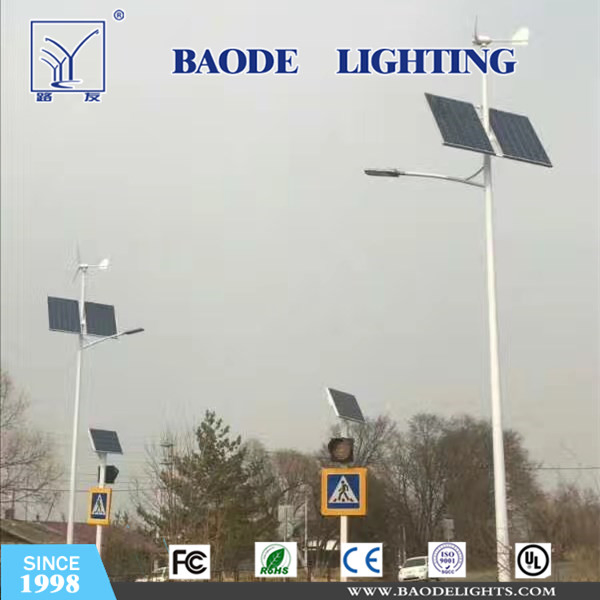

Project Case 2

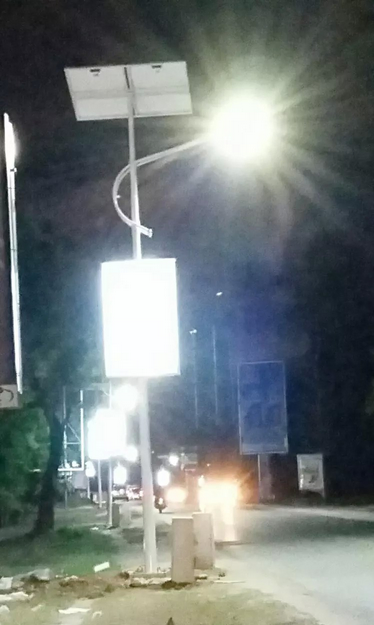

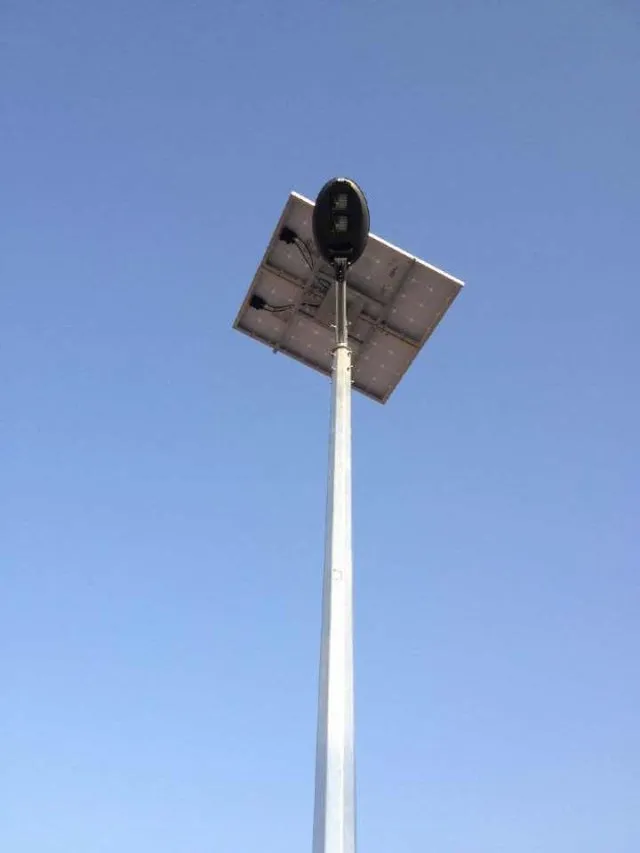

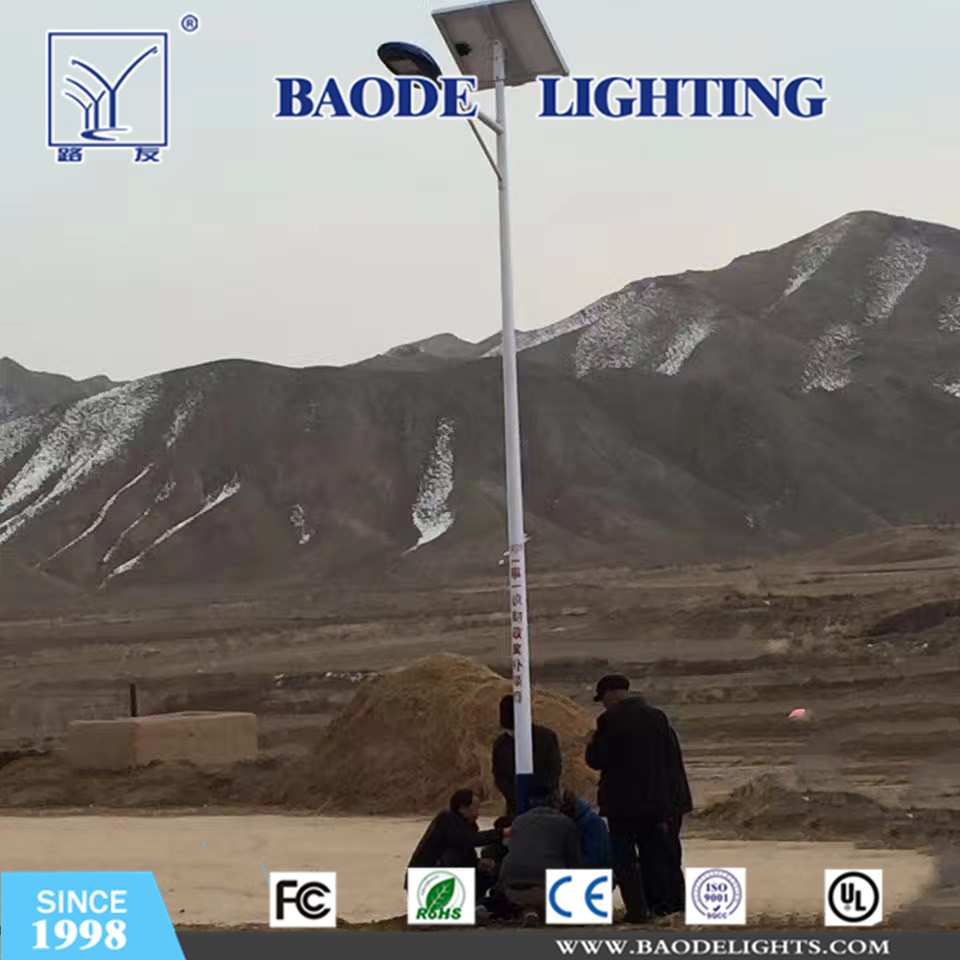

Installation Site

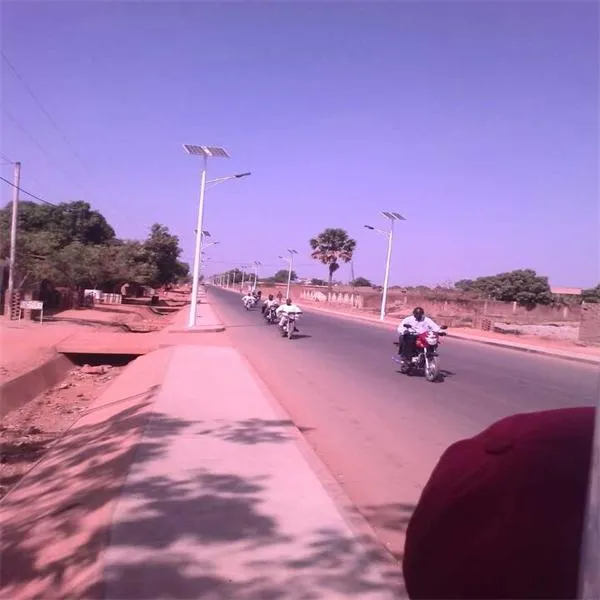

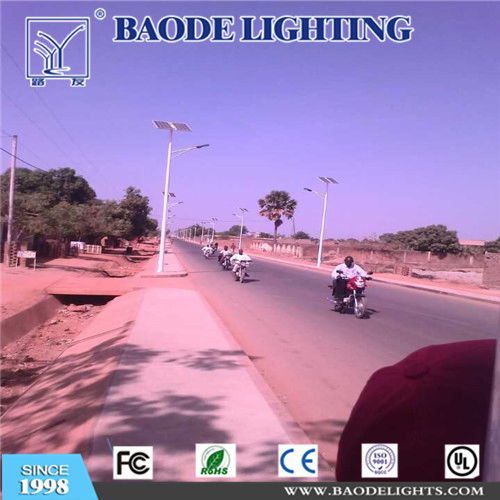

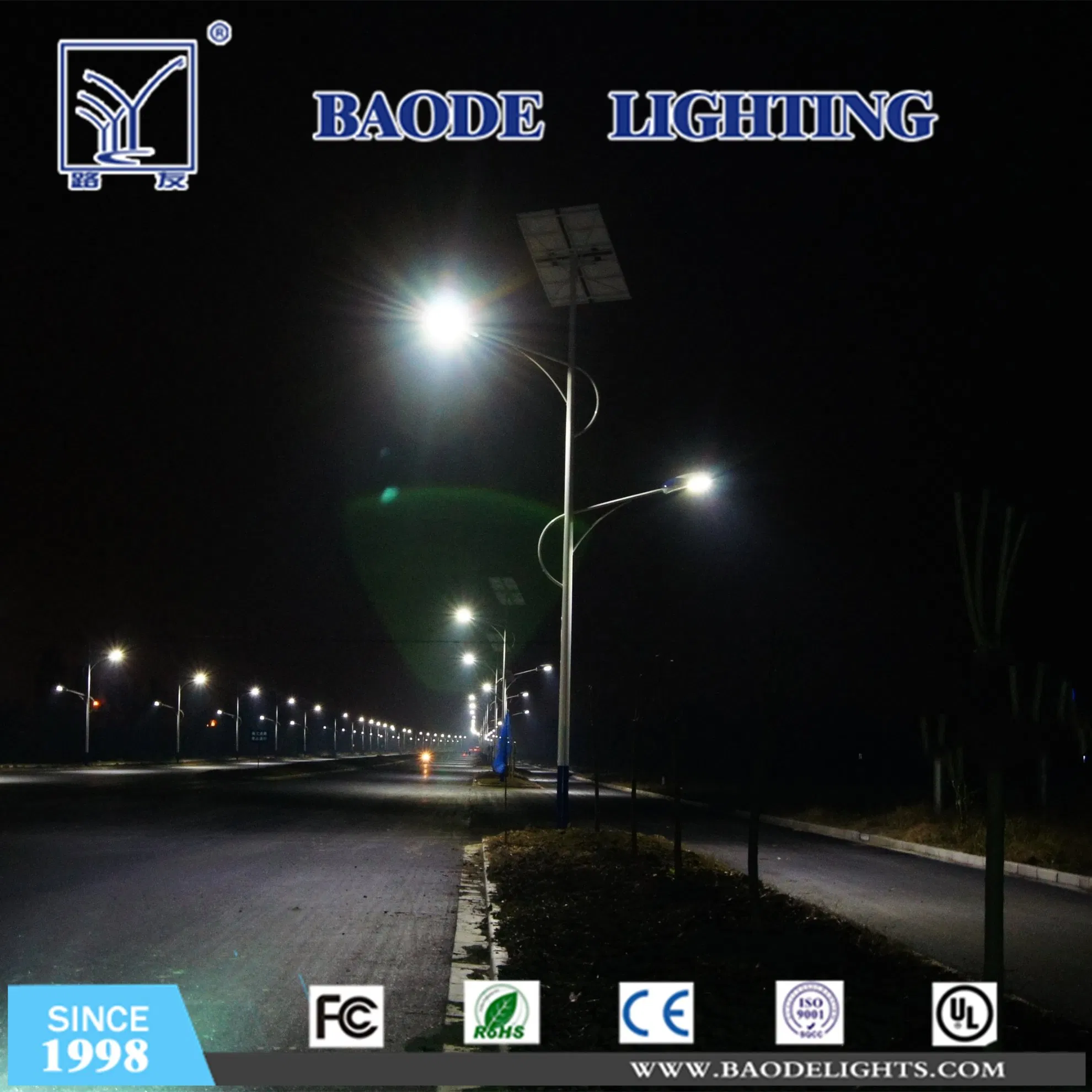

Road Illumination
Frequently Asked Questions
Q1: How many hours does the solar street light work per day?
A: The system typically works for 6-8 hours per day and is designed to provide 3-5 rainy or cloudy days of backup when the battery is fully charged.
Q2: What is the expected lifespan of the LED and the solar panel?
A: The LED light source has a lifespan of approximately 80,000 to 100,000 hours, while the solar panels come with a 5-year warranty and a much longer operational life.
Q3: Can these lights withstand high wind speeds?
A: Yes, the standard models are designed for wind resistance up to 136km/h. Custom higher wind resistant models are also available upon request.
Q4: Is the system waterproof for outdoor use?
A: Absolutely. The light fixture is rated IP65 and the intelligent controller is rated IP67, making it ideal for high humidity and dusty environments.
Q5: Where is the battery usually installed?
A: The battery is typically placed underground in a specialized ABS or galvanized metal battery box at the foot of the pole for protection and temperature stability.
Q6: Are the lighting configurations customizable?
A: Yes, the design, pole height (3m-15m), and power configuration (15W-100W) can all be adjusted according to specific customer requirements and project needs.
