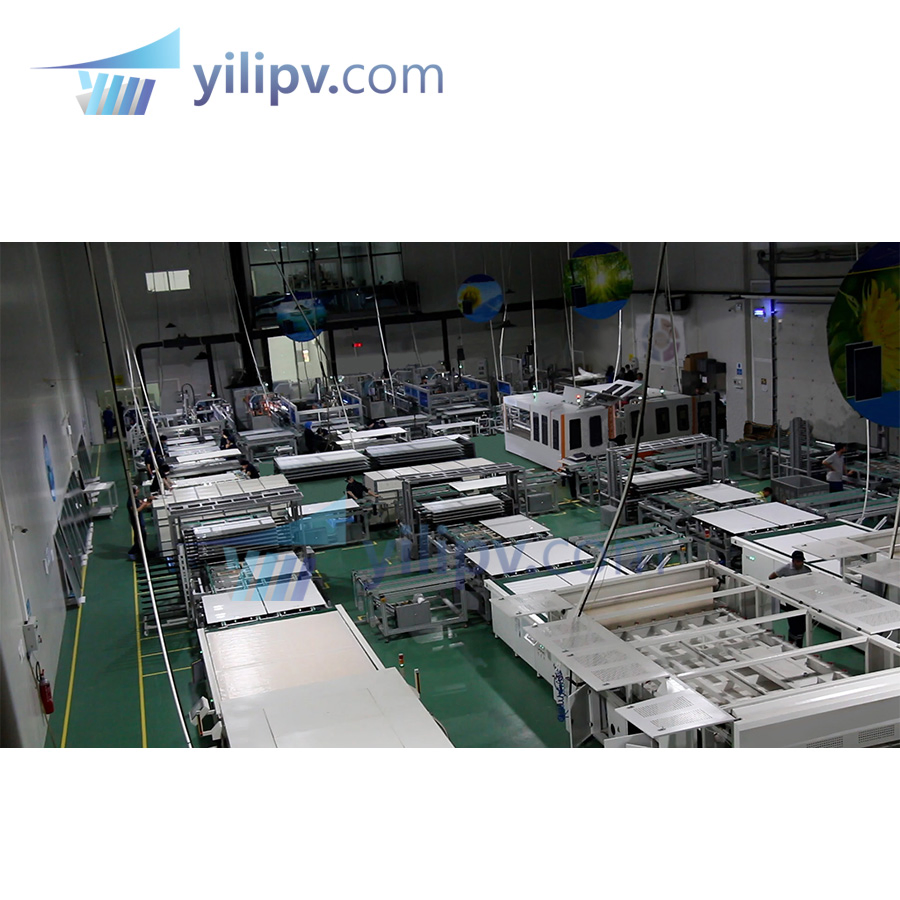

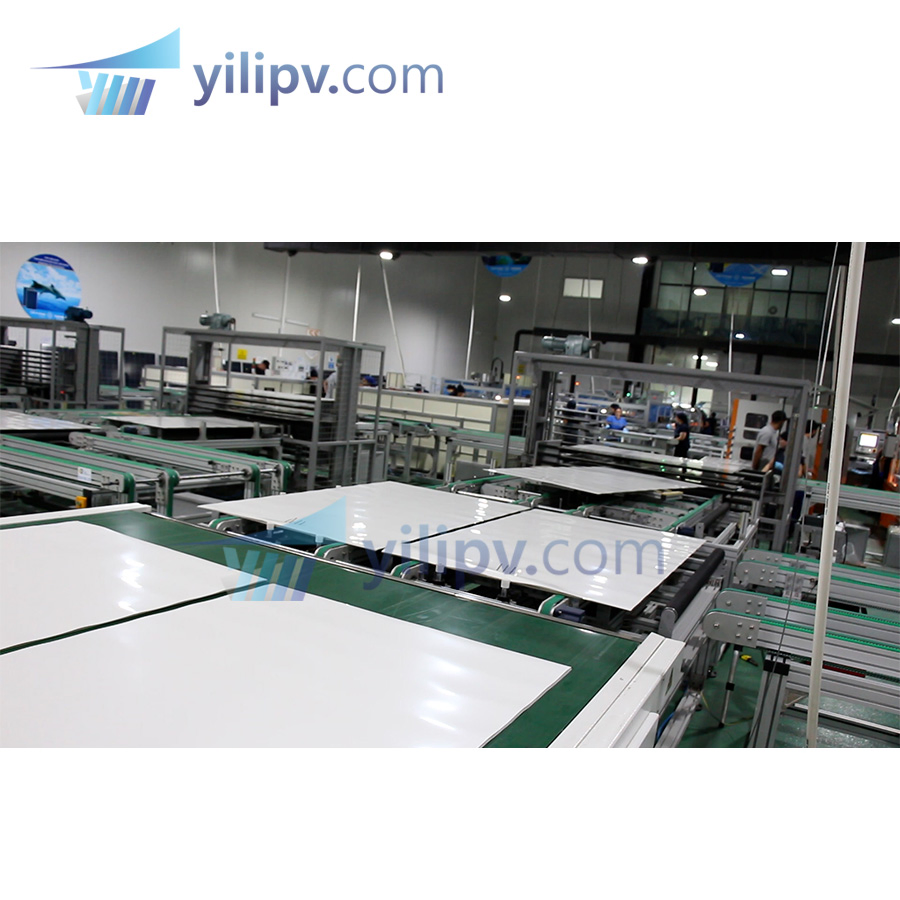

100MW Solar Panel Production Line with Automated Solar Module Production

1 / 5

100MW Solar Panel Production Line with Automated Solar Module Production

Customization:	Available
Transmission Speed:	15-25m/Minute
Transmission Unit Spacing:	50 to 100mm

Send Inquiry

Product Description

Overview

Solar Cell Size

166-210mm

Transport Package

Woodenboxs

Specification

0.6kw

Trademark

Yilipv

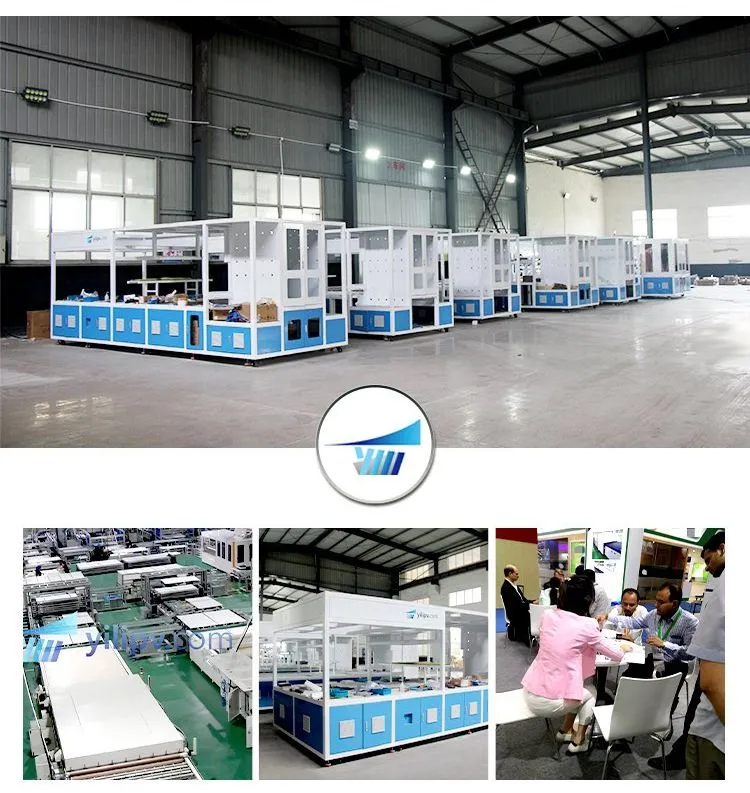

Company Profile

Adhering to the principle of quality first and customer first, we prioritize reputation as the lifeblood of our enterprise. We are dedicated to serving customers with excellent products and a comprehensive service system encompassing pre-sales, mid-sales, and after-sales support.

Established in 2008, the company is one of the pioneer manufacturers of photovoltaic module production equipment. As a comprehensive high-tech enterprise, we integrate R&D, sales, manufacturing, installation, and after-sales service. With independent finishing and roughing workshops, we ensure high precision in parts processing, supported by an experienced production and assembly team.

Product Description

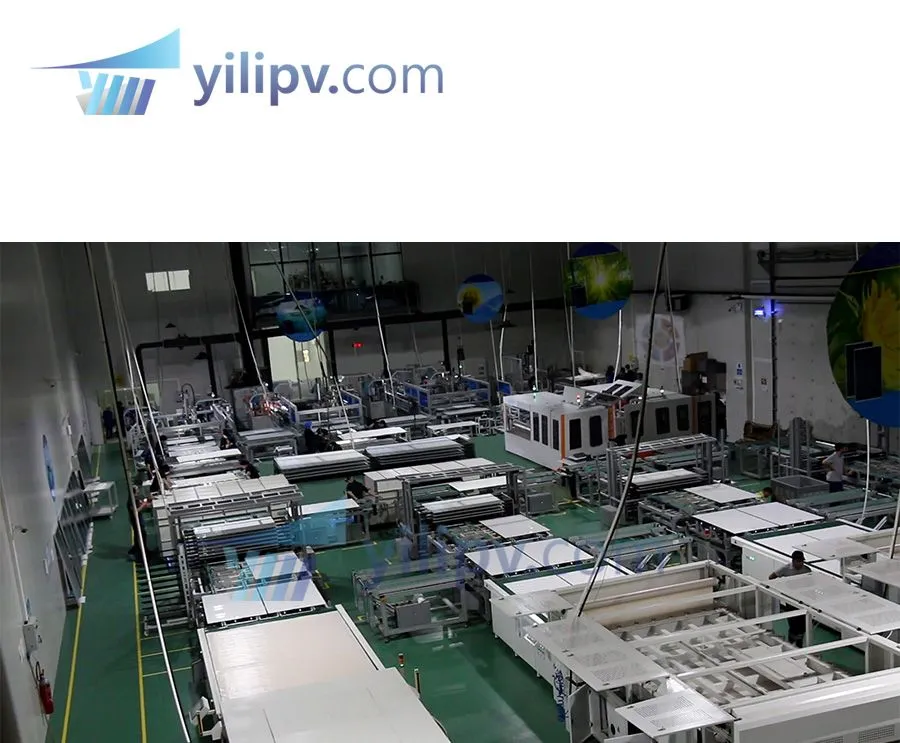

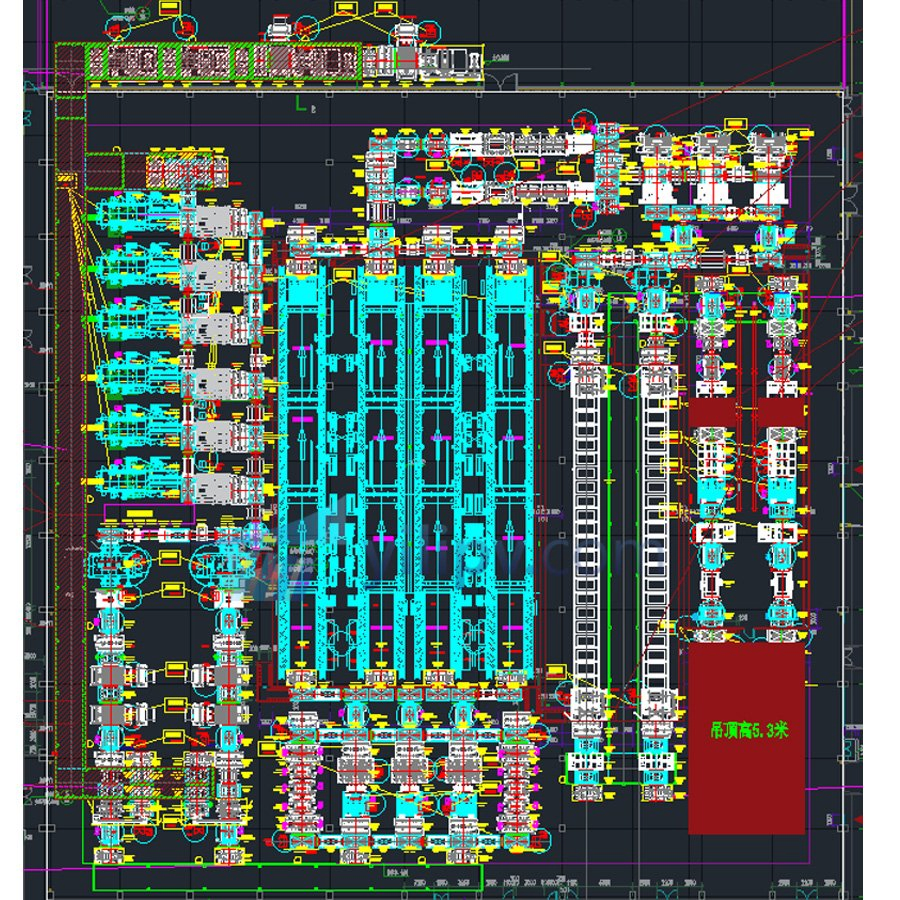

Production Line Specifications

100MW module production line capacity.
Production Beat: ≤45 seconds per block.
Panel Compatibility: Conventional full-cells and half-cells solar panels.
Solar Cell Size Range: 166mm - 210mm.
Solar Panel Dimensions: Length (1956~2300mm) x Width (990~1200mm) x Thickness (25~45mm).
Solar Ribbon Type: Flat welding ribbon.

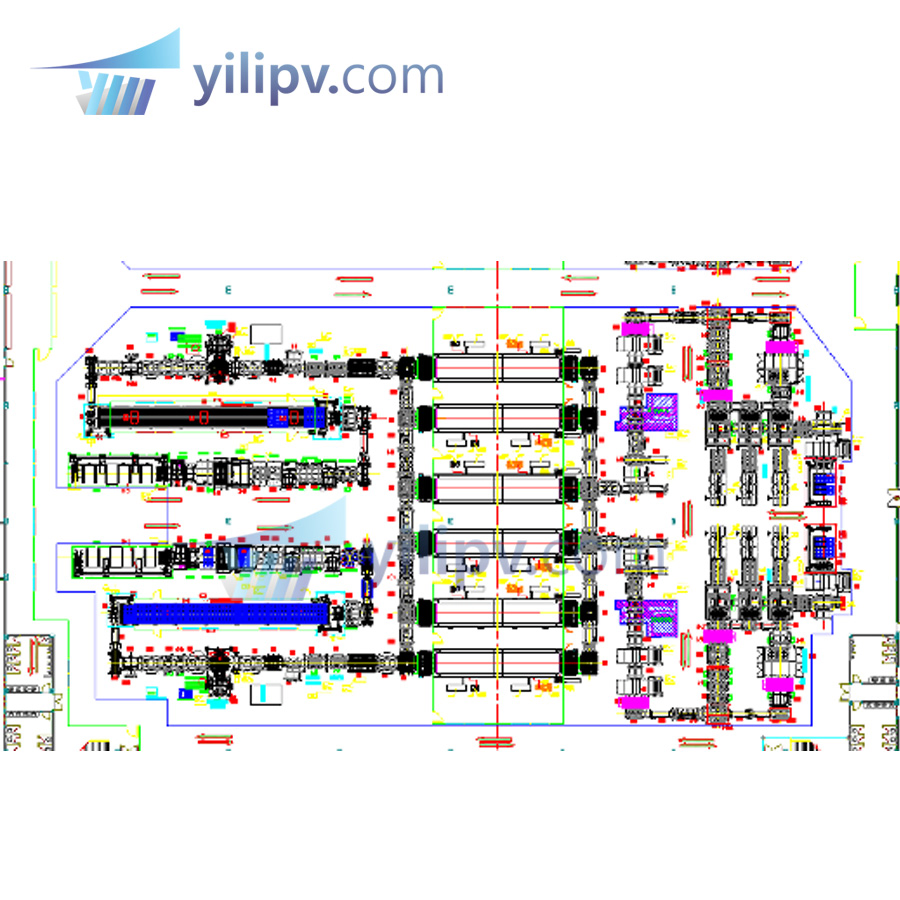

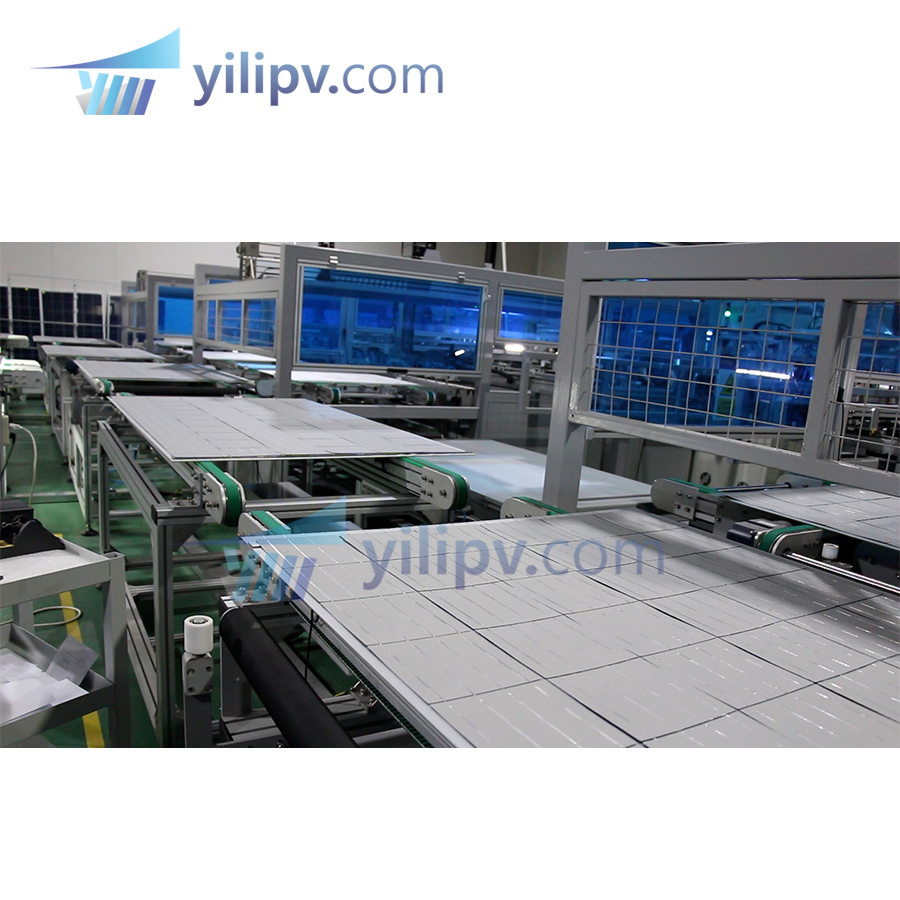

Process Overview

Pre-Lamination: Glass loading, EVA loading, typesetting, bus soldering, backplane loading, pre-layer EL/VI inspection, and conveyor system.

Post-Lamination: Trimming, gluing, framing, junction box welding, curing, cleaning, testing, binning, and conveyor system.

Technical Features

Modular design compatible with double-glass and ordinary modules.
High-strength aluminum profile transmission beams with anodized surfaces.
PLC control system with integrated sensors and electrical monitoring.
Adjustable lamination section speeds from 15-25 meters/minute.
Advanced safety features including emergency stop switches and safety fences.
Comprehensive data storage for test equipment to prevent data loss during power outages.
Equipment utilization rate: ≥99.5%.

Our Advantages

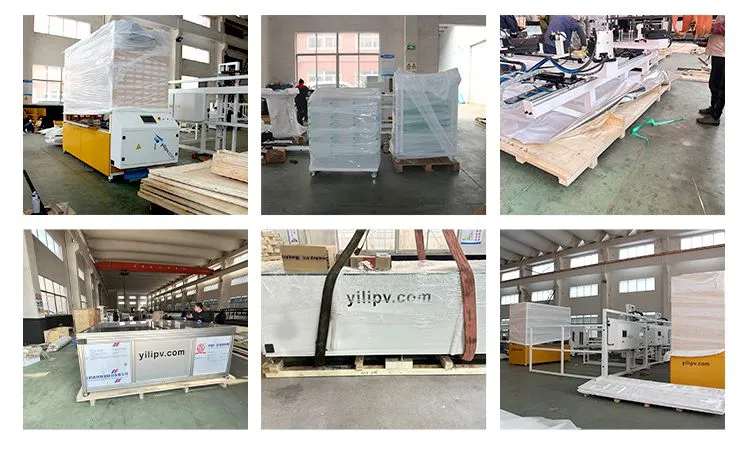

Packaging & Shipping

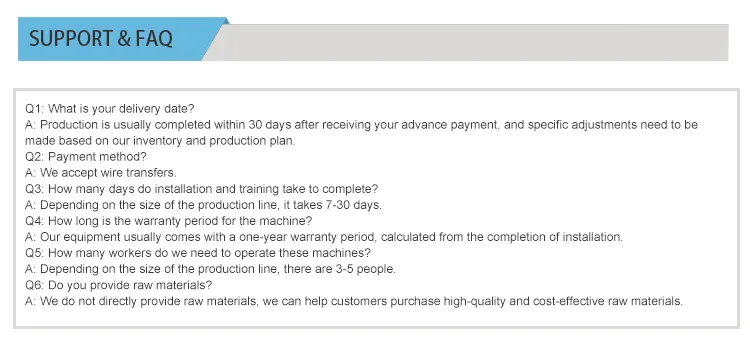

Frequently Asked Questions

1. What is the annual production capacity of this line? The production line is designed for a 100MW module production capacity with a beat of ≤45 seconds per block.

2. What cell sizes are compatible with the equipment? The system supports a wide range of solar cell sizes from 166mm up to 210mm.

3. Can this line produce both single and double-glass modules? Yes, the assembly line features a modular design that is fully compatible with the production of both double-glass and ordinary photovoltaic modules.

4. What type of control system does the machinery use? It utilizes a high-precision PLC control system combined with sensors and electrical control for safe and efficient operation.

5. How is the equipment protected from wear and corrosion? All steel parts are protected from rust, and the transmission beams use high-strength anodized aluminum profiles for durability and aesthetics.

6. What is the equipment utilization rate? The entire production line maintains an equipment utilization rate of ≥99.5%, ensuring minimal downtime and maximum output.
