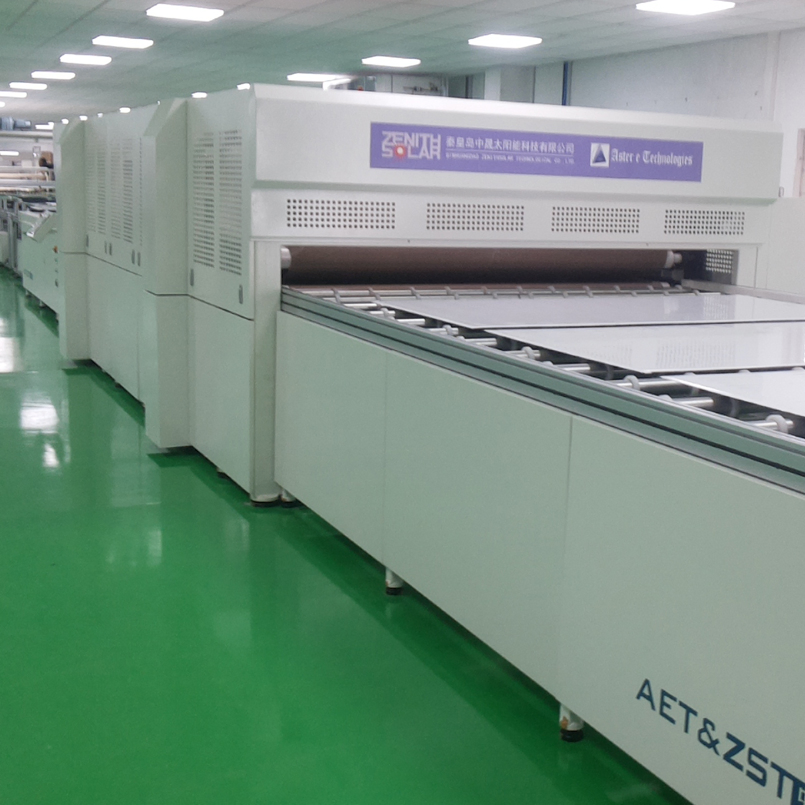

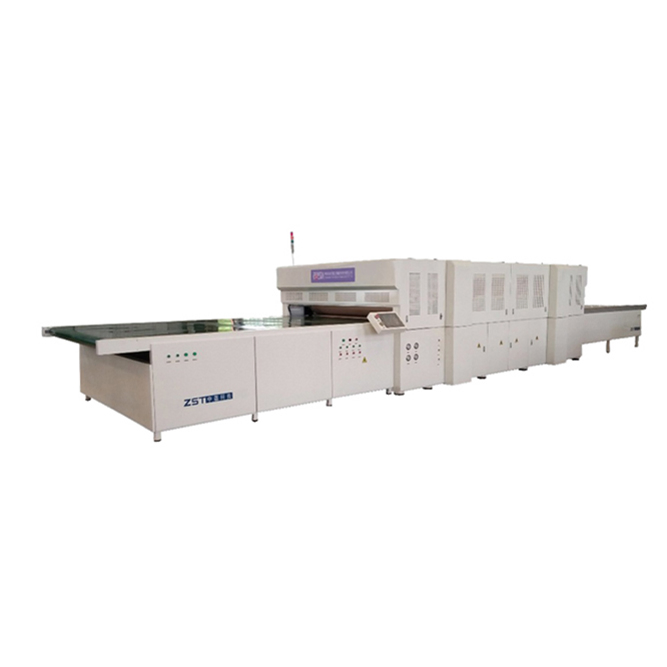

Zst PV Module Production Line Solar Vacuum Laminating Machine
Zst PV Module Production Line Solar Vacuum Laminating Machine
1 / 2
Zst PV Module Production Line Solar Vacuum Laminating Machine
Zst PV Module Production Line Solar Vacuum Laminating Machine

Zst PV Module Production Line Solar Vacuum Laminating Machine

Customization: Available
Production Scope: Parts Production Line
Automation: Automation
Send Inquiry

Product Description

Basic Specifications

Transmission Type
Flexible
Production Line
Comprehensive Automatic
Certification
CE, ISO
Manufacturing
Intelligent Manufacturing
Rhythm
Flow Production Line
Transport Package
Frame Container
Specification
11800*3200*1800mm
HS Code
848640
Production Capacity
100 Set/Sets Per Year

PV Module Production Line Solar Vacuum Laminating Machine

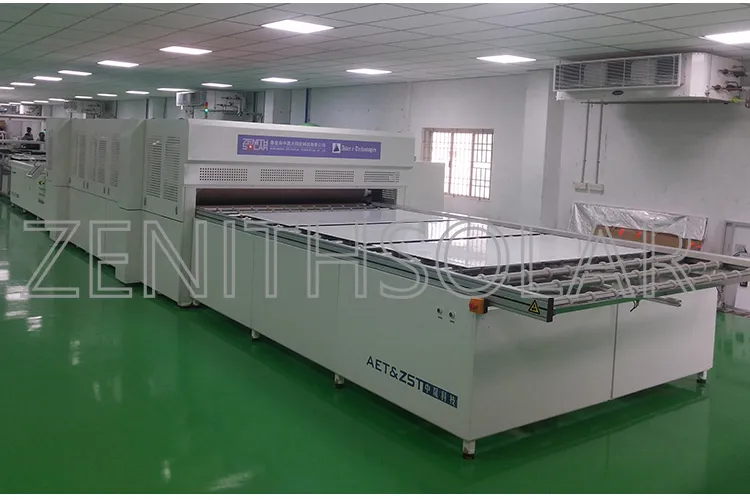

Solar Vacuum Laminating Machine 1

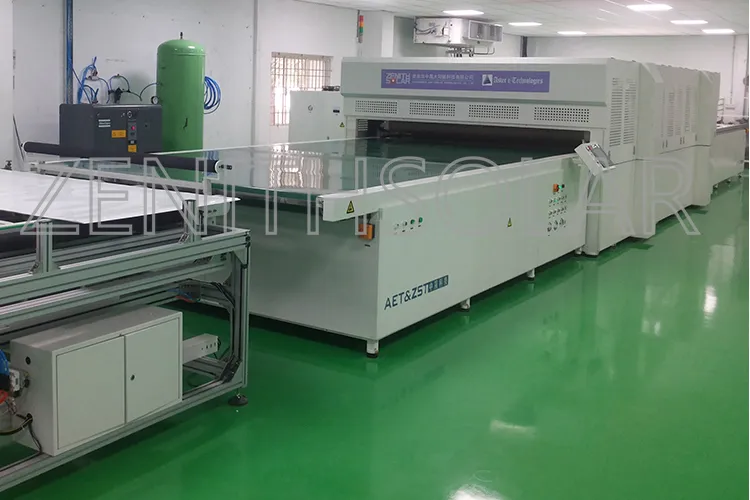

Solar Vacuum Laminating Machine 2

Technical Parameters

Power AC380v/50HZ/3phases/5Lines Capacity 10-30(1-3shift)MW/year
Noise Level <65dB Vacuum Rate 200m³/H
Normal Power 15KW Max. Power 52KW
Max. Temp Setting 180ºC Lamination Area 2200*3600mm
Heating Platform Non-flatness ≤300μm/m² Temp Uniformity ≤±2ºC
Dimension 11800*3200*1800mm Weight 12.8T

Key Characteristics

🔹 Integrated Design

Patented design where the vacuum pump and oil pump are placed inside the laminating machine, significantly saving plant space.

🔹 Lower Noise Operation

Equipped with imported vacuum pumps, reducing operational noise to below 65dB for a more comfortable working environment.

🔹 Smokeless Technology

Unique smokeless pump design eliminates the need for a complex external exhausting system.

🔹 High Energy Efficiency

Advanced engineering provides approximately 30% energy savings compared to standard industry brands.

🔹 Certified Quality

All machinery in the PV production line has fully passed CE certification requirements.

Equipment Gallery

Production Detail 1
Production Detail 2
Production Detail 3
Production Detail 4
Frequently Asked Questions
Q1: What is the annual production capacity of this line?
A: The production line offers a capacity of 10-30 MW per year depending on the number of shifts (1-3 shifts).
Q2: How does the integrated design benefit my facility?
A: The integrated design houses the vacuum and oil pumps inside the machine, which minimizes the footprint and saves valuable floor space in your plant.
Q3: Is the laminating machine energy efficient?
A: Yes, this machine is designed to be highly efficient, saving approximately 30% more energy compared to other standard brands in the market.
Q4: What are the noise levels during operation?
A: Thanks to high-quality imported vacuum pumps, the noise level is kept under 65dB, ensuring a quieter work environment.
Q5: What is the maximum lamination area available?
A: The machine provides a generous lamination area of 2200*3600mm, suitable for various PV module sizes.
Q6: Does the machine require an external smoke exhaust system?
A: No, the unique smokeless design of the pump means you do not need to configure an additional exhausting system.
