What is an off-grid system?

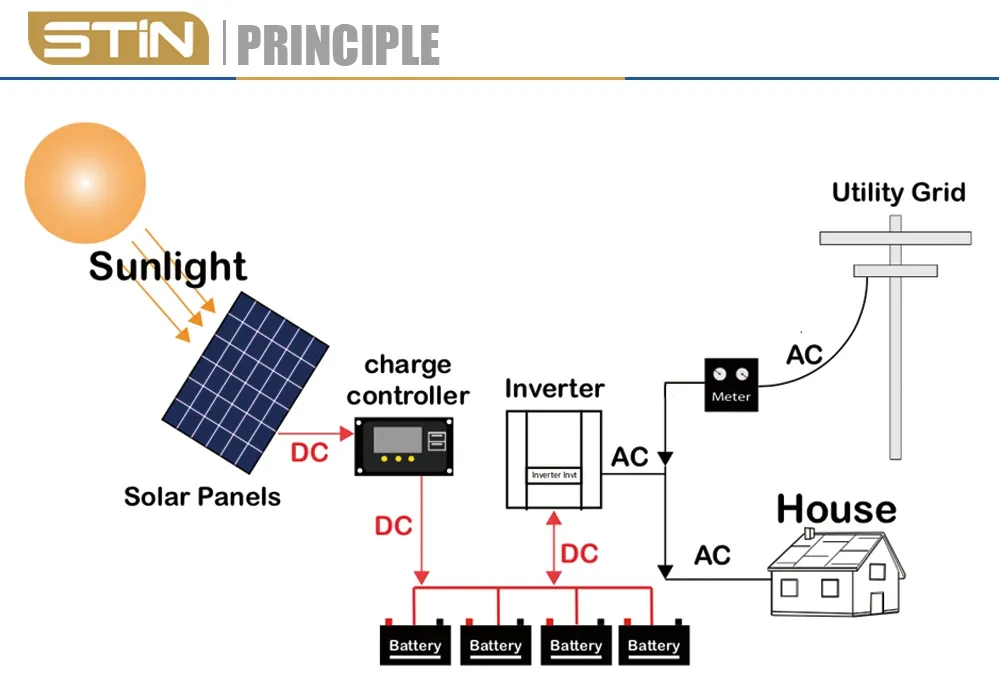

Off-grid solar energy systems are stand-alone solar systems that do not connect with the Utility Grid. They are ideal for remote areas without public power or areas where the power supply is unstable. These systems are suitable for Residential, Commercial, and Industrial applications.

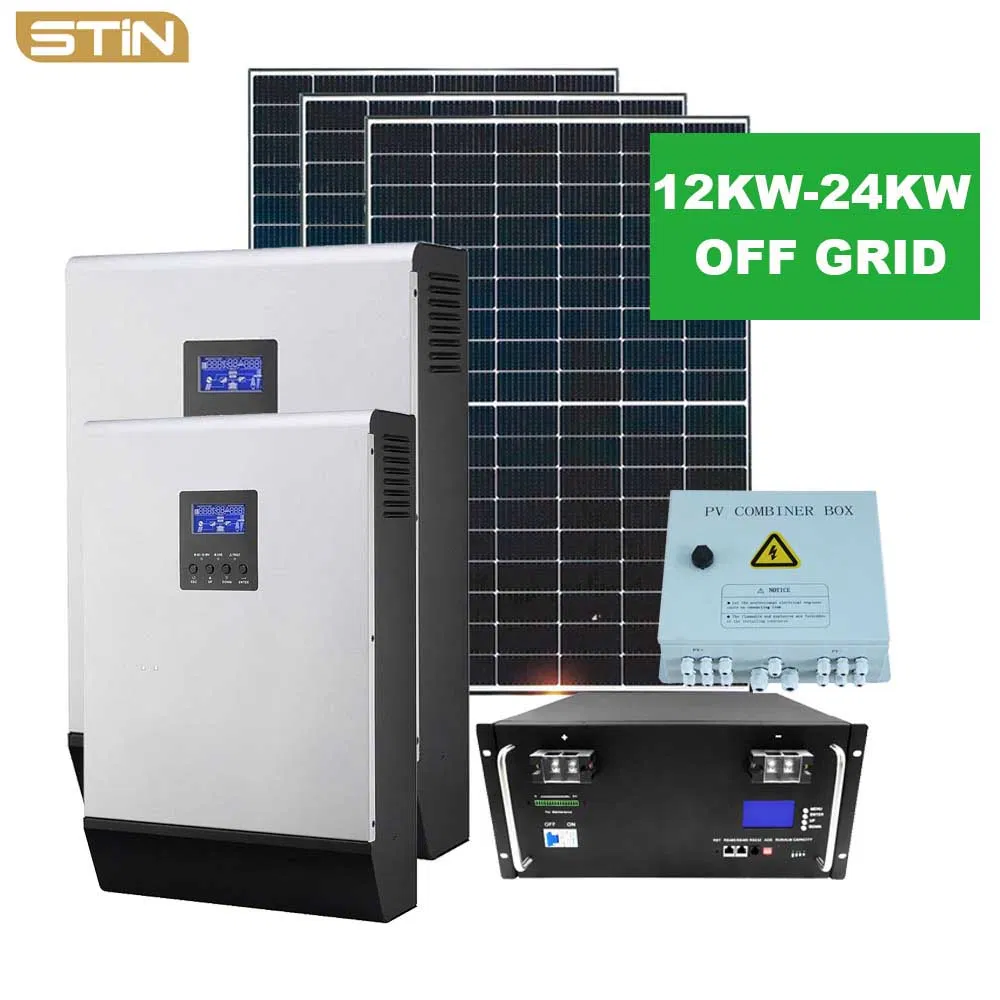

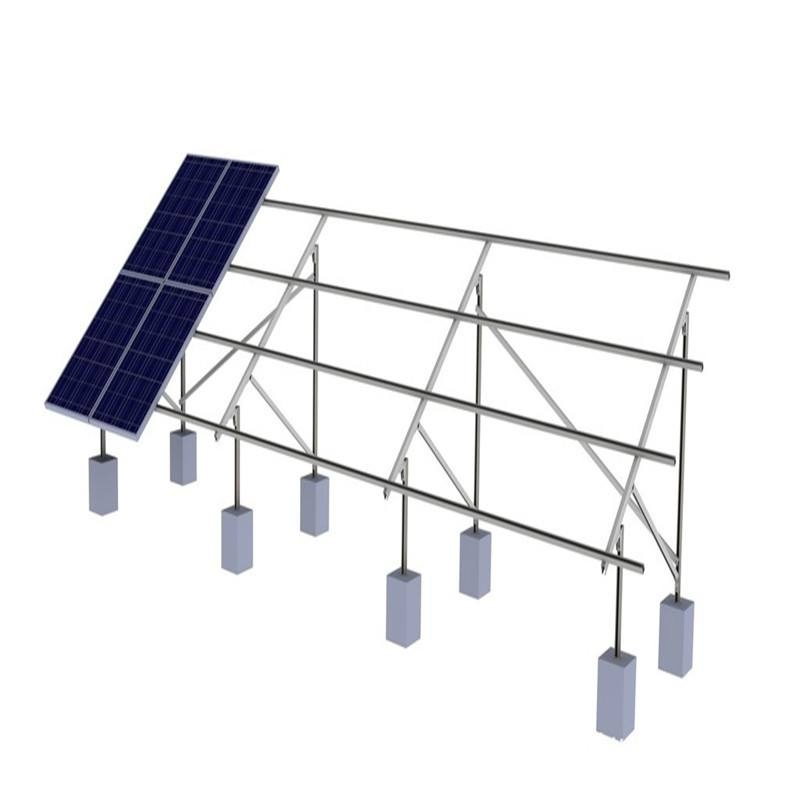

Available configurations: 1kW to 200kW+ customized power systems. Usually composed of solar panels, connectors, inverters, batteries, and mounting structures.
| Item | Part | Specification | Quantity | Remarks |
|---|---|---|---|---|
| 1 | Solar panel | STIN-mono 410W | 27PCS | 12kW System Base |

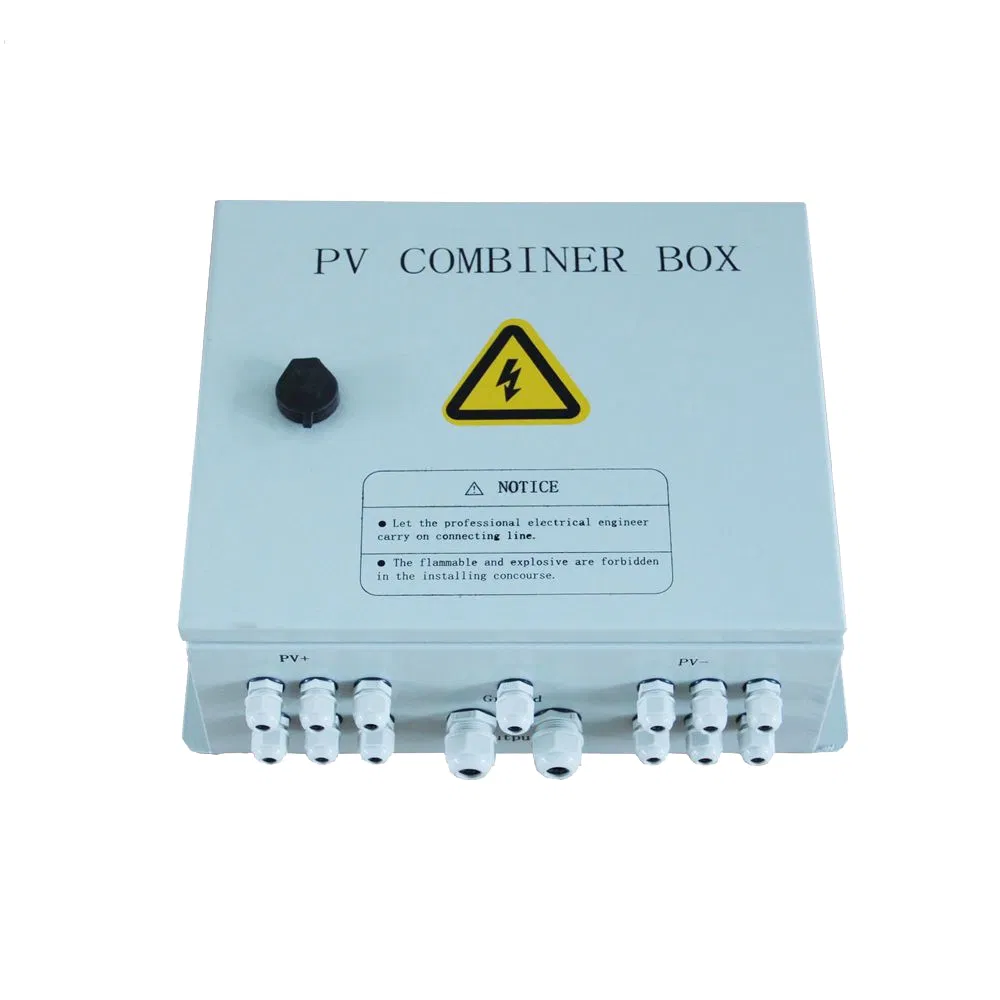

| 2 | PV combiner box | 3 inputs, 1 output | 3SETS | - |

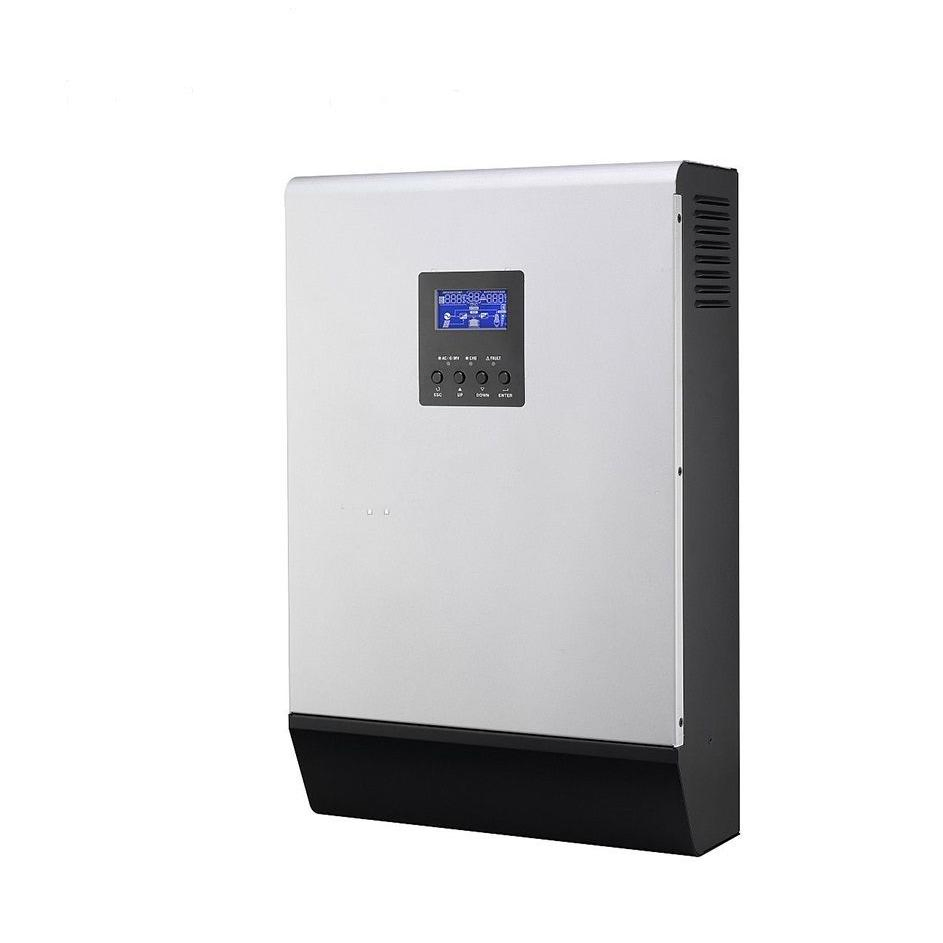

| 3 | Inverter | STIN-4000W | 3pcs parallel | Built-in 60A MPPT |

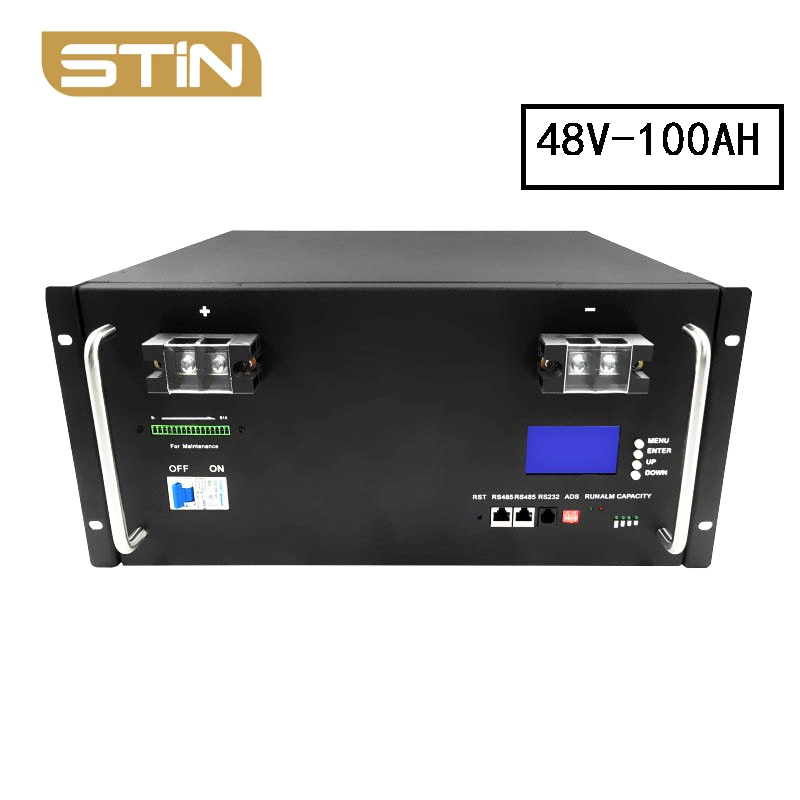

| 4 | LiFePo4 battery | 48V-100AH | 6PCS | Support 9000W load |
| 5 | PV cables | 4mm² | 600M | Red + Black |
| System Capacity Options (STC Conditions) | ||||
|---|---|---|---|---|
| System Type | Panel Qty | Inverter | Battery | Max Load |
| STIN-16000W | 36 PCS | 4pcs parallel | 8 PCS | 16,000W |
| STIN-20000W | 45 PCS | 5pcs parallel | 10 PCS | 20,000W |
| STIN-24000W | 54 PCS | 6pcs parallel | 12 PCS | 24,000W |
Focused on providing total solutions based on clean sustainable solar energy. Our expertise spans product development, production, system integration, and service. We offer a full range of products including solar panels, turn-key completed on-grid/off-grid systems, hybrid inverters, solar air conditioners, and high-performance lithium-ion batteries. We aim to manufacture and deliver the most reliable and cost-effective solar energy solutions globally.
