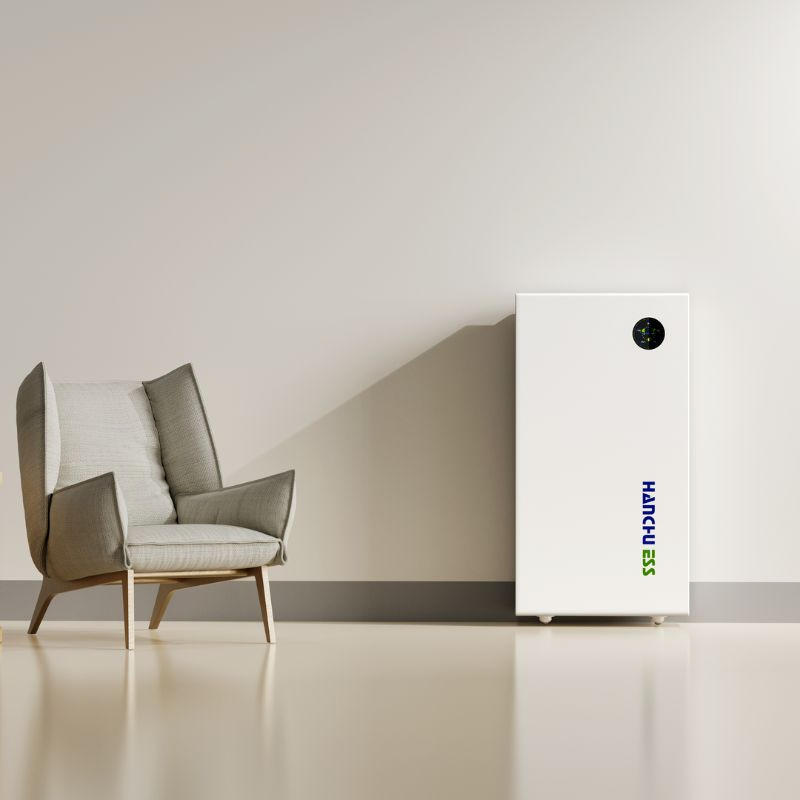

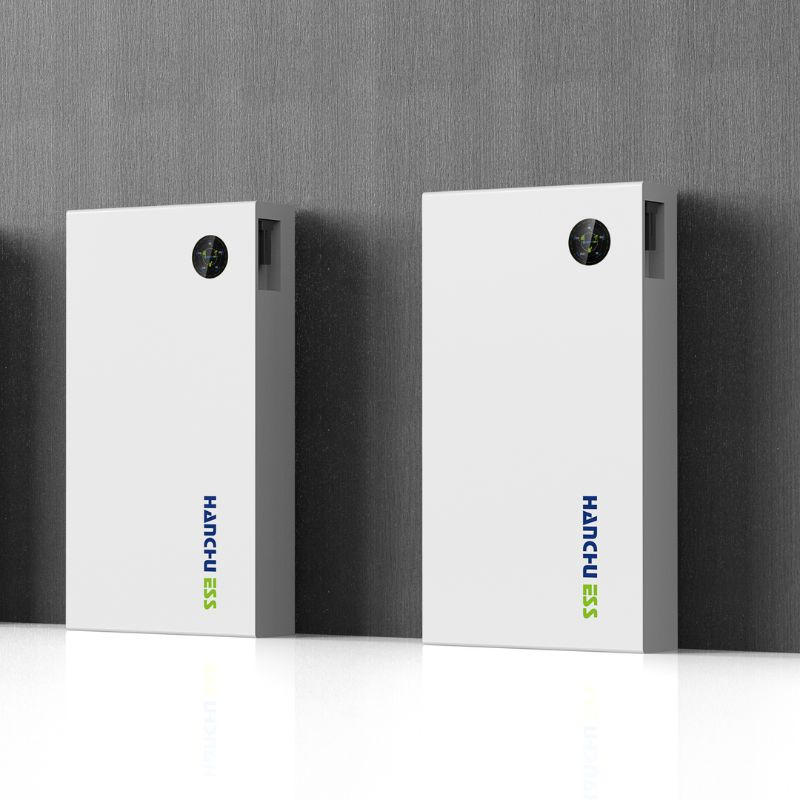

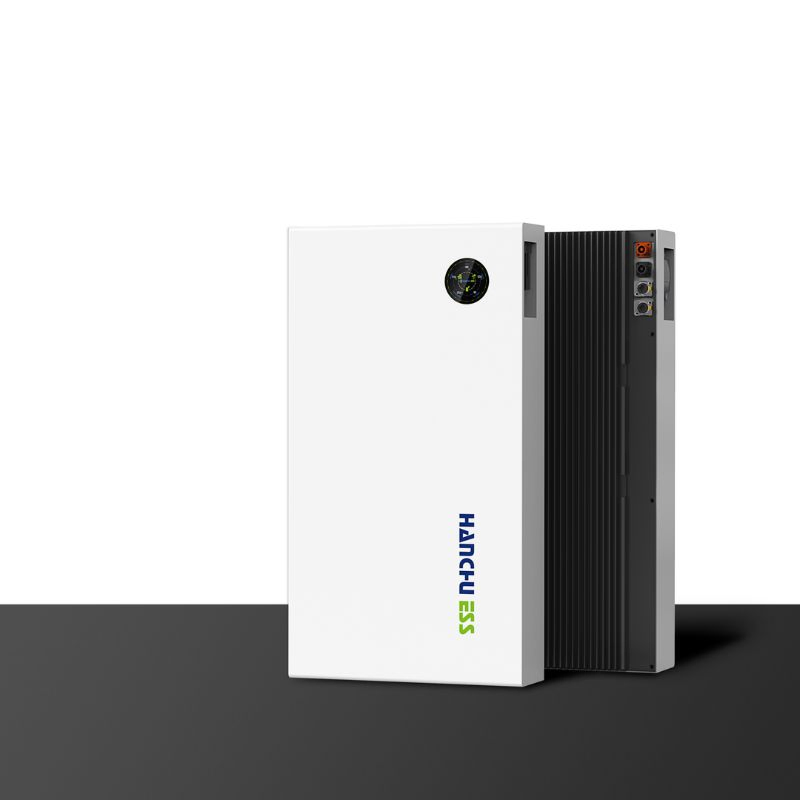

Wall-Mounted Solar Storage Battery for Renewable Energy Use with CE and Bluetooth Monitoring
Wall-Mounted Solar Storage Battery for Renewable Energy Use with CE and Bluetooth Monitoring
Wall-Mounted Solar Storage Battery for Renewable Energy Use with CE and Bluetooth Monitoring
Wall-Mounted Solar Storage Battery for Renewable Energy Use with CE and Bluetooth Monitoring
Wall-Mounted Solar Storage Battery for Renewable Energy Use with CE and Bluetooth Monitoring
1 / 5
Wall-Mounted Solar Storage Battery for Renewable Energy Use with CE and Bluetooth Monitoring
Wall-Mounted Solar Storage Battery for Renewable Energy Use with CE and Bluetooth Monitoring
Wall-Mounted Solar Storage Battery for Renewable Energy Use with CE and Bluetooth Monitoring
Wall-Mounted Solar Storage Battery for Renewable Energy Use with CE and Bluetooth Monitoring
Wall-Mounted Solar Storage Battery for Renewable Energy Use with CE and Bluetooth Monitoring

Wall-Mounted Solar Storage Battery for Renewable Energy Use with CE and Bluetooth Monitoring

Customization: Available
Type: Lithium Metal Battery
Cathode Material: LFP
Send Inquiry

Product Description

📊

Basic Information

Model NO.
HOME-ESS-LV-9.4K
Rechargeable
Yes
Size
Medium
Nominal Voltage
51.2V
Operating Voltage
43.2–57.6V
Dimensions
430 × 150 × 800 mm
Weight
72 Kg
HS Code
8507600090
📝

Product Description

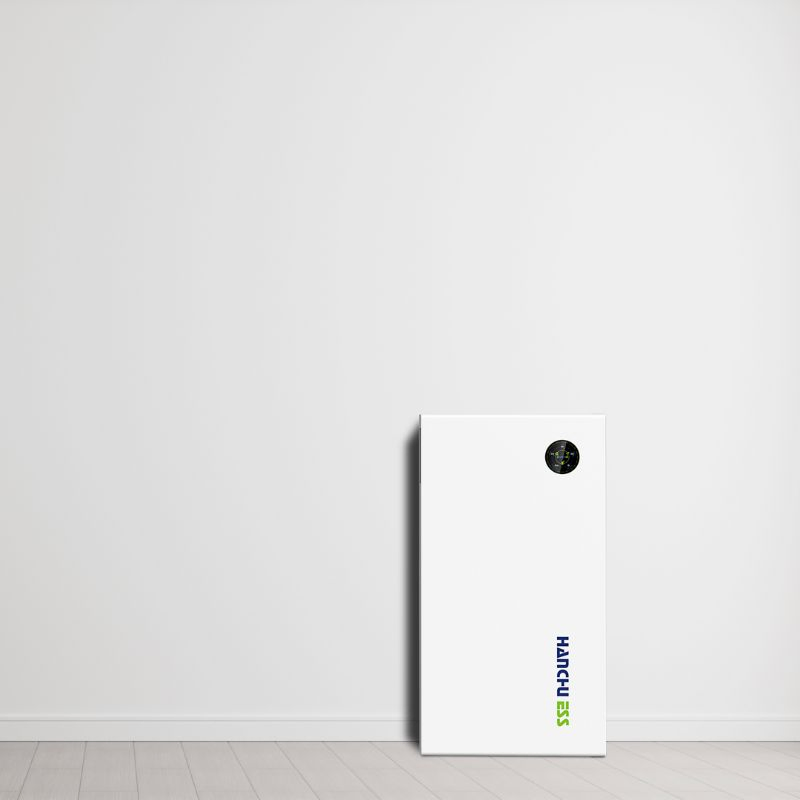

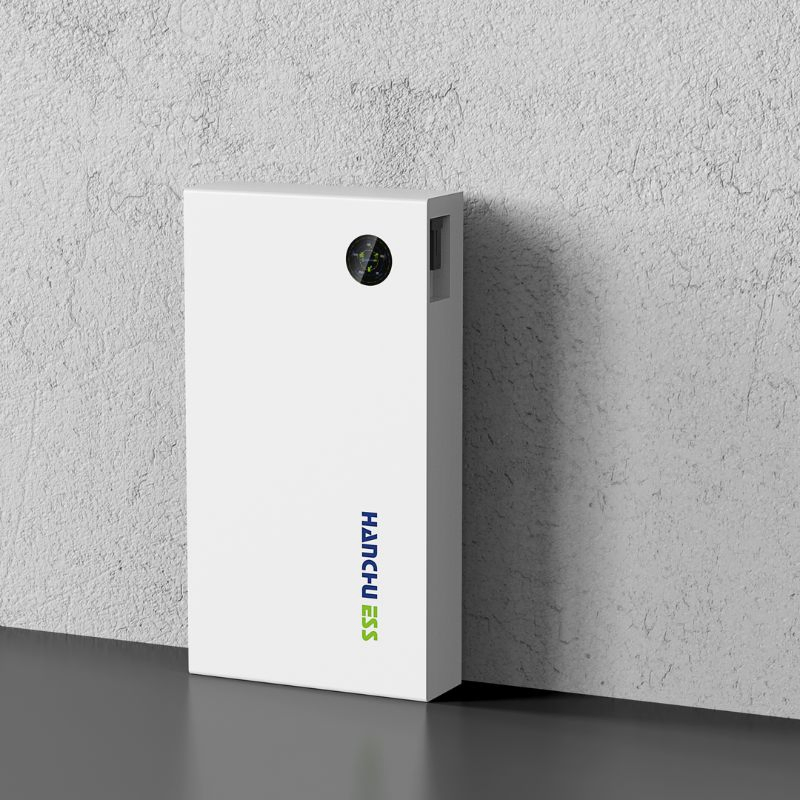

Wall-Mounted Solar Storage Battery
🖼️

Products Display

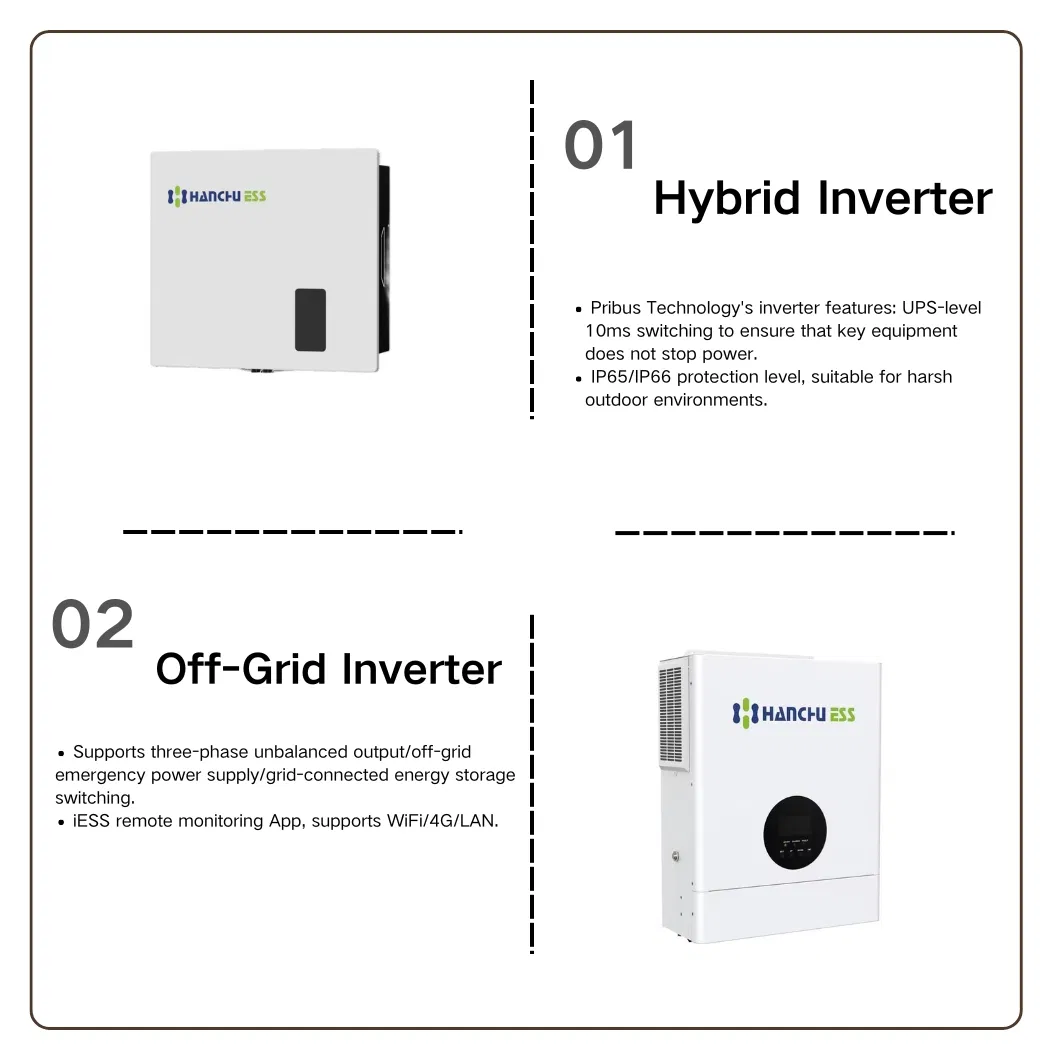

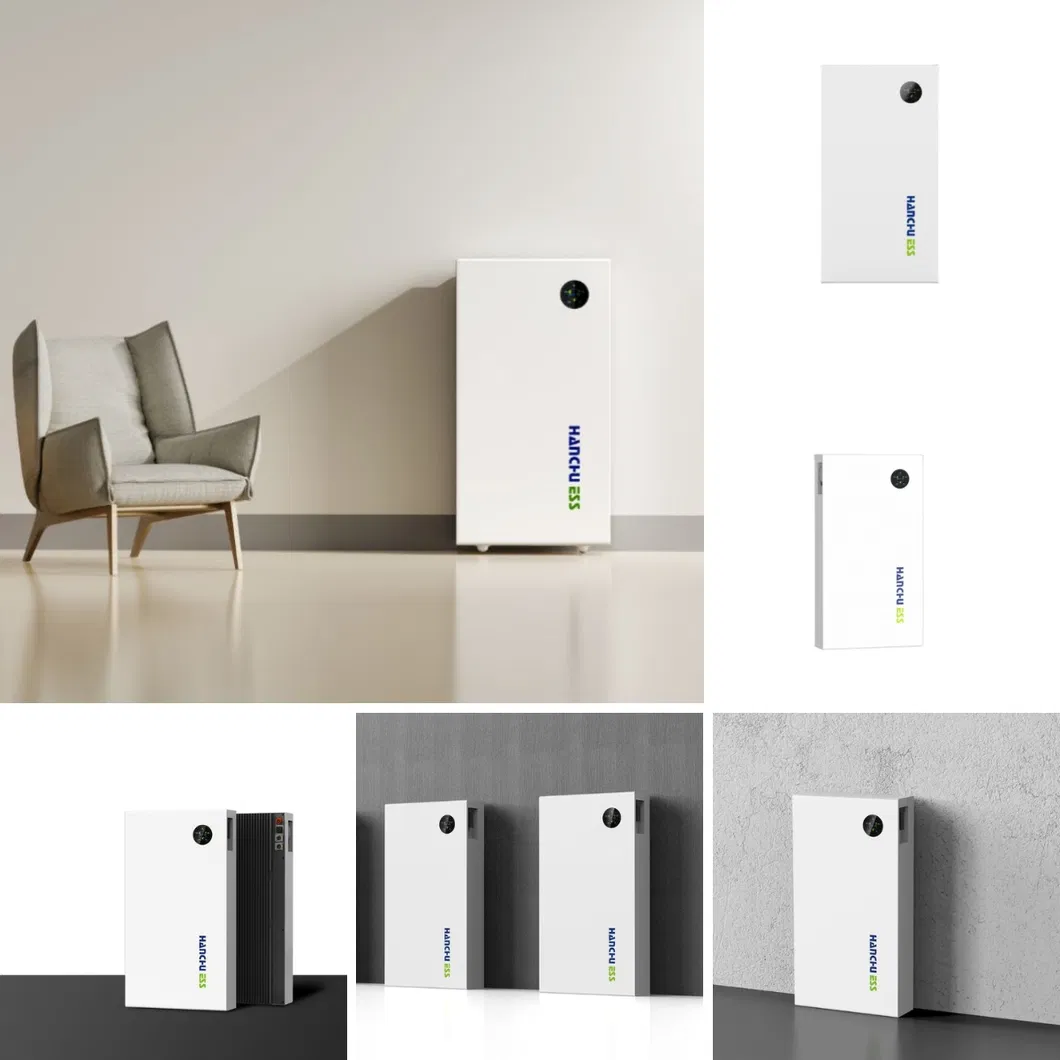

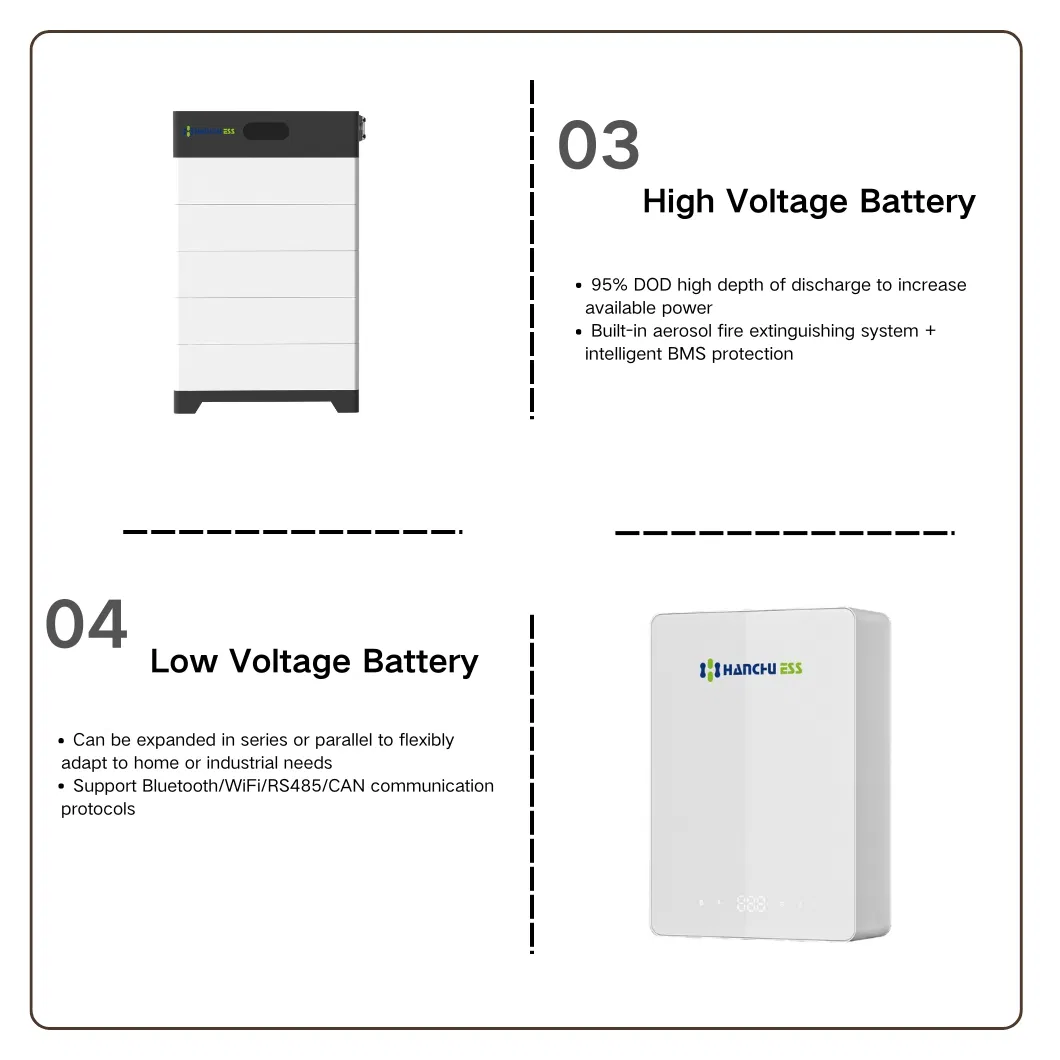

Display 1 Display 2 Display 3
⚙️

Technical Specification

ModelHOME-ESS-LV-9.4K
Nominal Energy9.4 kWh
Nominal Voltage51.2V
Operating Voltage Range43.2-57.6V
Capacity184Ah
Rated Charge Current100A
Rated Discharge Current100A
Depth of Discharge (DOD)95%
Cell TypeBlade LFP
Max. Parallel UnitsUp to 16 units
Communication InterfaceCAN / RS485 / WiFi / Bluetooth
Dimensions (W×D×H)430 × 150 × 800 mm
Weight72 kg
Ingress ProtectionIP65
Cooling TypeNatural convection
Charging Temperature0 ~ 50°C
Discharging Temperature-10 ~ 60°C
Battery Safety CertificationIEC 62619 / IEC 63056 / CE-EMC / CE-RED
Warranty10 Years
Features100A rapid charge/discharge, Smart BMS, Aerosol fire protection, IOT & AI cloud platform
🏢

Factory Overview

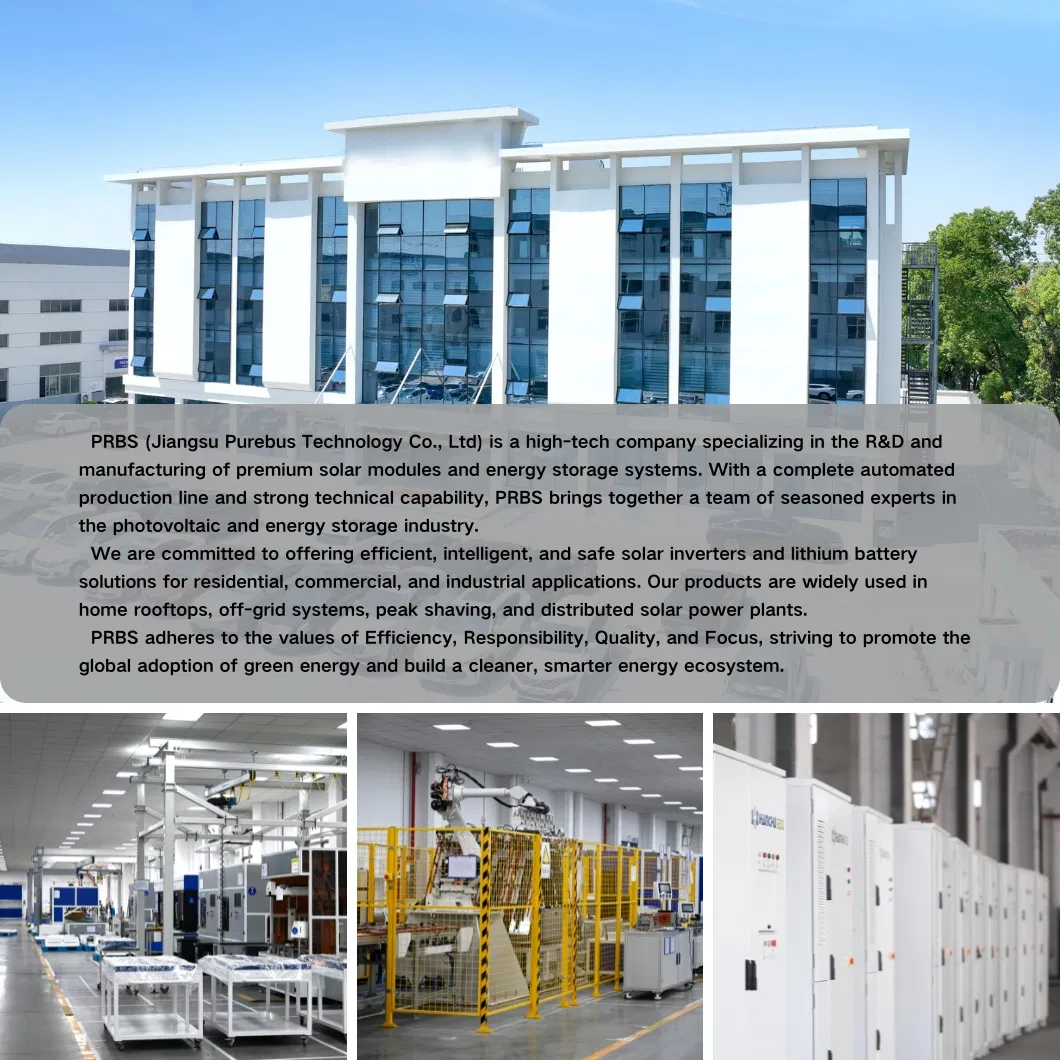

Factory Profile
📜

Certifications

Certifications
📦

Packaging & Shipping

Packaging and Shipping
❓

Frequently Asked Questions

Do these energy systems comply with international electrical and safety standards?
Yes. All systems meet relevant IEC/CE/UN38.3 safety and EMC standards. Components undergo extensive testing for electrical protection, fire safety, and environmental durability.
Can you provide customized configurations for capacity and voltage?
Yes. Custom options include battery capacity (up to 280Ah/module), nominal voltage (LV 51.2V or HV 135-750V), and communication protocols (CAN, RS485, Wi-Fi, Ethernet).
What is the typical lead time for delivery?
Standard products can be shipped within 7-10 working days. For customized models or large quantities, lead time is typically 20-30 days.
Do you support third-party inspections before shipment?
Yes. We welcome third-party inspections from SGS, TUV, or client-assigned agents. Full test reports and compliance certificates are provided.
Are the battery systems compatible with other inverter brands?
Yes. The systems support open protocols (CAN/RS485) and can be integrated with a wide range of inverter brands. Configuration tools are provided for seamless setup.
What is the warranty period for the HOME-ESS-LV-9.4K model?
This model comes with a comprehensive 10-year warranty, ensuring long-term reliability and performance for your energy storage needs.
