Basic Information
Model NO.
FT-08W
Brand
OEM/ODM
Display Type
LED
Transport Package
Cartons
HS Code
9032100000
Capacity
200,000 sets/Month
Product Description

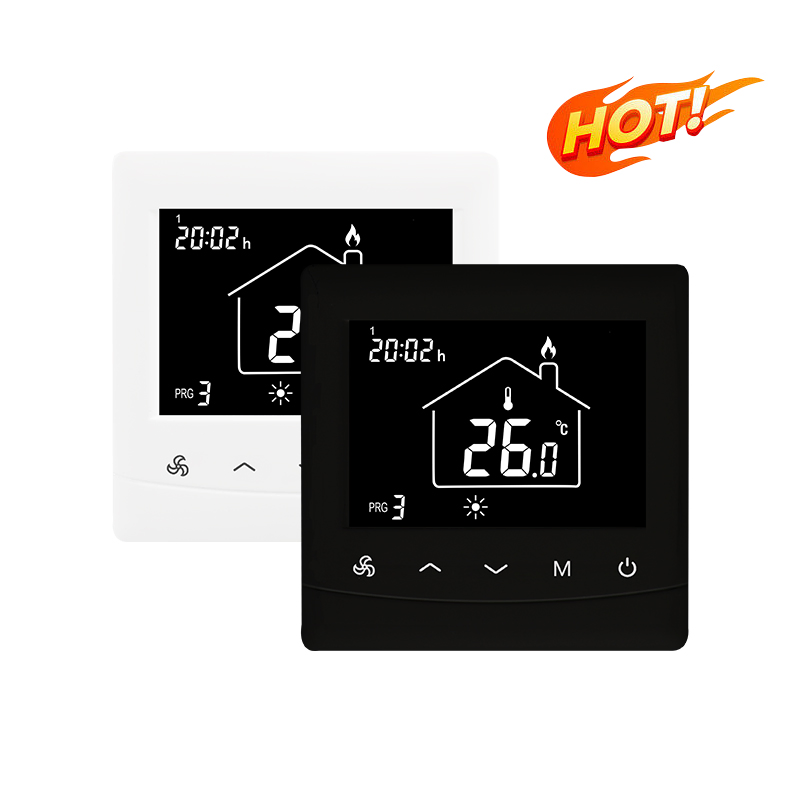

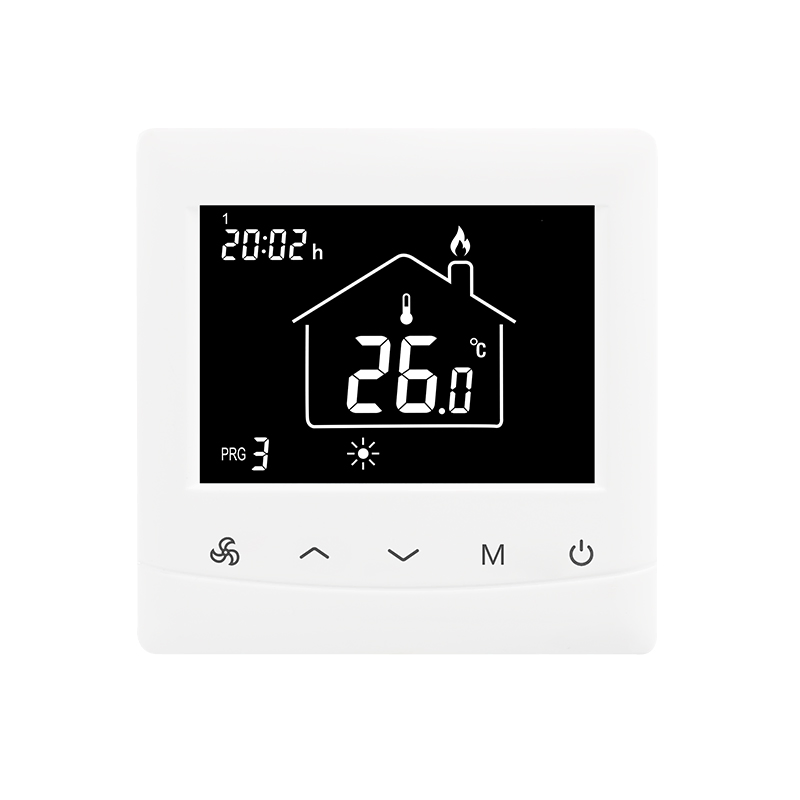

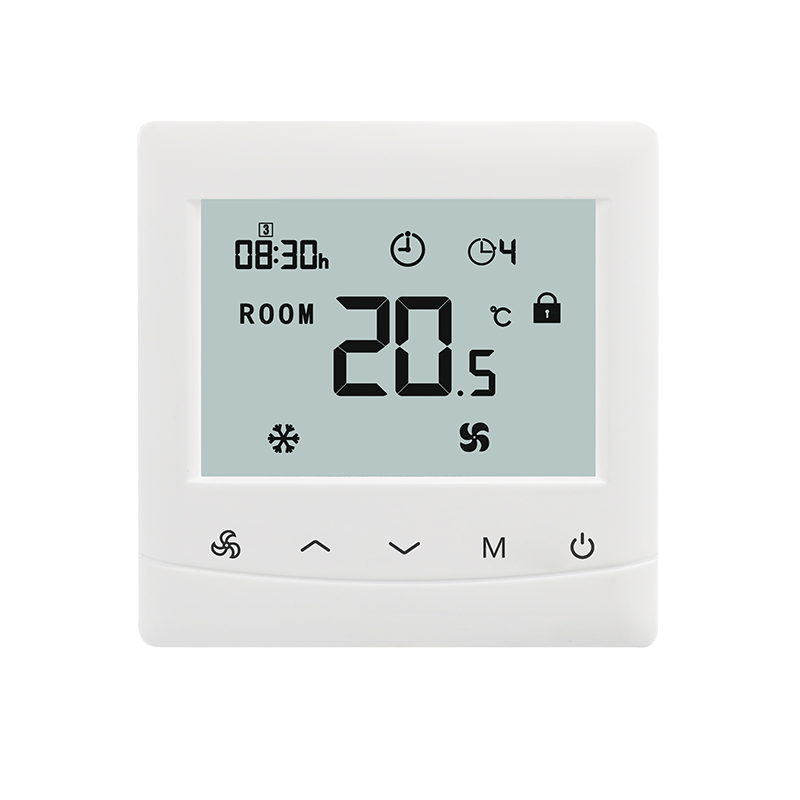

These thermostats are stand-alone microprocessor based thermostats with LCD display. The thermostats are designed to on/off control the fans, valves, dampers or electric heaters in fan coil units and heating applications. Models are available for heating/cooling/ventilating control of 2-pipe or 4-pipe fan coil units.
Technical Features
✓ Digital LCD display room temperature and set point
✓ Cool/Heat/Fan Mode Control
✓ 3-Fan Speeds Select & Auto Fan
✓ 0-10V for valve control/fan speed control (Optional)
✓ 2 pipe or 4 pipe system compatible
✓ Clock & Keycard support (Optional)
✓ External sensor & Modbus/Bacnet (Optional)
✓ WIFI Function (Optional)
Technical Specifications
| Parameter |
Details |
| Power Supply | AC24V or AC85-260V, 50/60Hz |
| Temp. Sensor | NTC 10K |
| Setpoint Range | 5~35ºC (Default) |
| Accuracy | ±0.5ºC / ±1ºC |
| Control Type | ON/OFF control or Modulating |
| Switch Rating | 5A(Resistive), 2A(Inductive) |
| Operating Env. | 0~50ºC, 5~95% RH |
| Housing Material | Fire-retardant PC+ABS |
| Dimensions | 86 x 86 x 16.5mm |
| Protection Class | IP20 / IP30 |
| Communication | WIFI, Modbus, RS485, Bacnet |
| Certificates | CE (RED/EMC/LVD), Rohs |
Frequently Asked Questions
Is the FT-08W thermostat compatible with both 2-pipe and 4-pipe systems?
Yes, this model is designed to support heating, cooling, and ventilating control for both 2-pipe and 4-pipe fan coil unit systems.
Can I control the thermostat remotely via smartphone?
Yes, the FT-08W comes with an optional WIFI function that allows integration with smart home systems for remote management.
What communication protocols does it support?
The device supports various industrial protocols including Modbus RS485 and Bacnet, making it ideal for Building Management Systems (BMS).
What is the temperature control accuracy of this device?
The thermostat provides high precision with an accuracy range between ±0.5ºC and ±1ºC, depending on the specific configuration.
Does the display have a backlight for night use?
Yes, the LCD display features a white backlight, ensuring clear visibility of the room temperature and set point in low-light conditions.
How is the thermostat installed?
It uses an embedded mounting method designed to fit standard 86*86mm junction boxes with a hole pitch of 60mm.
