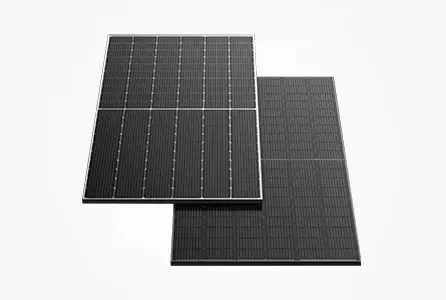

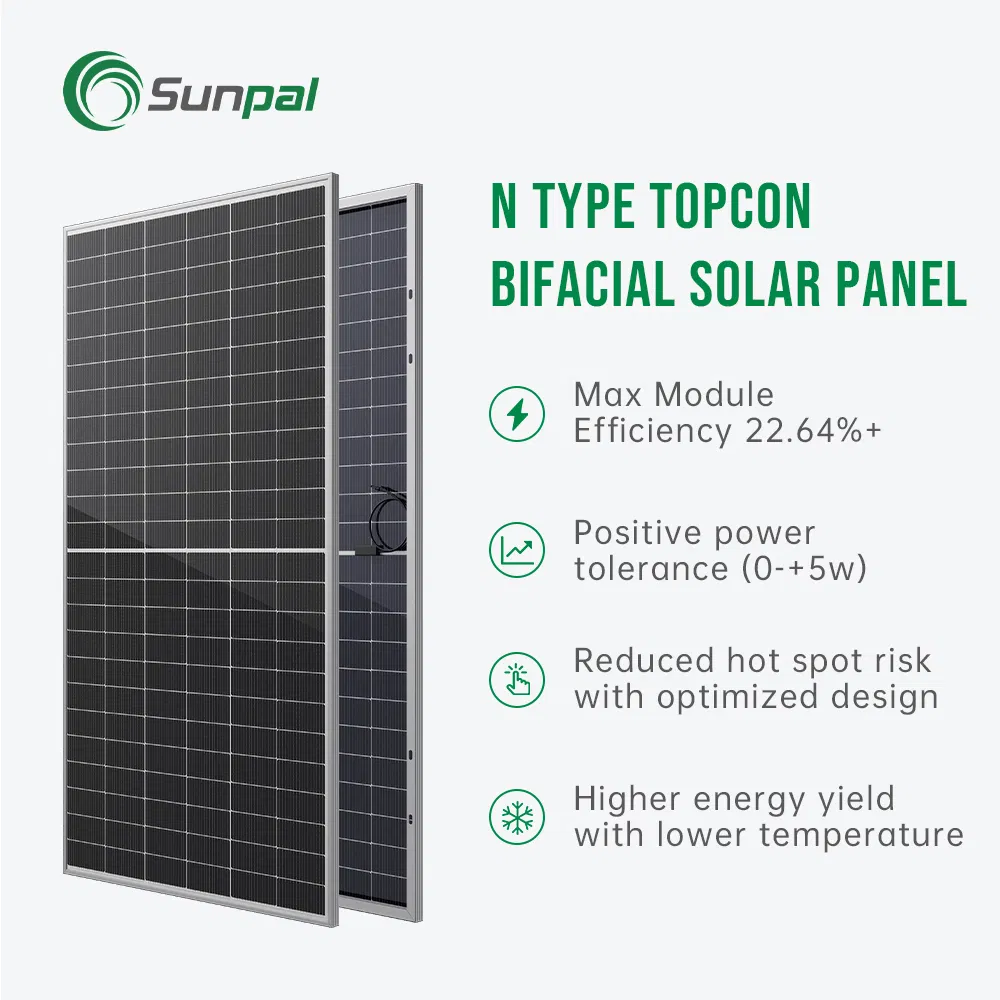

Peak Power: 580W
Maximum Power Voltage: 42.71V
Maximum Power Current: 13.58A
Open Circuit Voltage: 51.79V
Size: 2279*1134*30mm | Weight: 31.5 kg

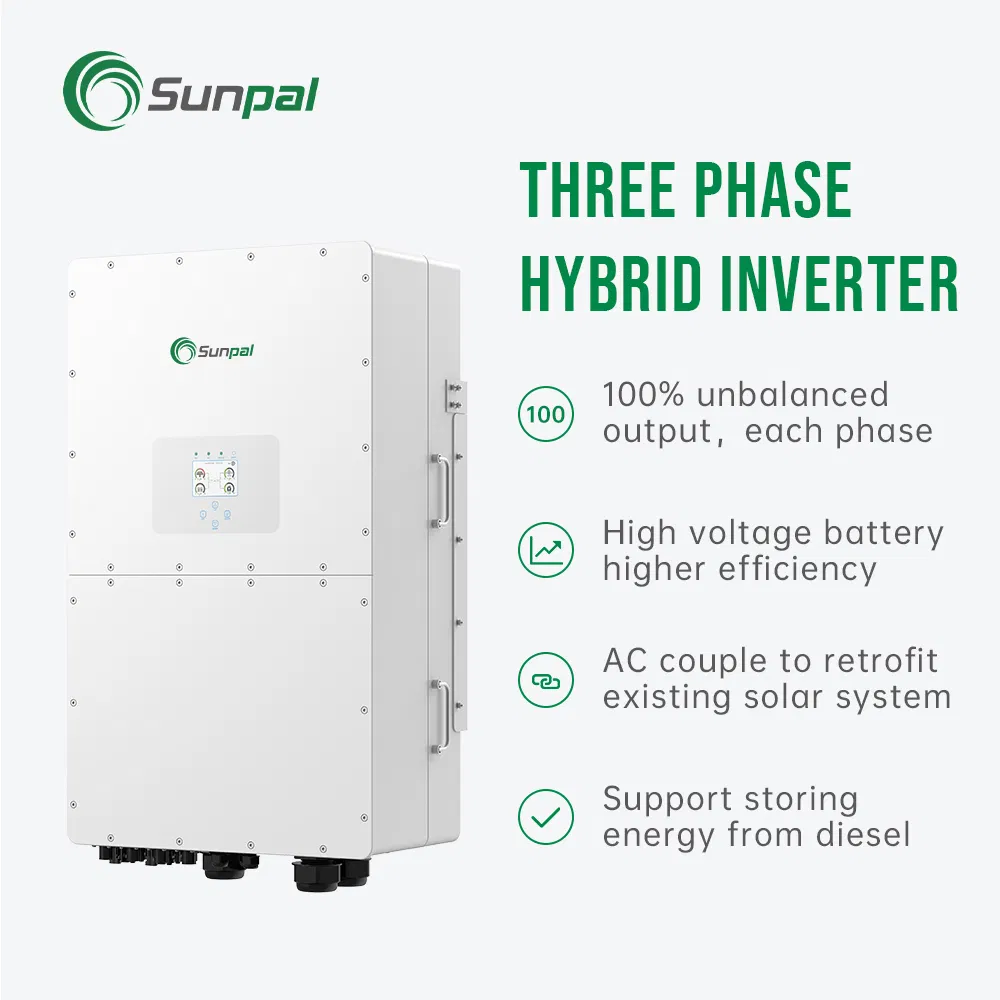

• 100% unbalanced output for each phase.
• AC couple to retrofit existing solar systems.
• Max. charging/discharging current of 100A.

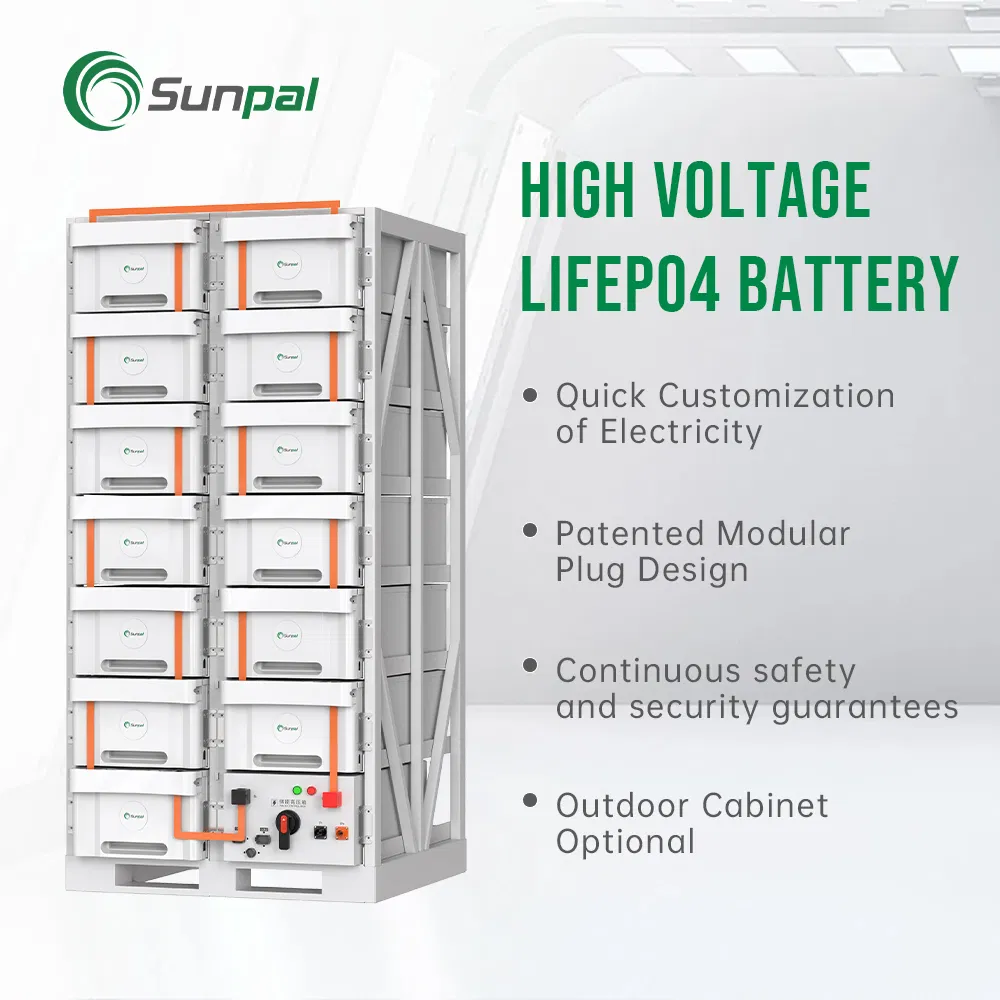

• High voltage battery compatibility for higher efficiency.
• Long cycle life: 6000 cycles.
• Safety-first Smart BMS system.
• Emergency-Backup and Off-Grid functionality.
• Quick customization of storage capacity.
• DC/AC Disconnect: IP66 Rated, 1000VDC.
• Monitoring: One-click installation and registration. Supports full lifecycle data storage for reliability and traceable logs.
| System Parameter | Details | |
|---|---|---|

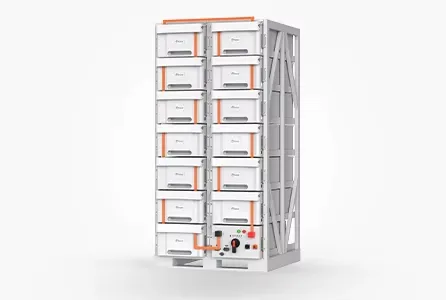

| Battery | Battery Type | Lithium-ion (HV) |
| Capacity/Voltage/Energy | 280Ah / 716.8V / 200.7kWh | |
| Configuration | 14 modules + 1 BPU | |
| Voltage Range | 627.2V - 795.2V | |

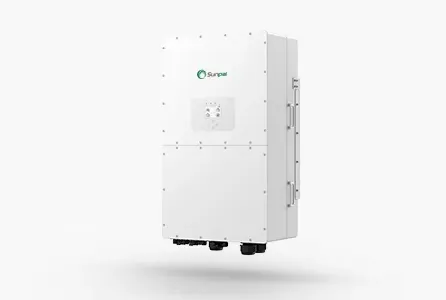

| AC Data | Rated Active Power | 50,000W / 100,000W Options |
| Rated AC Current | 75.8A / 72.5A | |
| Peak Power (Off Grid) | 1.5 times rated power (10s) | |
| Output Frequency/Voltage | 50/60Hz; 230/400Vac, 127/220V, 277/480V | |

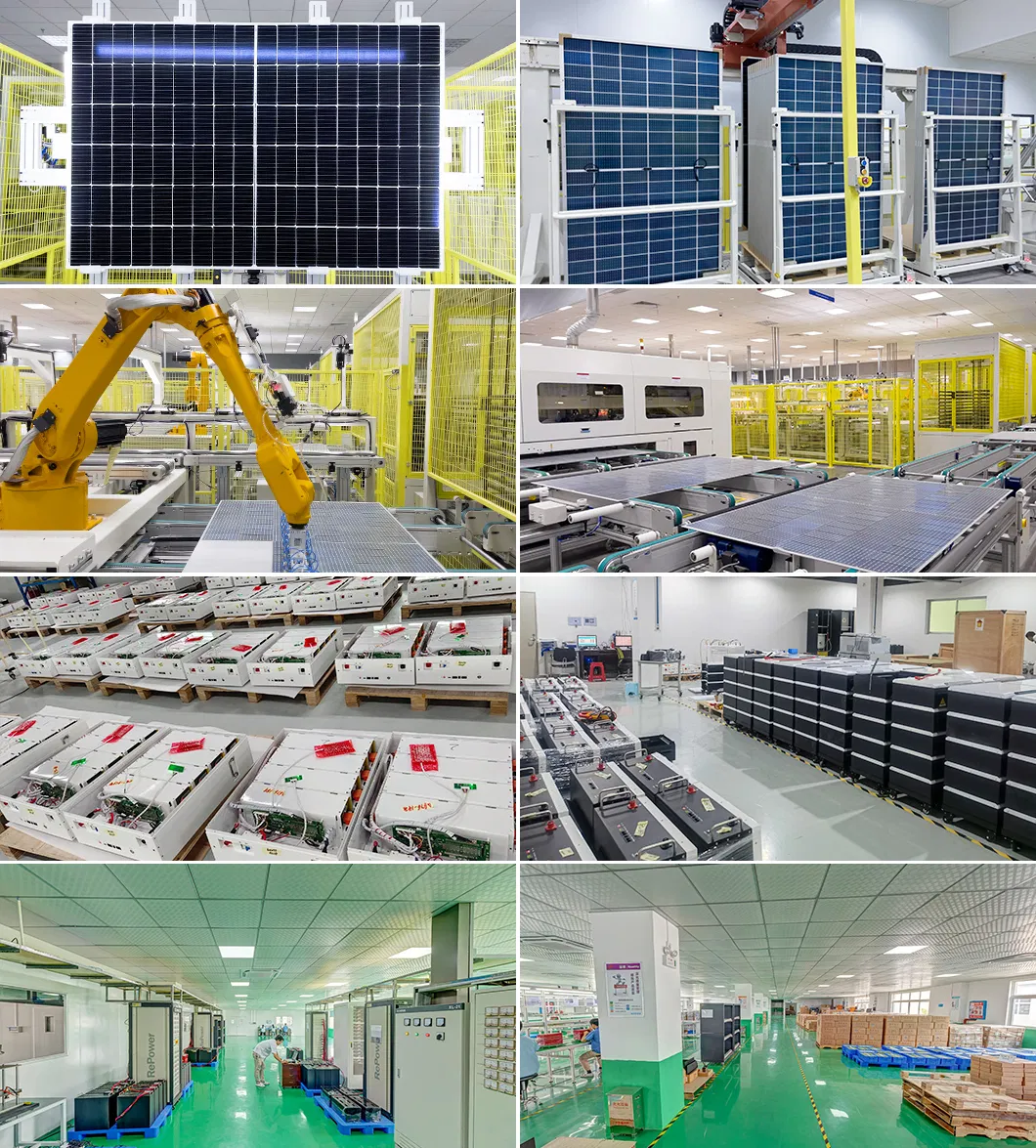

As a world-class solar products manufacturer, we specialize in the research and production of high-efficiency solar PV solutions. With over 10 years of development, the production facility covers 150,000 square meters, utilizing advanced automation and expert engineering to ensure quality for over 86 countries.

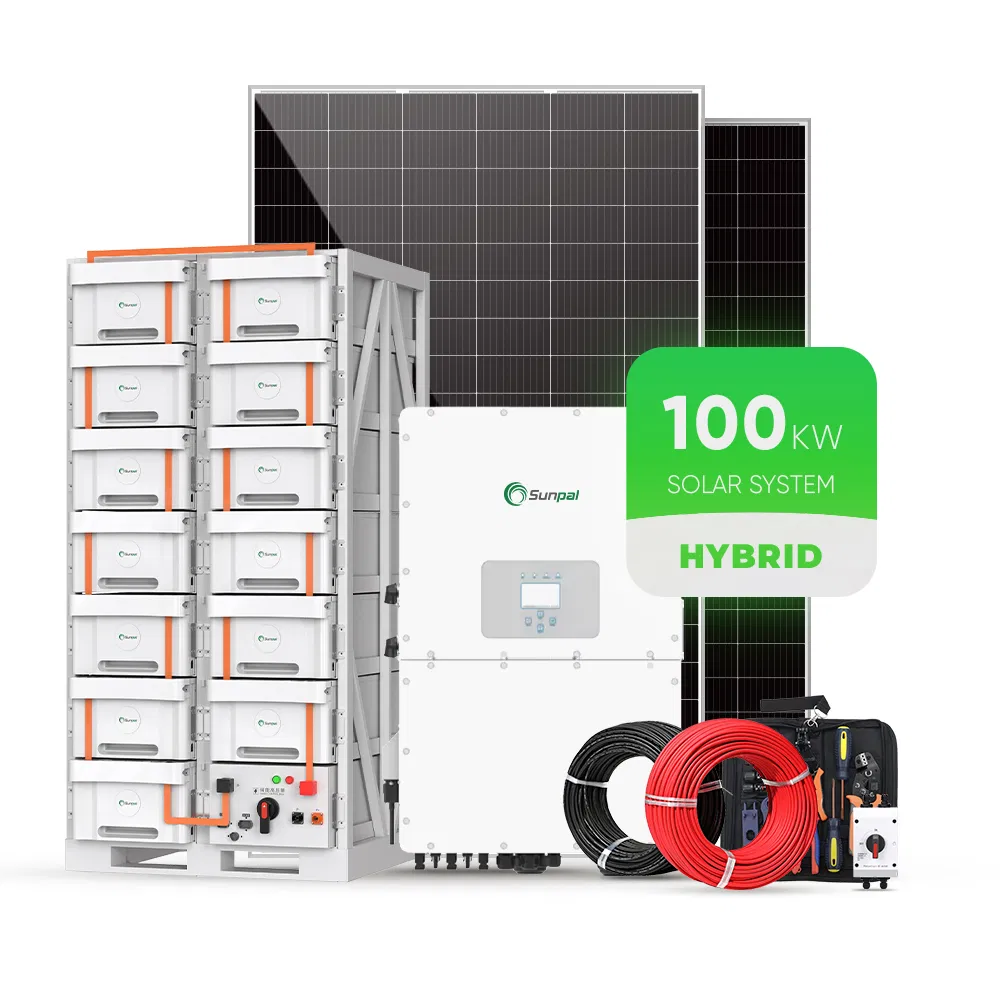

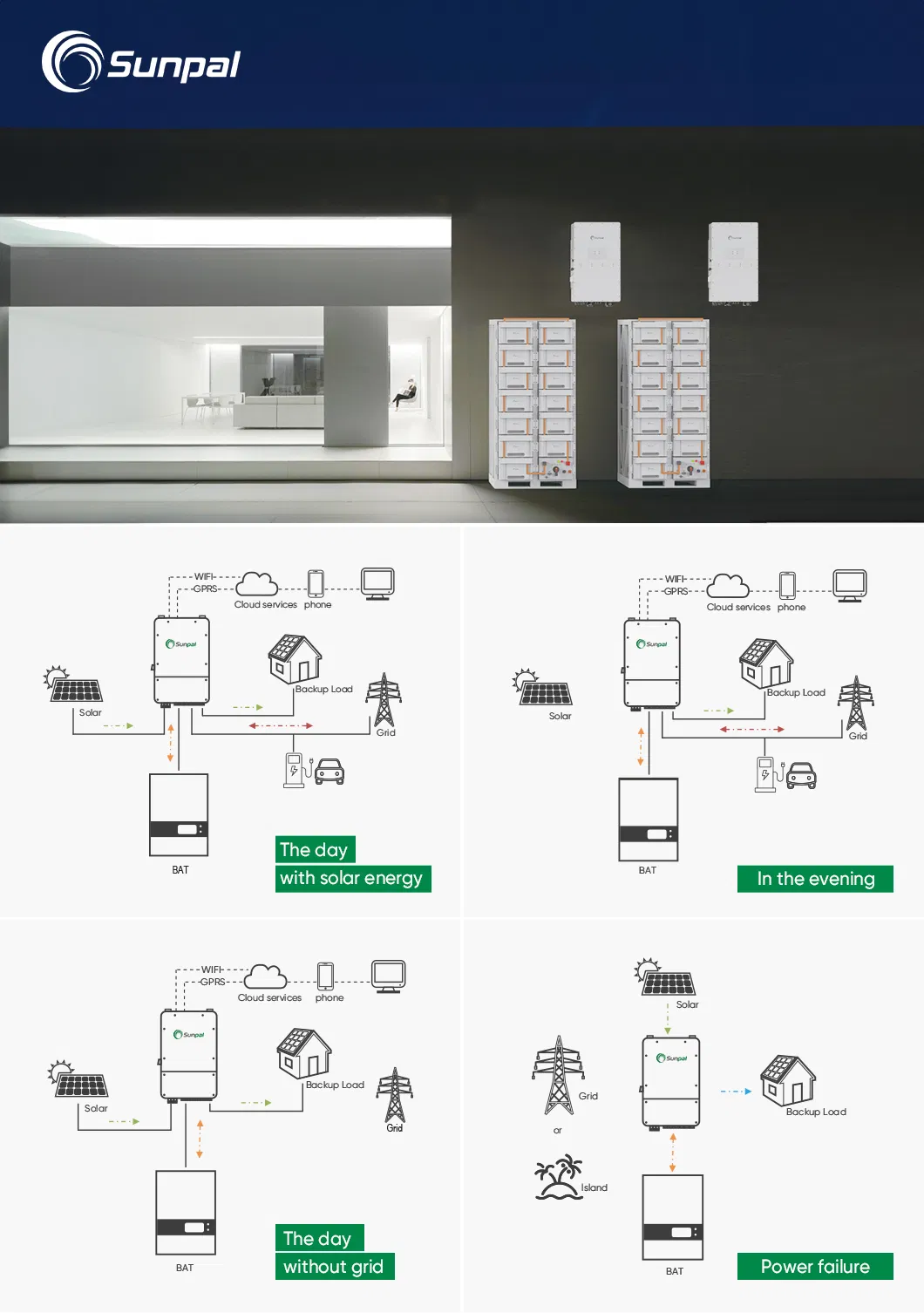

Commercial solar hybrid systems offer Peak Lopping capabilities, allowing load capacity to come from the battery rather than the grid during expensive peak demand periods. This setup also provides Battery Backup during grid outages, ensuring seamless power for essential operations without delay.
