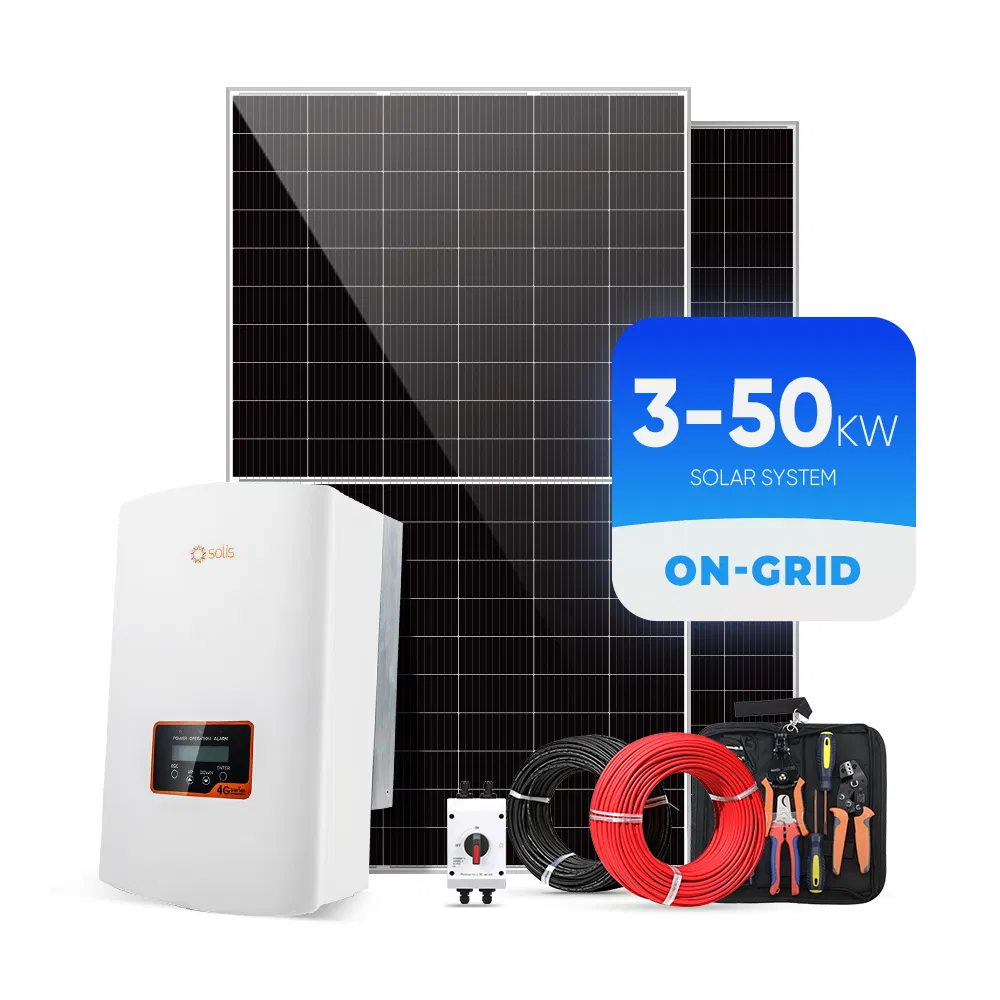

Split Phase 10kw Solar Panel System 110V 220V 10 Kw Solar Power System Growatt

📊 Basic Information

Model NO.

SE-ON

Condition

New

Certification

ISO, CB, CE, TUV

Application

Home

Specification

Normal, 3-50KW

Solar Panel

Monocrystalline 400-700W

Solar Inverter

On Grid 3-50kw

Monitoring

APP Available for PC and Phone

PV Mounting

Customized

Capacity

5000 Set/Week

🔍 Product Description

Warranty Information

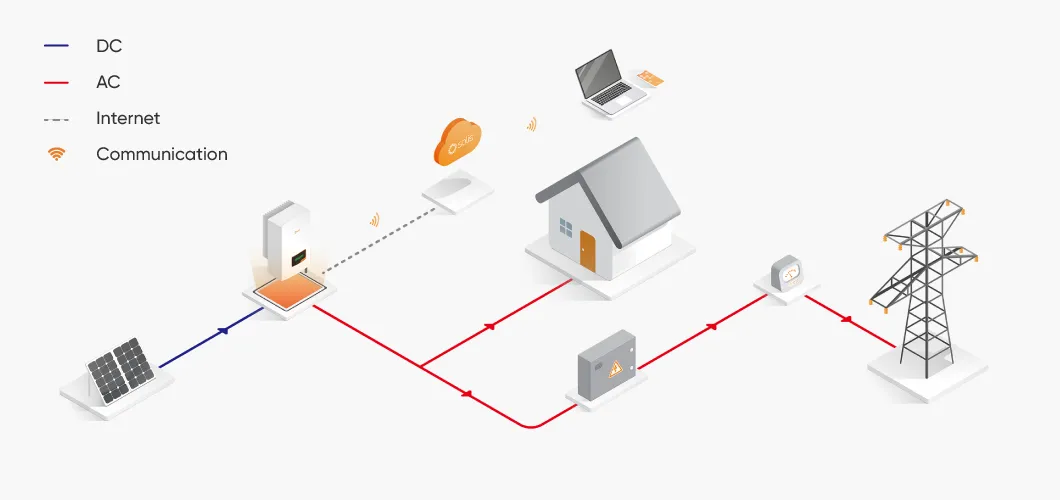

How it works

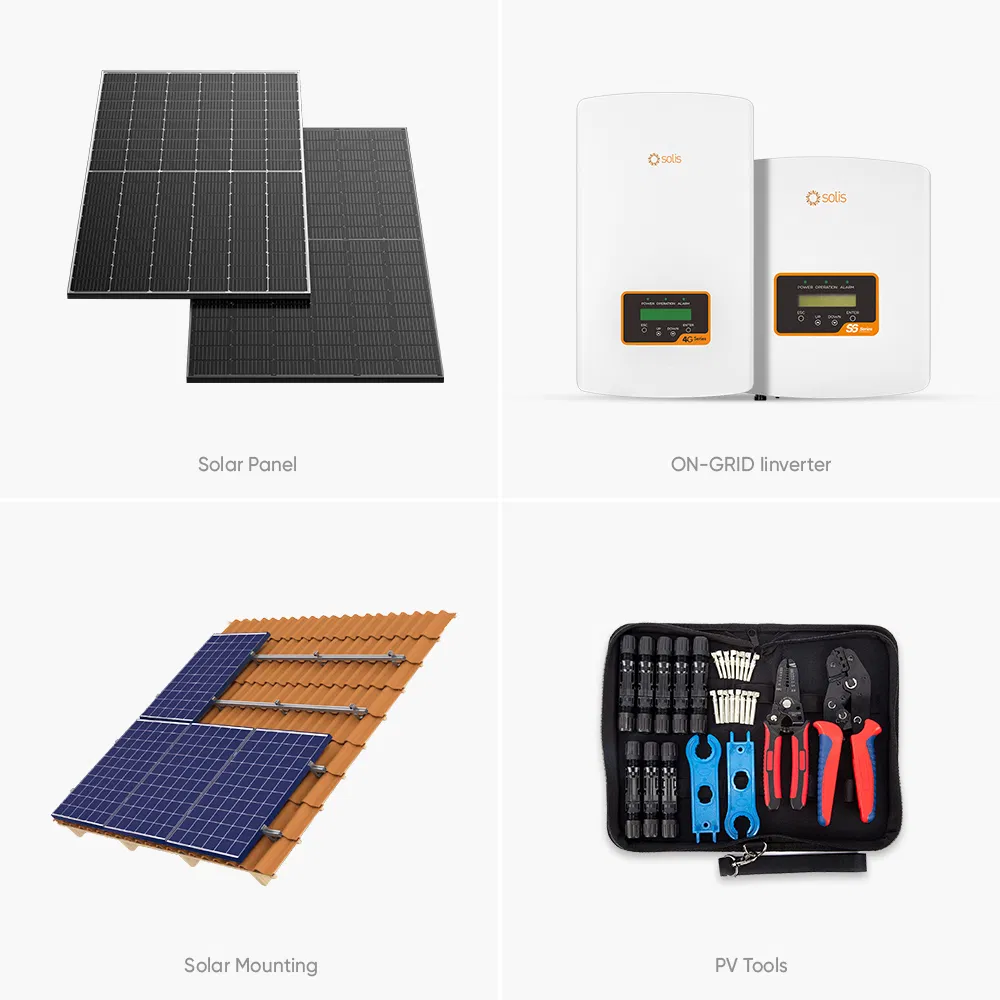

📋 System Specifications

Component	SE-3KW-ON	SE-5KW-ON	SE-10KW-ON
550W Solar Panel	6 Pieces	10 Pieces	21 Pieces
On Grid Inverter	S6-GR1P3K	S6-GR1P5K	Solis-1P10K-4G
DC Disconnect Switch	1 Piece	2 Pieces	3 Pieces
DC Cable 4mm2	100 meter	200 meter	400 meter
MC4 Connector	10 Pairs	10 Pairs	10 Pairs

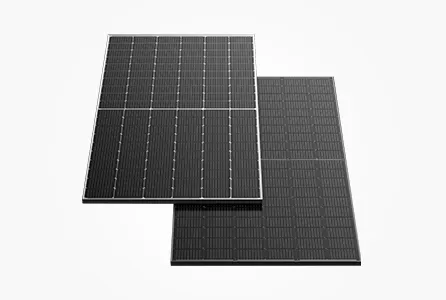

Half Cut Mono 550W Solar Panel

Peak Power Watts: 550W
Maximum Power Voltage: 42.06V
Maximum Power Current: 12.84A
Dimensions: 2279x1134x35mm
Weight: 26.9 kg

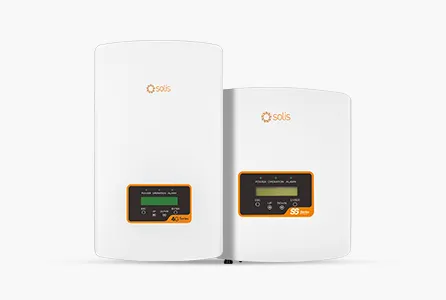

On Grid Solar Inverter

Max. efficiency 98.7%.
Wide voltage range and low startup voltage.
THDi < 1.5%, low harmonic distortion.
Integrated Export Power Manager (EPM).
2 MPPT design algorithm.

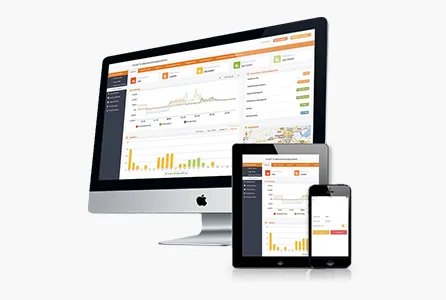

Monitoring System

Smart I-V curve scan and health reports.
String-level fault finding.
Compatible with residential and commercial plants.
Seamless connection with multiple device types.

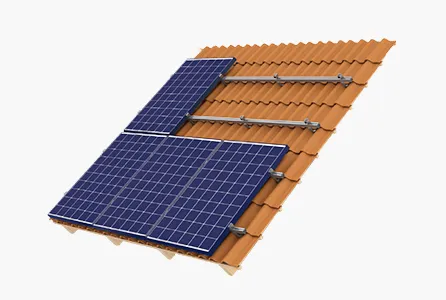

PV Mounting System

Mounting Rail & Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35-50mm.
L Foot Asphalt Shingle Mount Optional.
Cable Clip & Grounding Lugs Optional.

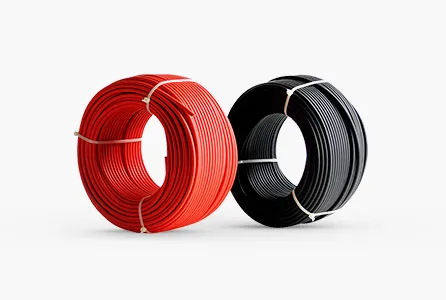

DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 Optional.
Rated Voltage: 1000VDC(TUV).
Rated Current: 55A, 70A.
Designed Lifetime: ≤25 Years.

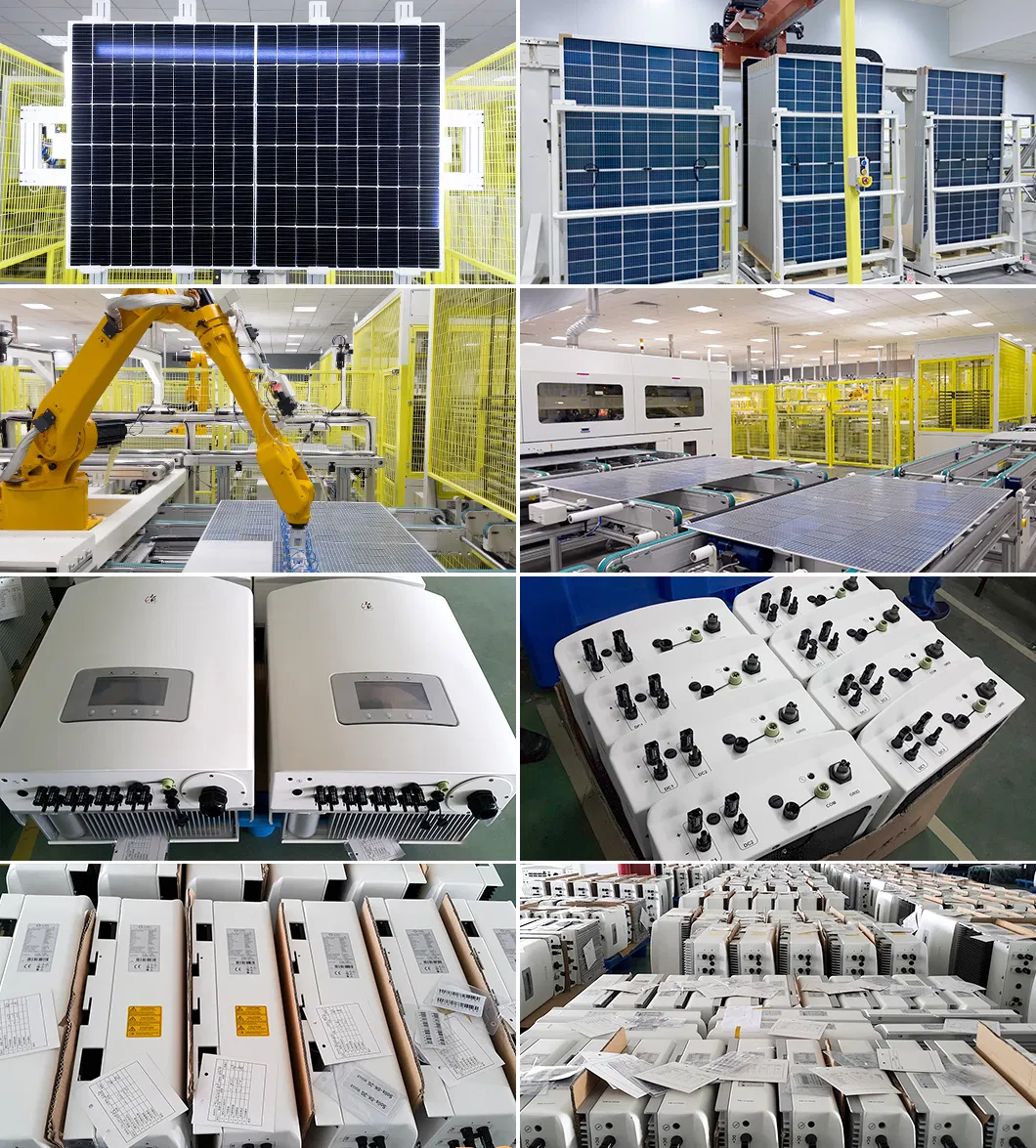

📦 Packaging & Shipping

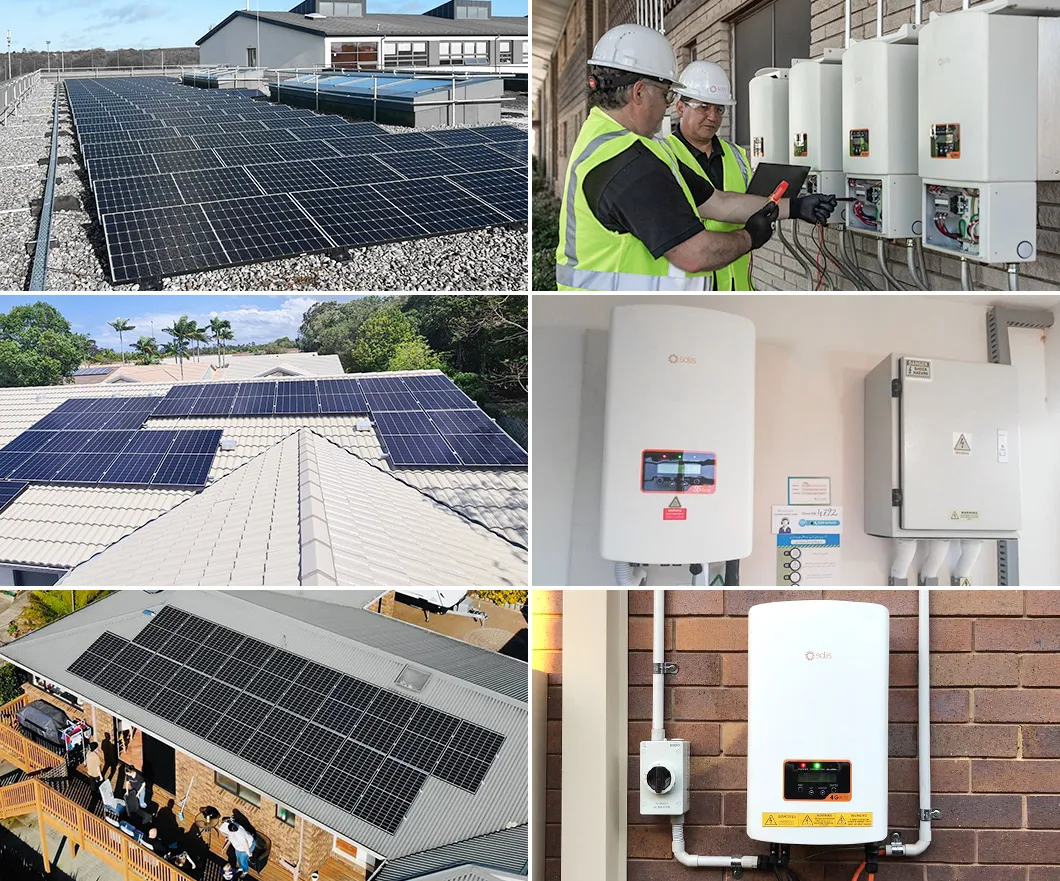

🏠 Application

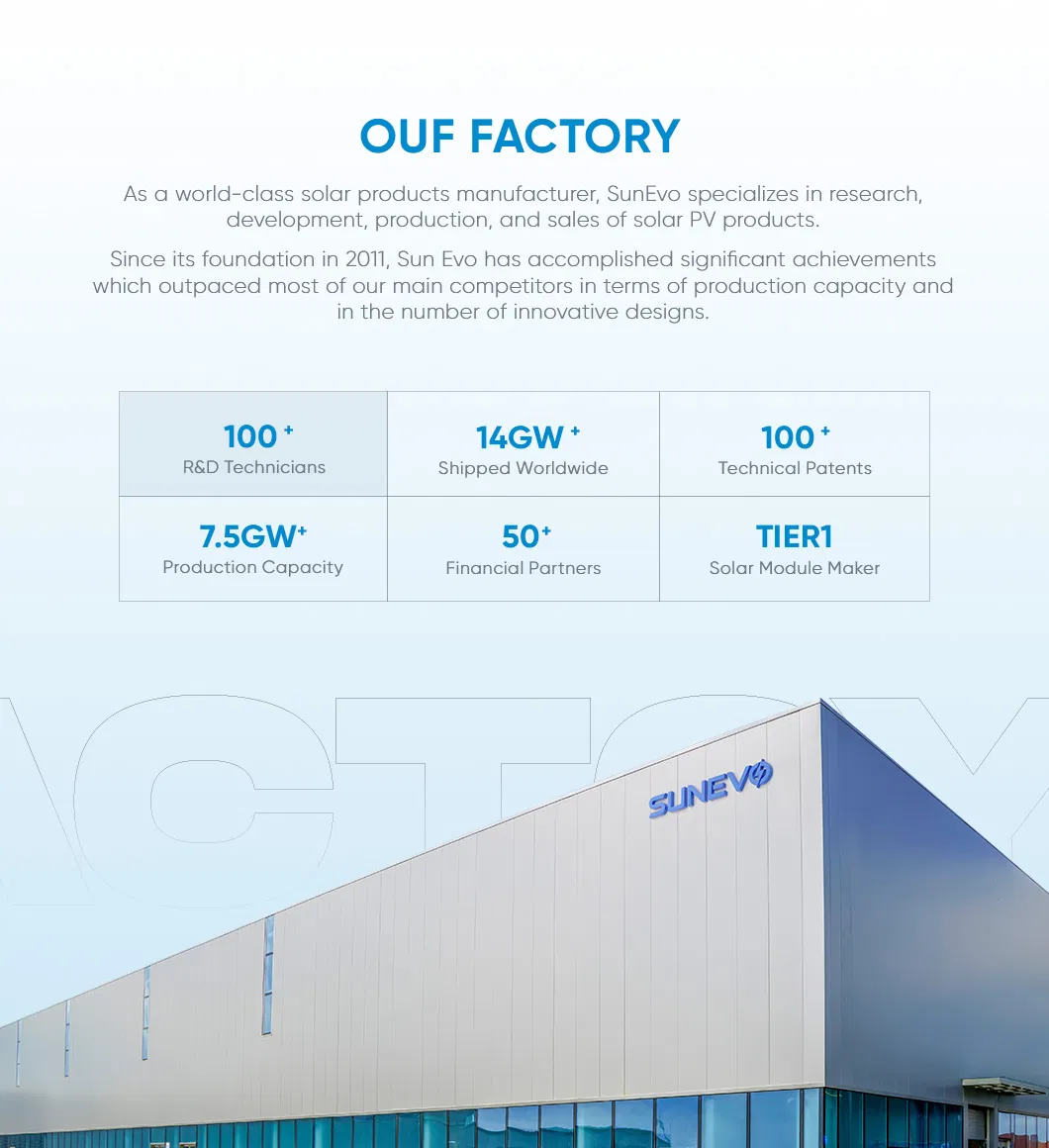

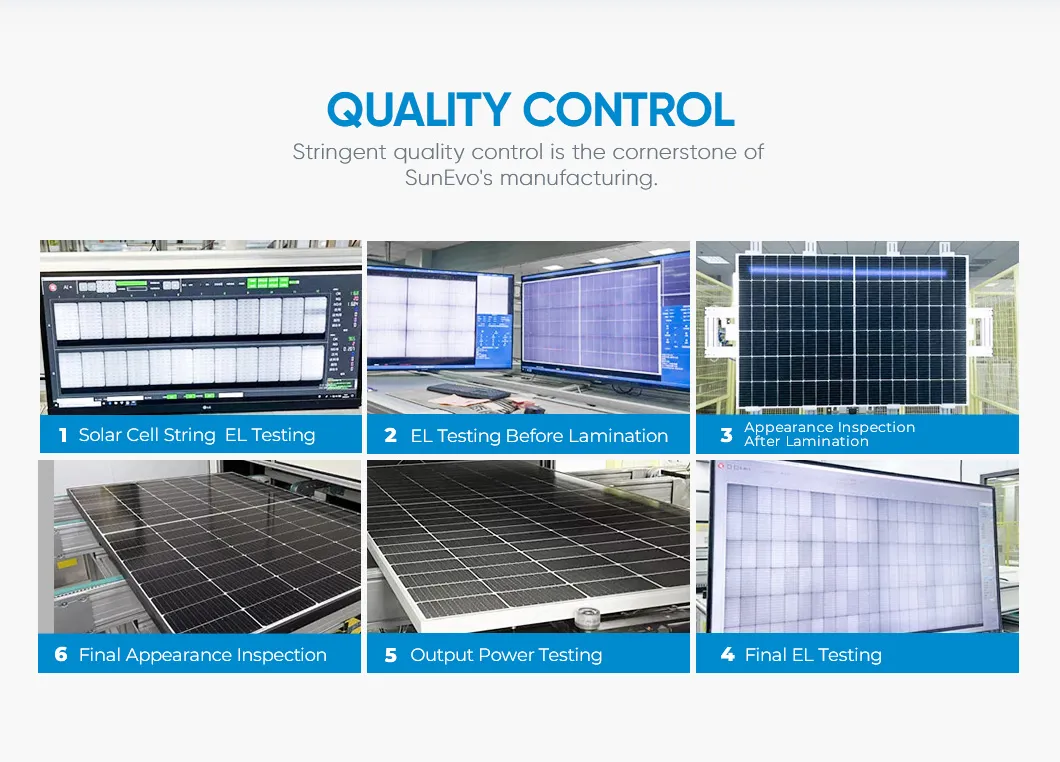

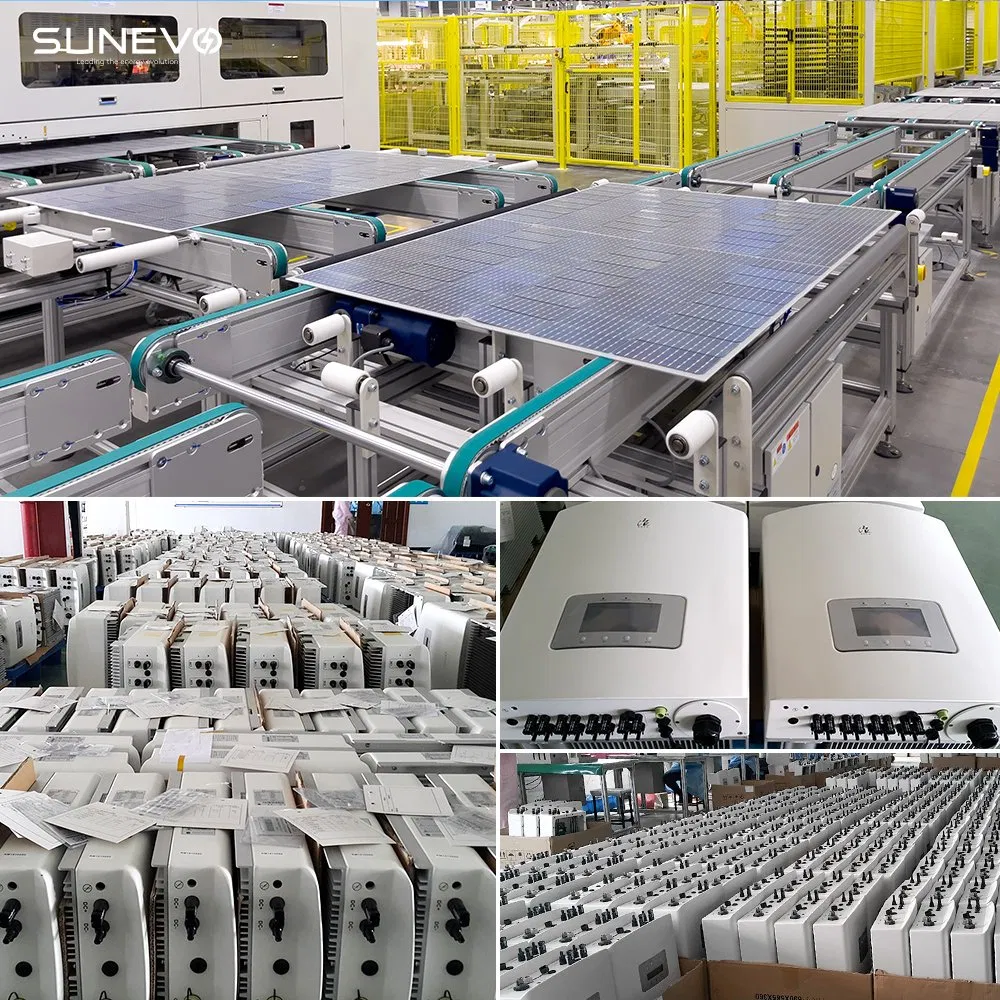

🏭 Company Profile & Production

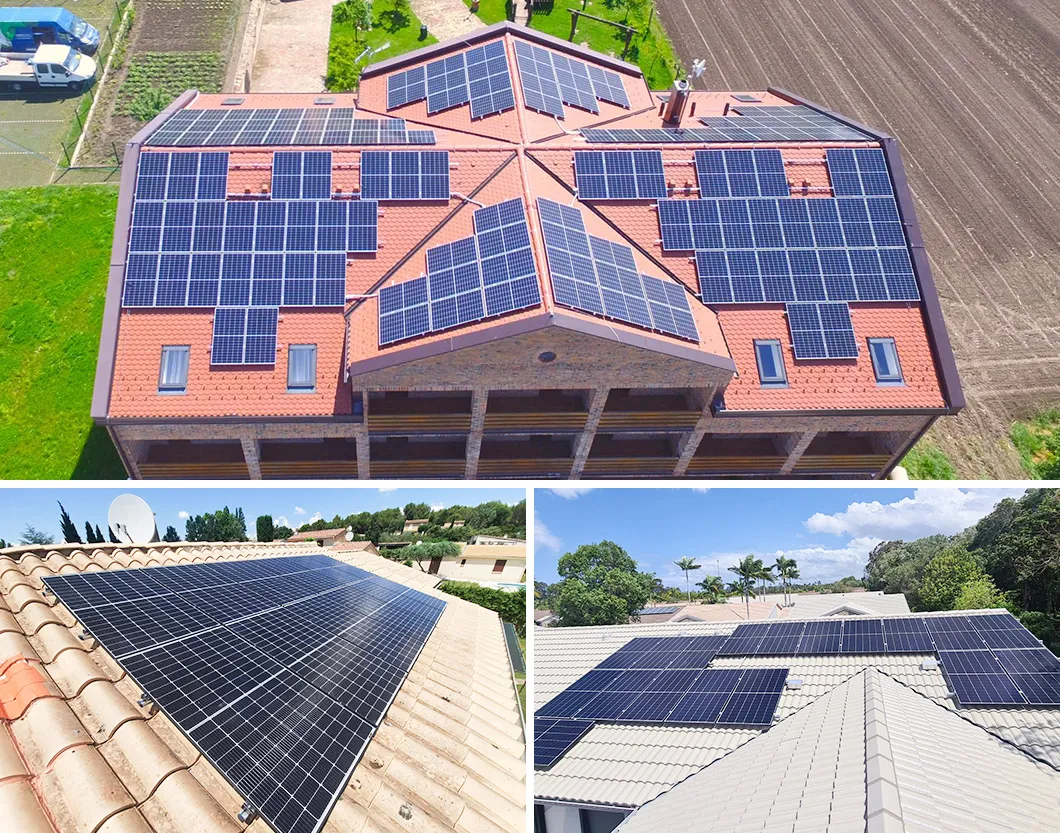

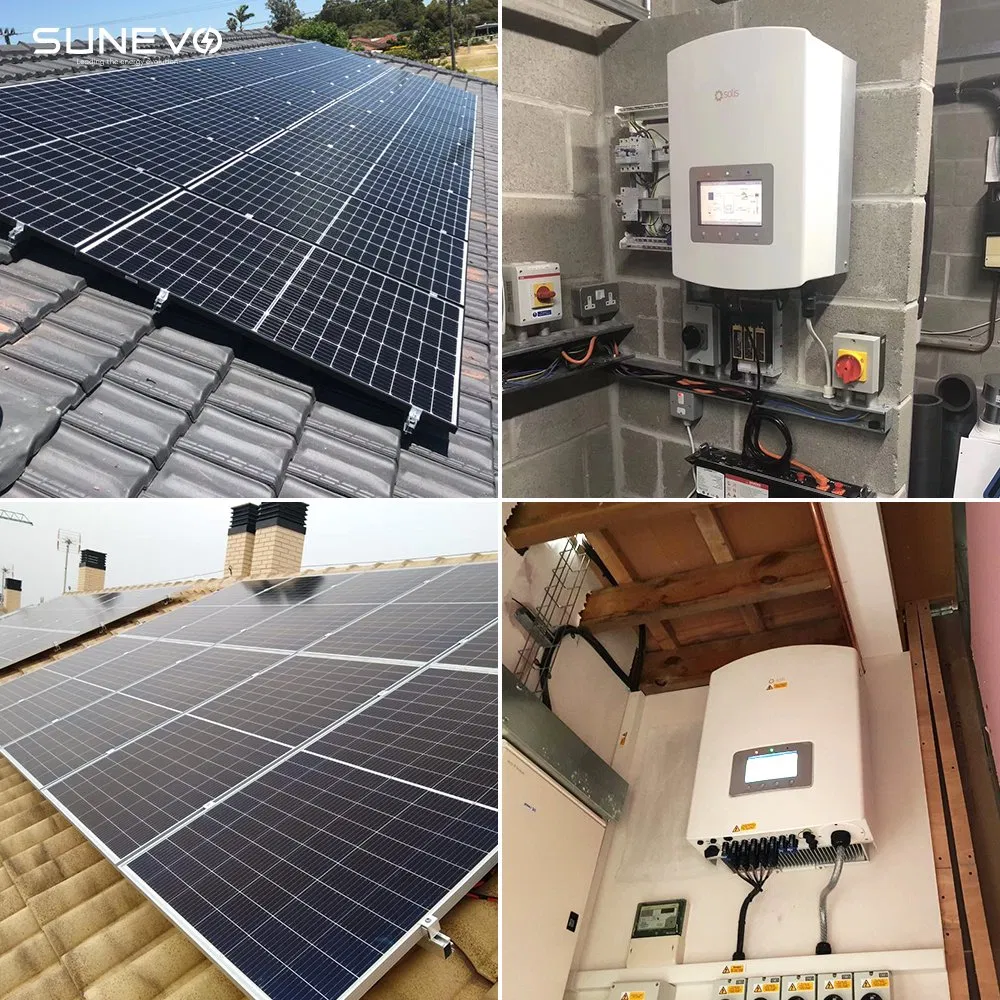

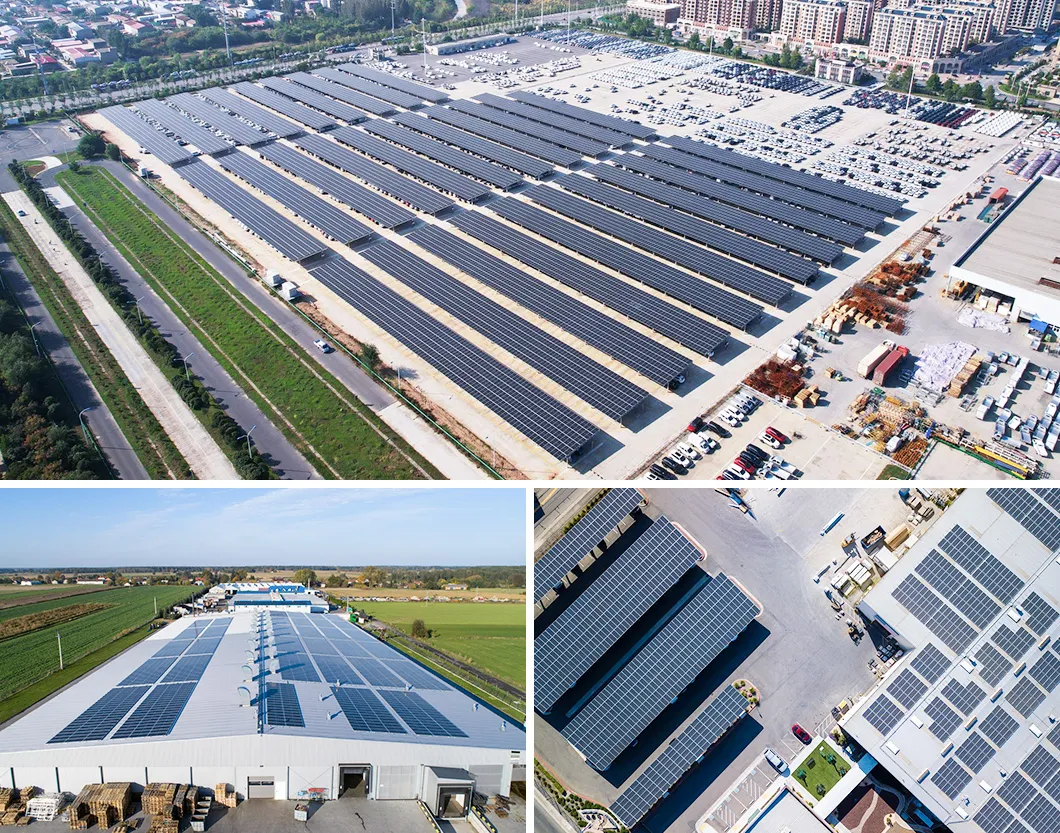

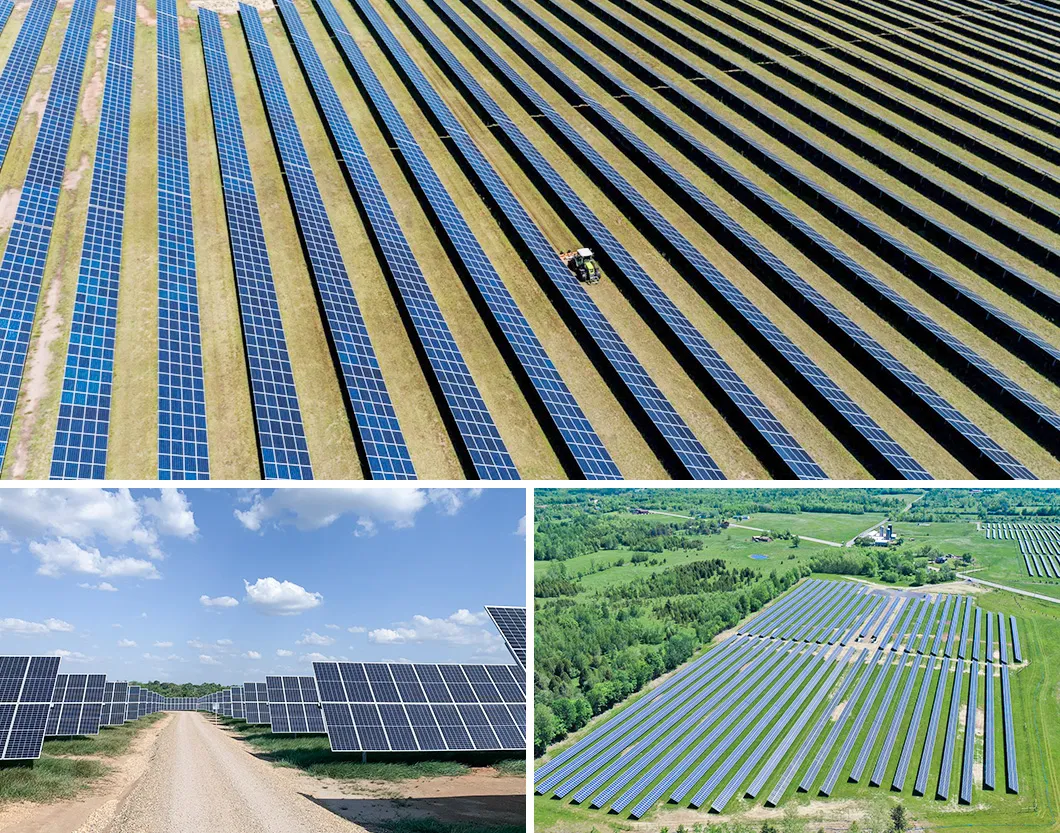

🌍 Global Project Cases

❓ Frequently Asked Questions

Can the product be shipped to my area?

We export to most countries and regions including Central/South America, EMEA, SEA, SSA, and AU. We will confirm the shipping availability once you provide your specific region.

What is the lead time for orders?

For requirements under 200kW, the lead time is typically 10 working days. For orders exceeding 200kW, the schedule will be negotiated based on capacity.

What are the available payment terms?

We accept 100% TT, or a 30% TT advance payment with the remaining 70% TT due when the goods are ready before shipment.

What does the warranty cover?

We offer a 12-year enhanced product warranty on materials and workmanship, and a 25-year linear power output warranty for the solar panels.

Is there a mobile monitoring system available?

Yes, the system comes with a monitoring APP available for both PC and mobile phones, allowing you to track health reports and fault findings in real-time.

Are the solar systems certified for international standards?

Yes, our systems and components are fully certified with ISO, CB, CE, and TUV standards to ensure safety and quality globally.

Split Phase 10kw Solar Panel System 110V 220V 10 Kw Solar Power System Growatt

Product Description

Related Products

Pneumatic Conveying System for Automated Handling and Assembly of Solar Panel Modules

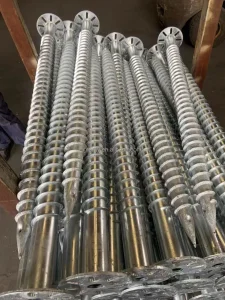

Durable Ground Mount System for Solar Panels with Easy Assembly

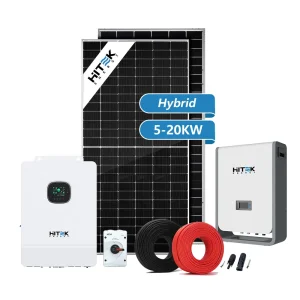

Hitek 12kw Hybrid Inverter Solar Panel Assembly Plant Roof 10000 Watt Industrial Solar Panels System Flexible Solar Panel

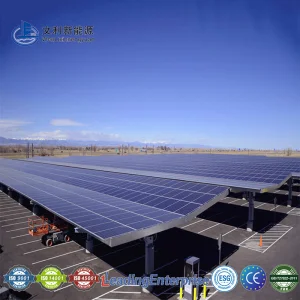

Wholesale Factory Direct High Quality Customized Design Fast Assembly Carbon Steel PV Structures Solar Panel Carport Mount System

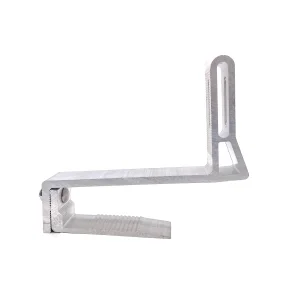

Assembly Solar Energy Panel Mounting Aluminium Brackets for Ground/Roof Mount PV Mounting System

Solar Panel Mounting Rail Designed for Easy Assembly

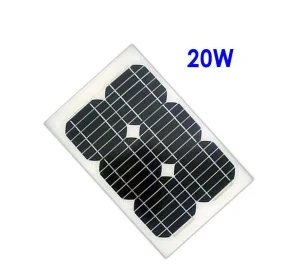

Photovoltaic Charging Board Assembly Monocrystalline 20W Watt Solar Panel Plate for House

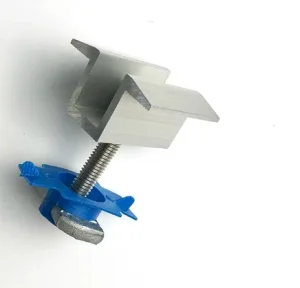

Low MOQ Pre-Assembly Solar Panel Mounting MID Clamp Panel

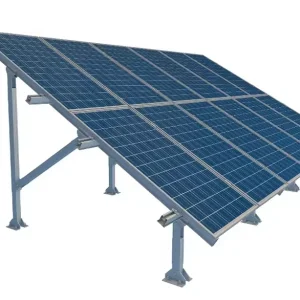

Easy Installation Pre-Assembly Structure High Quality Solar Panel Aluminum Support OEM

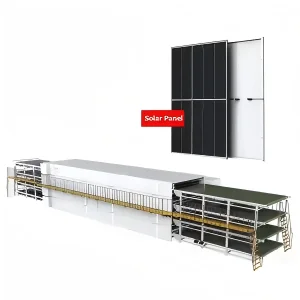

Full Automatic Solar Module Assembly Line Solar Panel Laminator
