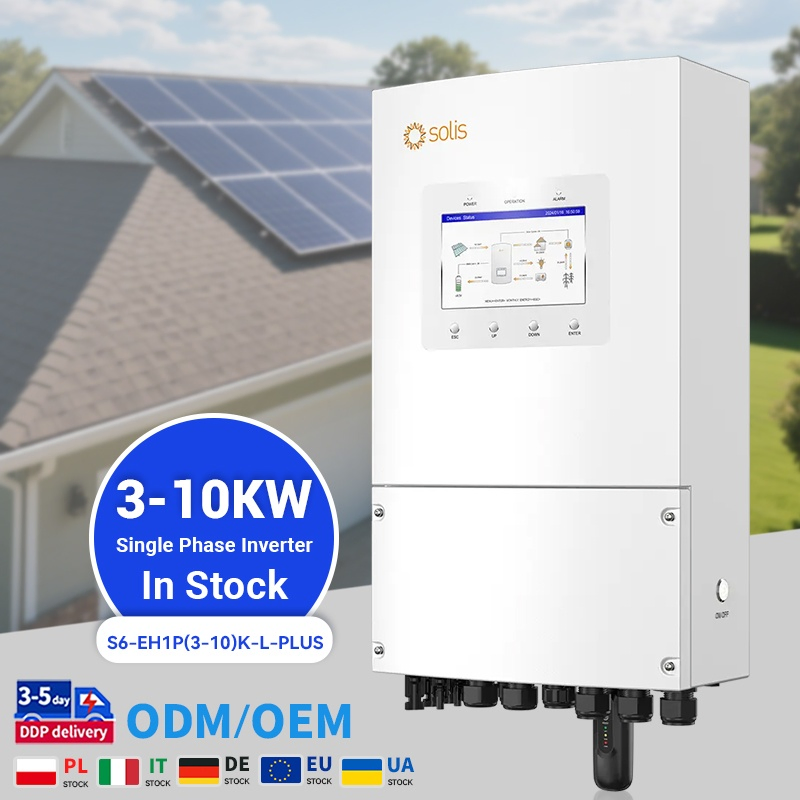

Solis S6-Eh1p (3-10) K-L-Plus Hybrid Solar Inverter 3-10kw Single Phase Home Energy Storage System Battery Ready WiFi Monitoring

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications
Model NO.
S6-EH1P(3-10)K-L-PLUS
Output Power
3-10kw
Certification
SAA, CE, ROHS, ISO9001, CCC
Brand
Solis
Type
DC/AC Inverters
Power Source
Solar Power, Wind Power
Circuit Topologies
Push-pull Type
Nature of Wave
Sine Wave Inverter
Rated Power
3-10kw
Weight
24kg
Display
LCD
Input Voltage
220/230/240VAC
Inverter Type
Hybrid Grid Inverter
Protection
Short Circuit Protection
Specification

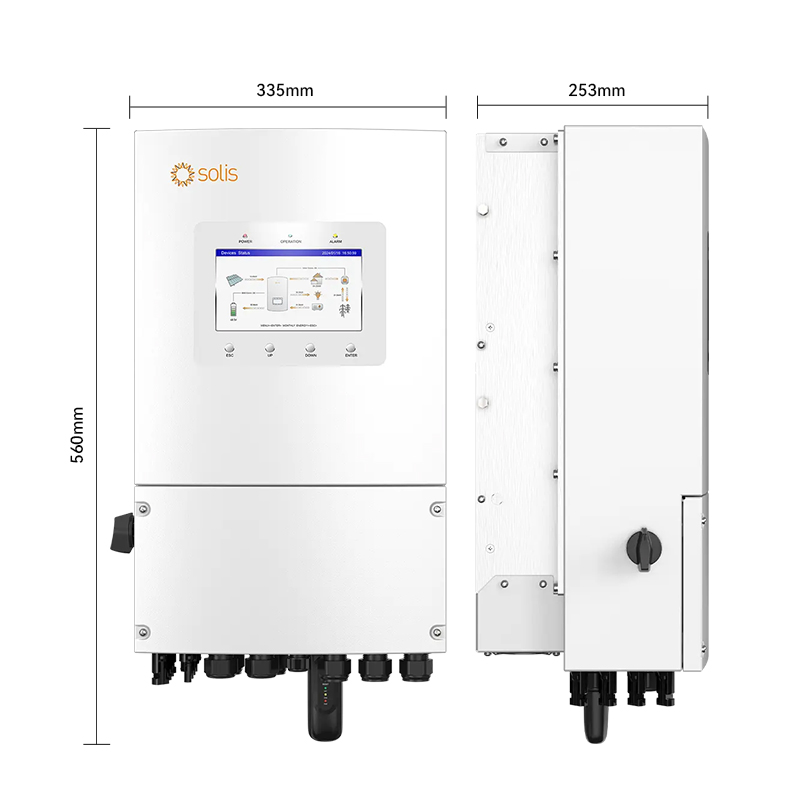

33.5X56X25.3 cm
Product Introduction
Focused on new energy lithium battery solutions, specializing in environmental energy, power, and energy storage lithium batteries. Providing intelligent solutions for small and medium-sized enterprises globally, prioritizing quality and integrity to create value for a better life.
Inverter Display 1
Inverter Display 2

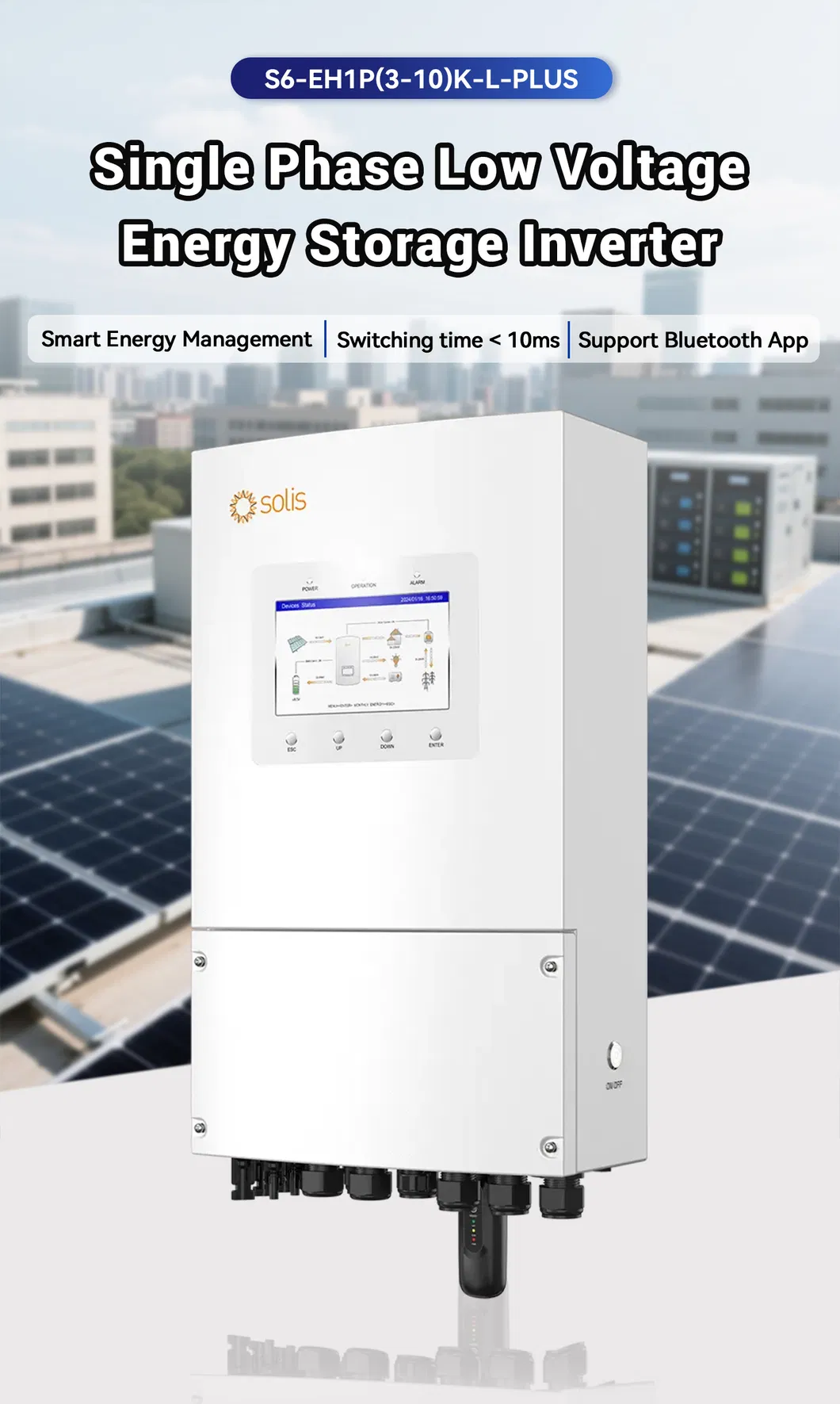

Inverter Technical 1

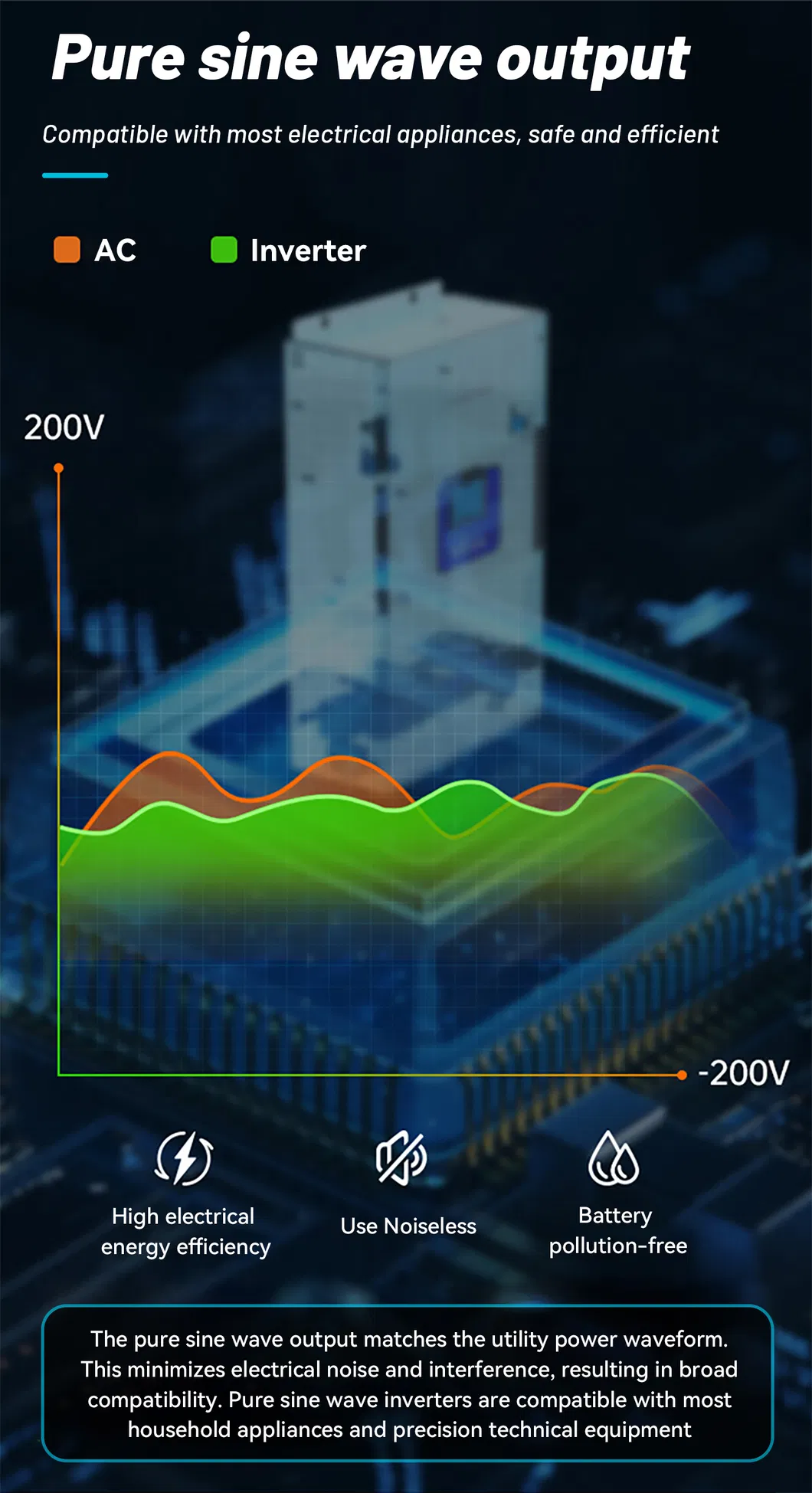

Inverter Technical 2

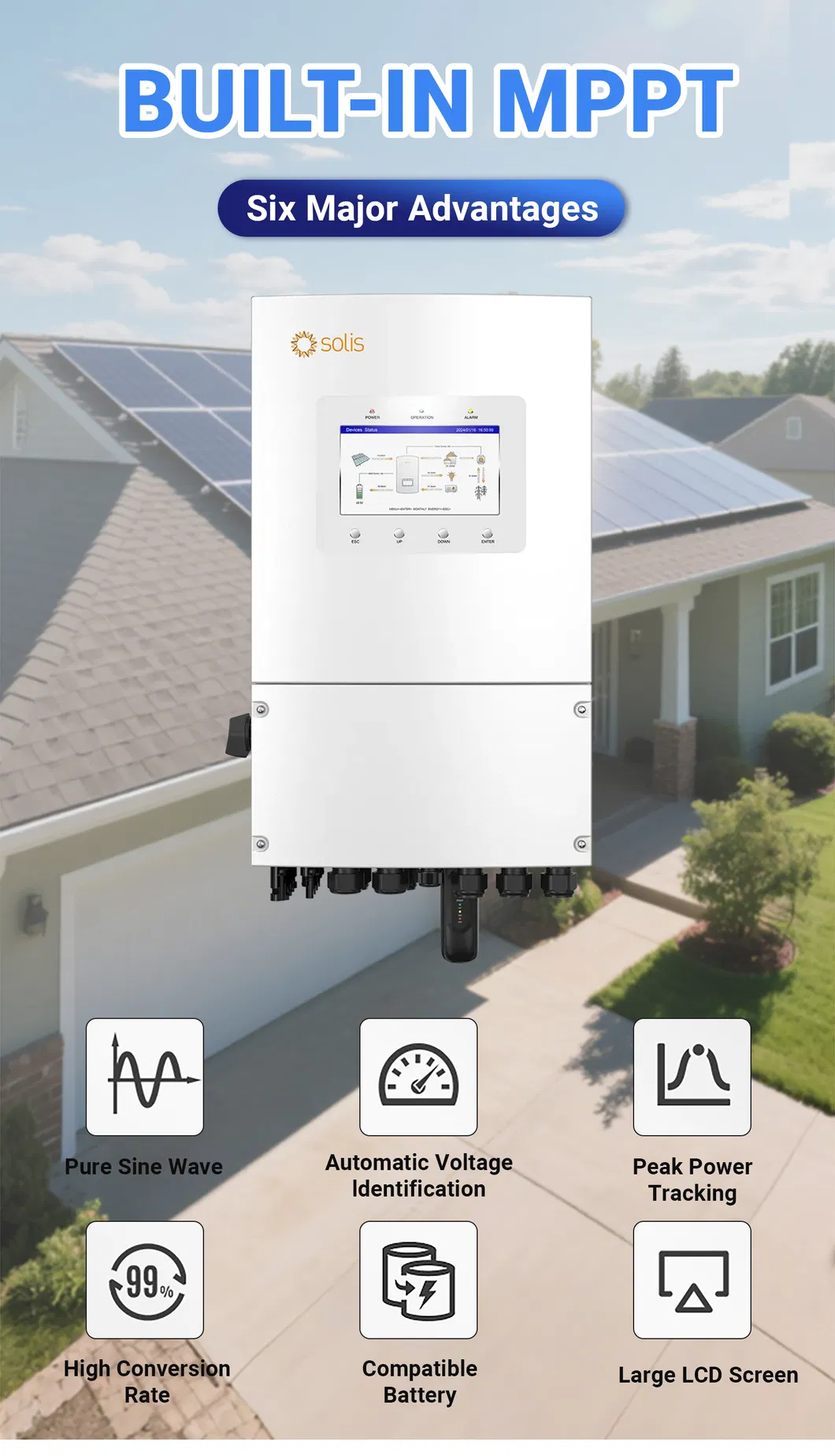

Inverter Technical 3

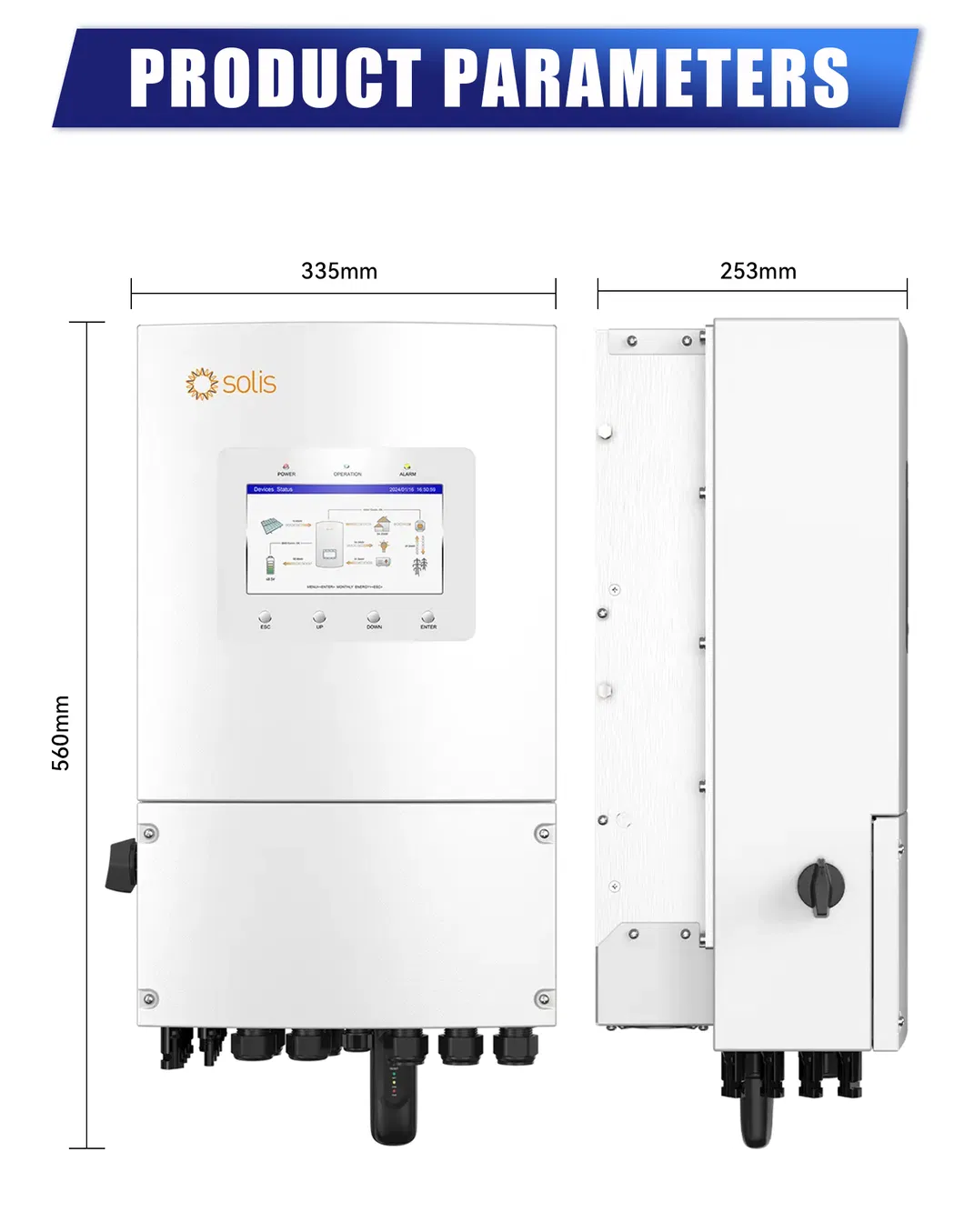

Installation 1

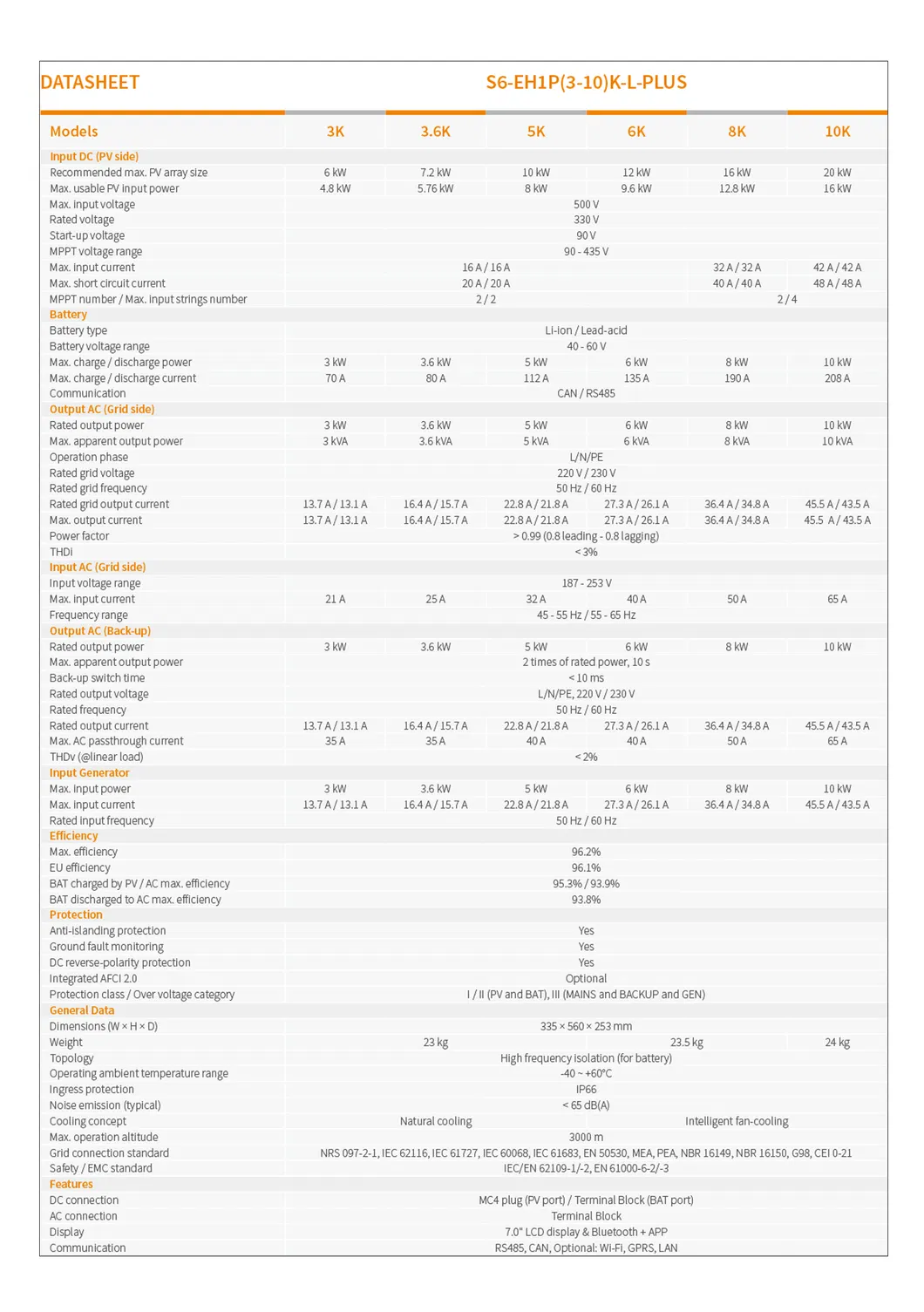

Installation 2

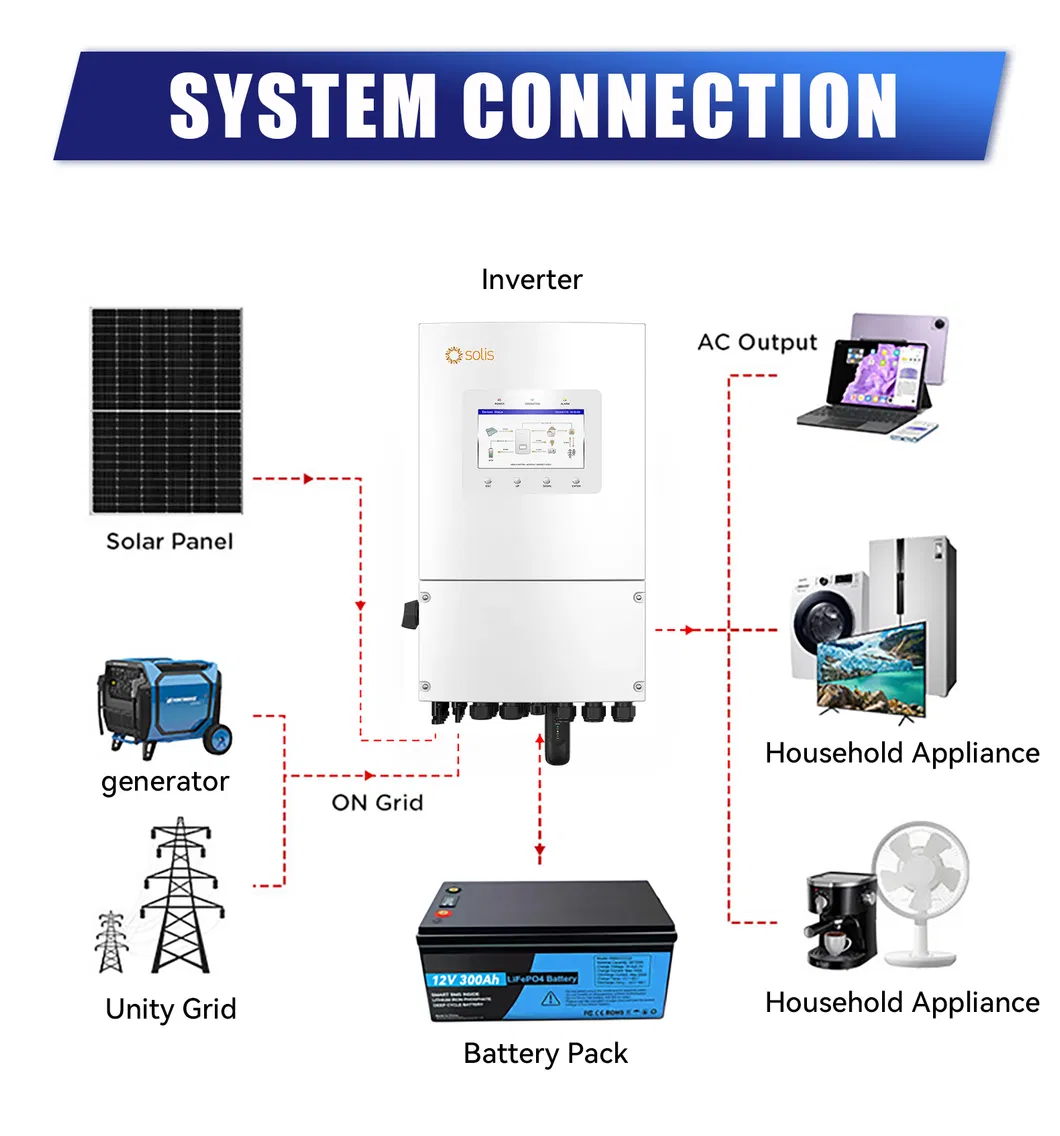

System View 1

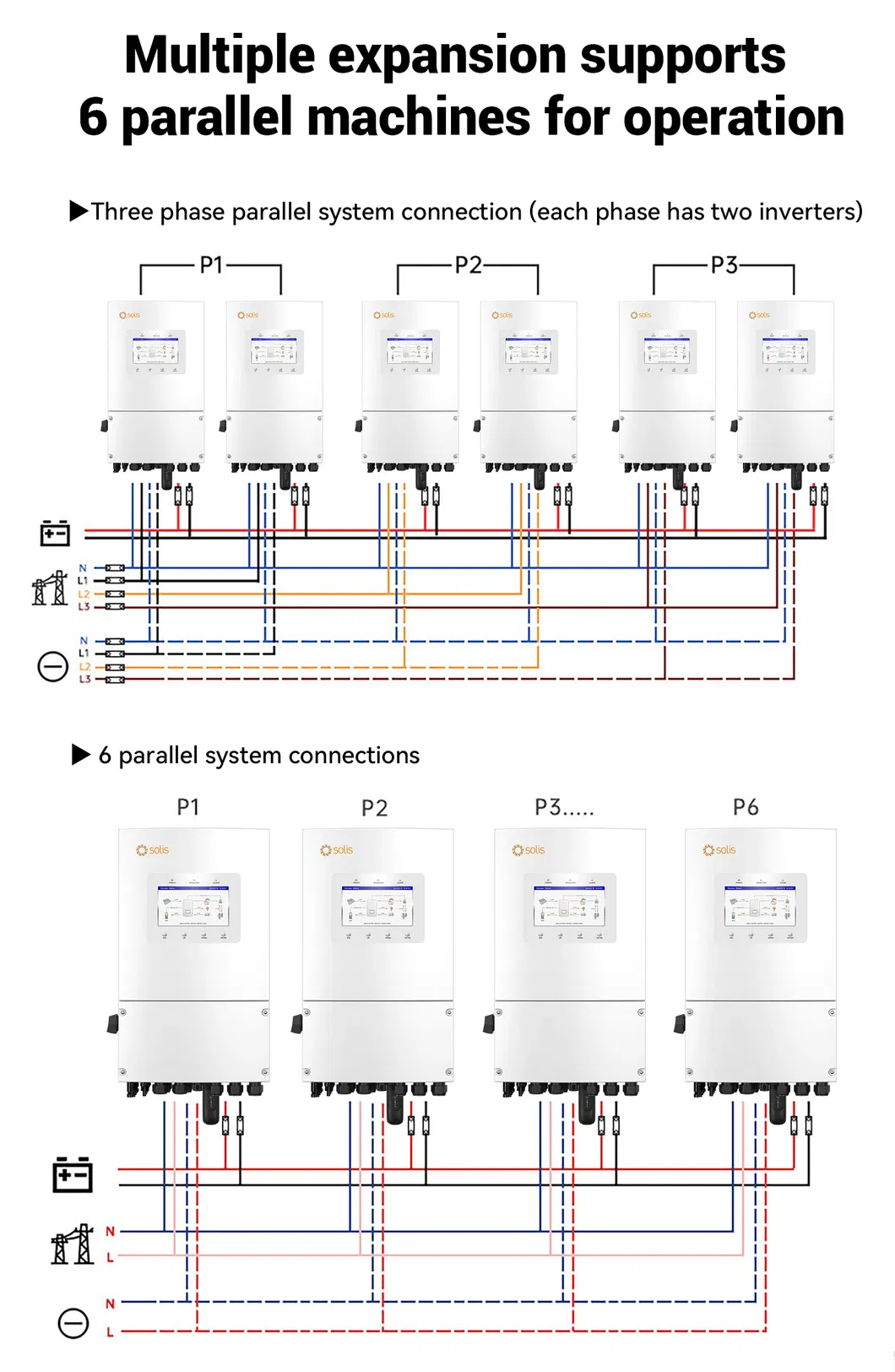

System View 2
Available Battery Cells
Brand Model Number V & Ah Impedance (mΩ) Weight (kg)
CATLCATL 50AH3.7V 50Ah≤2.01.38
CATL 120AH3.2V 120Ah≤0.72.86
CATL 156AH3.2V 156Ah≤0.53.4
CATL 176AH3.2V 176Ah≤0.54.06
CATL 200AH3.2V 200Ah≤0.253.84
CATL 280AH3.2V 280Ah≤0.35.34
CATL 302AH3.2V 302Ah≤0.25.35
CATL 314AH3.2V 314Ah≤0.185.5
CATL 320AH3.2V 320Ah≤0.195.45
CATL 340AH3.2V 340Ah≤0.185.55
LiFePO4 Battery Pack Reference
Voltage Capacity Nominal Energy Dimensions (mm) Weight (kg)
12V / 12.8V20Ah256 WH151*99*985.8
100Ah1280 WH260*175*21112
200Ah2560 WH522*240*24525
24V / 25.6V100Ah2560 WH522*240*21522
200Ah5120 WH530*238*25048
48V / 51.2V100Ah4800 / 5120 WH580*320*22020
200Ah9600 / 10240 WH580*320*22048
System Requirements:
* For a 48V system: 16 pieces required.
* For a 24V system: 8 pieces required.
* For a 12V system: 4 pieces required.
Suit for: 12V 24V 48V 72V 96V 108V... Solar Energy Storage Systems.
Pack Details
Technical Specs
Certifications
Packaging
Frequently Asked Questions
What is the requirement for DIY battery assembly?
DIY battery packs must have cells balanced (same voltage) before assembly. Professionals detect voltage, resistance, and appearance before shipment. We ensure the single battery is good upon arrival.
What happens if products are damaged during shipping?
Please contact us immediately with pictures or videos. In case of loss or severe damage that prevents use, we will communicate to resend, replace, or refund the product cost.
Do you test batteries before shipping?
Yes. Capacity tests have less than 2% margin of error. Voltage deviation is less than 0.01V and resistance deviation is less than 0.05mΩ.
Are busbars and bolts included?
Yes, cells come with busbars and bolts or studs for free. Each battery includes 1 piece of busbar and 2 pieces of bolts/studs.
What situations are not eligible for return or refund?
Problems arising after or during assembly (e.g., wrong wiring burning the protection board, unbalanced assembly) or damage caused by charging without a BMS are not eligible.
How do I place an order for Ready-to-Ship (RTS) products?
For RTS products with clear shipping costs, you can place the order and pay directly. RTS orders are given priority in shipping.
