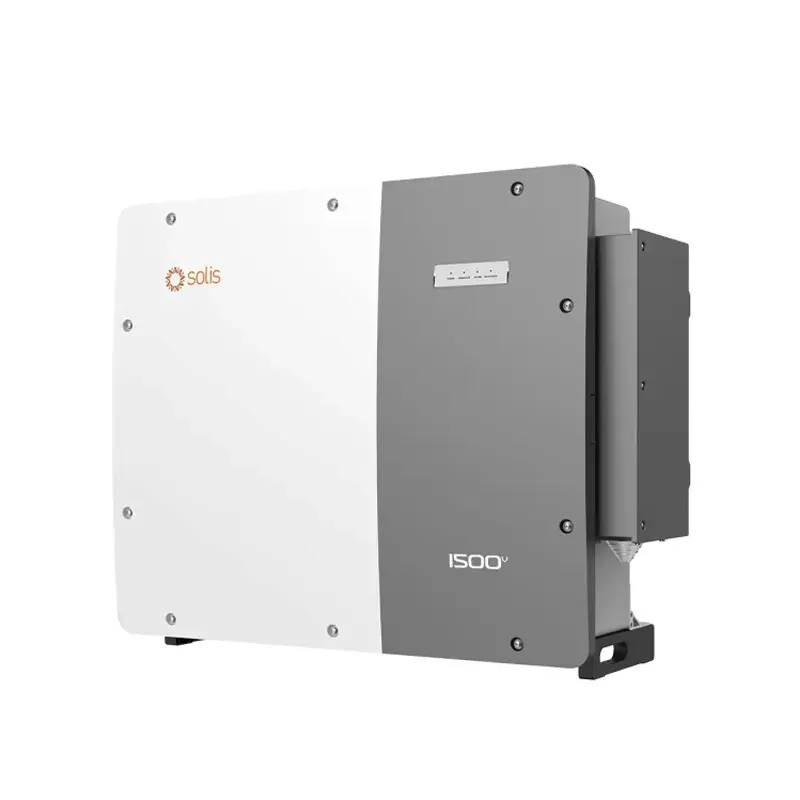

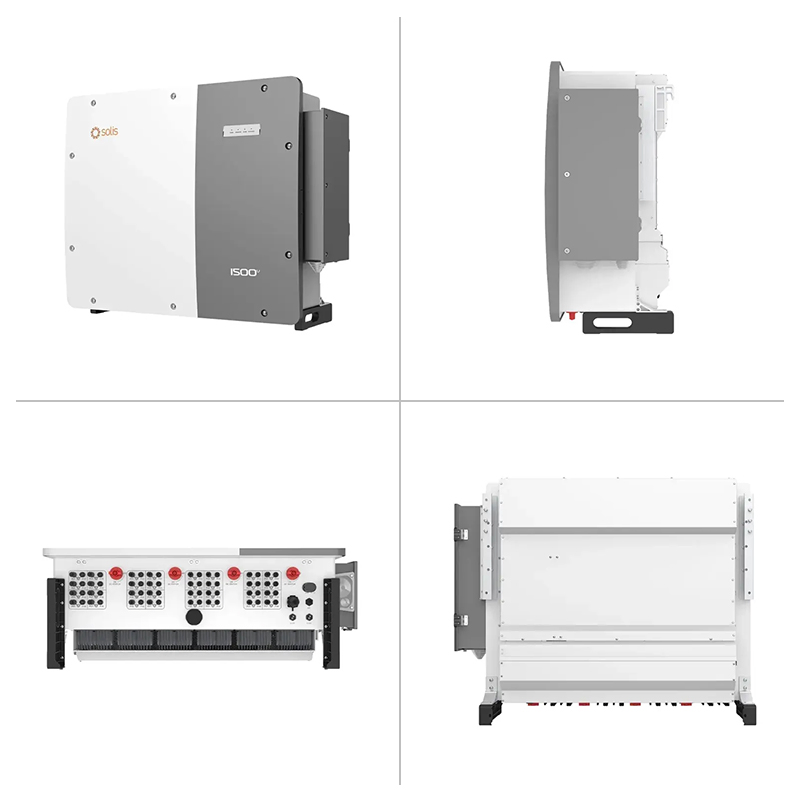

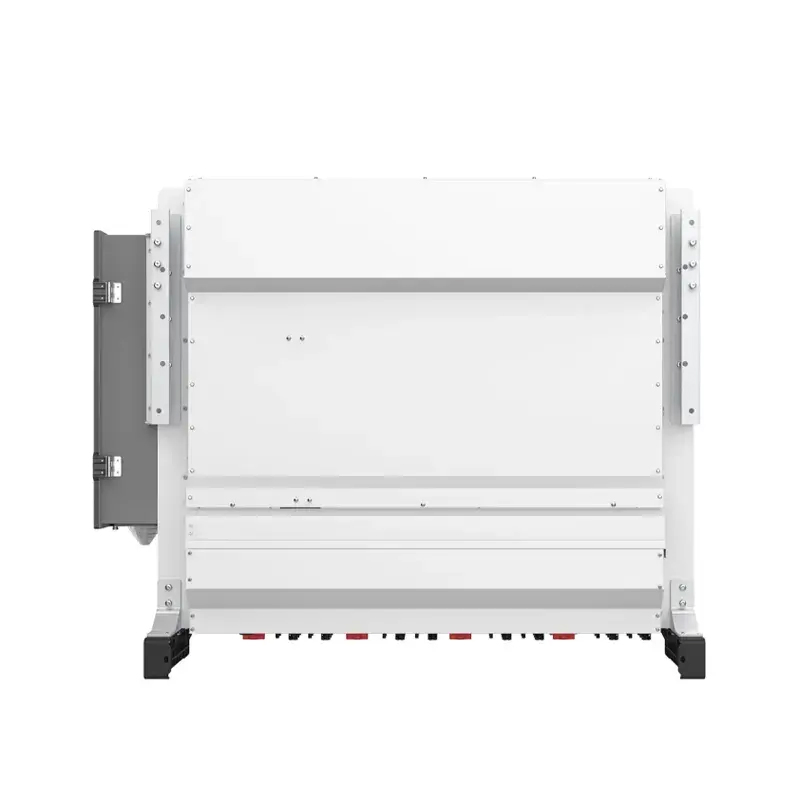

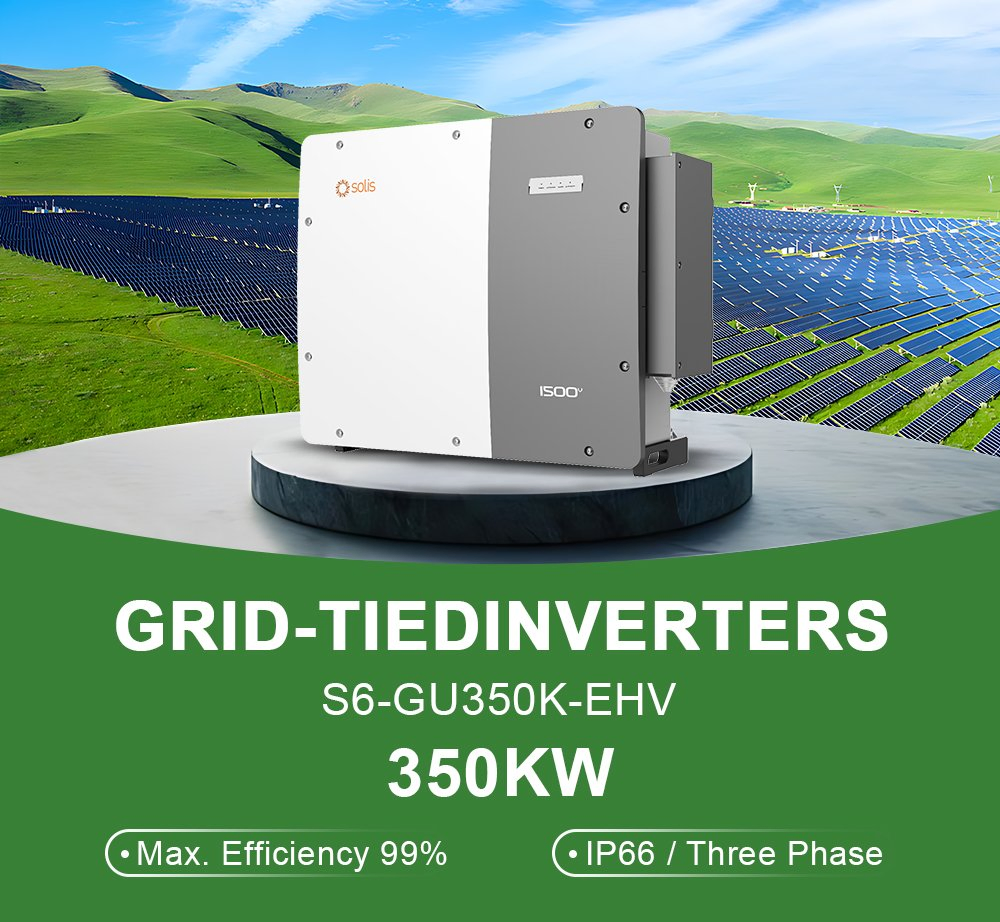

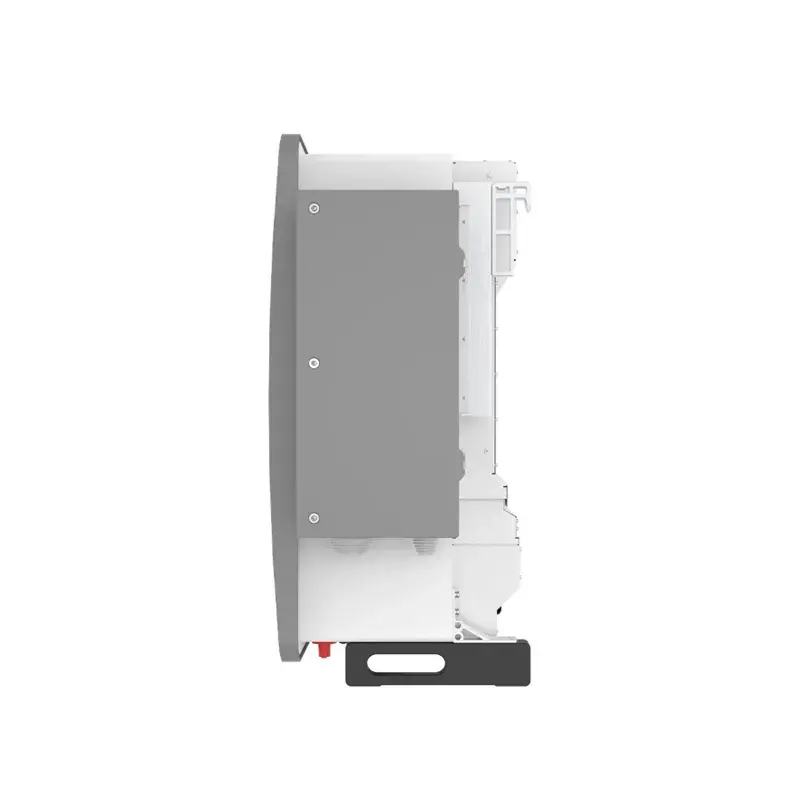

Solis Solar Inverter 350kw Grid Connected Solar Power Inverter with LCD Display and Remote Monitoring for Solar Energy Systems
Solis Solar Inverter 350kw Grid Connected Solar Power Inverter with LCD Display and Remote Monitoring for Solar Energy Systems
Solis Solar Inverter 350kw Grid Connected Solar Power Inverter with LCD Display and Remote Monitoring for Solar Energy Systems
Solis Solar Inverter 350kw Grid Connected Solar Power Inverter with LCD Display and Remote Monitoring for Solar Energy Systems
Solis Solar Inverter 350kw Grid Connected Solar Power Inverter with LCD Display and Remote Monitoring for Solar Energy Systems
1 / 5
Solis Solar Inverter 350kw Grid Connected Solar Power Inverter with LCD Display and Remote Monitoring for Solar Energy Systems
Solis Solar Inverter 350kw Grid Connected Solar Power Inverter with LCD Display and Remote Monitoring for Solar Energy Systems
Solis Solar Inverter 350kw Grid Connected Solar Power Inverter with LCD Display and Remote Monitoring for Solar Energy Systems
Solis Solar Inverter 350kw Grid Connected Solar Power Inverter with LCD Display and Remote Monitoring for Solar Energy Systems
Solis Solar Inverter 350kw Grid Connected Solar Power Inverter with LCD Display and Remote Monitoring for Solar Energy Systems

Solis Solar Inverter 350kw Grid Connected Solar Power Inverter with LCD Display and Remote Monitoring for Solar Energy Systems

Customization: Available
After-sales Service: Yes
Warranty: Yes
Send Inquiry

Product Description

📋 Overview & Basic Info
Model:S6-GU350K-EHV
Output Power:350kw
Phase:Three
Efficiency:99.0%
Input Voltage:1080VDC
Application:Commercial & Utility-Scale
Certification:CE, TUV
Weight:143kg
📍 Product Description

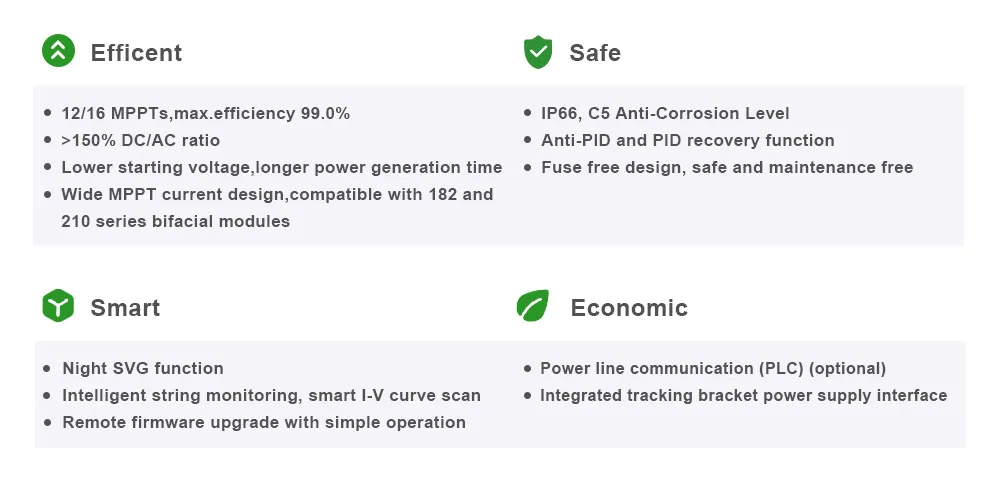

Solar Inverter 350kw Product Parameters Overview
⚙ Technical Parameters
Models 350K-M12 350K-M16
Input DC
Max. input voltage 1500 V
Rated voltage 1080 V
MPPT voltage range 480 - 1500 V
Max. input current 12 × 40 A 16 × 30 A
Output AC
Rated output power 350 kW
Max. output current 252.6 A
Grid voltage range 640 - 920 V
Efficiency & Protection
Max. efficiency 99.0%
Surge protection DC Type II / AC Type II
Ingress protection IP66
💡 How does it work?

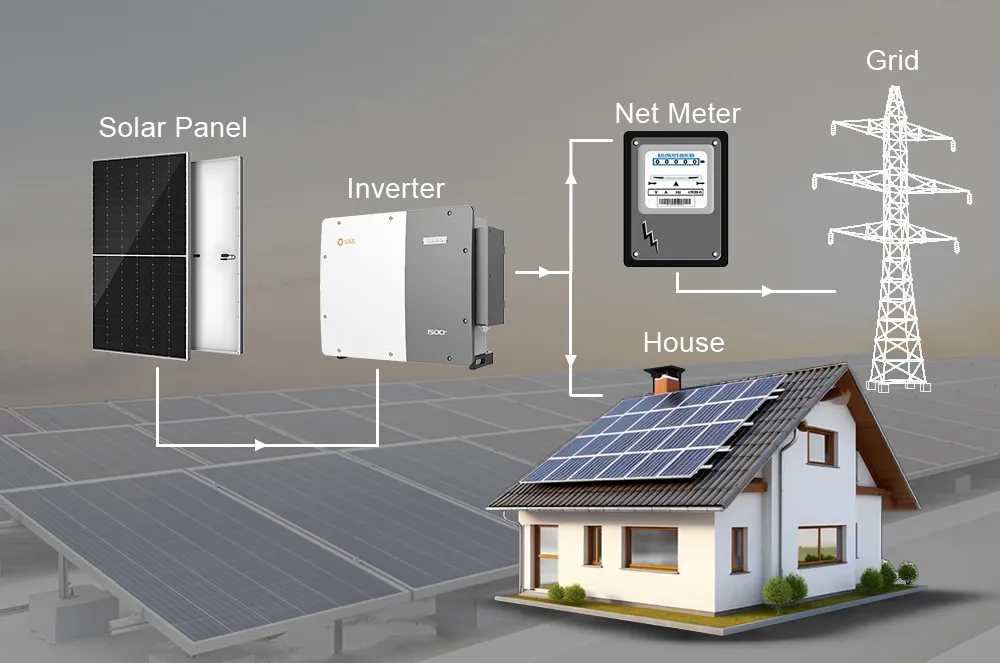

System Workflow
🏗 Project Case

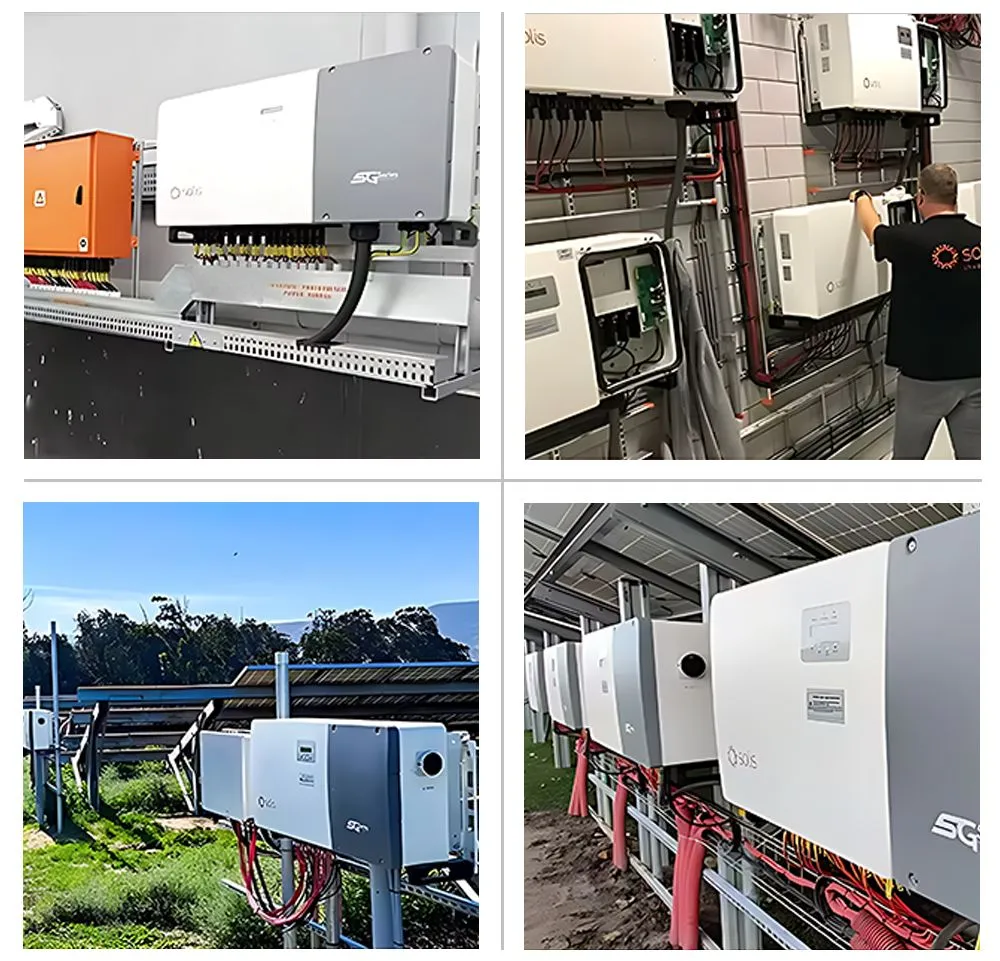

Project Case Study
📦 Packaging & Shipping
Packaging Detail 1 Shipping Logistics
🏭 Production & Quality
Production Line
📜 Certifications
Industry Certifications Quality Control
❓ Frequently Asked Questions
What is the Minimum Order Quantity (MOQ) for this inverter?
The MOQ for the 350kw solar inverter is 1 piece.
How do I proceed with an order?
First, share your project requirements. We will provide a quote and suggestions. Once the sample is confirmed and the deposit is placed, we proceed with production and delivery.
Can I get a customized packaging solution?
Yes, while we provide standard factory packaging, we can customize printed logos and packaging details based on your specific requirements.
What are the primary applications for this 350kw inverter?
This high-power string inverter is specifically designed for Commercial, Industrial, and Utility-Scale PV plants.
What is the maximum efficiency of this system?
The inverter achieves a maximum efficiency of 99.0%, ensuring minimal energy loss during the DC/AC conversion process.
Is it possible to visit the manufacturing facility?
Absolutely. We welcome customers to visit the production facility at any time to inspect our quality standards and technology.
