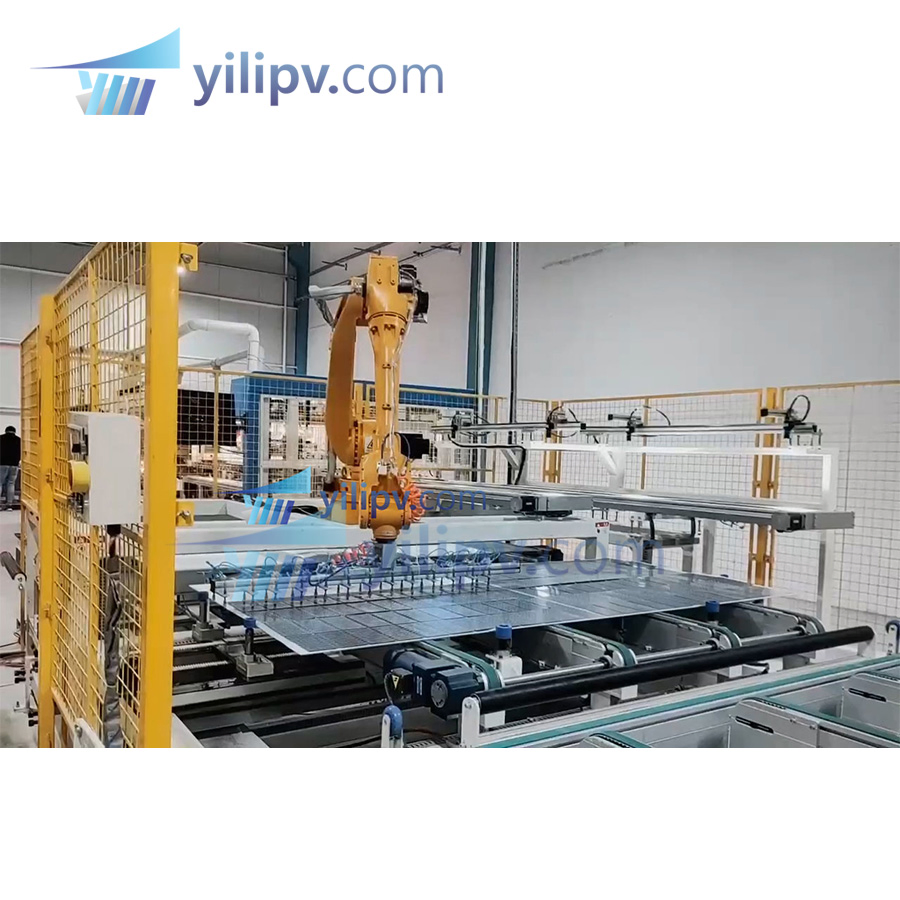

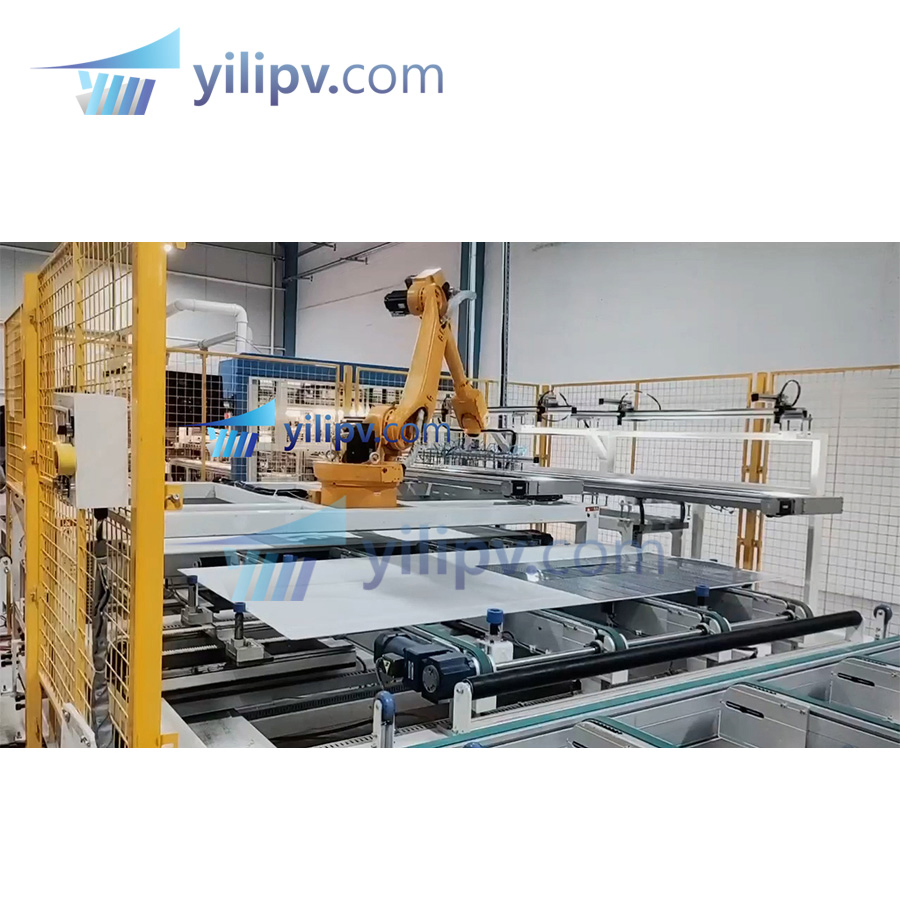

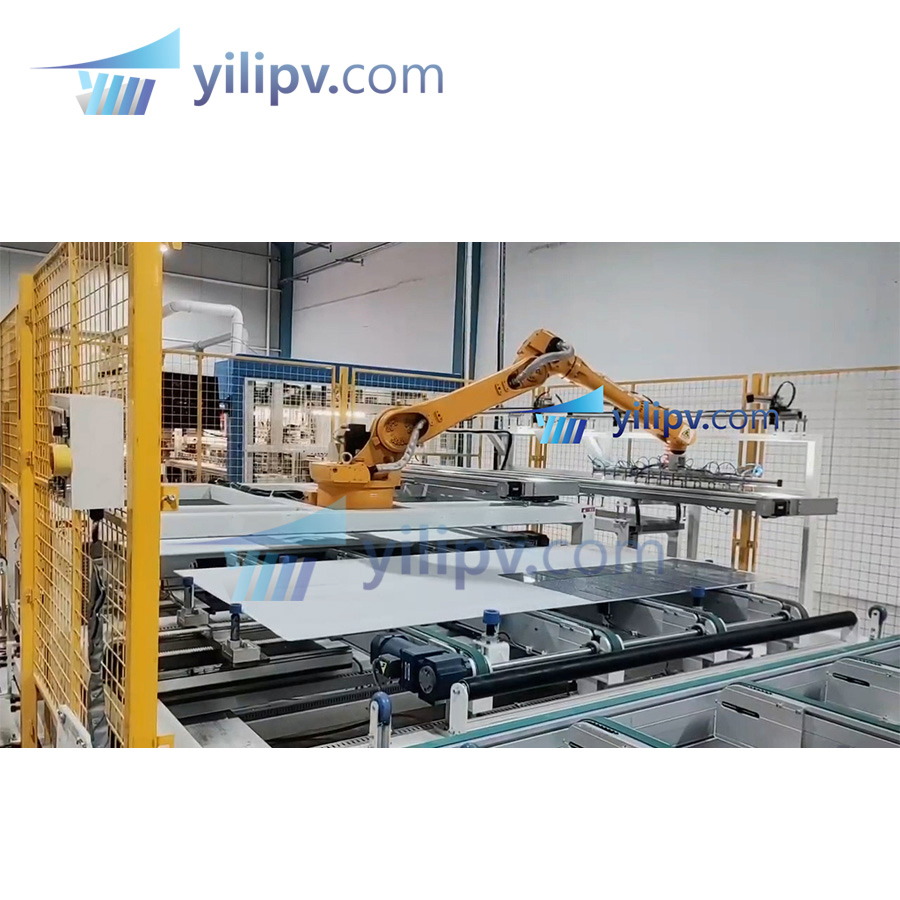

Solar Strings Layup: Robot Layup Equipment

1 / 4

Solar Strings Layup: Robot Layup Equipment

Customization:	Available
Type:	PV Module Turnkey Project Production Line
Warranty:	12 Months

Send Inquiry

Product Description

Basic Information

Model NO. Robot Layup

Panel Size Range Length (1634-2500 mm), Width (986-1400mm)

Equipment On-Time Rate >99%

Typesetter Explosion Rate ≤0.01%

Transport Package Wooden Box

Origin China

Product Description

Compatibility: Compatible with double-glass long and short string layup (5BB-12BB, 60P, 72P, 78P components).
Applicable Cells: 156mm * 156mm to 210mm * 210mm MBB (full/half piece).
Product Size Capacity: Length 1634-2500mm and Width 986-1400mm.
Weight Capacity: Maximum component weight up to 50kg per piece.
Fast Rhythm: Single string ≤ 5S; AB string glass single string ≤ 7S; glass in/out time ≤ 10S.
Safety Design: Includes guardrails and protective devices with industry-standard color coding (White/Blue/Yellow).

Technical Parameters

Parameter Item	Specifications & Details
Panel Size	Length (1634-2500 mm) Width (986-1400mm)
String Mode	Double glass AB string typesetting and AB string complement function
Layup Accuracy	Placement accuracy: ±0.2mm; Deviation from glass sides ≤ ±0.2mm
Adjustment Mode	0.1mm unit adjustment via upper computer (X/Y/Z/R directions)
Defective Rate	Total proportion of fragments and cracks < 0.05%
Cycle Time	Single string ≤ 5S, AB string single string ≤ 7S, In/Out ≤ 10S
Magazine Requirements	Supports off-line rework box (1-12 strings), AB blocking cache boxes
Security Control	Separate vacuum pipeline per suction cup with vacuum breaking alarm

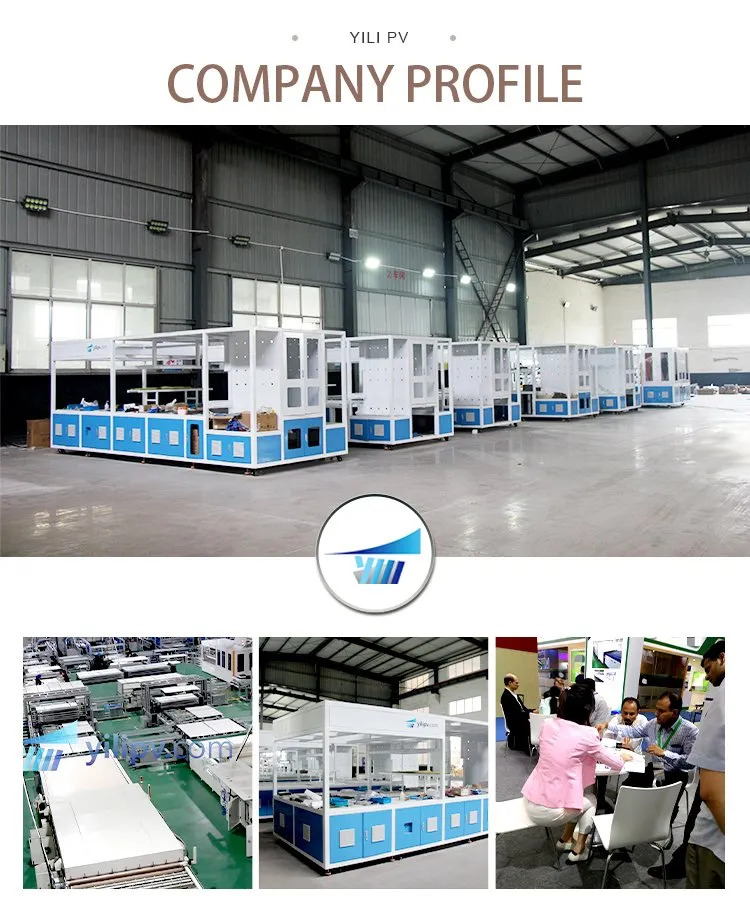

Manufacturer Profile

As a pioneer manufacturer of photovoltaic module production equipment since 2008, the enterprise operates as a comprehensive high-tech entity integrating R&D, manufacturing, installation, and global after-sales service.

With a dedicated workforce of over 100 professionals—including a 23-member R&D team and more than 35 on-site installers—we provide complete turnkey solutions for solar module production lines. Our facility includes independent finishing and roughing workshops to ensure the extreme precision of parts processing.

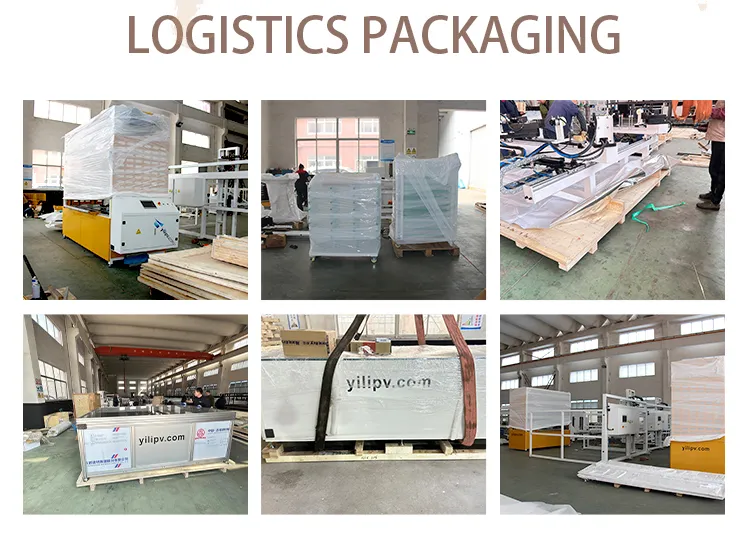

Packaging & Shipping

Our Advantages

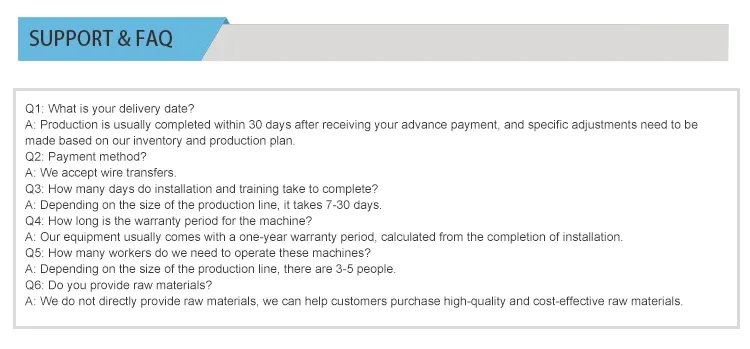

Frequently Asked Questions

What types of solar modules are compatible with this layup machine?

The machine is compatible with 5BB-12BB cells and supports Conventional, Double Glass, Half-Cut, MBB, Topcon, and Heterojunction production processes.

What is the repeated placement accuracy?

The equipment achieves a repeated placement accuracy of ±0.2mm for battery strings, ensuring high-quality module assembly.

How many layout formulas can the system store?

The system can store more than 20 different layout formulas, which can be replaced and called directly through the permission-controlled interface.

What is the equipment's fragment rate?

The total proportion of fragments and cracks is controlled at less than 0.05%, significantly reducing production waste.

Does the machine support manual rework feeding?

Yes, each line is equipped with a rework feeding box and support for off-line rework string boxes to achieve optimal man-machine safety and efficiency.

What safety measures are integrated into the vacuum system?

Each group of suction cups has a separate vacuum pipeline with an alarm shutdown function that triggers if a piece falls or the vacuum breaks.
