Solar Strings Layup: Automatic High Speed Gantry Layup Equipment

Customization:	Available
Type:	PV Module Turnkey Project Production Line
Warranty:	12 Months

Basic Information

Model:High speed gantry layup

Weight:2470kg

Power:3.6kw

Rated Load:15kg

Humidity:≤80% (No Condensation)

Package:Wooden Box

Specification:4580*2984*2100mm

Product Description

✓Glass regulation accuracy: ≤±1mm;

✓Cell damage rate: ≤0.1% (positive A-level cells);

✓Fully automatic control, zero manual operation required during process;

✓High precision pendulum string: front/rear spacing error ≤±0.25mm;

✓Highly compatible with regular, half-cell, and MBB solar panels;

Technical Parameters

Parameter Item	Technical Specification
Panel size	Width: 900~1200mm, Length: 1600~2250mm
Beat Rate	Full cell ≤30sec, half cell ≤70sec
Transmission Speed	27m/min
Machine Dimensions	458029842100mm
Compressed Air	0.6-0.8Mpa
Rated Load	15kg
Operating Environment	25±5ºC, Humidity ≤80%
Voltage / Power	380V, 50/60Hz / 3.6KW
Equipment Weight	2470KG

Manufacturer Profile & Shipping

Our company is a pioneer manufacturer of photovoltaic module production equipment, established in 2008. As a comprehensive high-tech enterprise, we integrate R&D, manufacturing, installation, and global after-sales service. We provide turnkey solutions for fully packaged production lines, including automatic laminating machines, robot typesetting machines, and frame integrated systems.

Products are exported to over twenty countries including the United States, Mexico, South Korea, Turkey, and India. We design products compatible with all central solar cell techniques: Conventional, Double Glass, Half-Cut, MBB, Shingled, Topcon, and Heterojunction.

Core Advantages

Frequently Asked Questions

What is the production cycle (beat) of the equipment?

For full cells, the cycle is ≤30 seconds; for half-cells, it is ≤70 seconds.

Which solar panel types are compatible with this layup machine?

The equipment is highly versatile, supporting Conventional, Half-cut, MBB, Double-glass, Shingled, and Bifacial modules.

What is the precision level of the cell string placement?

The pendulum string accuracy provides front and rear spacing error of ≤±0.25 mm and string spacing error of ≤±0.3 mm.

Does the machine require manual intervention during operation?

No, the equipment is fully automatically controlled, ensuring continuous operation without manual labor.

What are the requirements for the operating environment?

It requires a temperature of 25±5ºC and humidity below 80% without condensation to ensure optimal performance.

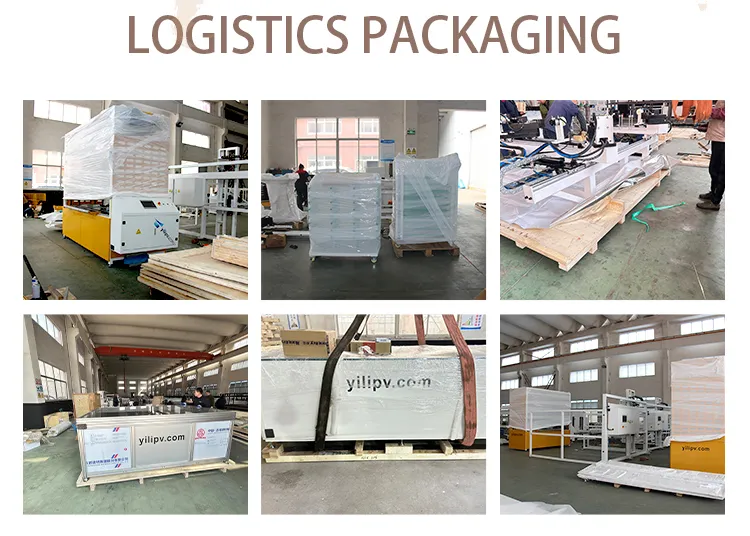

How is the equipment packaged for international shipping?

We use heavy-duty wooden box packaging to ensure the 2470kg machine remains secure during transit.
