Latest Technology Solar Pump System Solar Irrigation with Ce ISO

Customization: Available
Condition: New
Certification: ISO, CE, IEC61215 61730

Product Description

⚙️ Basic Specifications

Model NO.
PNG280-60P
Application
Home, Industrial, Commercial, Agriculture
Specification
Normal, 1650*992*35mm
Solar Panel

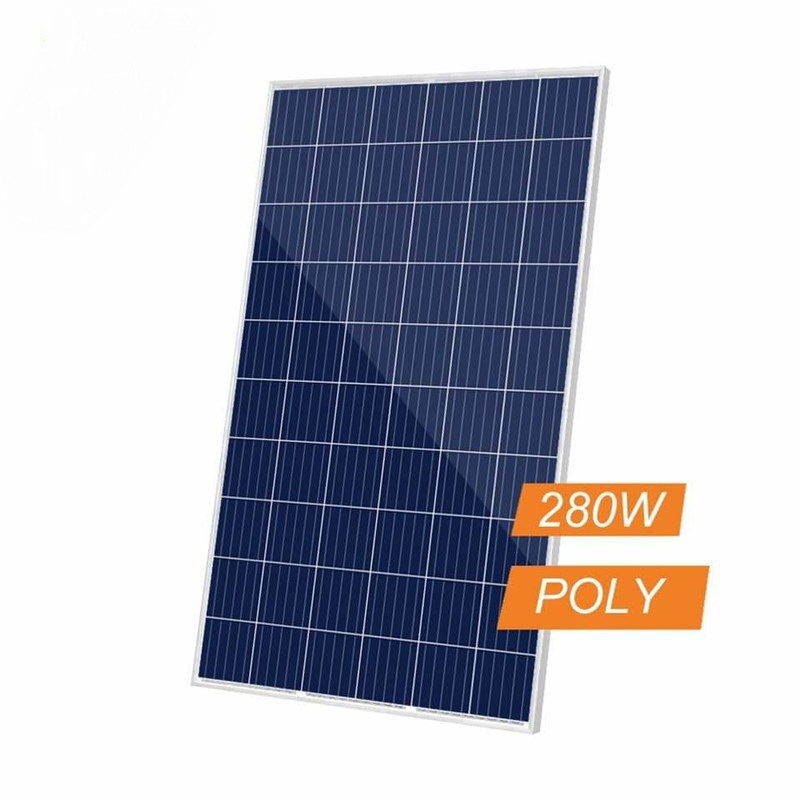

280W Poly, 1652*992*35mm, A Grade, 4PCS
Solar Pump
96V, 750W, 9.0m3/H, 45m.
Cables
DC Cable
Water Tube
2.0 Inches
Mounting Brackets
Hot DIP Galvanizing Carbon Steel
Accessories
Switch, Belt etc
Transport Package
Carton Box
Origin
China
HS Code
8413190000

📊 Technical Performance

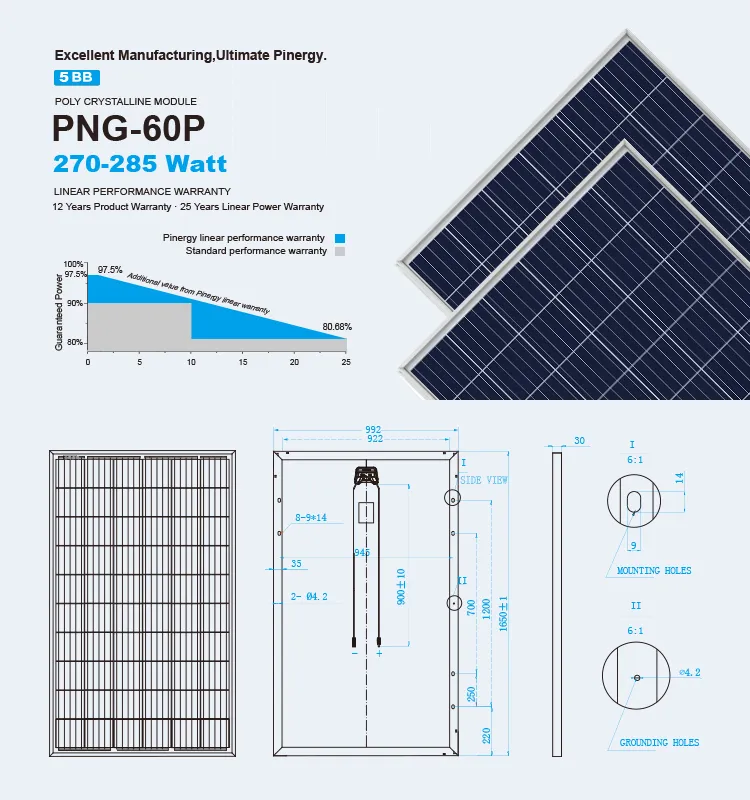

Technical Performances
Module Type PNG60P-270 PNG60P-275 PNG60P-280 PNG60P-290
Rated Output (Pmp/Wp) 270 275 280 290
Short Circuit Current (Isc/A) 9.06 9.18 9.29 9.38
Open Circuit Voltage (Voc/V) 37.2 38.0 38.5 38.7
Max. Power Current (Impp/A) 8.65 8.76 8.86 8.96
Max. Power Voltage (Vmpp/V) 31.2 31.4 31.6 31.8
Module Efficiency 16.50% 16.80% 17.11% 17.41%
Tolerance 0~+5W
Standard Test Condition(STC): Irradiance 1000w/m2. Cell Temperture 25ºC. AM 1.5
Module Type PNG60P-270 PNG60P-275 PNG60P-280 PNG60P-290
Rated Output (Pmp/Wp) 200.0 203.7 207.4 211.1
Short Circuit Current (Isc/A) 7.33 7.43 7.52 7.59
Open Circuit Voltage (Voc/V) 34.4 35.1 35.6 35.8
Max. Power Current (Impp/A) 6.89 6.99 7.07 7.14
Max. Power Current (Vmpp/A) 29.0 29.2 29.3 29.6
Nominal Module Operating Temperature (NMOT) : Irradiance 800W/m2, Ambient Temperature 20ºC. Am1.5. Wind Speed 1m/s.

🛠️ Materials & Components

Performance Chart

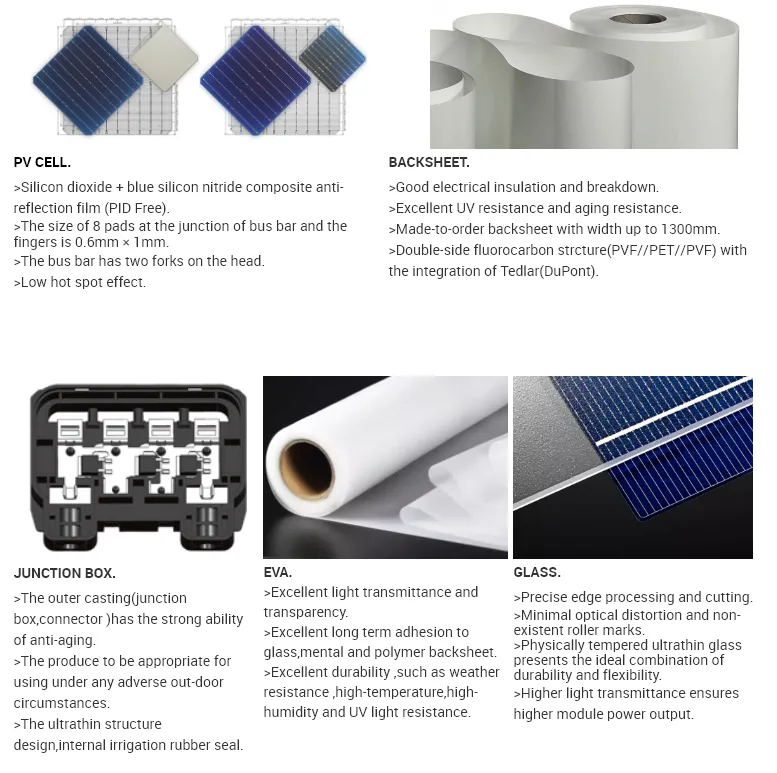

Materials Overview

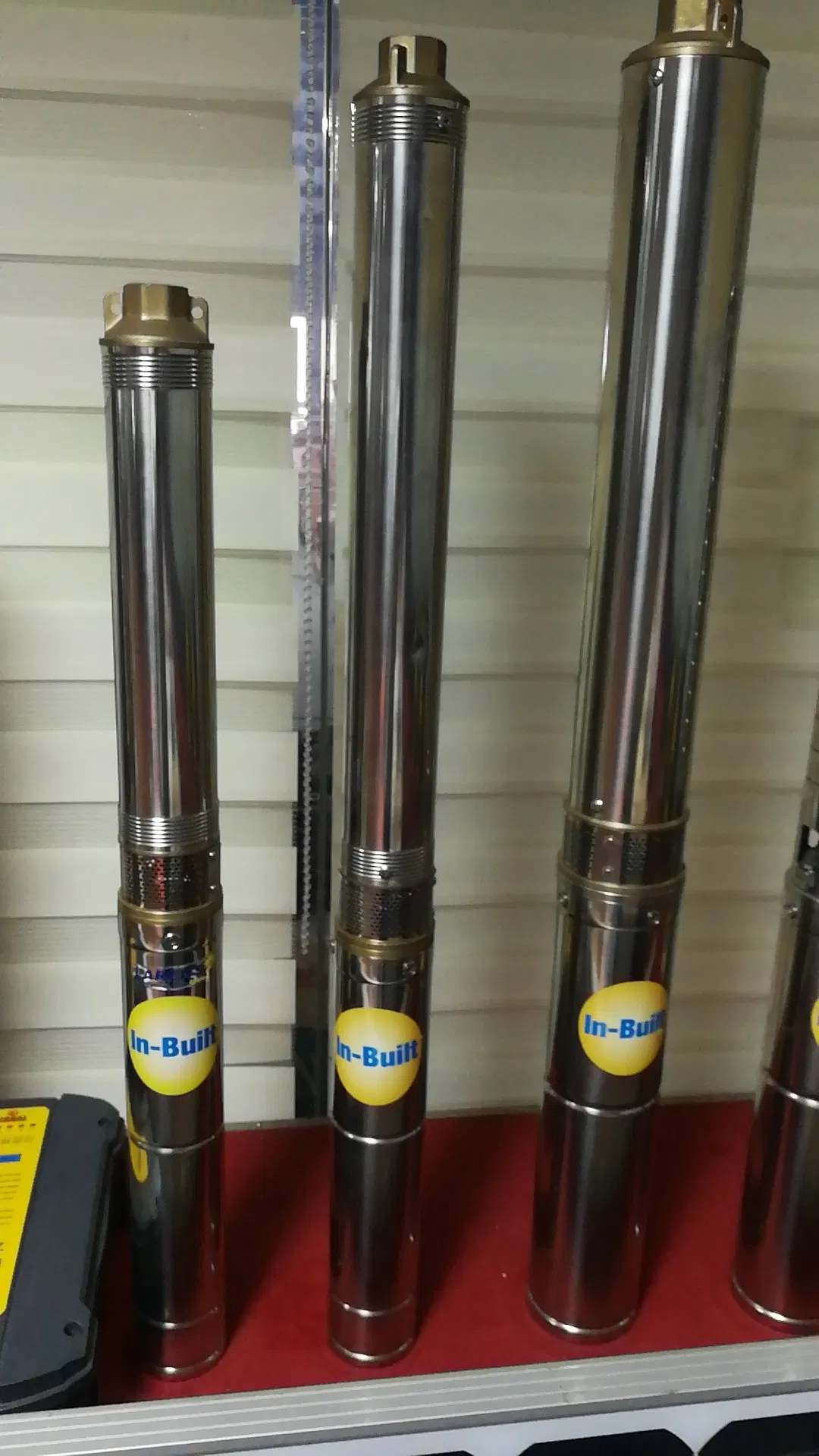

💧 DC Pump System

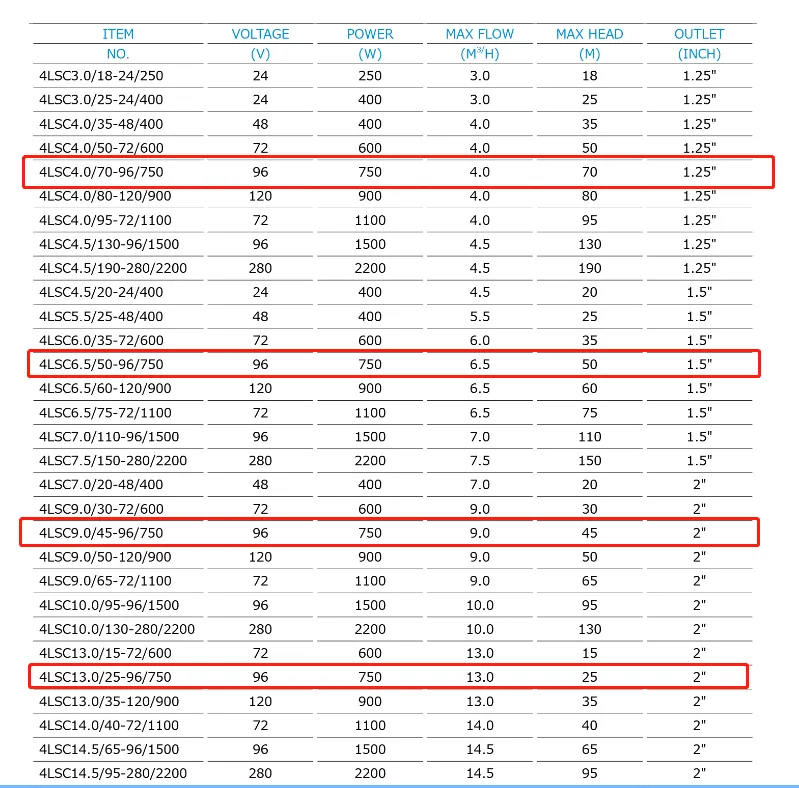

DC Pump Model
Pump Performance Curves

❓ Frequently Asked Questions

What are the primary applications for this solar pump system?
The system is highly versatile and suitable for home use, industrial applications, commercial setups, and agricultural irrigation.
What is the capacity and head of the solar pump?
The 750W solar pump operates at 96V, offering a maximum flow rate of 9.0m³/H and a maximum head of 45 meters.
What kind of solar panels are included in the package?
The package includes 4 pieces of A-grade 280W Polycrystalline solar panels, each measuring 1652*992*35mm.
How durable are the mounting brackets?
The brackets are made of Hot DIP Galvanizing Carbon Steel, providing excellent resistance to corrosion and environmental wear.
What is the efficiency of the solar modules?
Depending on the specific module type (270W to 290W), the efficiency ranges from 16.50% up to 17.41%.
What accessories are included in the kit?
The kit comes complete with essential accessories such as DC cables, a 2.0-inch water tube, switches, and belts.
