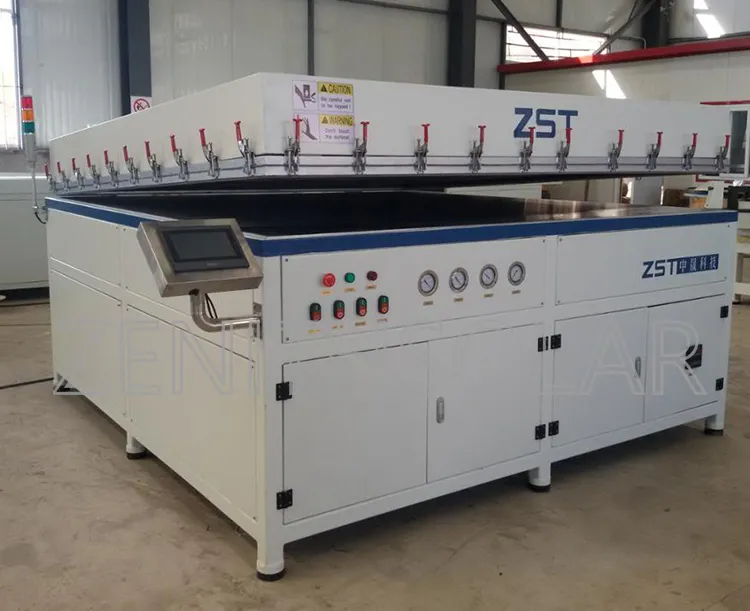

Solar Panel Making Machine PV Module Oil Heating Vacuum Laminating Machine
Solar Panel Making Machine PV Module Oil Heating Vacuum Laminating Machine
Solar Panel Making Machine PV Module Oil Heating Vacuum Laminating Machine
Solar Panel Making Machine PV Module Oil Heating Vacuum Laminating Machine
Solar Panel Making Machine PV Module Oil Heating Vacuum Laminating Machine
1 / 5
Solar Panel Making Machine PV Module Oil Heating Vacuum Laminating Machine
Solar Panel Making Machine PV Module Oil Heating Vacuum Laminating Machine
Solar Panel Making Machine PV Module Oil Heating Vacuum Laminating Machine
Solar Panel Making Machine PV Module Oil Heating Vacuum Laminating Machine
Solar Panel Making Machine PV Module Oil Heating Vacuum Laminating Machine

Solar Panel Making Machine PV Module Oil Heating Vacuum Laminating Machine

Customization: Available
After-sales Service: Life Time
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Production Scope
Parts Production Line
Automation
Automation
Transmission Type
Flexible
Production Line
Comprehensive
Certification
CE, ISO
Flexible Production
Intelligent Manufacturing
Rhythm
Flow Production Line
Transport Package
Frame Container
Specification
1800*2200mm
HS Code
848640
Production Capacity
100 Set/Sets Per Year
Packaging & Delivery
Package Size
250.00cm * 240.00cm * 150.00cm
Package Gross Weight
4600.000kg
Product Description
Negotiate the price according to specific circumstances
Solar Panel Making Machine
PV Module Oil Heating Vacuum Laminating Machine
Technical Parameters
Power AC380v/3phases/4Lines Capacity 3-9(1-3shift)MW/year
Noise at work <65dB Vacuum Rate 200m³/H
Normal Power 9.5KW Max. Power 35KW
Compressed air flux 500L/min Lamination Area 1800*2200mm
Air pressure 0.6-0.8Mpa Temp. Uniformity ≤±2ºC
Dimension 2380*2210*1200mm Weight 4.5T
Key Characteristics

Integrated Design

Patented design where the vacuum and oil pumps are placed inside the machine to save plant space.

Lower Noise

Utilizes high-quality imported vacuum pumps, reducing noise to below 65dB for a better work environment.

Energy Saving

Advanced technology allows for approximately 30% energy savings compared to standard industry models.

CE Certified

Full compliance with international safety standards, having passed all required CE certifications.

Solar Production Detail 1
Solar Production Detail 2
Solar Production Detail 3
Technical Layout
Frequently Asked Questions
What is the maximum lamination area of this machine?
The machine supports a lamination area of 1800*2200mm, suitable for standard PV modules.
How does the integrated design benefit my factory?
By housing the vacuum and oil pumps within the machine frame, it significantly reduces the footprint, allowing for more efficient use of your production space.
What is the expected production capacity?
Depending on your shift structure, the annual capacity ranges from 3MW to 9MW (100 sets per year).
Does the machine require a special smoke exhaust system?
No, the unique smokeless design of the pump means you do not need to configure an external exhausting system.
How energy-efficient is this laminating machine?
Our machine is designed to save about 30% more energy compared to other standard brands in the market.
What are the noise levels during operation?
Thanks to the imported high-quality vacuum pump, the noise level is kept below 65dB, ensuring a comfortable working environment.
