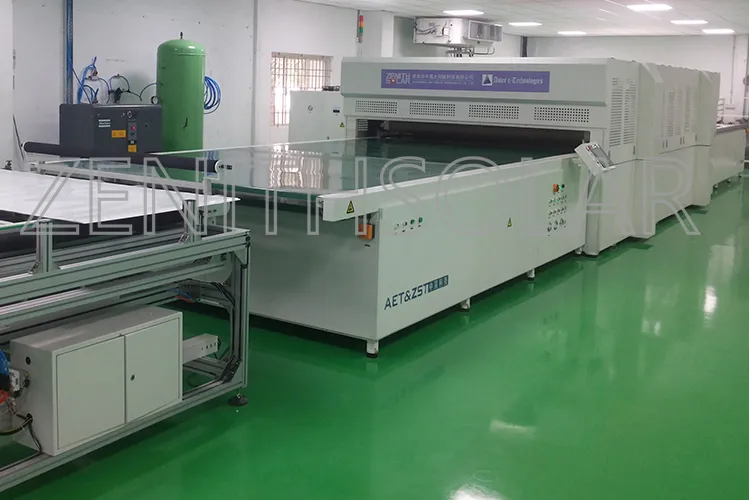

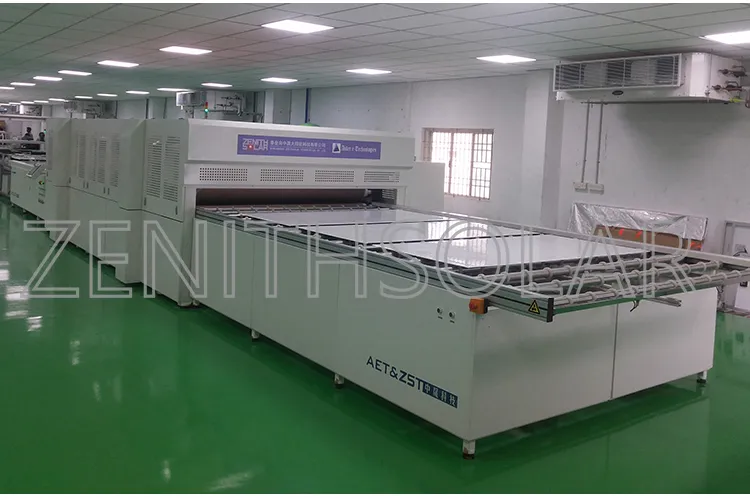

Solar Module Production Line Laminating Machine
Technical Parameters
| Power |
AC380v/50HZ/3phases/5Lines |
Capacity |
10-30(1-3shift)MW/year |
| Noise at work |
<65dB |
Vacuum Rate |
200m³/H |
| Normal Power |
15KW |
Max. Power |
52KW |
| MAX. setting temperature |
180ºC |
Lamination Area |
2200*3600mm |
| Heating Platform |
Per square meter of non-flatness ≤300μm |
Temperature Uniformity |
≤±2ºC |
| Dimension |
11800*3200*1800mm |
Weight |
12.8T |
Key Characteristics
Integrated Design
It is one of the patents. The vacuum pump and oil pump are placed inside the laminating machine to save plant space.
Lower Noise
Using Germany imported vacuum pump, it can reduce the noise to 65dB, providing a more comfortable environment.
Free Smoke
The pump is smokeless with a unique design. No exhausting system configuration is required.
Energy Saving
Achieves about 30% energy saving compared with other brands in the market.
CE Certificate
All machines in the PV line have passed CE certification for safety and quality assurance.
Frequently Asked Questions
What is the annual production capacity of this laminating machine?
The machine has a capacity of 10-30 MW per year, depending on the number of shifts (1-3 shifts).
How does the integrated design benefit my factory?
The patented integrated design places the vacuum and oil pumps inside the machine, significantly saving floor space in your production plant.
Is the operation of the machine noisy?
No, by using high-quality Germany imported vacuum pumps, the noise level is kept below 65dB for a better working environment.
Does this machine require an external exhaust system?
No, the unique smokeless pump design eliminates the need for an external exhausting system.
What are the energy-saving capabilities of this equipment?
This laminating machine is designed for high efficiency, offering approximately 30% energy savings compared to other brands.
What certifications does the solar module production line hold?
All machines in our PV production line have passed CE and ISO certifications, ensuring compliance with international standards.
