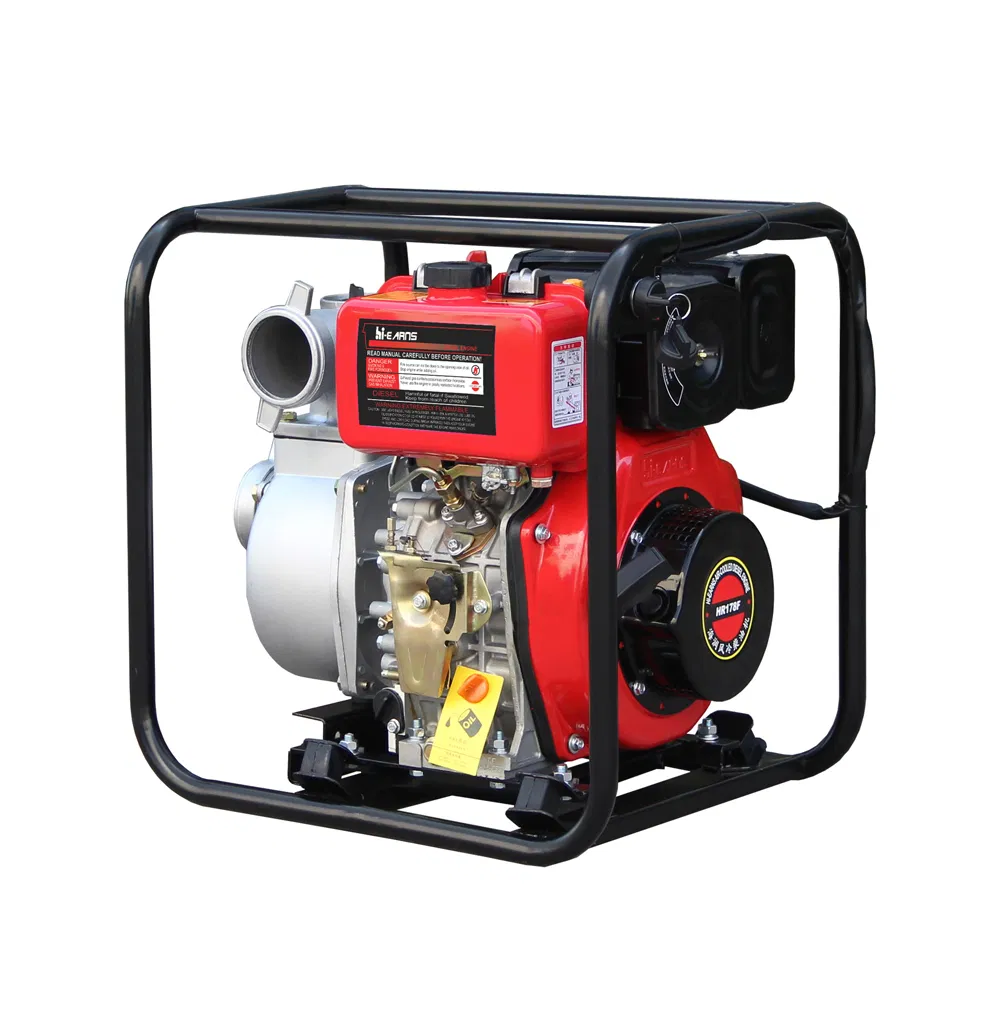

3 inch Diesel Water Pump Electric Start (DP30)
| Technical Specifications | ||
| Model | DP30E | |
| WATER PUMP | Suction, discharge port diameter (mm/in) | 80 (3") |
| Cont. head (m) | 28 | |
| Self-priming time (s/4m) | 120 | |
| Max suction head (m) | 8 | |
| Cont. capacity (m³/hr) | 50 | |
| ENGINE | Engine model | HR170F |
| Horse power (hp) | 6 | |
| Speed (rpm) | 3200 | |
| Type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | |
| Displacement (cc) | 227 | |
| Bore × stroke (mm) | 70 × 59 | |
| Starting system | Electric | |
| Fuel tank capacity (L) | 3.5 | |
| STANDARD FEATURES | Oil alert | Yes |
| Inlet/Outlet Connecter | Yes | |
| Filter | Yes | |
| Seal ring | Yes | |
| Hoop | Yes | |
| OPTIONAL FEATURES | Luxury big fuel tank | Optional |
| Electric Start | Optional | |
| DIMENSIONS | Dimension (L×W×H) (mm) | 560 × 450 × 720 |
| Dry weight (kg) | 54 | |
