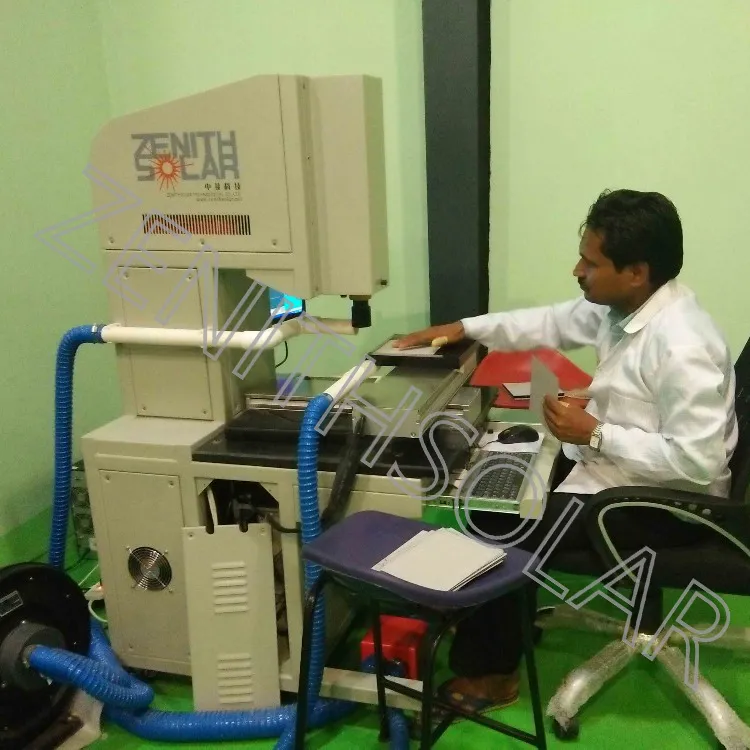

PV Module Production Device Solar Cell Fiber Laser Dicing Cutting Machine
PV Module Production Device Solar Cell Fiber Laser Dicing Cutting Machine
1 / 2
PV Module Production Device Solar Cell Fiber Laser Dicing Cutting Machine
PV Module Production Device Solar Cell Fiber Laser Dicing Cutting Machine

PV Module Production Device Solar Cell Fiber Laser Dicing Cutting Machine

Customization: Available
After-sales Service: Life Time
Warranty: 1 Year, 1 Year
Send Inquiry

Product Description

Basic Information
Cooling System
Air Cooling
After-Sales Service
All Life
Application
PV Industrial
Applicable Material
Silicon
Laser Classification
Fiber Laser
Integrated Design
All Part Inside & Small Size
Laser
Fiber Laser
Motor
Servo Motor
Computer
Ipc(Industrial Personal Computer)
Software
English
Condition
New
Certification
CE, ISO
Material
Monocrystalline Silicon
Transport Package
Normal Container
Specification
30W
Origin
China
HS Code
84561000
Production Capacity
100set/Year
Product Description

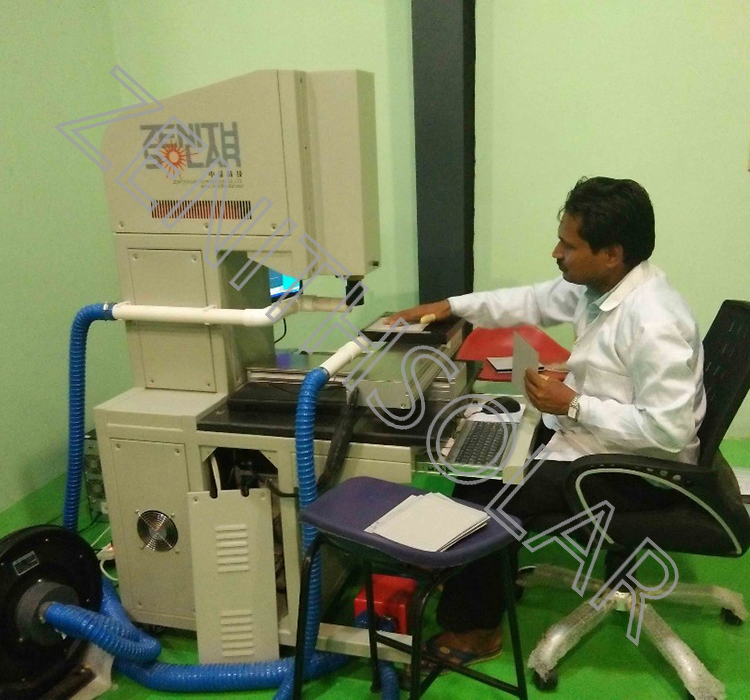

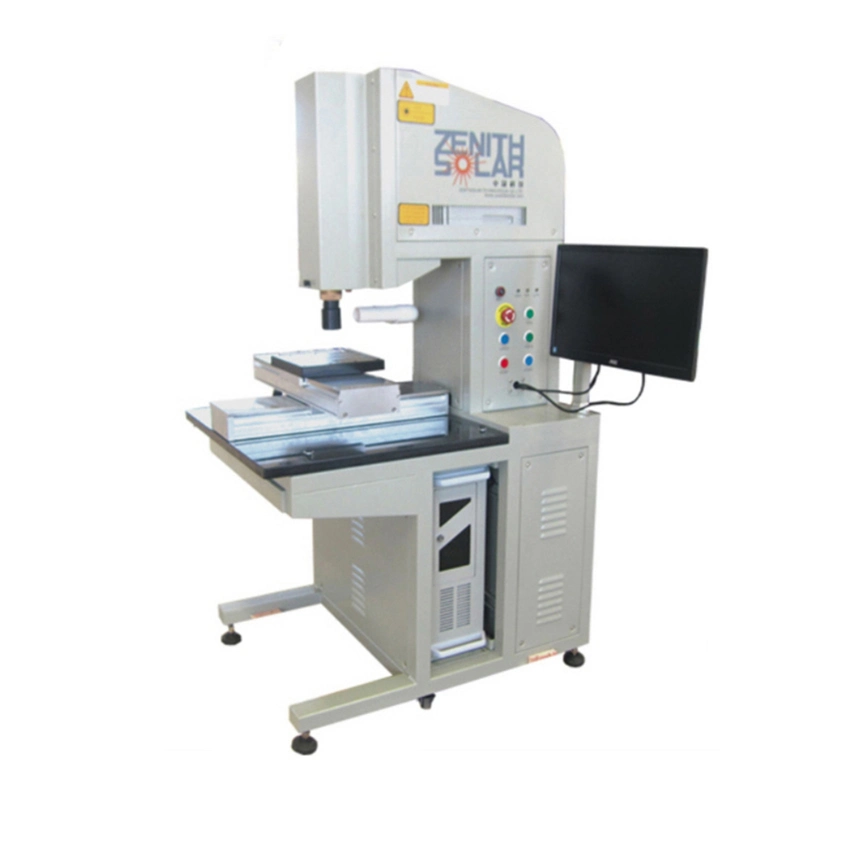

PV Module Production Device Solar Cell Fiber Laser Dicing Cutting Machine

PV Module Production Device Solar Cell Fiber Laser Dicing Cutting Machine

ModelSFS30 Laser Power30W
Scriber Precision≤±0.1mm Laser Wavelength1064nm
Scriber Line Width≤30μm Laser Repetition Frequency30KHz~60KHz
Maximum Scribing Speed≤600mm/s Work Platform Size220*220mm
PowerAC220V/50HZ/2.5KW Cooling MethodAir-cooling
Work Table Single gas chamber negative pressure adsorption
Technical Characteristics

Suitable for crystalline silicon solar cell scribing, high configuration, professional control software, free-maintenance, easy to operate.

01. High Configuration
Adopts Raycus custom fiber laser source, better beam quality, finer slit (30μm), and smoother edges.
02. Free Maintenance
Standard modular design for continuous operation without interruption and zero consumable part consumption.
03. Convenient Operation
Integrated air-cooling settings makes the device smaller and simpler to operate.
04. Dedicated Software
Easy-to-use laser scribing control software with real-time path display.
05. High Efficiency
Maximum scribing efficiency can reach up to 600mm/s.
06. Automation Ready
Can be equipped with automatic loading and unloading mechanisms to save labor.
About Production Line

We can supply customized complete production lines. Engineers can adjust the layout and performance according to specific customer requirements.

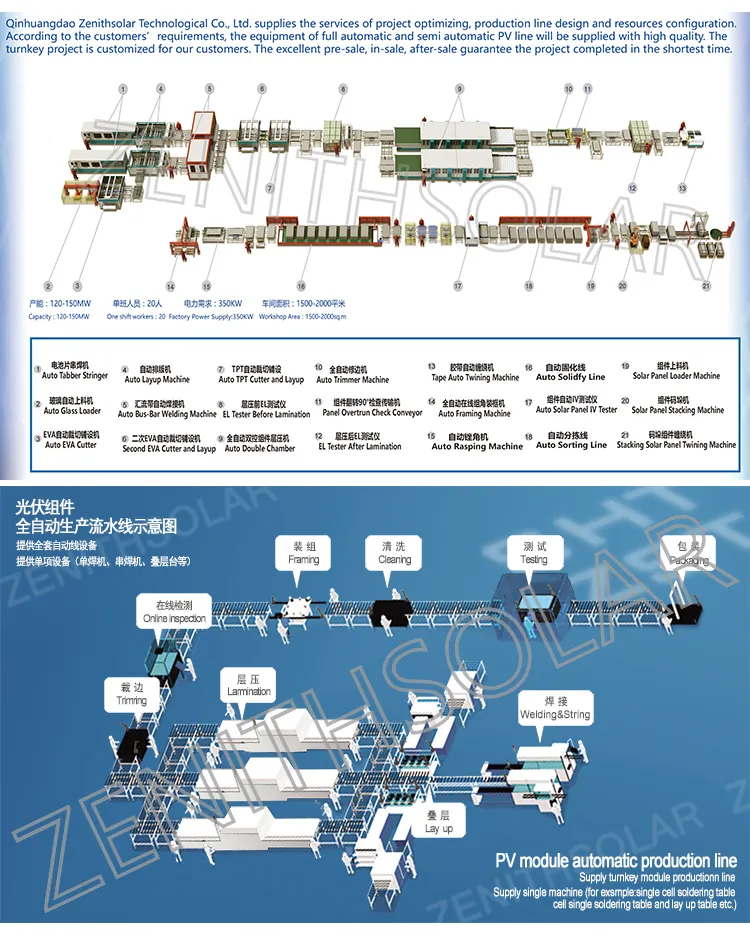

Production Line View 1
Production Line View 2
Production Line View 3
Production Line View 4
Production Line View 5
Production Line View 6
Frequently Asked Questions
What materials is this laser dicing machine suitable for?
This machine is specifically designed for silicon materials, particularly monocrystalline silicon solar cells used in the PV industry.
What kind of laser source does the machine use?
The machine utilizes a high-quality Fiber Laser (Raycus custom) with a 1064nm wavelength for precise scribing.
Does the machine require complex maintenance?
No, the machine features a modular design that is virtually maintenance-free, allowing for continuous operation.
What is the cooling method for the 30W laser?
The system uses an integrated air-cooling method, which makes the device more compact and easier to operate compared to water-cooled systems.
Can the machine be integrated into an automated production line?
Yes, it can be equipped with automatic loading and unloading mechanisms to enhance production efficiency and reduce labor costs.
What is the maximum scribing speed?
The maximum scribing speed can reach up to 600mm/s with a precision of ≤±0.1mm.
