| 30HP Solar Water Pump System | |||
|---|---|---|---|
| Items List | |||
| Item Name | Description | Unit | Quantity |
| Solar panel | 260W / 31.2V poly | pc | 136 |

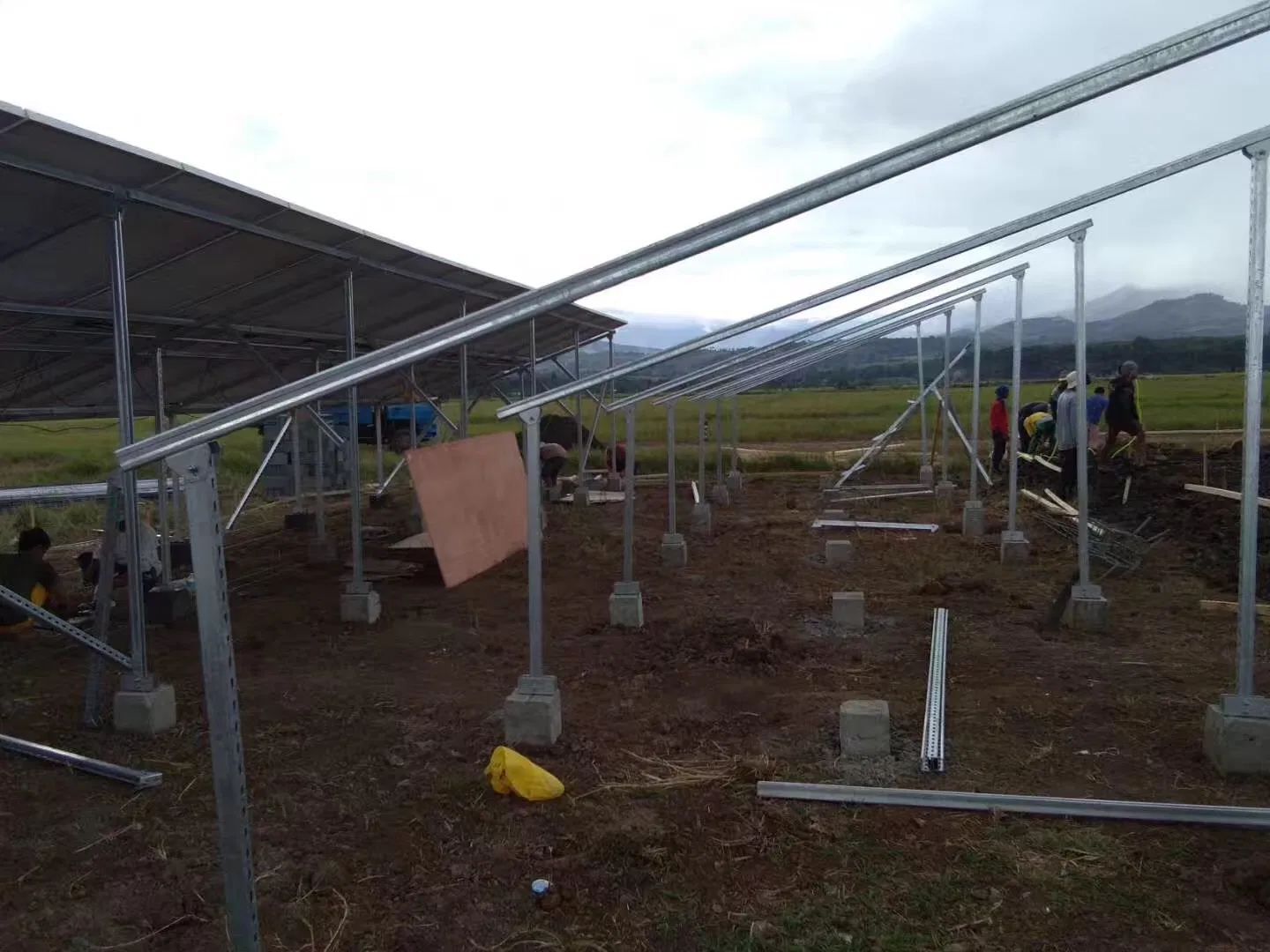

| mounting structure | Q235 material, Hot-dip zinc | set | 1 |
| PV cables | 4mm2, 400m | set | 1 |
| pump inverter | Model 30000H | pc | 1 |
| Water pump | 30HP | pc | 1 |
| Pump cables | 3*16mm2, 200m | set | 1 |
| Safety rope | Pump Depth * 2 | pc | 1 |
| Check Value | check value with connector | set | 1 |
| Other accessories | Raw material tape, MC4 connector, pump cable connector, etc | set | 1 |

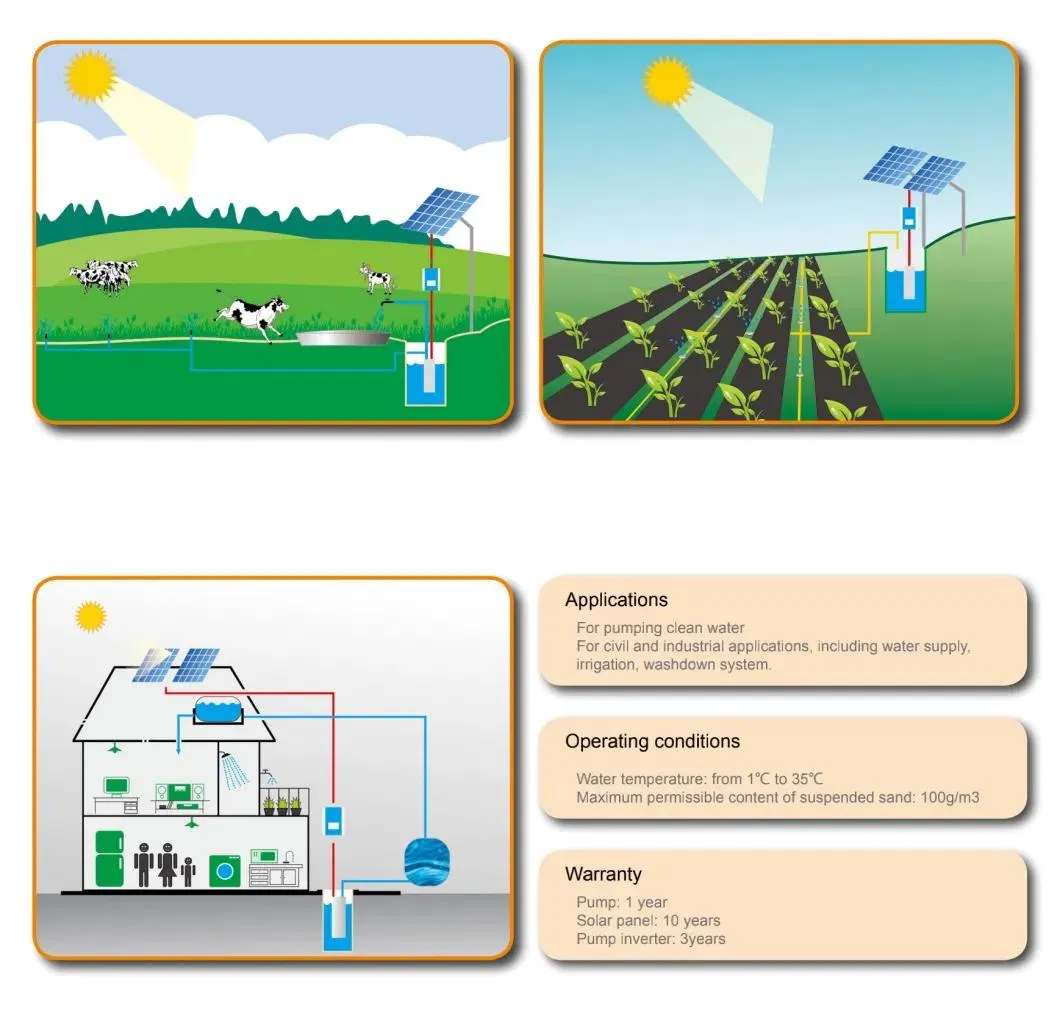

Solar power system has a wide range of applications, such as offering domestic water, helping agricultural and forestry irrigation, and desertification control. It can also supply water to sea islands, animal husbandry, and water treatment projects.

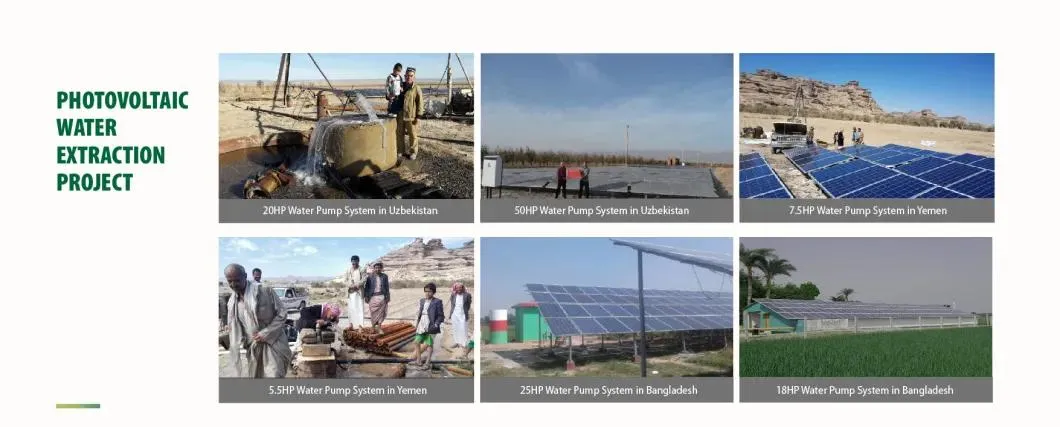

With the promotion of new energy utilization, recently the usage of solar water pumps is increasing. You can find them in government projects, landscape architectures and fountains of city squares, parks, tourist attractions, hotels and residential areas.

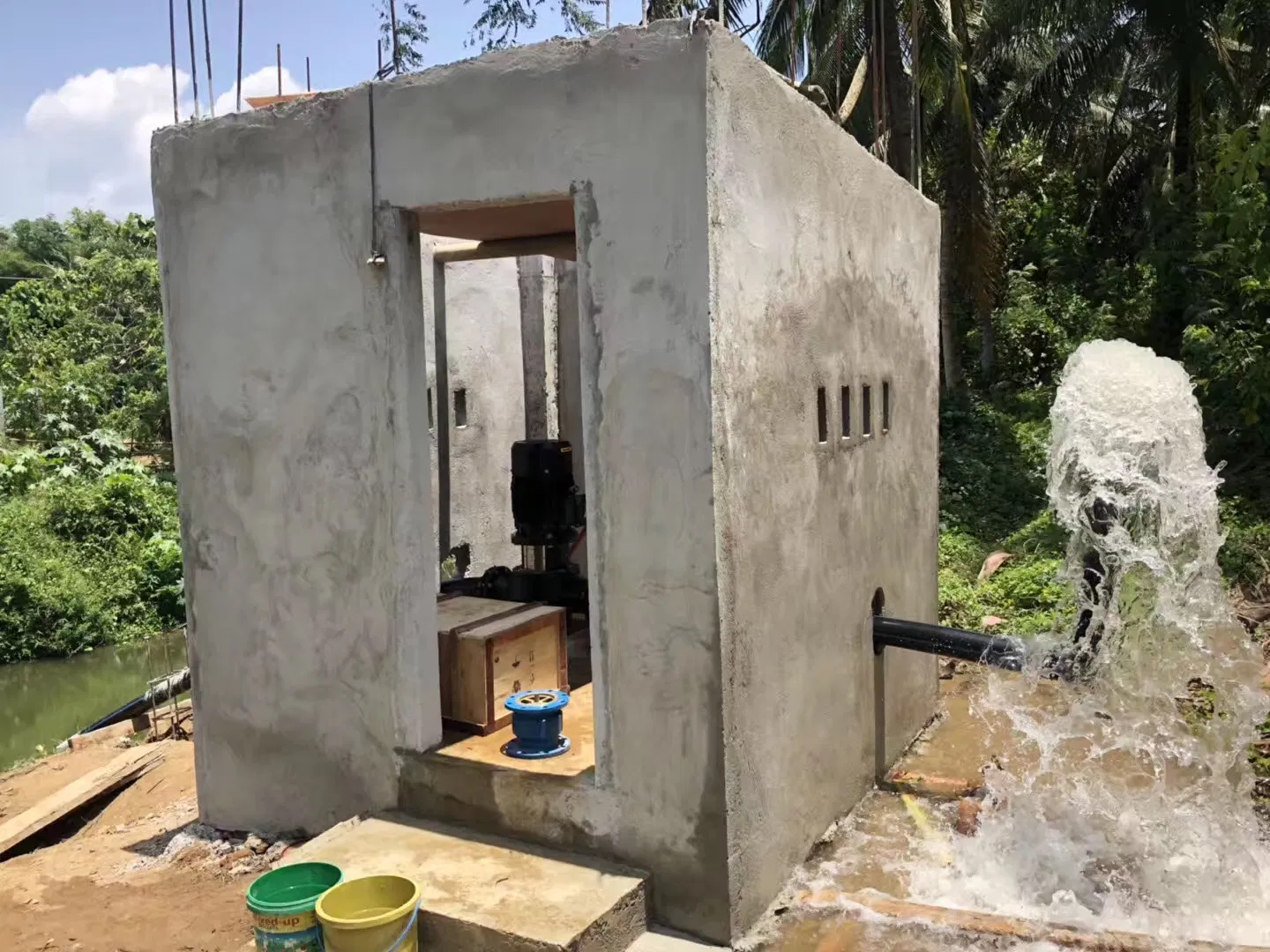

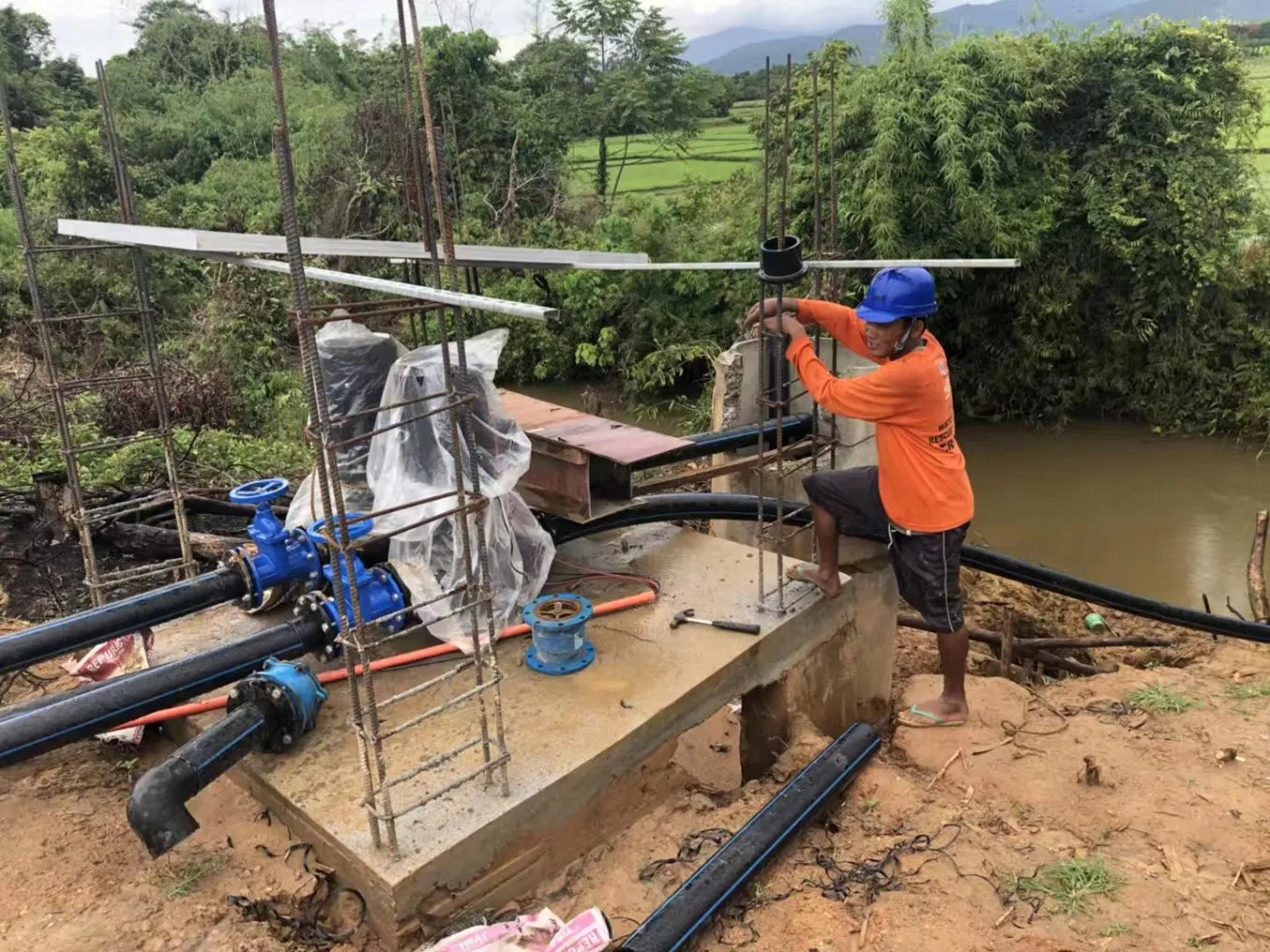

Solar pump systems are high quality products designed and installed for drinking water supply, livestock watering and smaller irrigation applications without any pollution. They are specially designed to use solar power directly. No infrastructure or grid is required for site selection. Optional grid can be back-up to meet day and night running without disturbance.

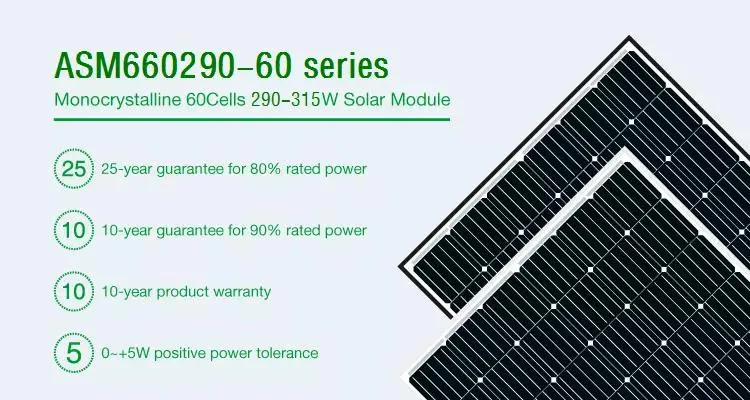

Peak Power Watts: 290W (ASM660290)
Maximum Power Voltage: 32.2V
Maximum Power Current: 9.02A
Open Circuit Voltage: 39.5V
Short Circuit Current: 9.55A
Dimensions: 1640×992×35 mm
Weight: 18.6 kg

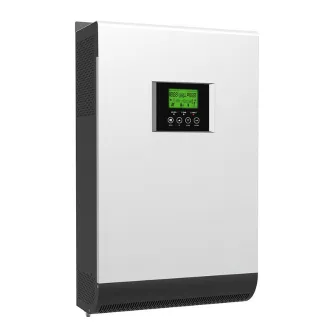

Max. DC Input Power: 8.5KW
Max. DC Input Voltage: 600V
MPPT Voltage Range: 90-520V
Rated Grid Voltage: 208/240V(US); 230V(EU)
Warranty: 5-10 Years
Wifi Stick For STD, Lan & GPRS Optional.

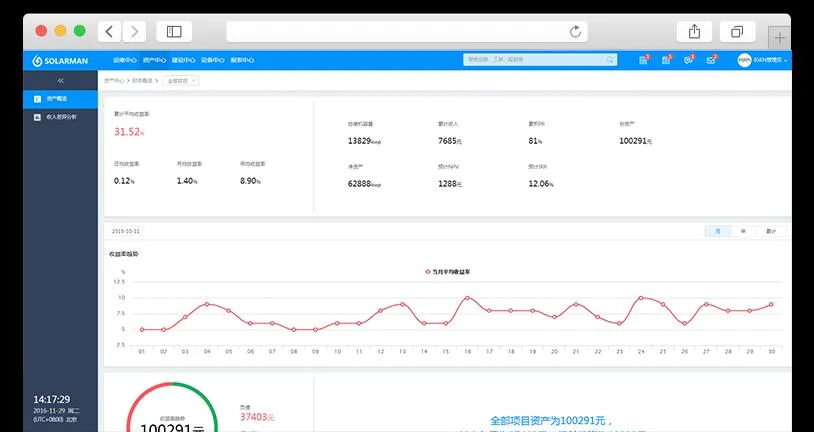

Data Logging Stick allows you to receive information from your solar power system everywhere and every time via Wi-Fi, Lan or GPRS. App available for PC, IOS & Android.

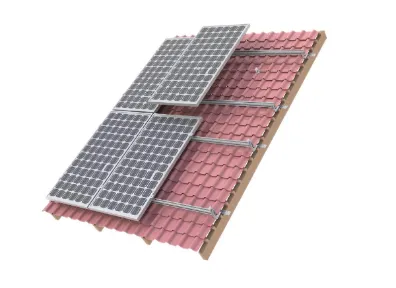

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35, 40, 45, 50mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional
Cable Clip & Tie Optional
Capacity: 48V 100Ah
Dimension: 4-5U standard rack mountable.
